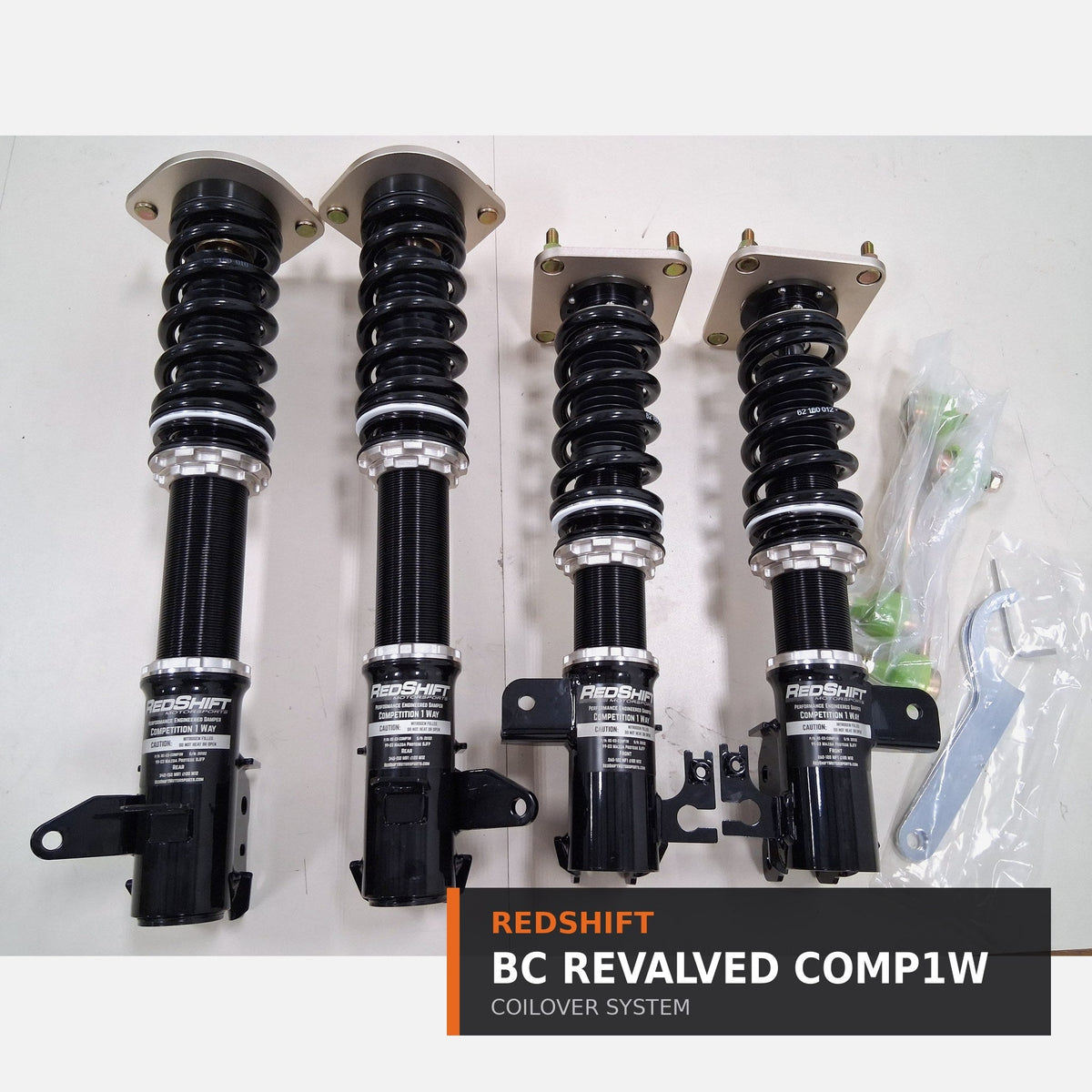

RedShift BC Revalved Comp 1W Coilovers 2013-23 Jaguar F-TYPE (AWD) [ZX-06-COMP1W]

RedShift BC Revalved Comp 1W Coilovers — a BC Racing BR kit, completely re-valved and rebuilt at RedShift.

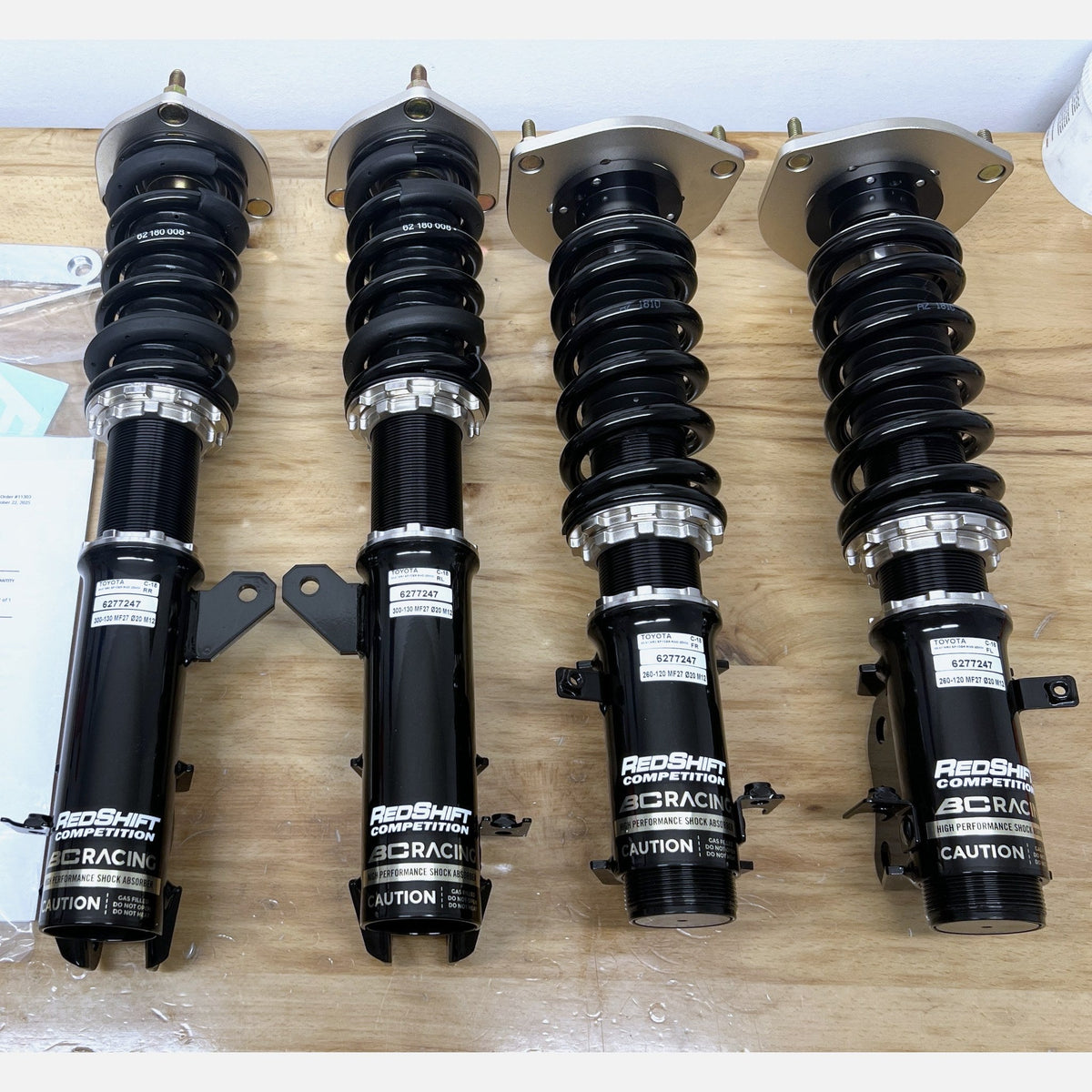

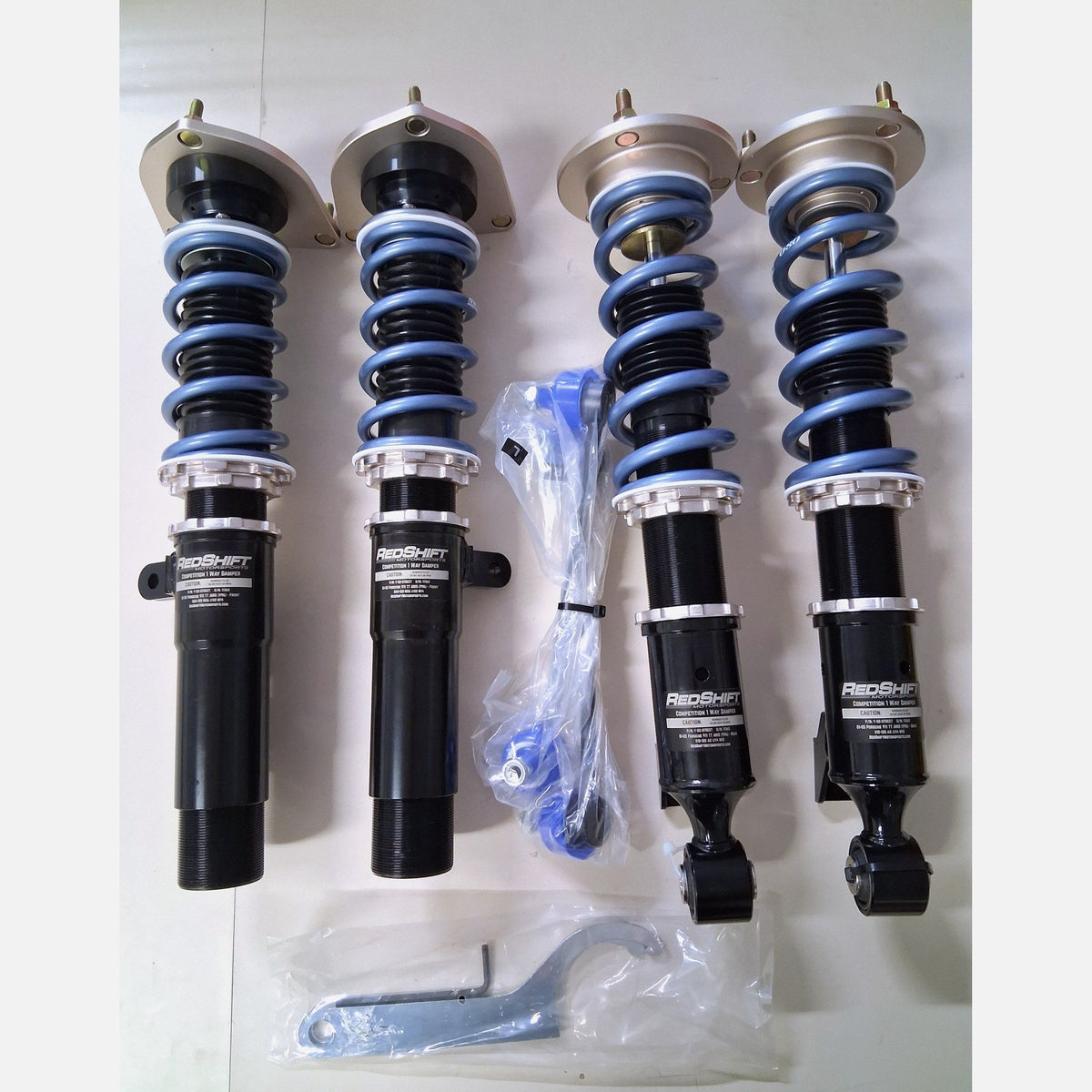

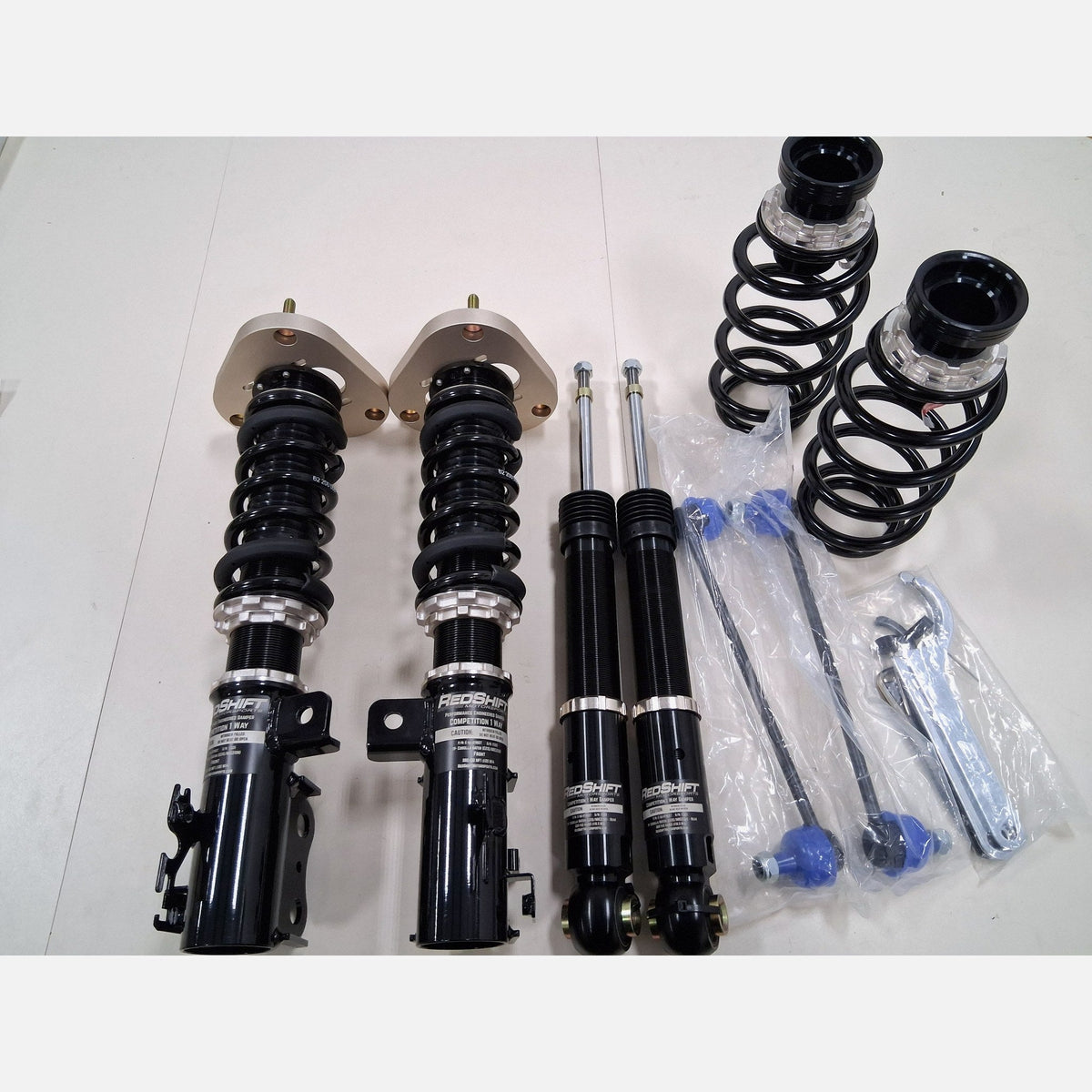

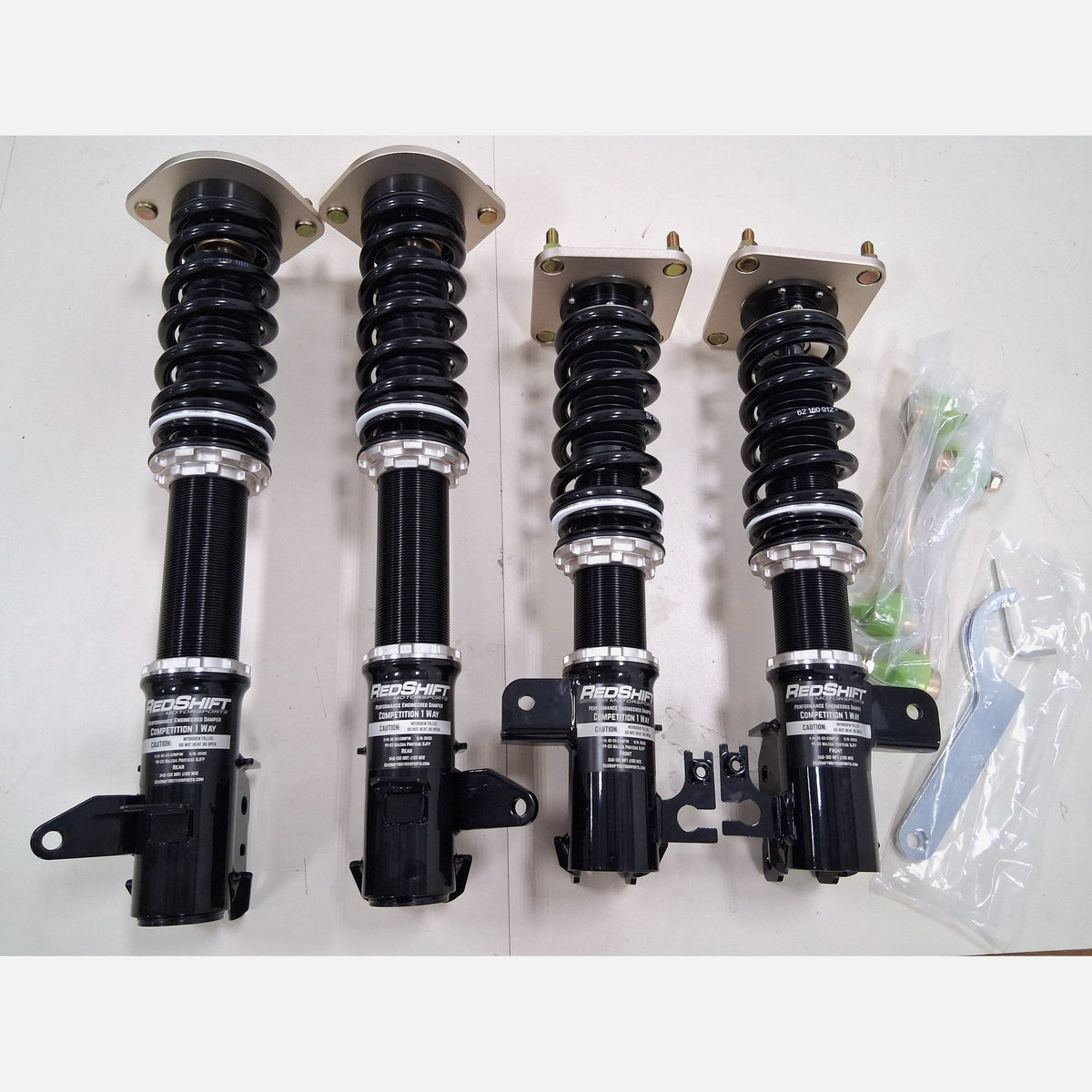

Start with the proven BC Racing BR Series hardware for the 2013-23 Jaguar F-TYPE (AWD) — then let RedShift take it apart, re-valve the dampers to our Comp 1W curves, and rebuild it with RedShift labelling. You keep BC’s rebuildable monotube platform, pillow-ball mounts and camber plates (where applicable) and full-length height adjustment; you gain damping built to win. Includes all springs, mounts, height adjusters and tools.

Our coilovers use a different balance and shape of compression and rebound damping than typical street coilovers: digressive compression and linear rebound for maximum grip. Compression is tuned to do more of the work controlling the sprung mass, which reduces dive under braking, sharpens turn-in and makes it far easier to feel the car and hit your marks. Rebound is made linear (and relatively lighter than street coilovers) so the tire stays planted under braking, at turn-in, mid-corner and on the drive wheels at exit.

Valving (select above): Street Comp 1W · Comp 1W · 2-Way Remote Adjustable · 3-Way Remote Adjustable.

Specifications

• BC standard spring rates: front 11 kg/mm / rear 9 kg/mm
• Front top mounts: rubber OEM-style top mounts (BC type RS)
• Dampers: monotube, 30-click damping adjustment (compression and rebound together)
• Adjustment: full-length ride-height adjustment, patented concave lower locking ring

Springs: choose any spring rate, front and rear, at no charge (whole kg/mm). Standard springs are available up to 10 kg/mm; rates above 10 kg/mm require Swift springs (+$380, special order for now).

Warranty: All RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways. RedShift coilovers carry our 2-year bumper-to-bumper warranty, extendable to 3 — every part of the kit, hard parts and consumables alike: dampers, springs, spherical bearings, mounts, seals, everything — for the original purchaser. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page.
