FAPO PS+ 16-Level Coilovers BMW Z4 E85/E86 2002-2008 [PS006720]

FAPO PS+ Coilovers — 16-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

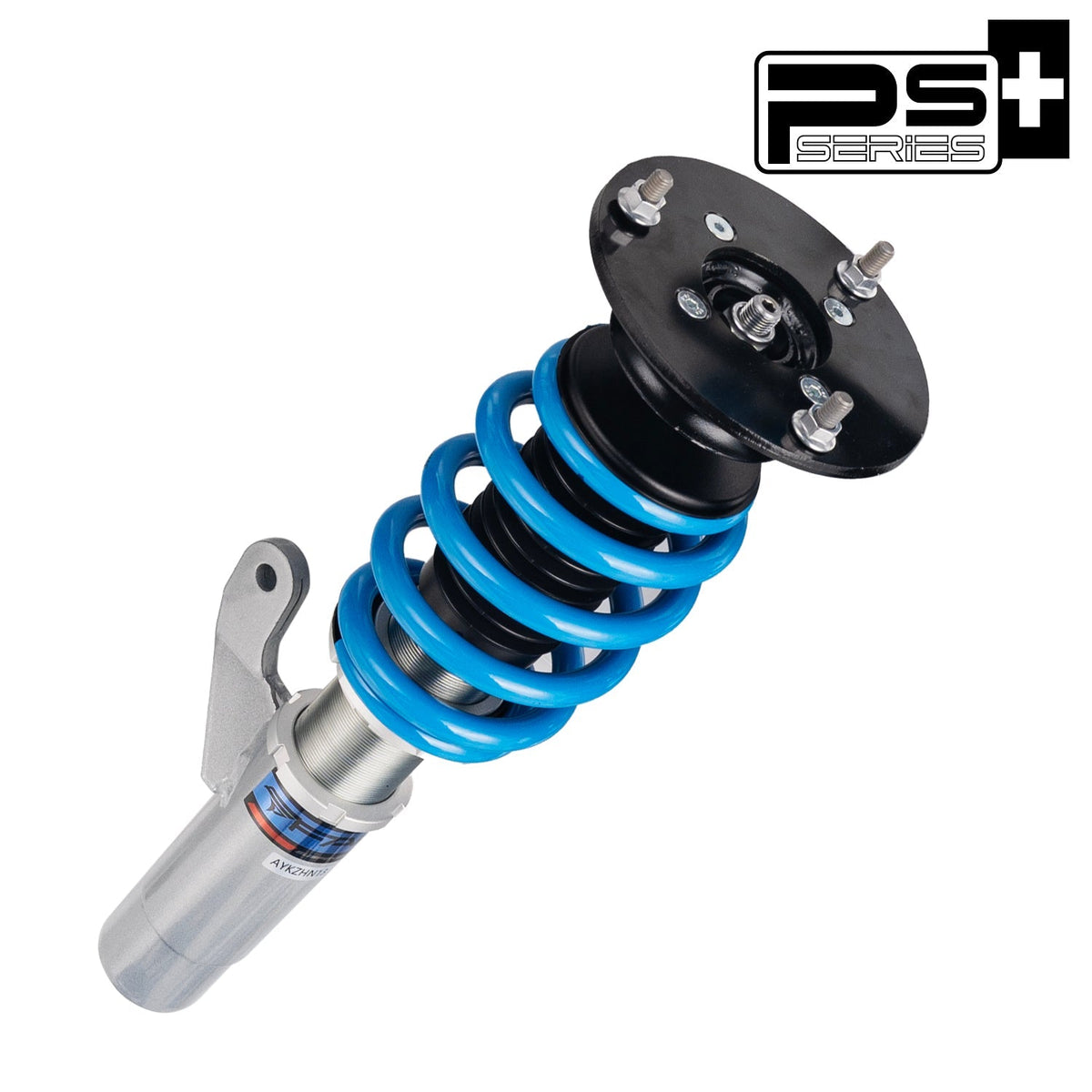

The FAPO PS+ kit for the BMW Z4 E85/E86 2002-2008 is a full-length threaded-body monotube coilover with 16 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• BMW Z4 E85 / E86 2002-2008

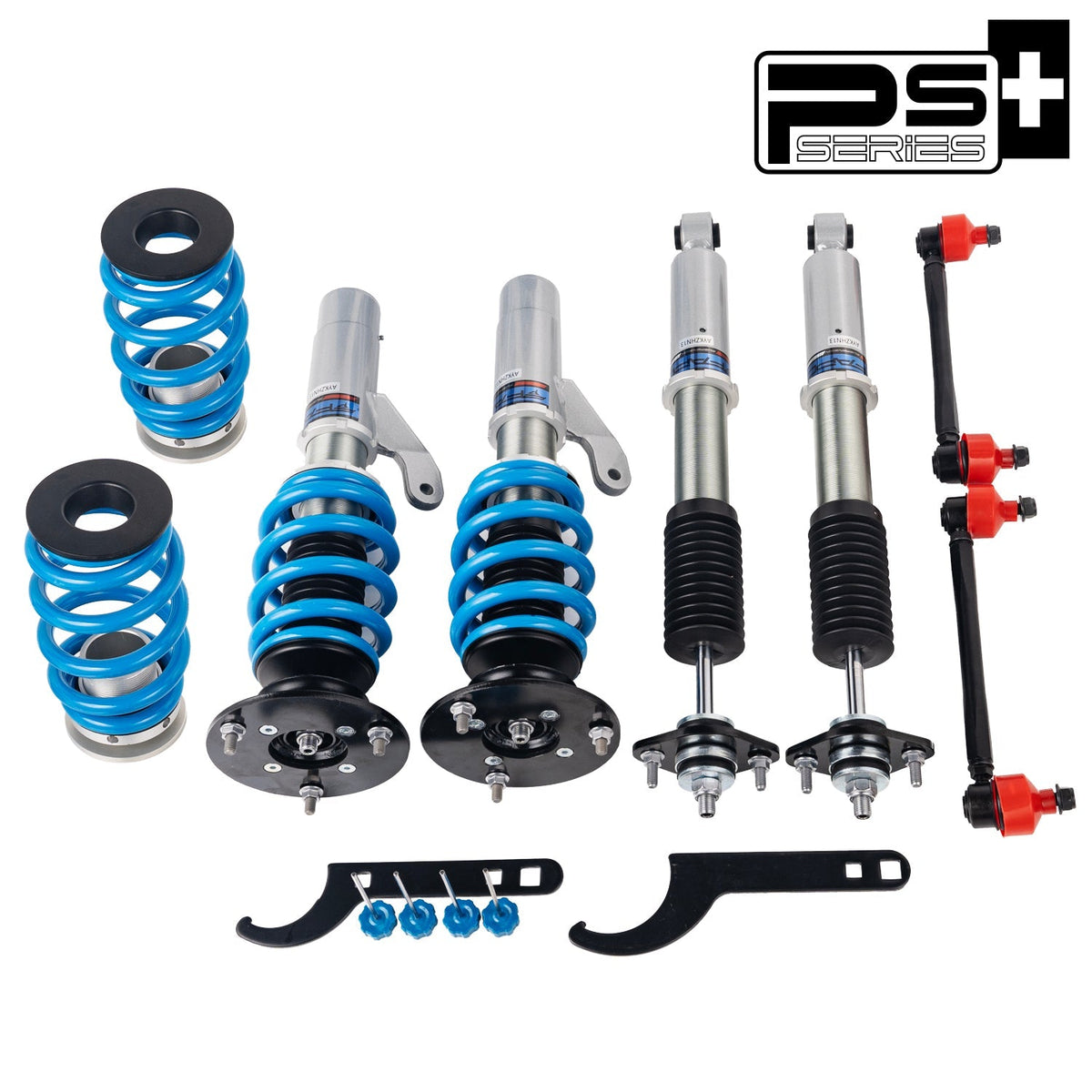

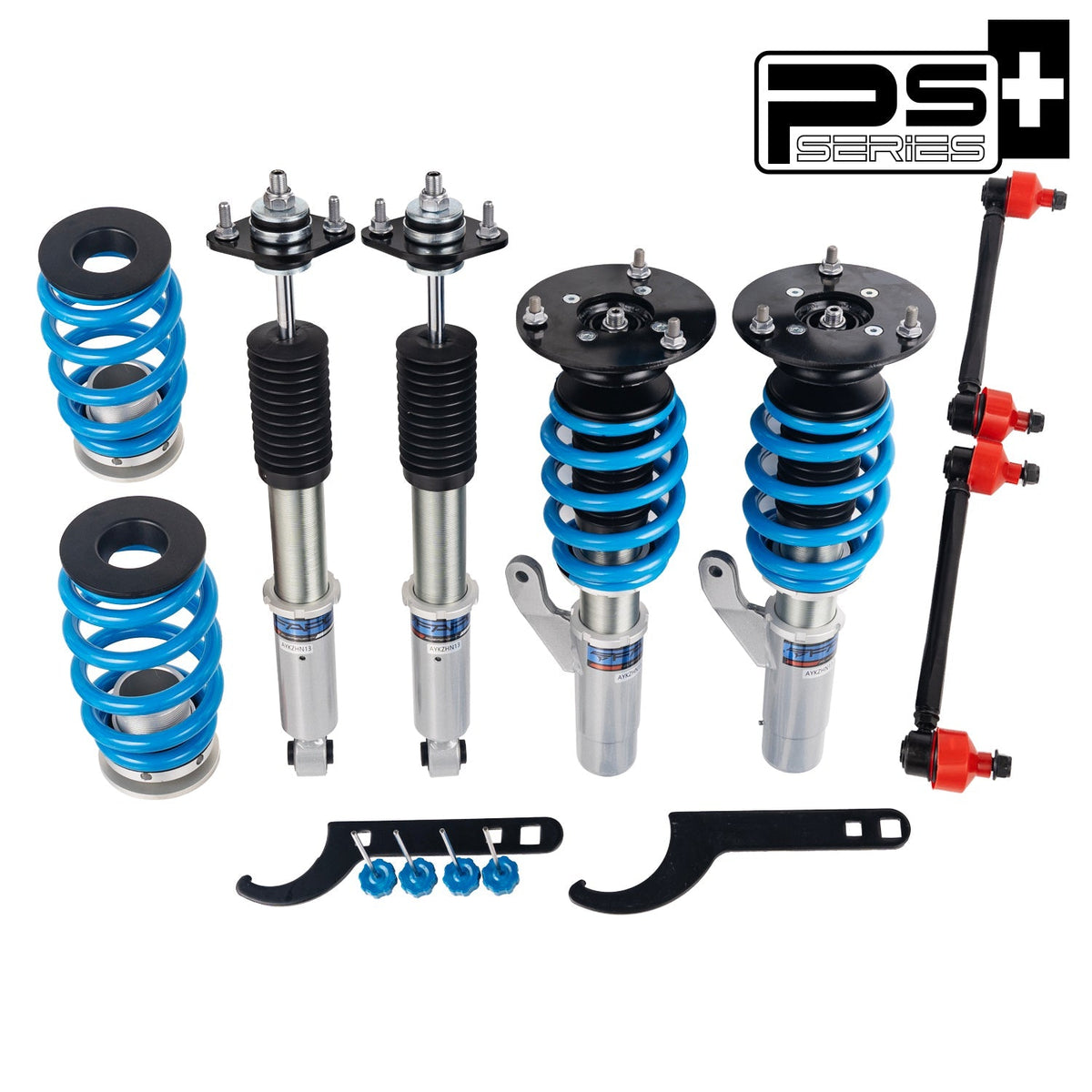

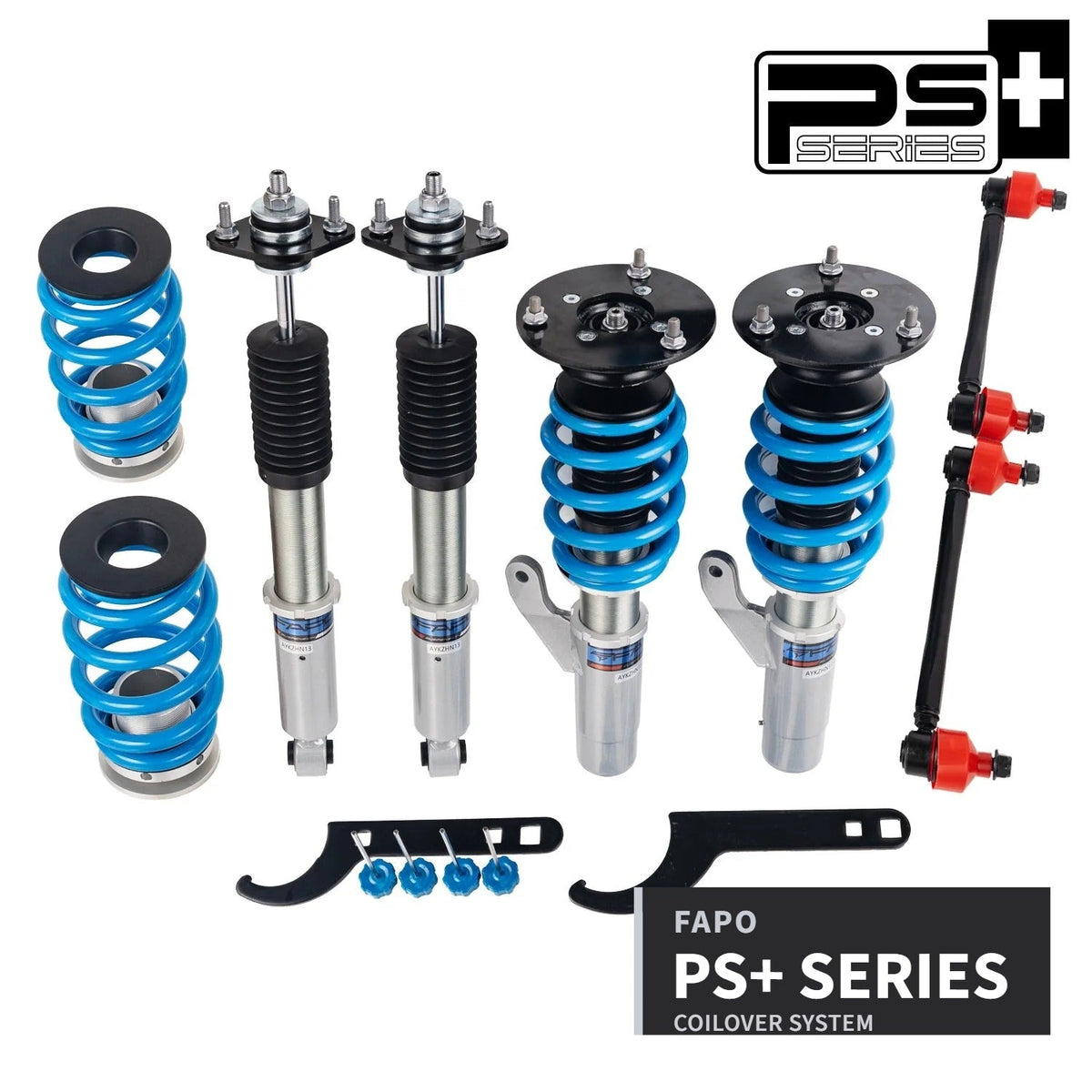

Package Includes

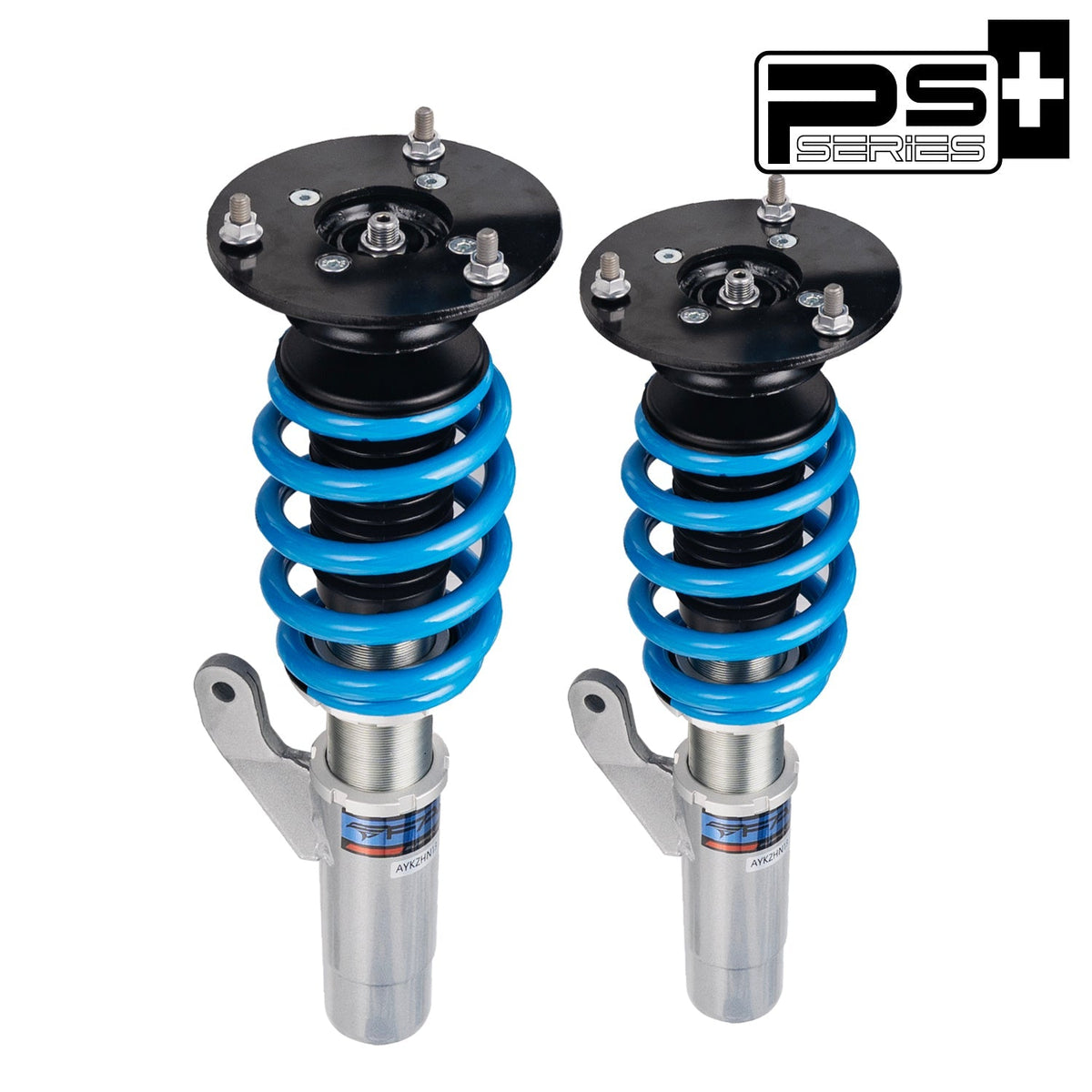

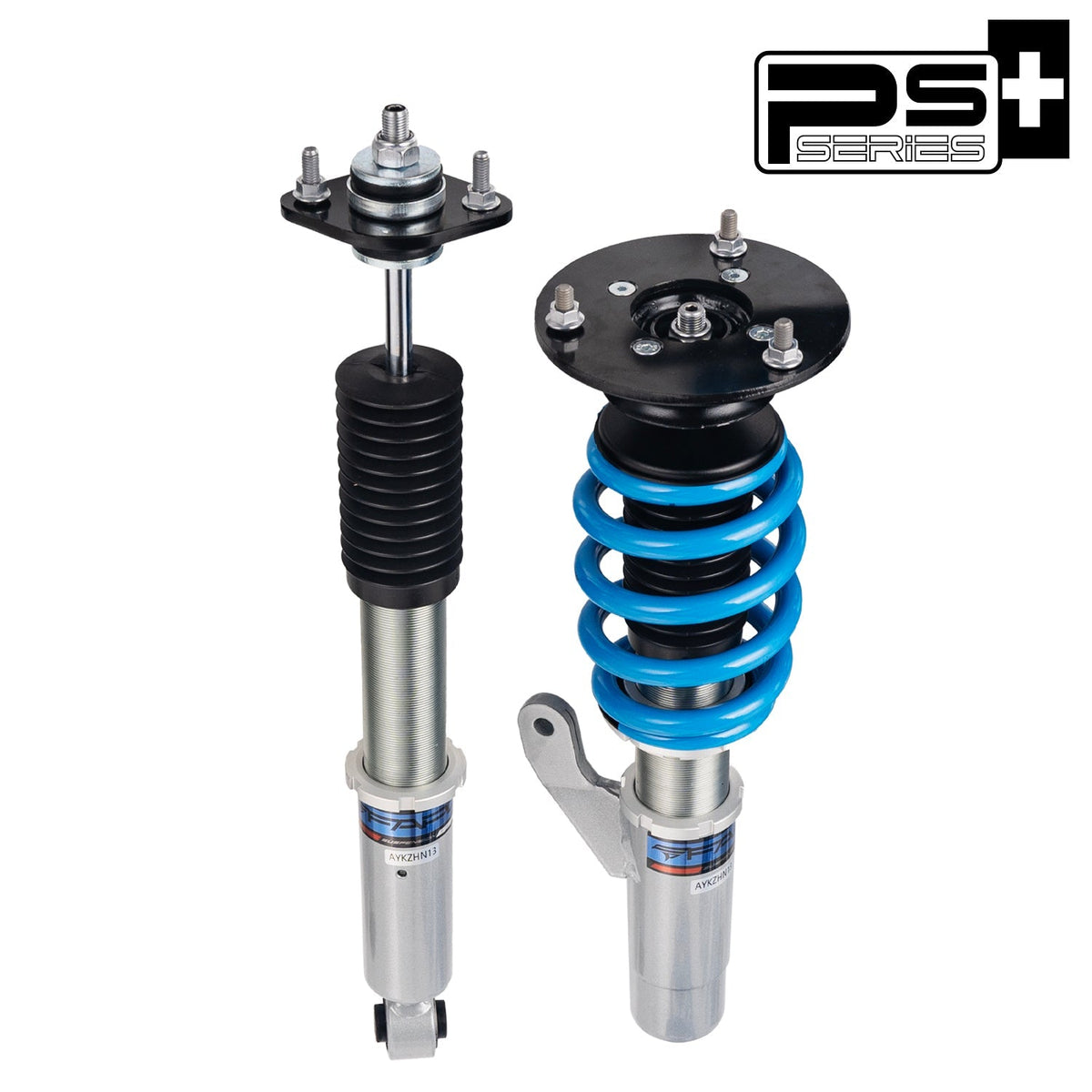

• Front coilovers × 2 pcs

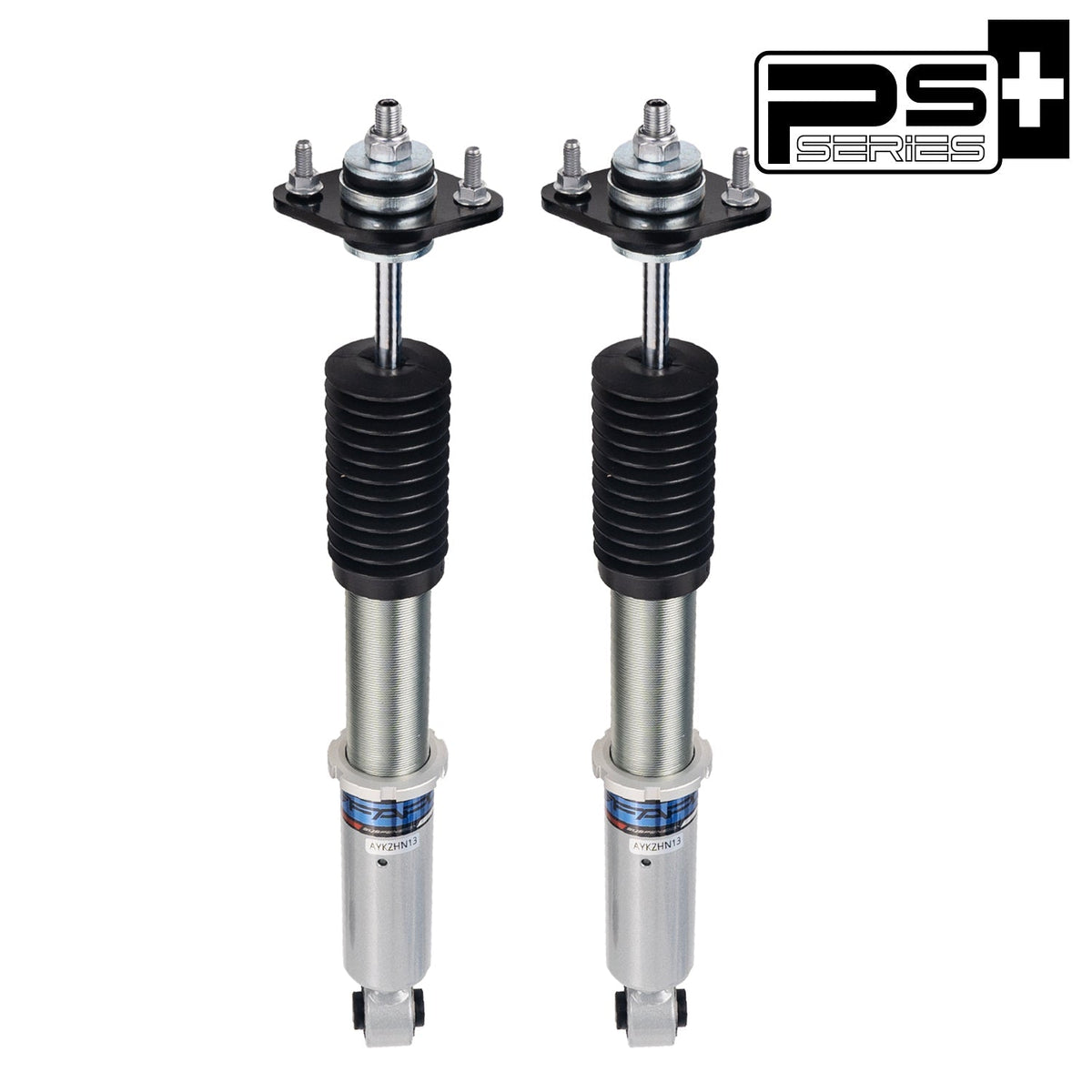

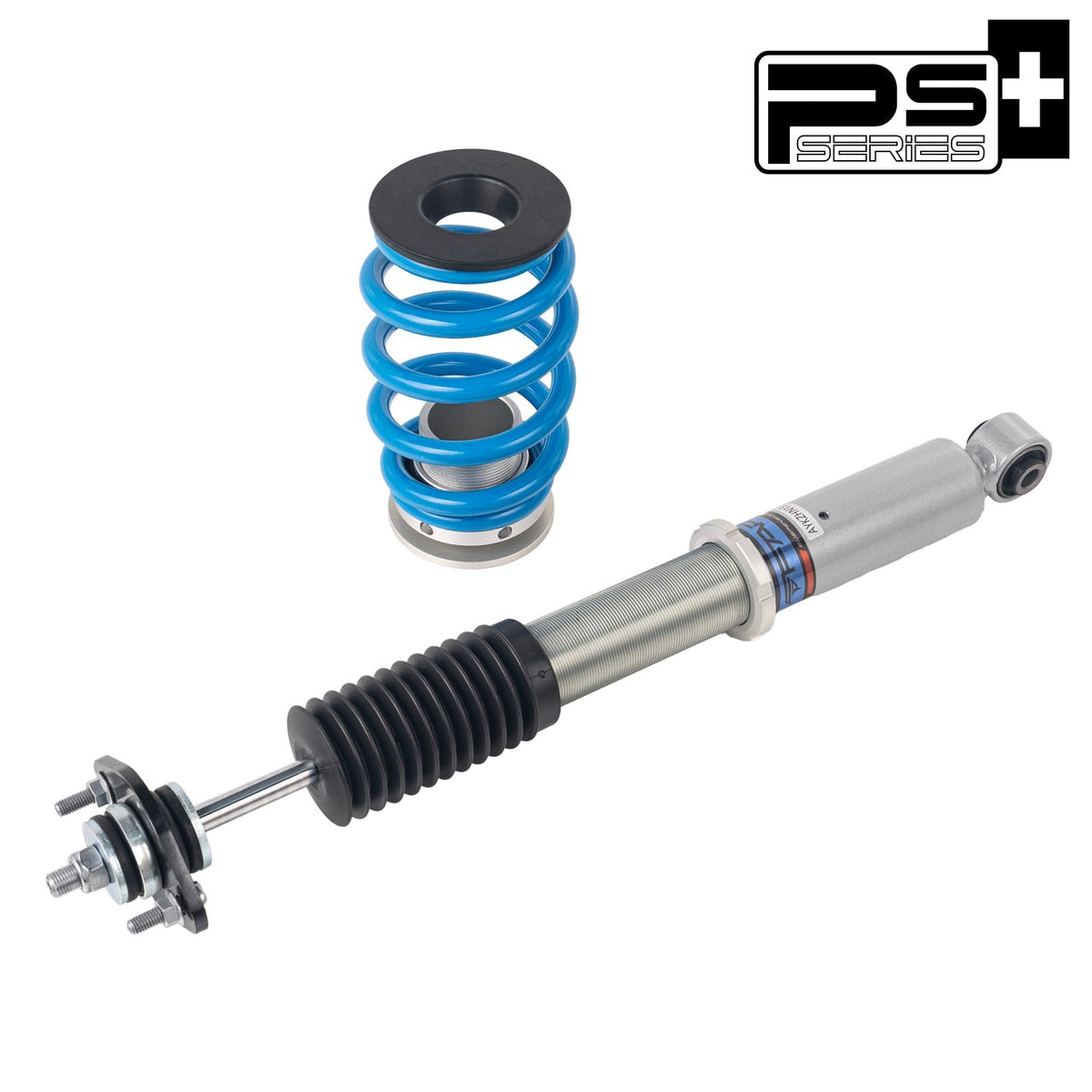

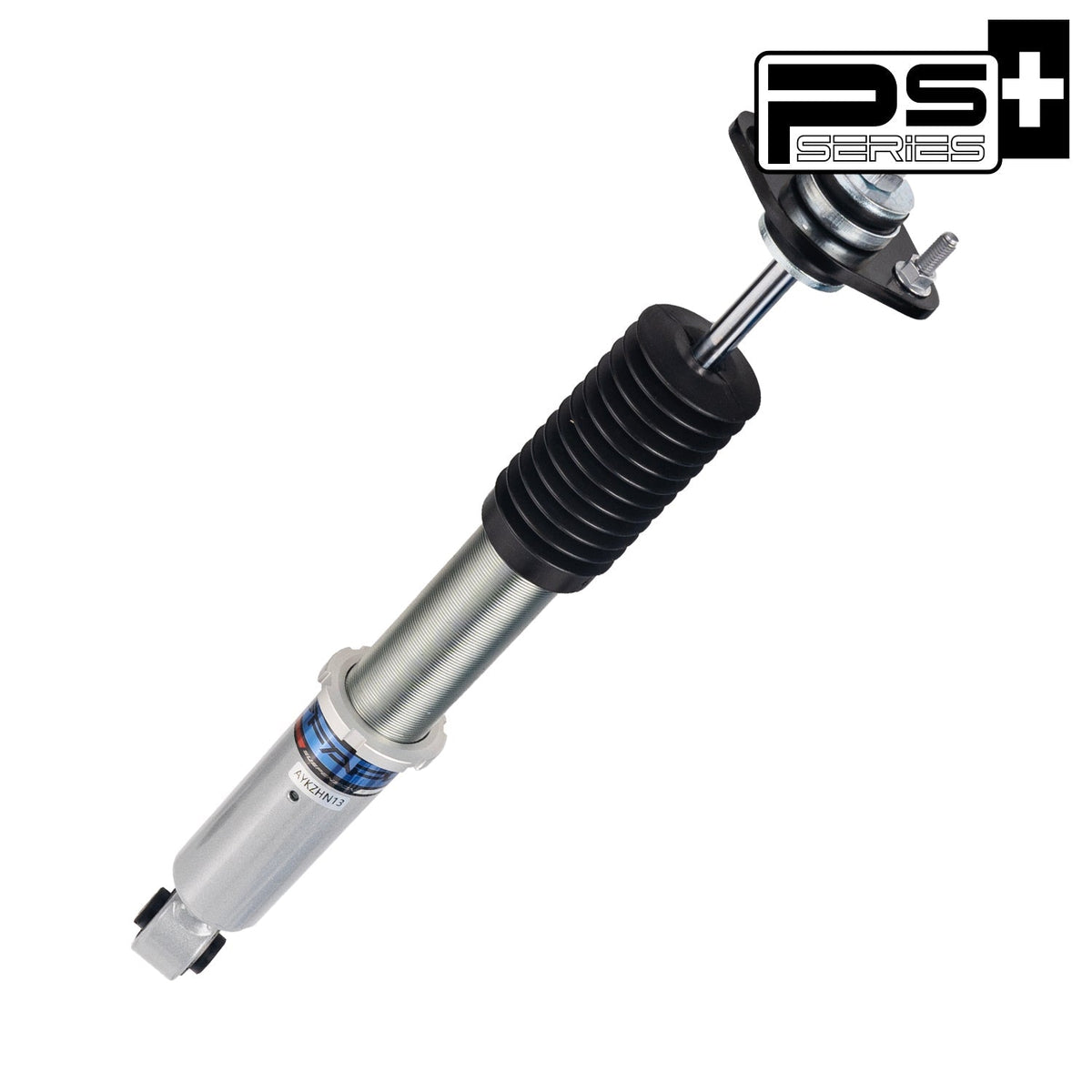

• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar links × 2 pcs

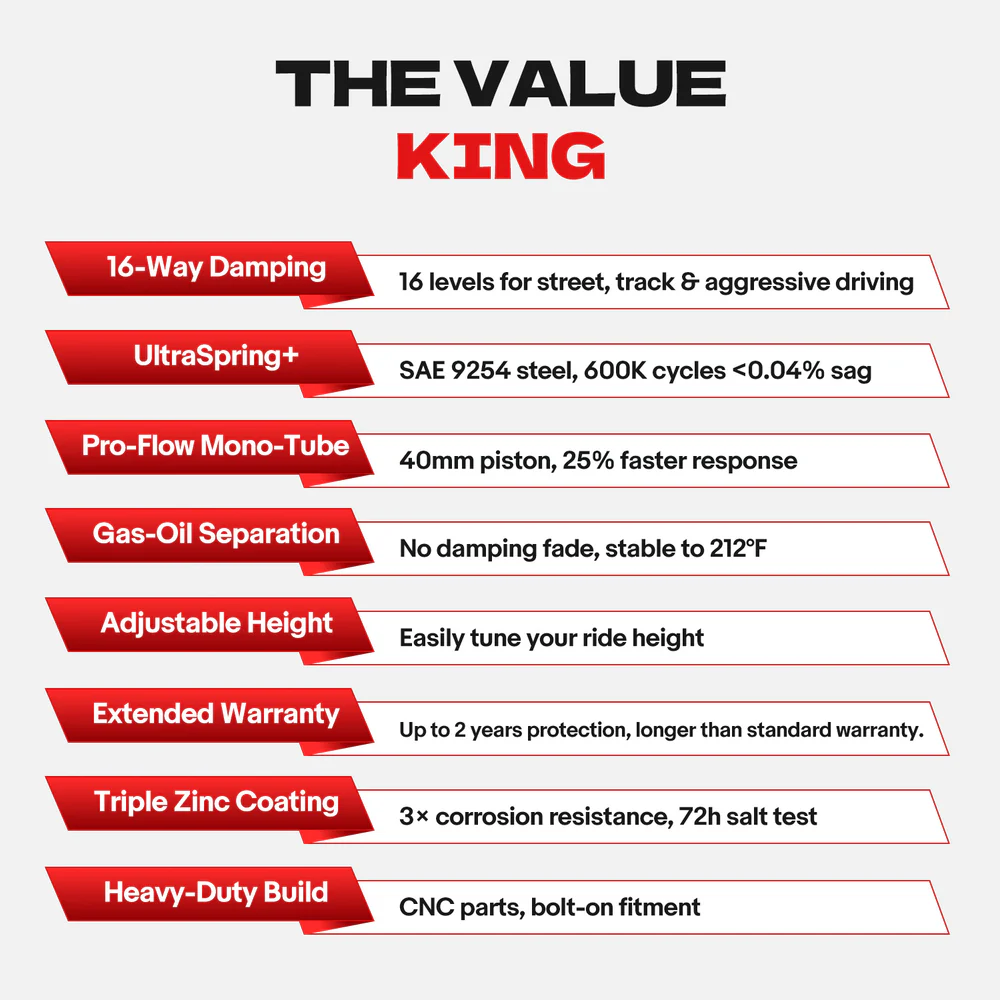

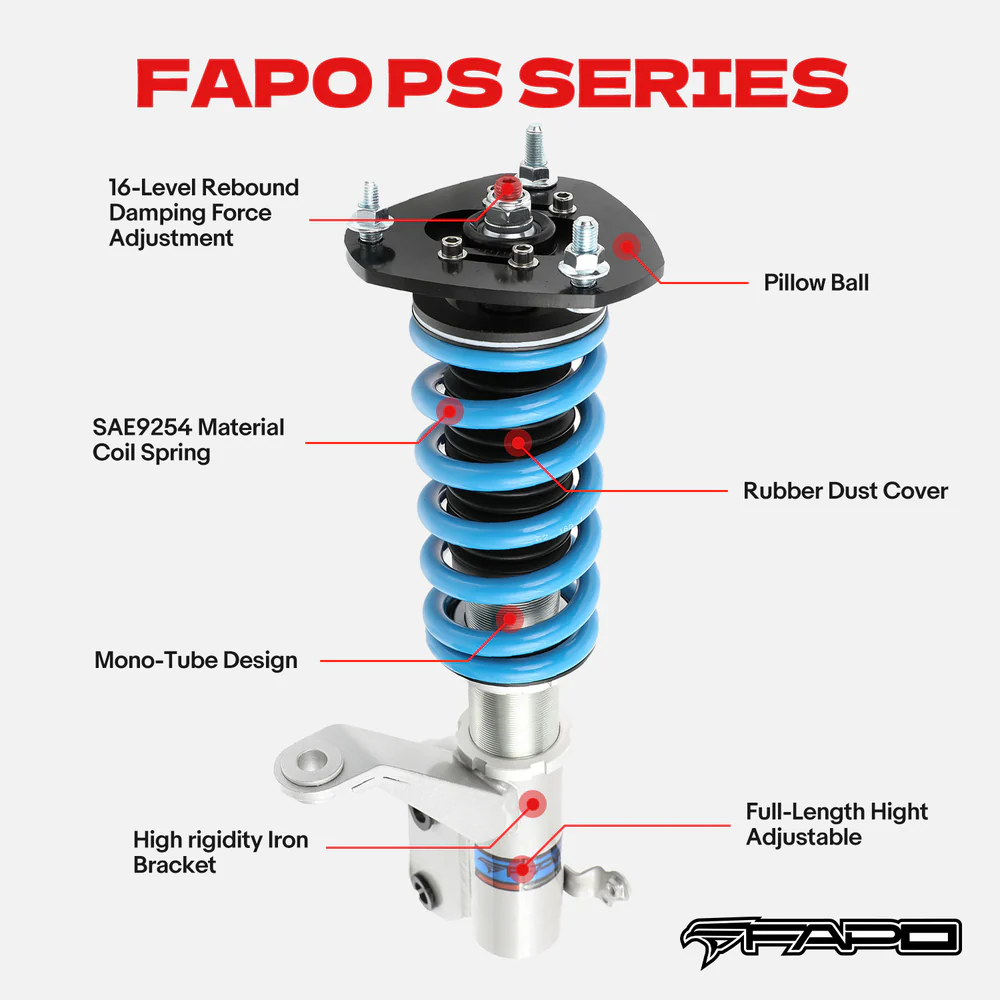

Features

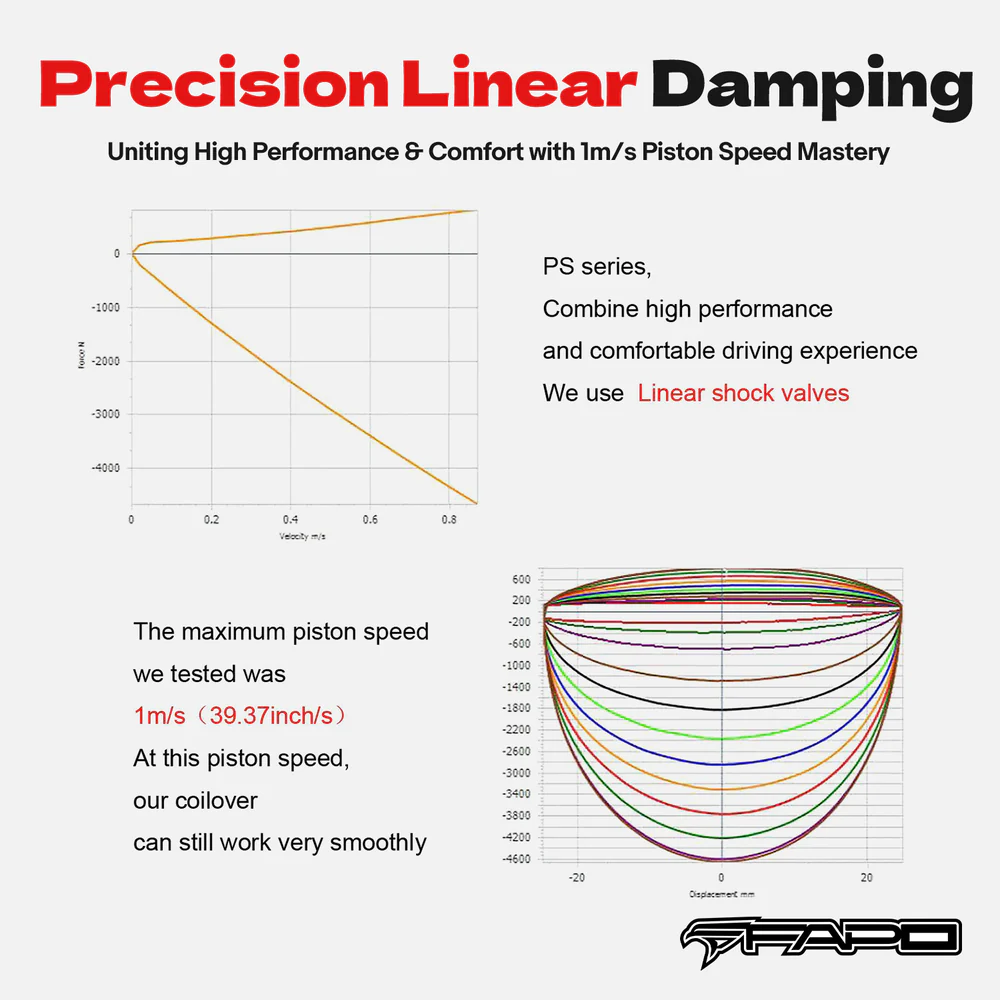

• 16-level adjustable damping for tuning between comfort and control

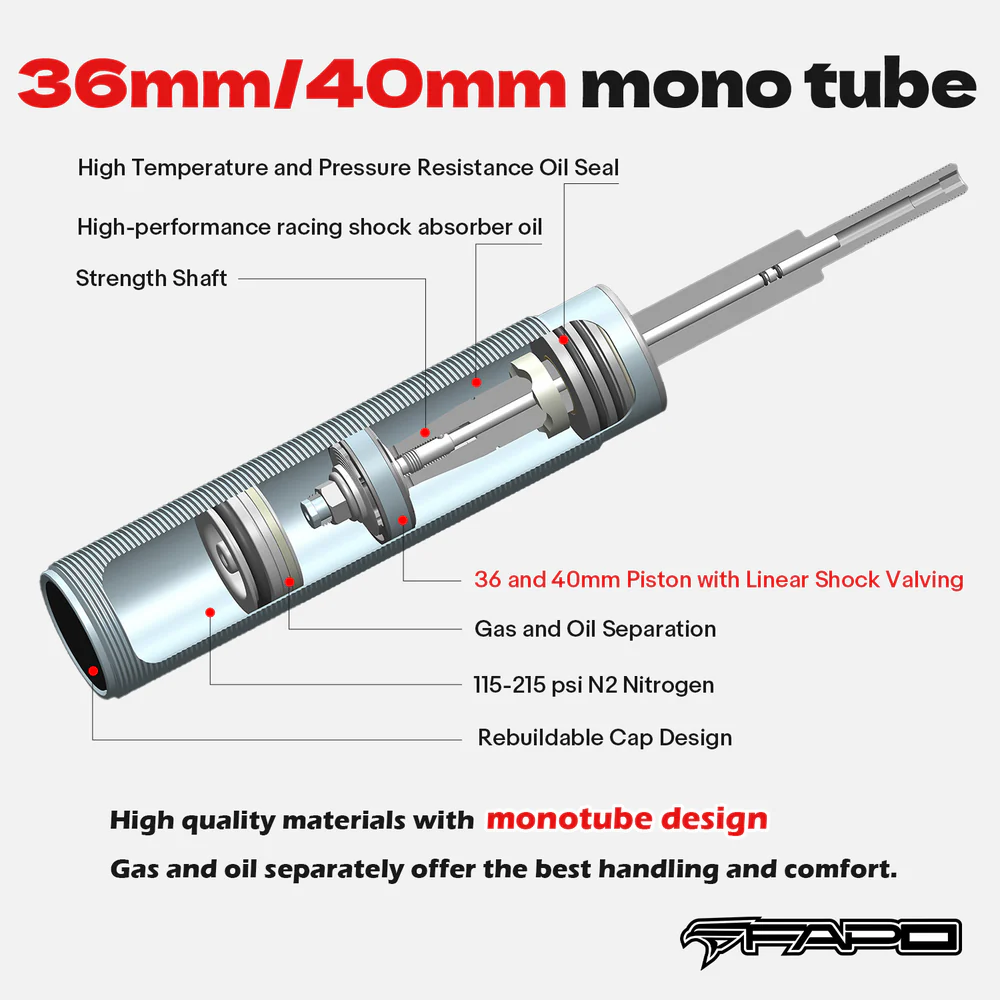

• Mono-tube shock design with larger oil/gas capacity

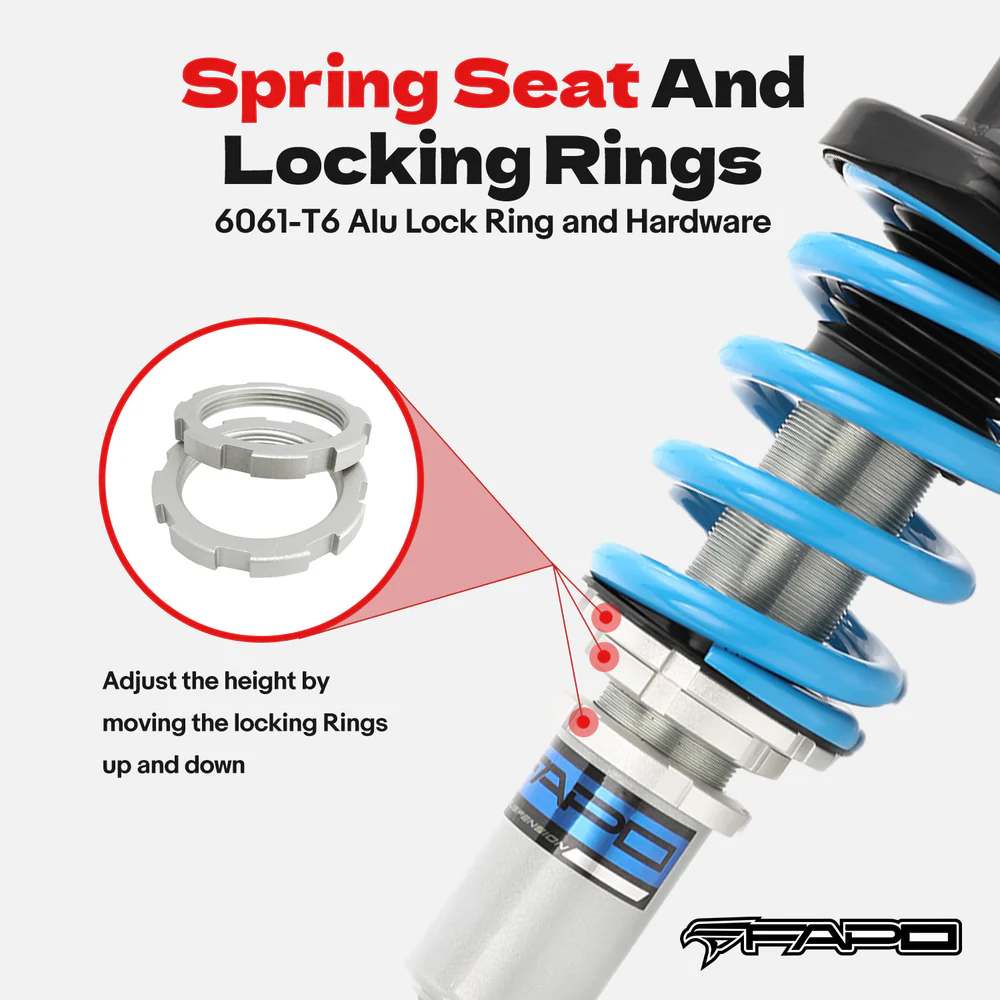

• Adjustable ride height
• Adjustable pre-load spring tension

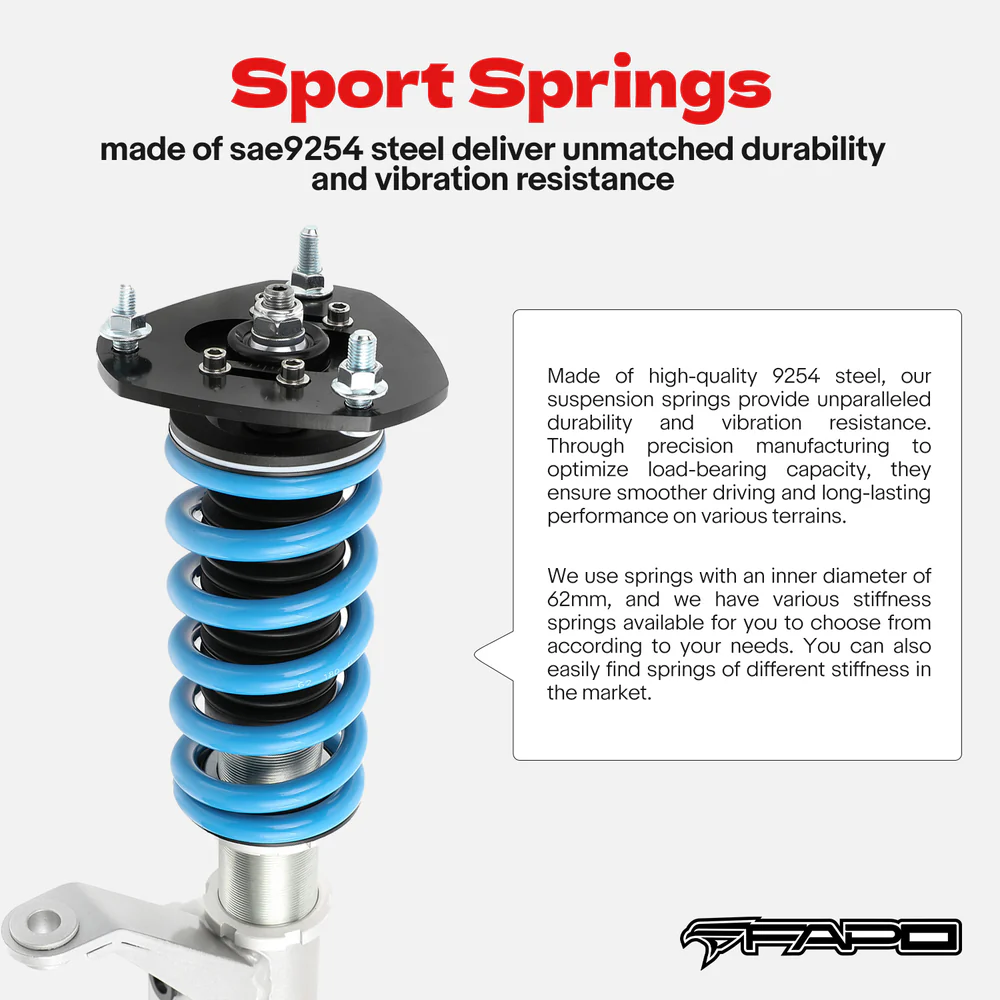

• Hi-Tensile performance spring, tested continuously over 600,000 cycles with less than 0.04% distortion
• All inserts come with fitted rubber boots to protect the damper and keep clean
• Improves handling performance without sacrificing comfortable ride
• Easy installation with the right tools
• Ideal for track, drift, fast road, and daily driving
• Accessories shown in photos are included
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Spring Rate: 447 lb/in (8 kg/mm) Front / 447 lb/in (8 kg/mm) Rear
• Damping: 16 Levels
• Cylinder Length: 8.67" (F) / 11.03" (R)
• Travel Length: 3.9" (F) / 5.9" (R)
• Spring Length: 6.3" (F) / 6.3" (R)
• Tube Diameter: 1.85" (F) / 1.69" (R)
• Shock Rod Diameter: 0.79" (F) / 0.49" (R)
• Rod End Thread: M12 (F) / M12 (R)

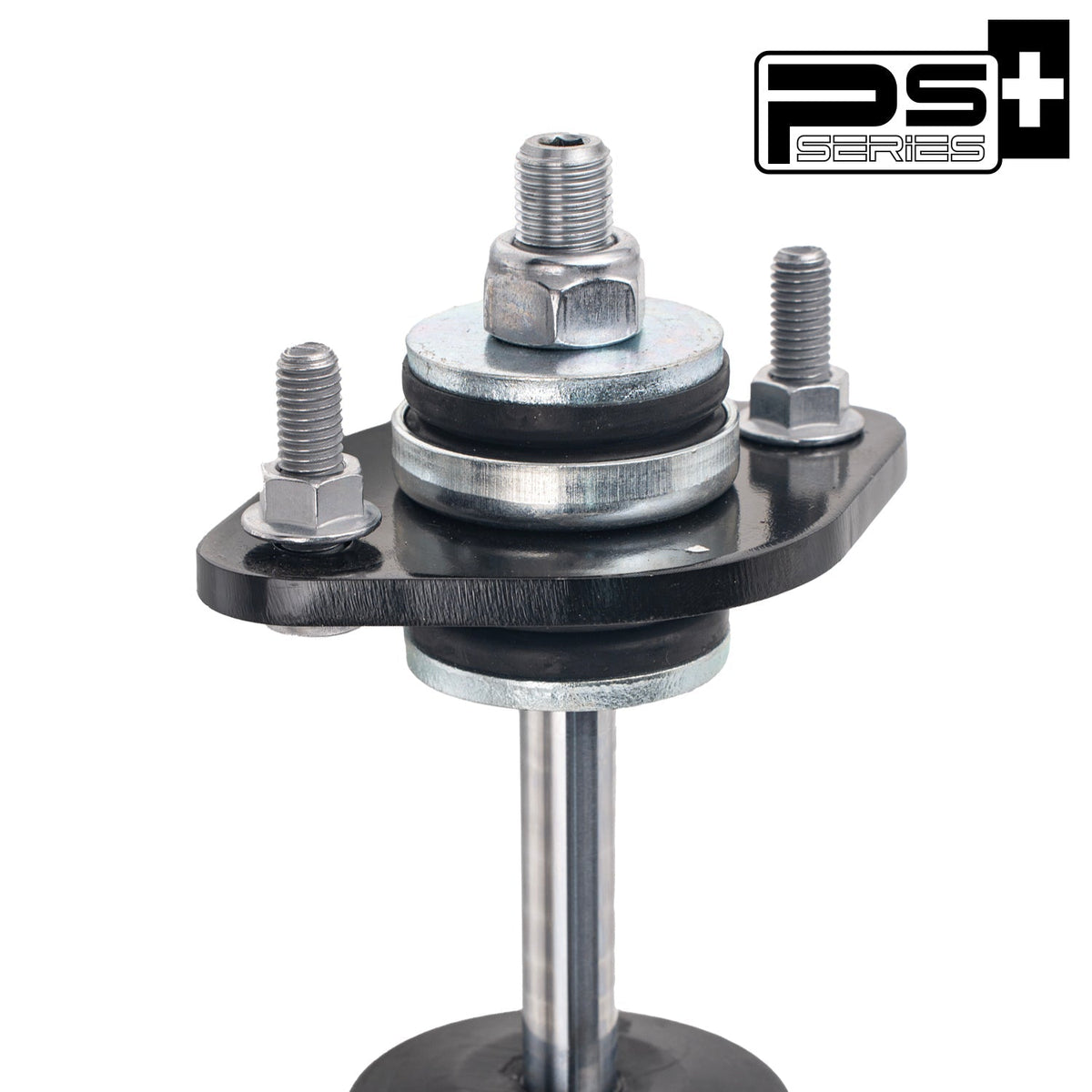

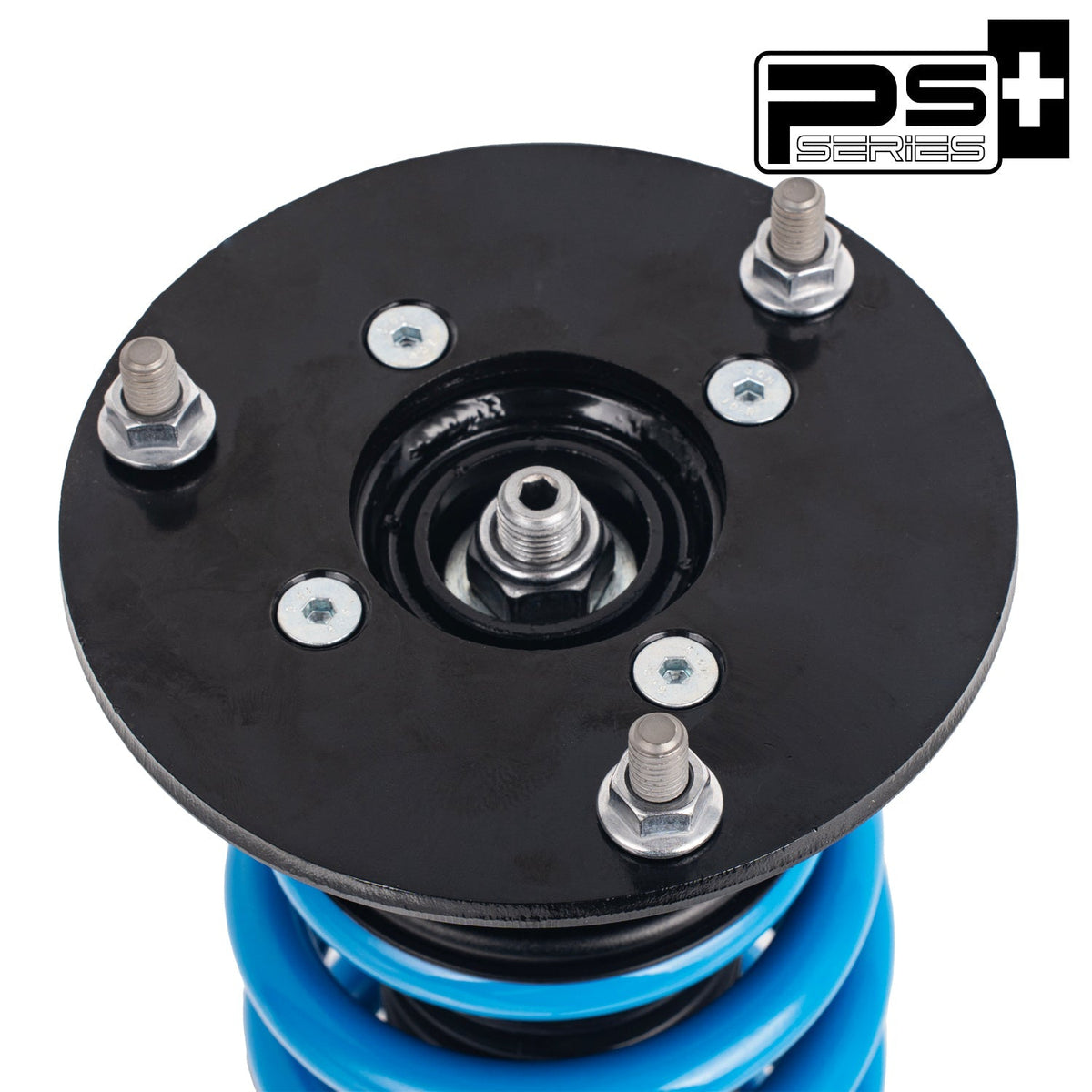

• Mounts: Standard top mounts (front and rear)
• Adjustable ride height: Yes

Warranty

All items carry standard 1 year warranty from purchase date. Proof of purchase required. For warranty claims, please provide order number and documentation (photos/videos) of the issue. In some cases, additional information may be requested to properly diagnose problems.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
