FAPO PS+ 16-Level Coilovers BMW 3 Series 5th Gen E90/E91/E92/E93 2006–2013 [PS006420]

FAPO PS+ Coilovers — 16-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PS+ kit for the BMW 3 Series 5th Gen E90/E91/E92/E93 2006–2013 is a full-length threaded-body monotube coilover with 16 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• BMW 3 Series 5th Gen E90/E91/E92/E93 2006–2013

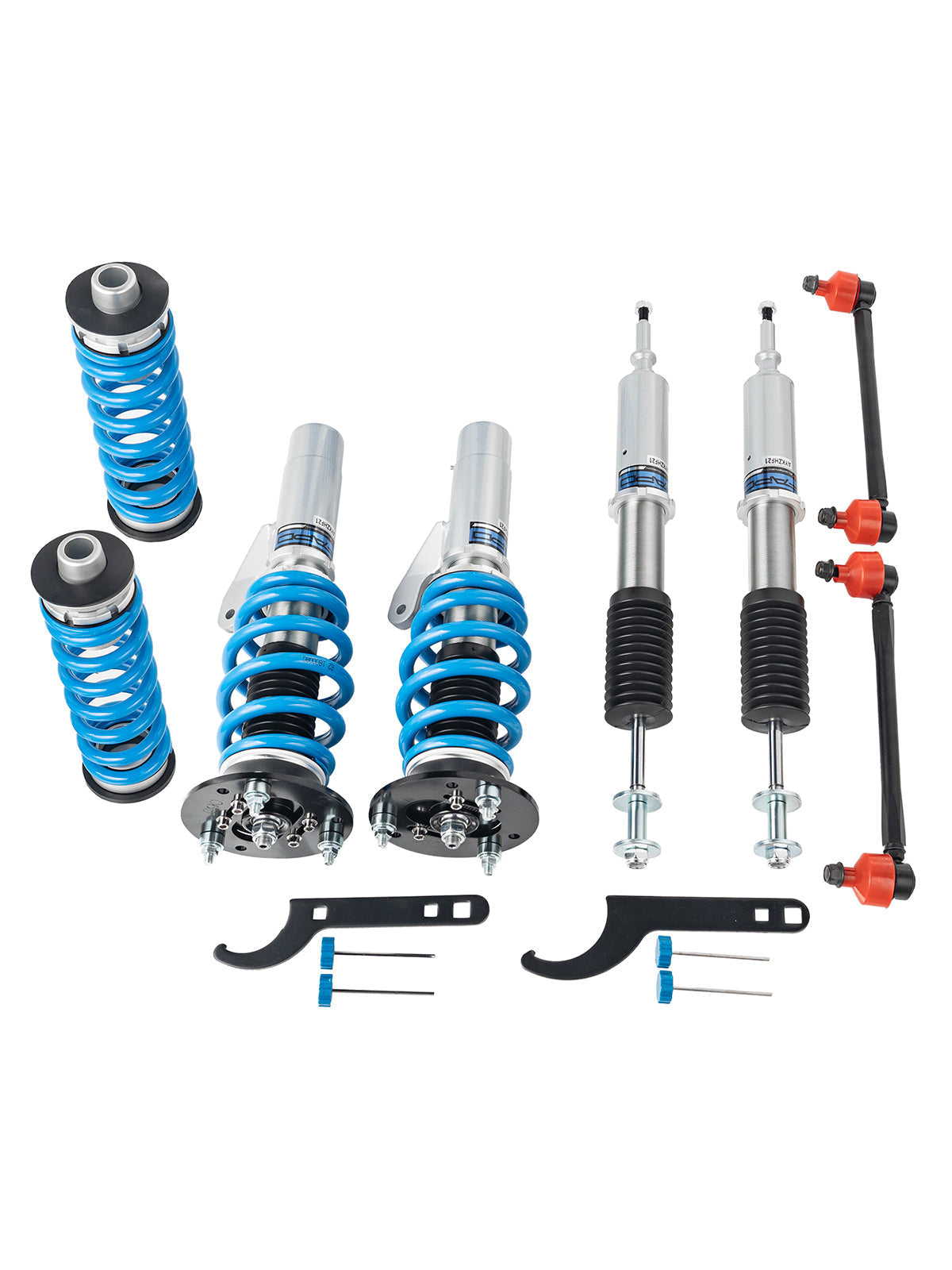

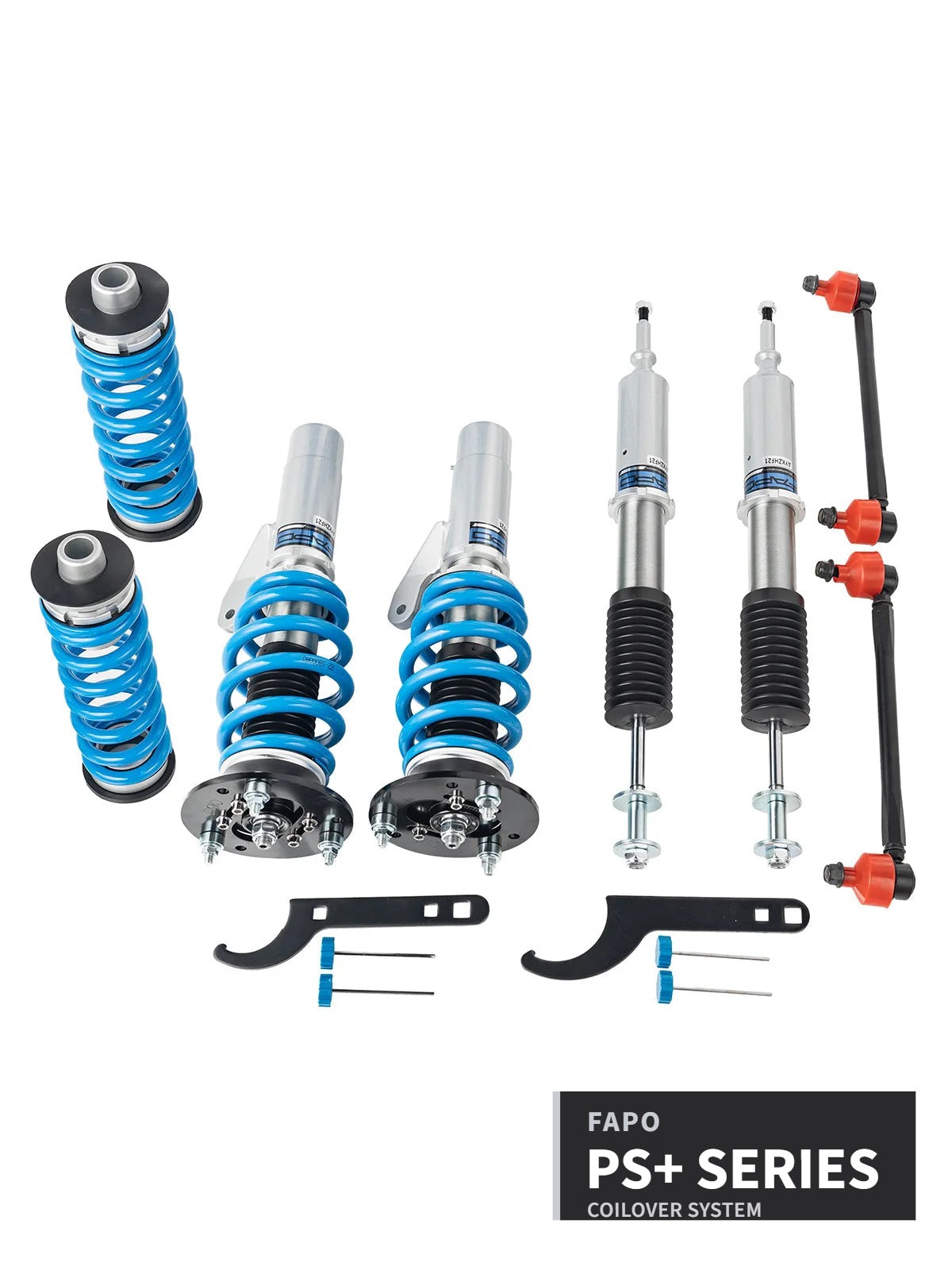

Package Includes

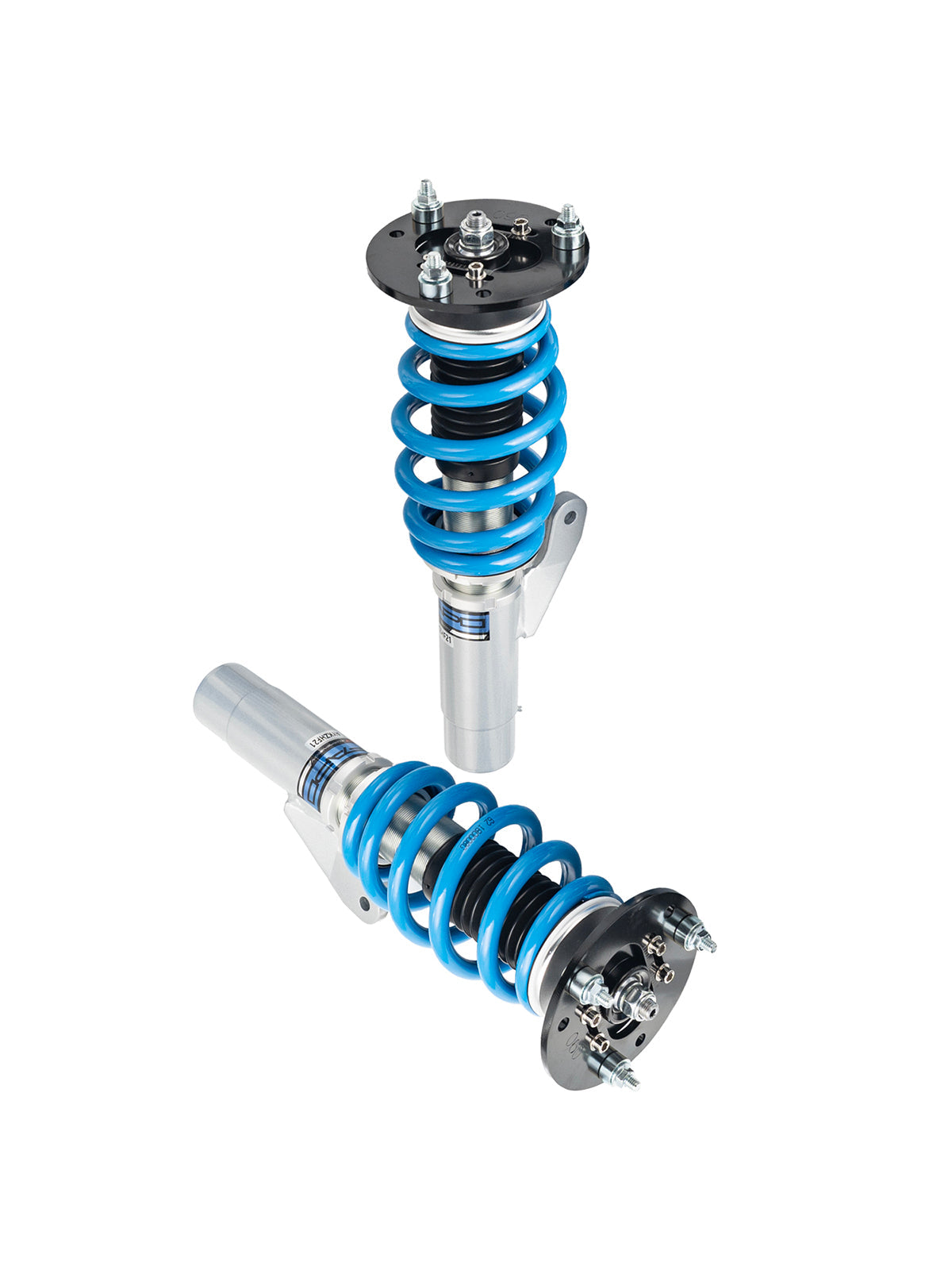

• Front coilovers x 2 pcs

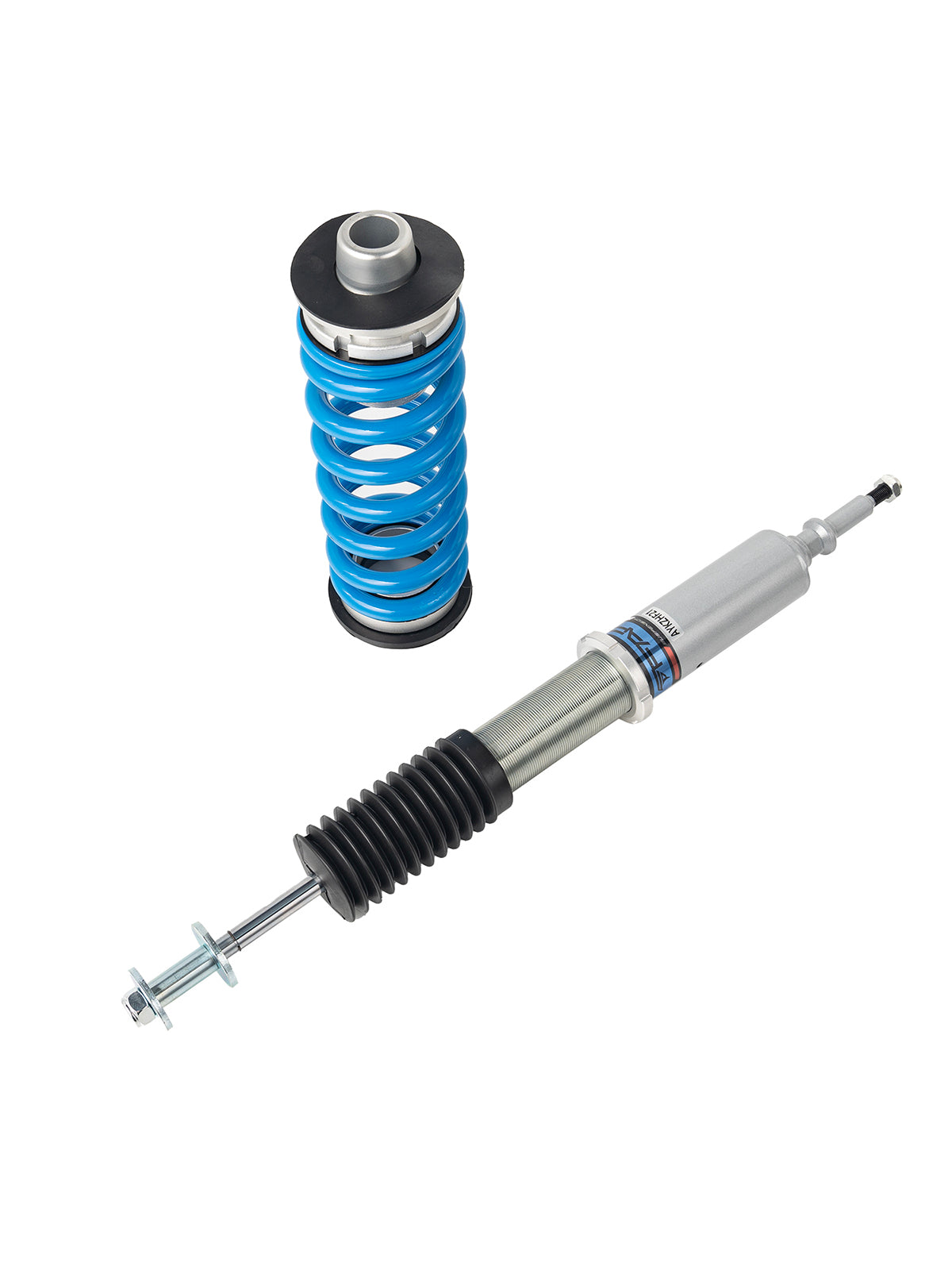

• Rear coilovers x 2 pcs
• Wrench x 2 pcs
• Sway bar link x 2 pcs

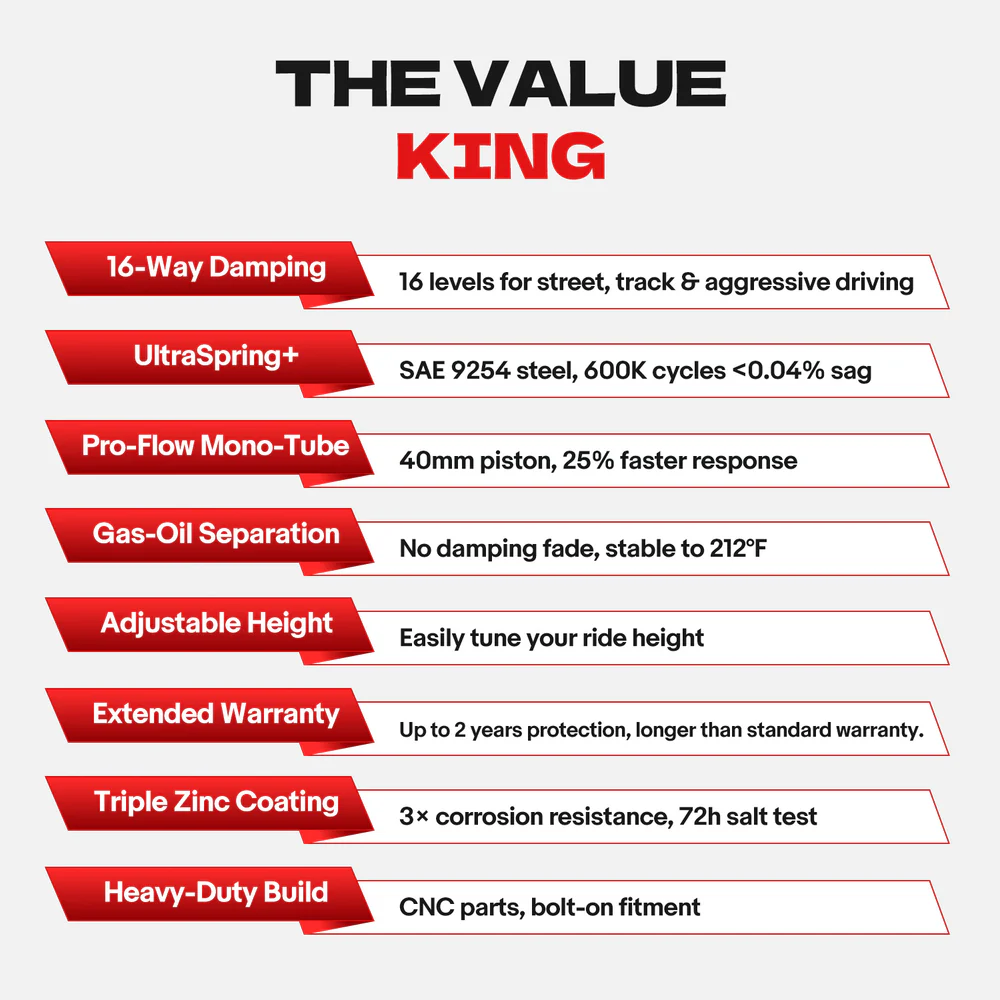

Features

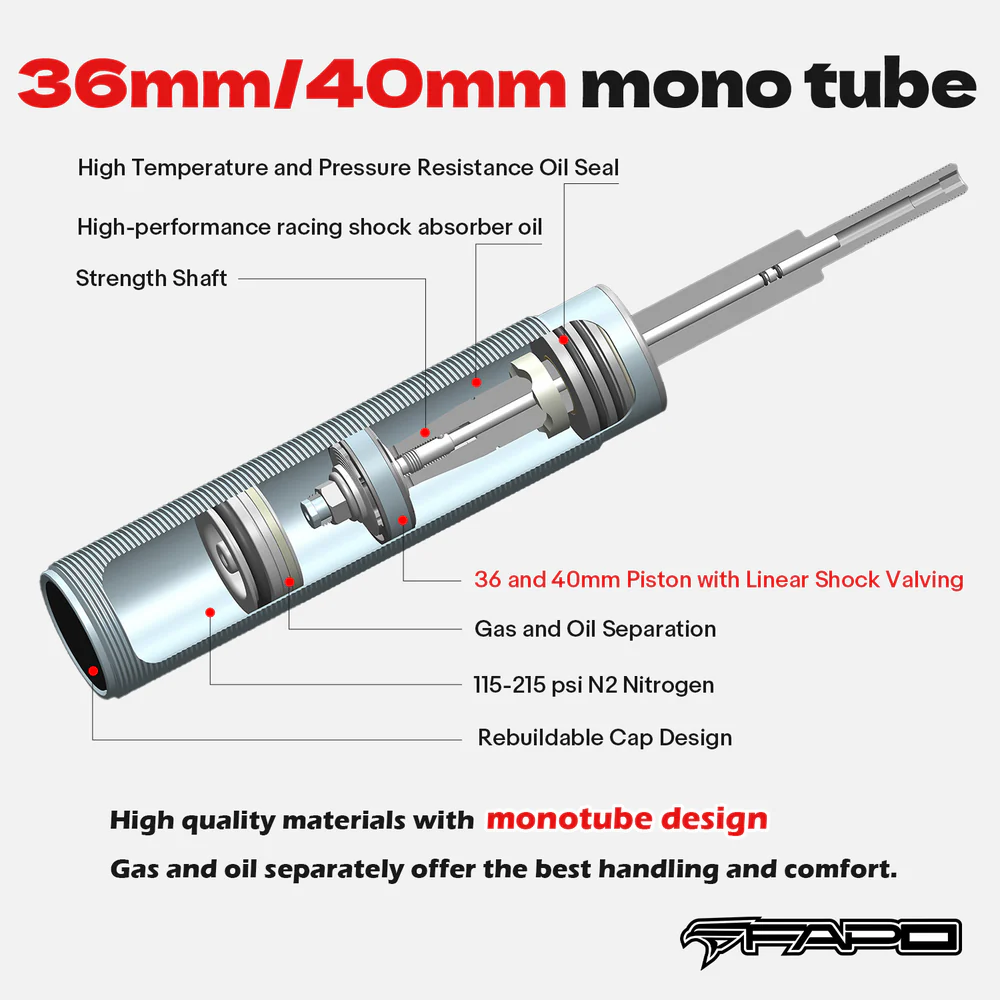

• Mono-tube shock design with larger oil/gas capacity

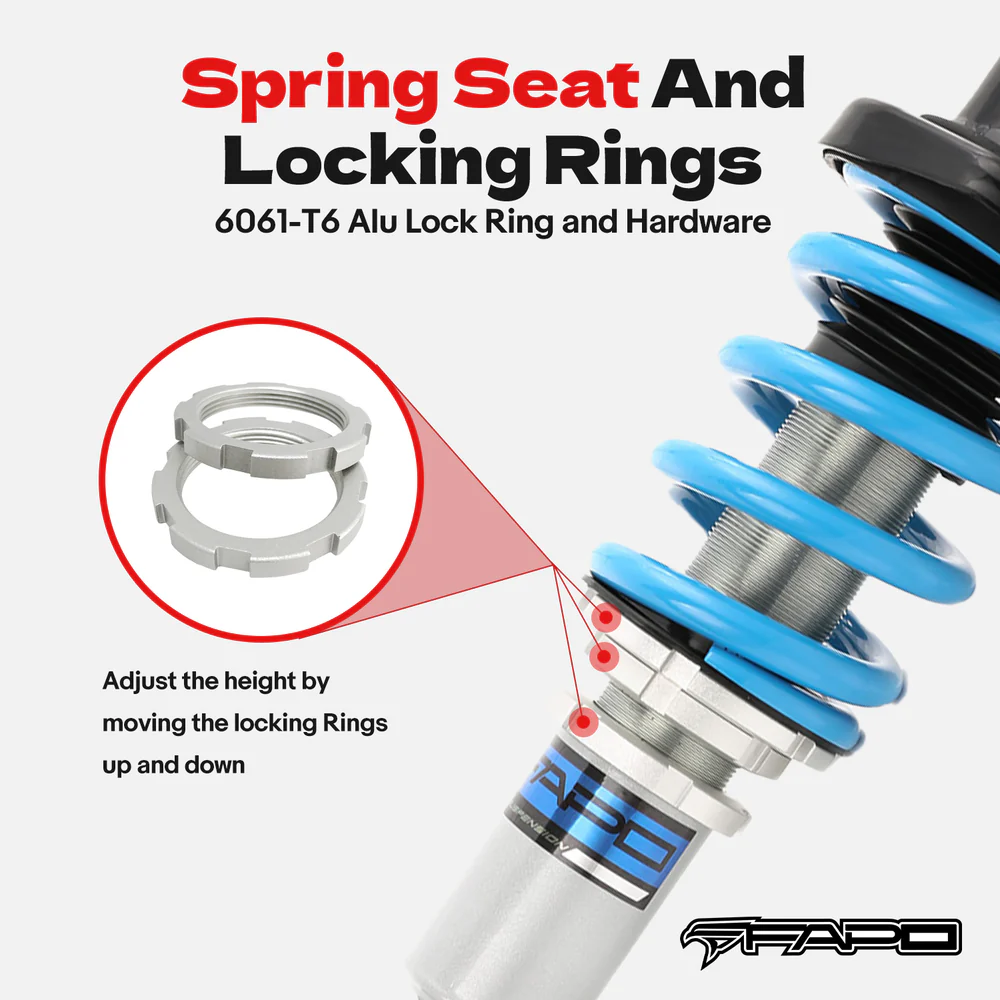

• Adjustable ride height
• Adjustable pre-load spring tension

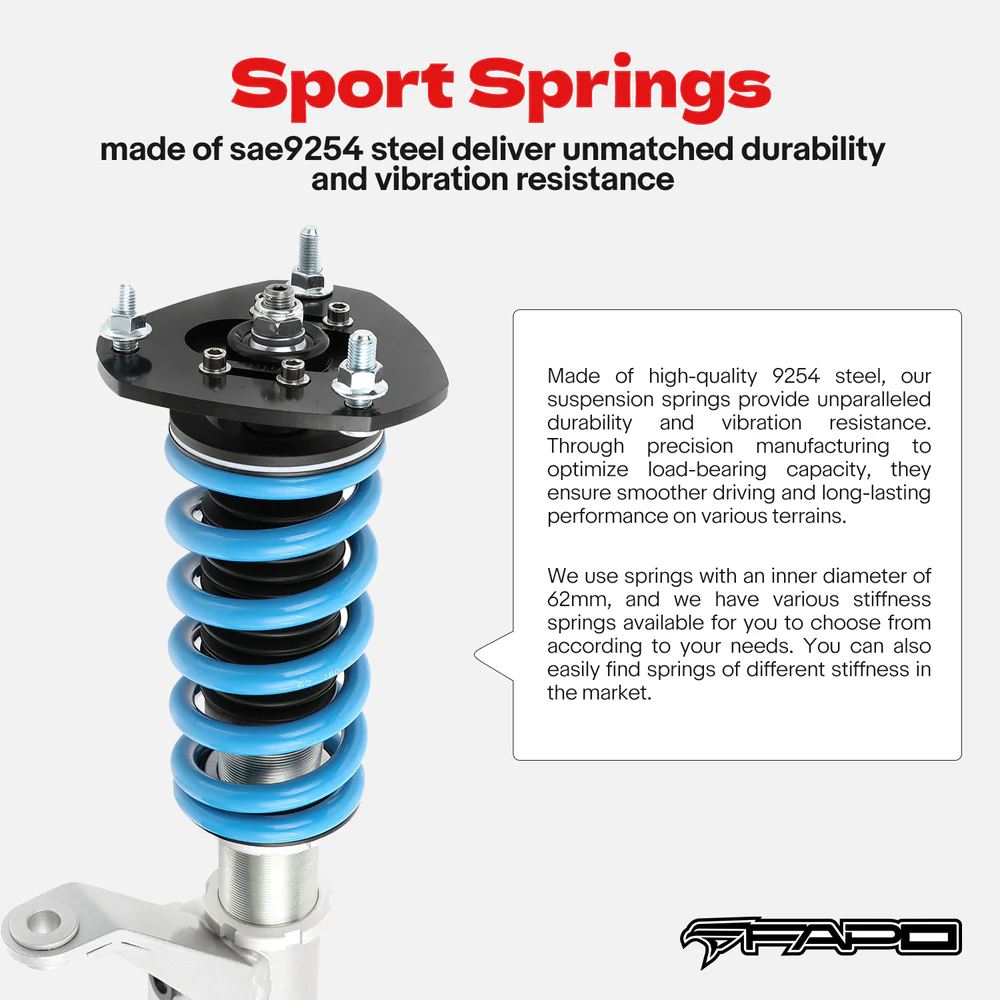

• Hi-Tensile performance spring (tested 600,000 cycles with <0.04% distortion)
• Fitted rubber boots to protect dampers
• Improved handling without sacrificing comfort
• Affordable appearance upgrade
• Easy installation with proper tools
• Suitable for track, drift, fast road and daily driving
• All pictured accessories included
• 1-year FAPO warranty against manufacturing defects

Warranty

All items carry standard 1 year warranty from purchase date. Proof of purchase required. For warranty claims, please provide order number and documentation (photos/videos) of the issue. In some cases, additional information may be requested to properly diagnose problems.

Specifications:

• Front Shock: 47-220-100-20-M12
• Rear Shock: 43-260-150-12.5-M12

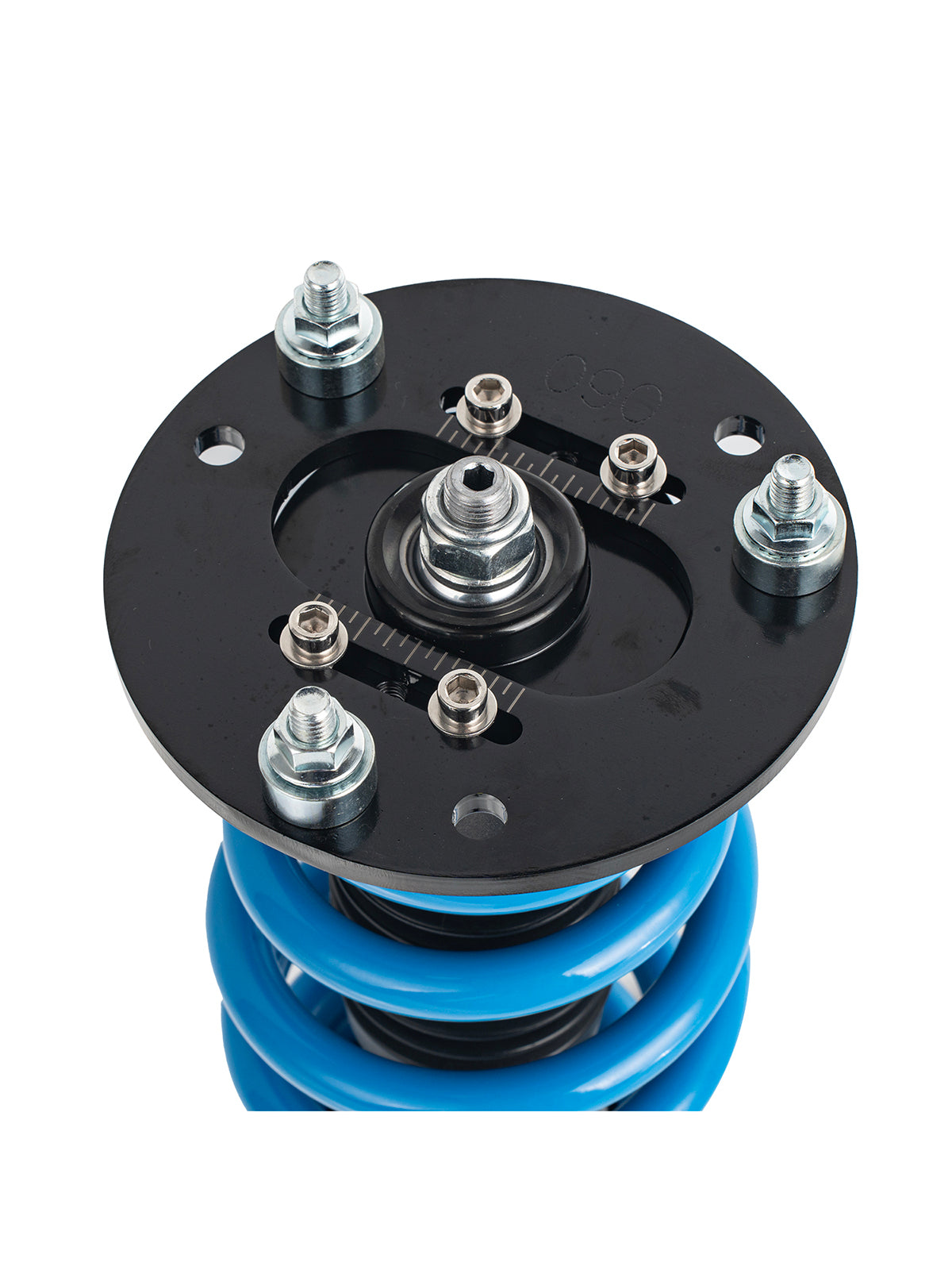

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required
• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 220mm, 12 kg/mm (670 lb/in)

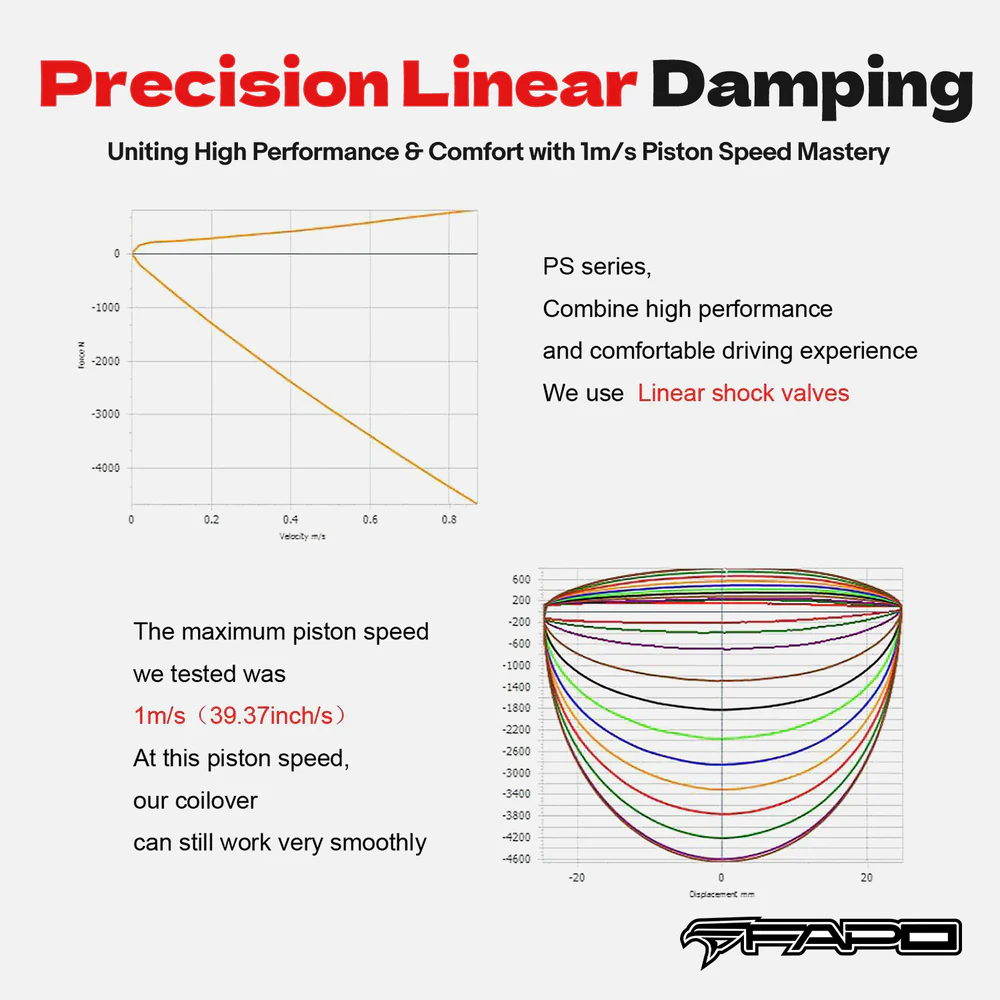

• Damping: 16 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
