FAPO PF Custom 32-Level Coilovers BMW 3 Series F30/F31/F34 2011-2019, 4 Series F32/F33/F36 2013-2020 & 2 Series F22/F23 2014-2021 (3-Bolt) [PF006530-CUSTOM]

FAPO PF Custom Coilovers — the FAPO PF kit for the BMW 3 Series F30/F31/F34 2011-2019, 4 Series F32/F33/F36 2013-2020 & 2 Series F22/F23 2014-2021 (3-Bolt), built to your spring rates by RedShift.

The FAPO PF Custom takes the FAPO PF 32-level damping-adjustable monotube coilover for the BMW 3 Series F30/F31/F34 2011-2019, 4 Series F32/F33/F36 2013-2020 & 2 Series F22/F23 2014-2021 (3-Bolt) and builds it to order at RedShift: choose any spring rate, front and rear. Full-length ride-height adjustment, separate spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Options (select above): your spring rates are included in the price. Choose Comfort (standard) valving, or Performance valving (+$300) for RedShift-revised street damping; add Swift springs (+$380; rates above 10 kg/mm require Swift). Want the kit exactly as FAPO builds it, at the lower price? See the FAPO PF for this car.

Also for this car, built by RedShift: See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• BMW 2 Series 1st Gen coupé and convertible 2WD/AWD(3blots) F22/F23 14-21

• BMW 3 Series 6th Gen 2WD/AWD(3blots) F30/F31/F34 11-19

• BMW 4 Series 1st Gen 2WD/AWD(3blots) F32/F33/F36 13-20

Note: Please confirm your OEM front top mounts use the 3-bolt version before purchase.

Lowered Stance: This is a lowering kit; even at maximum height the vehicle will sit 1-1.5 inches lower than factory. Confirm you want to lower your car before purchase.

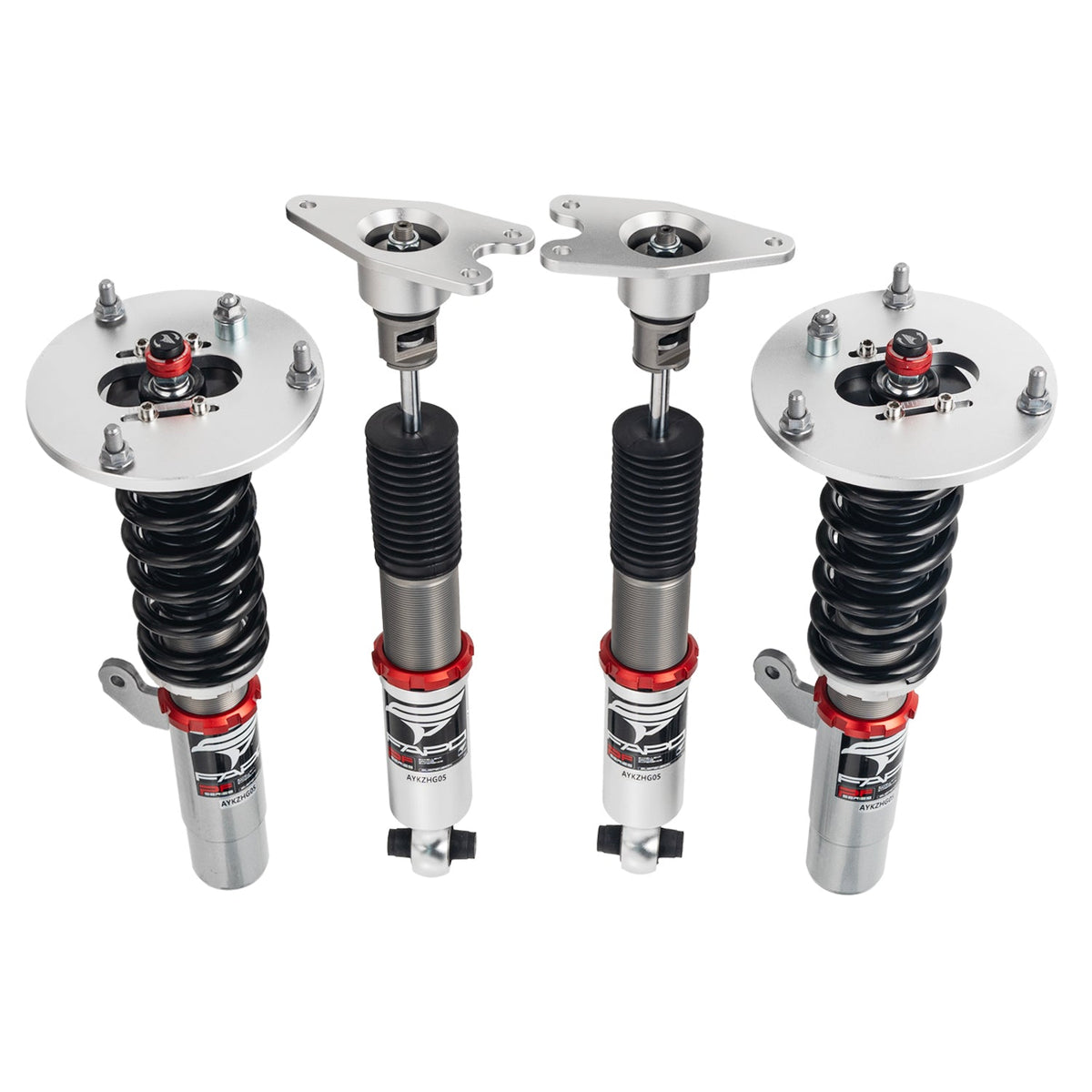

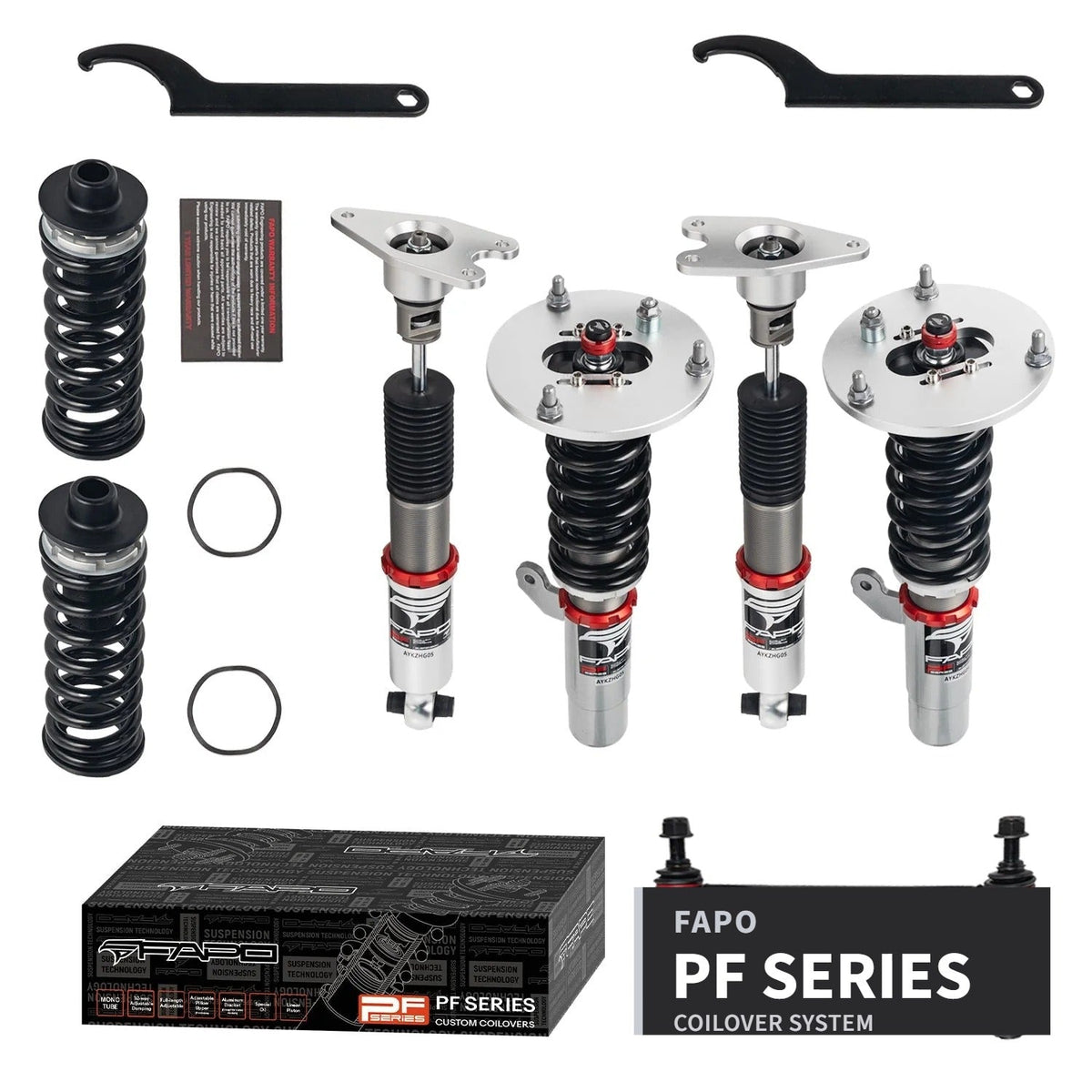

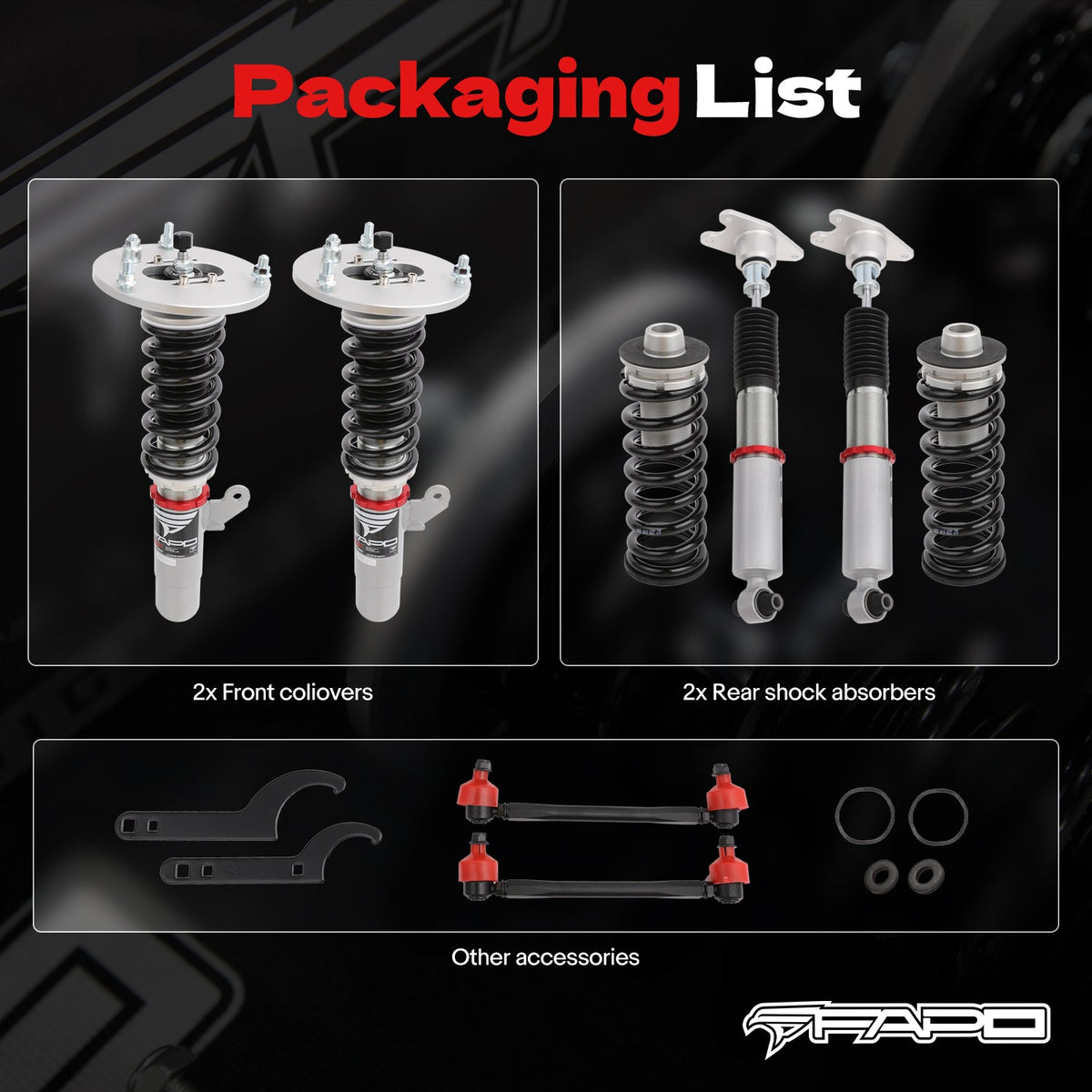

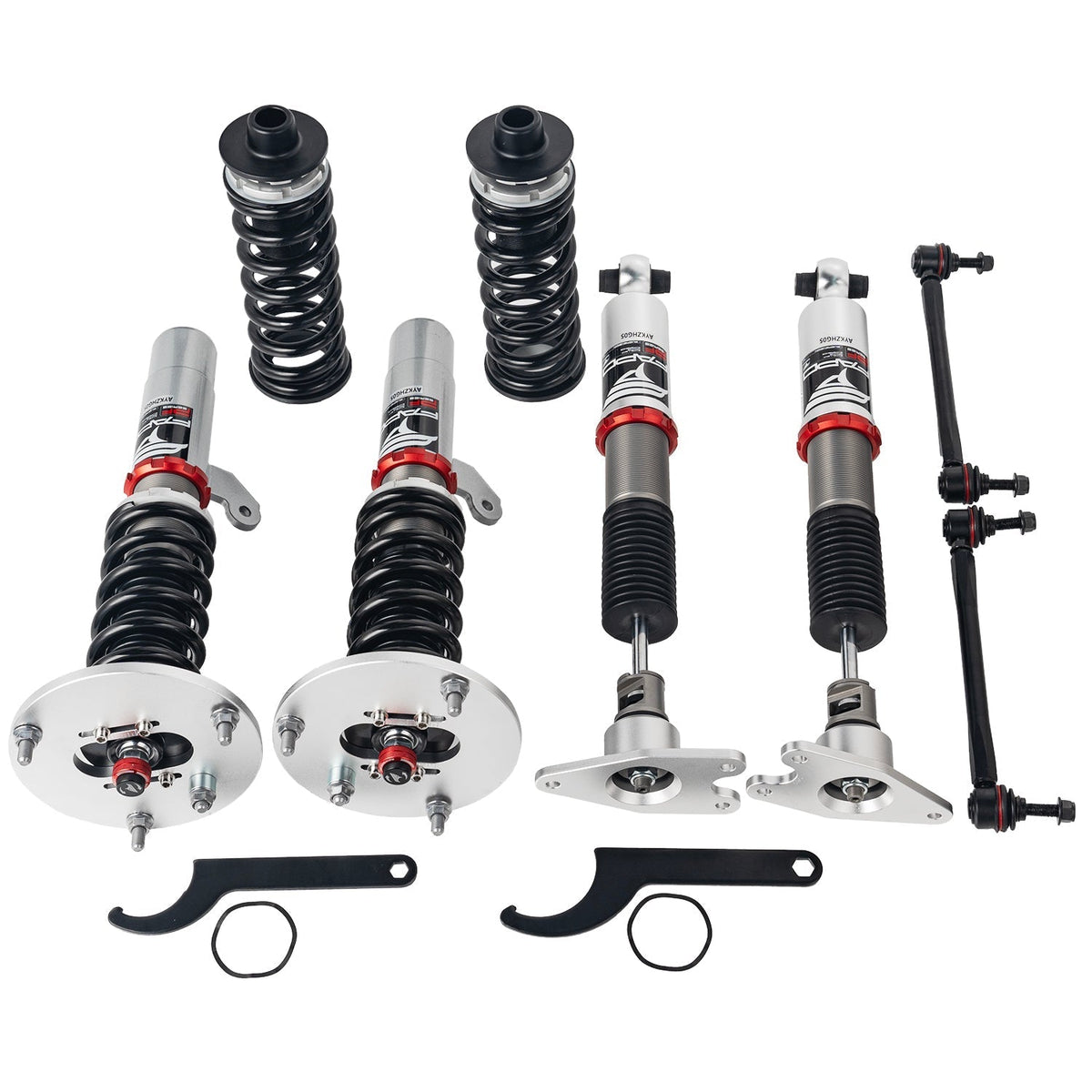

Package Includes:

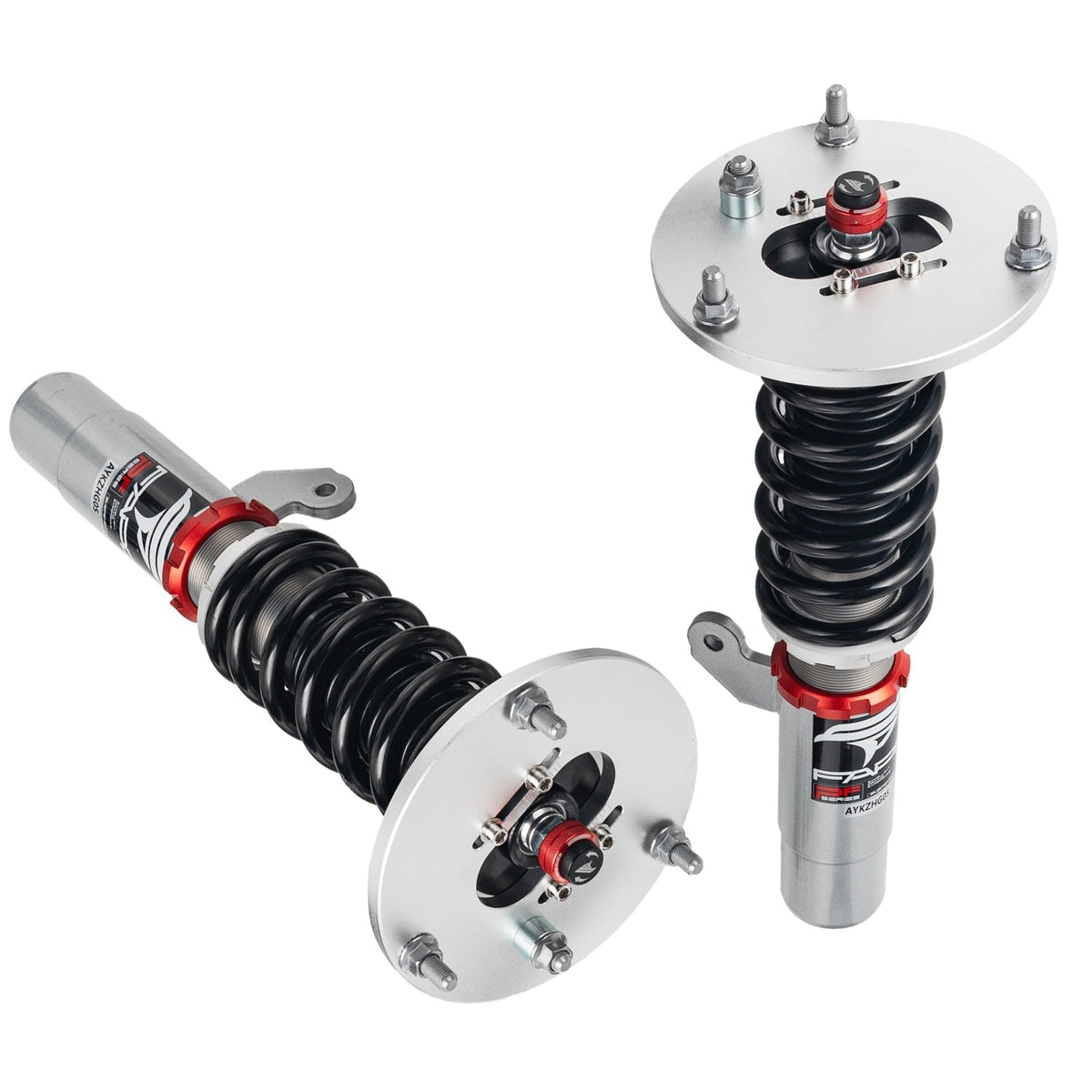

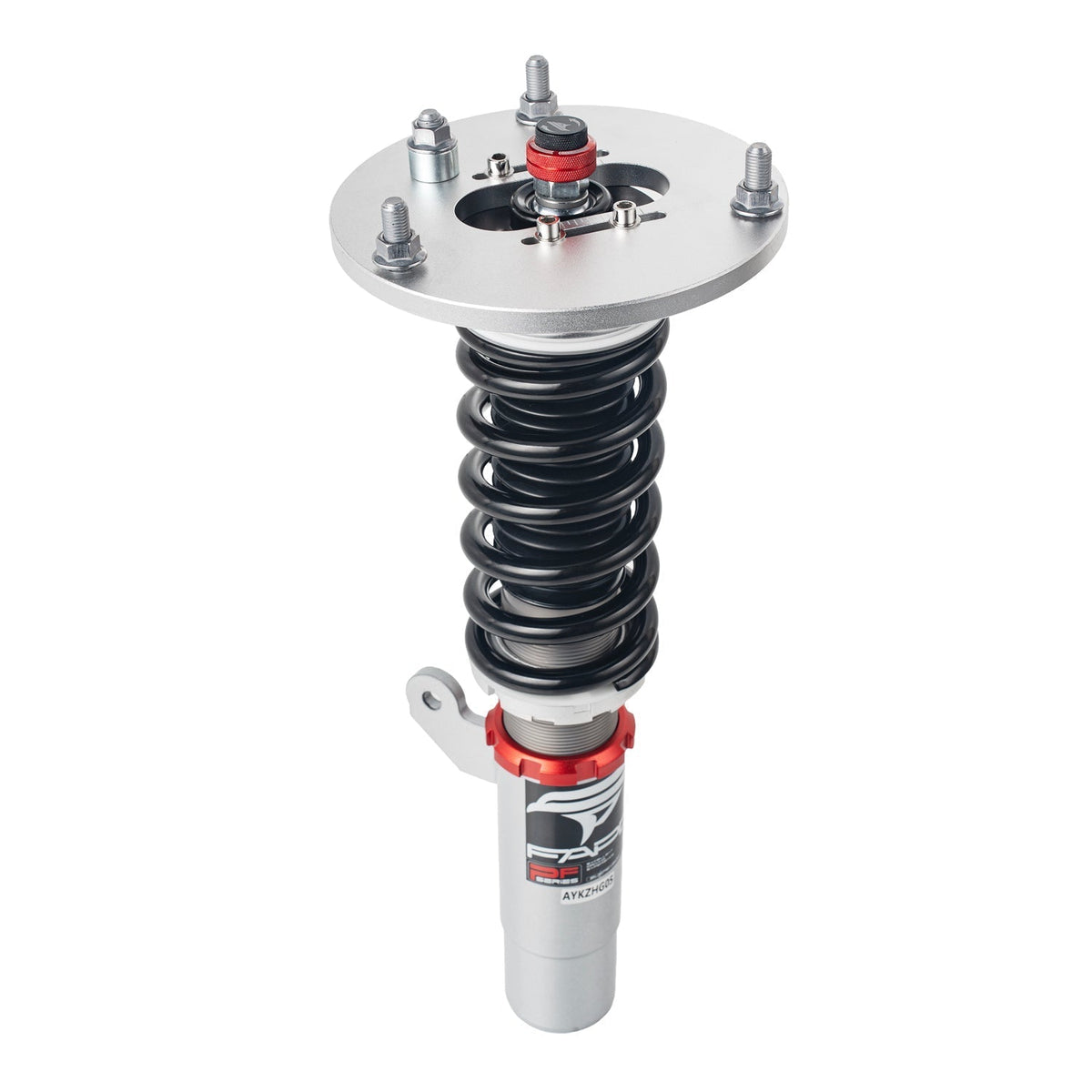

• Front coilovers × 2

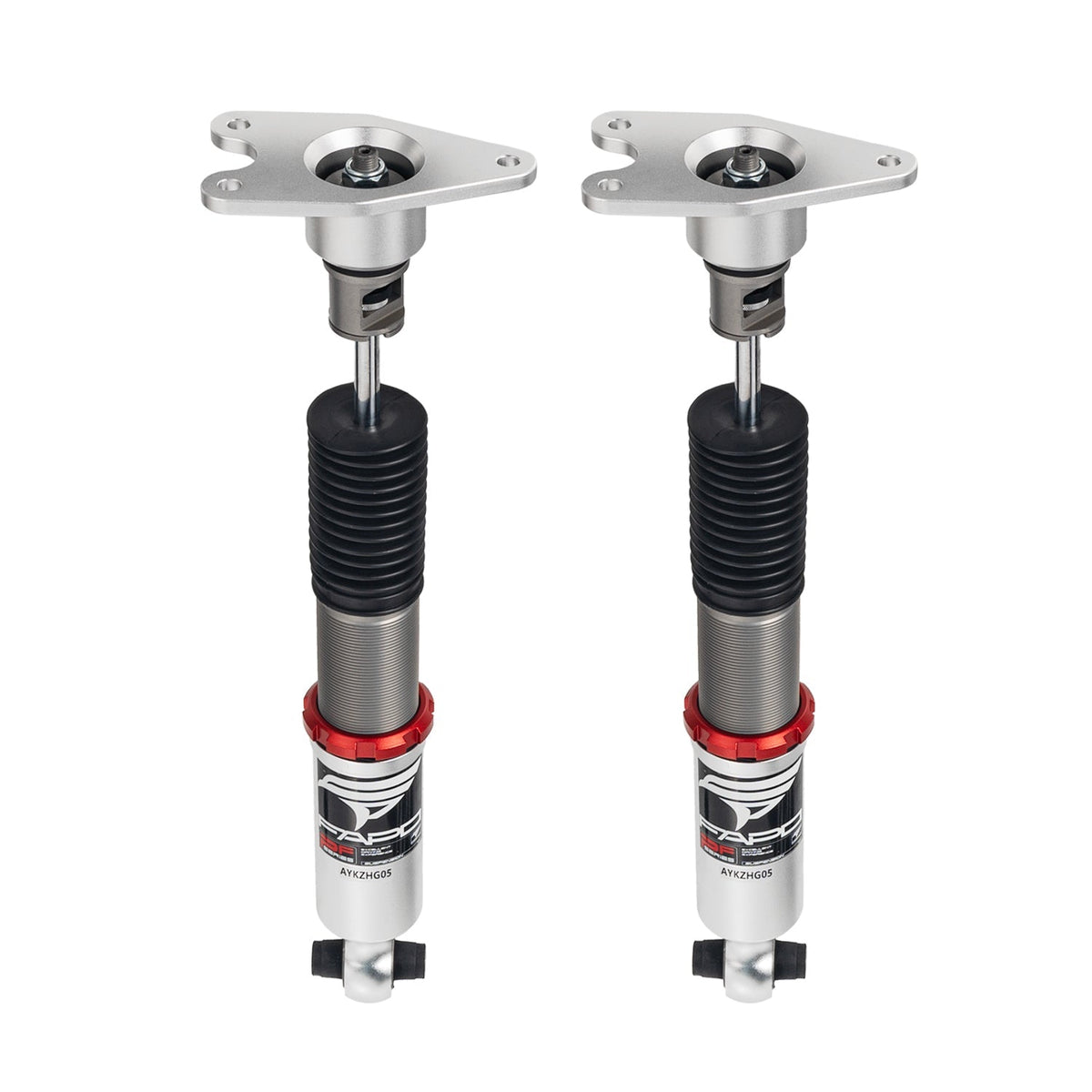

• Rear coilovers × 2
• Spanners × 2
• Sway-bar links × 2

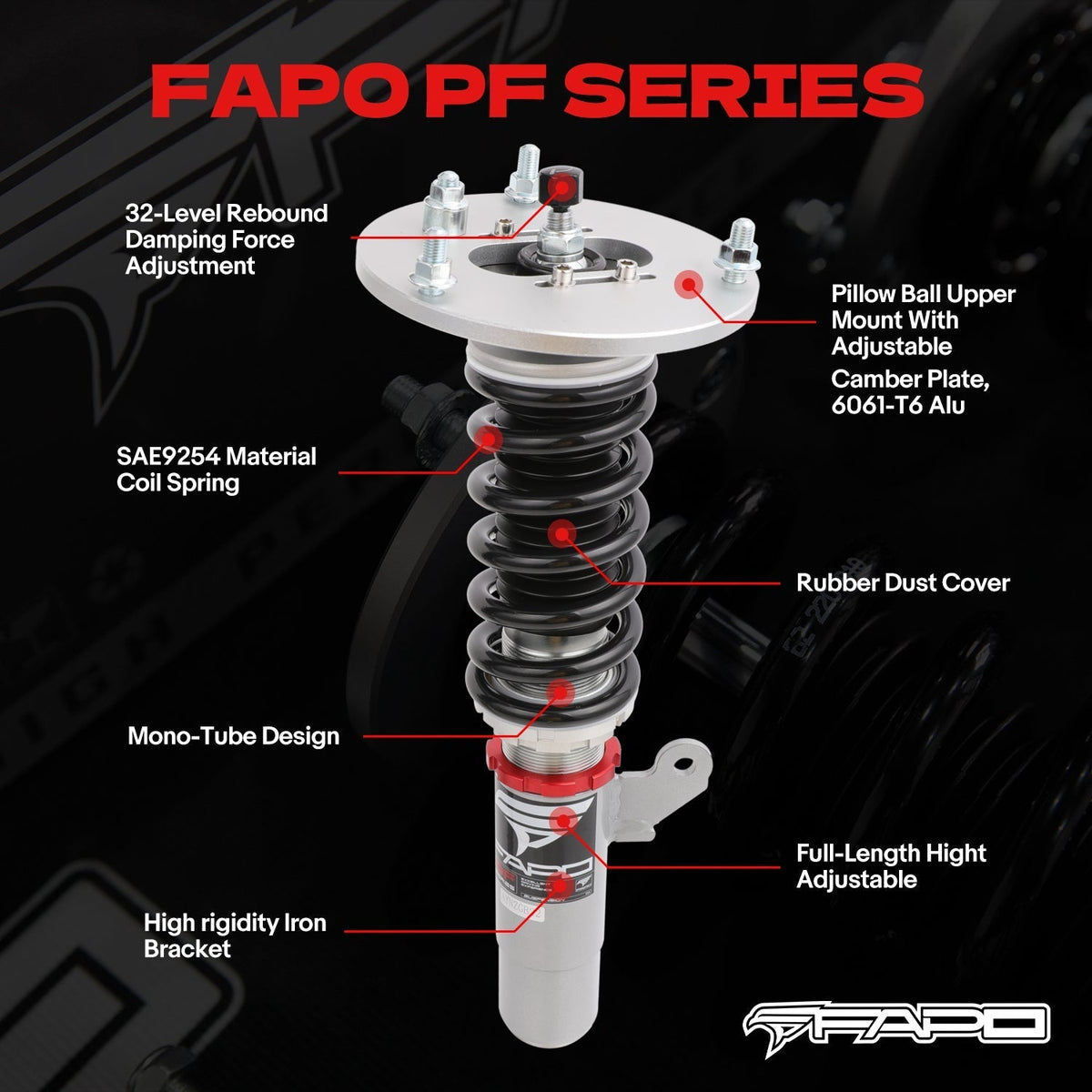

Features:

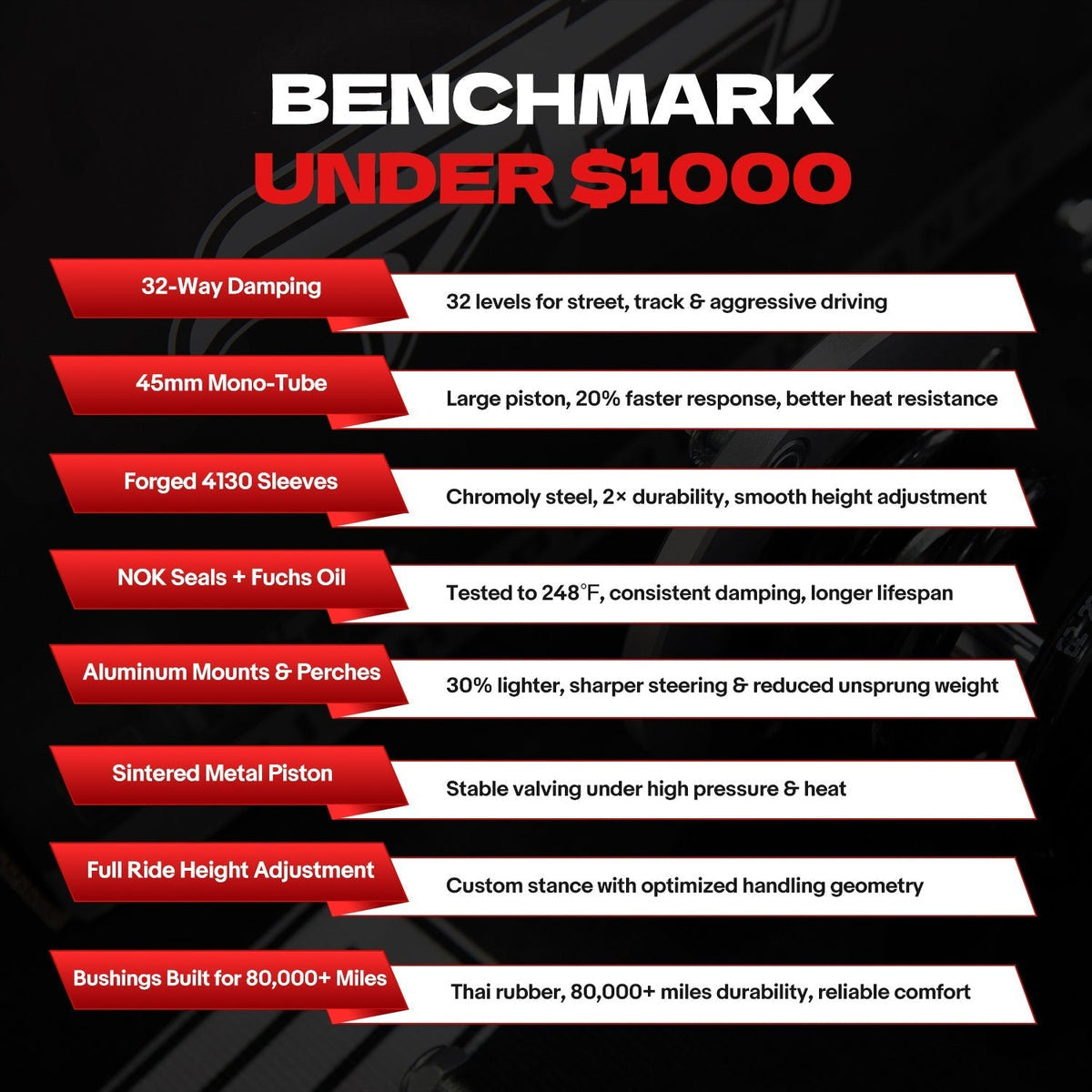

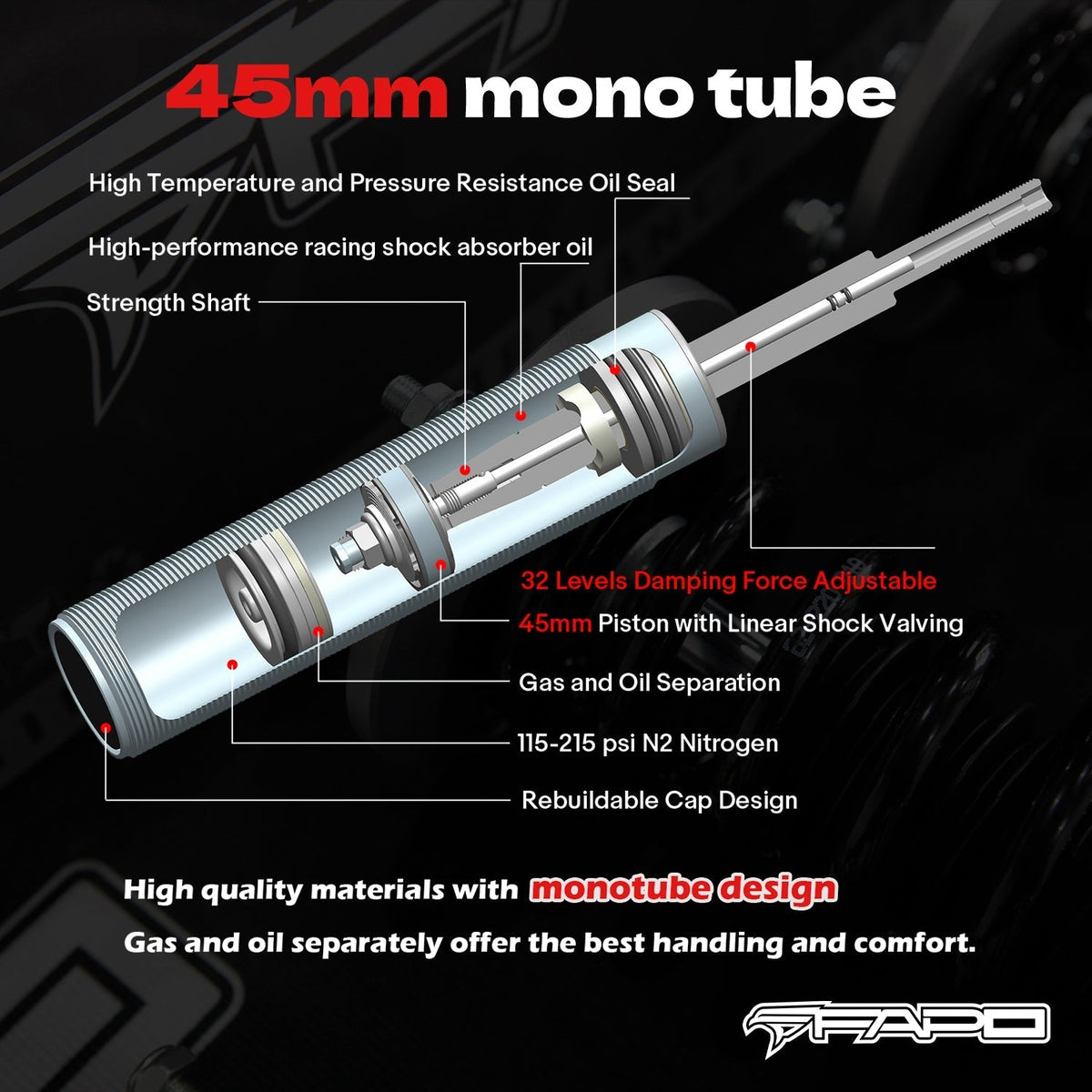

• Mono-tube shock design, provides larger oil & gas capacity

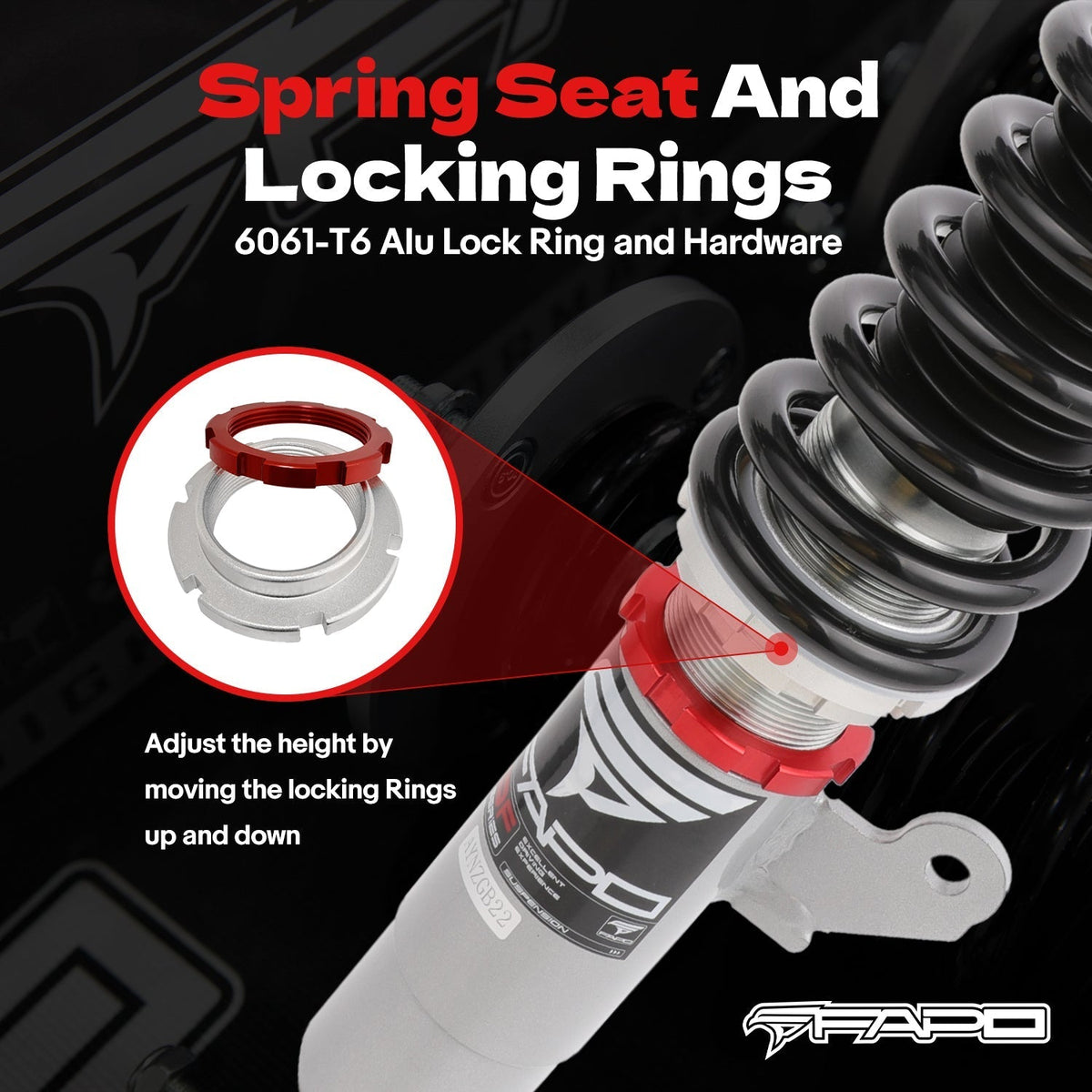

• Adjustable ride height (max height still 1-1.5" lower than factory)
• Adjustable pre-load spring tension

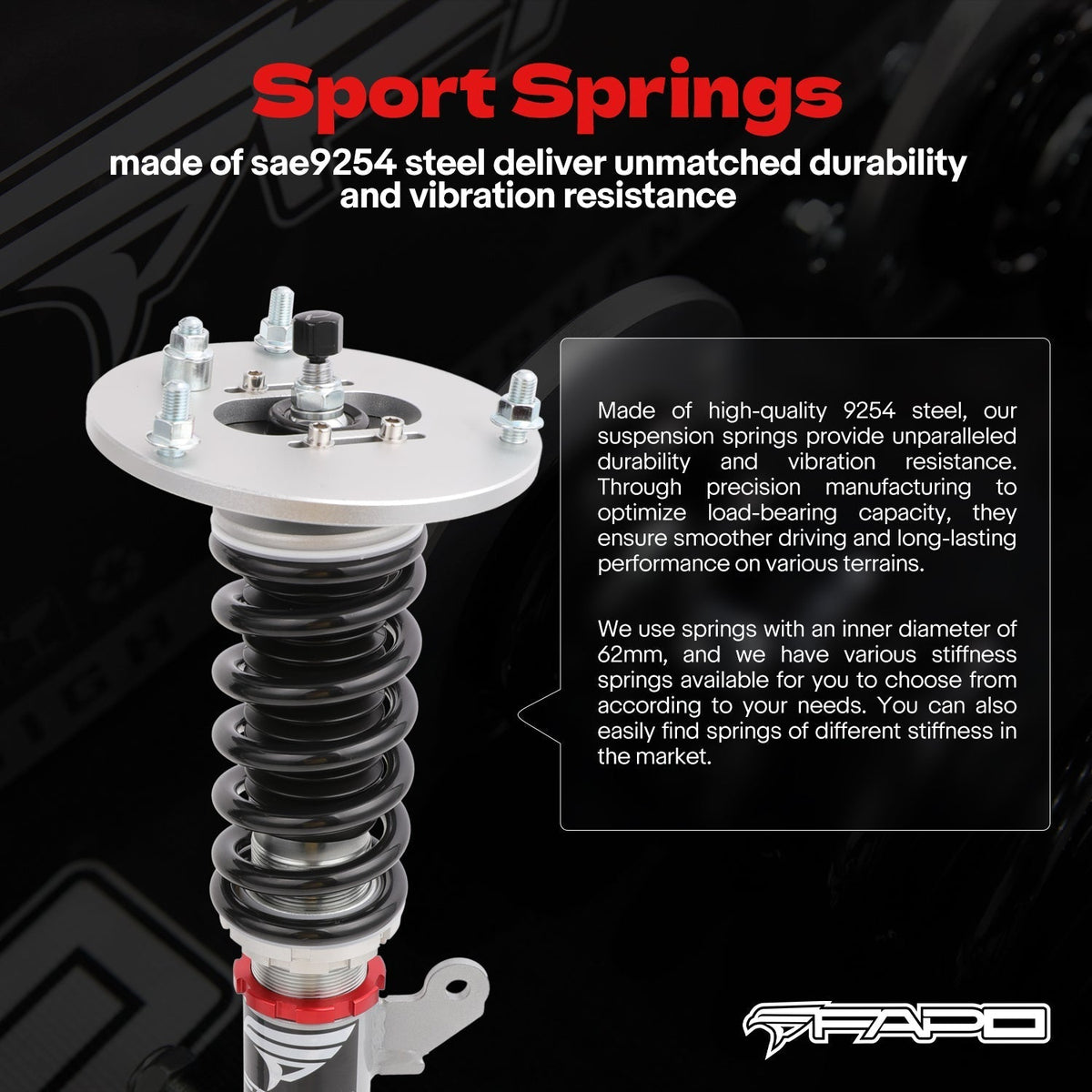

• High-tensile performance spring: < 0.04 % distortion after 600 k cycles, surface-treated for durability
• Rubber boots included on all inserts to protect dampers & keep clean
• Better handling without sacrificing ride comfort
• Quick, cost-effective way to upgrade appearance
• Easy installation with proper tools
• Suitable for track, drift, fast-road, and daily driving
• All pictured accessories included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 220mm, 10 kg/mm (560 lb/in)
• Adjustable height: Yes
• Adjustable camber plate: Front only; rear uses standard top mounts

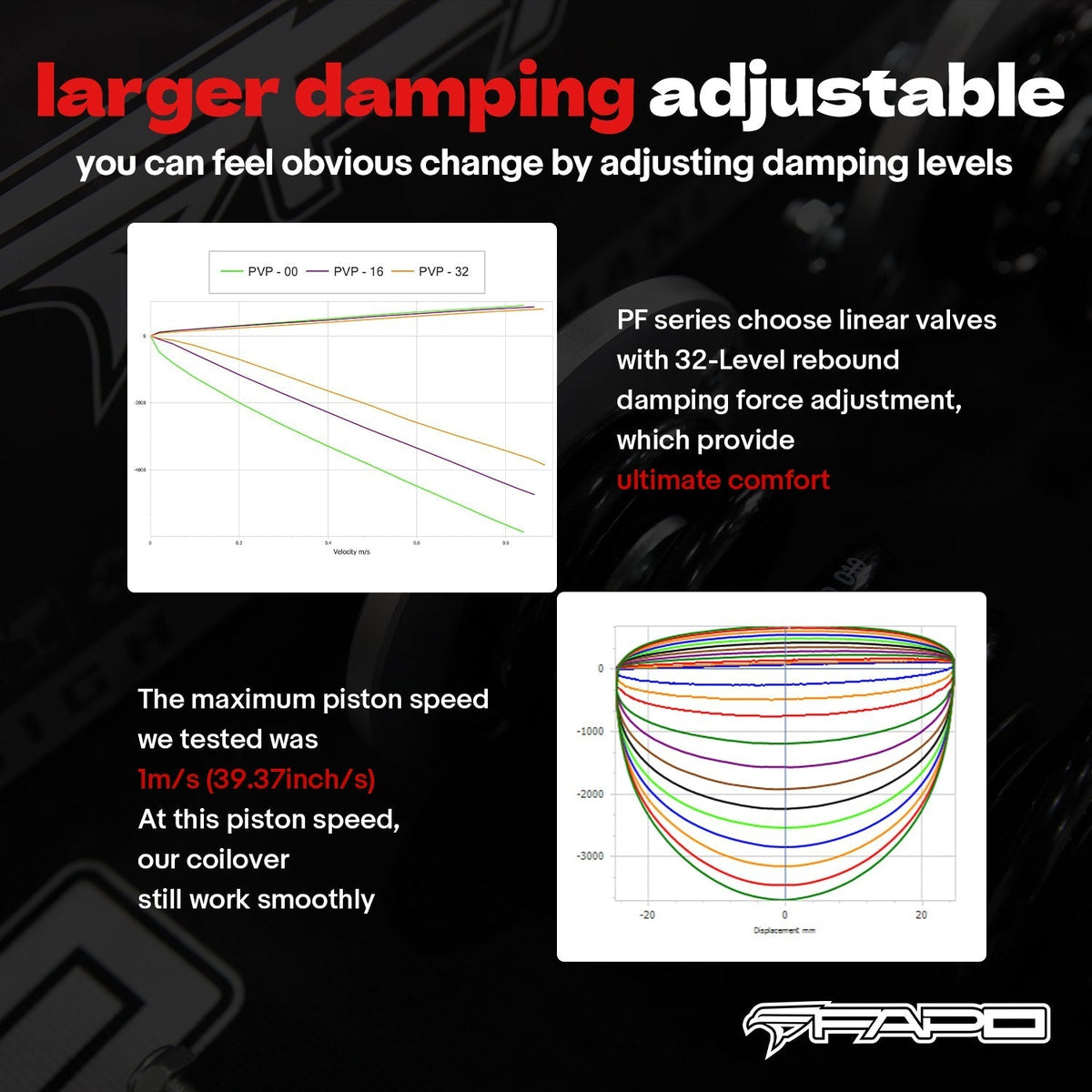

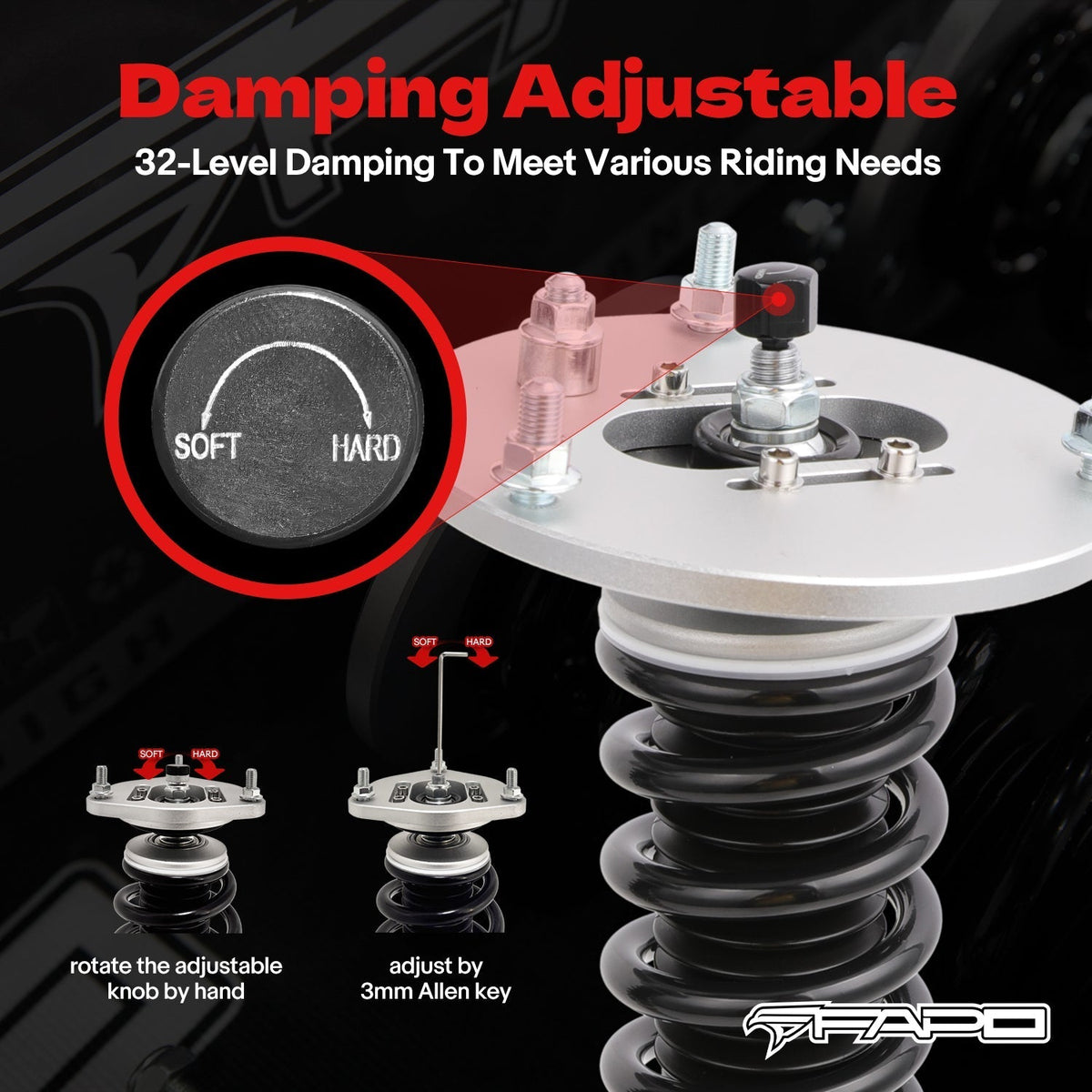

• Damping: 32 Levels

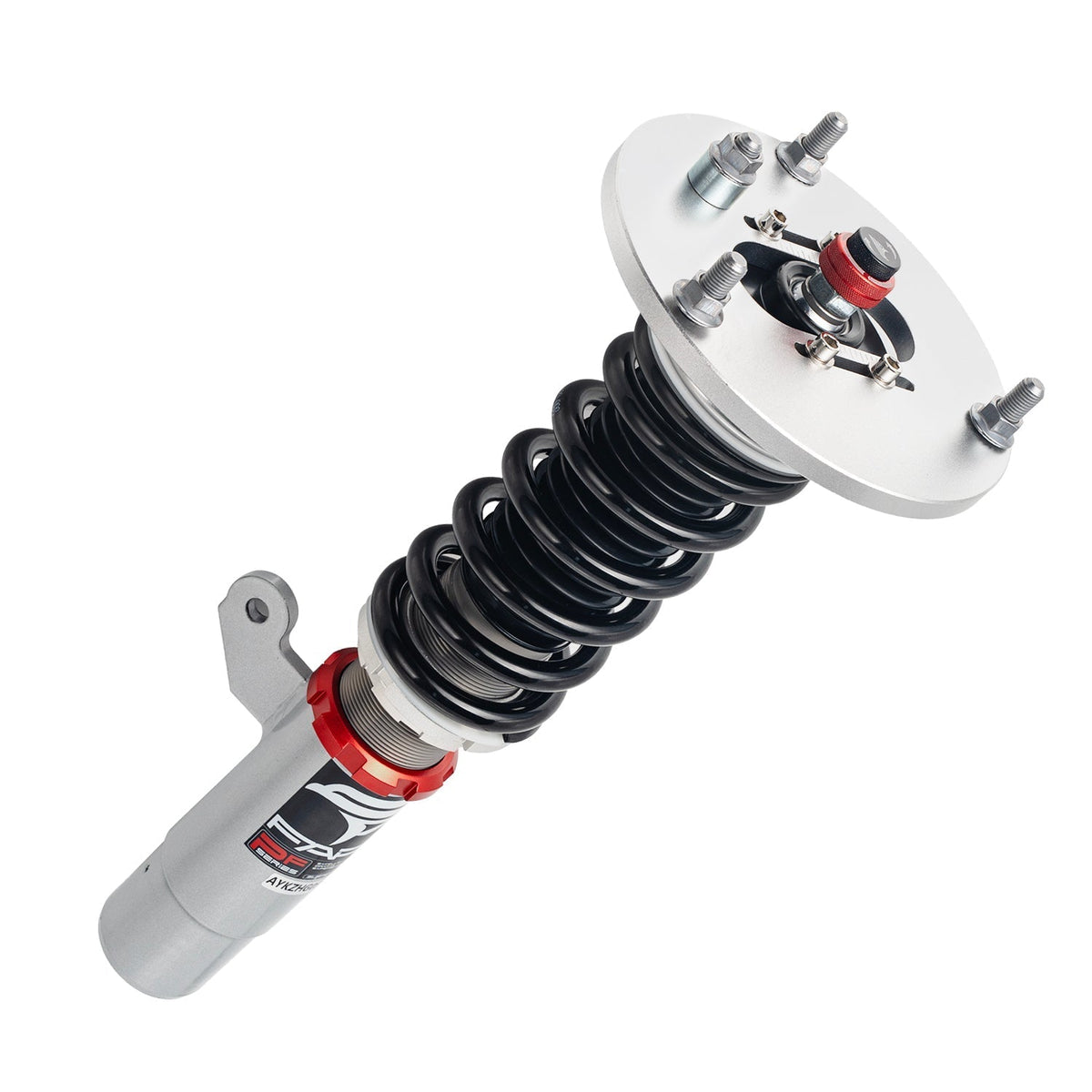

• Front Shock: 53-280-120-20-M12 [4-M2-4]

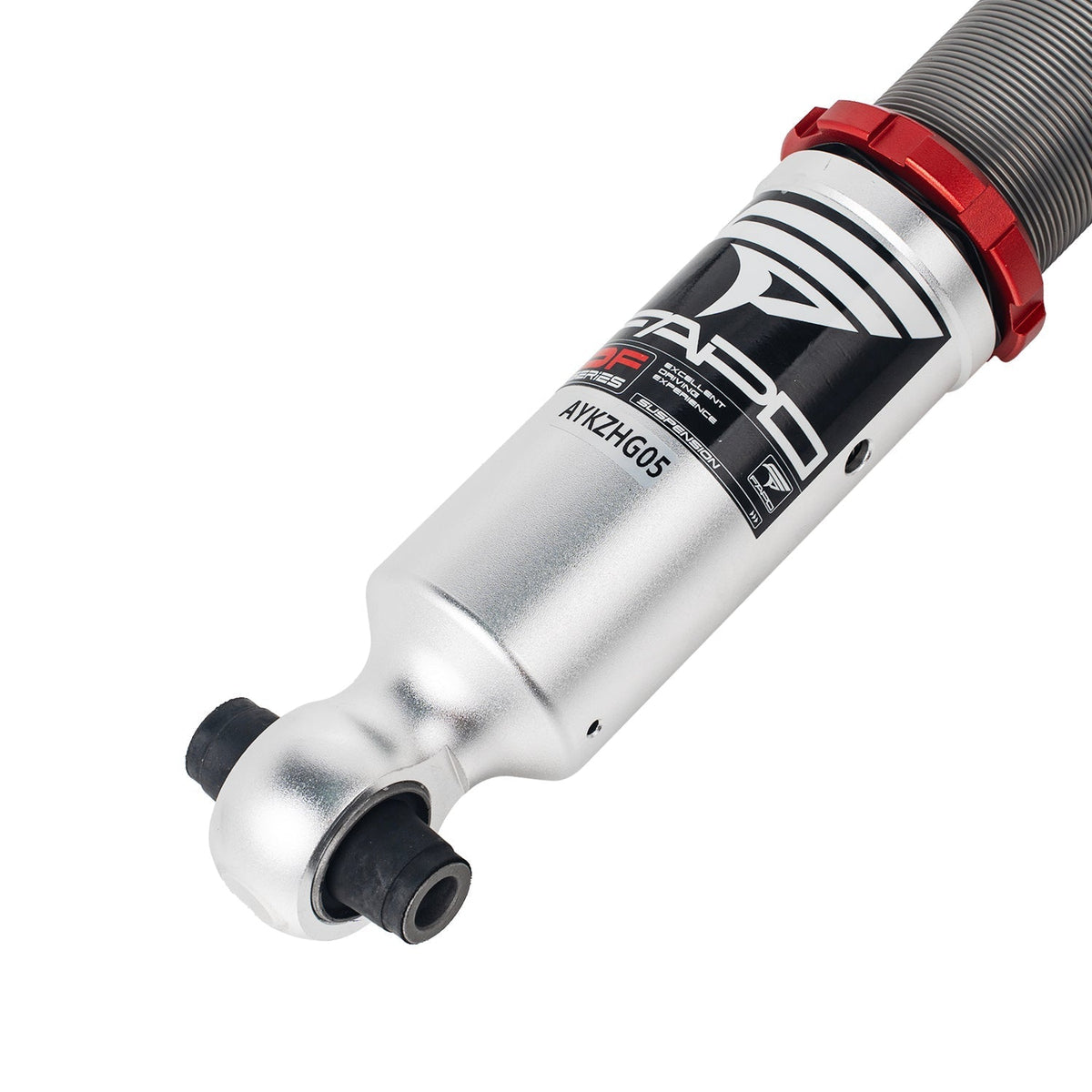

• Rear Shock: 53-240-140-12.5-M12 [4-A1-9]

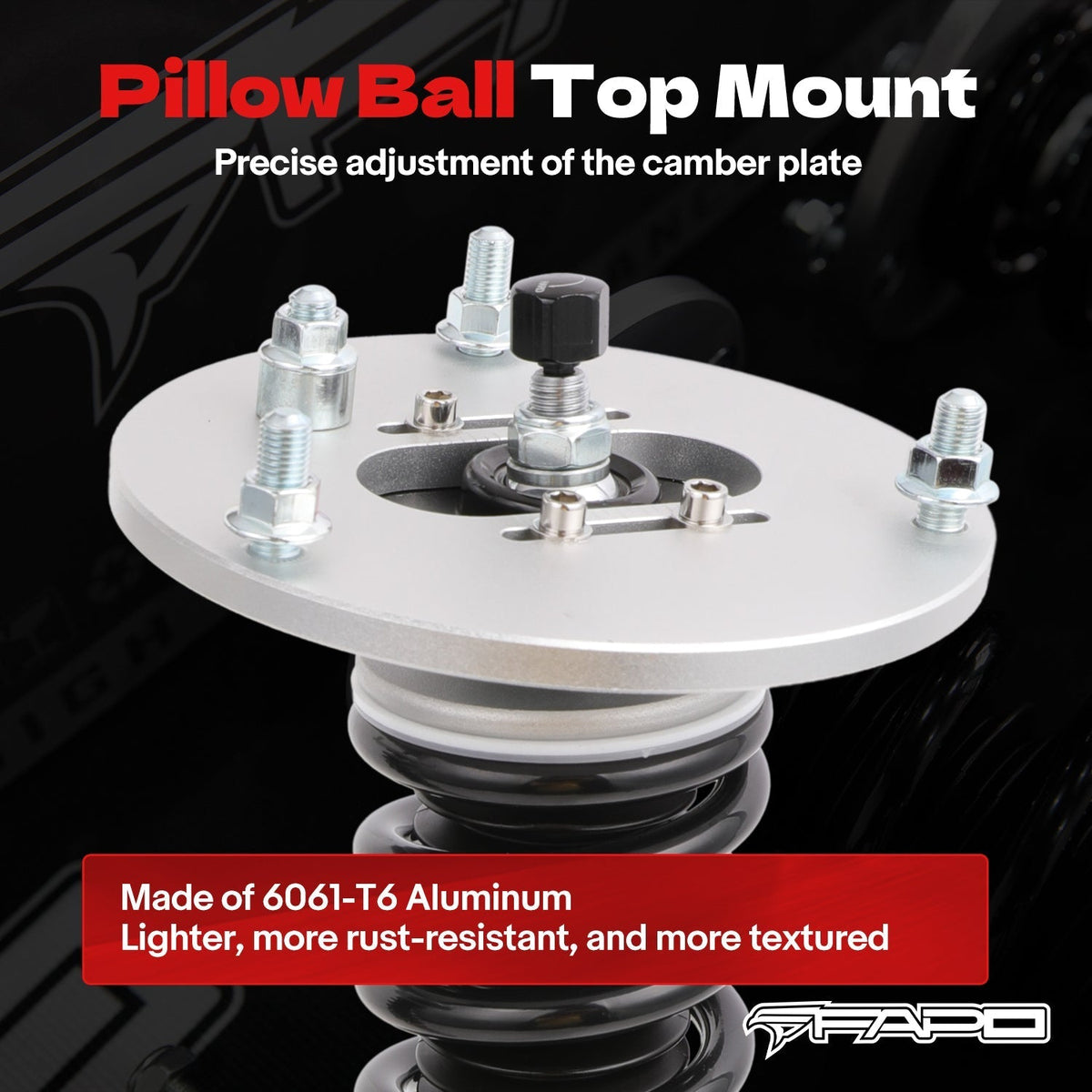

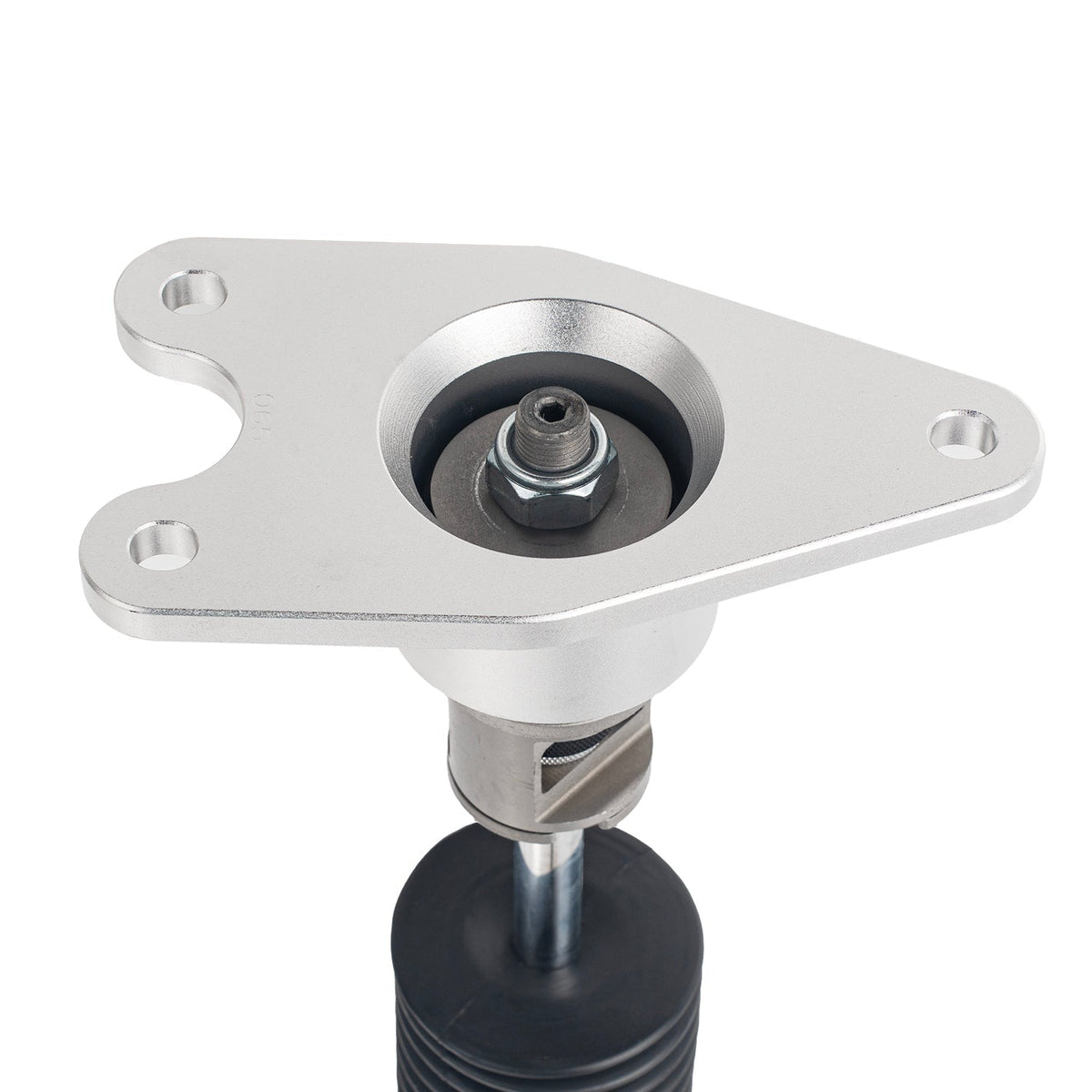

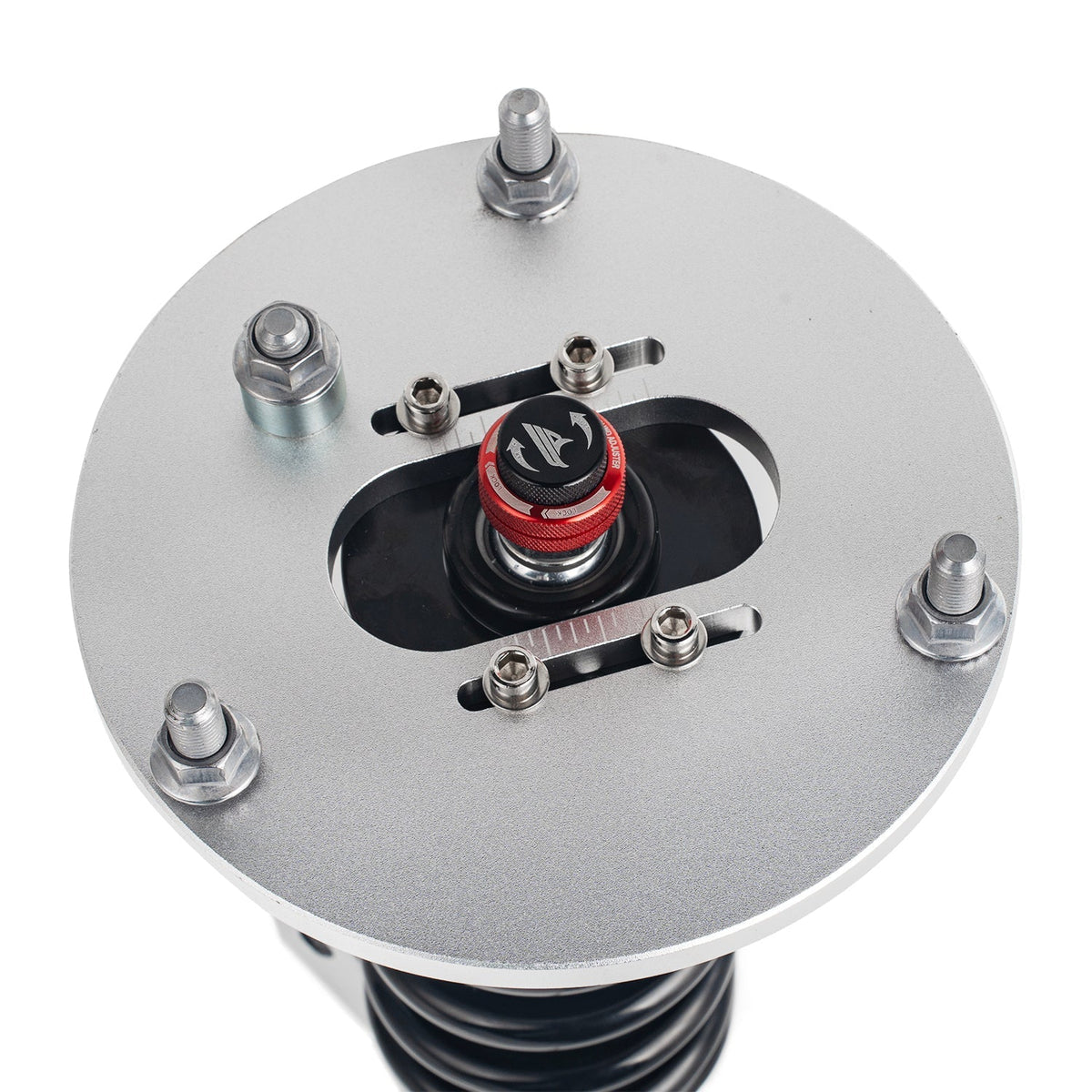

• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
