FAPO PF 32-Level Coilovers BMW 3 Series F30/F31/F34 2011-2019, 4 Series F32/F33/F36 2013-2020 & 2 Series F22/F23 2014-2021 (3-Bolt) [PF006530]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

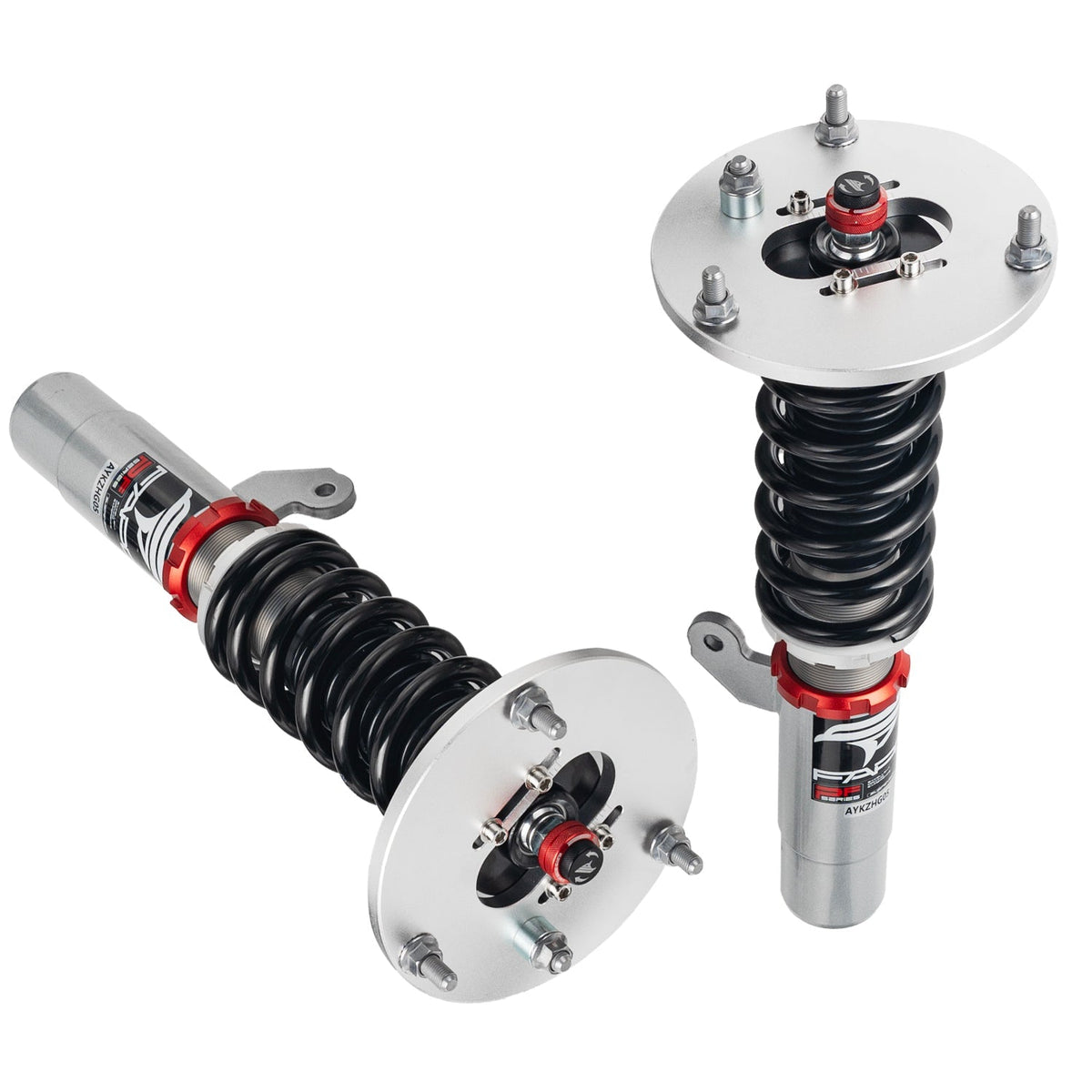

The FAPO PF kit for the BMW 3 Series F30/F31/F34 2011-2019, 4 Series F32/F33/F36 2013-2020 & 2 Series F22/F23 2014-2021 (3-Bolt) is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• BMW 2 Series 1st Gen coupé and convertible 2WD/AWD(3blots) F22/F23 14-21

• BMW 3 Series 6th Gen 2WD/AWD(3blots) F30/F31/F34 11-19

• BMW 4 Series 1st Gen 2WD/AWD(3blots) F32/F33/F36 13-20

Note: Please confirm your OEM front top mounts use the 3-bolt version before purchase.

Lowered Stance: This is a lowering kit; even at maximum height the vehicle will sit 1-1.5 inches lower than factory. Confirm you want to lower your car before purchase.

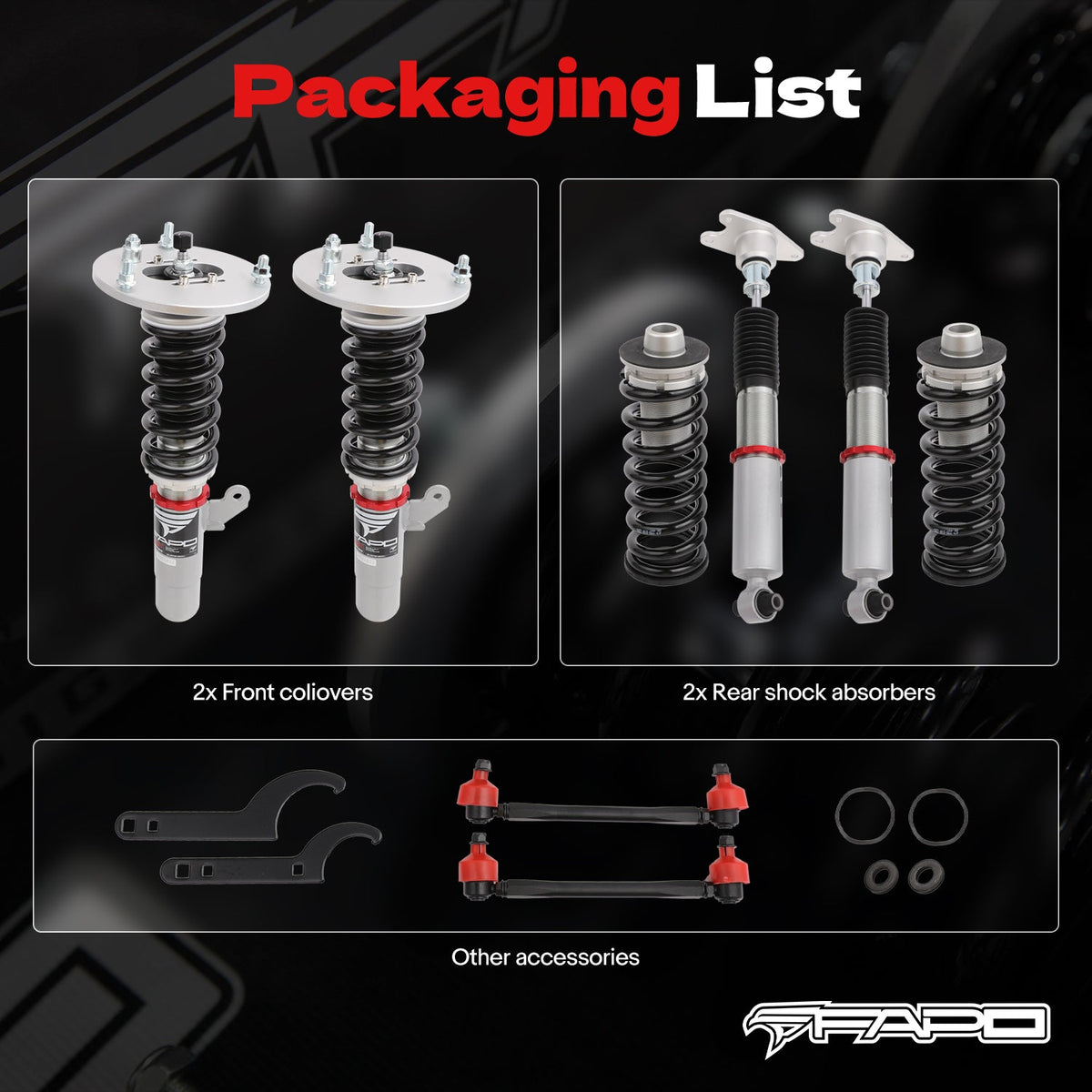

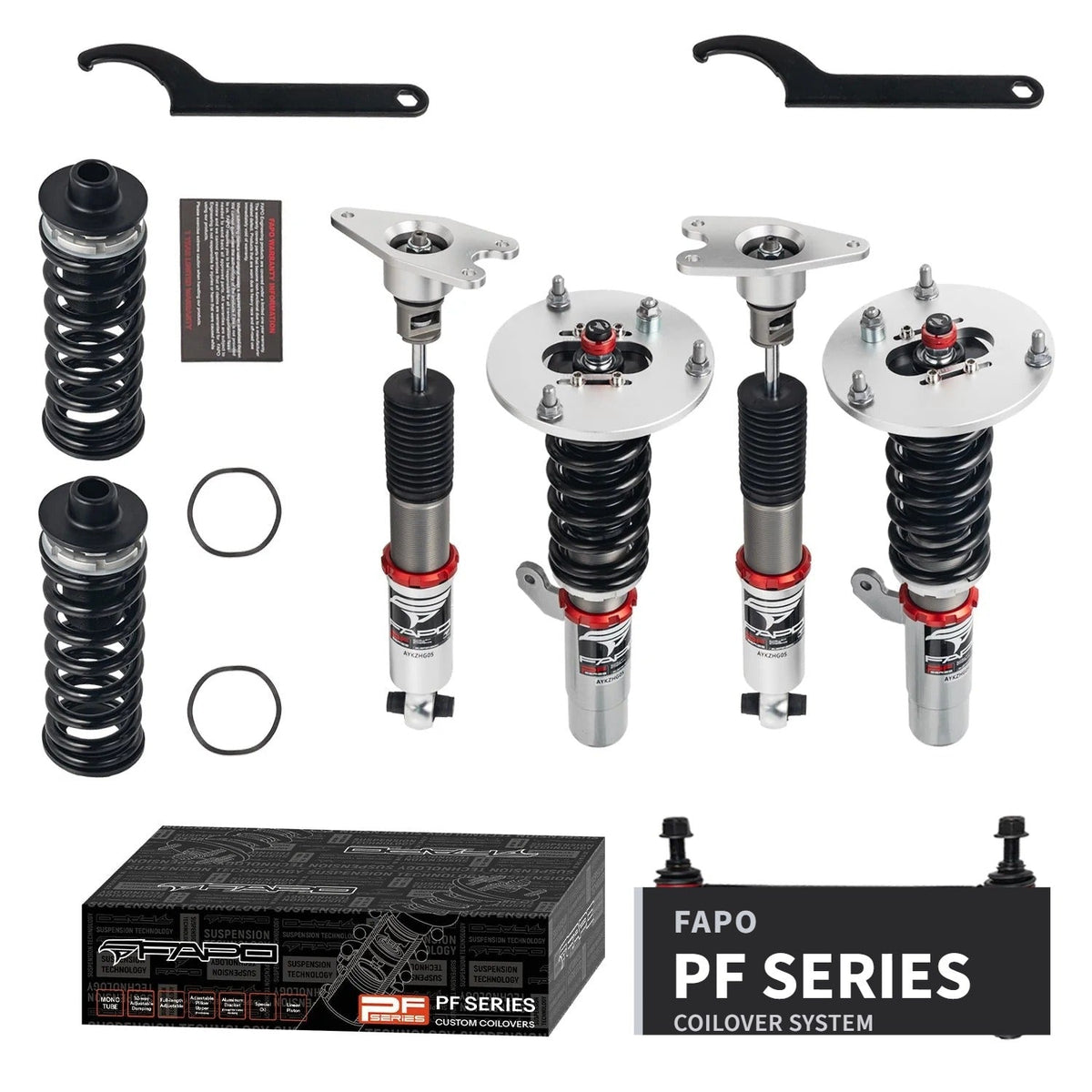

Package Includes:

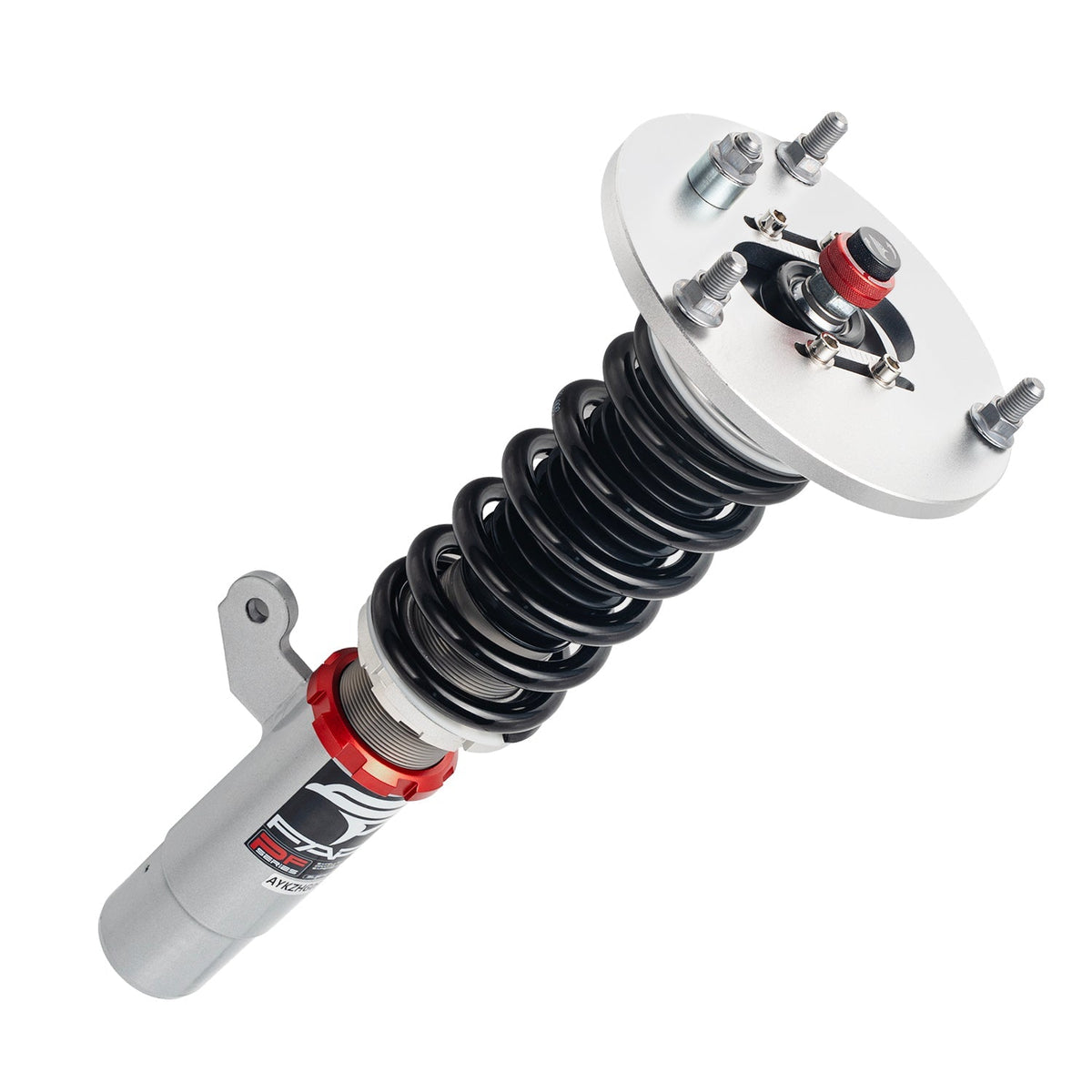

• Front coilovers × 2
• Rear coilovers × 2
• Spanners × 2
• Sway-bar links × 2

Features:

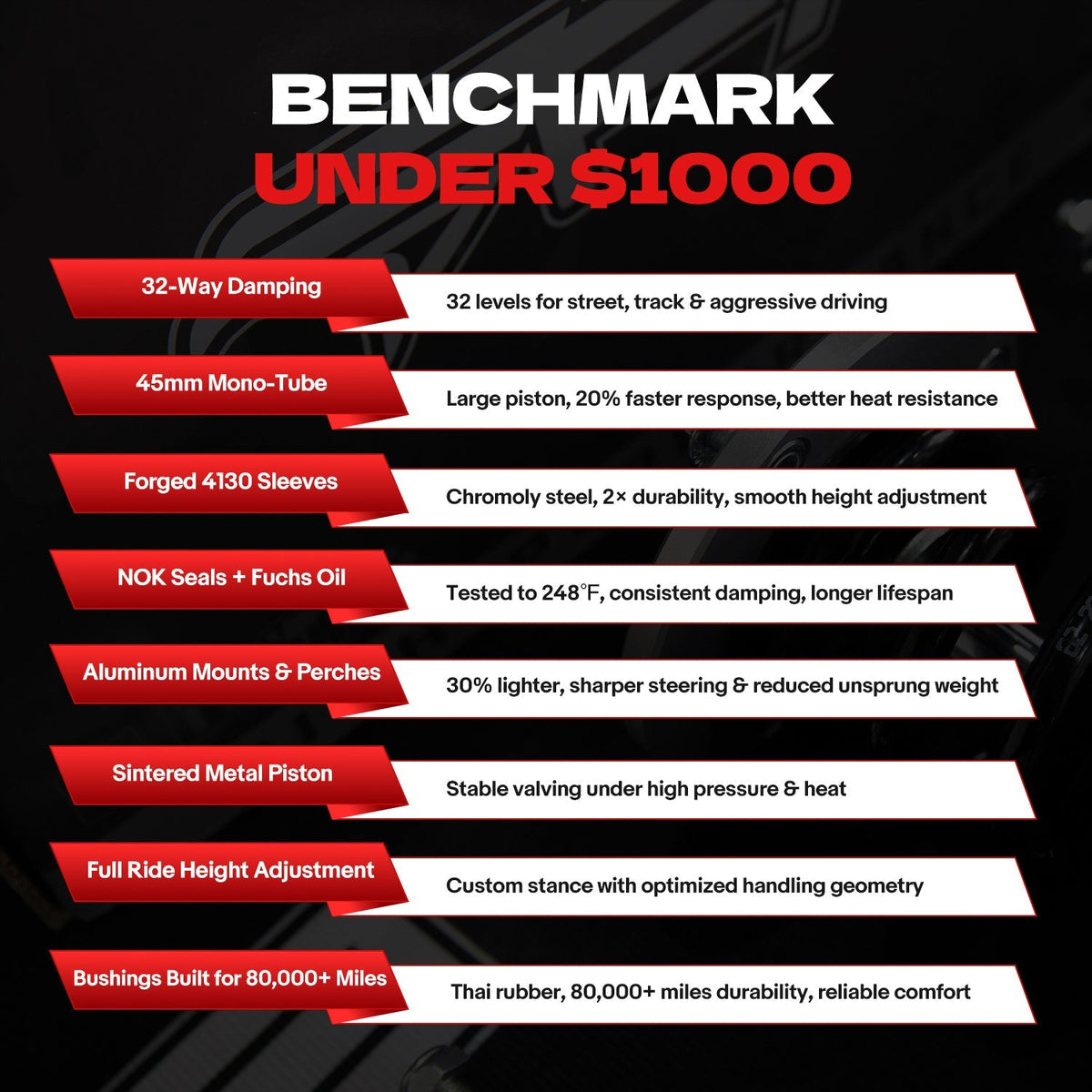

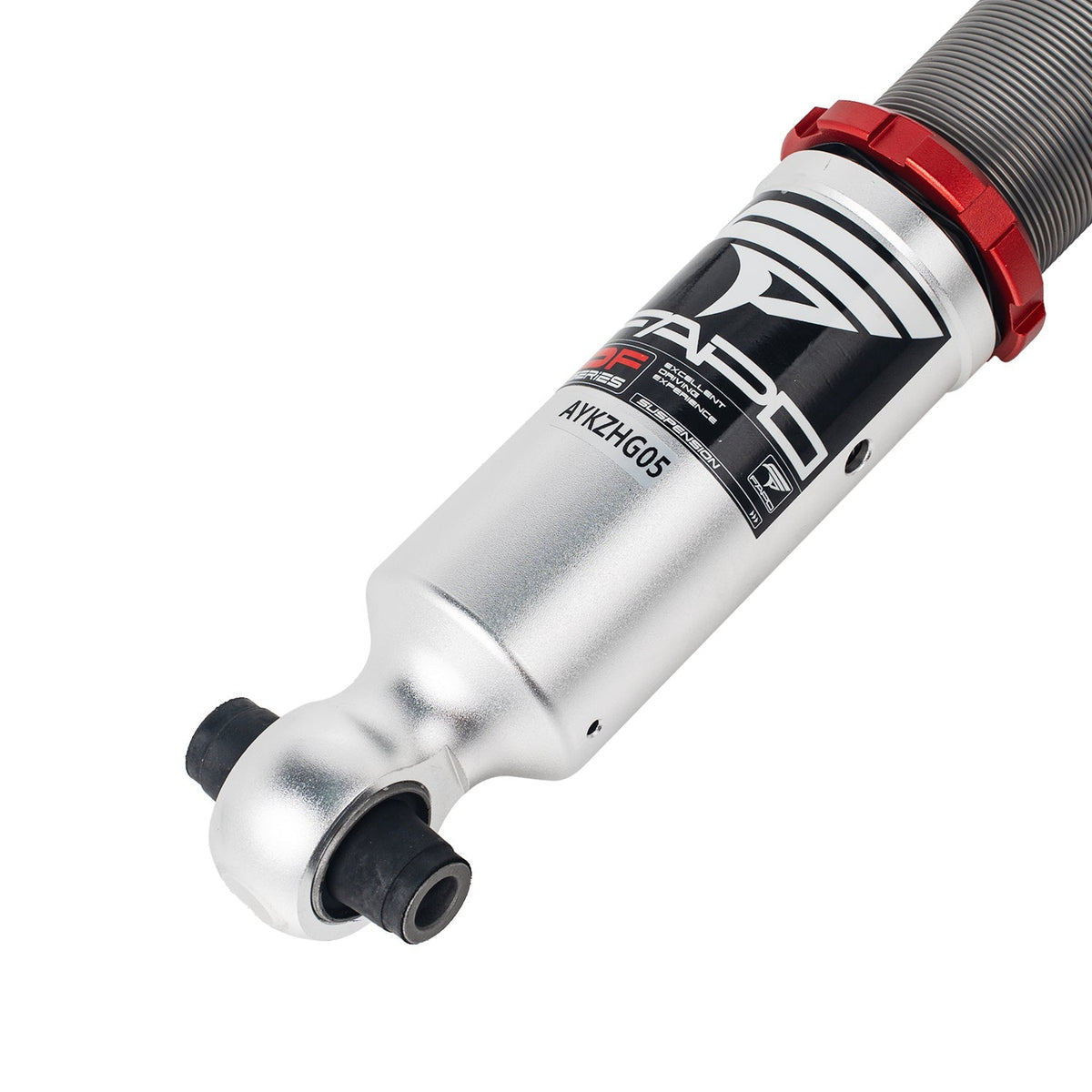

• Mono-tube shock design, provides larger oil & gas capacity
• Adjustable ride height (max height still 1-1.5" lower than factory)
• Adjustable pre-load spring tension

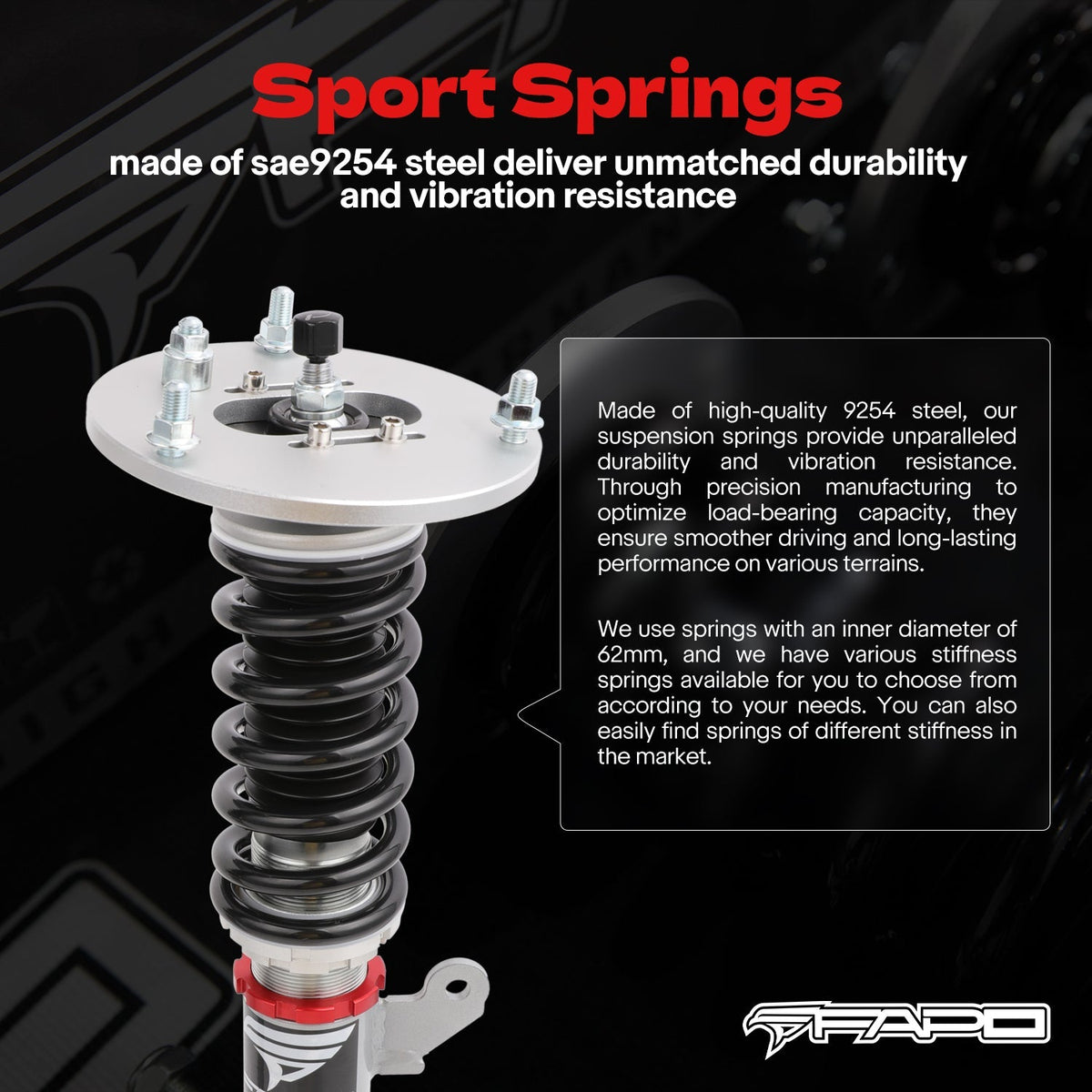

• High-tensile performance spring: < 0.04 % distortion after 600 k cycles, surface-treated for durability
• Rubber boots included on all inserts to protect dampers & keep clean
• Better handling without sacrificing ride comfort
• Quick, cost-effective way to upgrade appearance
• Easy installation with proper tools
• Suitable for track, drift, fast-road, and daily driving
• All pictured accessories included
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 220mm, 10 kg/mm (560 lb/in)
• Adjustable height: Yes
• Adjustable camber plate: Front only; rear uses standard top mounts

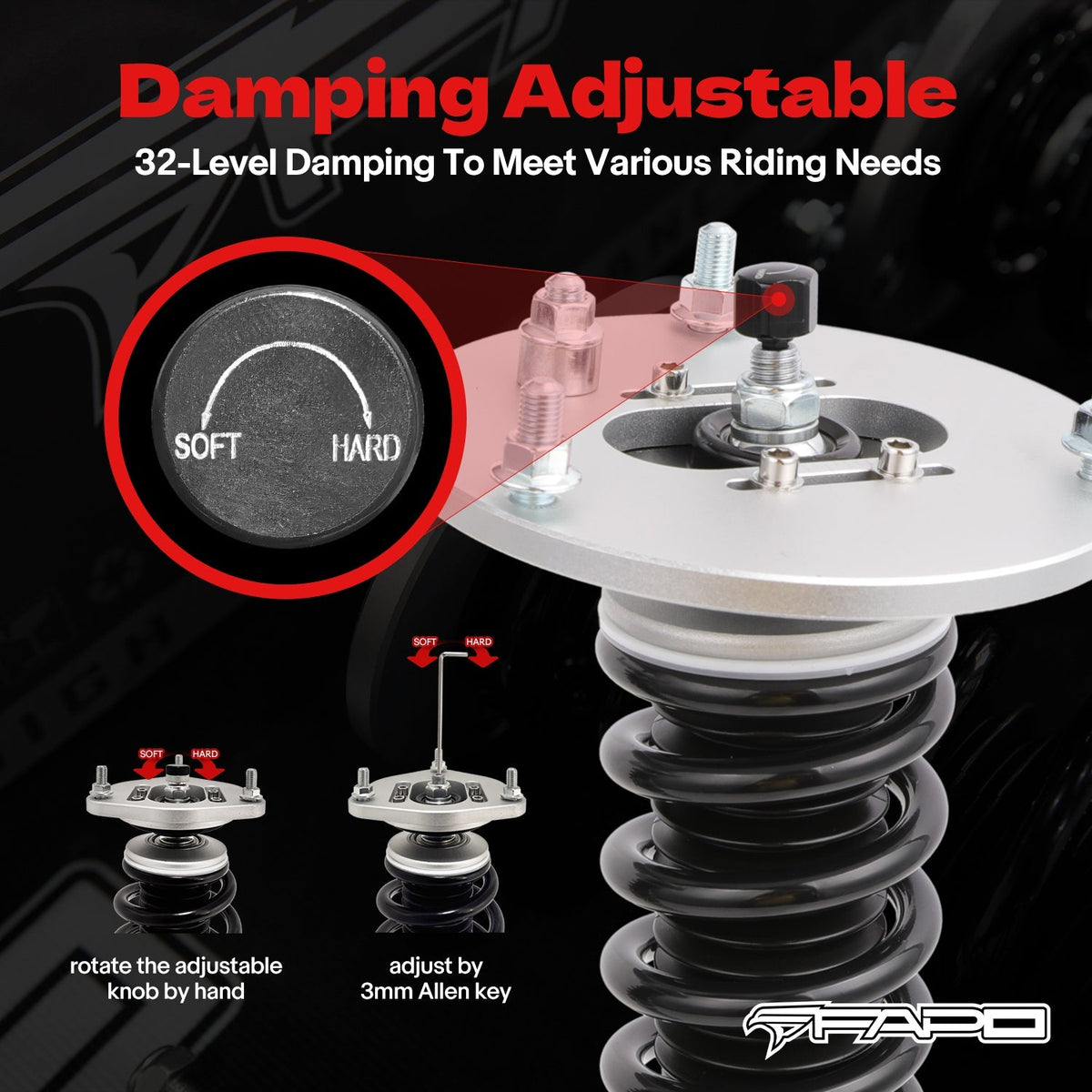

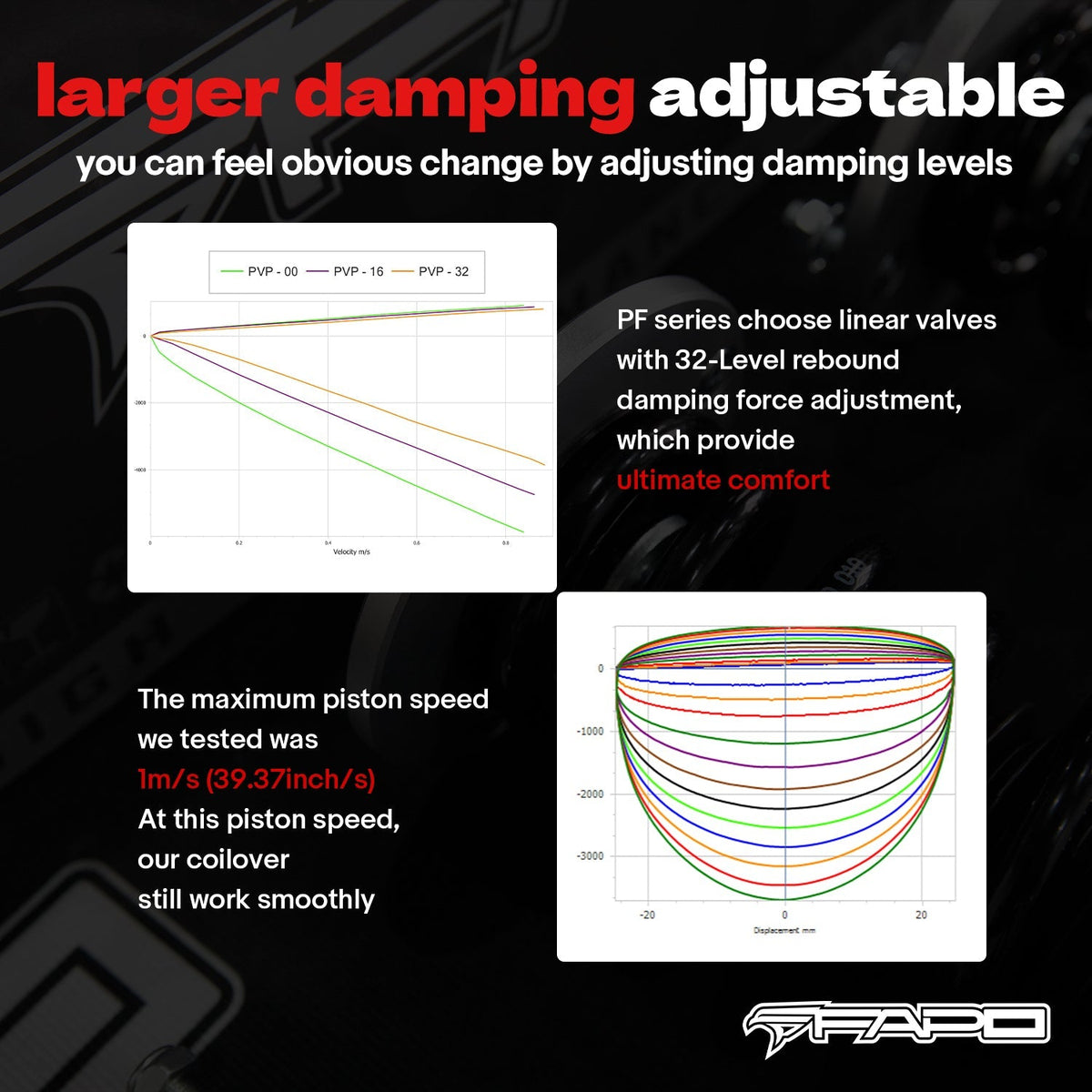

• Damping: 32 Levels
• Front Shock: 53-280-120-20-M12 [4-M2-4]
• Rear Shock: 53-240-140-12.5-M12 [4-A1-9]

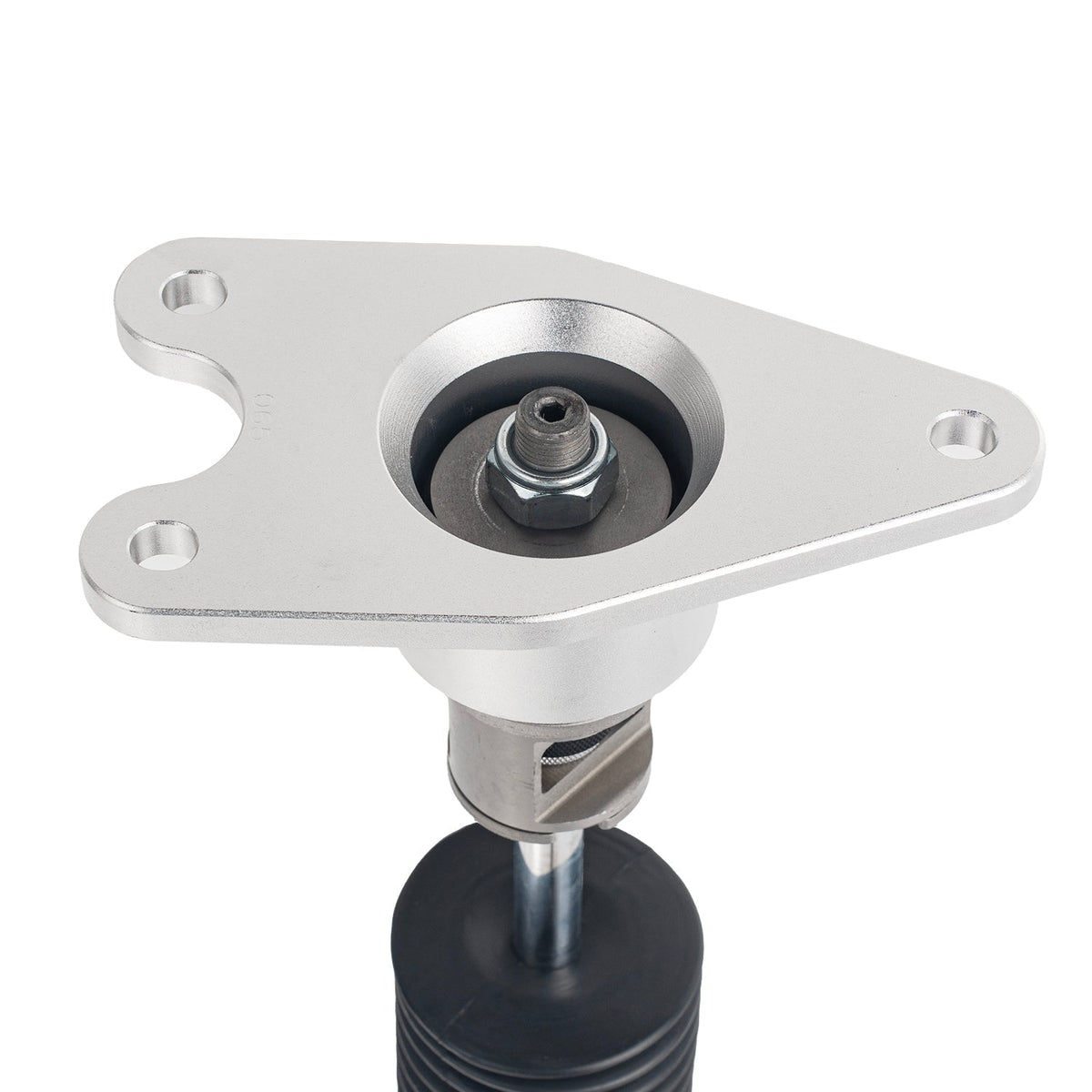

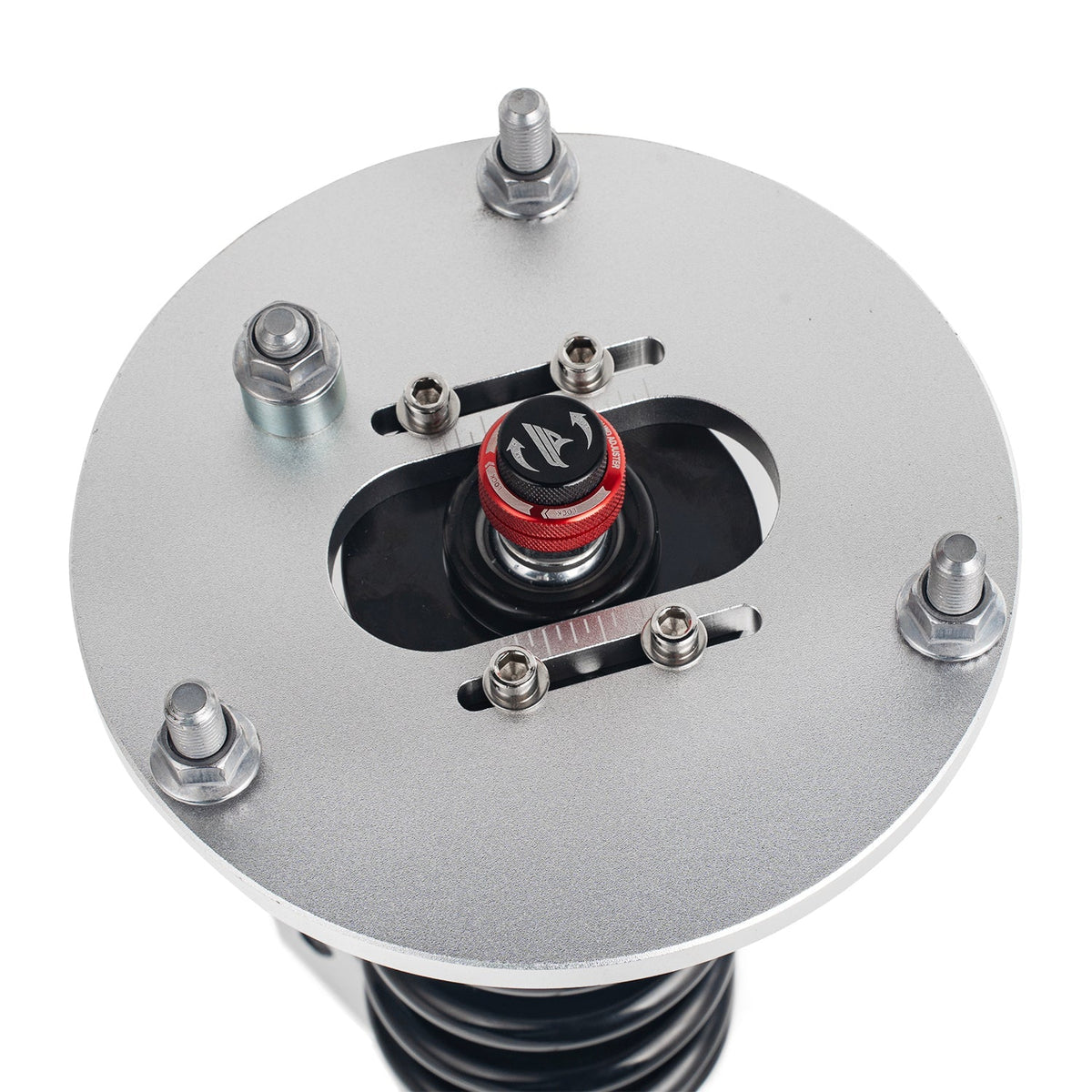

• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
