FAPO PF Custom 32-Level Coilovers BMW 1 Series E82 2011 &BMW M3 E90/E92/E93 2007-2013 [PF016430-CUSTOM]

FAPO PF Custom Coilovers — the FAPO PF kit for the BMW 1 Series E82 2011 &BMW M3 E90/E92/E93 2007-2013, built to your spring rates by RedShift.

The FAPO PF Custom takes the FAPO PF 32-level damping-adjustable monotube coilover for the BMW 1 Series E82 2011 &BMW M3 E90/E92/E93 2007-2013 and builds it to order at RedShift: choose any spring rate, front and rear. Full-length ride-height adjustment, separate spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Options (select above): your spring rates are included in the price. Choose Comfort (standard) valving, or Performance valving (+$300) for RedShift-revised street damping; add Swift springs (+$380; rates above 10 kg/mm require Swift). Want the kit exactly as FAPO builds it, at the lower price? See the FAPO PF for this car.

Also for this car, built by RedShift: See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• BMW 1 Series M 1st Gen E82 2011
• BMW M3 E90/E92/E93 2007-2013

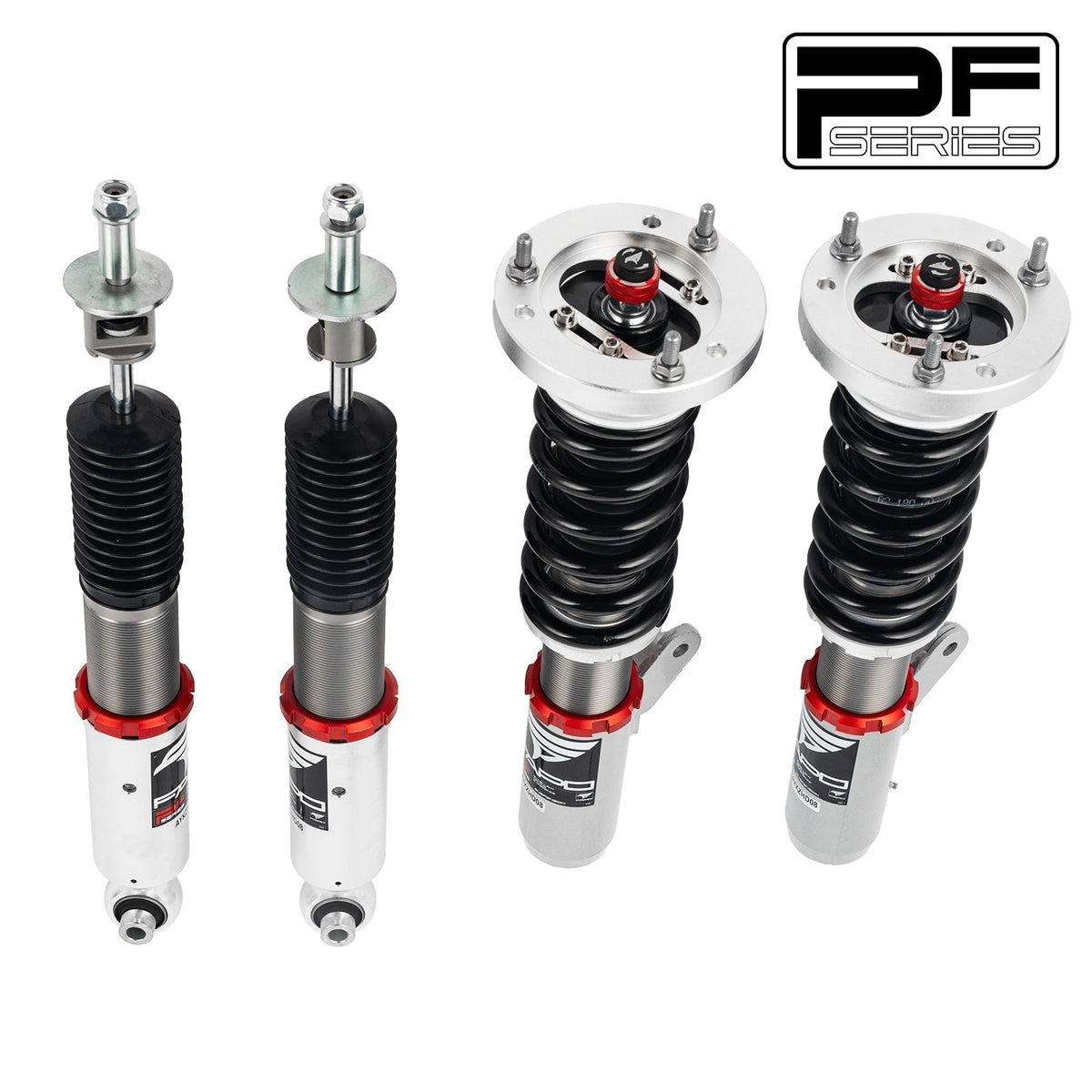

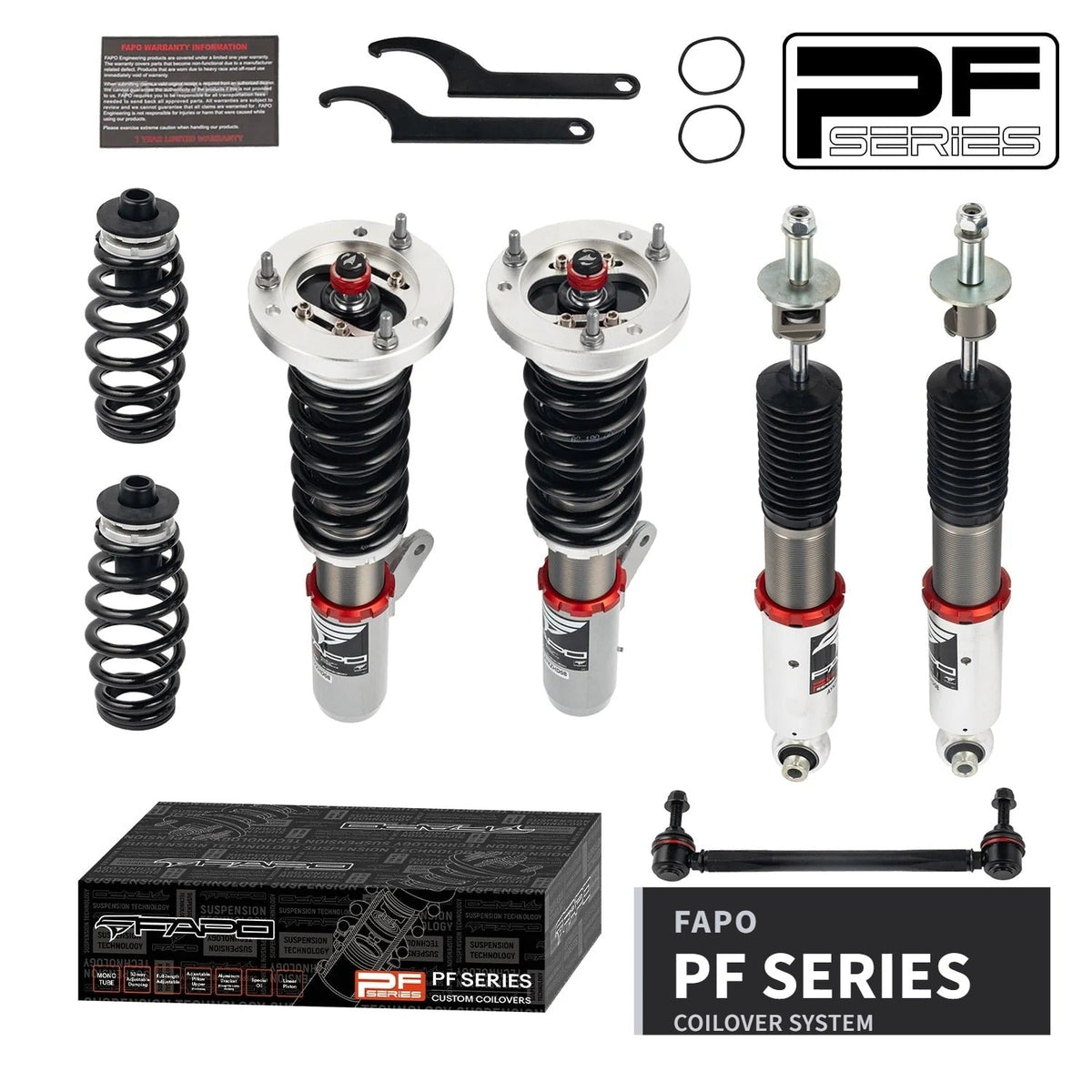

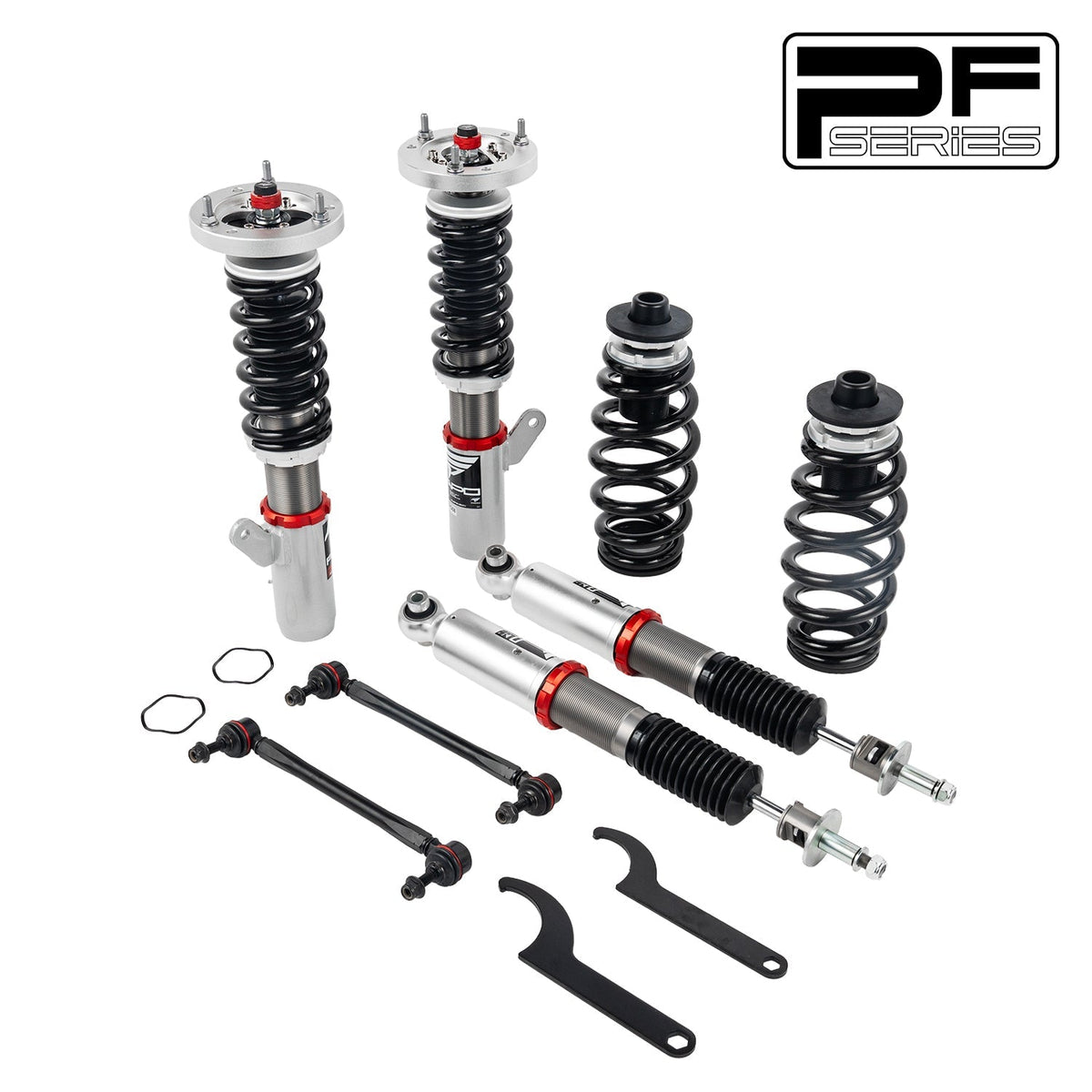

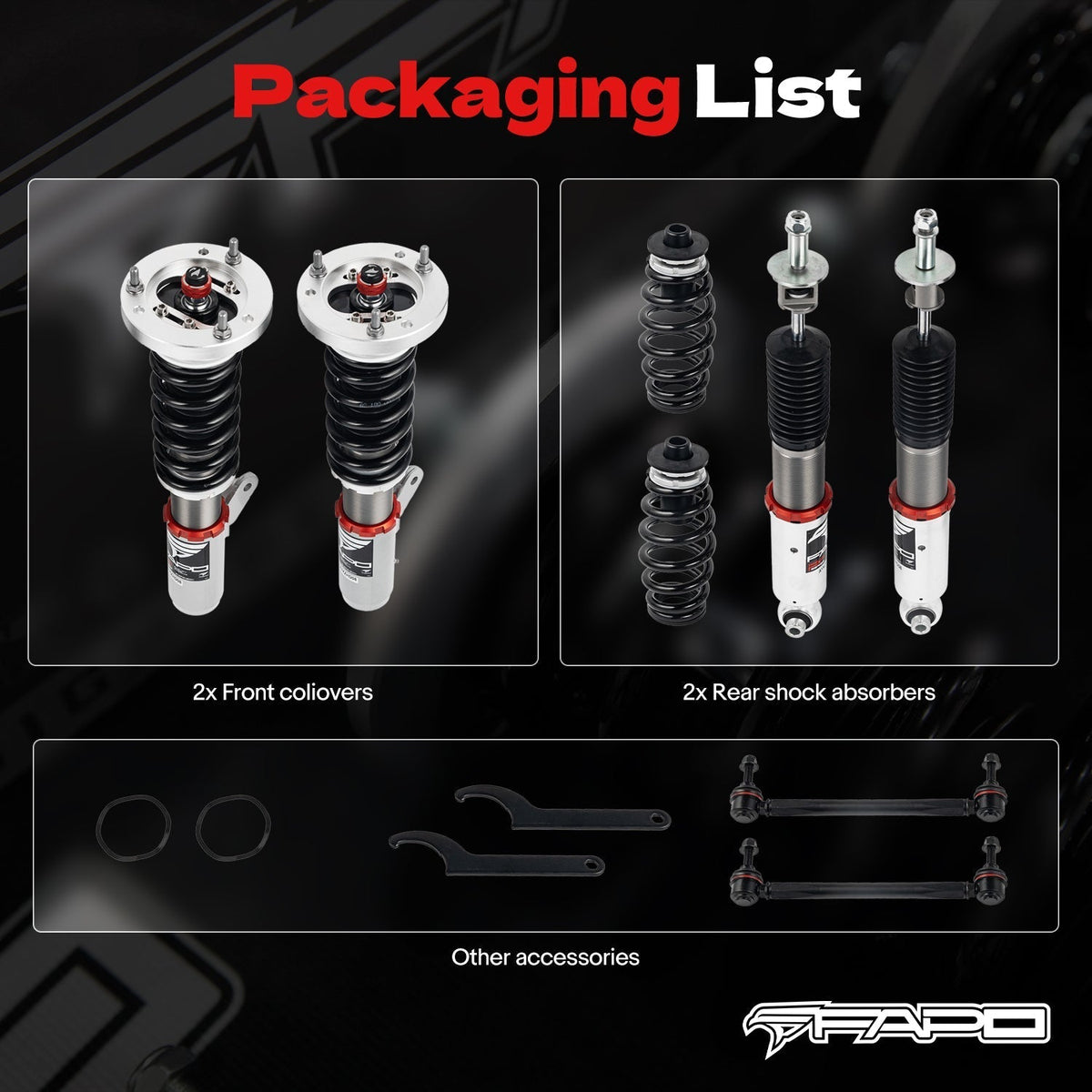

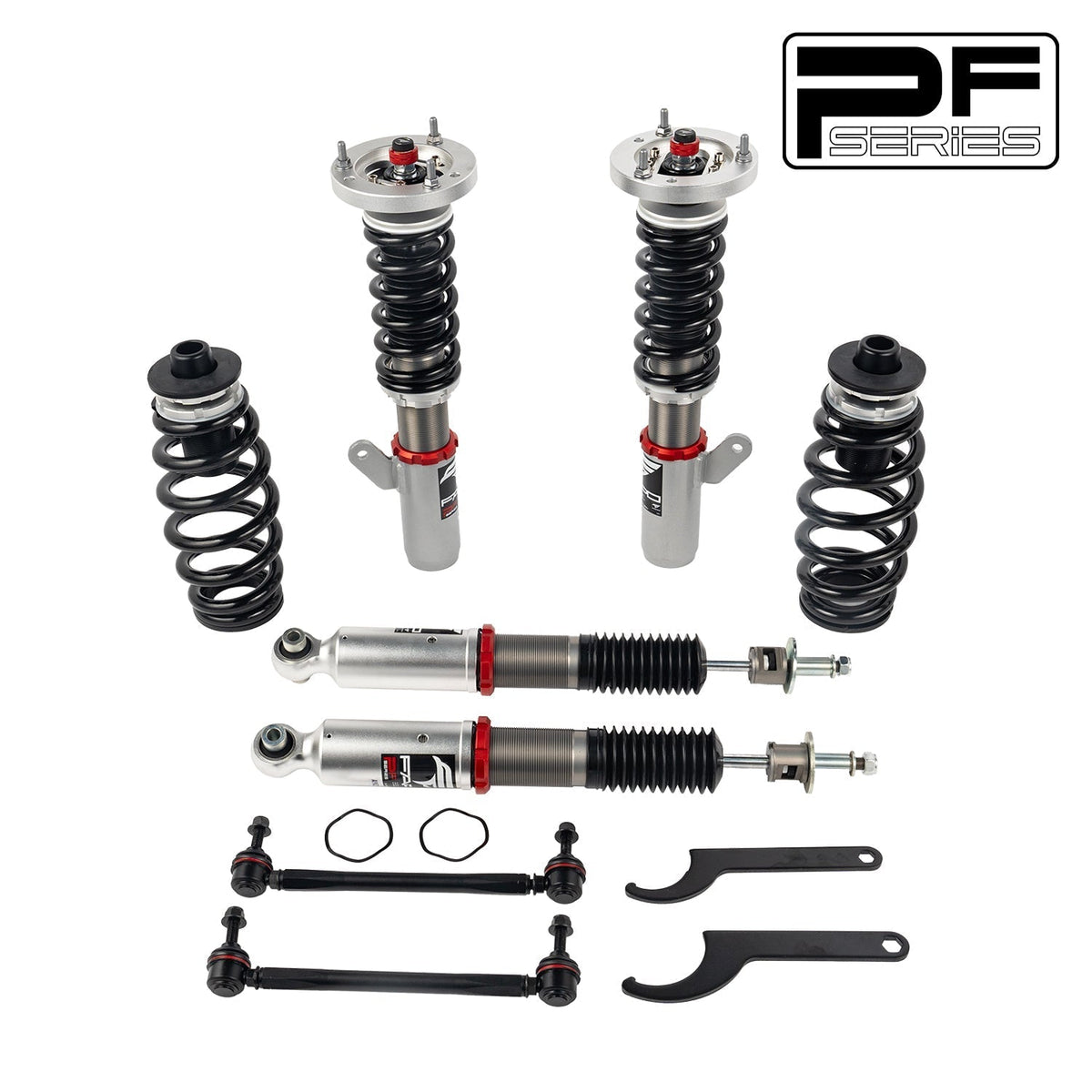

Package Includes:

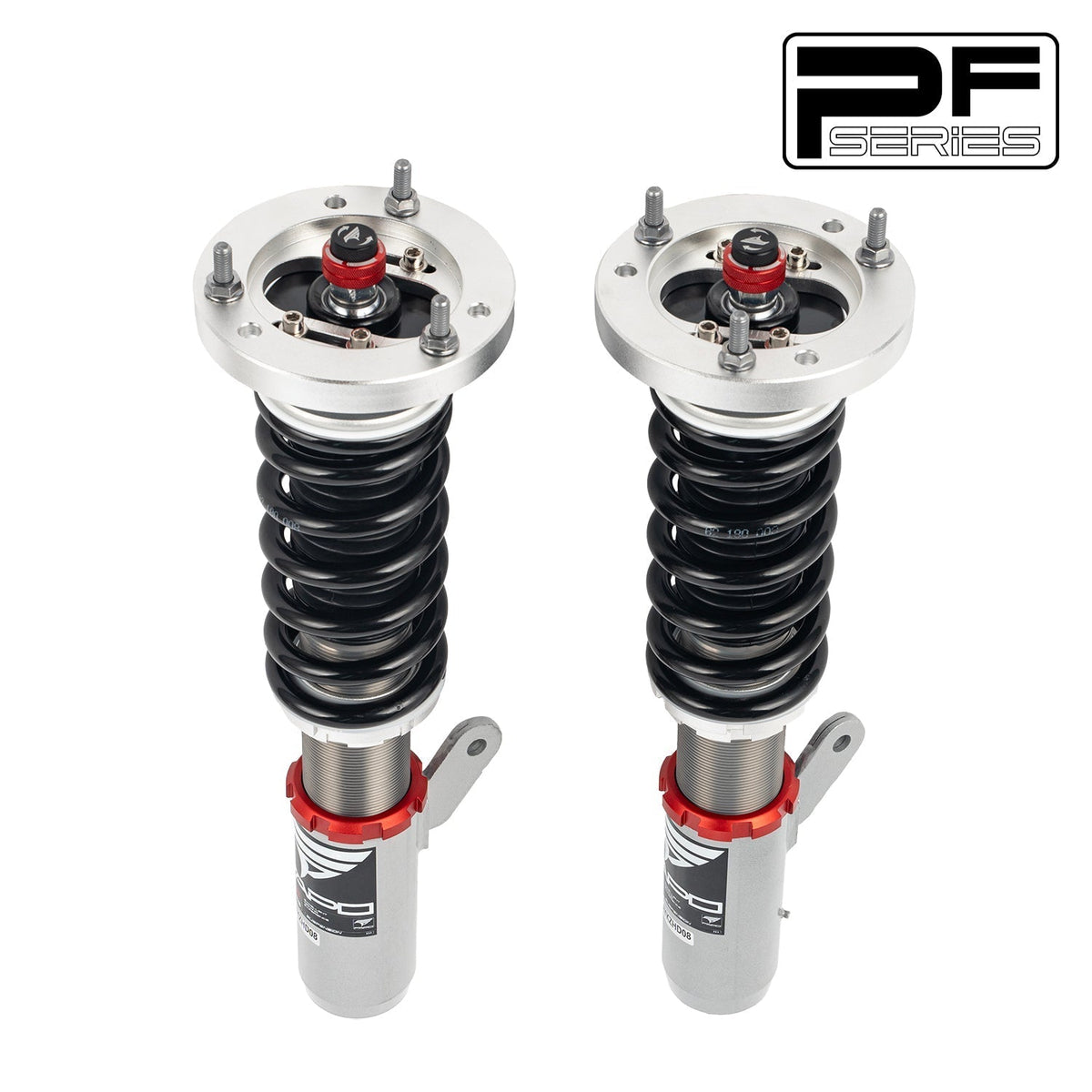

• Front coilovers × 2 pcs

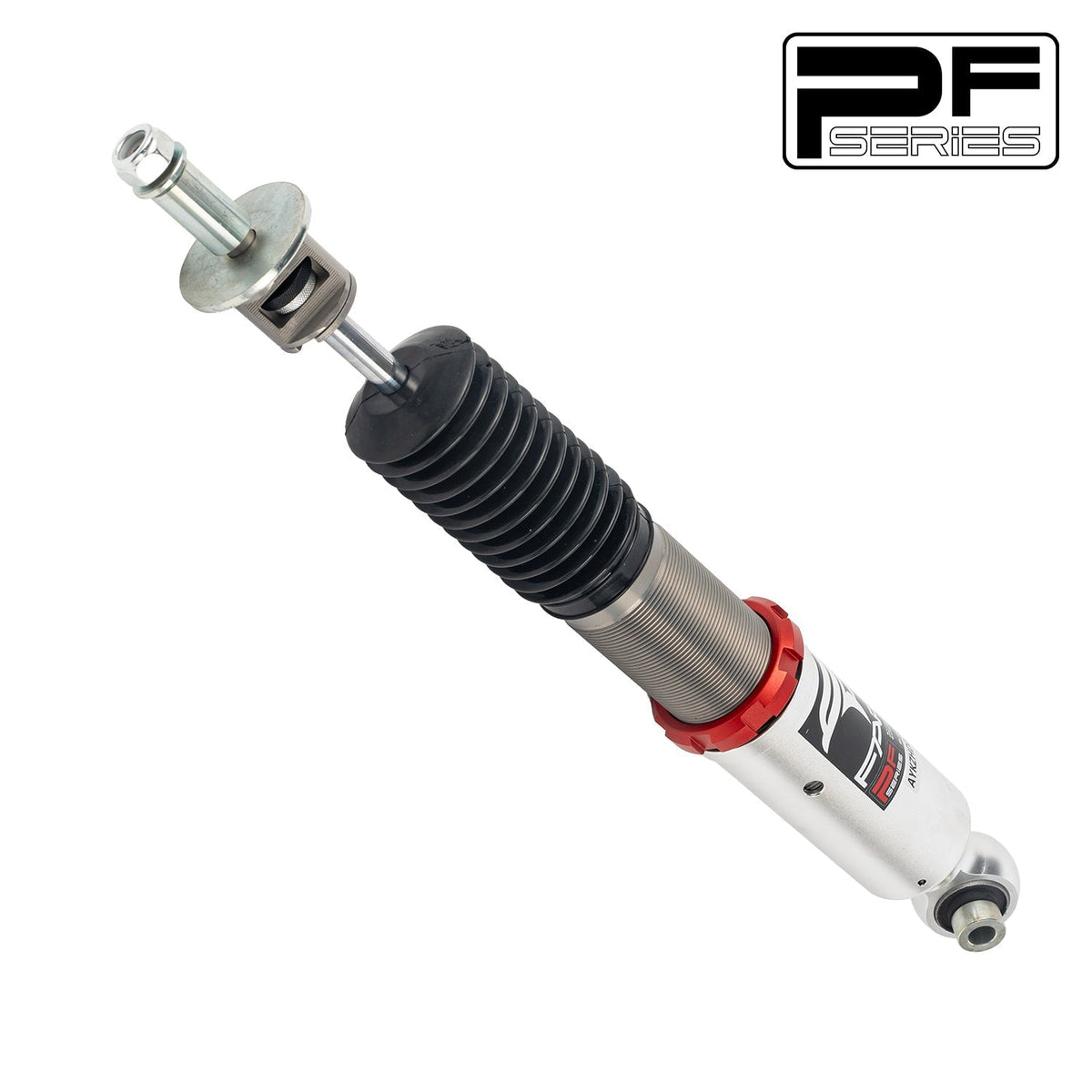

• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Our coilover is lowering kit which will be 1-1.5" lower than the factory height even at the max height, please confirm you want to lower your car before you buy it.

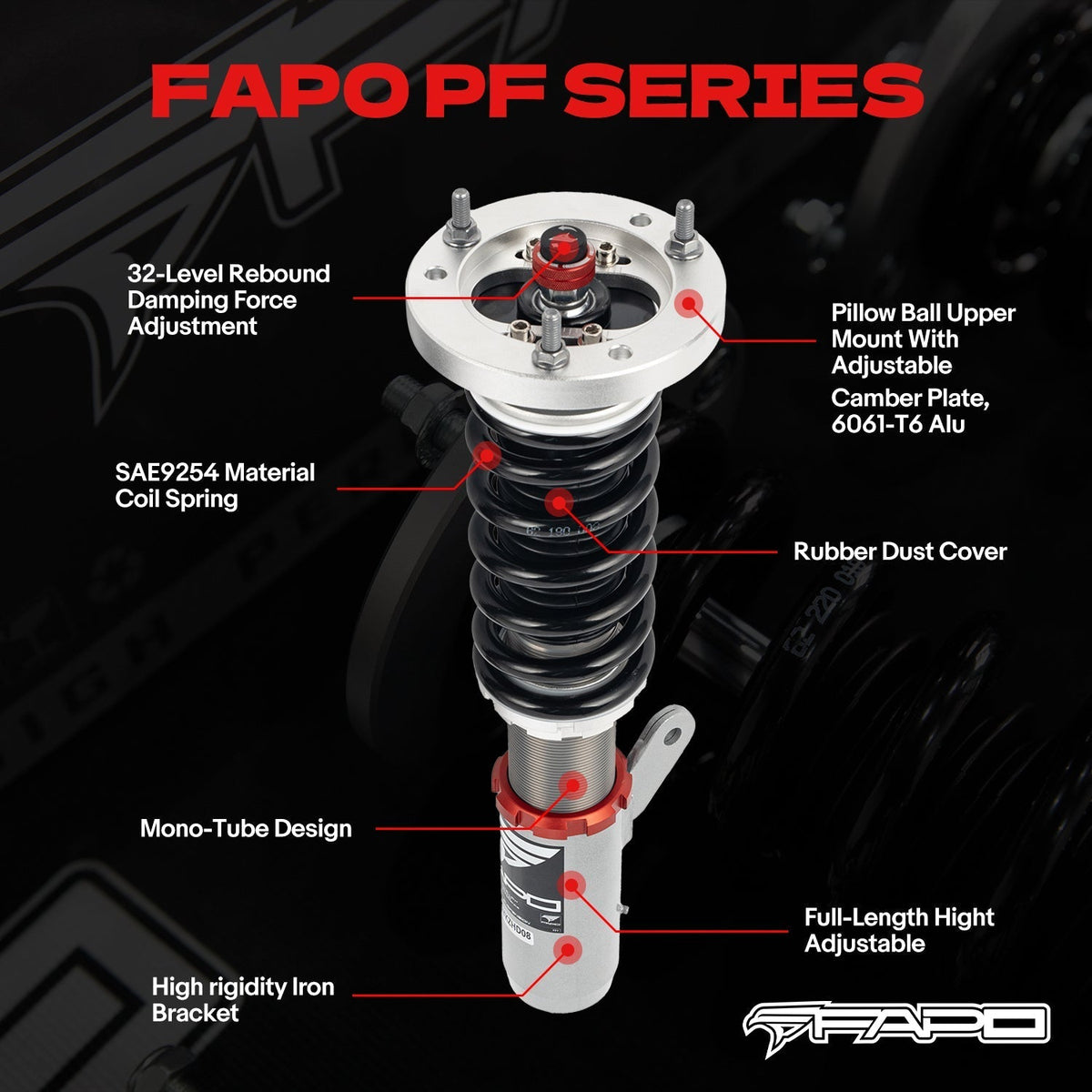

Features:

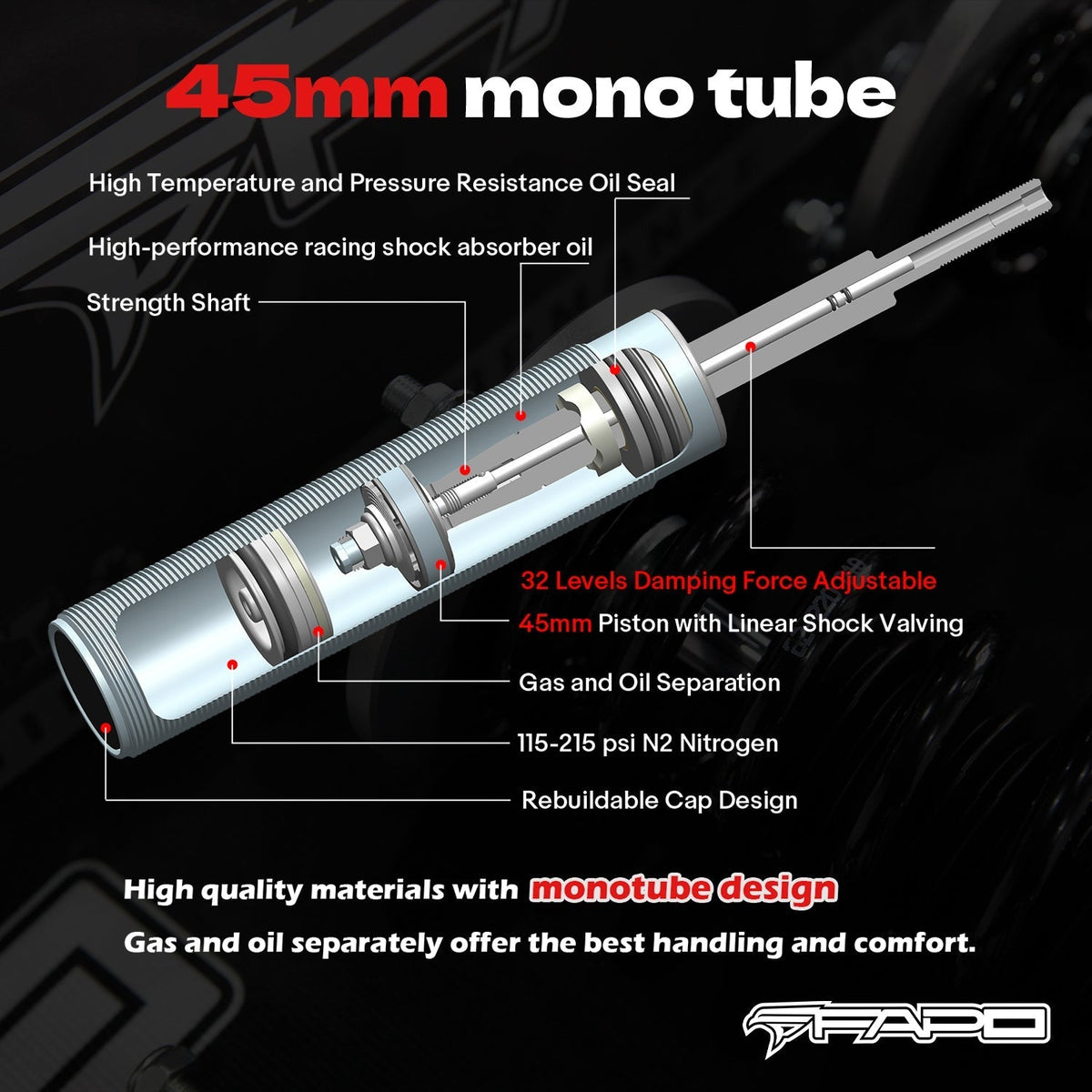

• Mono-tube shock design, provide larger capacity of oil and gas

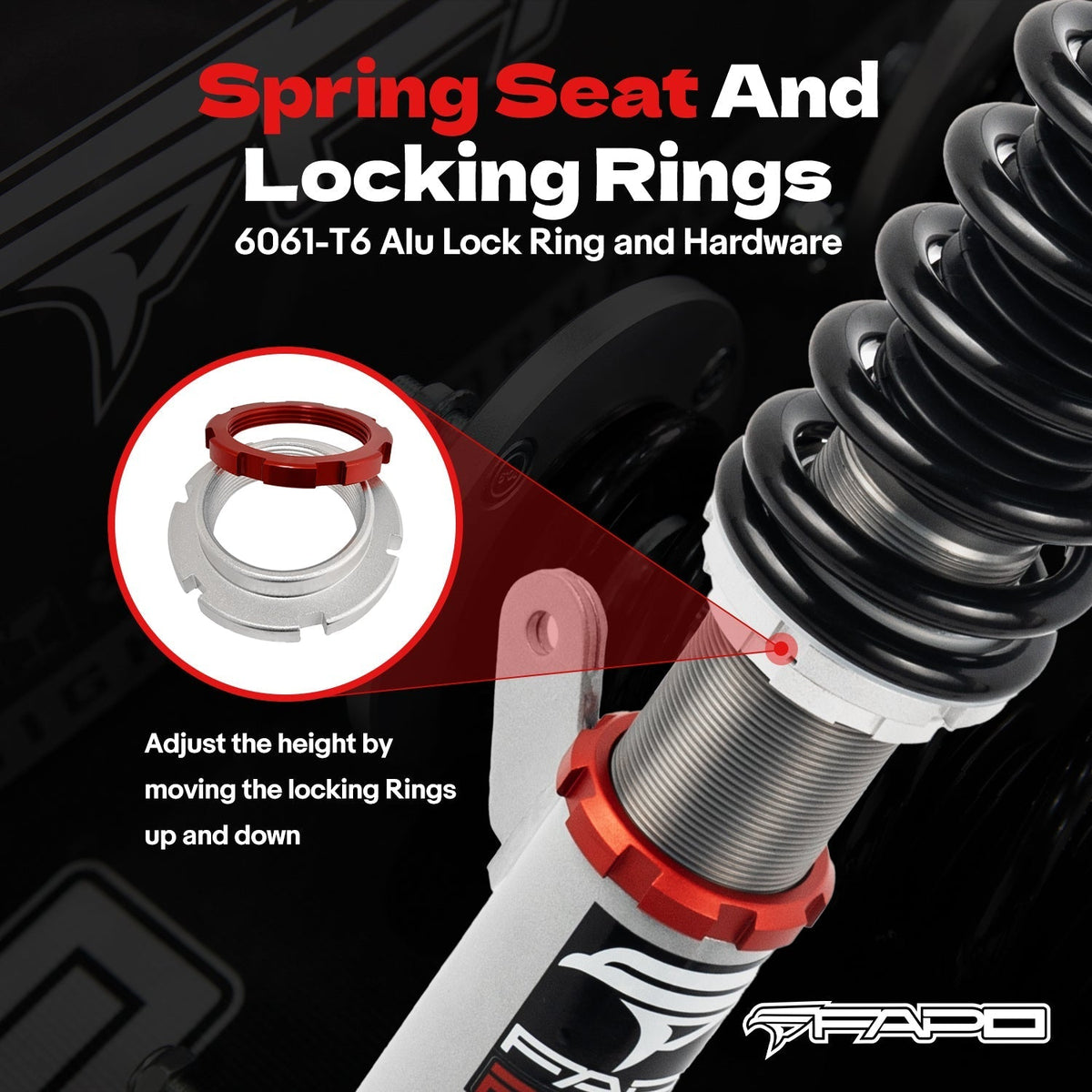

• Adjustable ride height
• Adjustable pre-load spring tension

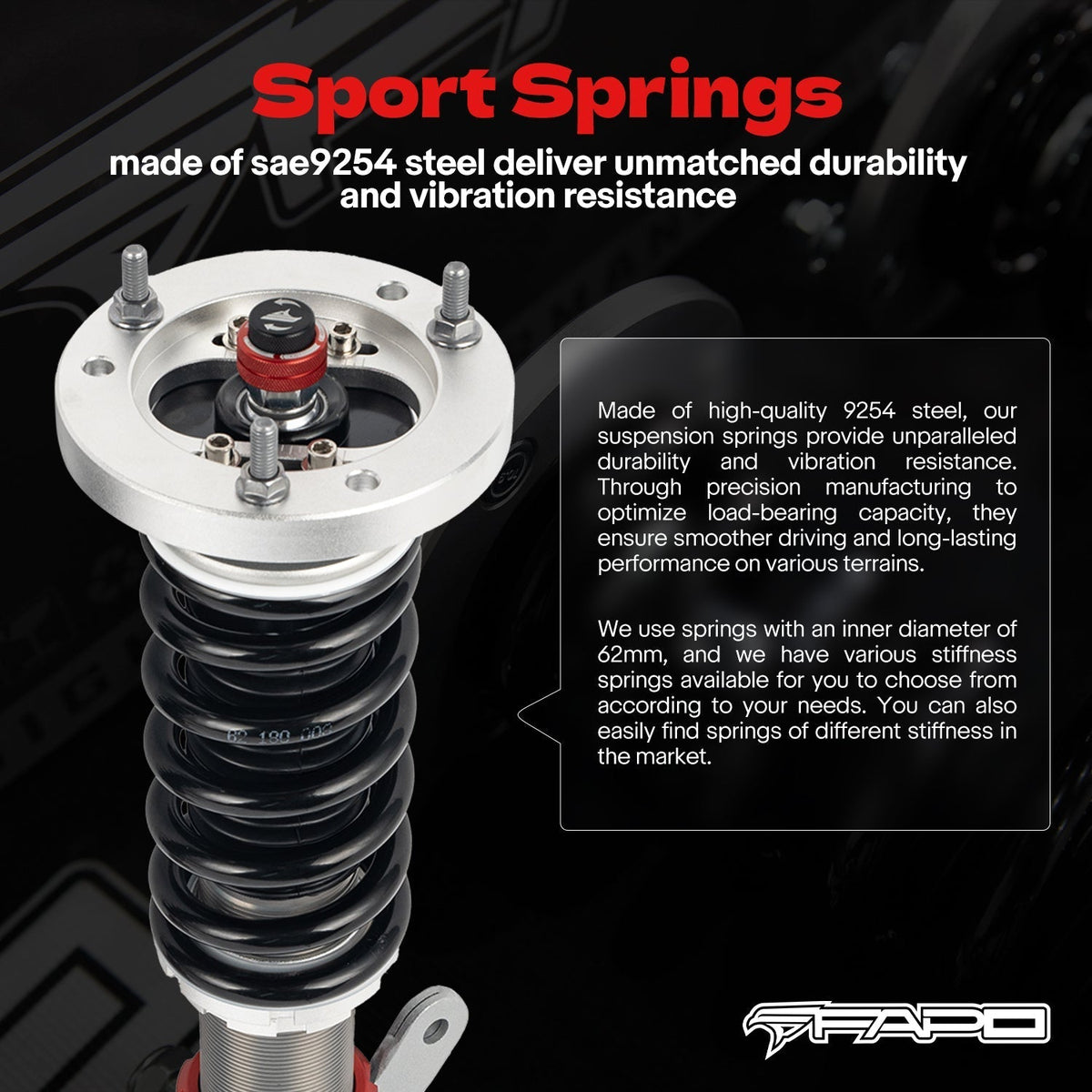

• Hi Tensile performance spring - Under 600,000 times continuous test, spring distortion is less than 0.04%. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with right tools.
• Ideal for any track, drift, fast road and daily driving.
• The accessories in the photos are included.
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 240mm, 12 kg/mm (670 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Only Front coilovers; Rear with standard top mounts

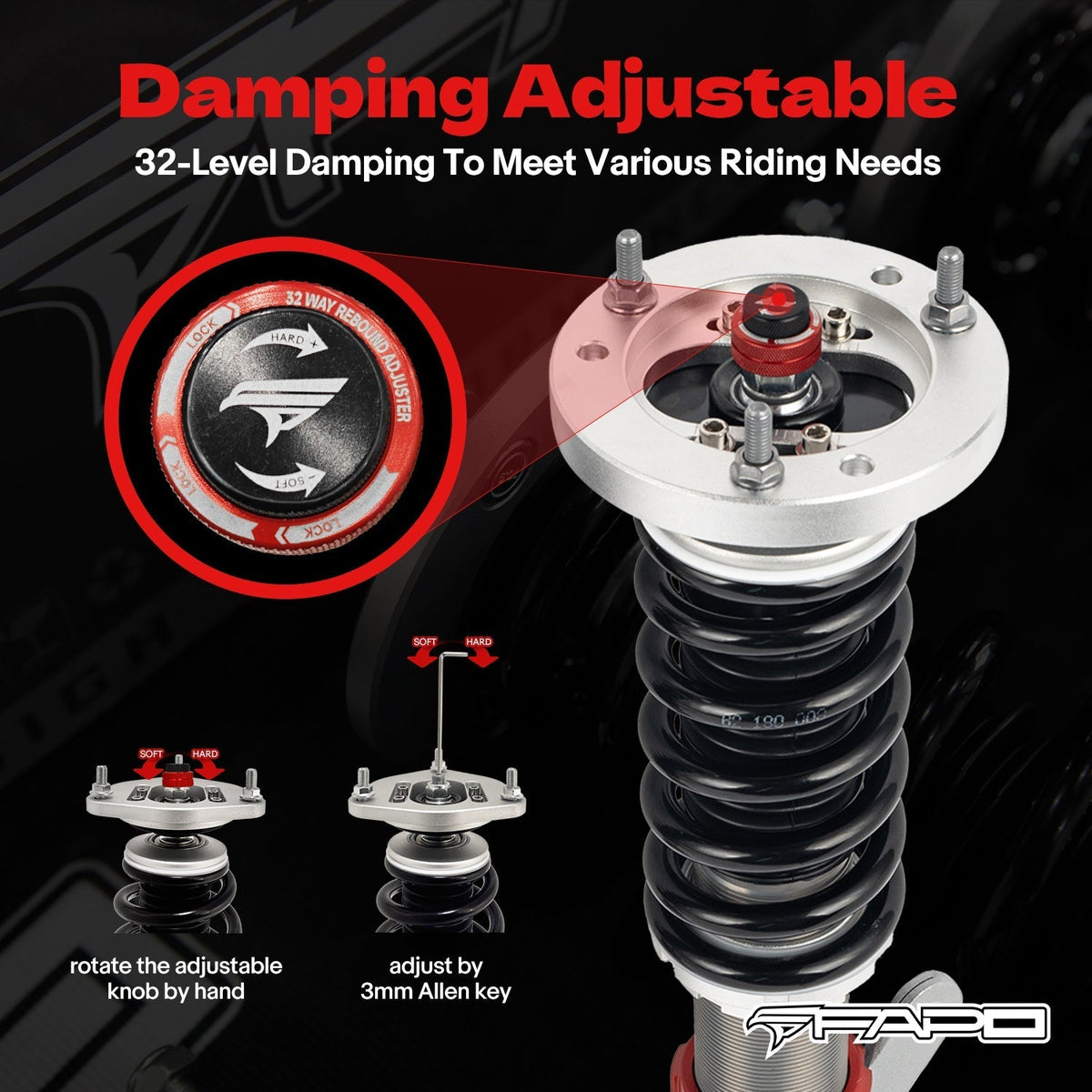

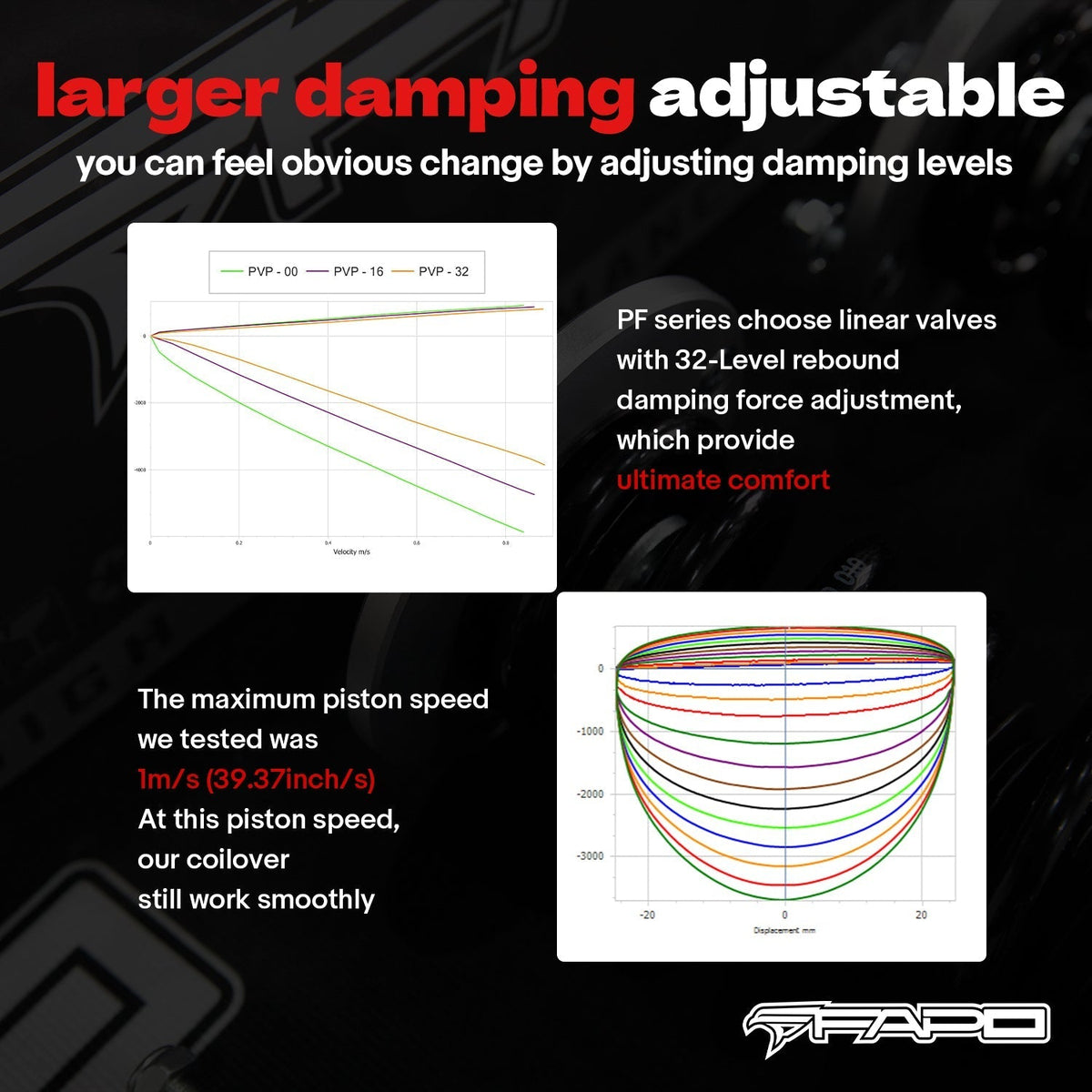

• Damping: 32 Levels
• Front Shock: 53-280-120-20-M12 [4-M2-4]
• Rear Shock: 53-240-150-12.5-M12 [4-A1-9]

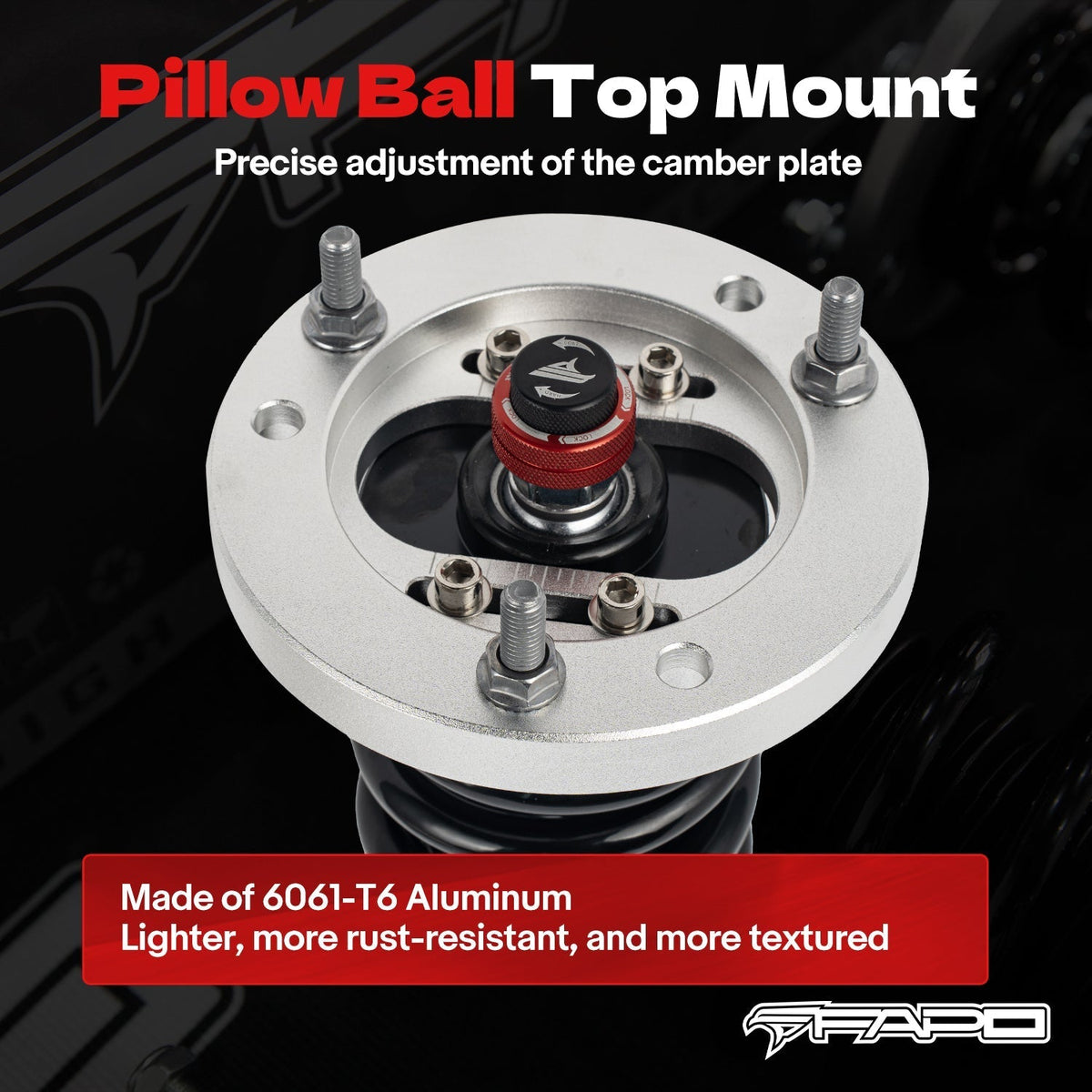

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
