FAPO PF 32-Level Coilovers BMW 1 Series E82 2011 &BMW M3 E90/E92/E93 2007-2013 [PF016430]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the BMW 1 Series E82 2011 &BMW M3 E90/E92/E93 2007-2013 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• BMW 1 Series M 1st Gen E82 2011
• BMW M3 E90/E92/E93 2007-2013

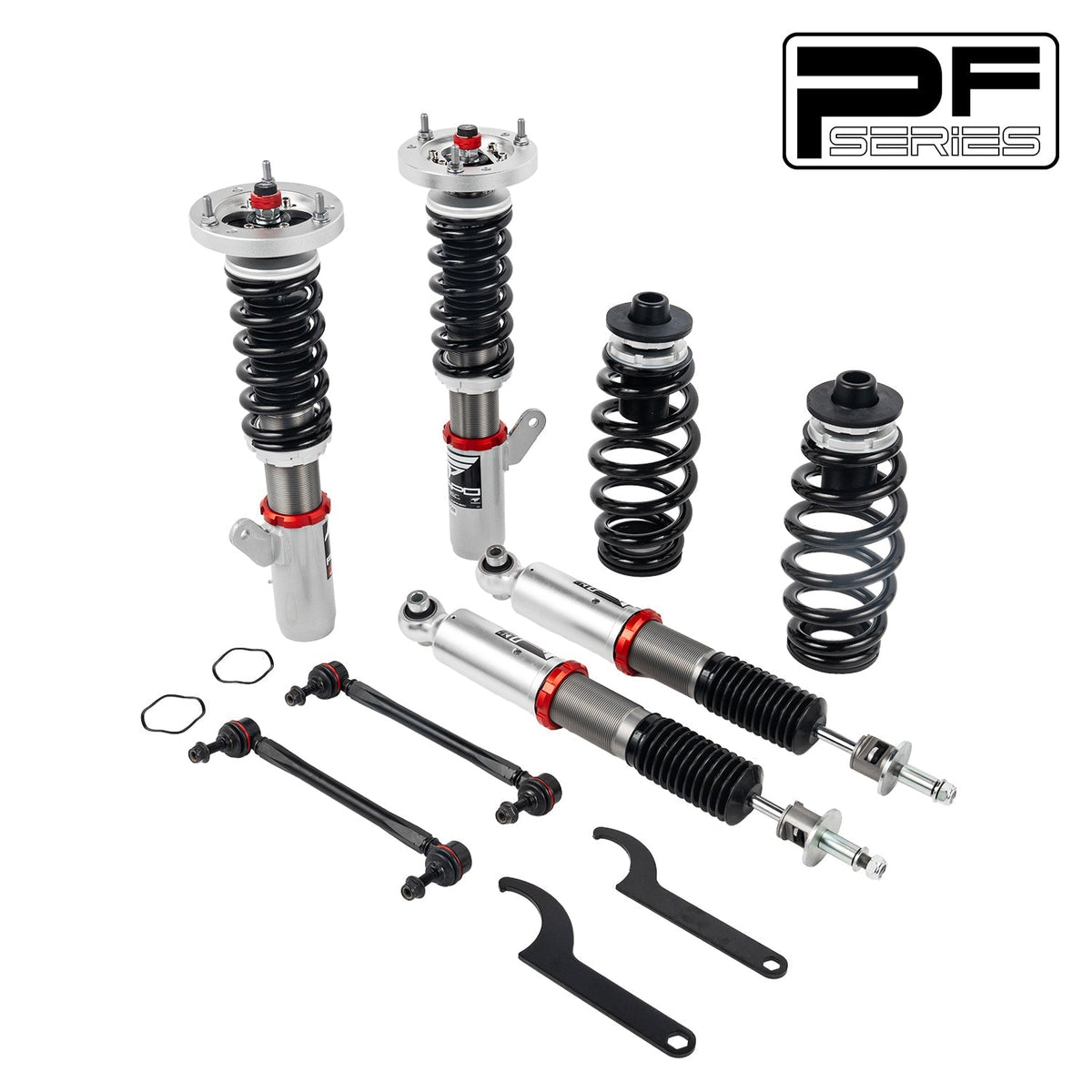

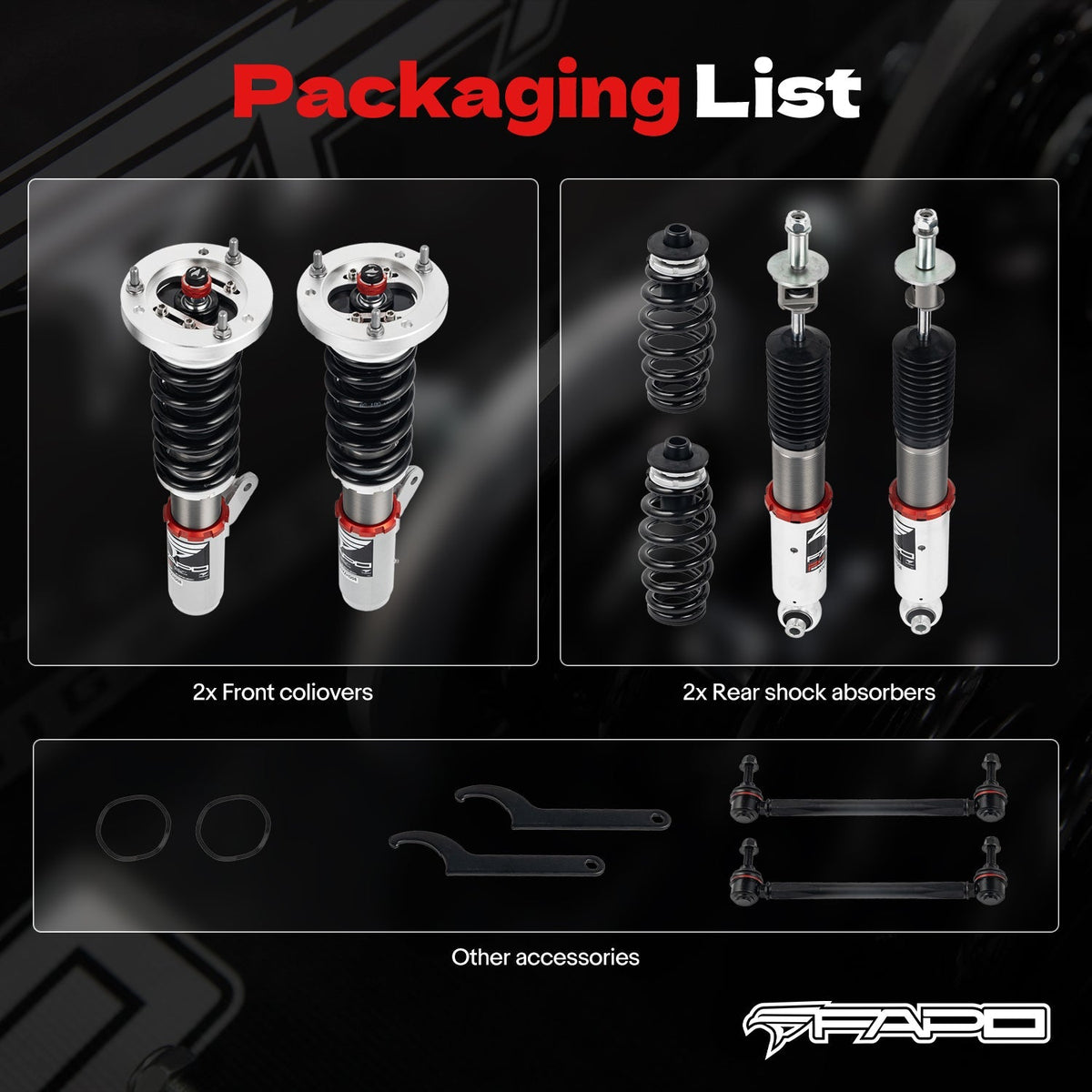

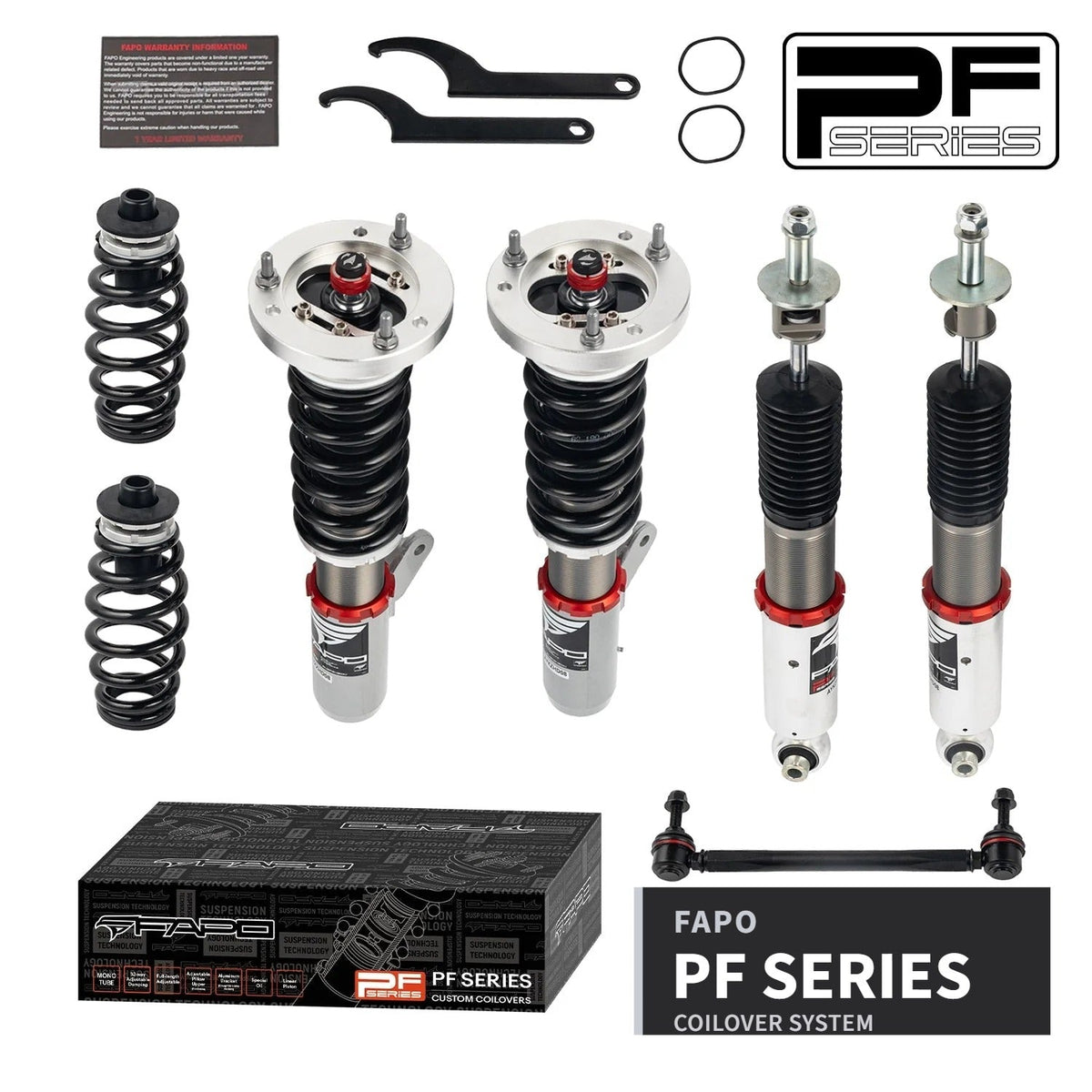

Package Includes:

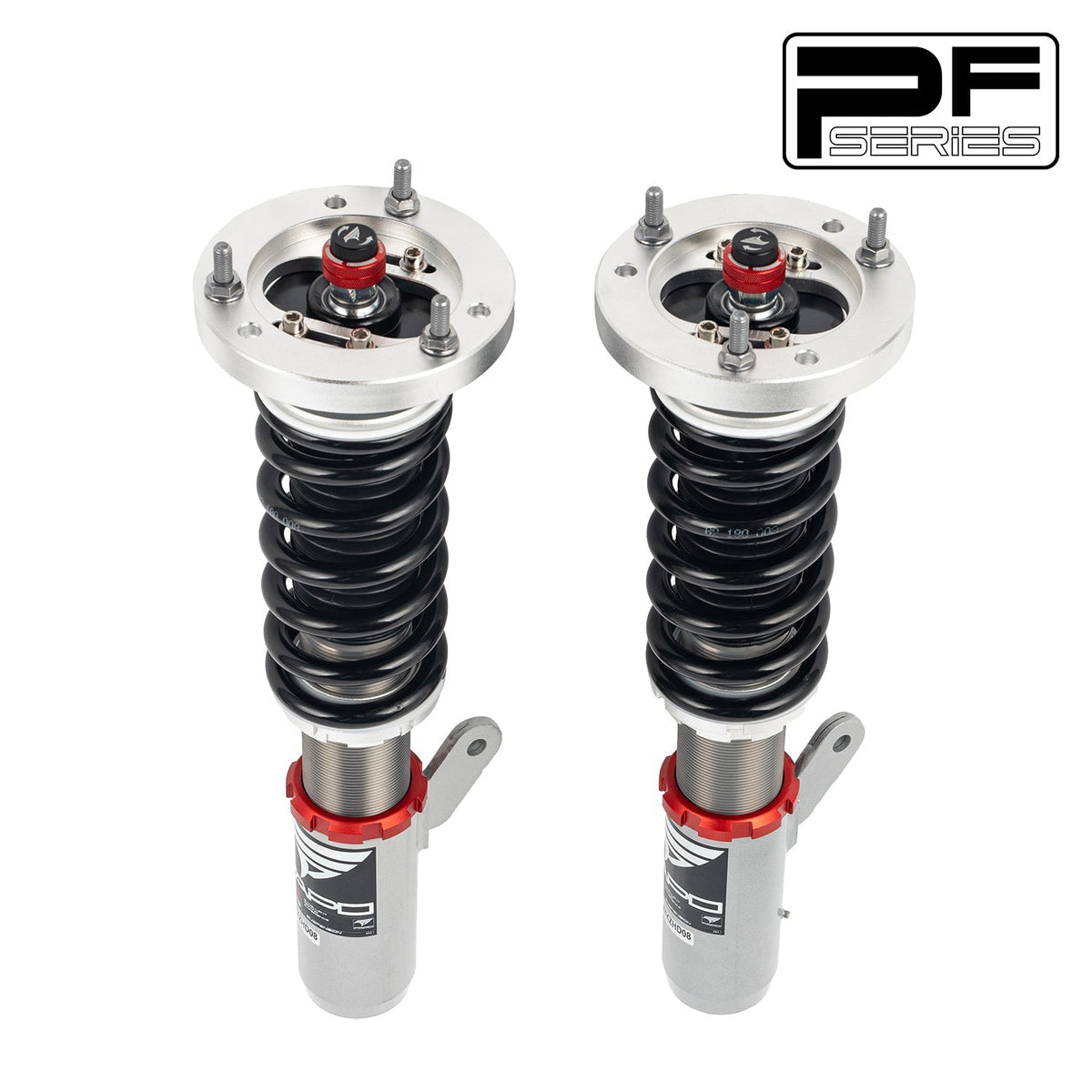

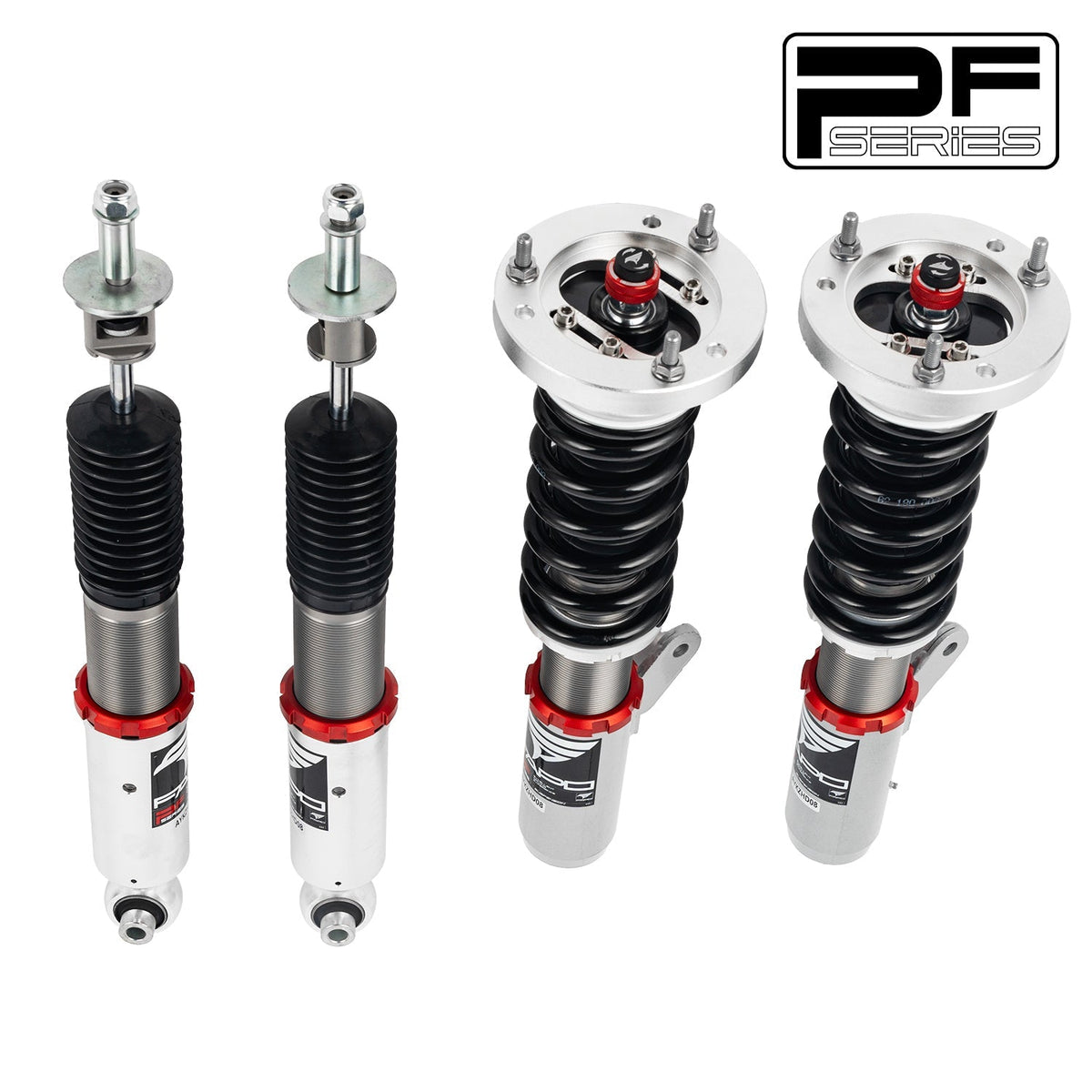

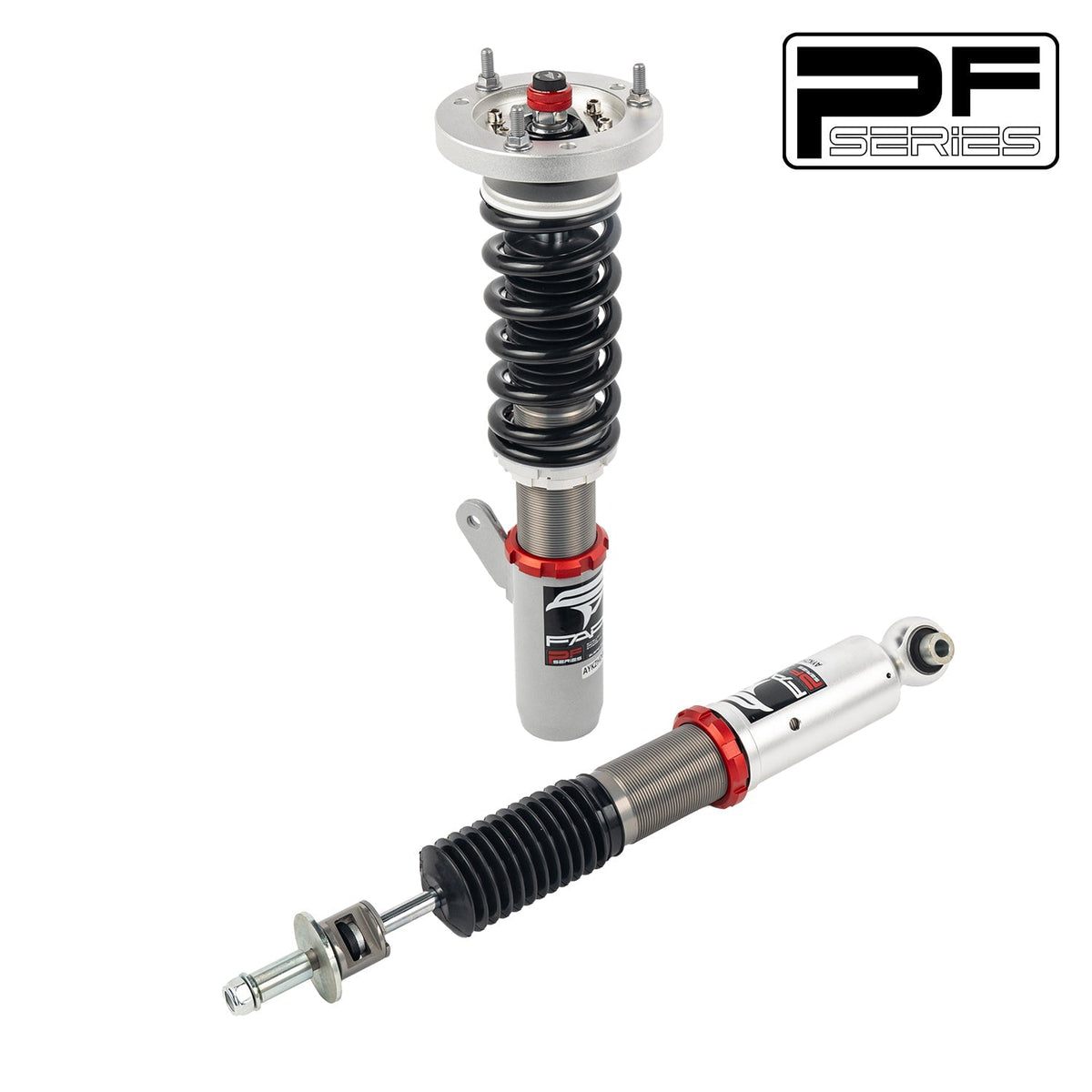

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Our coilover is lowering kit which will be 1-1.5" lower than the factory height even at the max height, please confirm you want to lower your car before you buy it.

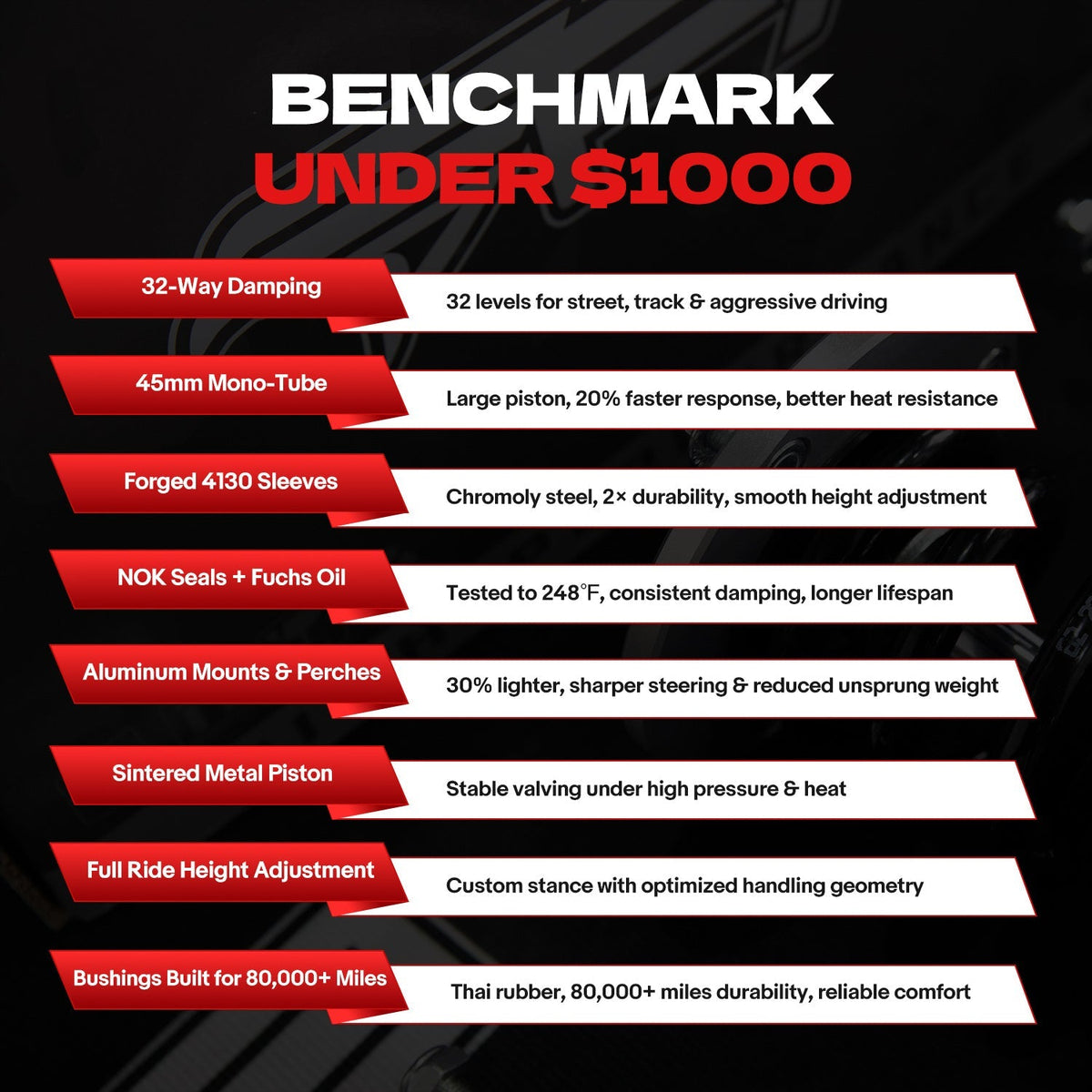

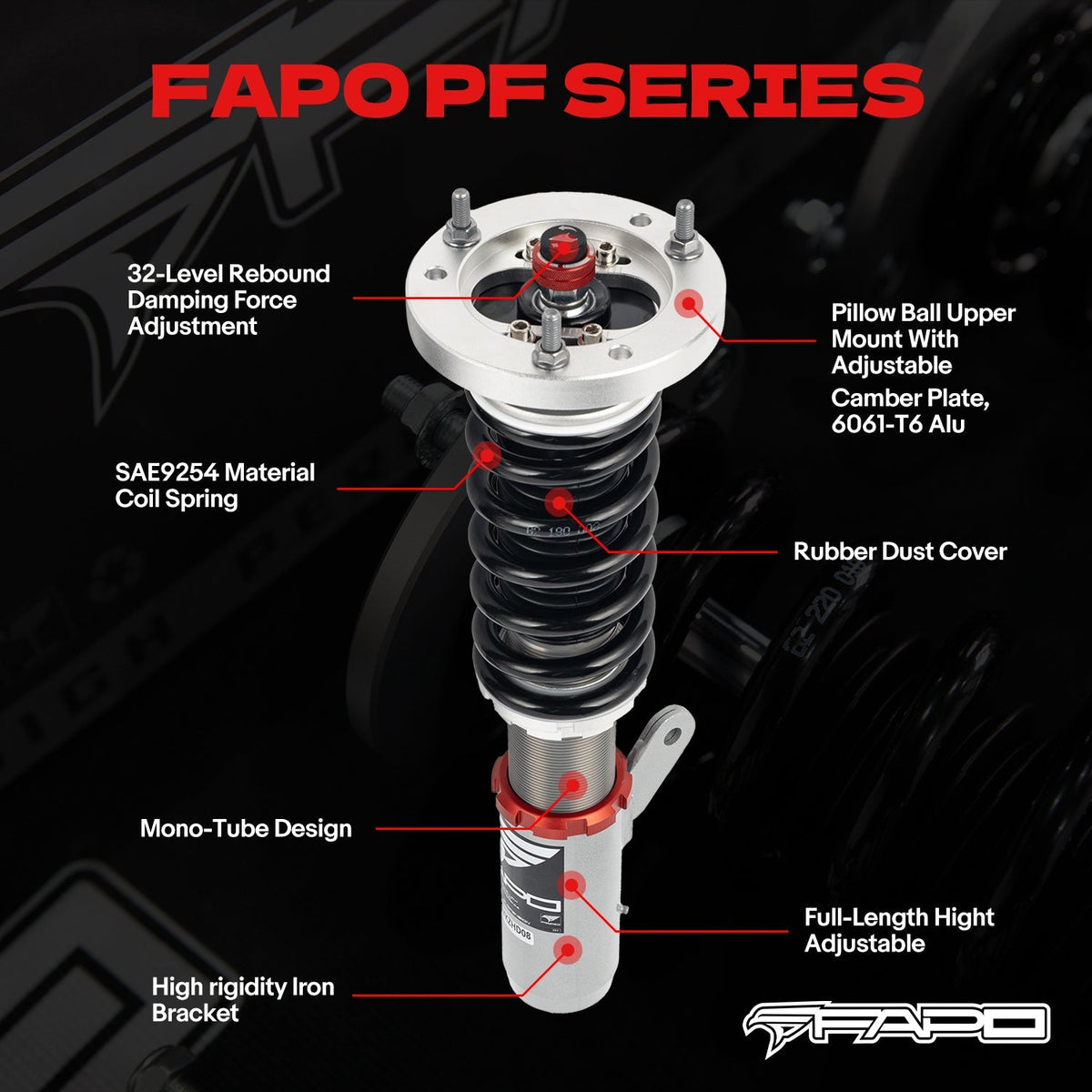

Features:

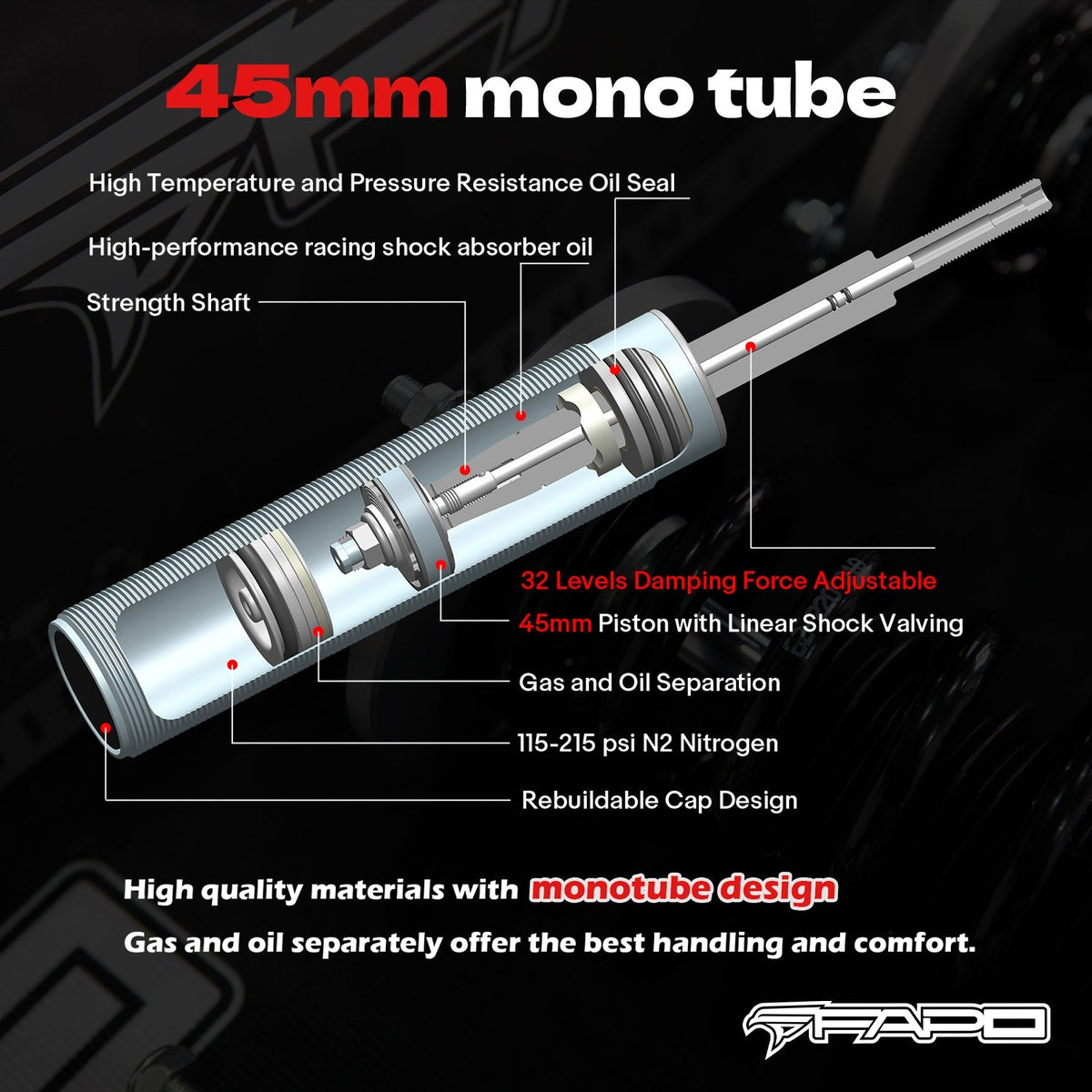

• Mono-tube shock design, provide larger capacity of oil and gas

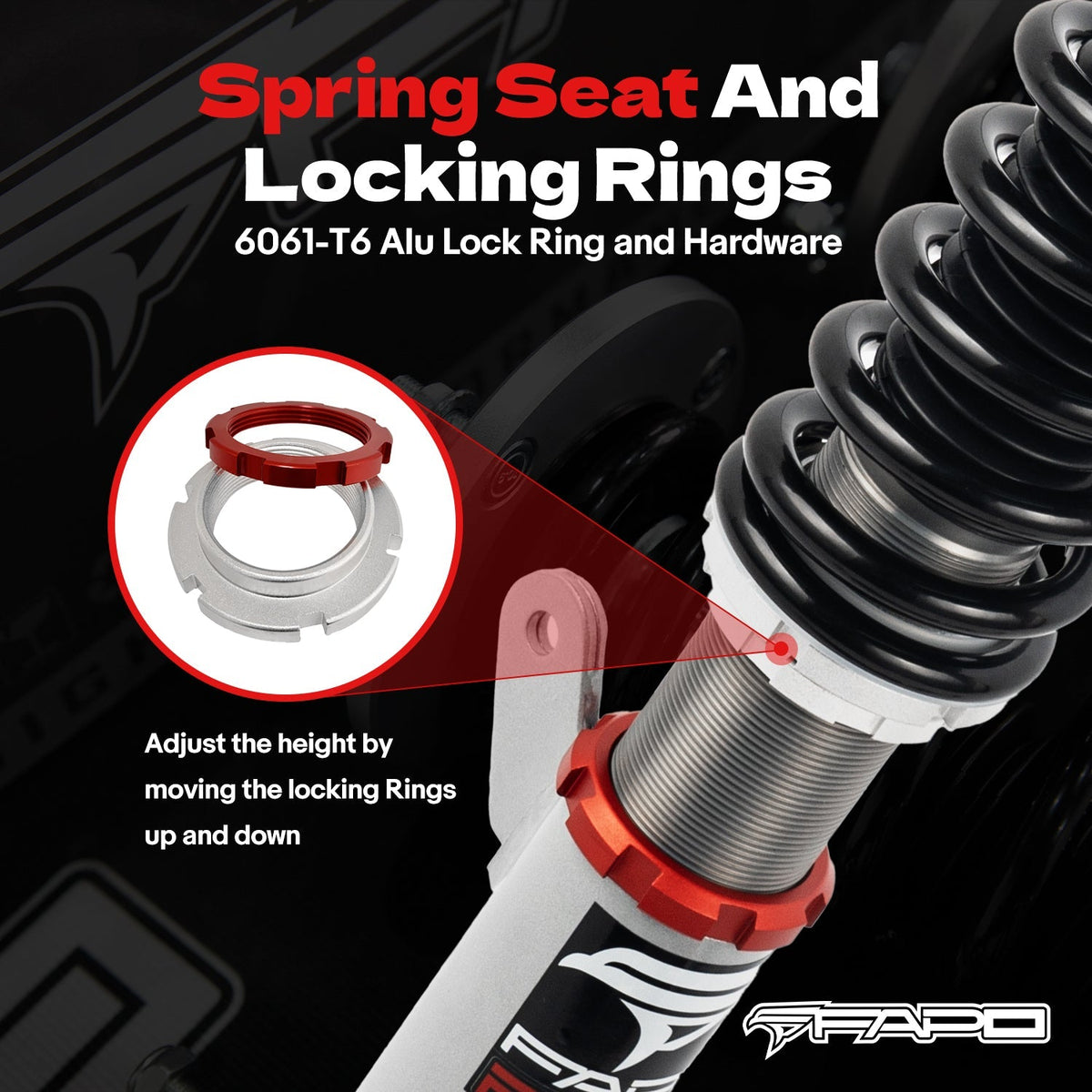

• Adjustable ride height
• Adjustable pre-load spring tension

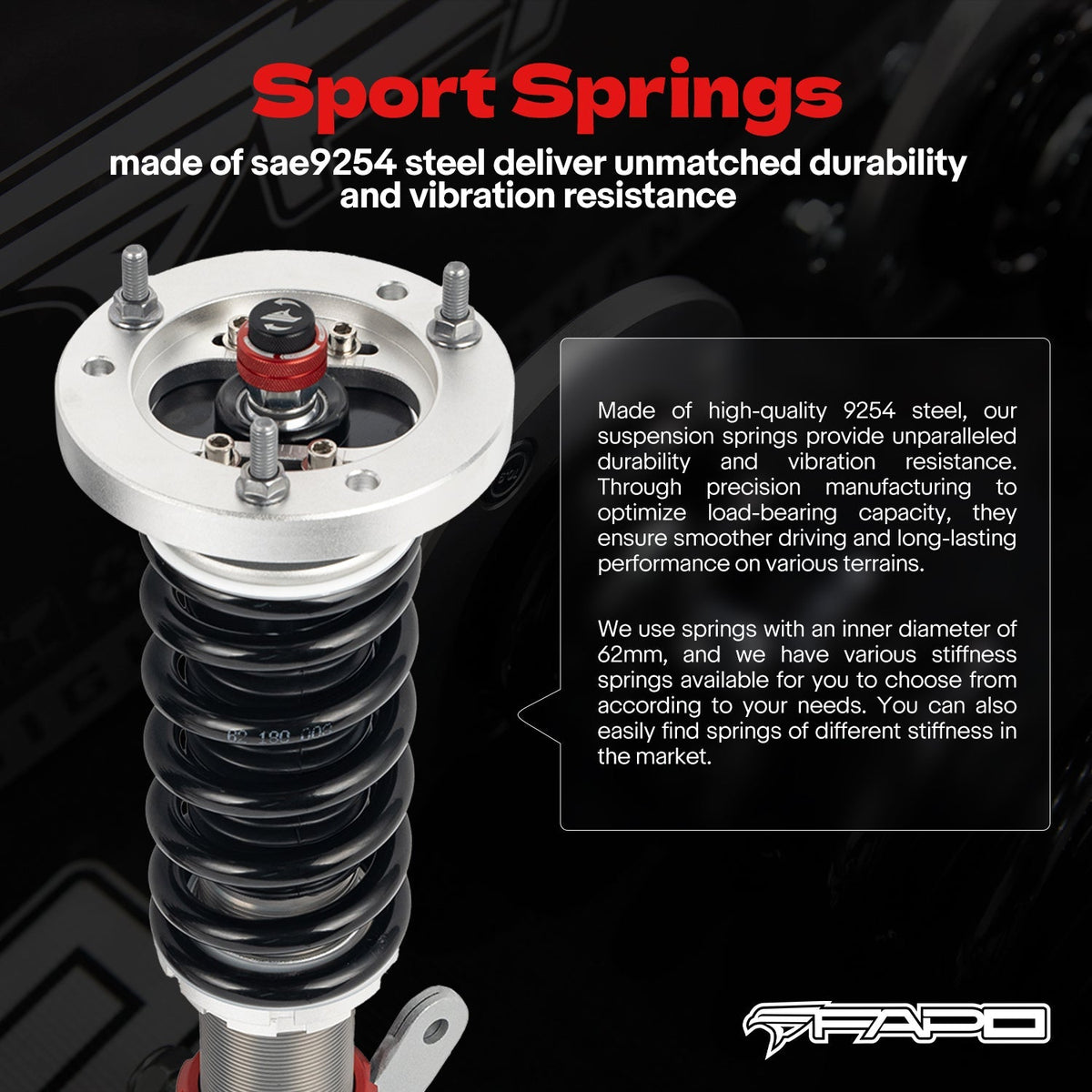

• Hi Tensile performance spring - Under 600,000 times continuous test, spring distortion is less than 0.04%. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.

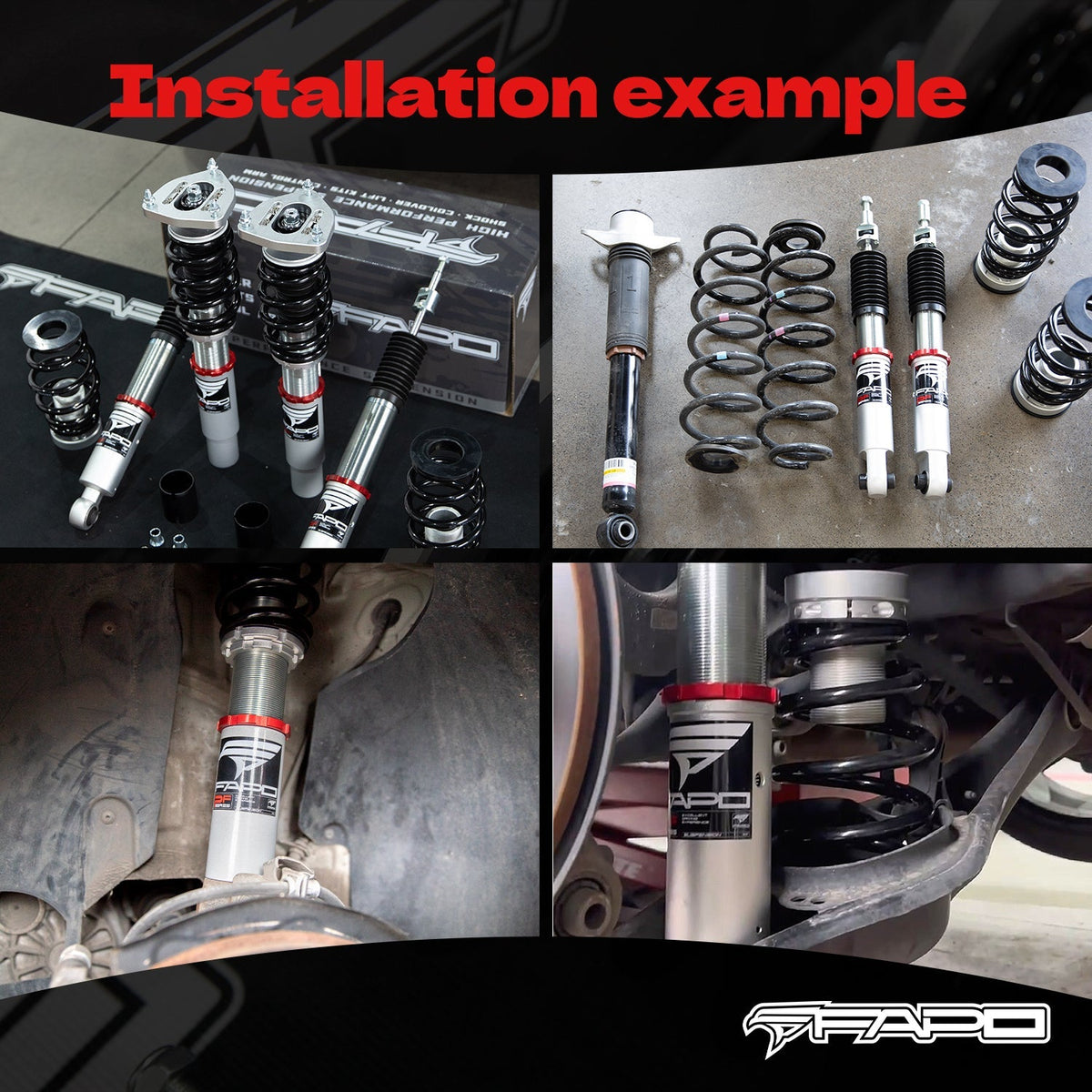

• Easy installation with right tools.
• Ideal for any track, drift, fast road and daily driving.
• The accessories in the photos are included.
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 240mm, 12 kg/mm (670 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Only Front coilovers; Rear with standard top mounts

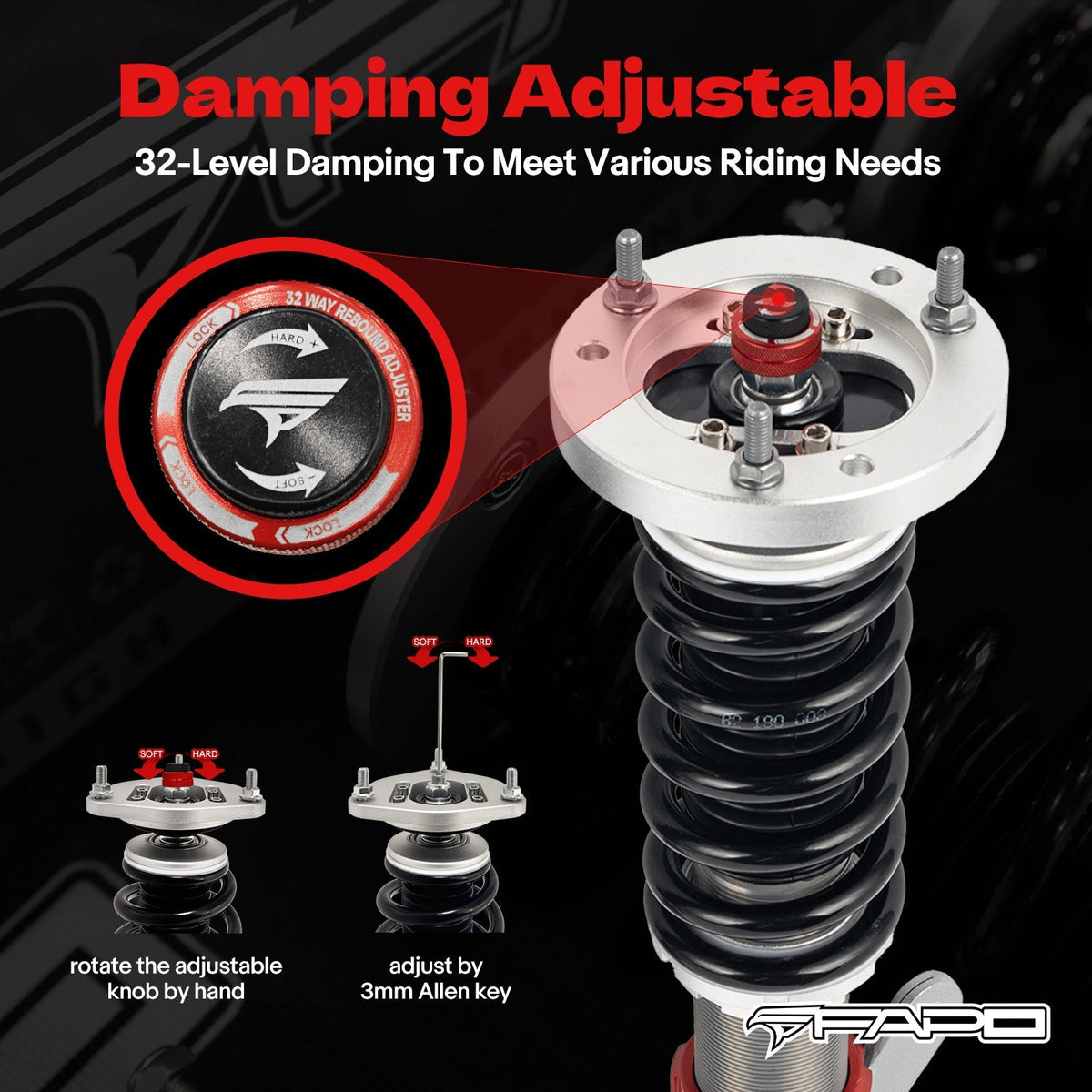

• Damping: 32 Levels
• Front Shock: 53-280-120-20-M12 [4-M2-4]

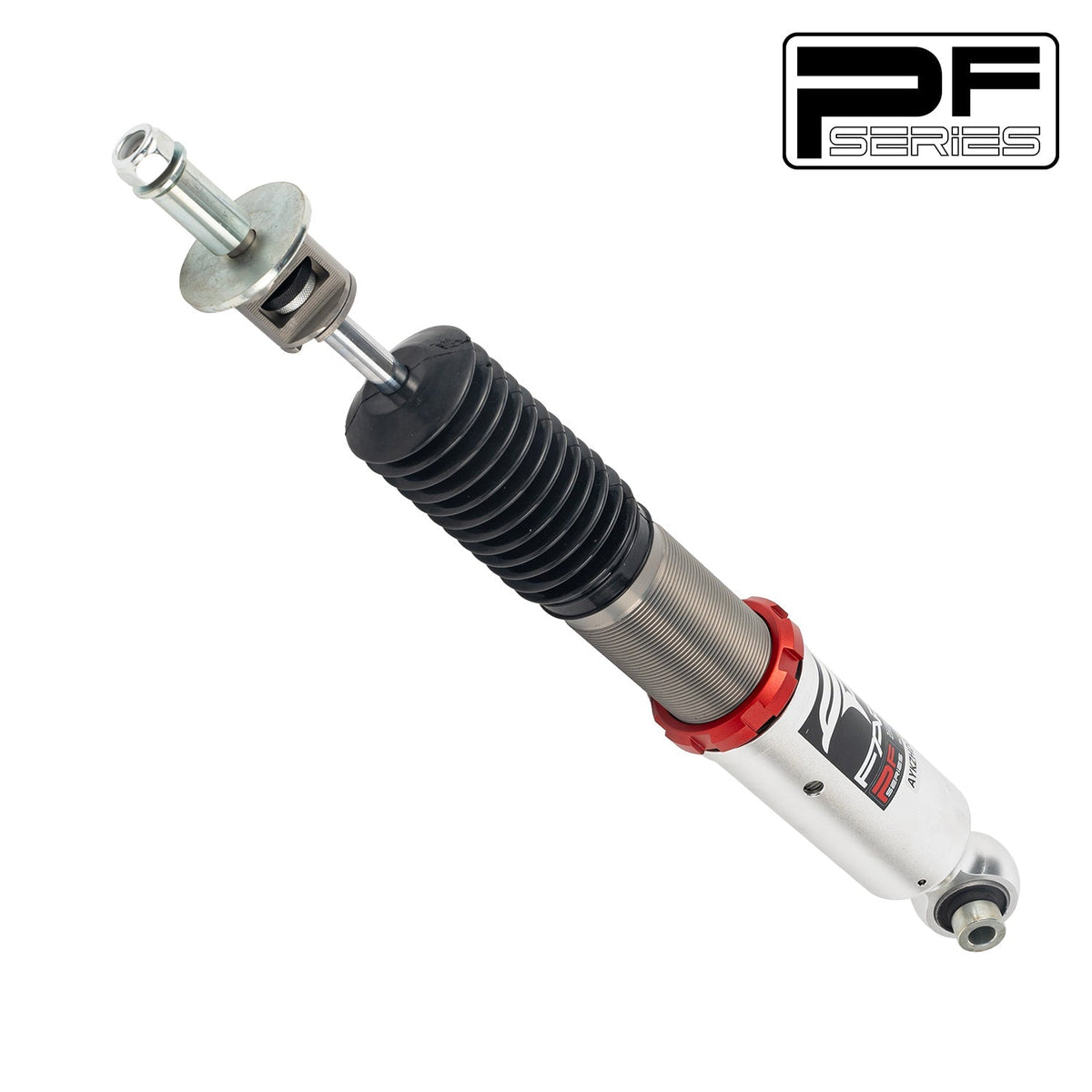

• Rear Shock: 53-240-150-12.5-M12 [4-A1-9]

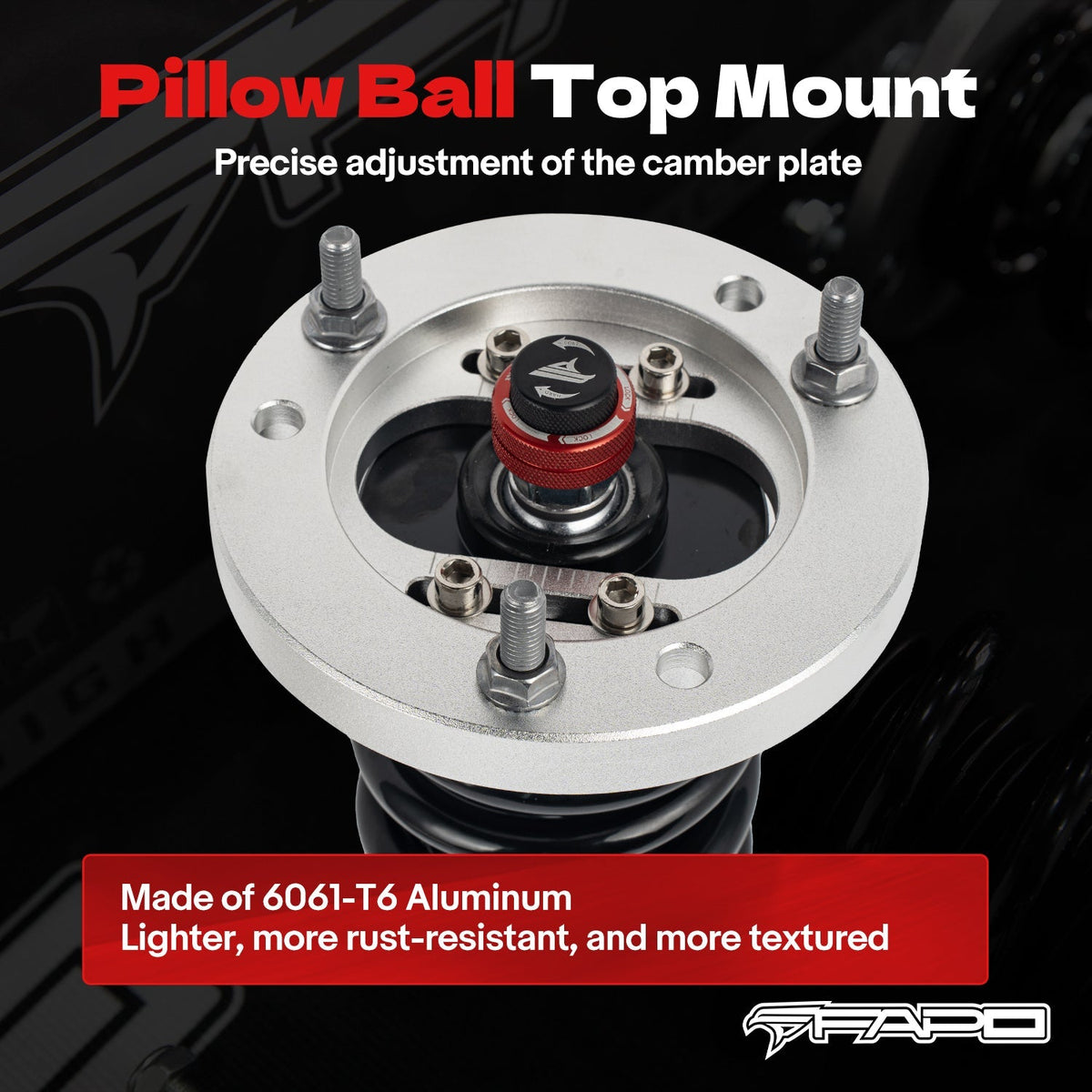

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
