FAPO PF 32-Level Coilovers VW Golf 6th Gen MK6/A6 2009-2012 / Sagitar GLI A6 2011-2019 [PF044130]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the VW Golf 6th Gen MK6/A6 2009-2012 / Sagitar GLI A6 2011-2019 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• VW Golf 6th Gen MK6/A6 2009-2012 / Sagitar GLI A6 2011-2019

Features:

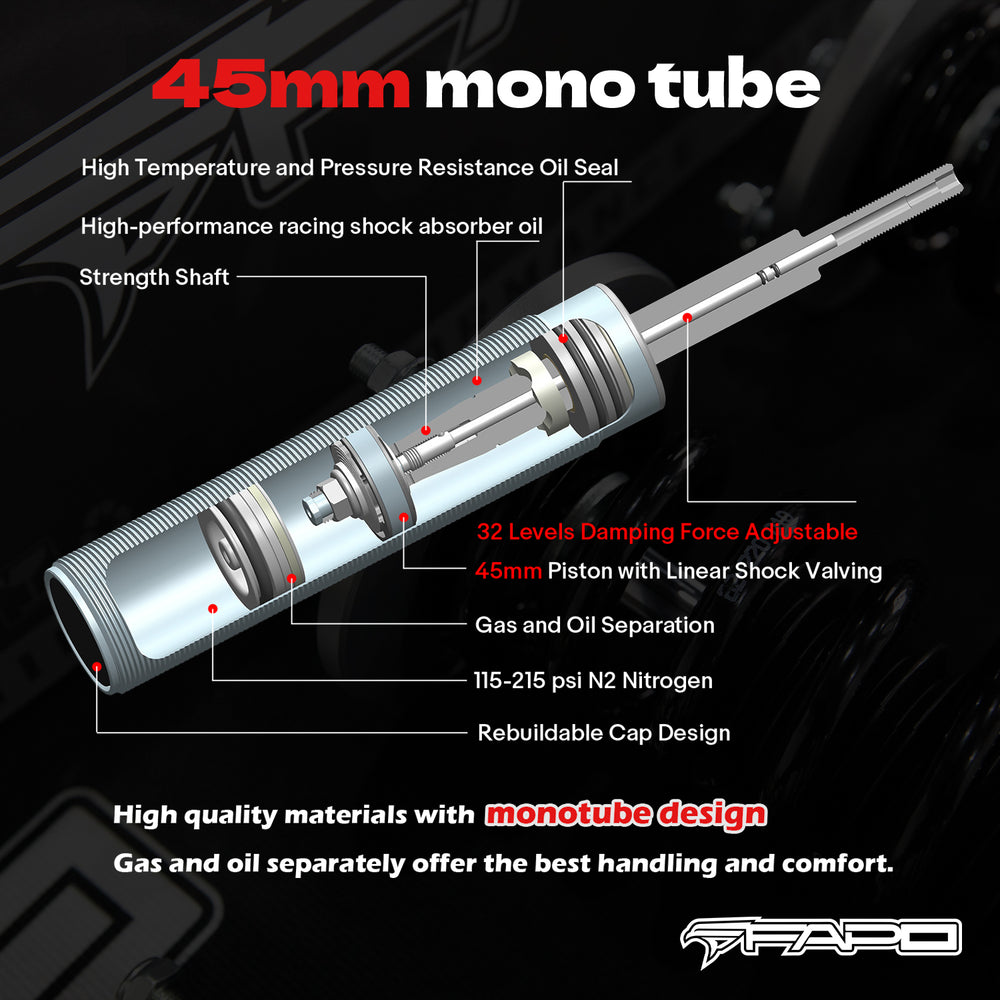

• Mono-tube design provides larger oil and gas capacity for a smoother and more comfortable street ride
• Ride height adjustable - lowers 1" to 1.5" from factory height (up to 2.5-3" depending on vehicle chassis)

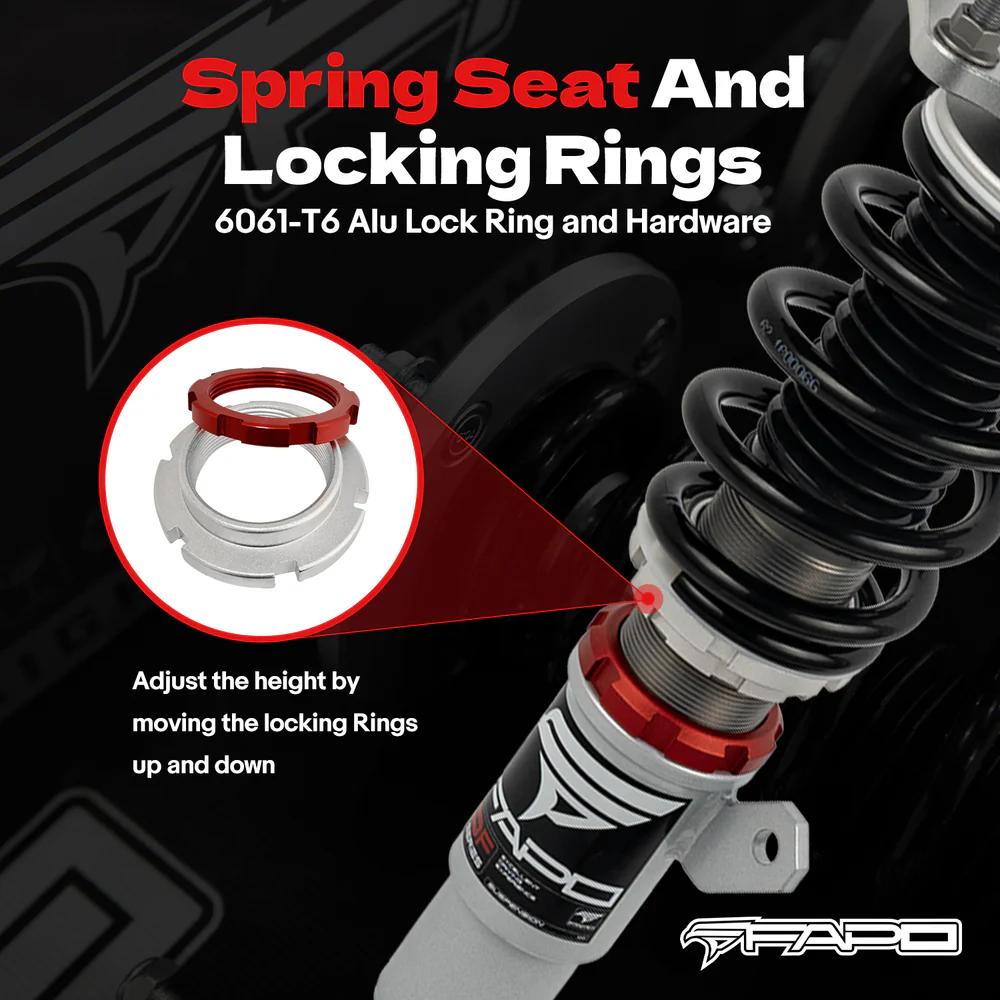

• Fully threaded absorber tube casing for independent height adjustment
• Adjustable pre-load spring tension -recommended 7-10mm pre-load before installation

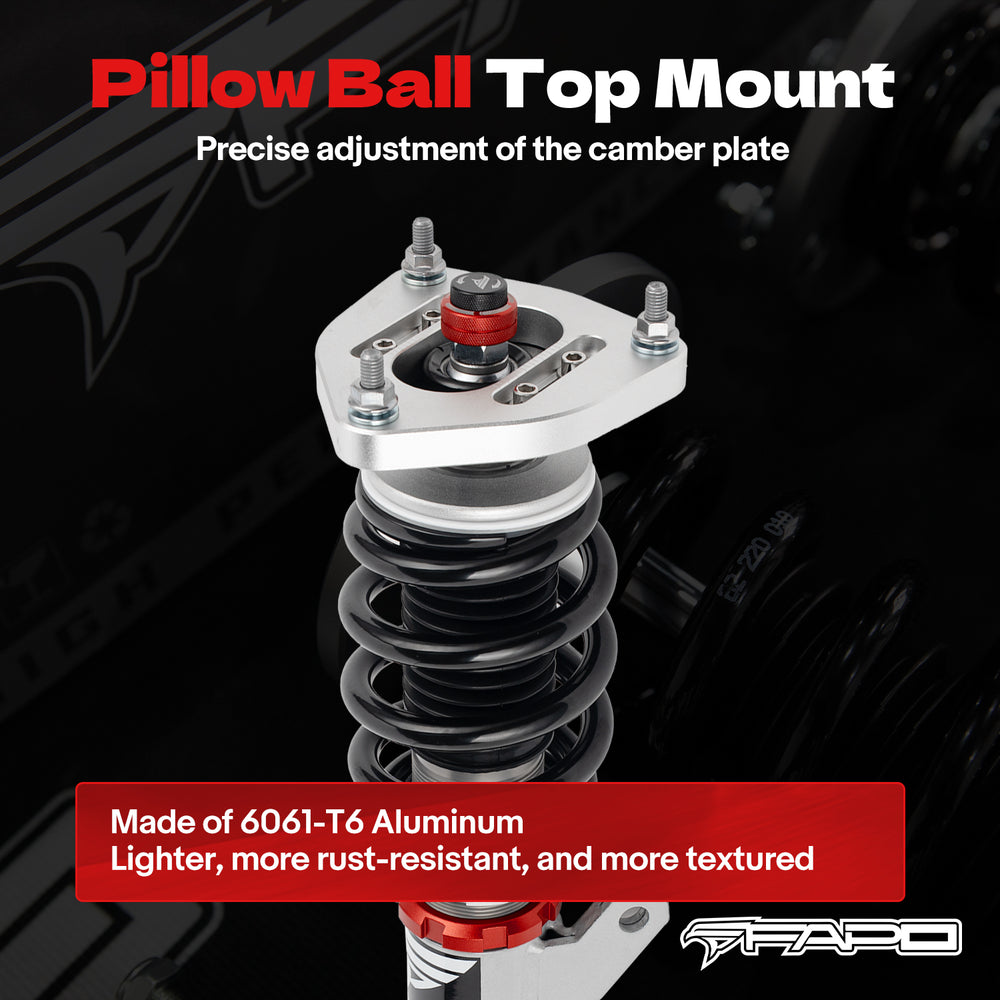

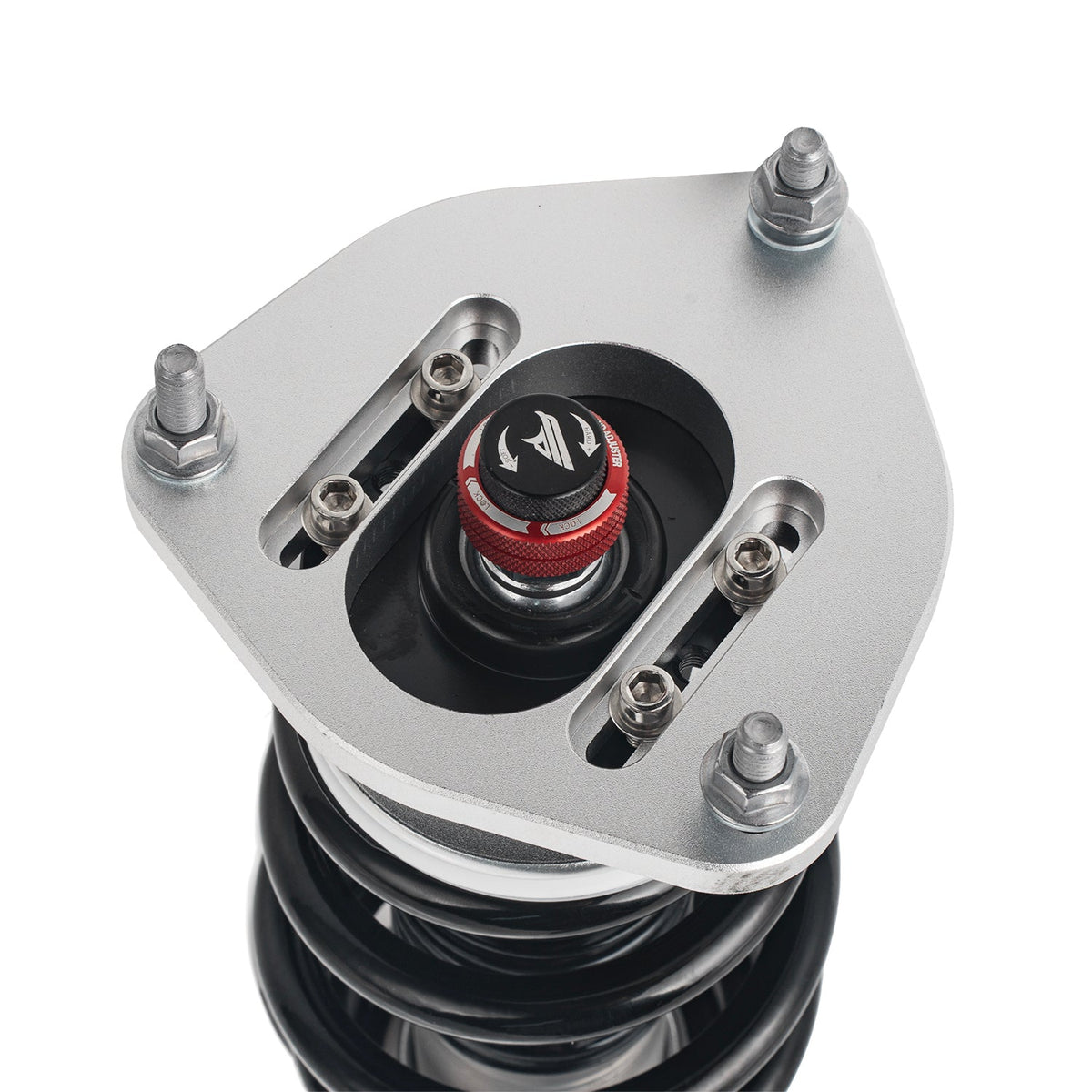

• Pillow ball top mount reduces noise during tuning and improves steering feel and response

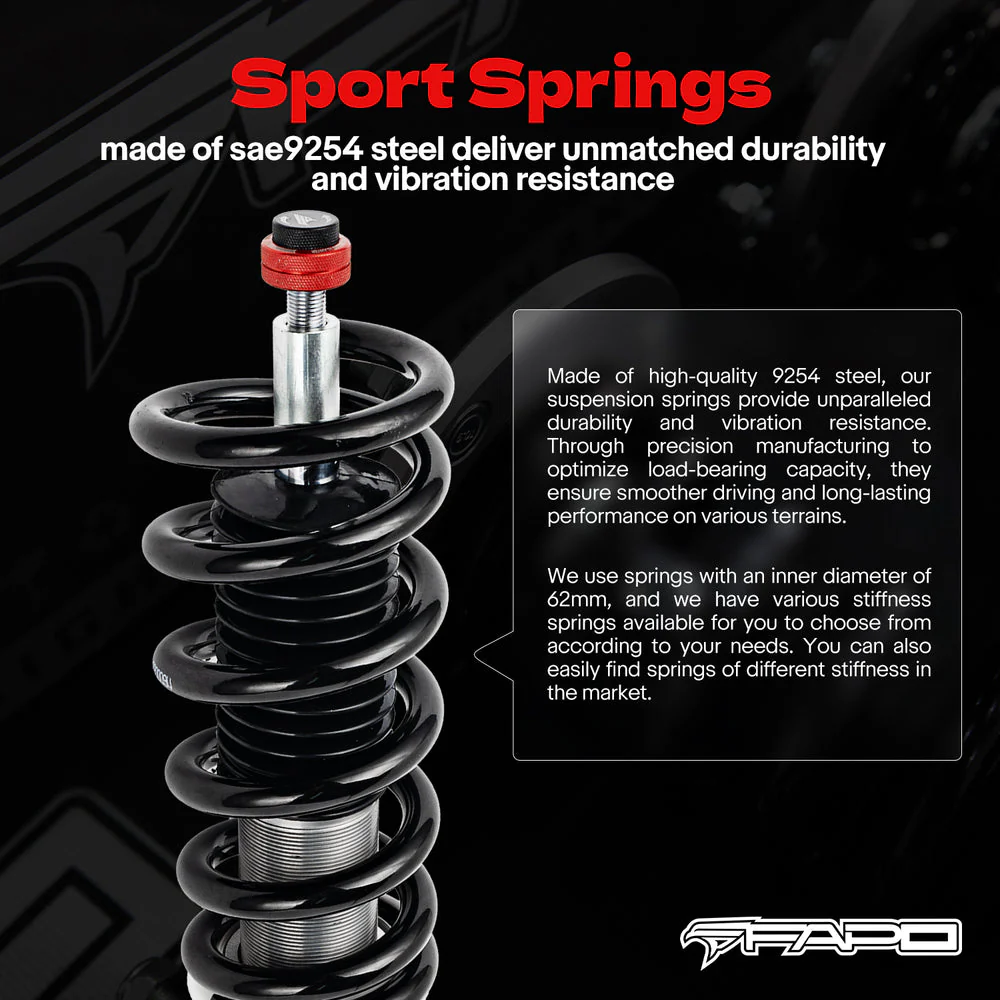

• High-tensile performance springs tested over 600,000 cycles with less than 0.04% distortion; special surface treatment enhances durability
• Constructed from T-6061 billet aluminum with anodized finish for superior strength and corrosion resistance
• All inserts include fitted rubber boots to protect the dampers and keep debris out
• Improves handling performance without sacrificing ride comfort
• An effective and affordable upgrade to enhance vehicle appearance
• Easy installation with proper tools
• Suitable for track, drift, fast road, and daily driving
• All accessories shown in photos are included
• 1-year warranty against manufacturing defects

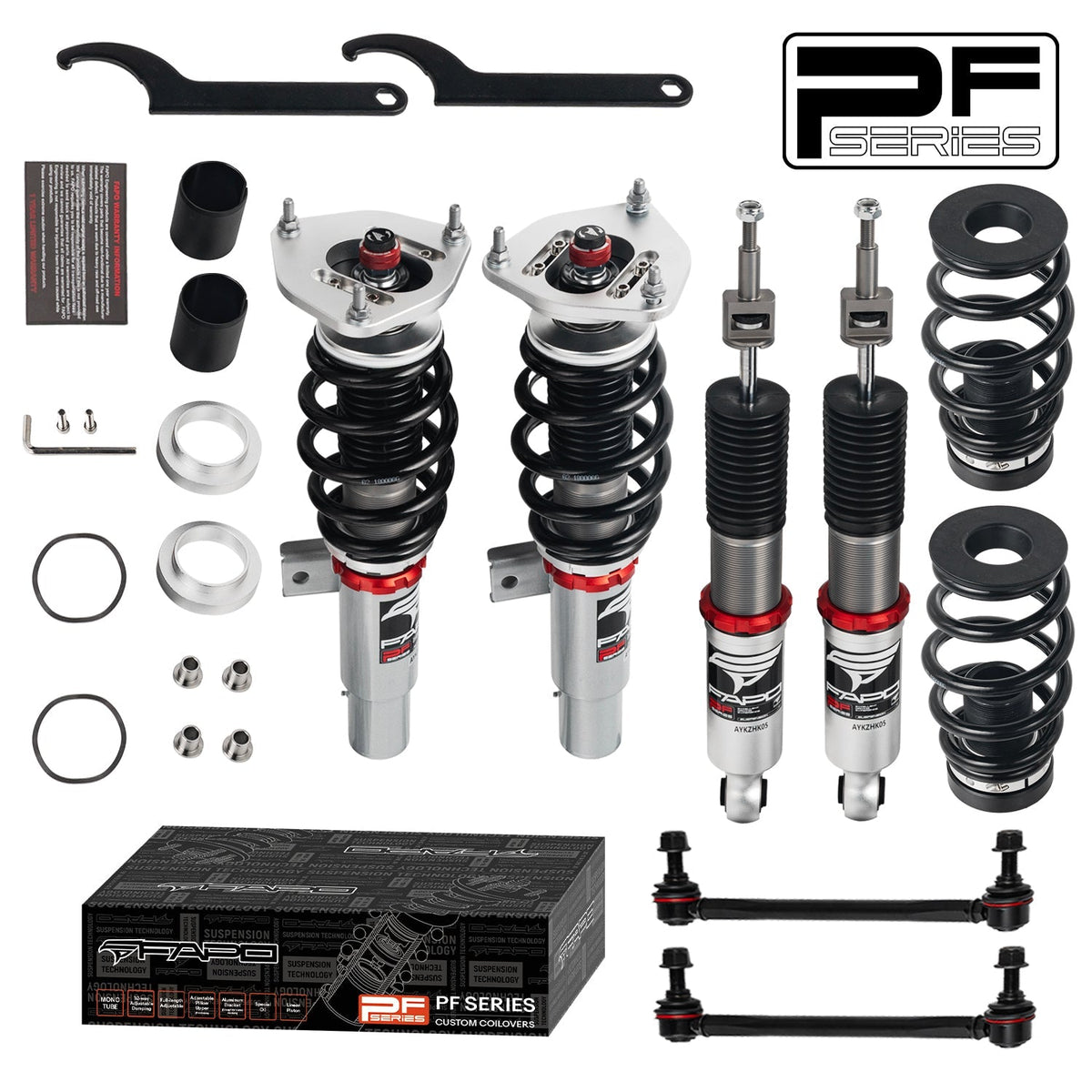

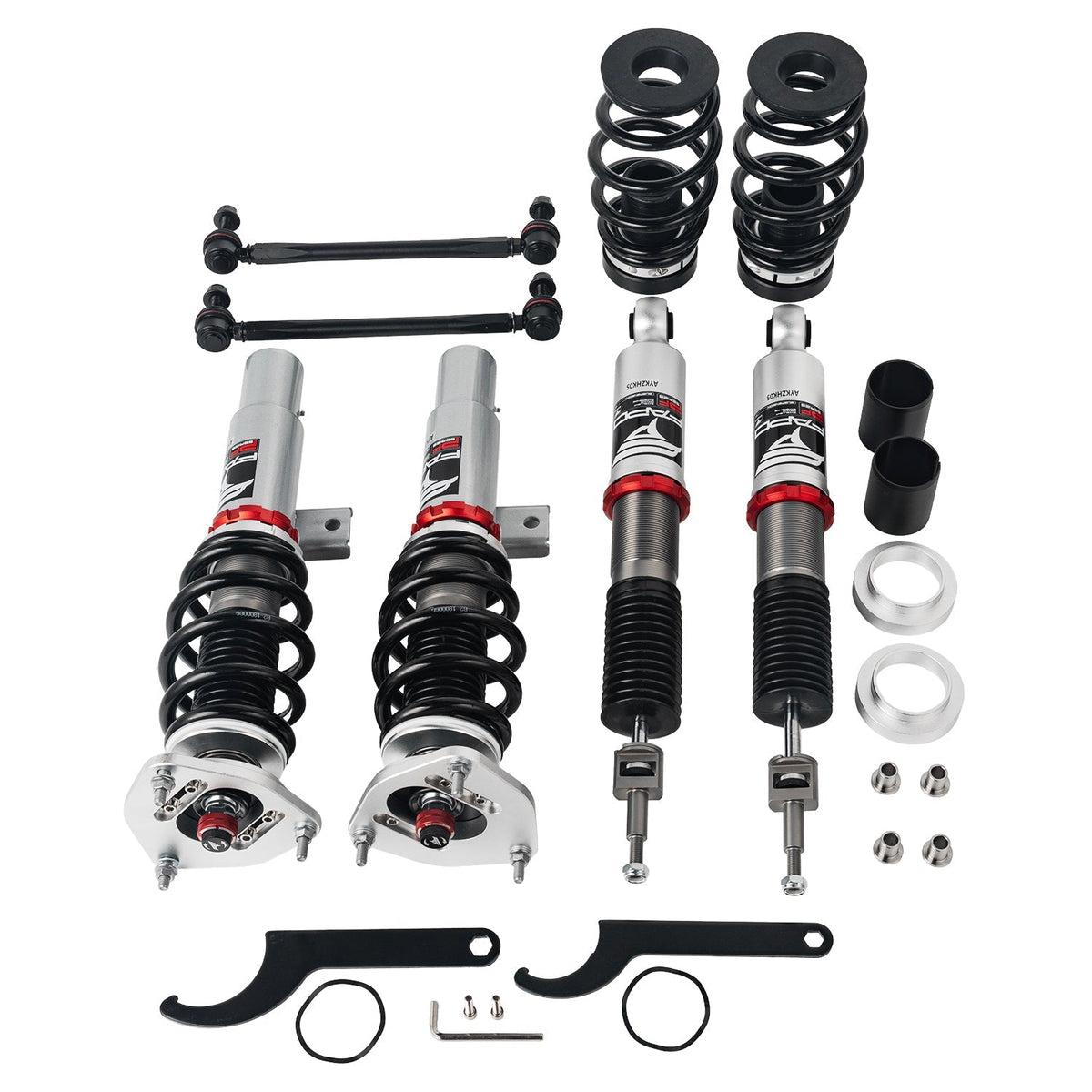

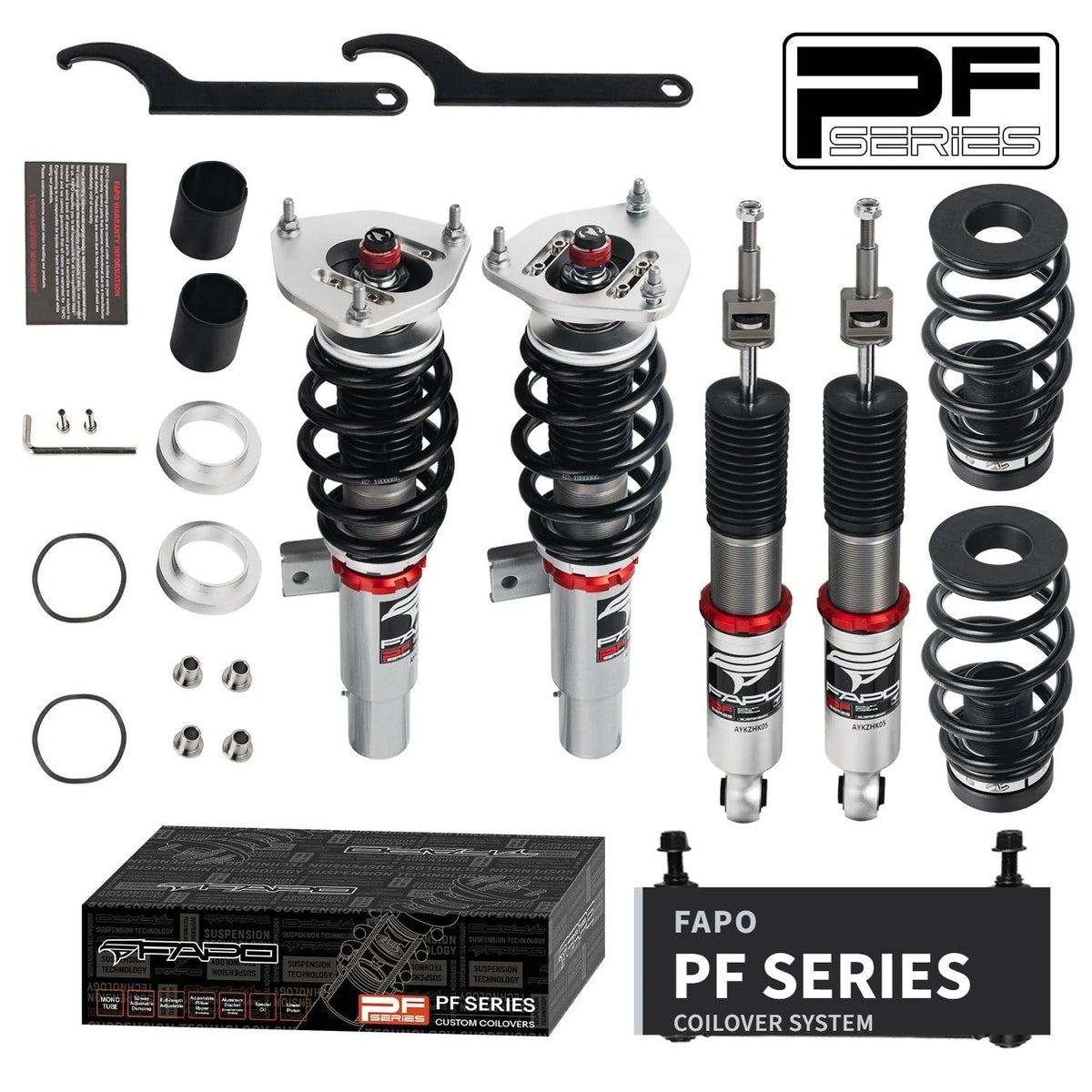

Package Included:

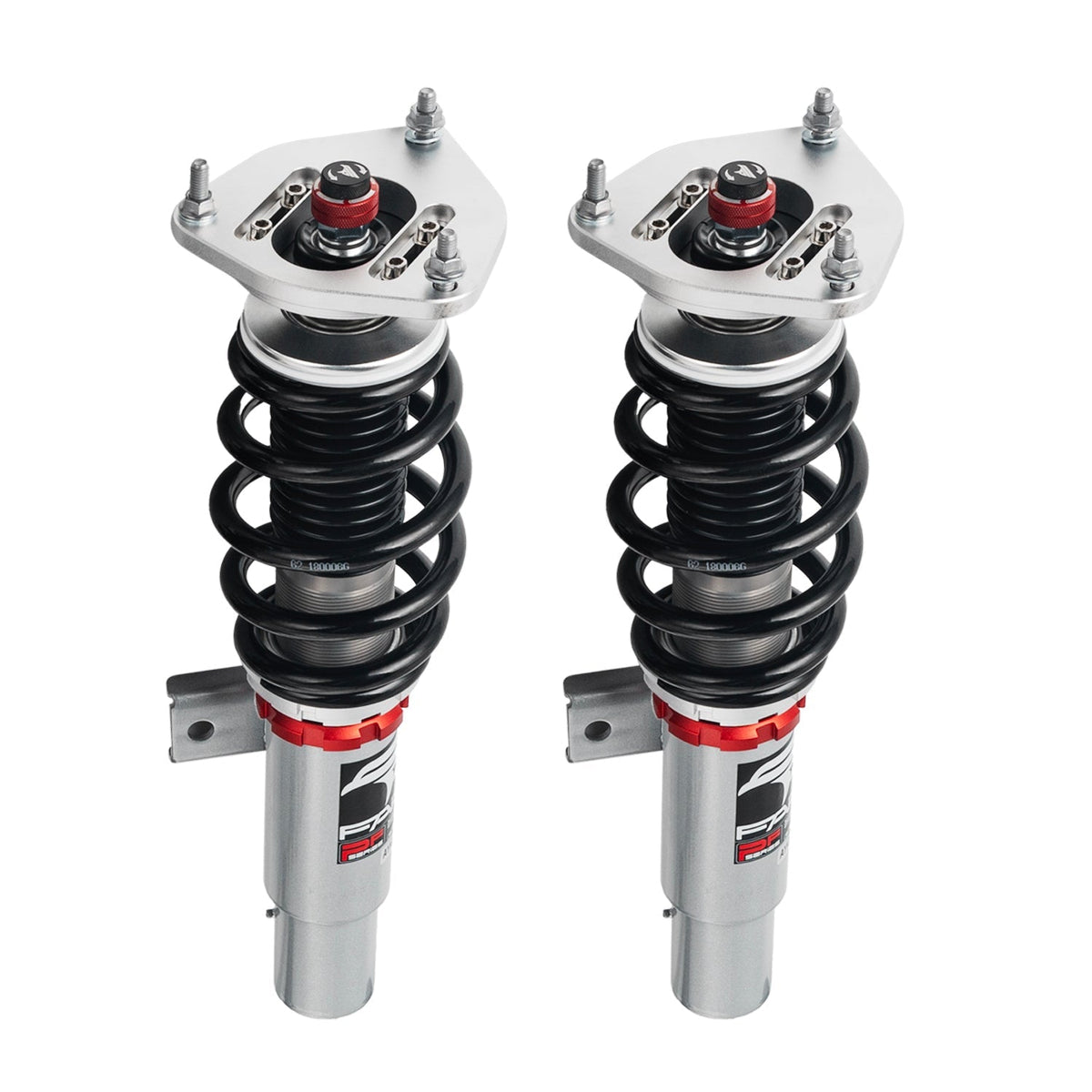

• Front coilovers × 2 pcs

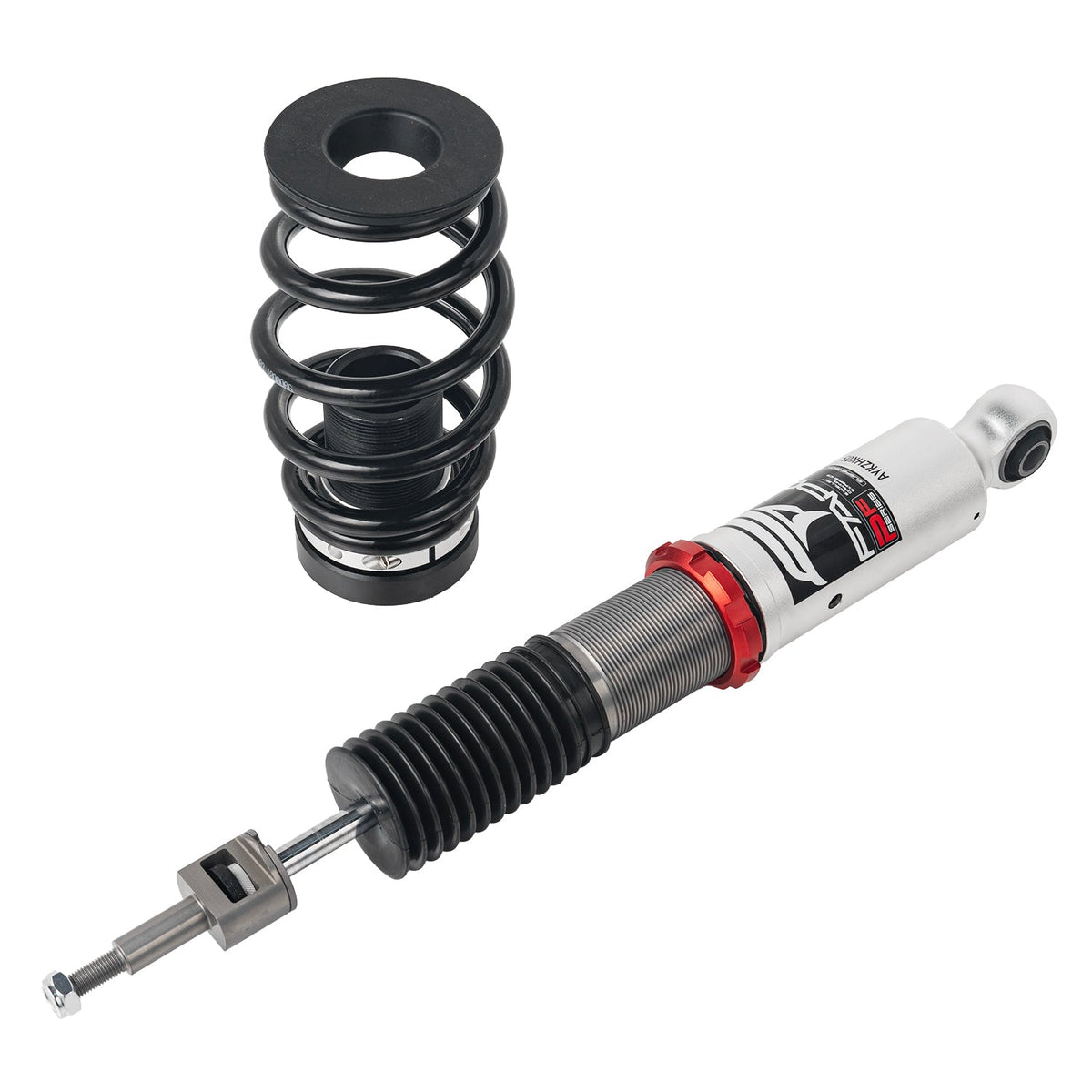

• Rear coilovers × 2 pcs
• Wrench × 2 pcs

• Sway bar link × 2 pcs

Specifications:

• Front Shock: 53-200-90-20-M12 [4-M2-3]
• Rear Shock: 53-230-130-12.5-M12 [4-A1-7]

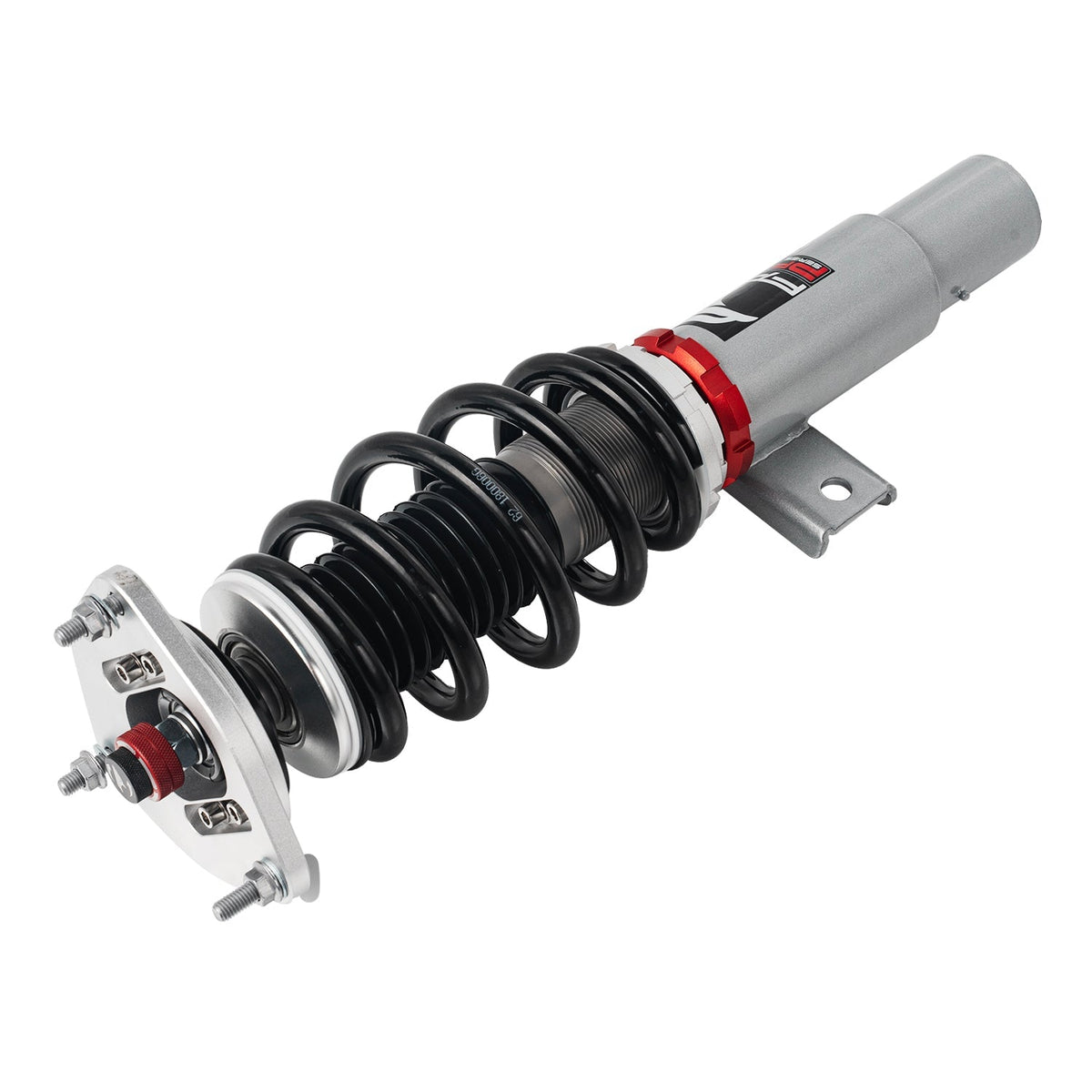

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required
• Front Spring: 160mm, 8 kg/mm (445 lb/in)
• Rear Spring: 180mm, 6 kg/mm (335 lb/in)
• Ride Height: lowers 1-1.5 in from factory

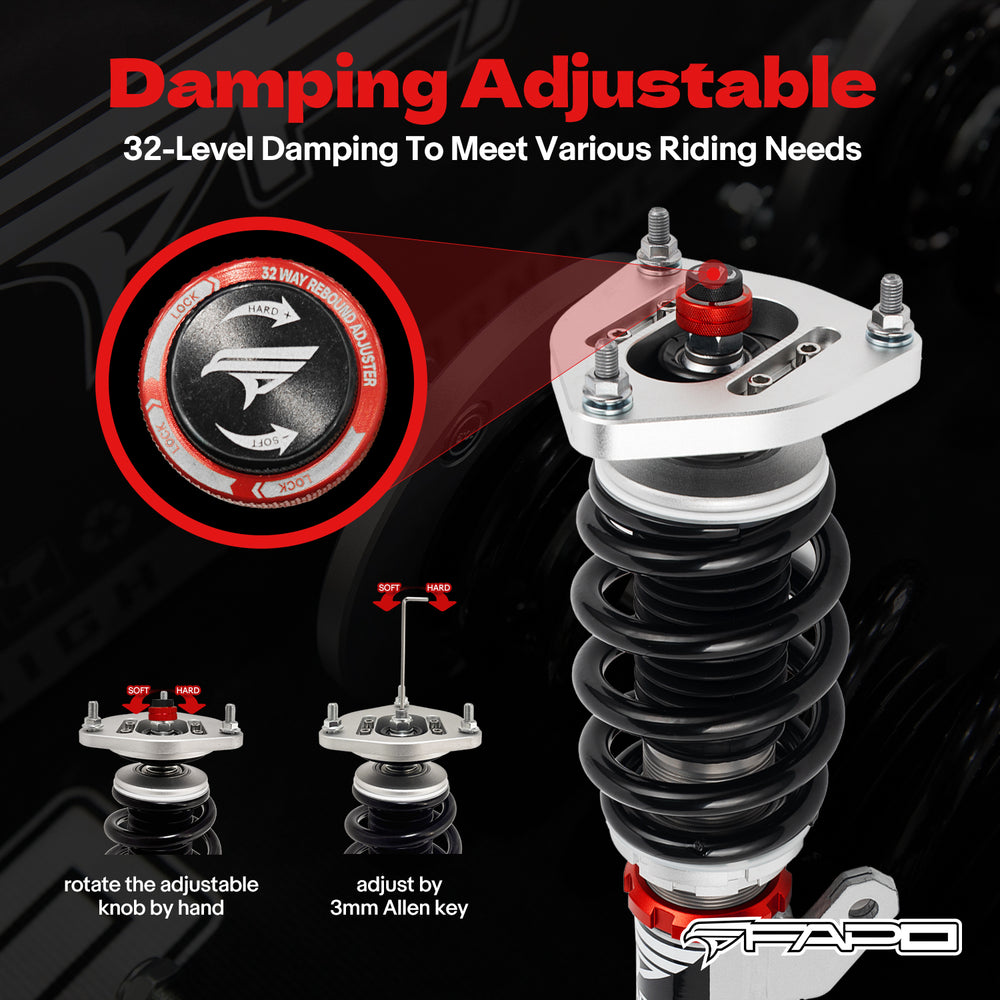

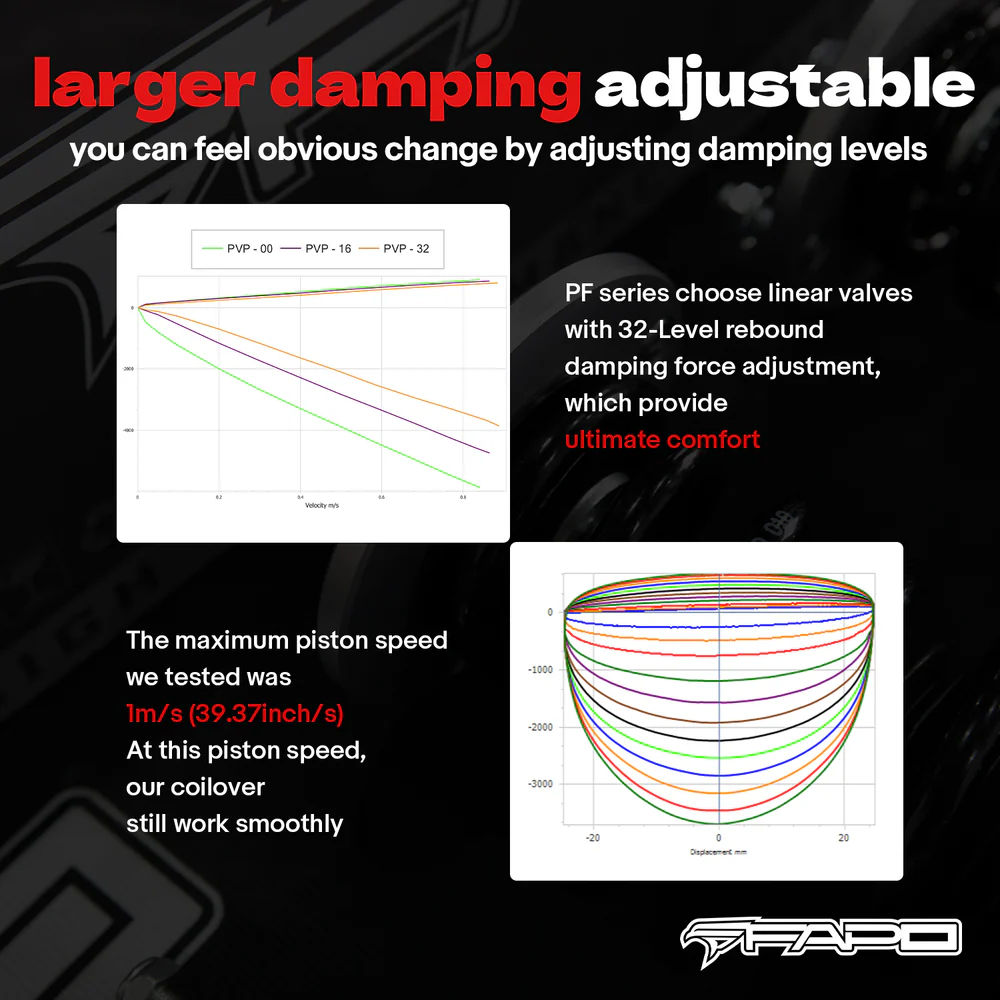

• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
