FAPO PF 32-Level Coilovers Mercedes-Benz C-Class 2nd Gen RWD W203 2000-2007 [PF056630]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Mercedes-Benz C-Class 2nd Gen RWD W203 2000-2007 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Mercedes-Benz C-Class 2nd Gen RWD W203 (2000-2007)
• Mercedes-Benz CLK-Class 2nd Gen W209/C209/A209 (2001-2009)

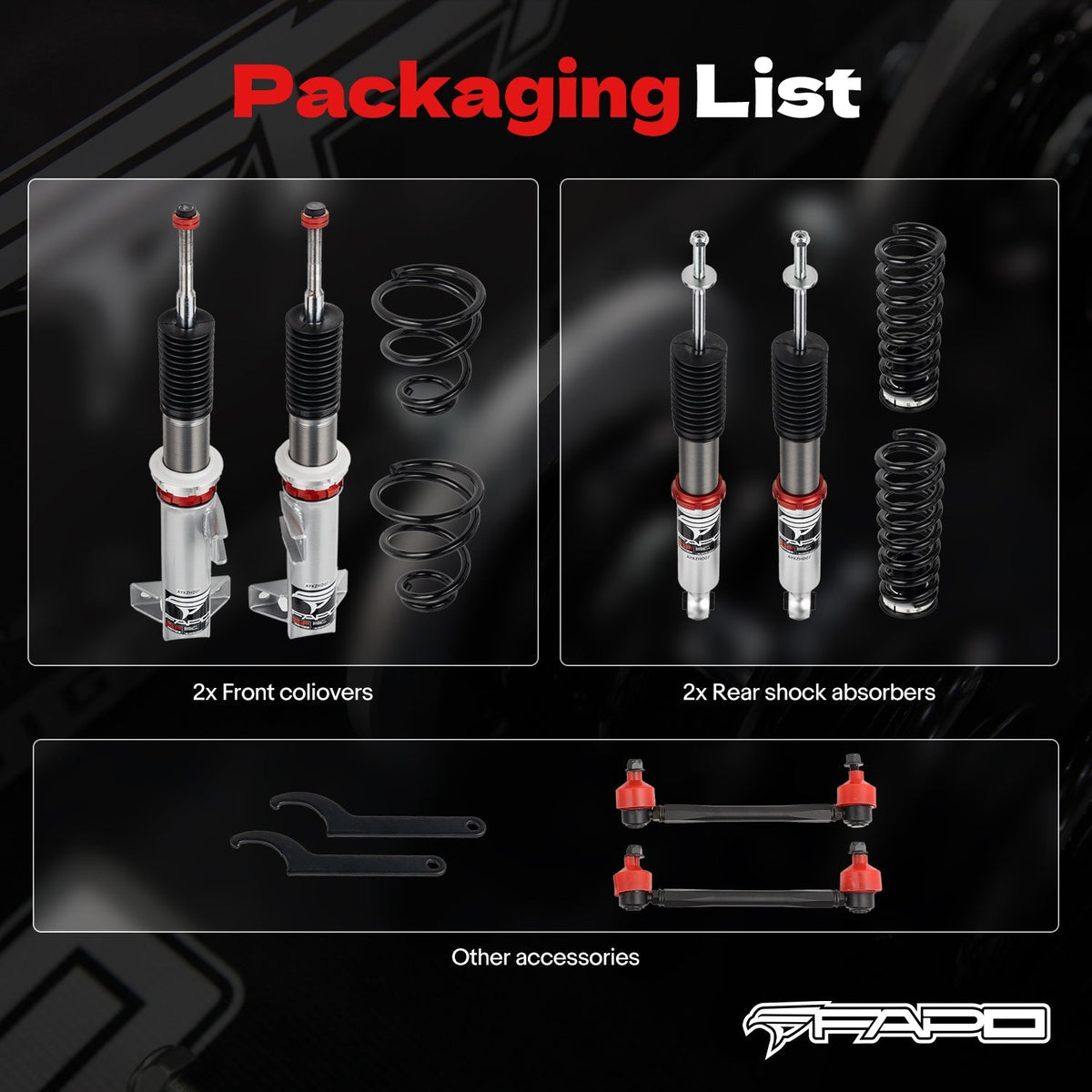

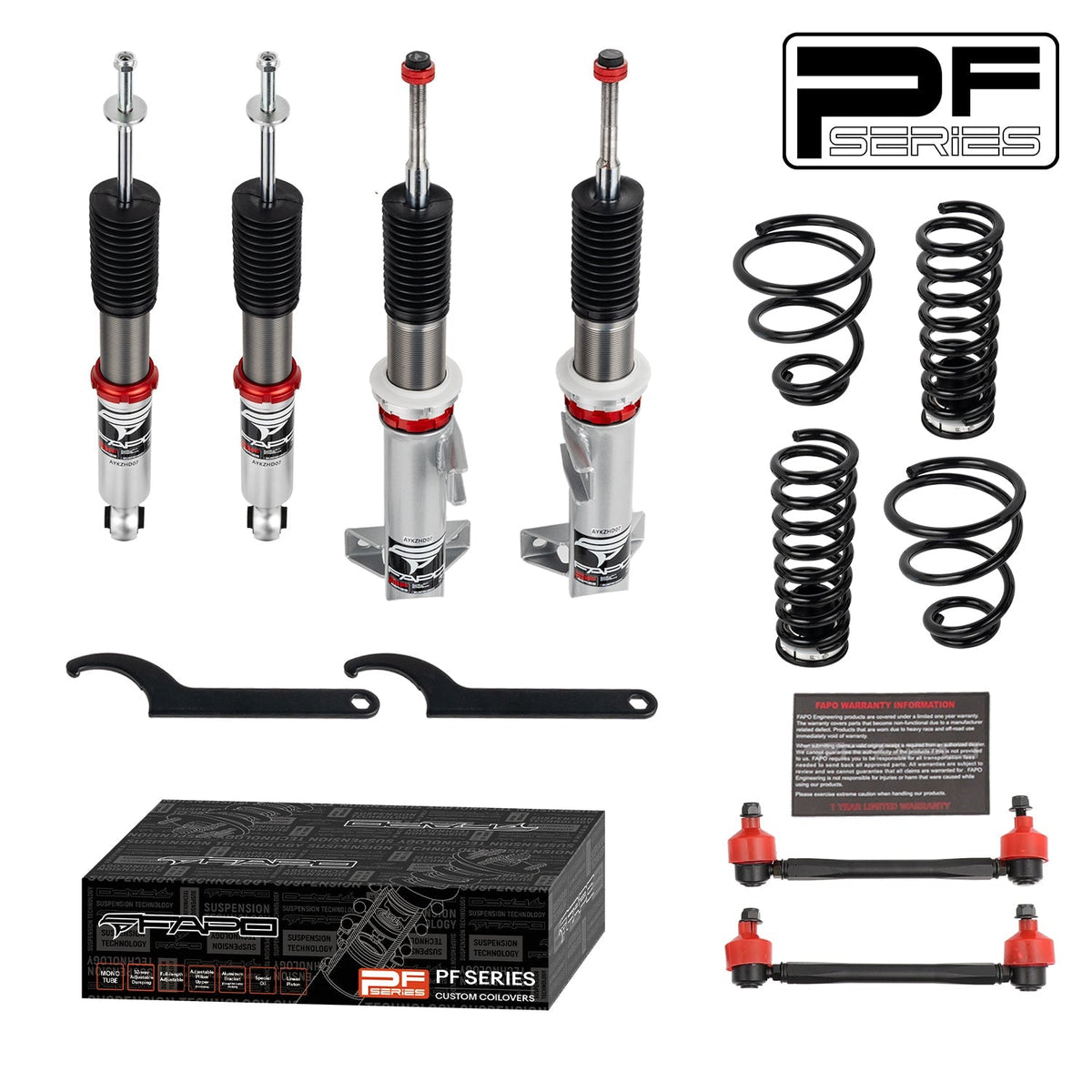

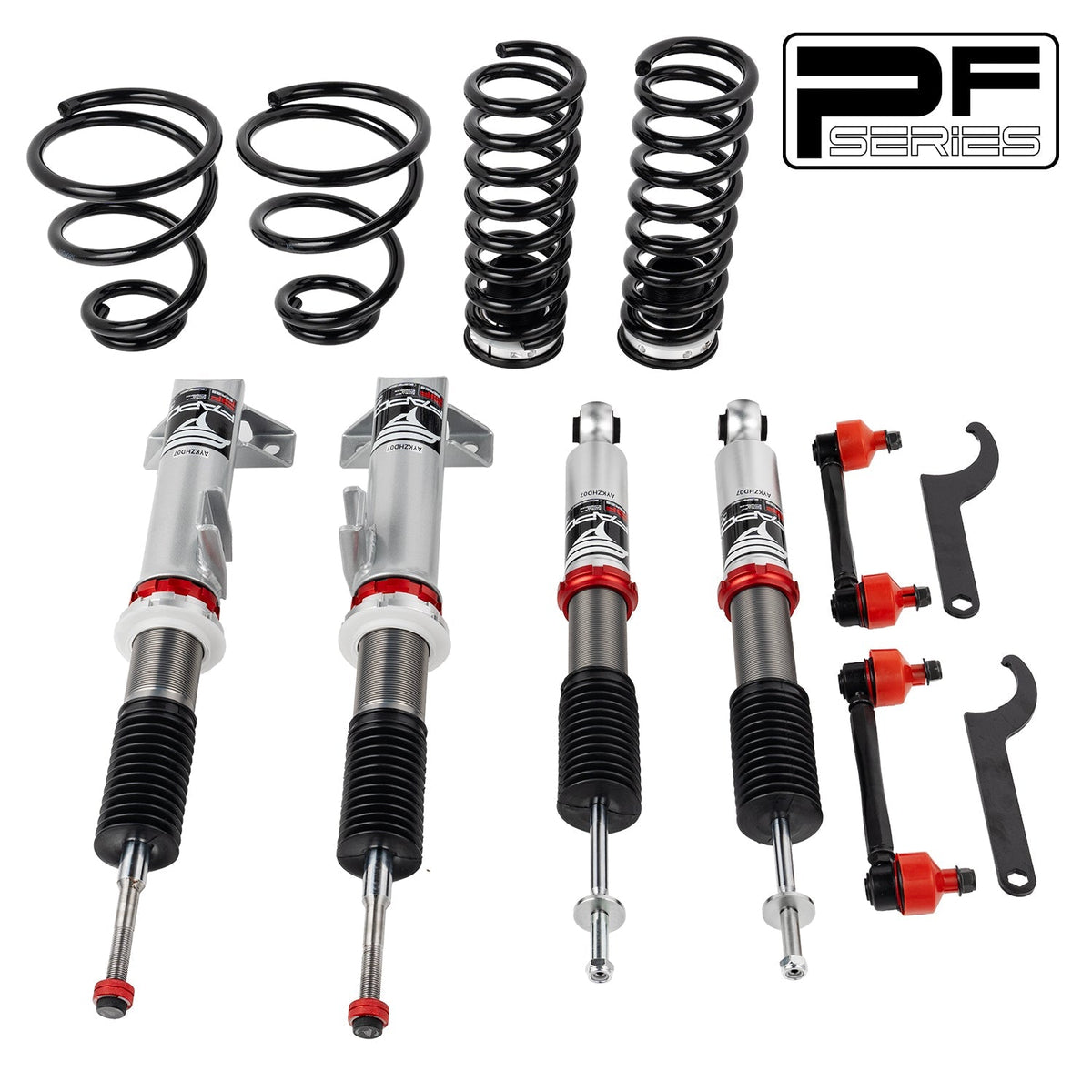

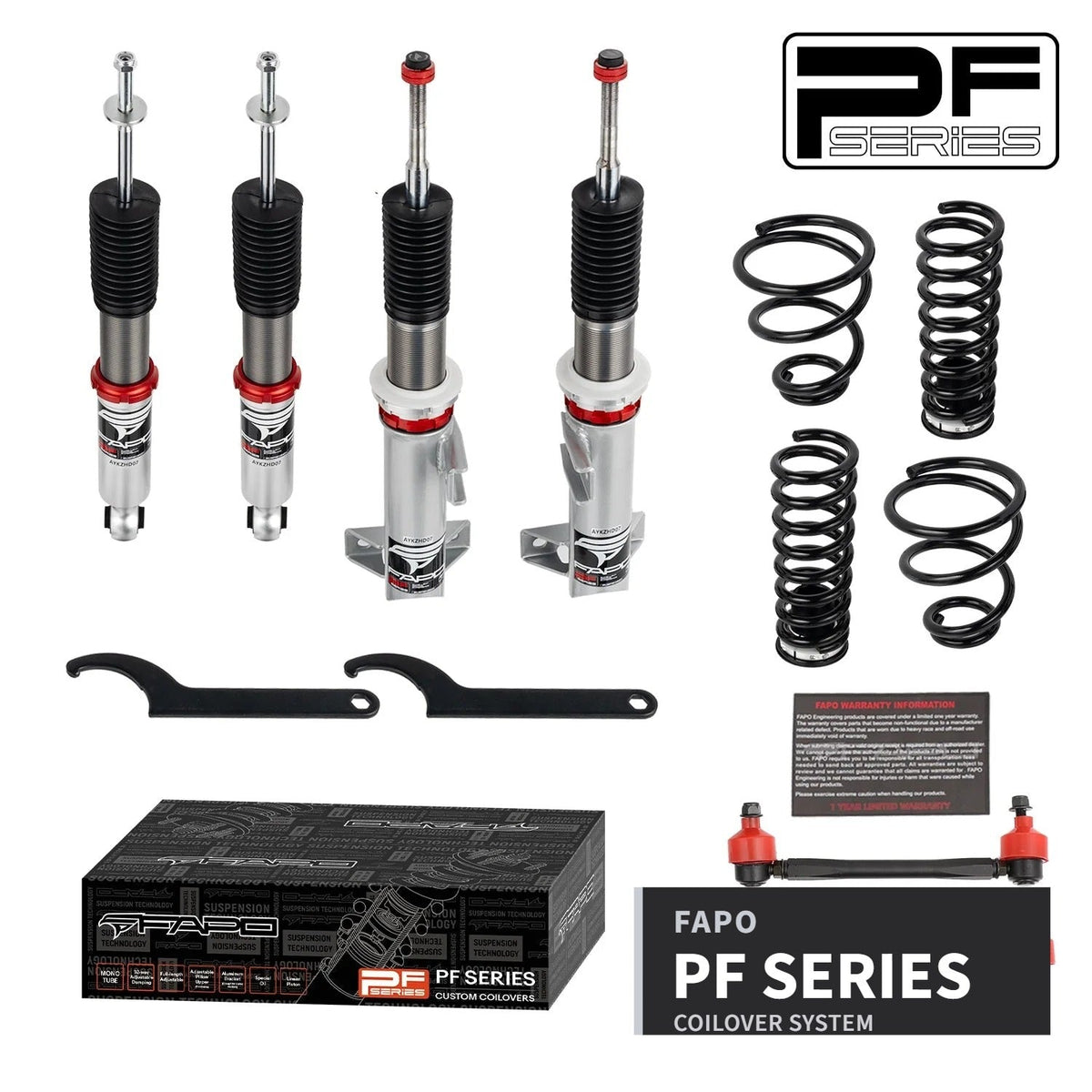

Package Includes

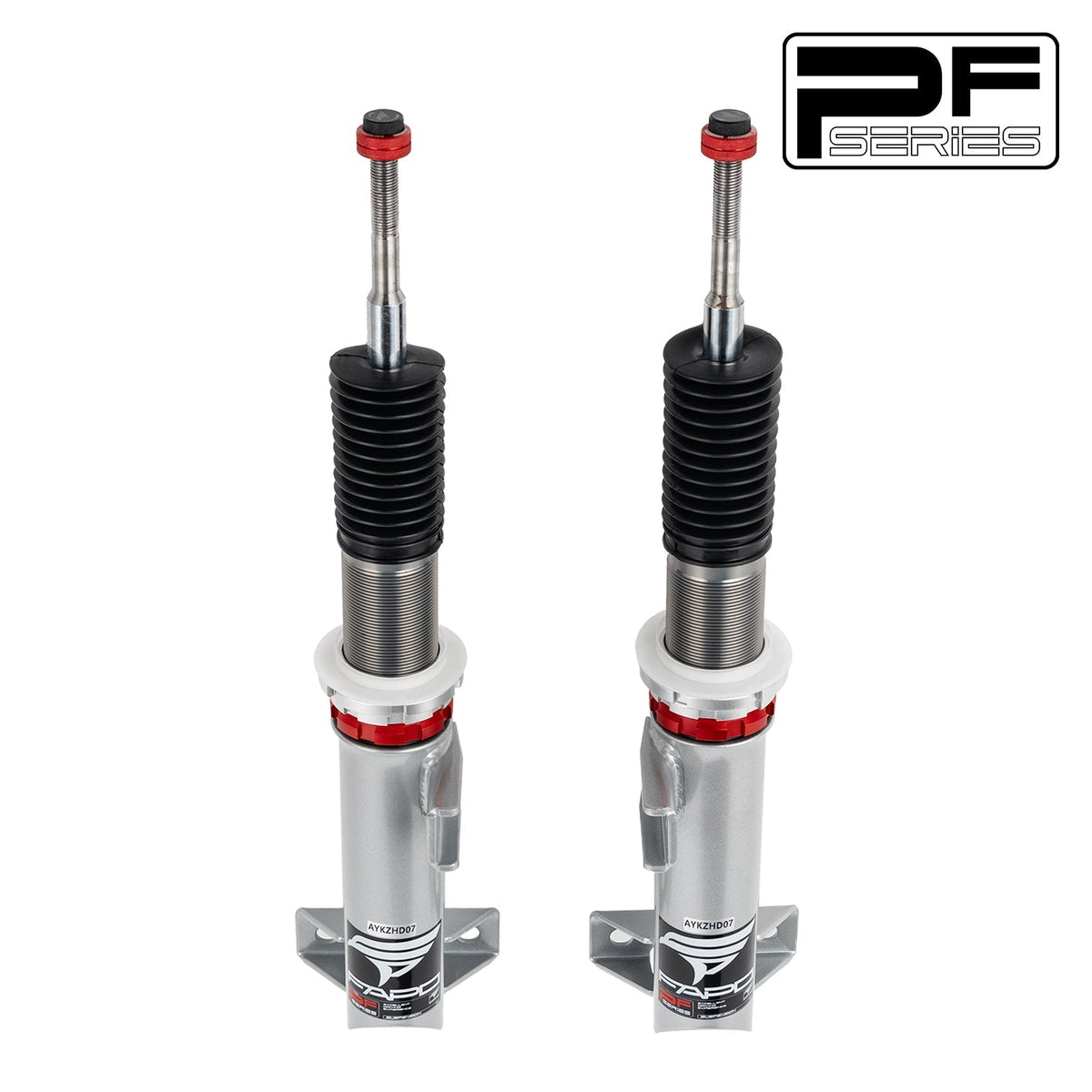

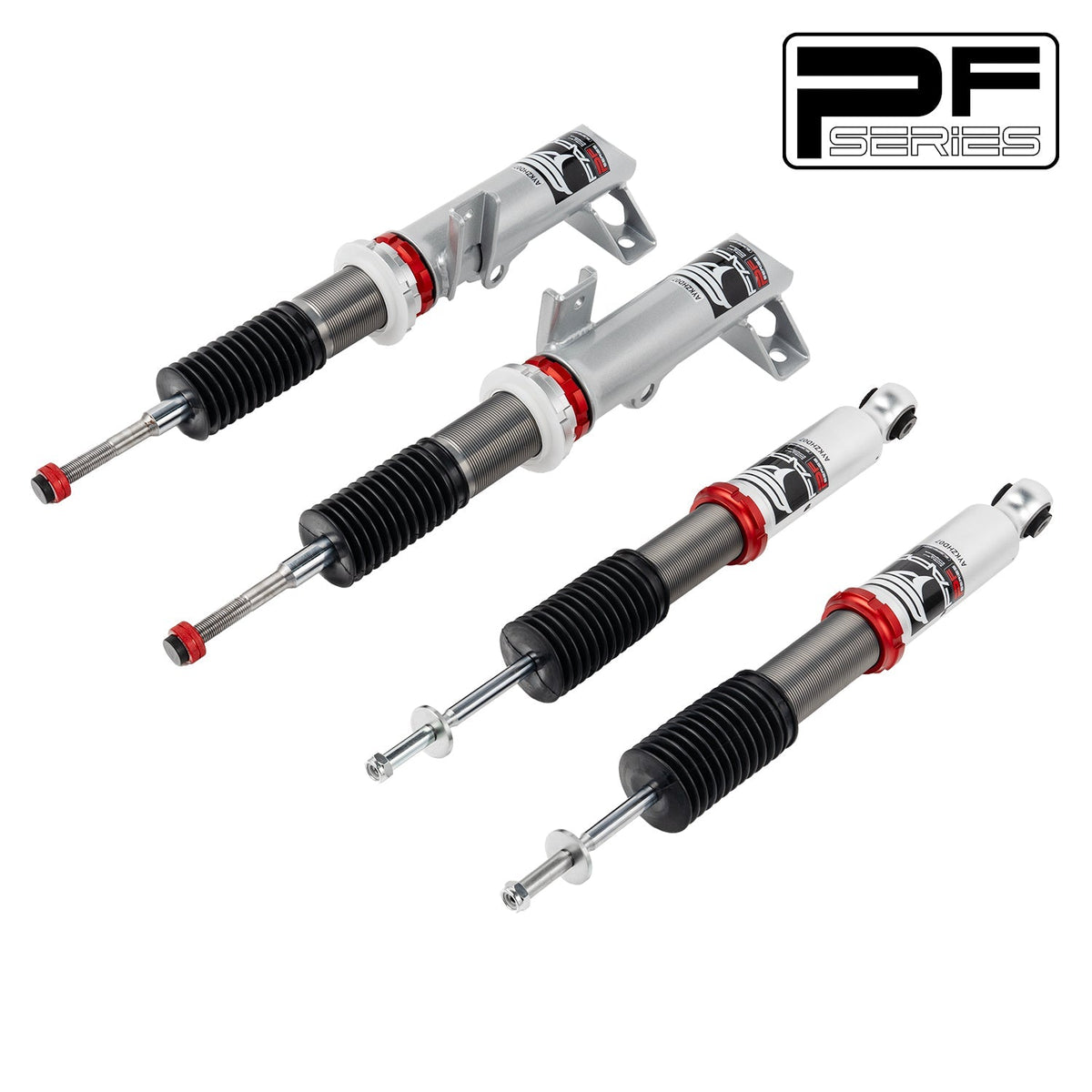

• Front coilovers × 2 pcs

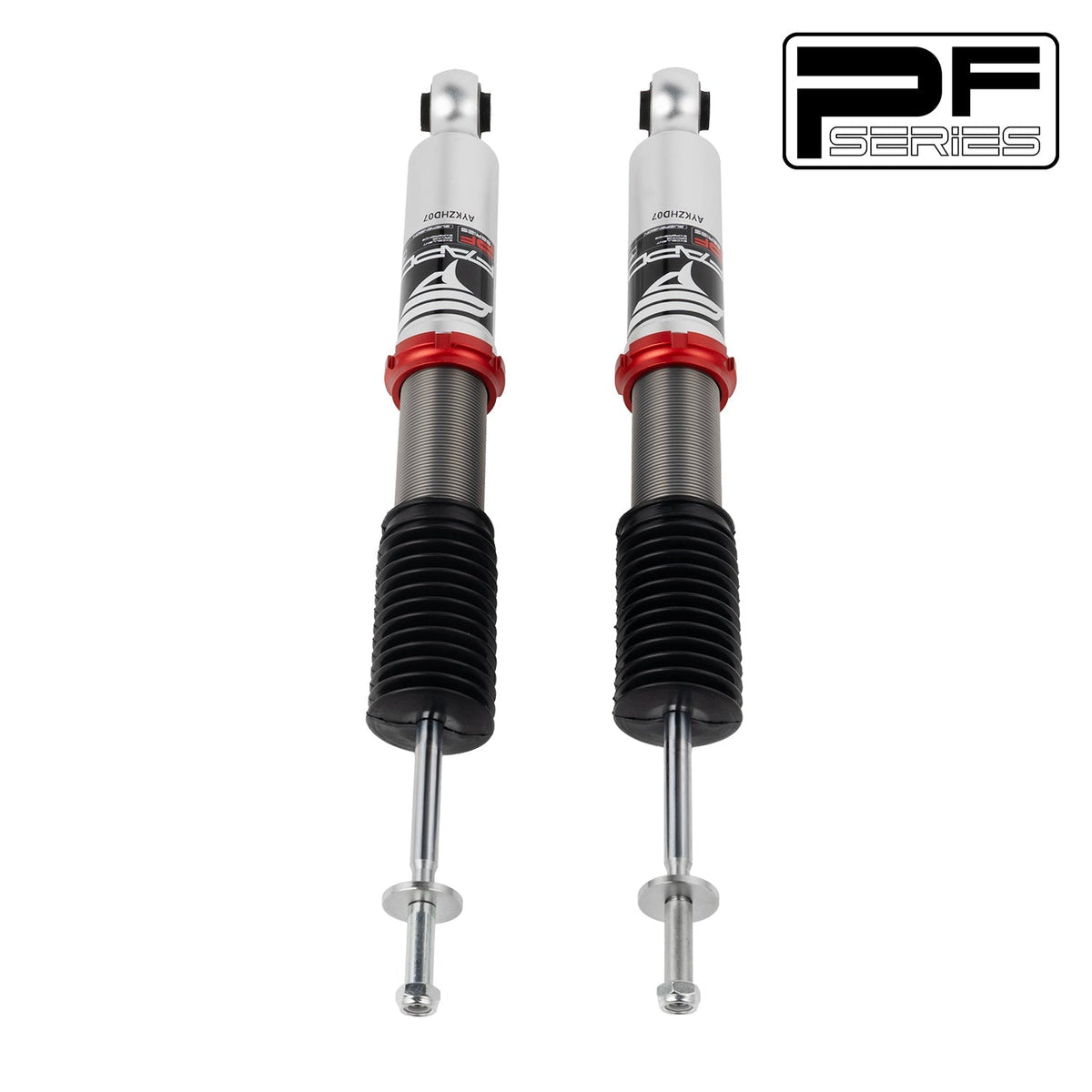

• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Note: This is a lowering coilover kit, and even at its maximum height setting, the vehicle will sit 1-1.5" lower than factory height. Please ensure this fits your preference before purchasing.

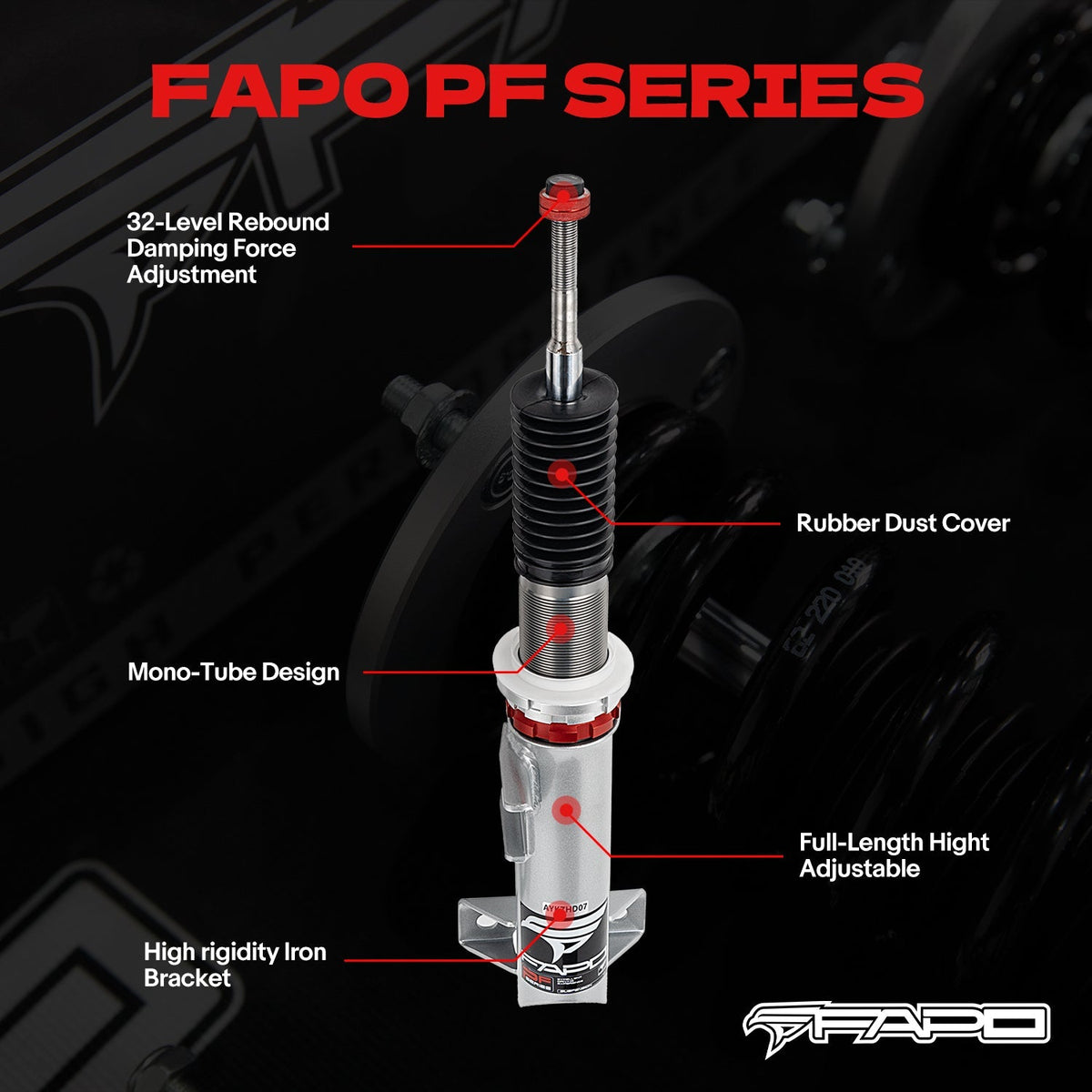

Features

• Mono-tube shock design with larger oil and gas capacity
• Adjustable ride height
• Adjustable pre-load spring tension
• High-tensile performance springs: distortion < 0.04% after 600,000 cycles
• Special surface treatment for improved durability and performance

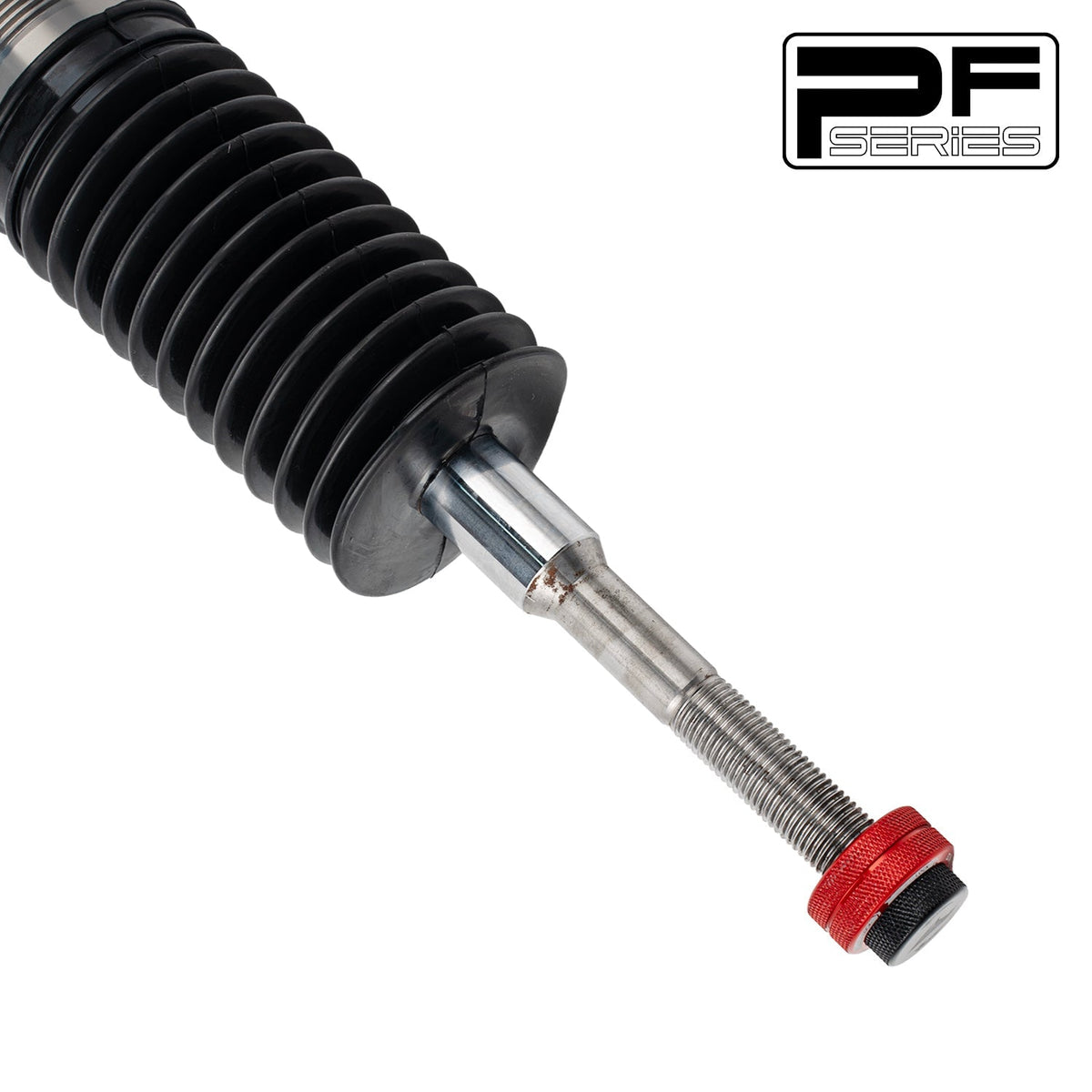

• Rubber boots on all inserts protect dampers and keep them clean
• Improved handling with a balance of comfort
• Quick and cost-effective way to upgrade your vehicle's stance
• Easy installation with the right tools
• Suitable for daily driving, track days, drift, and spirited street use
• All shown accessories included
• 1-year FAPO warranty against manufacturing defects

Specifications:

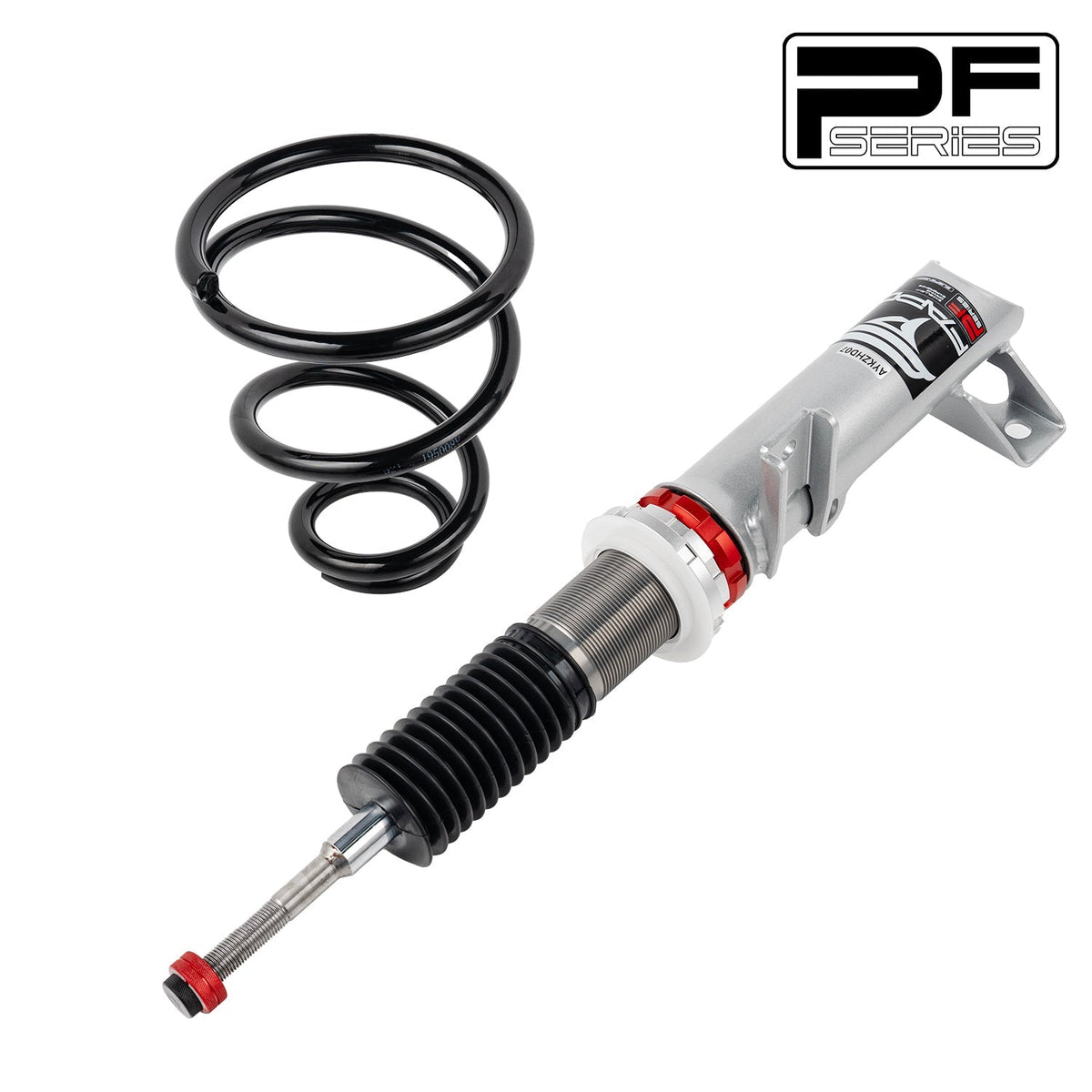

• Front Spring: 195mm, 8 kg/mm (445 lb/in)
• Rear Spring: 255mm, 9 kg/mm (505 lb/in)
• Adjustable Height: Yes
• Adjustable Camber Plate: Yes (Front only); Rear uses standard top mounts

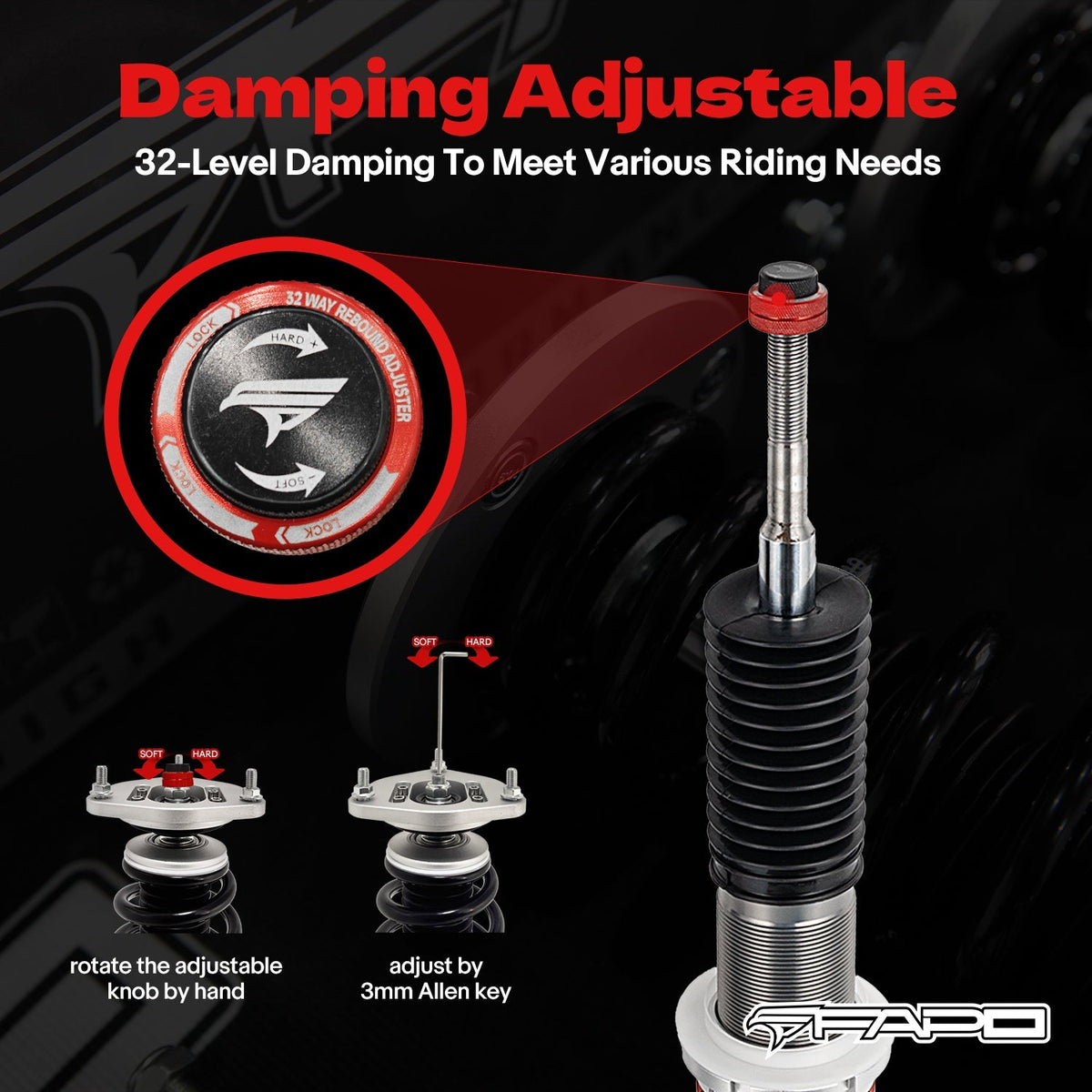

• Damping: 32 Levels
• Front Shock: 53-300-120-20-M14 [4-M2-4]
• Rear Shock: 45-275-150-12.5-M10 [2-44R03-6]
• Mounts: Front: OEM top mounts required | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
