FAPO PF 32-Level Coilovers Chrysler 300C Lx 2WD 2005-2010 [PF069230]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

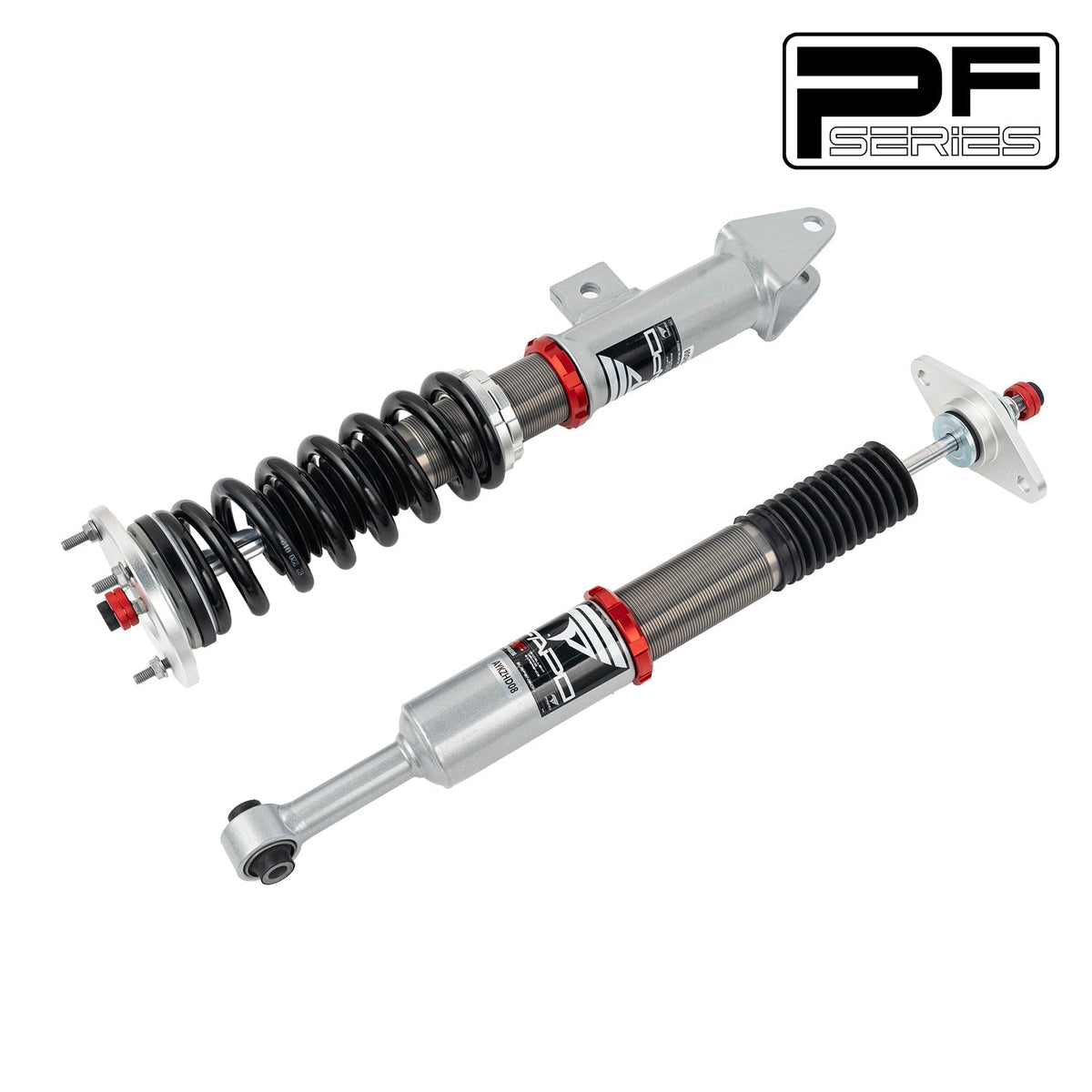

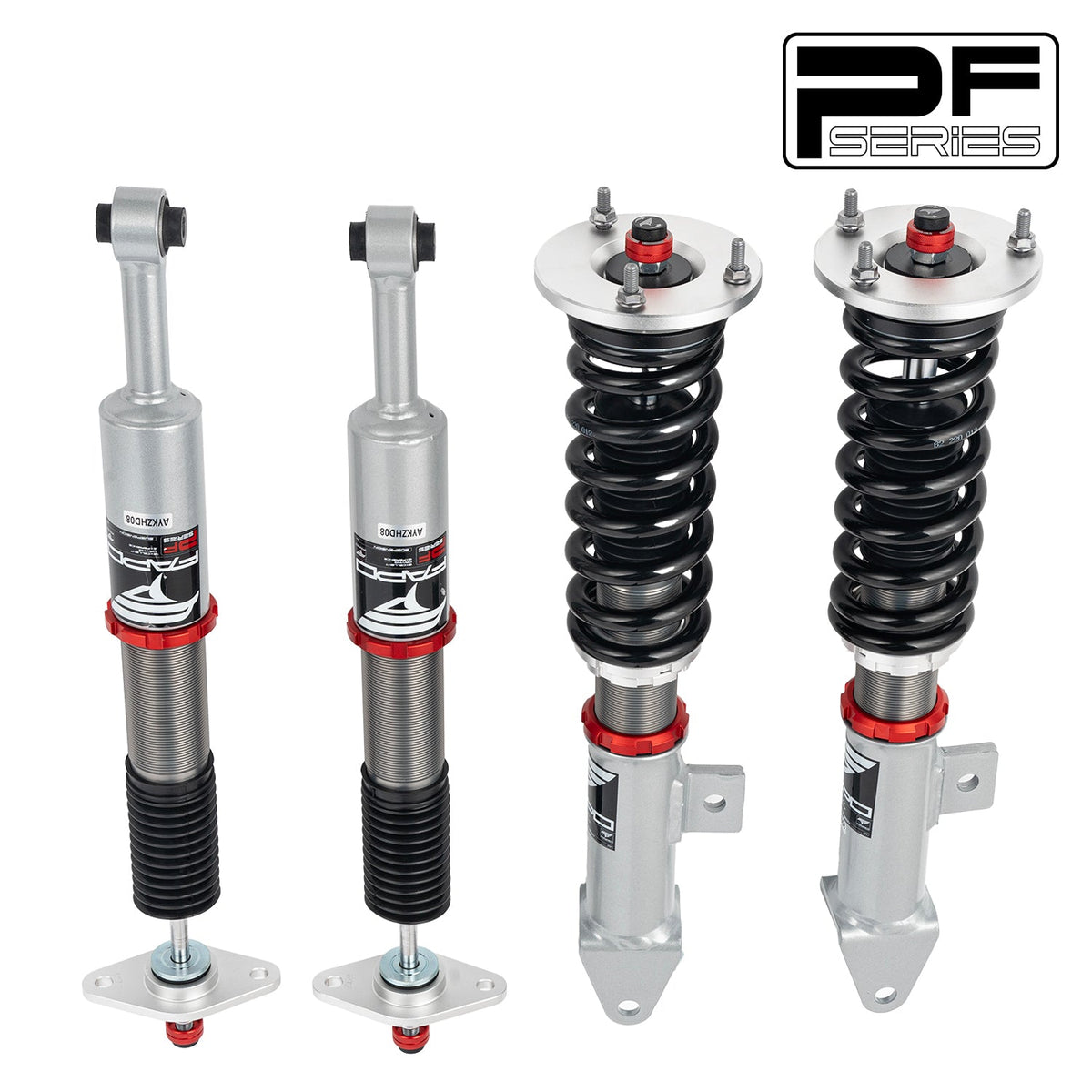

The FAPO PF kit for the Chrysler 300C Lx 2WD 2005-2010 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Chrysler 300C Lx 2WD 2005-2010
• Dodge Challenger 2WD 2008-2011
• Dodge Charger Srt-8 RWD LX 2006-2010
• Dodge Magnum 2nd Gen 2WD 2005-2008

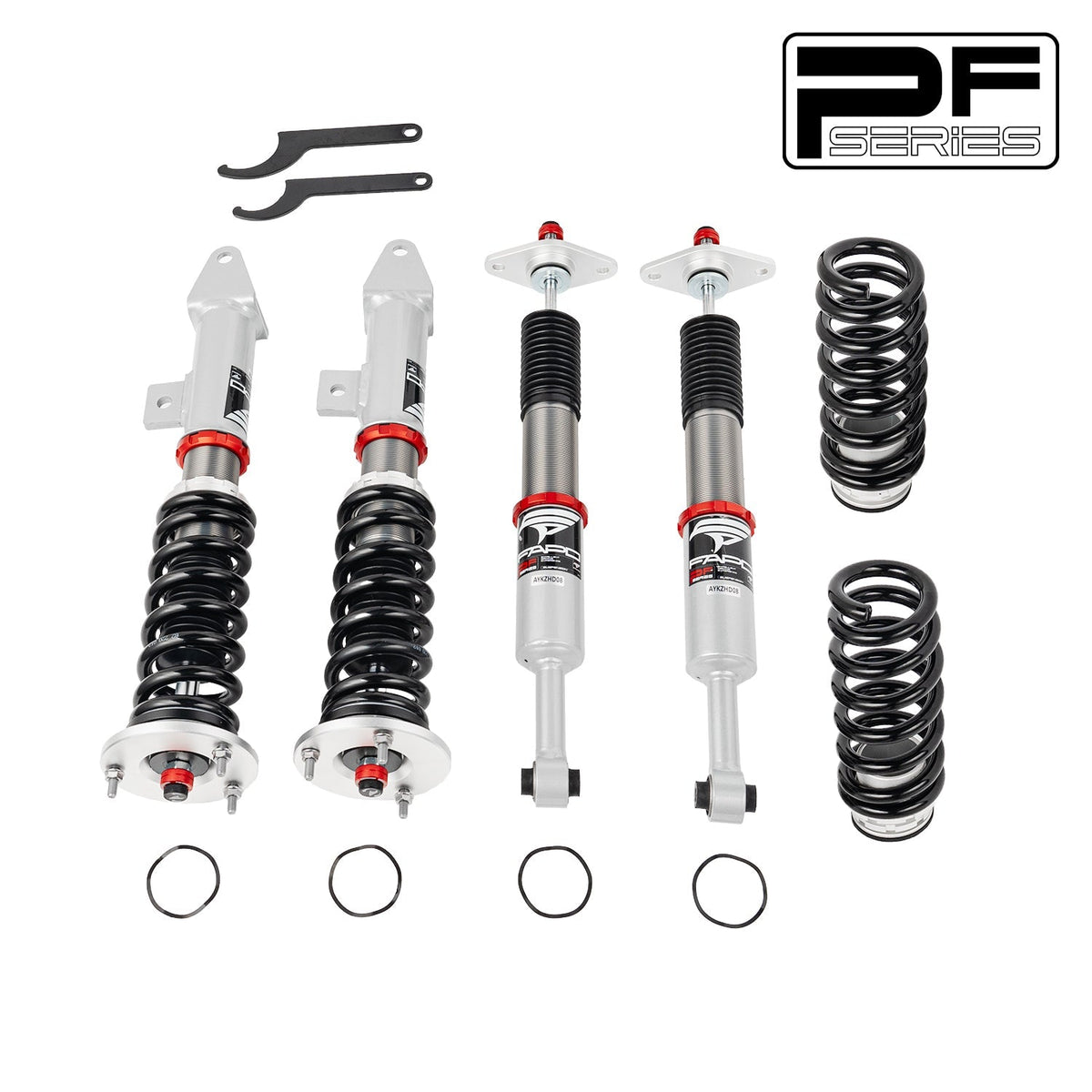

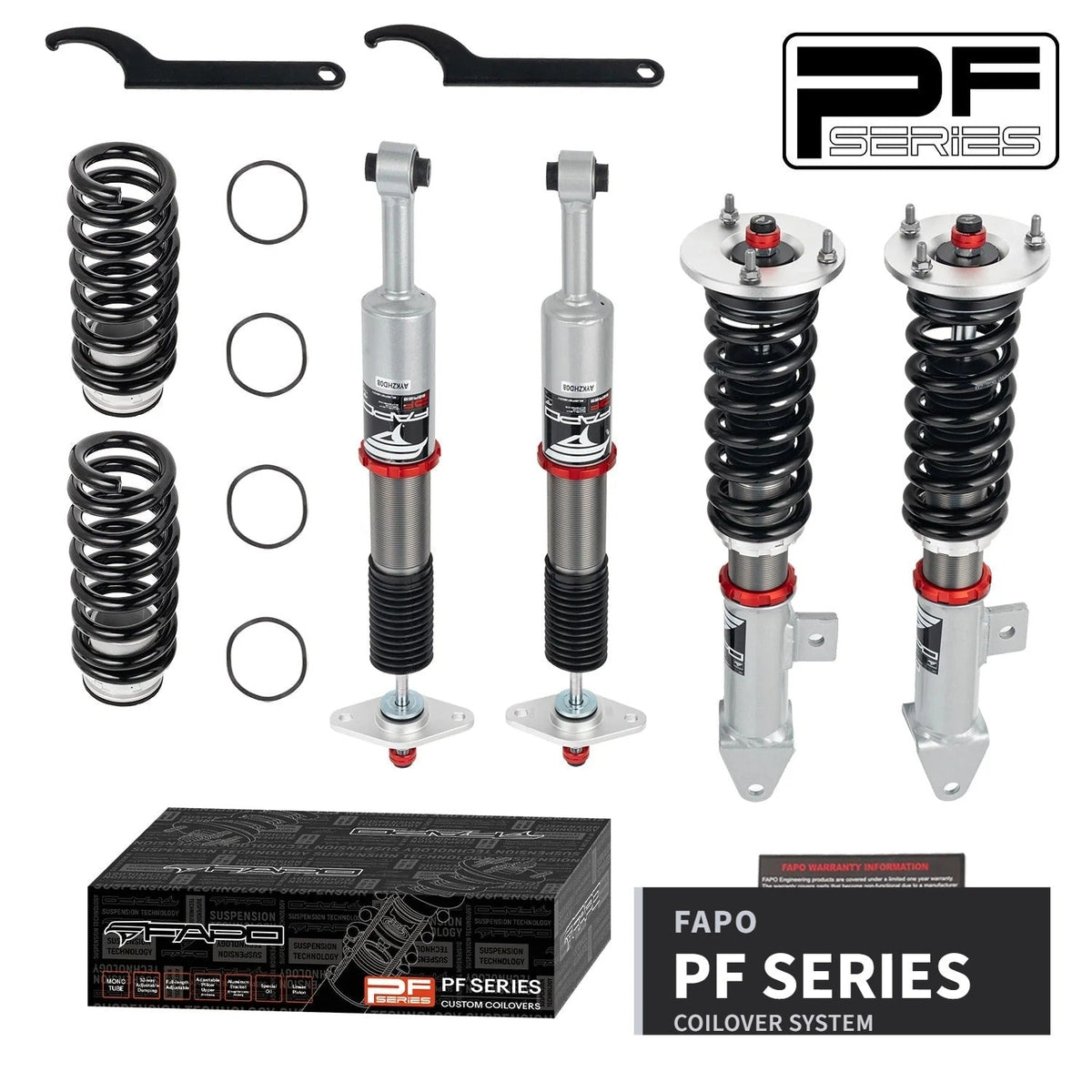

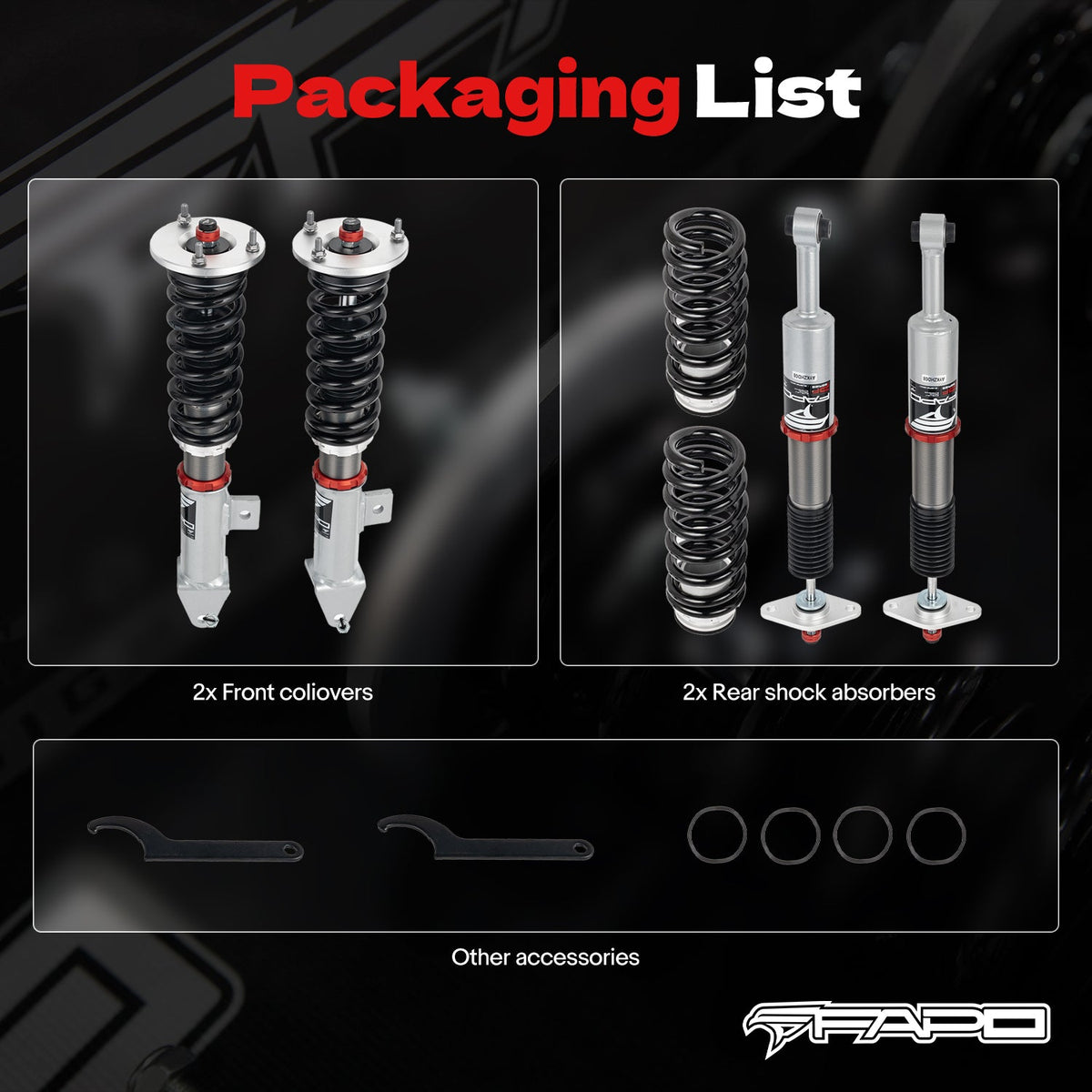

Package Includes

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs


* Note: Our coilover is a lowering kit which will be 1-1.5" lower than factory height even at the maximum setting. Please confirm you want to lower the car before purchasing.

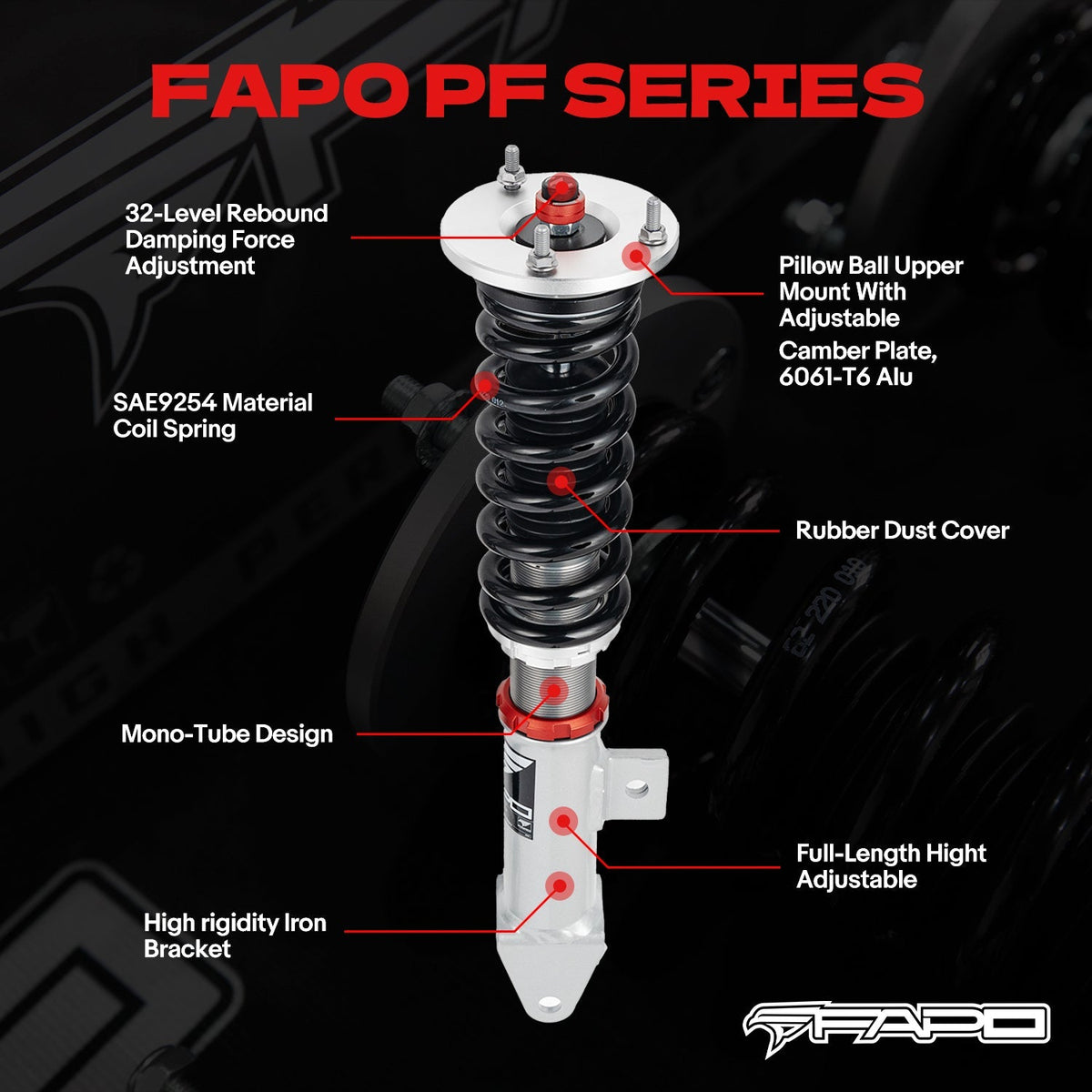

Features

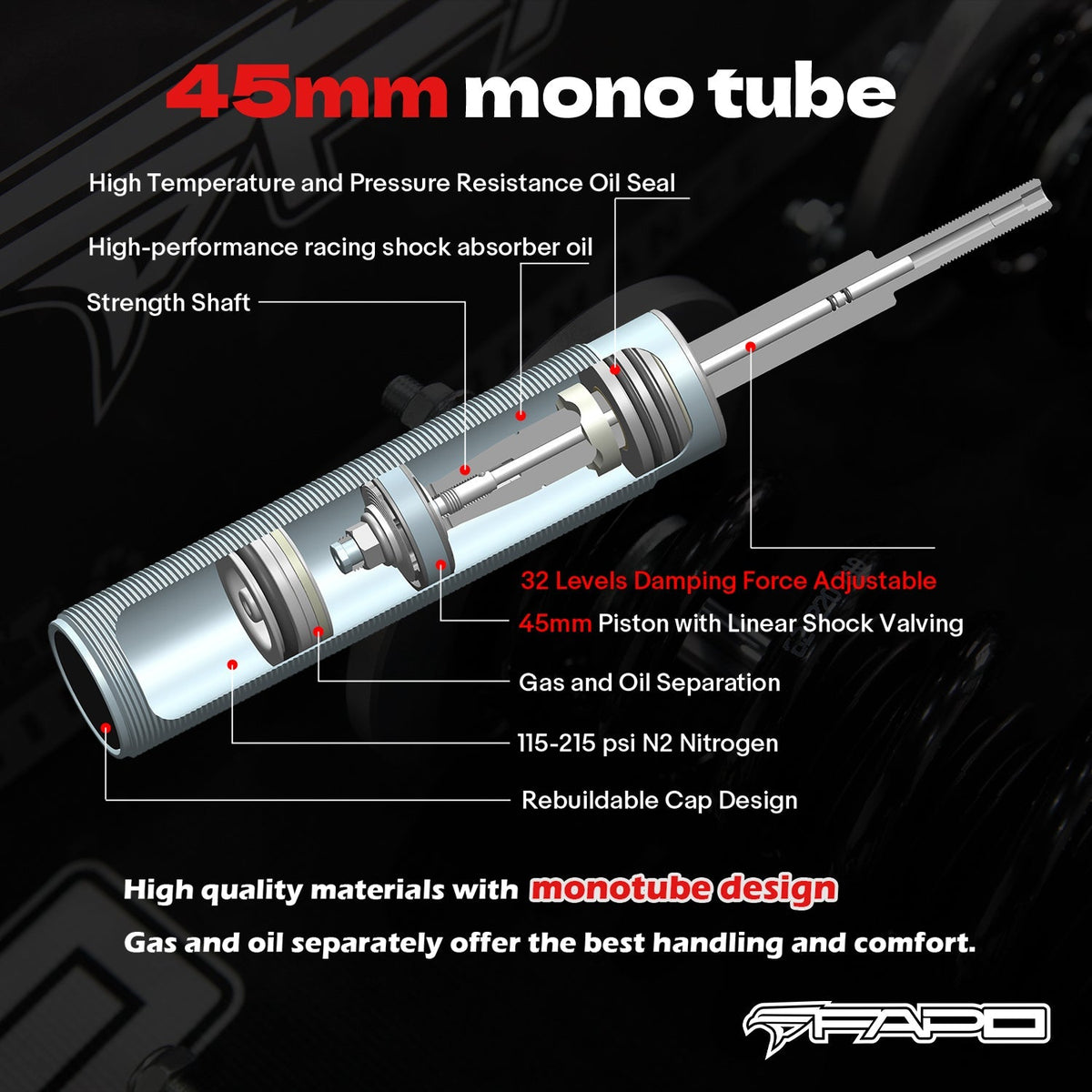

• Mono-tube shock design, larger oil & gas capacity

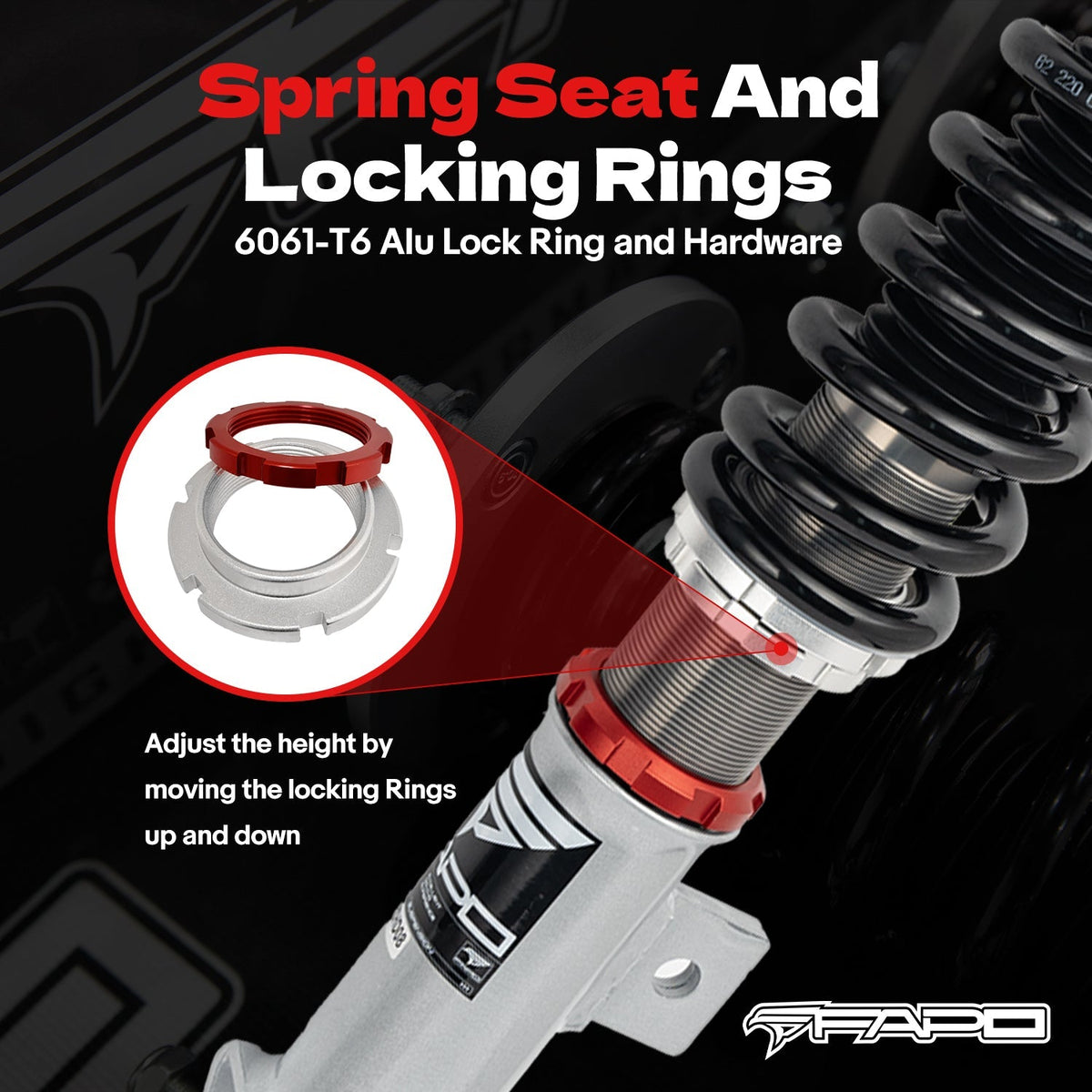

• Adjustable ride height
• Adjustable pre-load spring tension

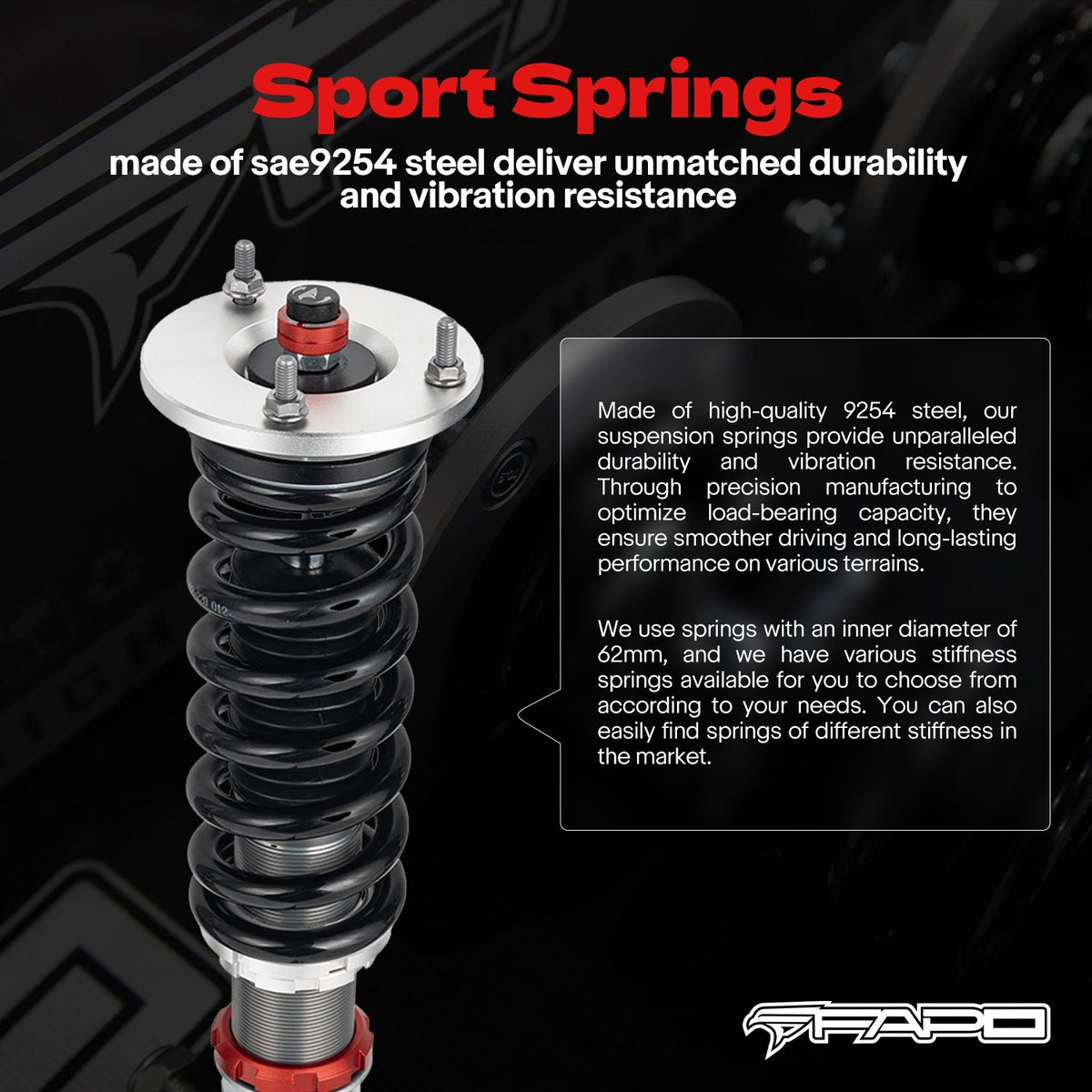

• High-tensile springs: <0.04% distortion after 600,000 cycles
• Fitted rubber boots protect the dampers
• Improved handling without sacrificing comfort
• Fast, affordable appearance upgrade
• Easy installation with proper tools
• Suitable for track, drift, fast-road & daily driving
• All pictured accessories included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 220mm, 12 kg/mm (670 lb/in)

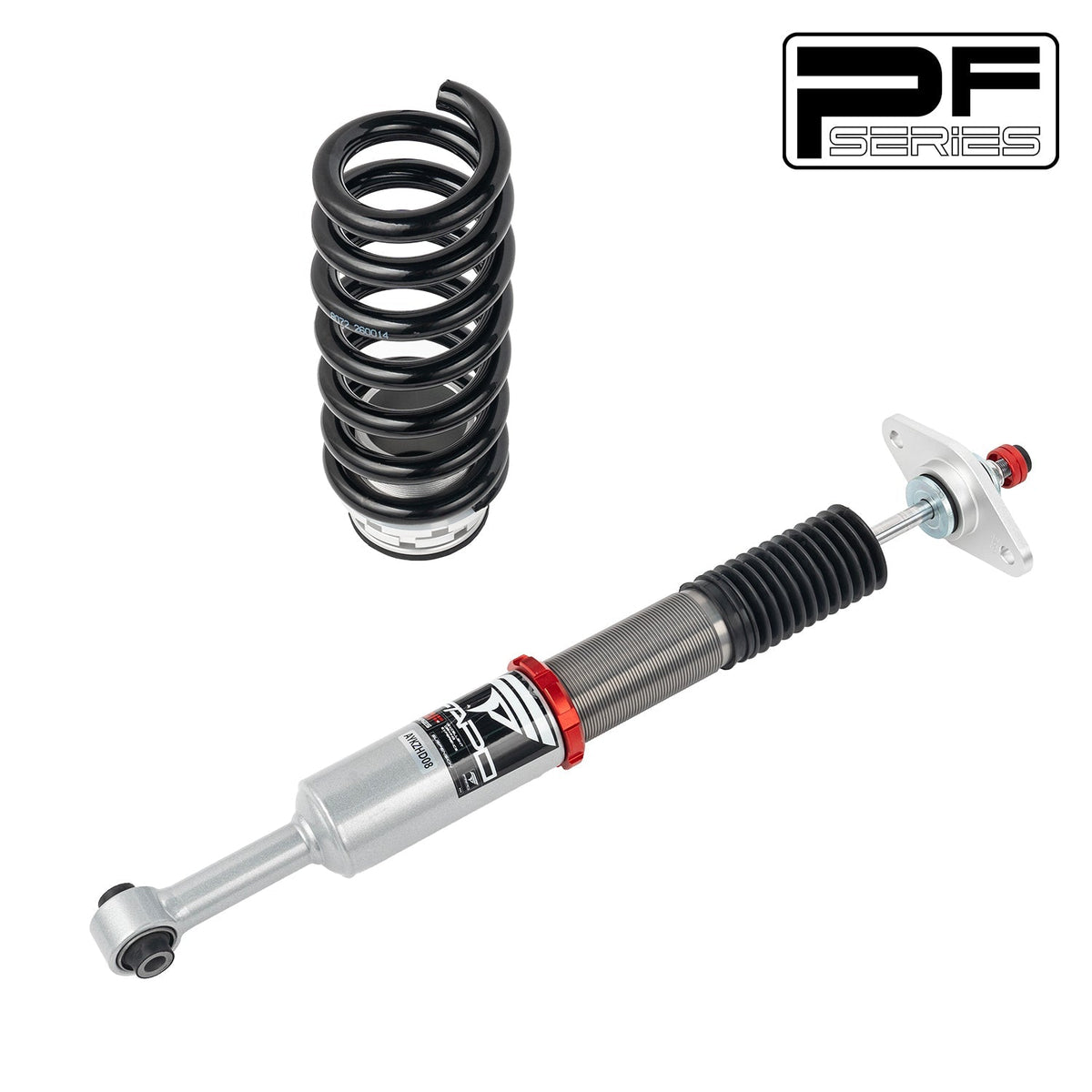

• Rear Spring: 260mm, 14 kg/mm (785 lb/in)
• Ride Height: lowers 1-1.5 in from factory

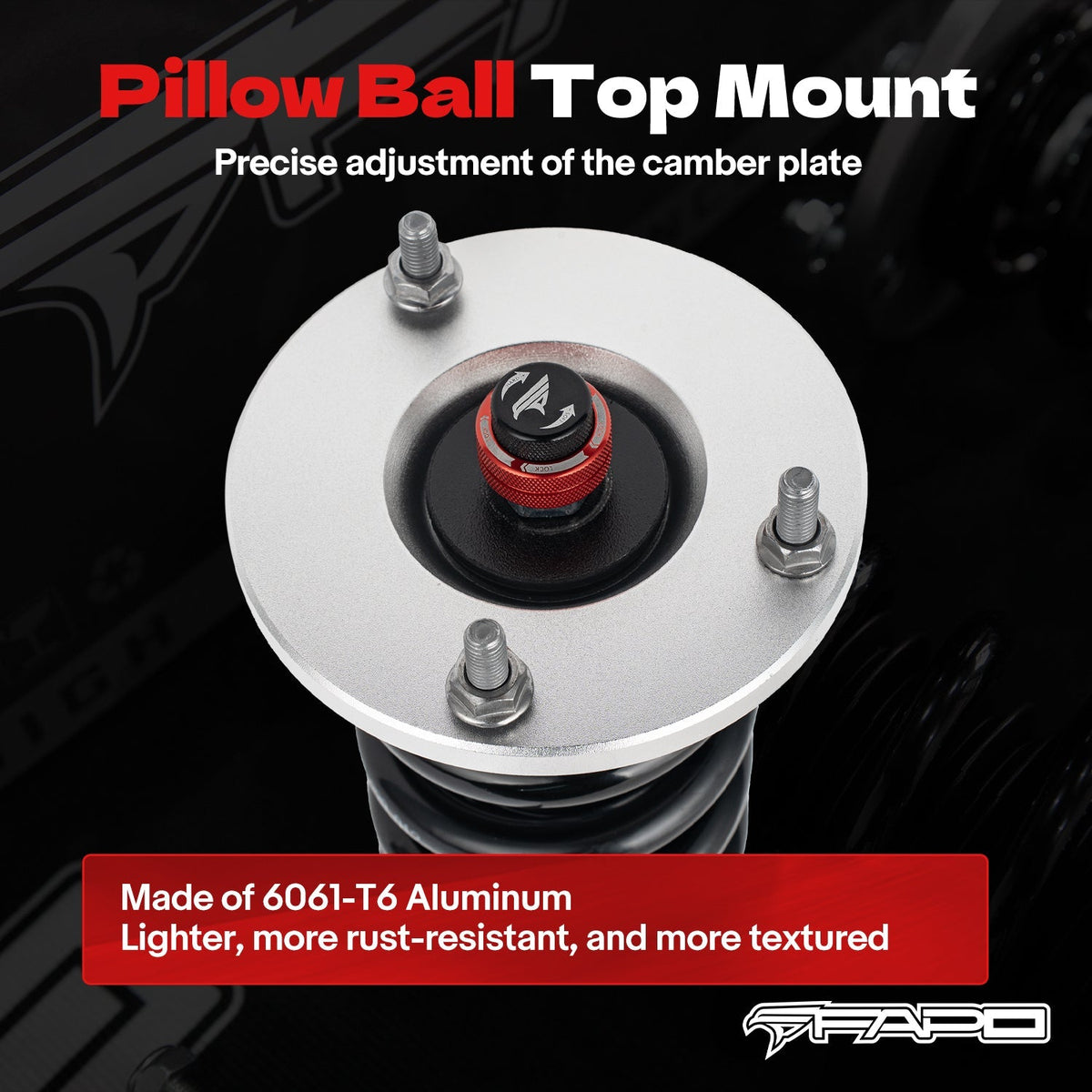

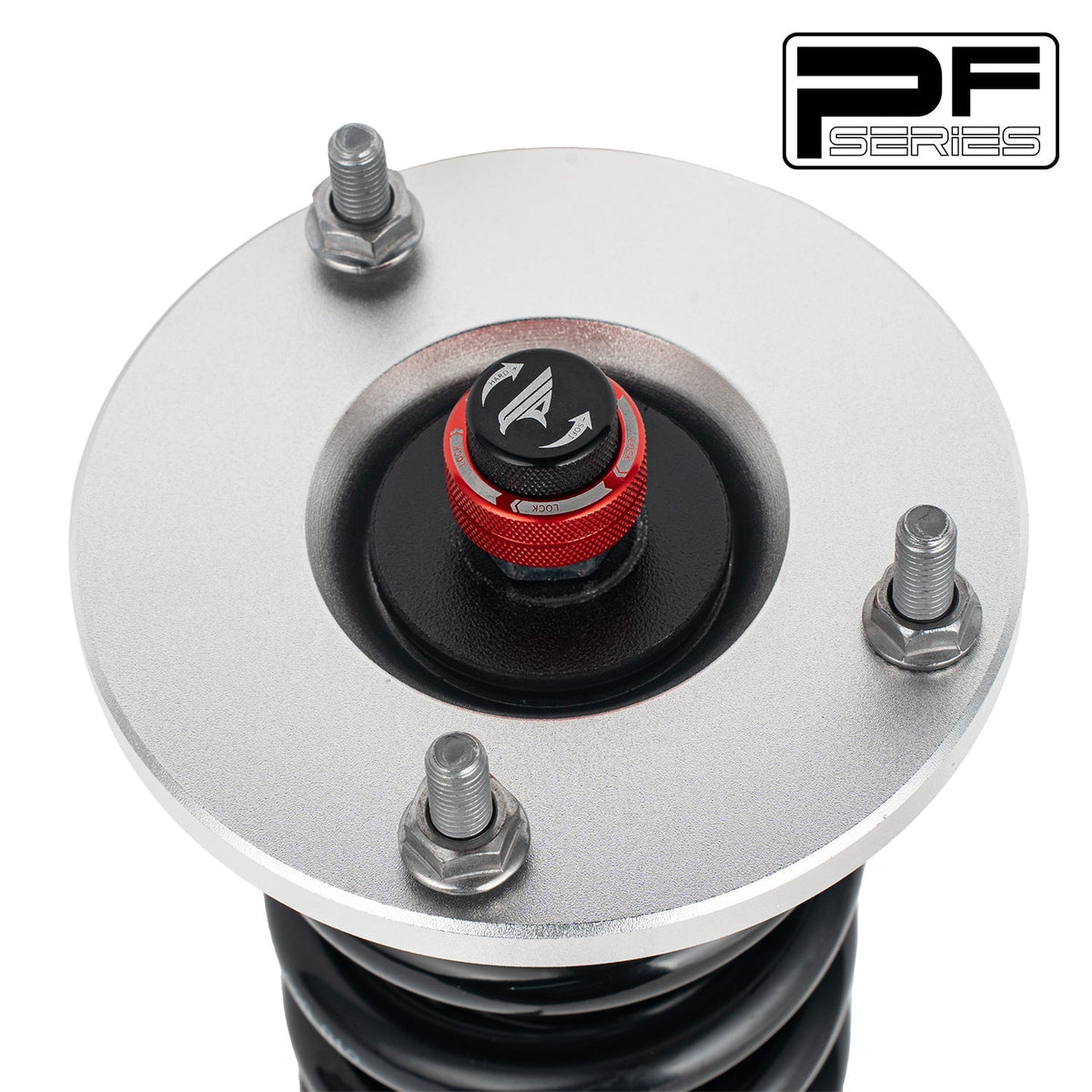

• Adjustable camber plate: Front only; rear standard mounts

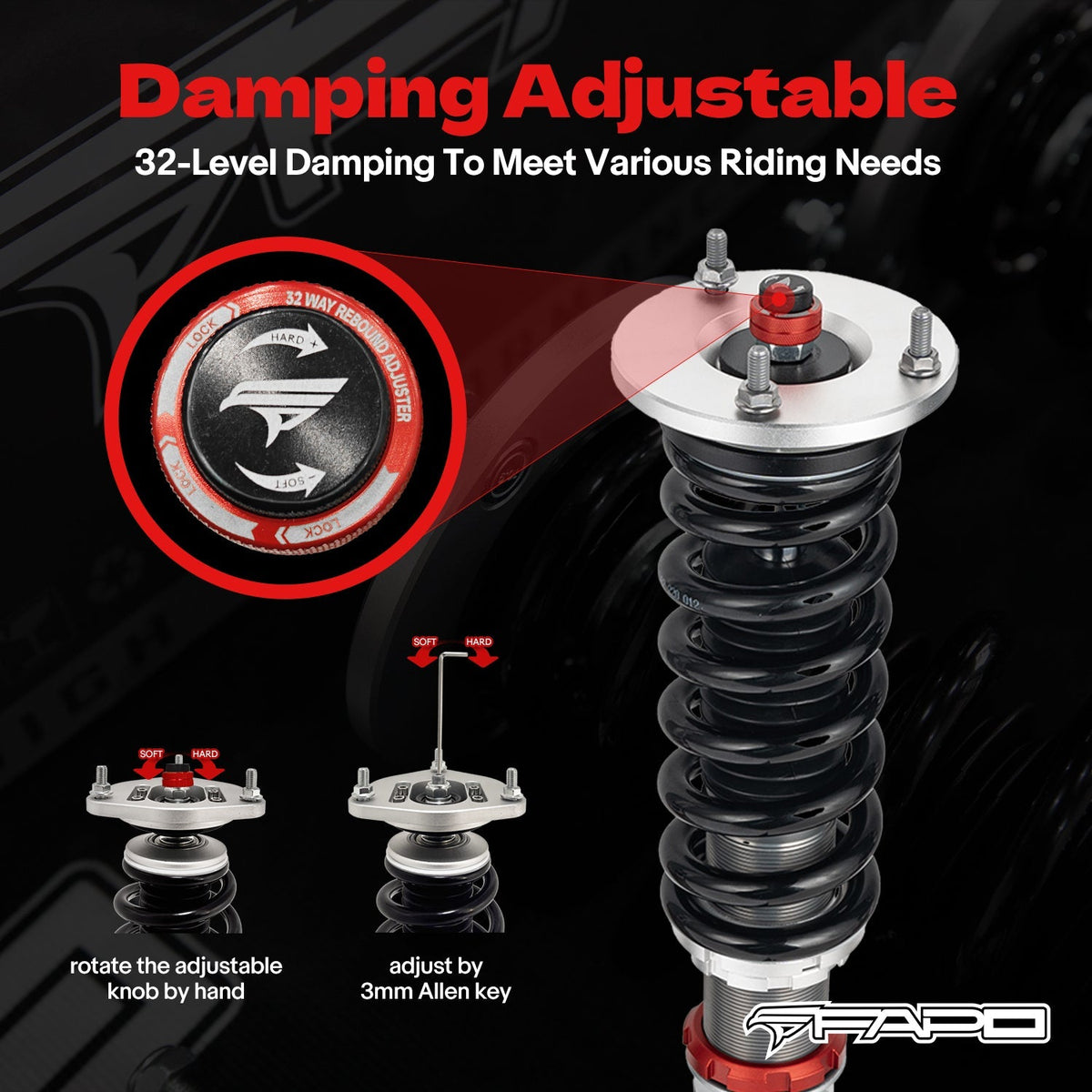

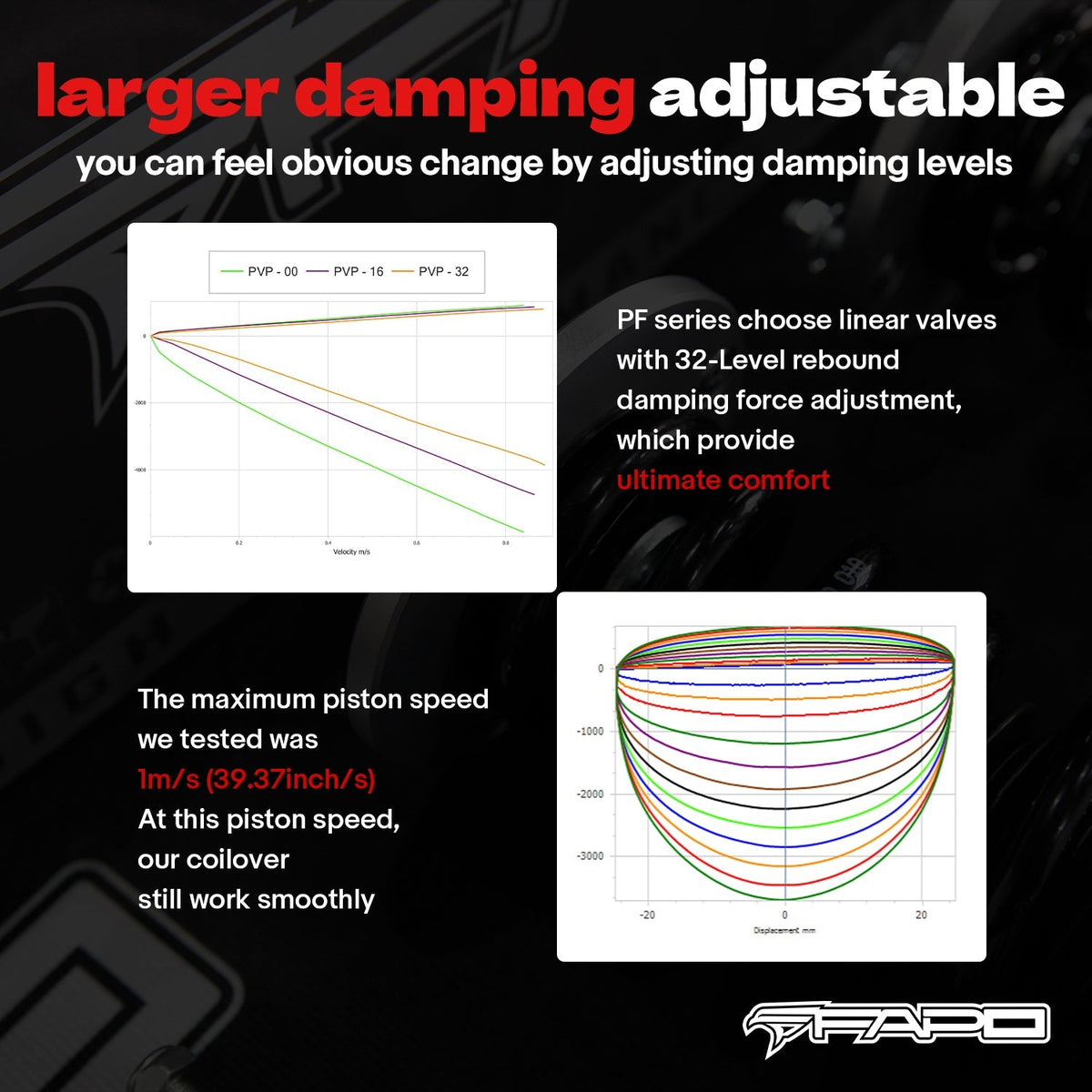

• Damping: 32 Levels

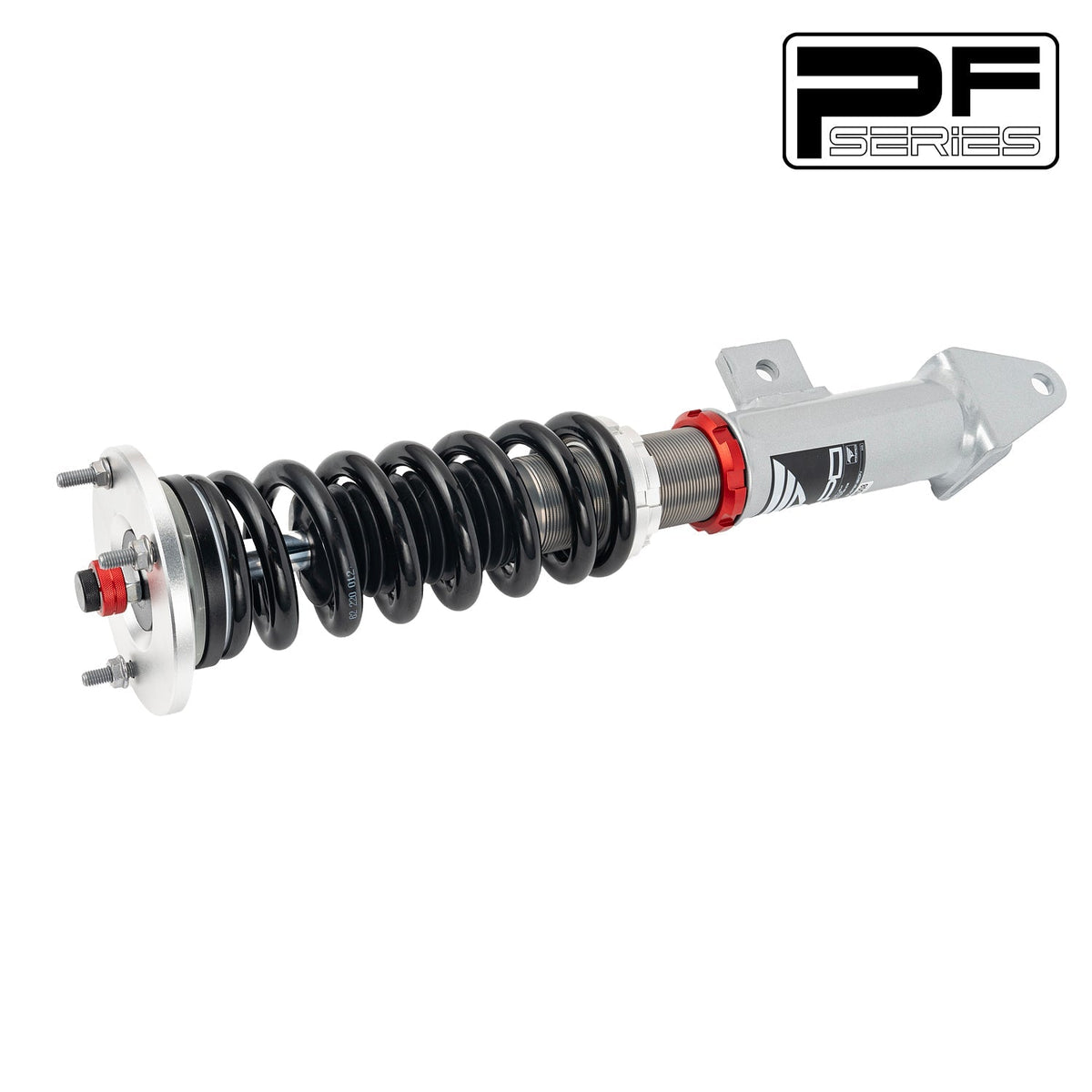

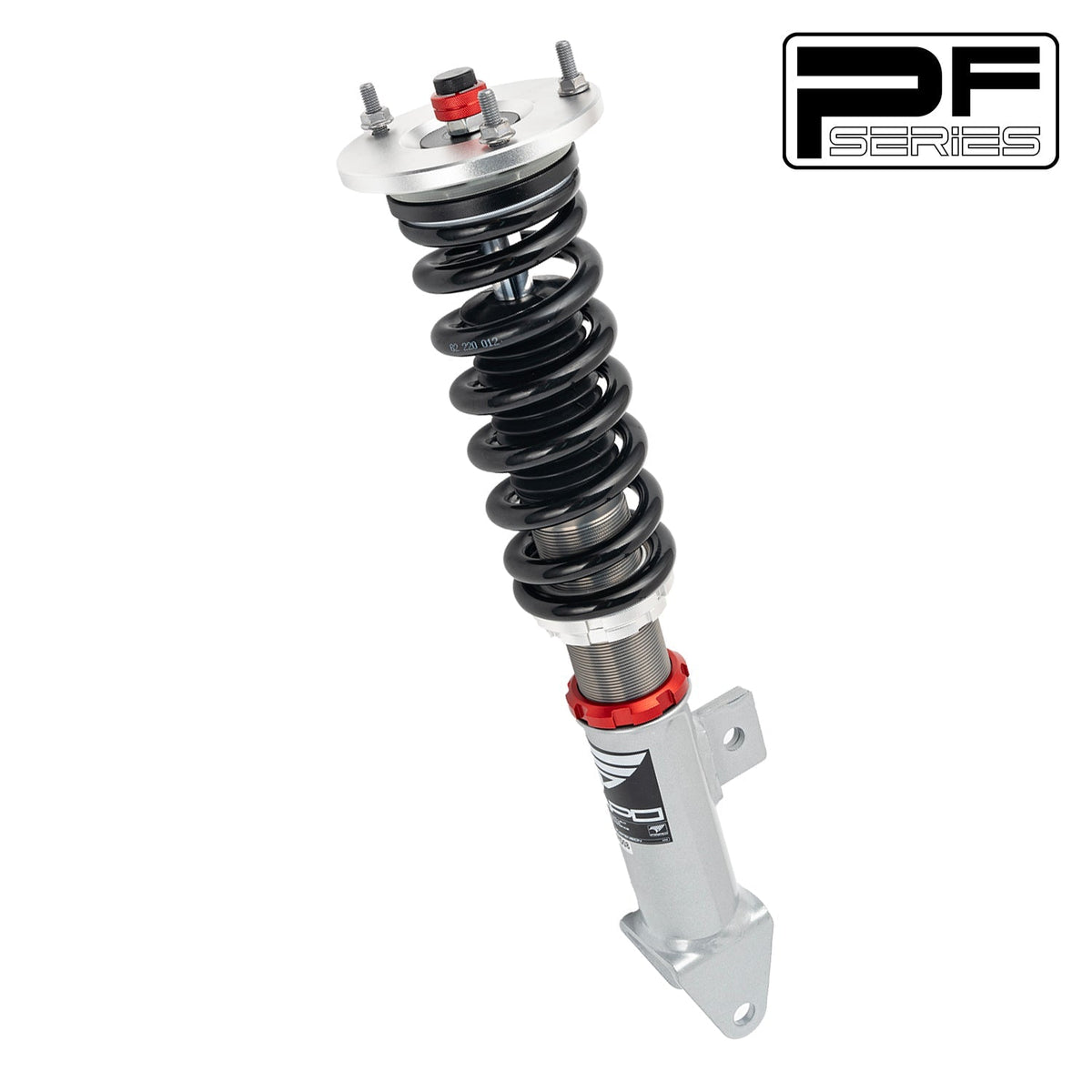

• Front Shock: 53-300-130-20-M12 [4-M2-4]

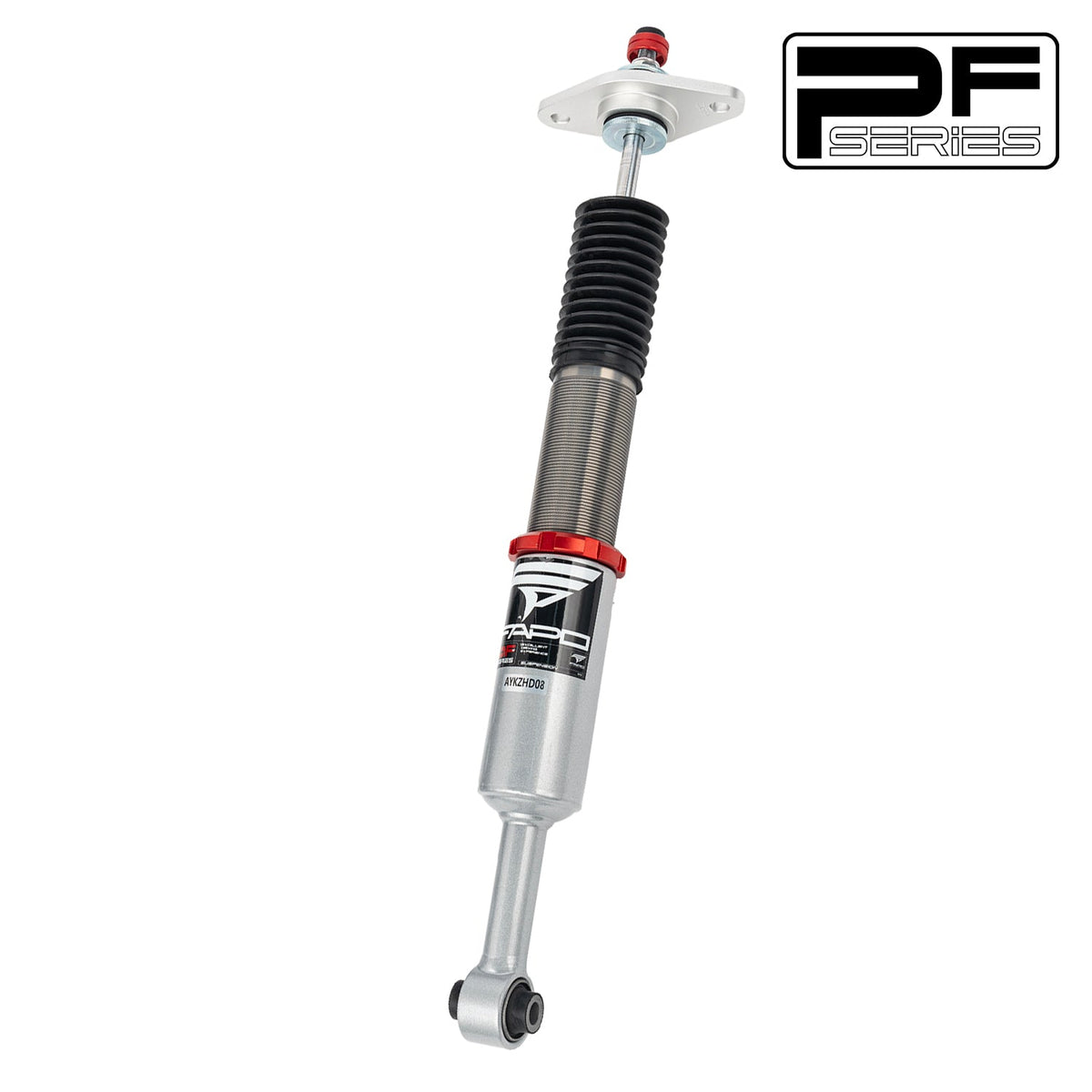

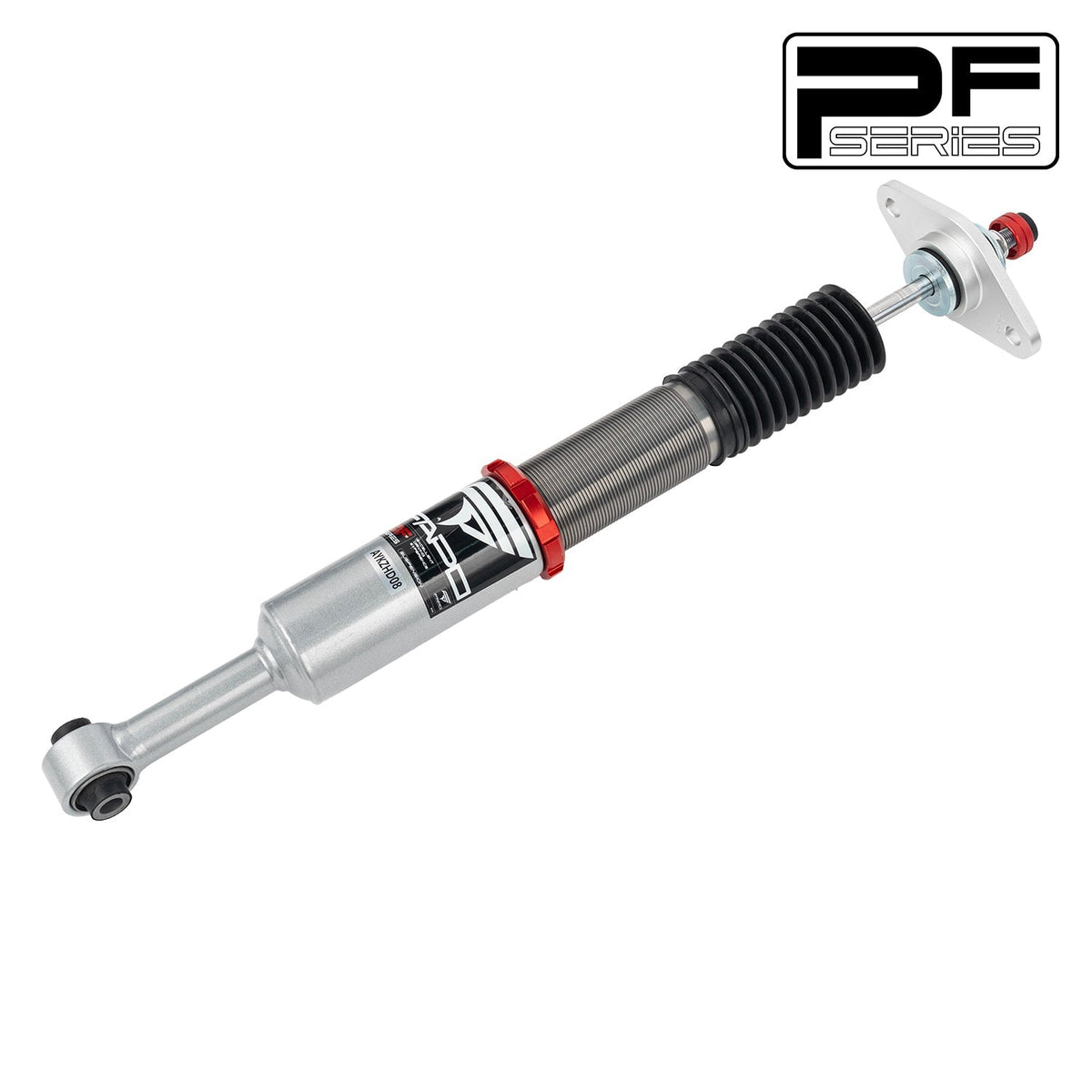

• Rear Shock: 53-260-150-12.5-M12 [4-A1-9]

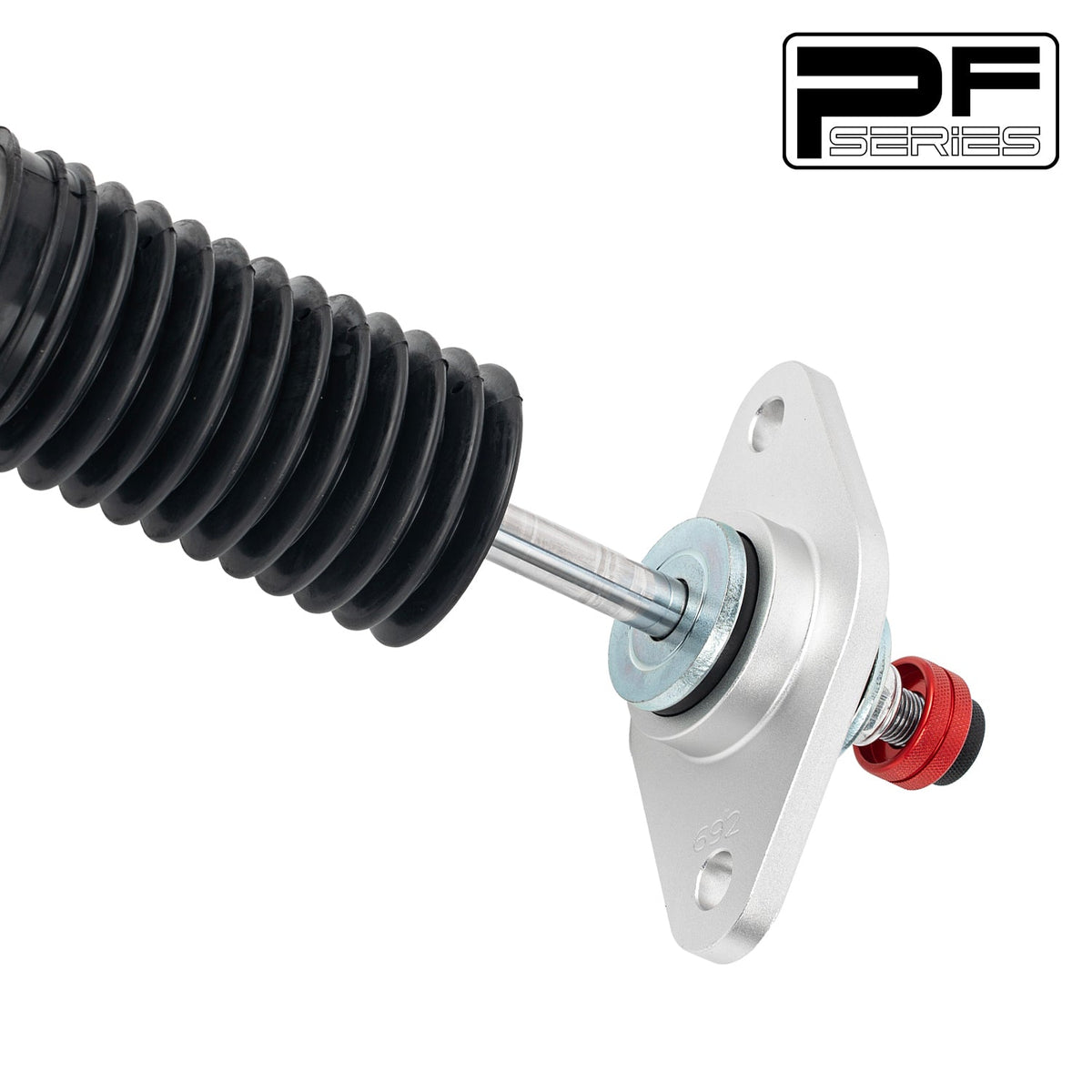

• Mounts: Front: With standard top mounts | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
