FAPO PF 32-Level Coilovers Acura TL 3rd Gen UA6/UA7 2004-2008 [PF012930]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Acura TL 3rd Gen UA6/UA7 2004-2008 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• Acura TL 3rd Gen UA6/UA7 2004-2008

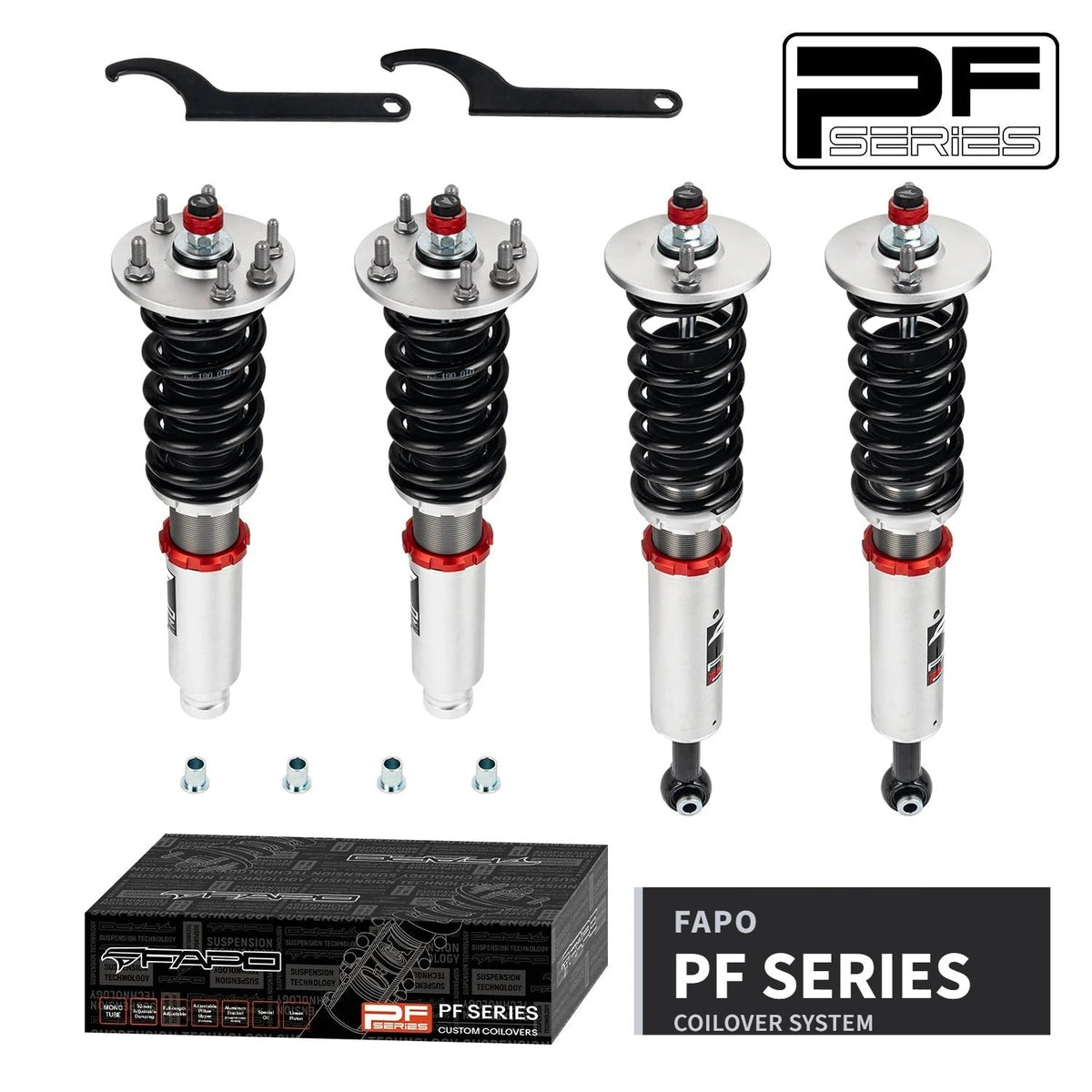

Package Includes:

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Our coilover is a lowering kit which will be 1-1.5" lower than the factory height even at the max height. Please confirm you want to lower your car before you buy it.

Features:

• Mono-tube shock design, provides larger capacity of oil and gas
• Adjustable ride height
• Adjustable pre-load spring tension
• Hi Tensile performance spring - under 600,000 cycles test, spring distortion is less than 0.04%. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with right tools.
• Ideal for any track, drift, fast road, and daily driving.
• The accessories in the photos are included.
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Spring: 180mm, 10 kg/mm (560 lb/in)
• Rear Spring: 200mm, 5 kg/mm (280 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Only Front coilovers; Rear with standard top mounts
• Damping: 32 Levels
• Front Shock: 53-240-115-12.5-M12 [4-A1-9]
• Rear Shock: 53-260-135-12.5-M12 [4-A1-7]
• Mounts: Front: With standard top mounts | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
