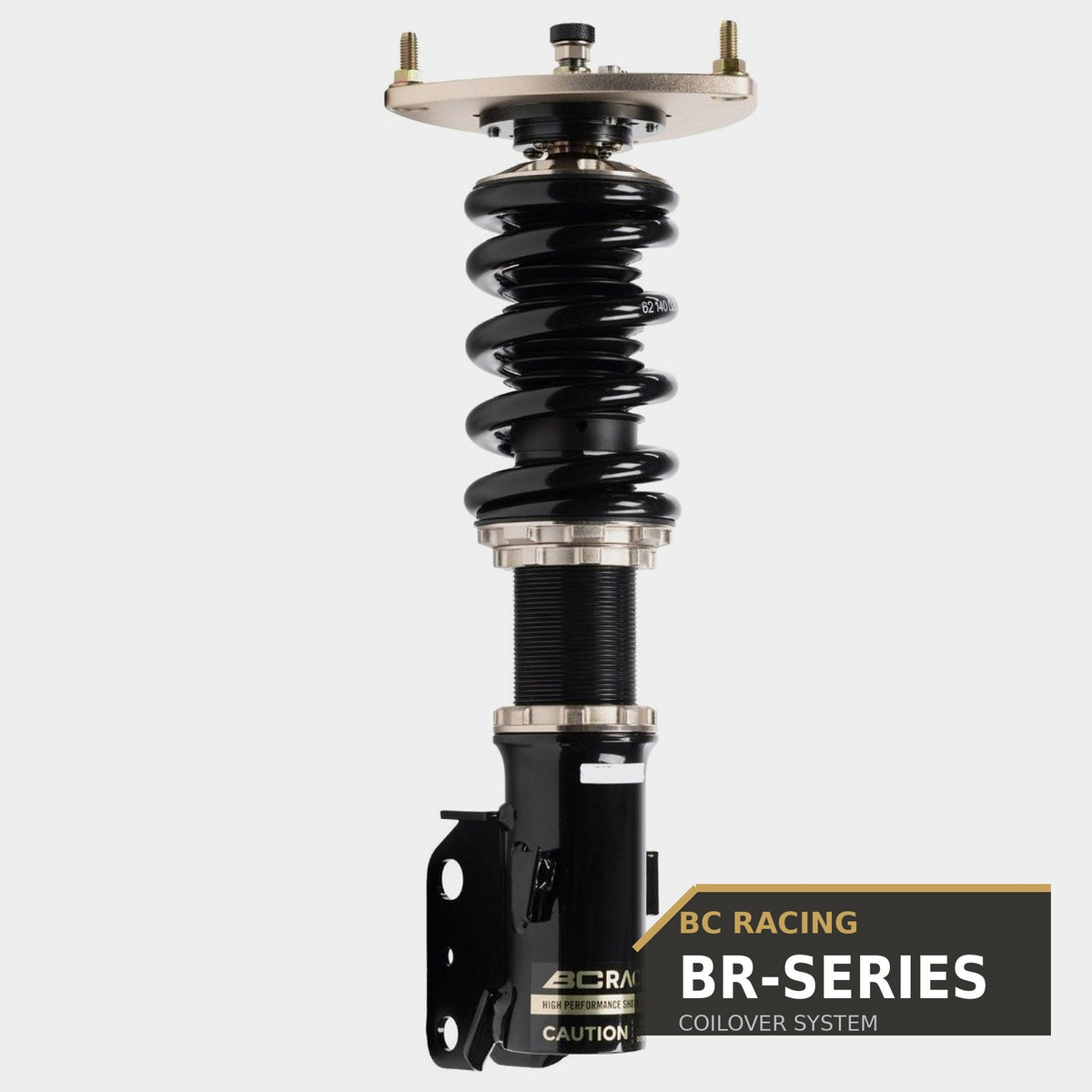

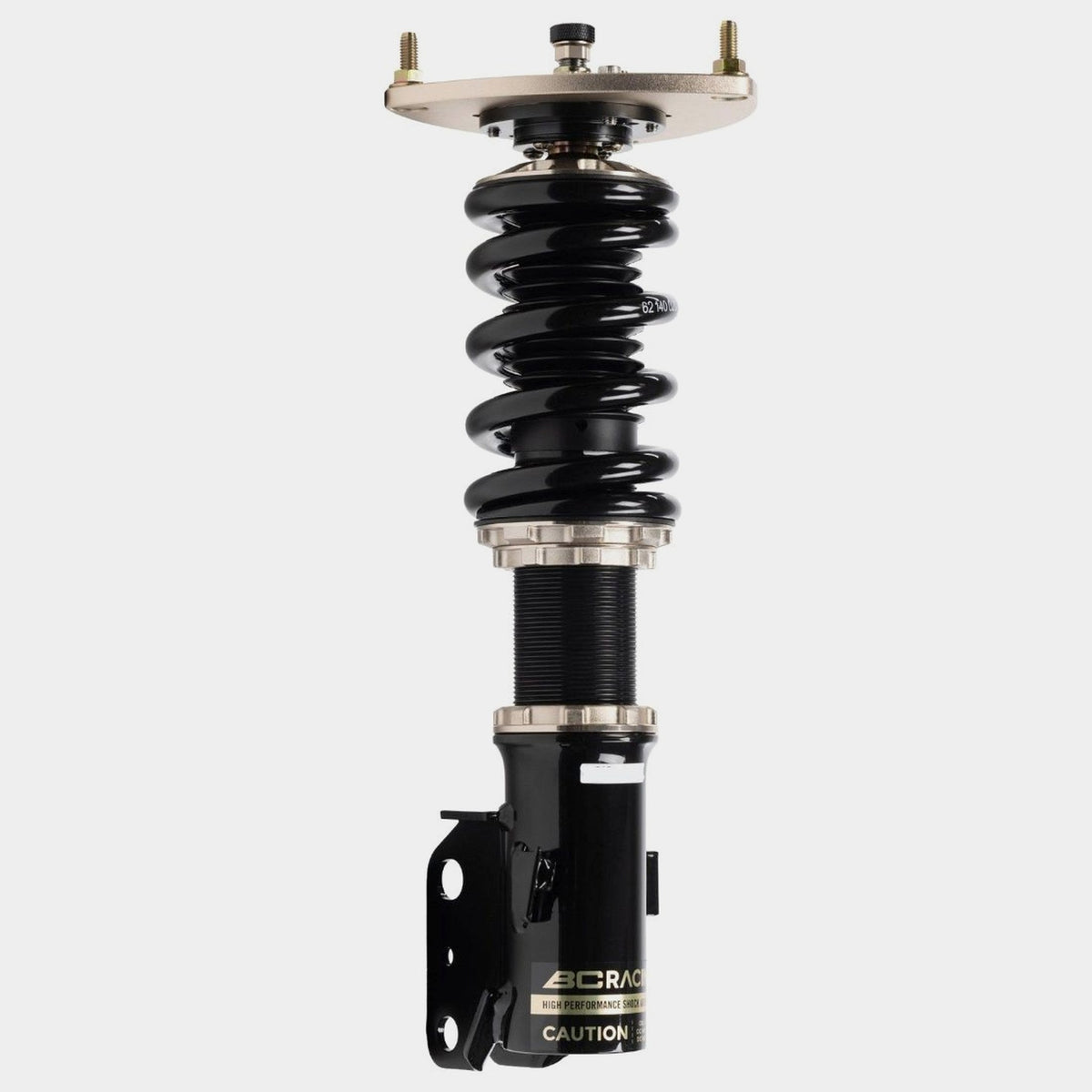

BC Racing Coilovers 23+ Toyota GR Corolla [C-190-BR]

Order this item to receive the off-the-shelf BC Racing BR Series Coilovers for the 23+ Toyota GR Corolla. The BR model is perfect for street driving and occasional road-course duty. With 30-click adjustment knobs for fine-tuning compression and rebound together and separate full-length ride-height adjustment, a comfortable performance coilover couldn’t be easier: you choose how low or high you want the car (no preset ride height), and the patented concave lower locking ring keeps it there.

Features

• Monotube shock design
• 30 levels of damping adjustment (compression and rebound together)
• Pillow-ball mounts and adjustable camber plates where applicable
• Separate full-length height adjustment
• Rebuildable — all parts available through RedShift
• One-year BC Racing warranty

Specifications

• BC standard springs: front 62-200-6 / rear 62-225-6.5-S (ID-length-rate kg/mm)

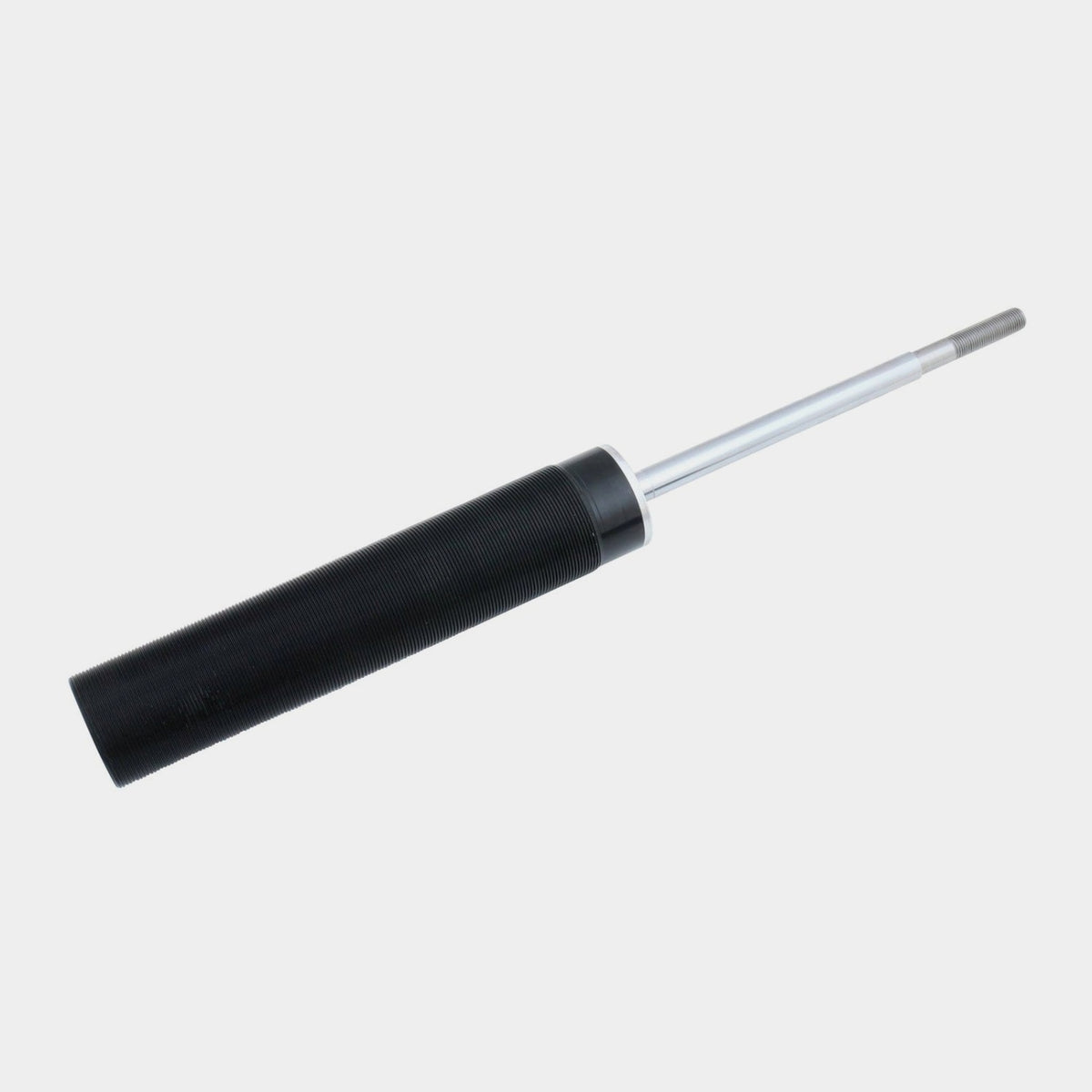

• Dampers: front 280-130 MF1 Ø20 M14 / rear 220-143 44R01 Ø12.5 M12
• Front top mounts: pillow-ball camber plates
• Adjustment: 30-click damping, full-length ride-height adjustment, patented concave lower locking ring

RedShift recommended spring rates (kg/mm, front/rear)

Comfort: 6f/6.5r · Sport: 7f/8r · Performance: 8f/10r · Track: 10f/12r · Race: 12f/16r

Not sure which to pick? Tell us how you drive the car and we’ll recommend rates — no charge.

Springs: choose any spring rate at no charge (select above). Swift springs are special order only for now.

Want RedShift damping on this hardware? See the RedShift BC Revalved Comp 1W for the same kit re-valved and rebuilt at our shop.

Warranty: BC Racing BR Series coilovers carry BC Racing’s one-year manufacturer warranty. Rebuildable — all parts available separately through RedShift.
