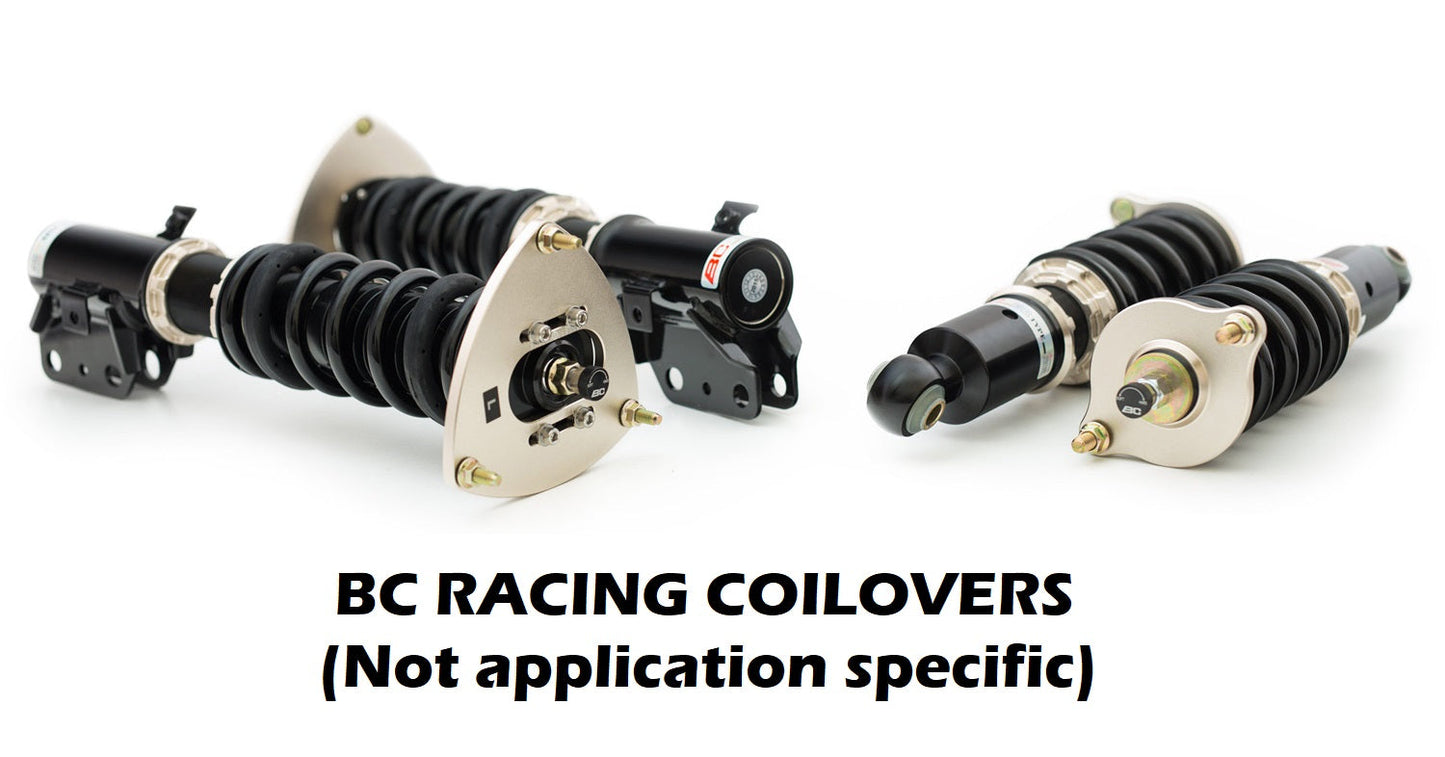

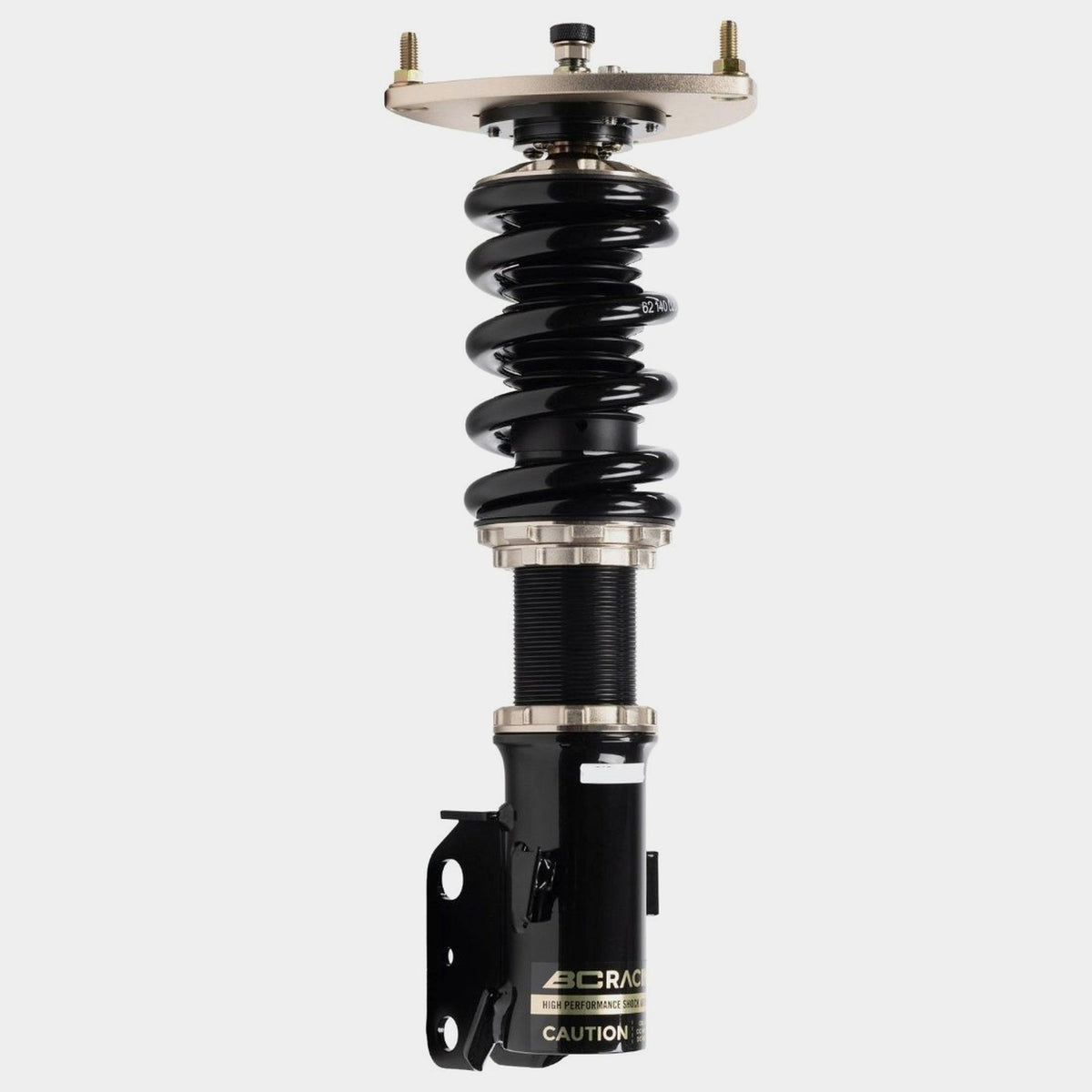

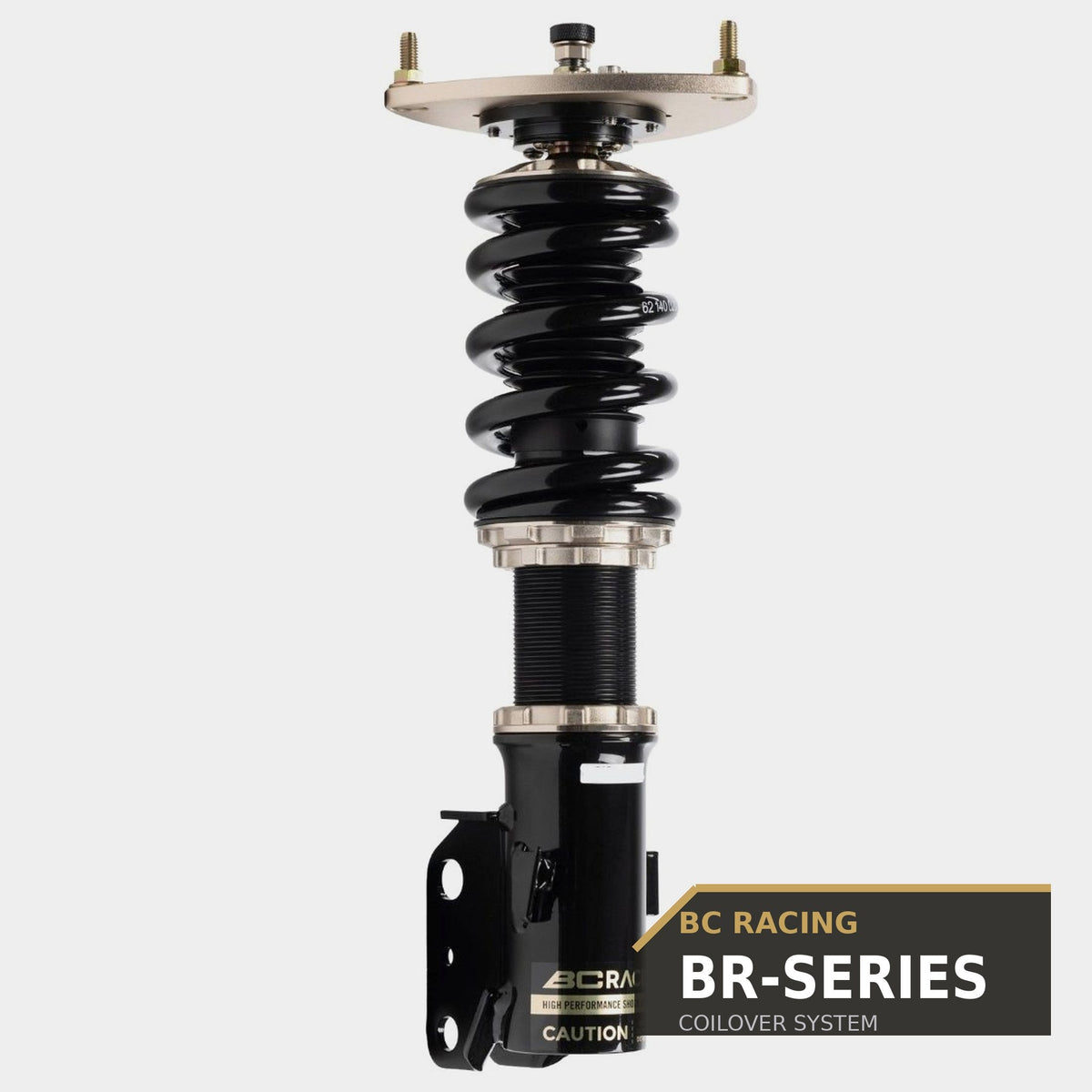

BC Racing Coilovers 2013- Ford Fusion (CD4) [E-18-BR]

Order this item to receive the off-the-shelf BC Racing BR Series Coilovers for the 2013- Ford Fusion (CD4). The BR model is perfect for street driving and occasional road-course duty. With 30-click adjustment knobs for fine-tuning compression and rebound together and separate full-length ride-height adjustment, a comfortable performance coilover couldn’t be easier: you choose how low or high you want the car (no preset ride height), and the patented concave lower locking ring keeps it there.

Features

• Monotube shock design
• 30 levels of damping adjustment (compression and rebound together)
• Pillow-ball mounts and adjustable camber plates where applicable
• Separate full-length height adjustment
• Rebuildable — all parts available through RedShift
• One-year BC Racing warranty

Specifications

• BC standard springs: front 87-62-200-8-V / rear 110-99-230-14-V (ID-length-rate kg/mm)

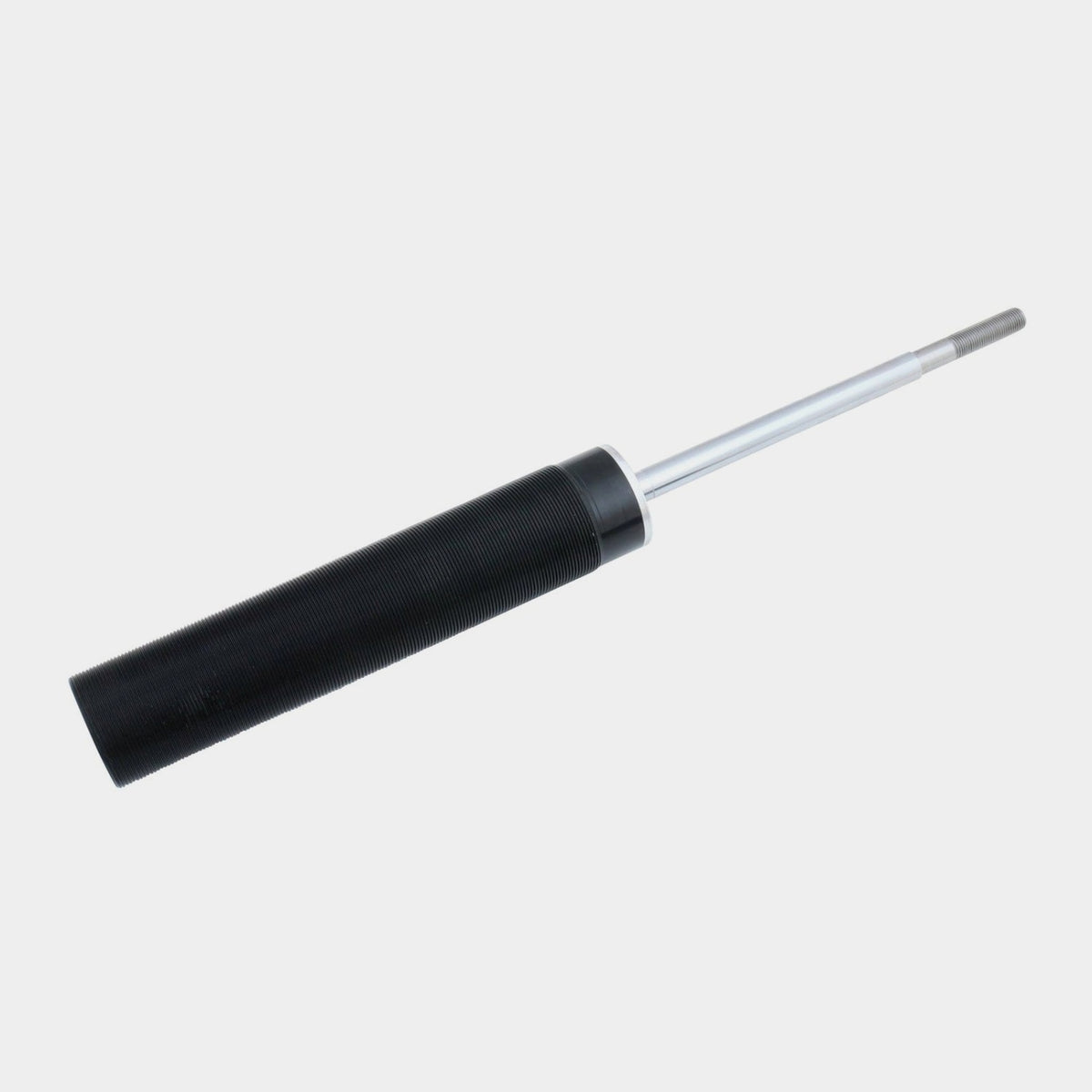

• Dampers: front 300-150 MF2 Ø22 M12 / rear 44-260-160 44R06 Ø14 M10
• Front top mounts: No
• Adjustment: 30-click damping, full-length ride-height adjustment, patented concave lower locking ring

RedShift recommended spring rates (kg/mm, front/rear)

Comfort: 6f/12r · Sport: 8f/14r · Performance: 10f/16r · Track: 12f/18r · Race: 14f/20r

Not sure which to pick? Tell us how you drive the car and we’ll recommend rates — no charge.

Spring options (select above): standard BC springs as supplied, or custom BC spring rates (+$150, up to 10 kg/mm), or Swift springs in any rate (+$530 — special order for now).

Want RedShift damping on this hardware? See the RedShift BC Revalved Comp 1W for the same kit re-valved and rebuilt at our shop.

Warranty: BC Racing BR Series coilovers carry BC Racing’s one-year manufacturer warranty. Rebuildable — all parts available separately through RedShift.
