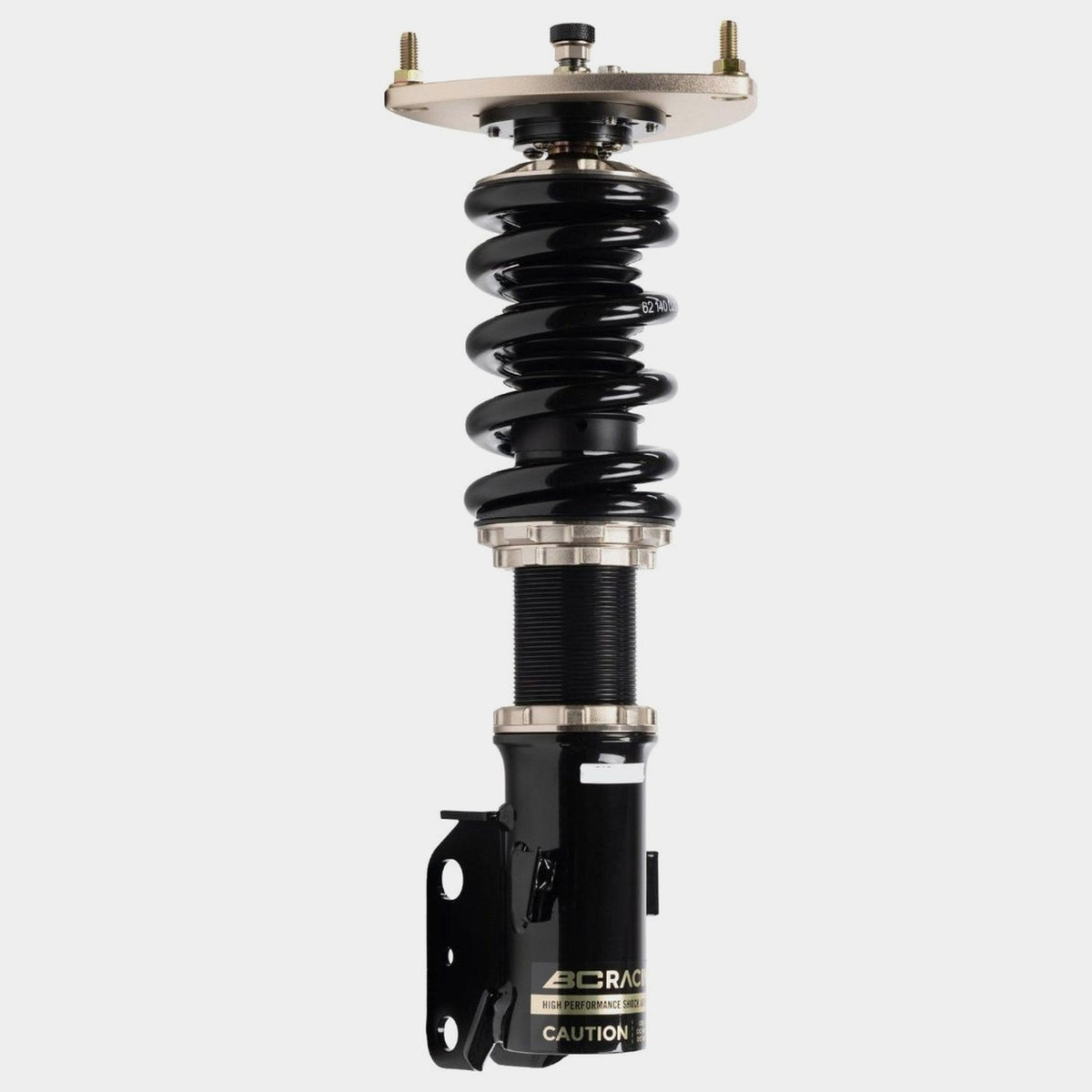

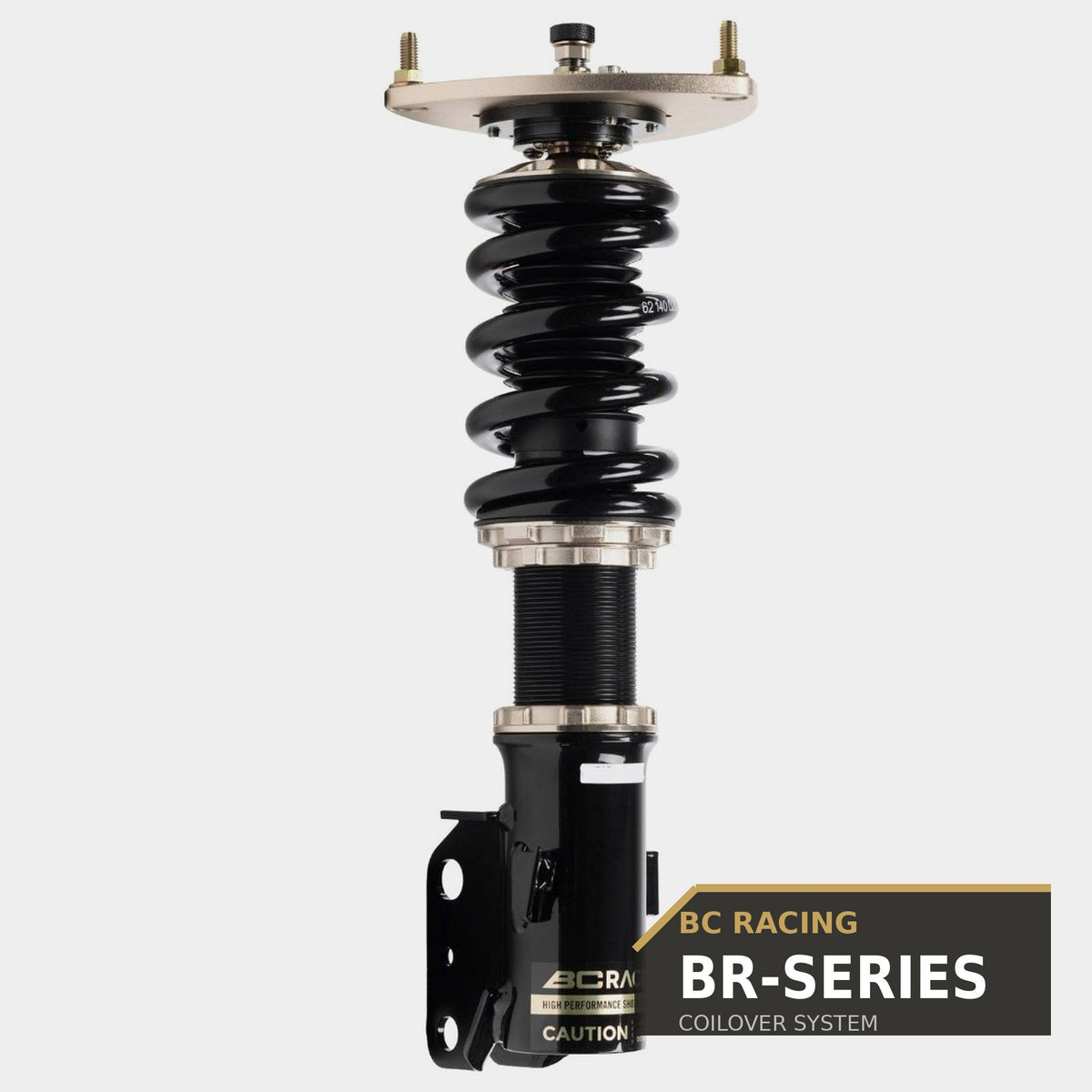

BC Racing Coilovers 2011-17 Lexus CT200h (ZWA10) [R-16-BR]

Order this item to receive the off-the-shelf BC Racing BR Series Coilovers for the 2011-17 Lexus CT200h (ZWA10). The BR model is perfect for street driving and occasional road-course duty. With 30-click adjustment knobs for fine-tuning compression and rebound together and separate full-length ride-height adjustment, a comfortable performance coilover couldn’t be easier: you choose how low or high you want the car (no preset ride height), and the patented concave lower locking ring keeps it there.

Features

• Monotube shock design
• 30 levels of damping adjustment (compression and rebound together)
• Pillow-ball mounts and adjustable camber plates where applicable
• Separate full-length height adjustment
• Rebuildable — all parts available through RedShift
• One-year BC Racing warranty

Specifications

• BC standard springs: front 62-220-5 / rear 62-75-175-6-V (ID-length-rate kg/mm)

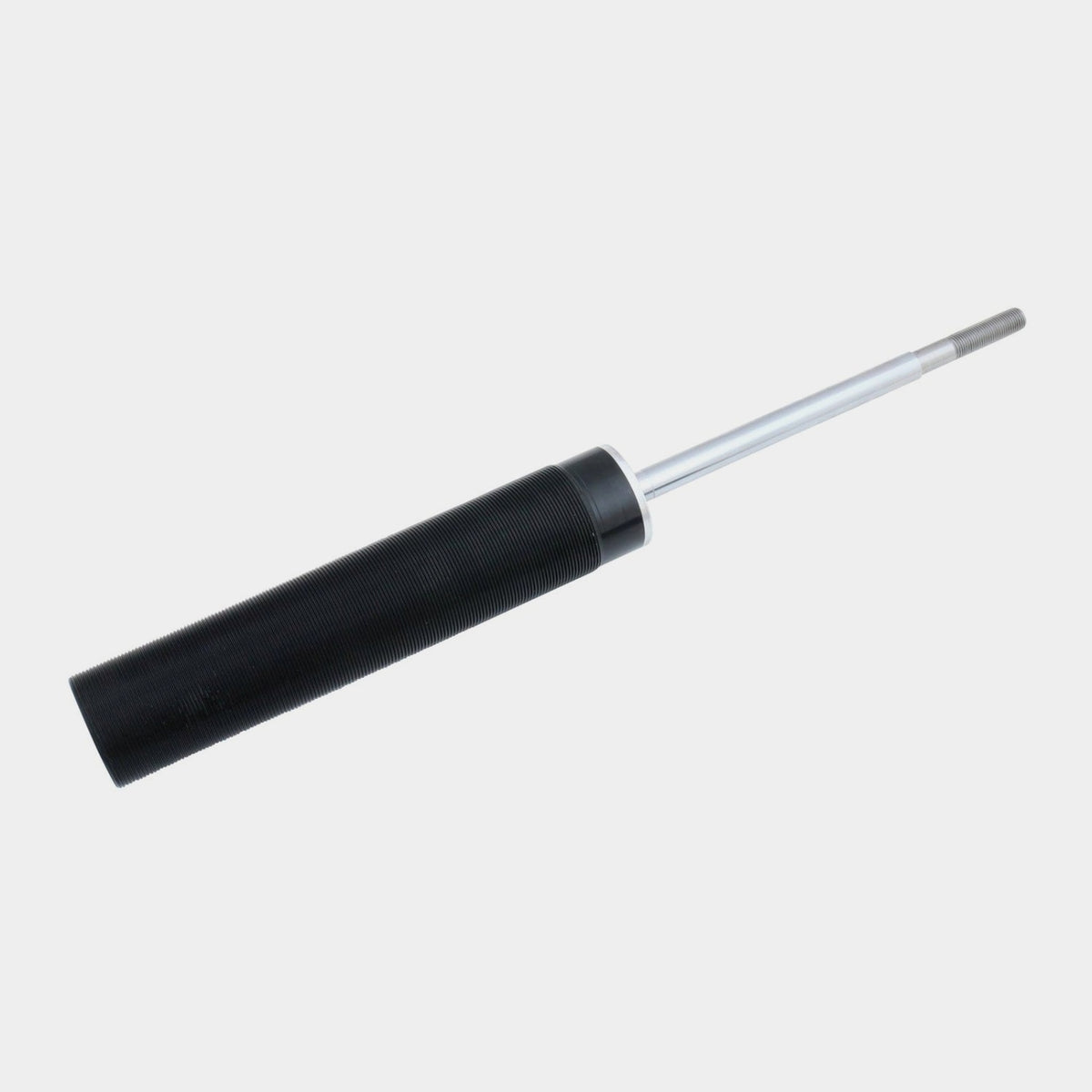

• Dampers: front 300-130 MF2 Ø20 M12 / rear 260-155 AR2 Ø12.5 M12
• Front top mounts: No
• Adjustment: 30-click damping, full-length ride-height adjustment, patented concave lower locking ring

RedShift recommended spring rates (kg/mm, front/rear)

Comfort: 4f/4r · Sport: 6f/6r · Performance: 8f/8r · Track: 10f/10r · Race: 12f/12r

Not sure which to pick? Tell us how you drive the car and we’ll recommend rates — no charge.

Spring options (select above): standard BC springs as supplied, or custom BC spring rates (+$150, up to 10 kg/mm), or Swift springs in any rate (+$530 — special order for now).

Want RedShift damping on this hardware? See the RedShift BC Revalved Comp 1W for the same kit re-valved and rebuilt at our shop.

Warranty: BC Racing BR Series coilovers carry BC Racing’s one-year manufacturer warranty. Rebuildable — all parts available separately through RedShift.
