BC Racing Coilovers 2002-08 Audi A4 FWD/AWD (B6/B7/8E) [S-02-BR]

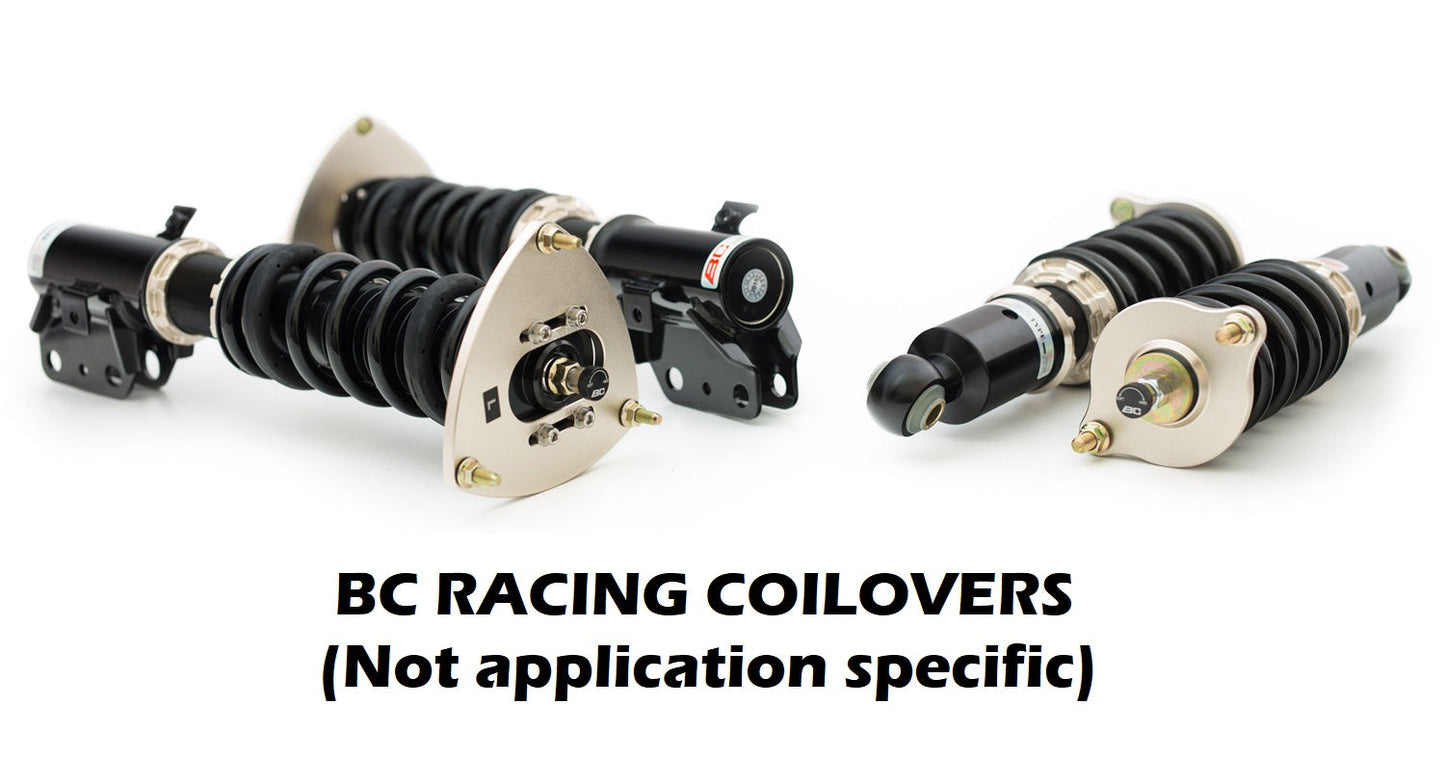

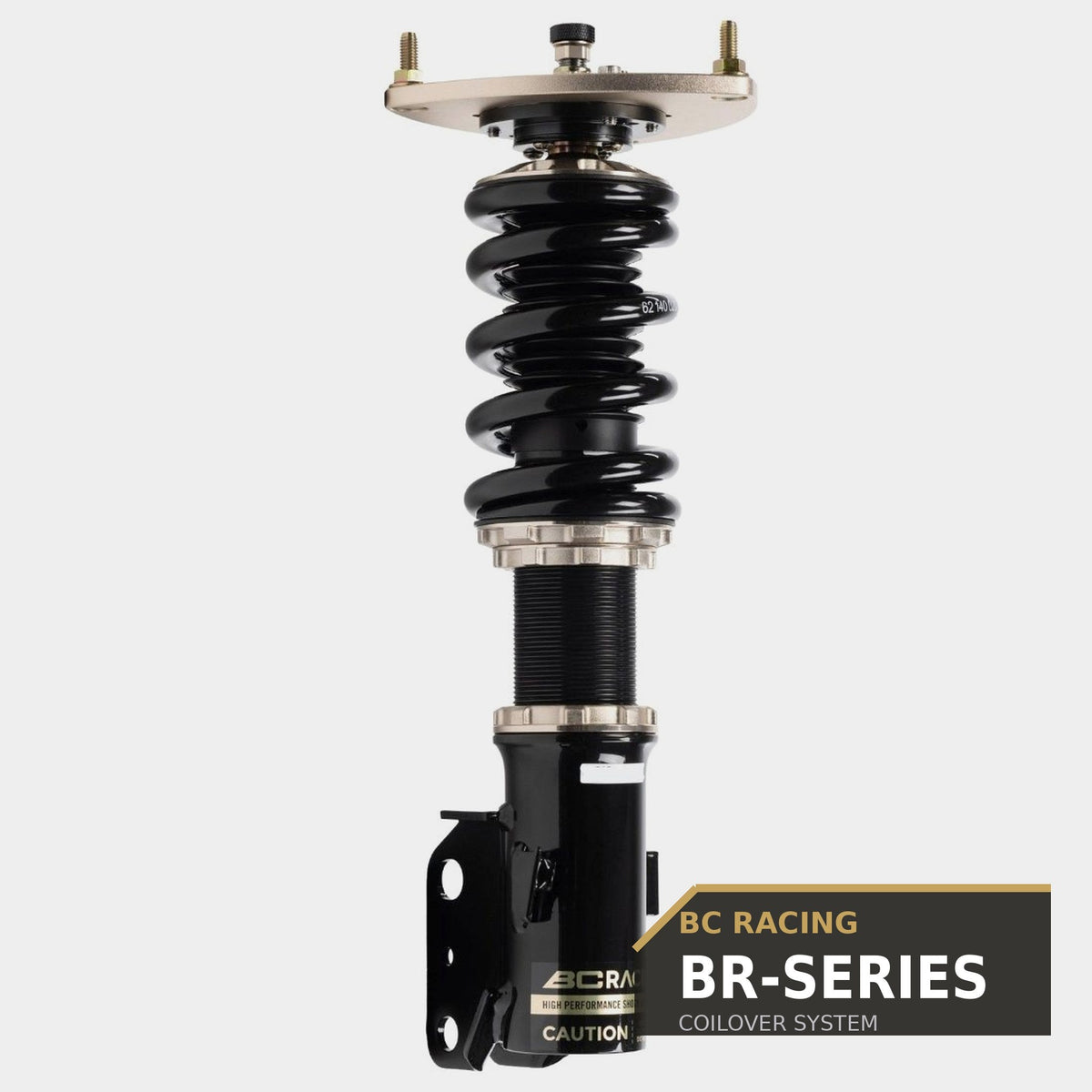

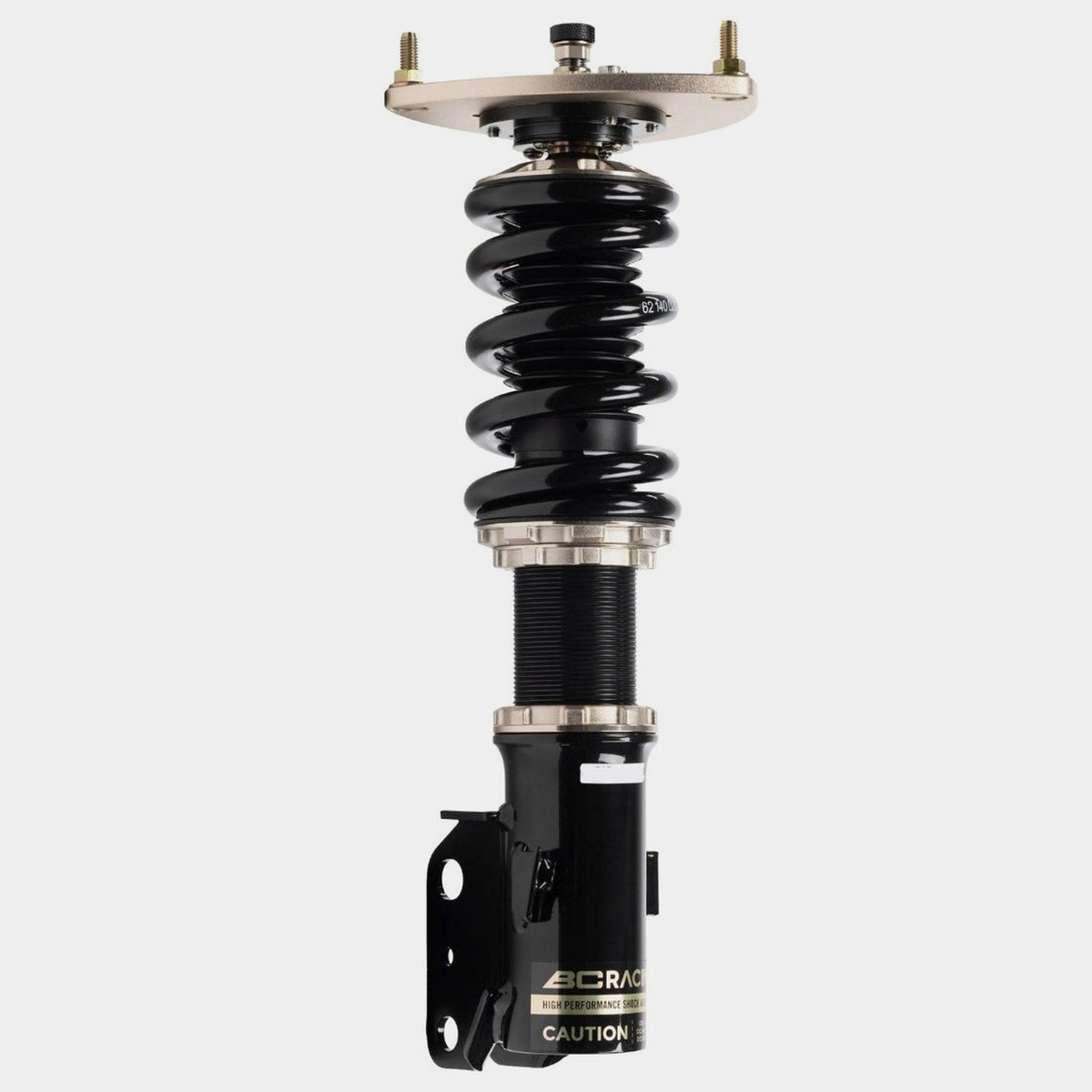

Order this item to receive the off-the-shelf BC Racing BR Series Coilovers for the 2002-08 Audi A4 FWD/AWD (B6/B7/8E). The BR model is perfect for street driving and occasional road-course duty. With 30-click adjustment knobs for fine-tuning compression and rebound together and separate full-length ride-height adjustment, a comfortable performance coilover couldn’t be easier: you choose how low or high you want the car (no preset ride height), and the patented concave lower locking ring keeps it there.

Features

• Monotube shock design
• 30 levels of damping adjustment (compression and rebound together)
• Pillow-ball mounts and adjustable camber plates where applicable
• Separate full-length height adjustment
• Rebuildable — all parts available through RedShift
• One-year BC Racing warranty

Specifications

• BC standard springs: front 62-220-12 / rear 62-160-9-S (ID mm – length mm – rate kg/mm)

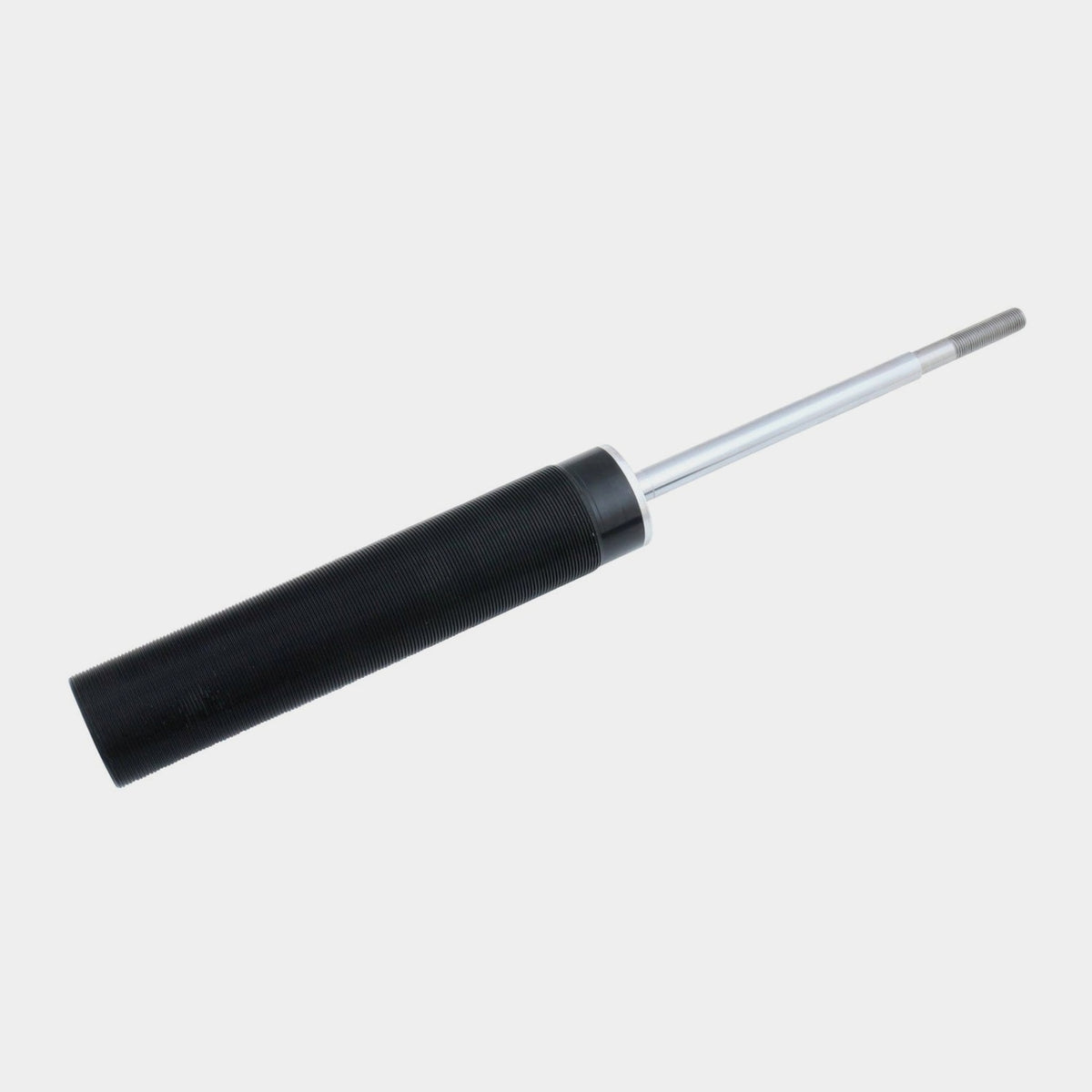

• Dampers: front 220-132 AF4 Ø14 M12 / rear 260-172 44R12 Ø14 M10
• Front top mounts: No
• Adjustment: 30-click damping, full-length ride-height adjustment, patented concave lower locking ring

RedShift recommended spring rates (kg/mm, front/rear)

Comfort: 8f/6r · Sport: 10f/8r · Performance: 12f/10r · Track: 14f/12r · Race: 16f/14r

Not sure which to pick? Tell us how you drive the car and we’ll recommend rates — no charge.

Spring options (select above): standard BC springs as supplied, or custom BC spring rates (+$150, whole kg/mm, up to 10 kg/mm), or Swift springs (+$530, special order for now). Rates above 10 kg/mm require Swift springs.

Want RedShift damping on this hardware? See the RedShift BC Revalved Comp 1W for the same kit re-valved and rebuilt at our shop.

Warranty: BC Racing BR Series coilovers carry BC Racing’s one-year manufacturer warranty. Rebuildable — all parts available separately through RedShift.
