RedShift BC Revalved Comp 1W Coilovers 2012-17 Toyota Camry Hybrid (XV50) [C-117-COMP1W]

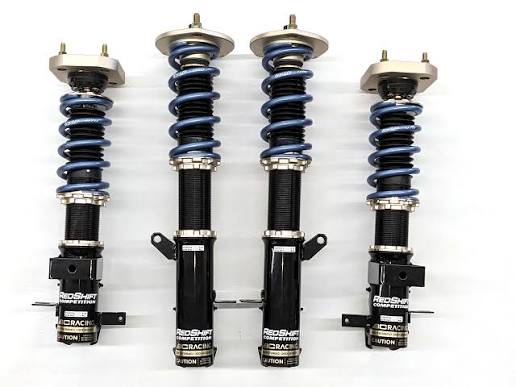

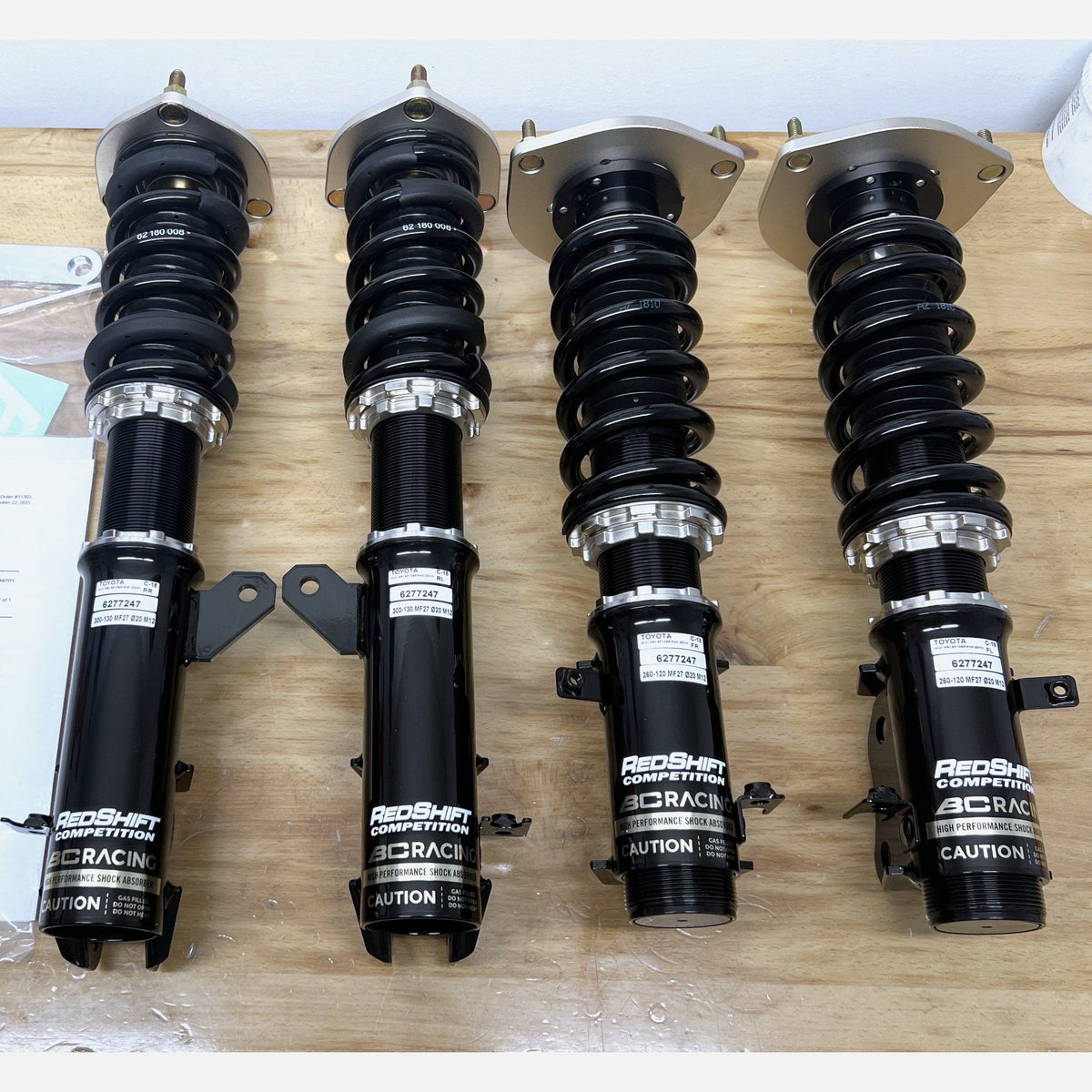

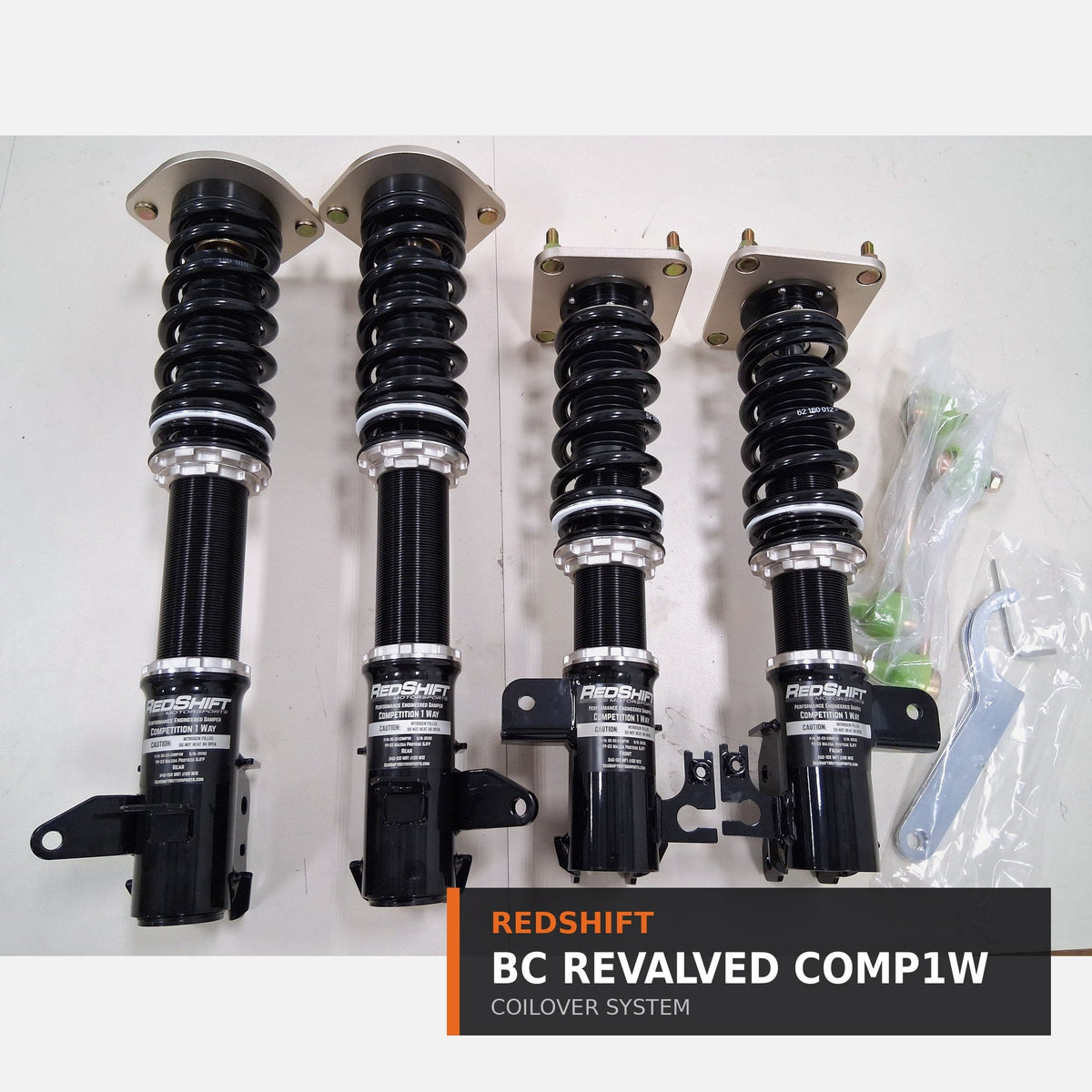

RedShift BC Revalved Comp 1W Coilovers — a BC Racing BR kit, completely re-valved and rebuilt at RedShift.

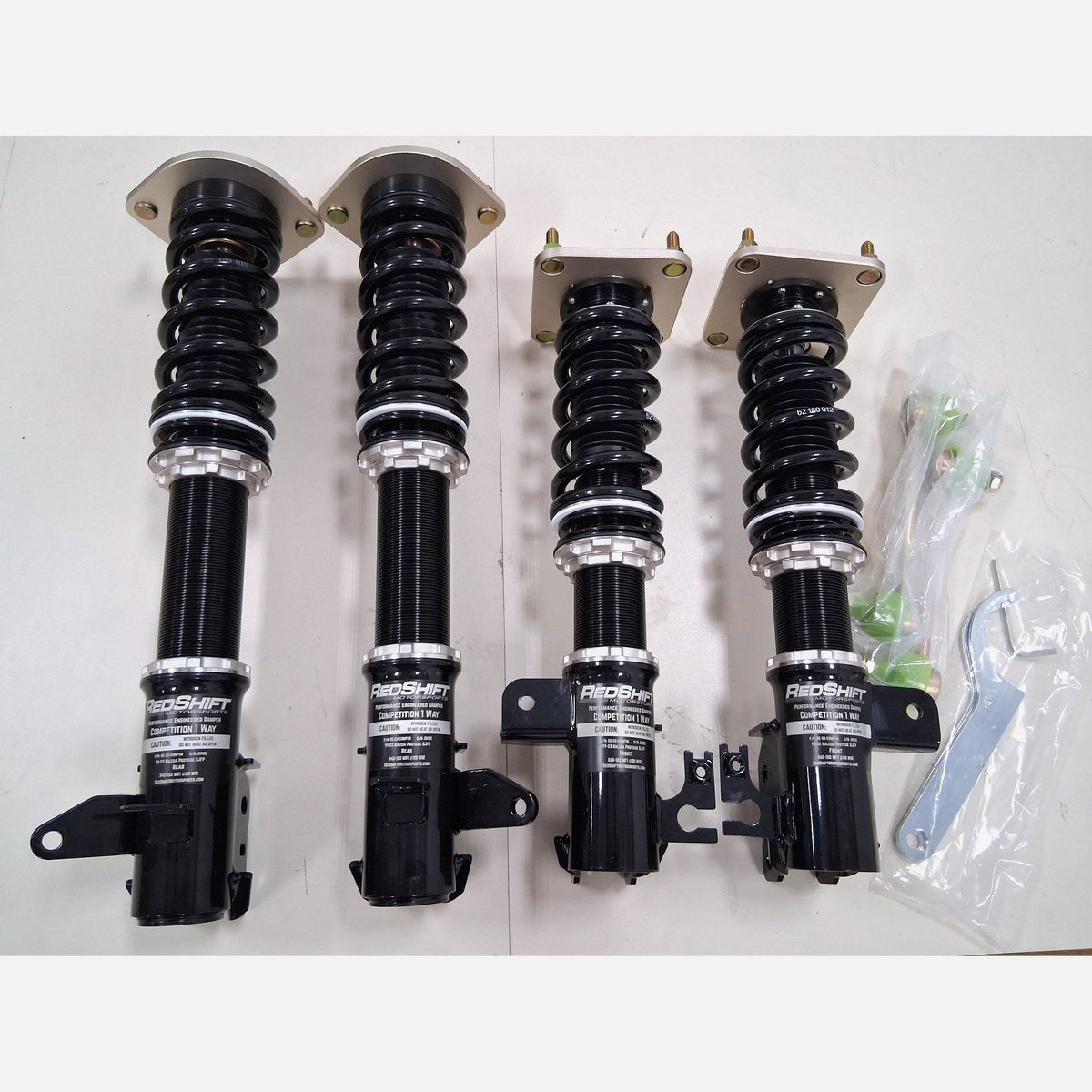

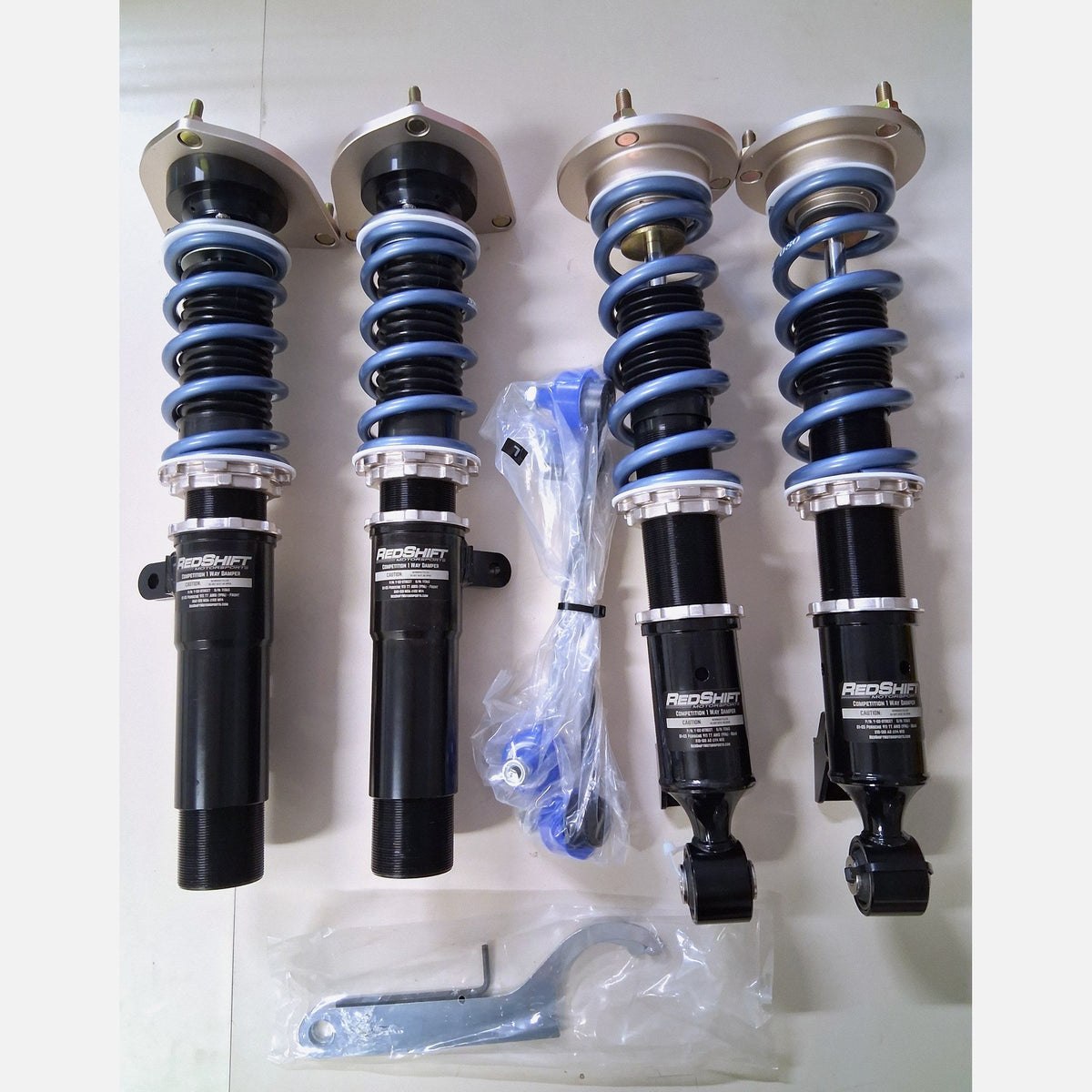

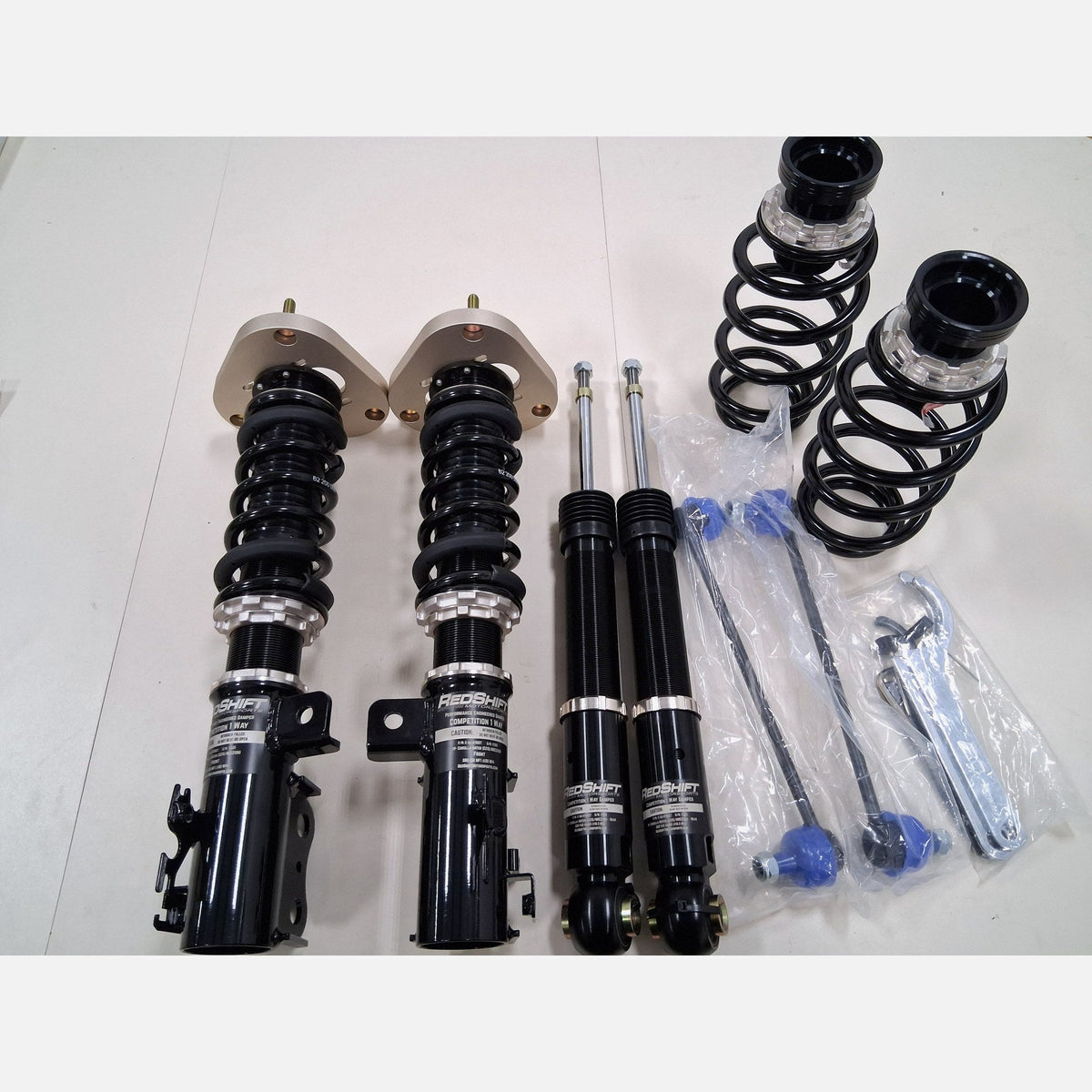

Start with the proven BC Racing BR Series hardware for the 2012-17 Toyota Camry Hybrid (XV50) — then let RedShift take it apart, re-valve the dampers to our Comp 1W curves, and rebuild it with RedShift labelling. You keep BC’s rebuildable monotube platform, pillow-ball mounts and camber plates (where applicable) and full-length height adjustment; you gain damping built to win. Includes all springs, mounts, height adjusters and tools.

Our coilovers use a different balance and shape of compression and rebound damping than typical street coilovers: digressive compression and linear rebound for maximum grip. Compression is tuned to do more of the work controlling the sprung mass, which reduces dive under braking, sharpens turn-in and makes it far easier to feel the car and hit your marks. Rebound is made linear (and relatively lighter than street coilovers) so the tire stays planted under braking, at turn-in, mid-corner and on the drive wheels at exit.

Valving (select above): Street Comp 1W · Comp 1W · 2-Way Remote Adjustable · 3-Way Remote Adjustable.

Specifications

• BC standard springs: front 62-200-5-S / rear 62-250-3-S (ID-length-rate kg/mm)
• Dampers: front 300-150 MF9 Ø20 M12 / rear 360-170 MR6 Ø20 M12

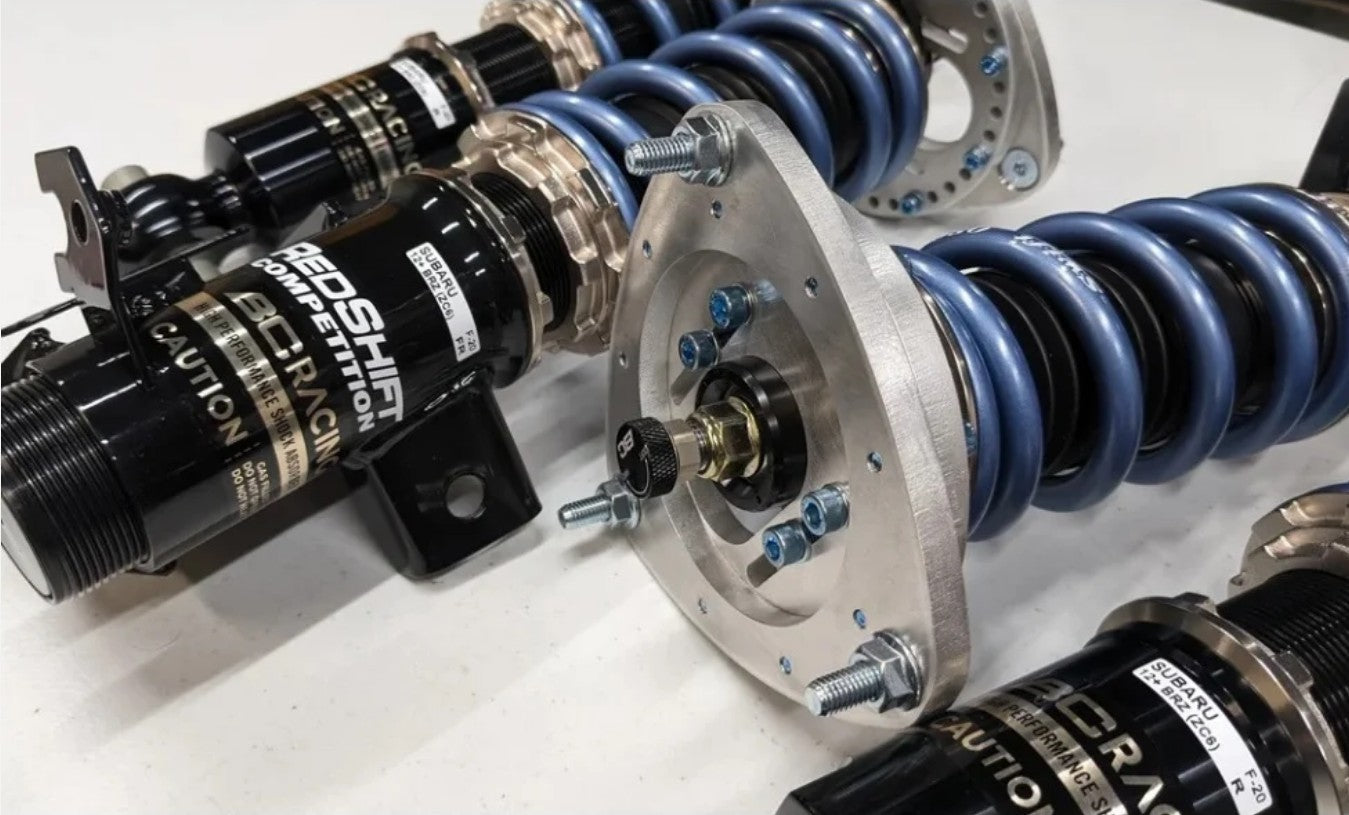

• Front top mounts: pillow-ball camber plates
• Adjustment: 30-click damping, full-length ride-height adjustment, patented concave lower locking ring

RedShift recommended spring rates (kg/mm, front/rear)

Comfort: 4f/3r · Sport: 6f/4r · Performance: 8f/6r · Track: 10f/8r · Race: 12f/10r

Not sure which to pick? Tell us how you drive the car and we’ll recommend rates — no charge.

Springs: choose any spring rate at no charge. Swift springs are special order only for now.

Warranty: All RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways. RedShift coilovers are covered by our 2-year warranty on ALL parts of the kit — springs, spherical bearings, mounts, dampers, everything. The warranty is available to the original purchaser only.
