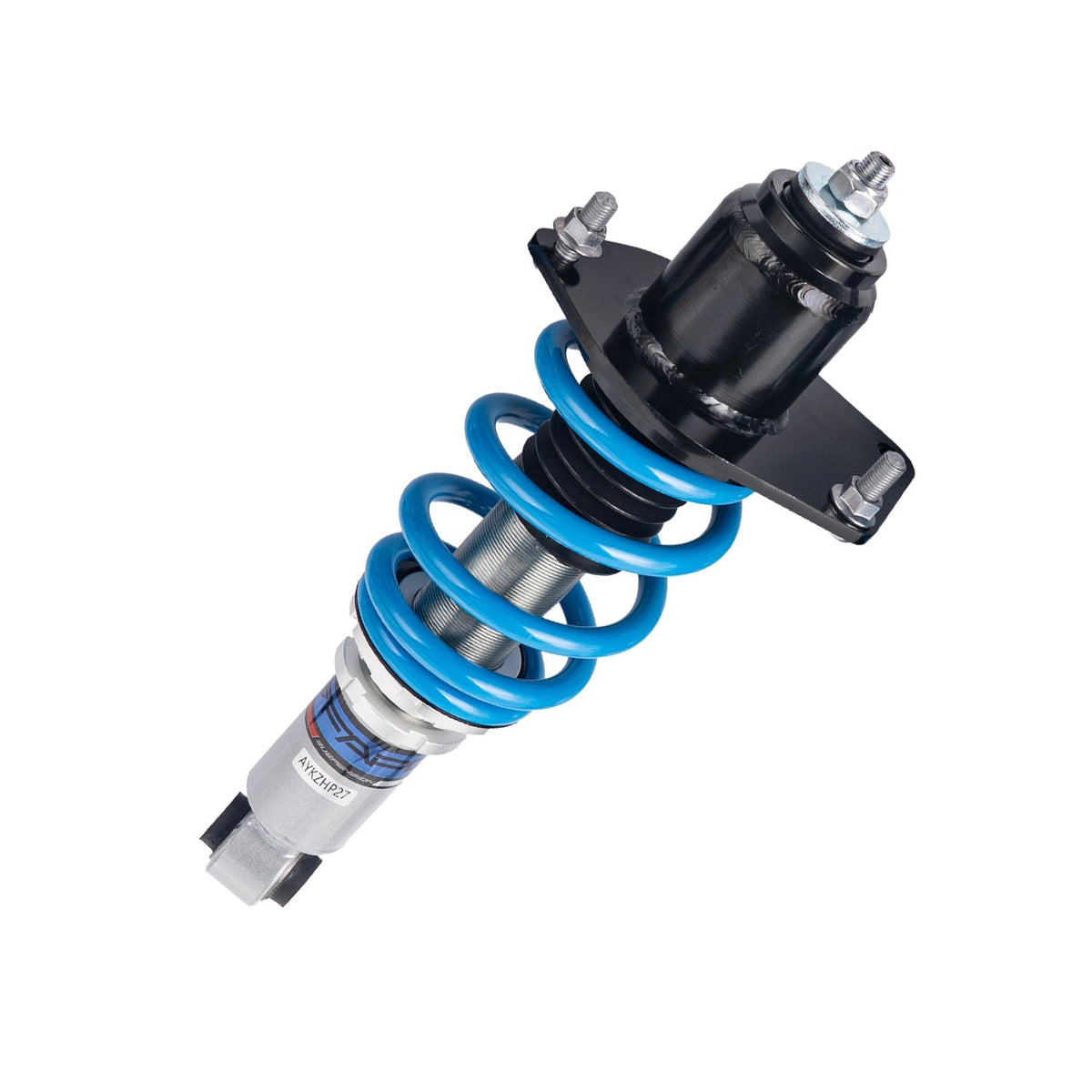

FAPO PS+ 16-Level Coilovers Mazda RX-8 SE3P/JM1FE 2003-2012 [PS007620]

FAPO PS+ Coilovers — 16-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PS+ kit for the Mazda RX-8 SE3P/JM1FE 2003-2012 is a full-length threaded-body monotube coilover with 16 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Application

• Mazda RX-8 SE3P/JM1FE 2003-2012

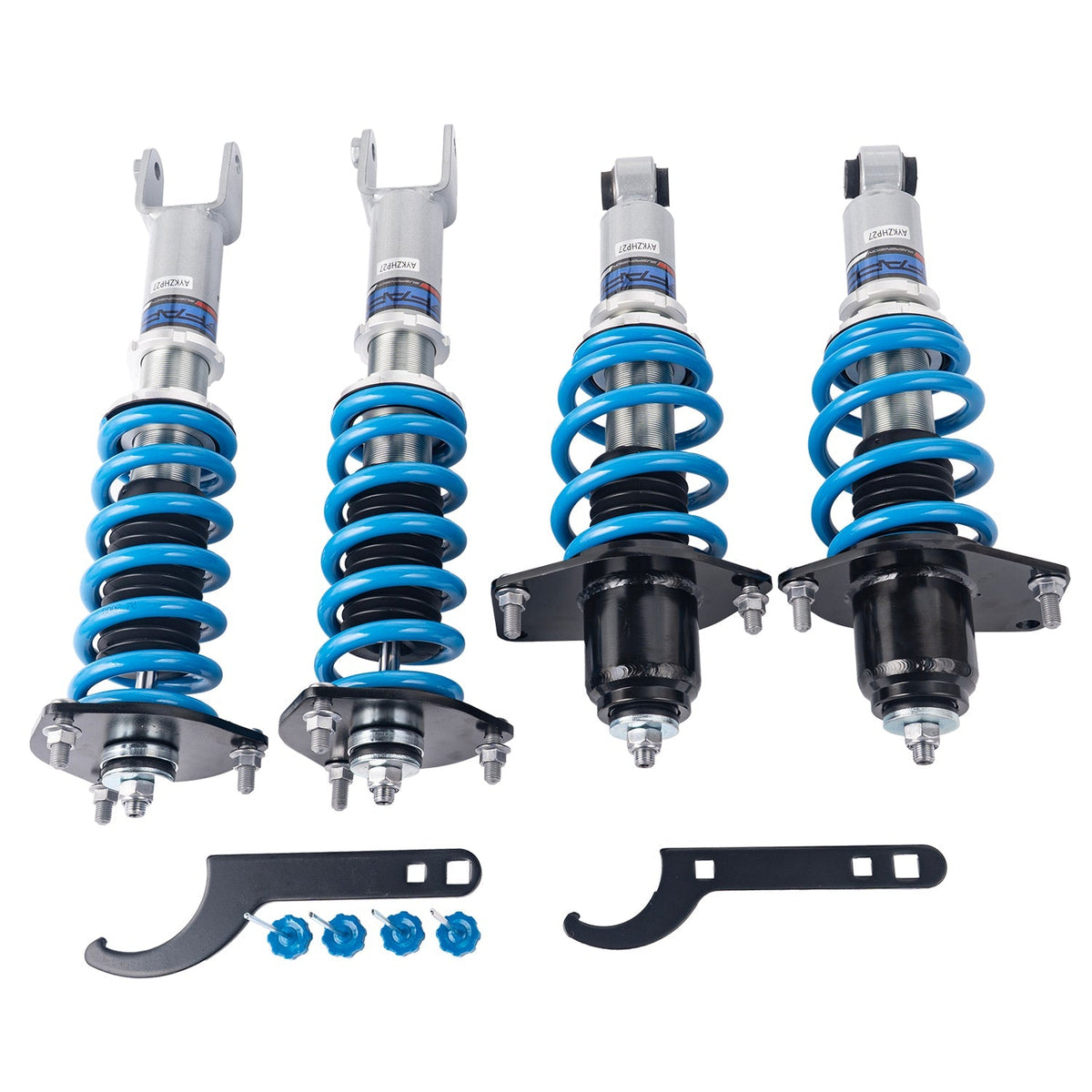

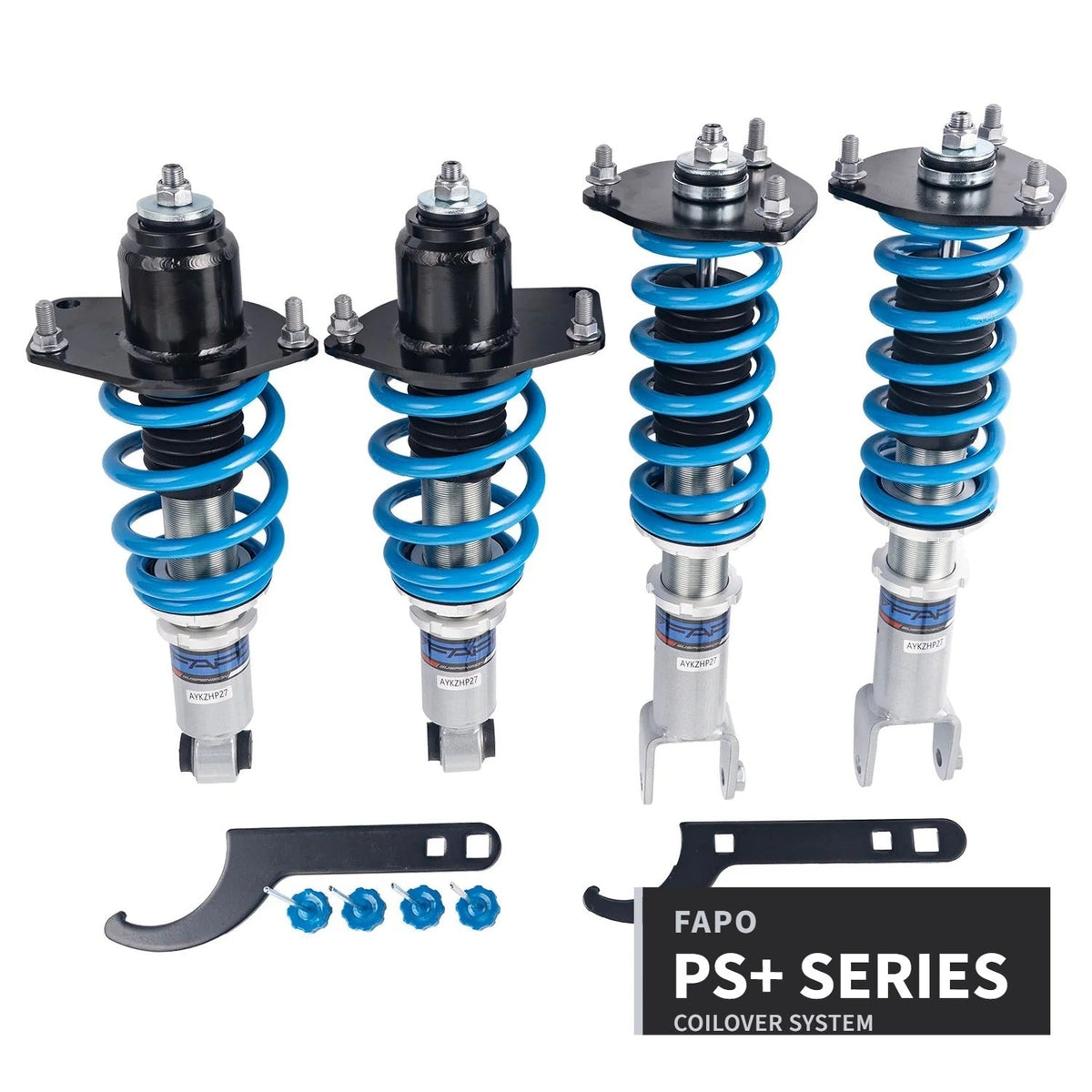

Package Includes

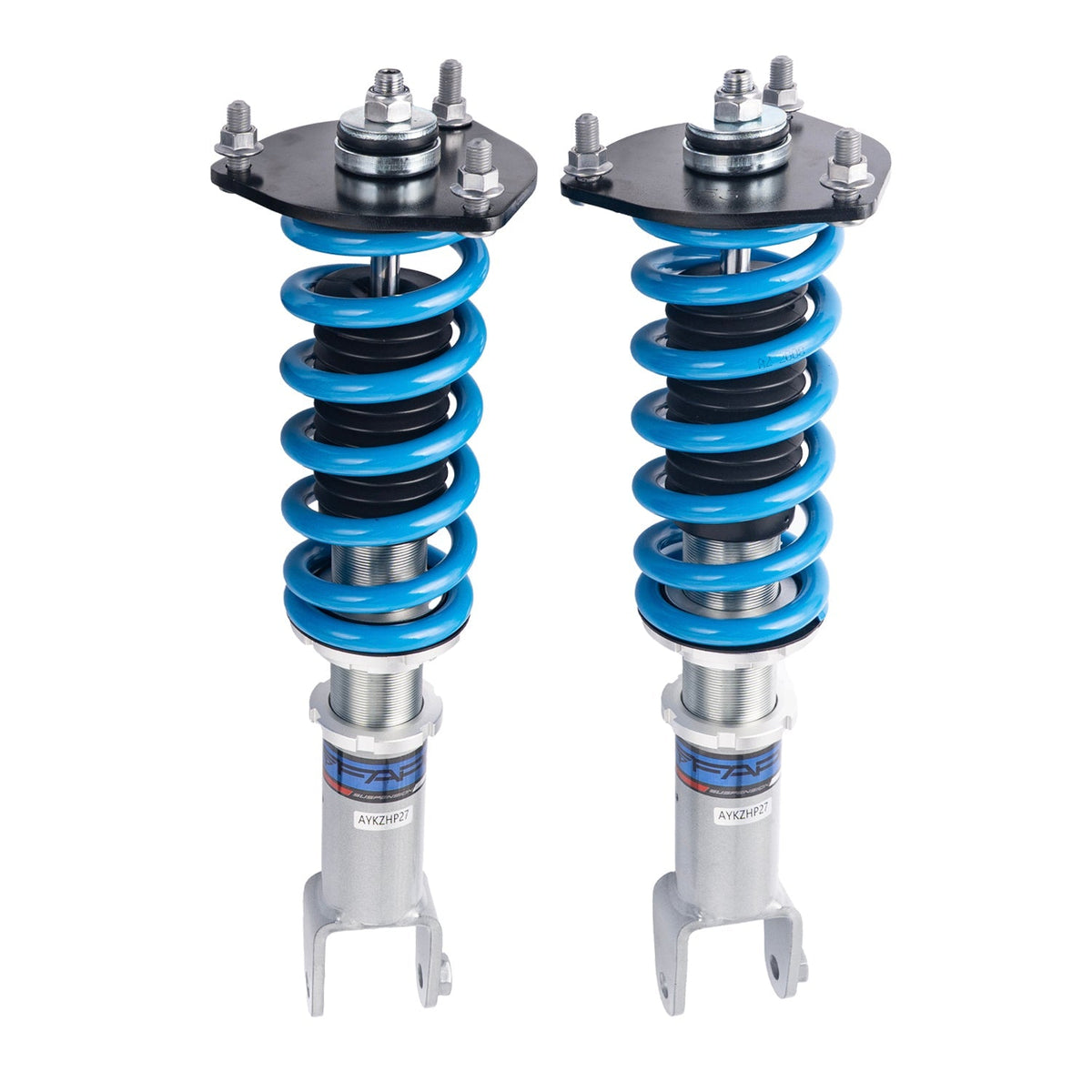

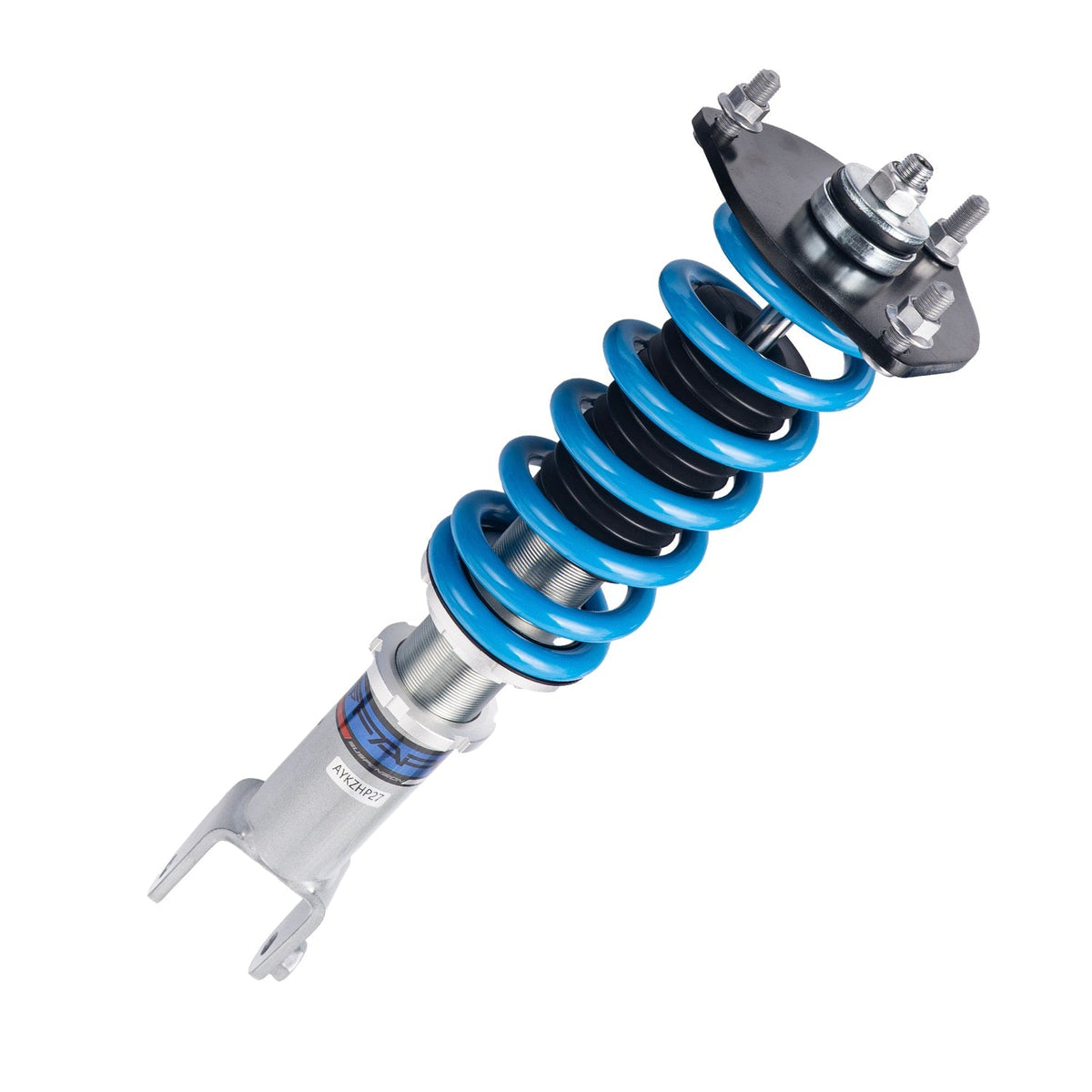

• Front coilovers x 2 pcs

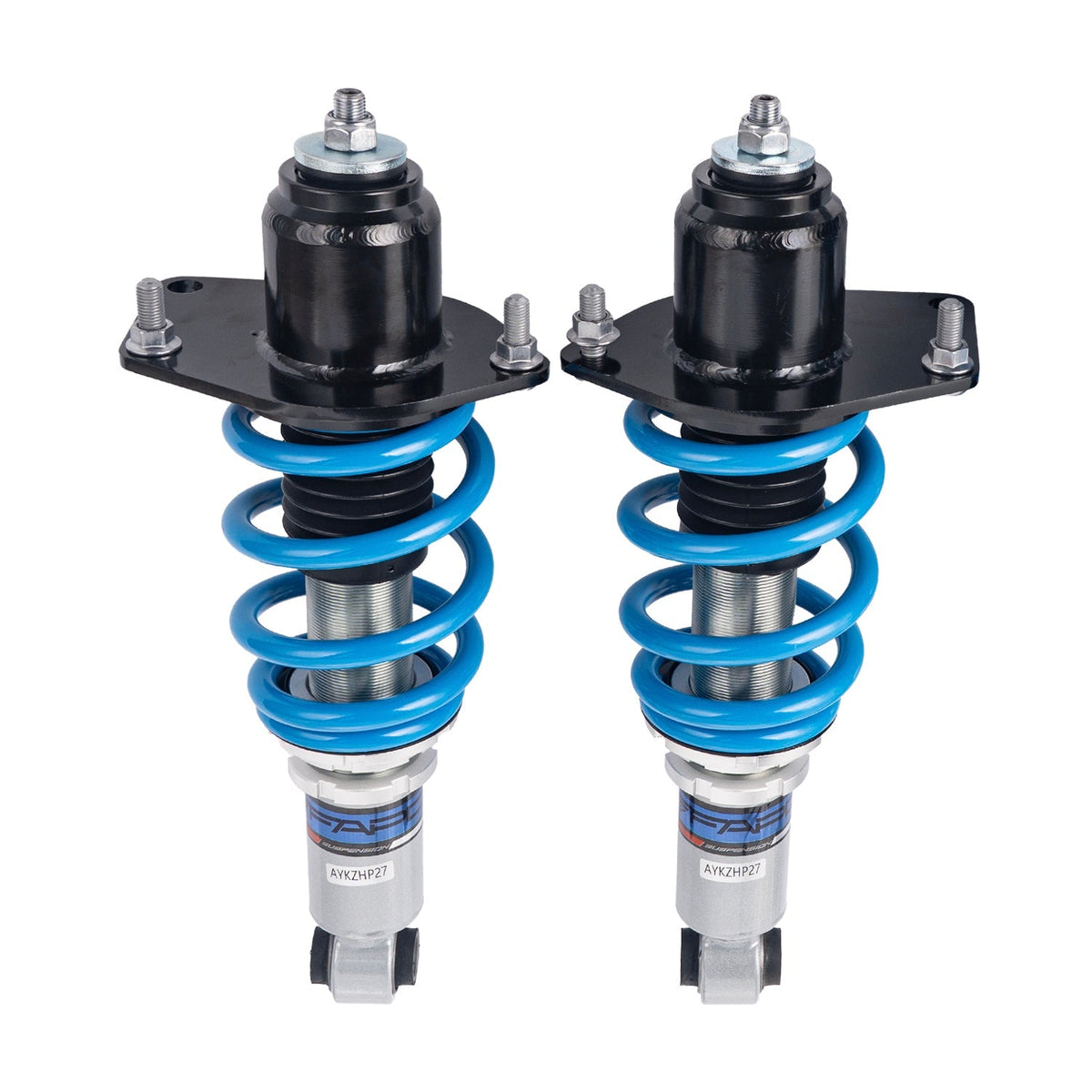

• Rear coilovers x 2 pcs
• Wrench x 2 pcs
• Sway bar link x 2 pcs

Features

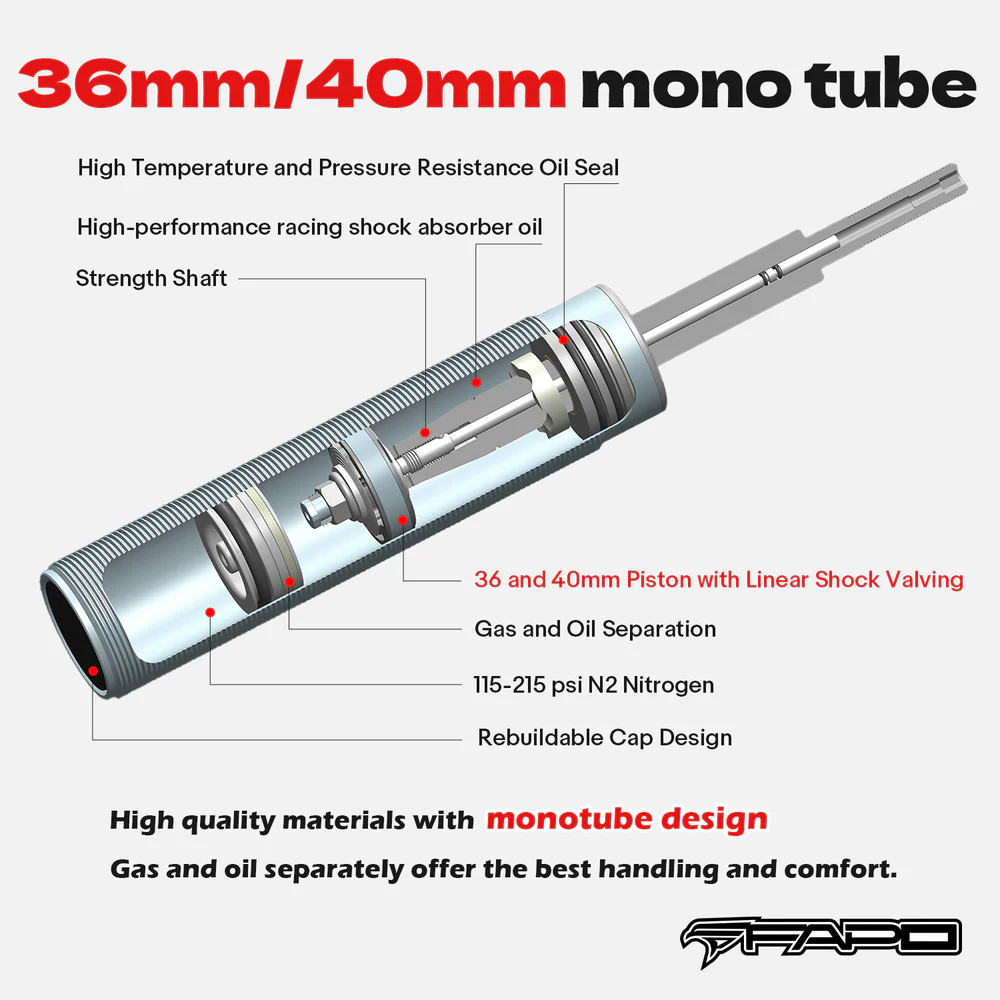

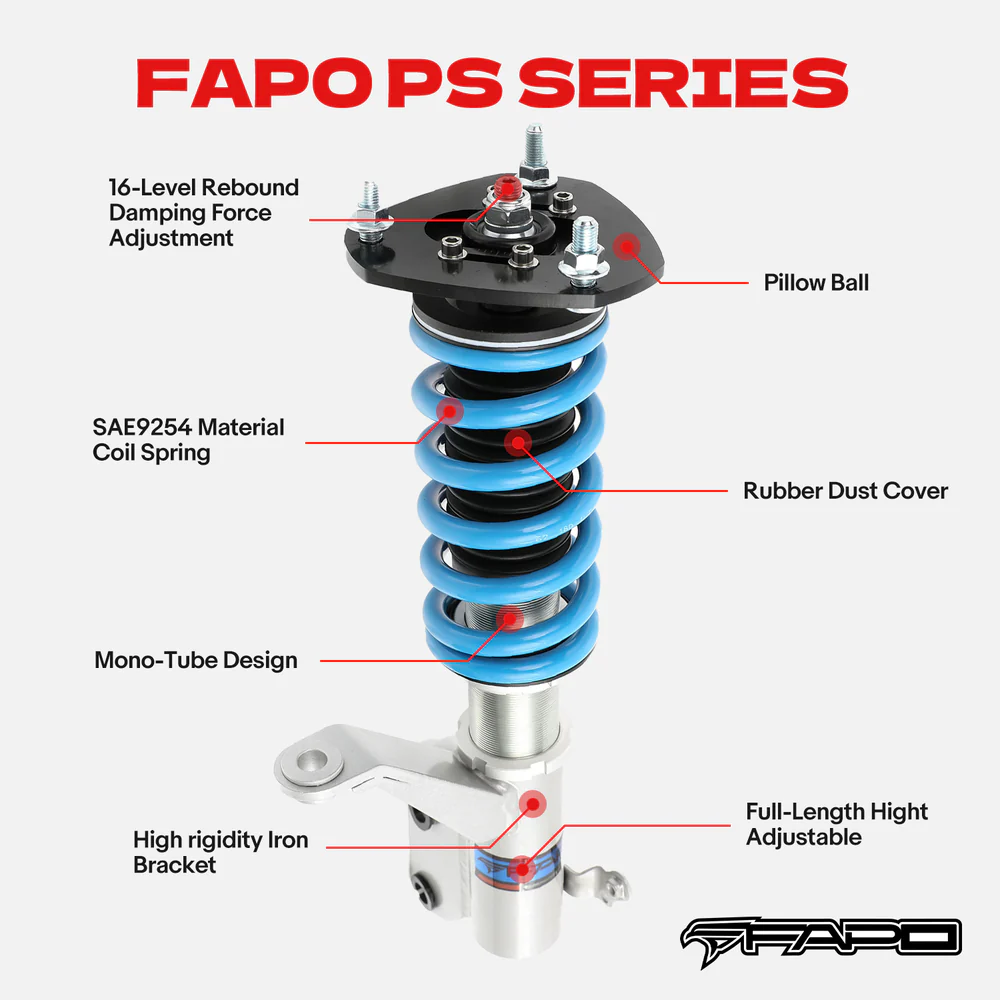

• Mono-tube shock design with larger oil/gas capacity

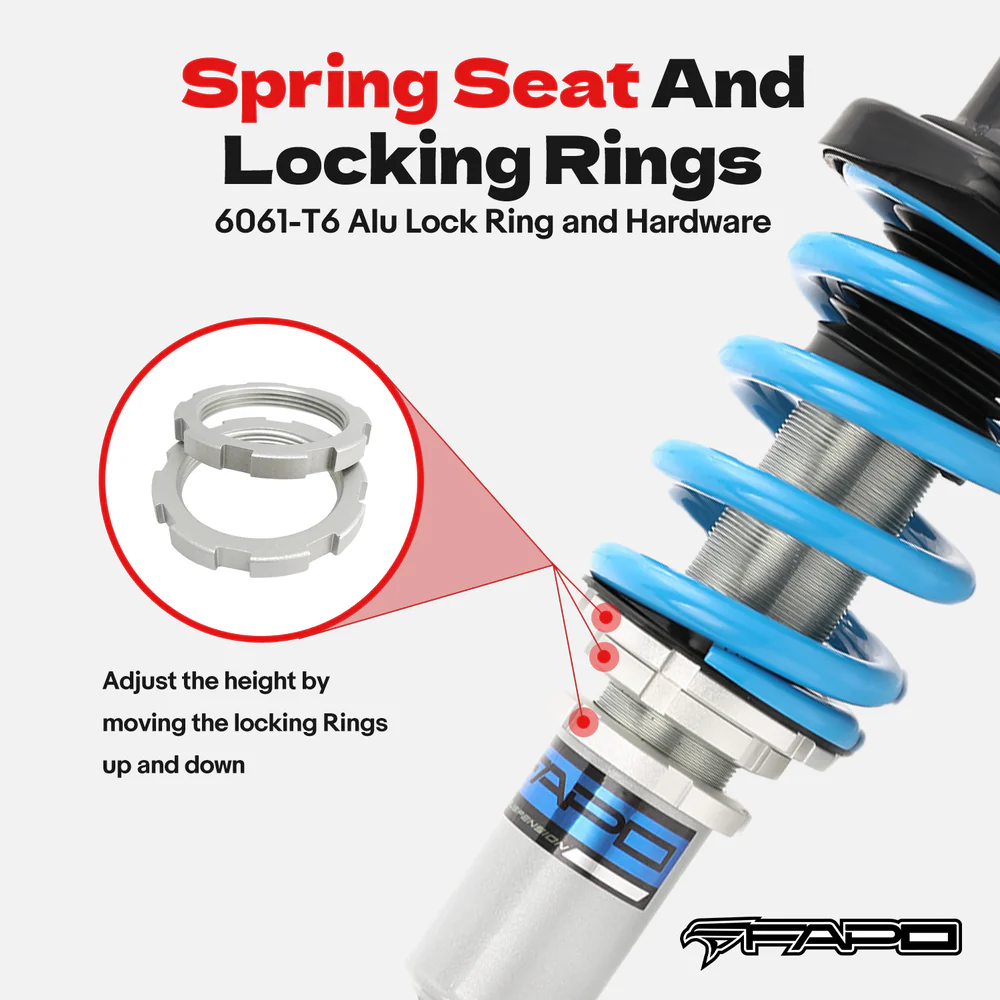

• Adjustable ride height
• Adjustable pre-load spring tension

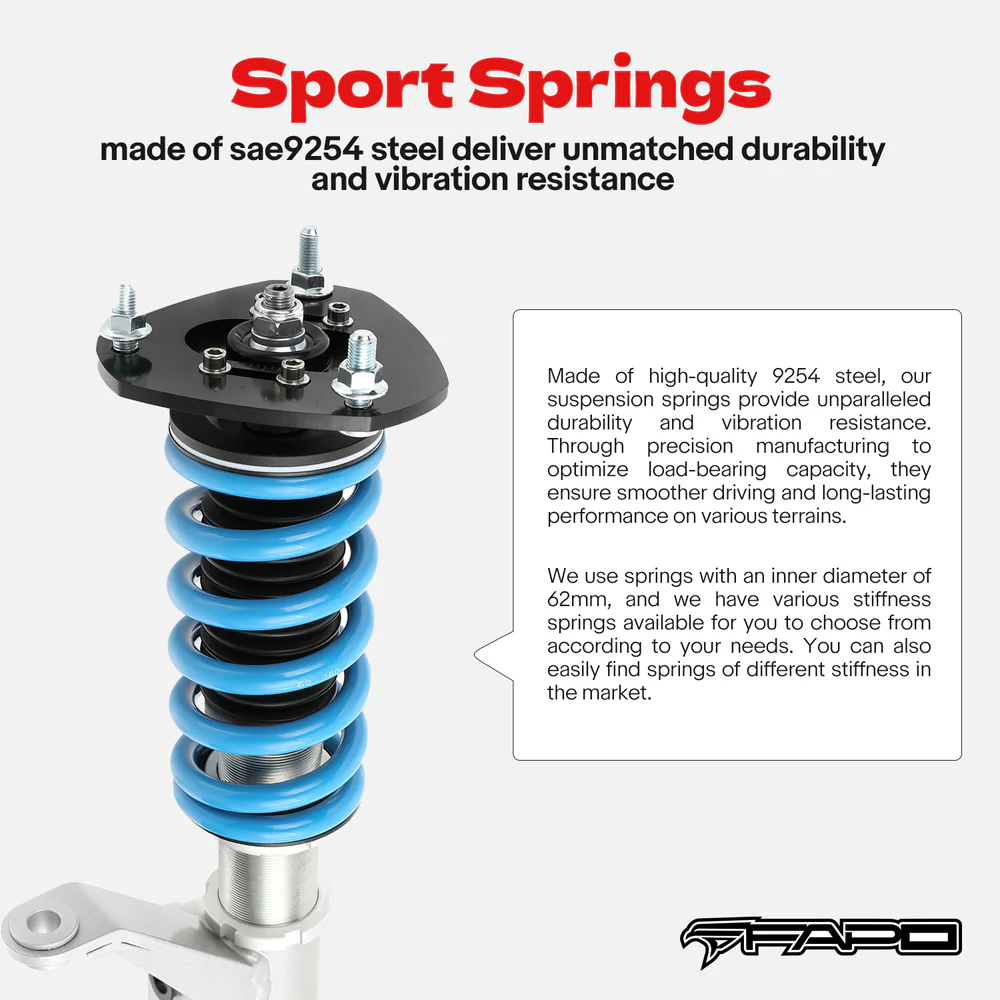

• Hi-Tensile performance spring (tested 600,000 cycles with <0.04% distortion)
• Fitted rubber boots to protect dampers
• Improved handling without sacrificing comfort
• Affordable appearance upgrade
• Easy installation with proper tools
• Suitable for track, drift, fast road and daily driving
• All pictured accessories included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Shock: 43-240-115-12.5-M12
• Rear Shock: 43-200-105-12.5-M12

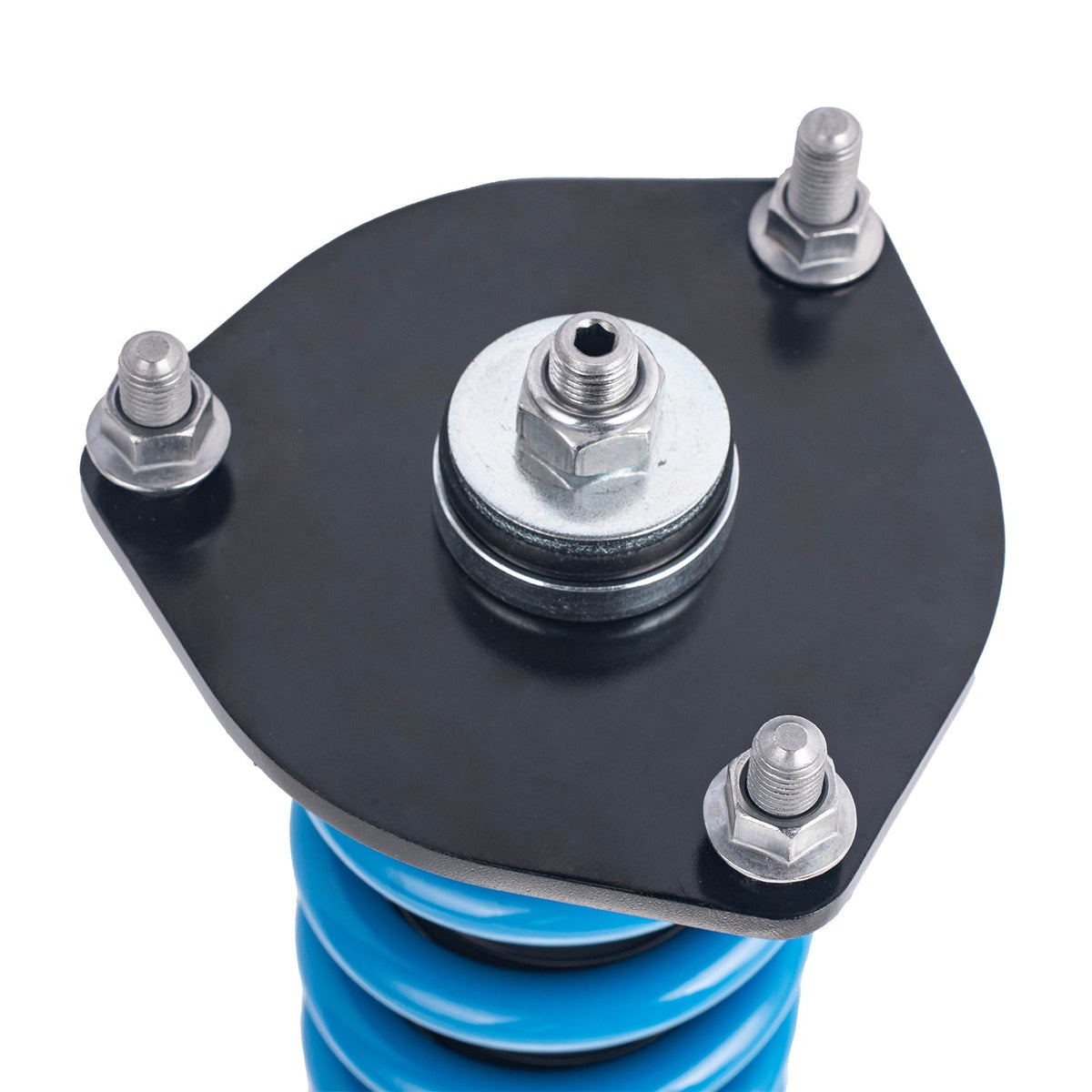

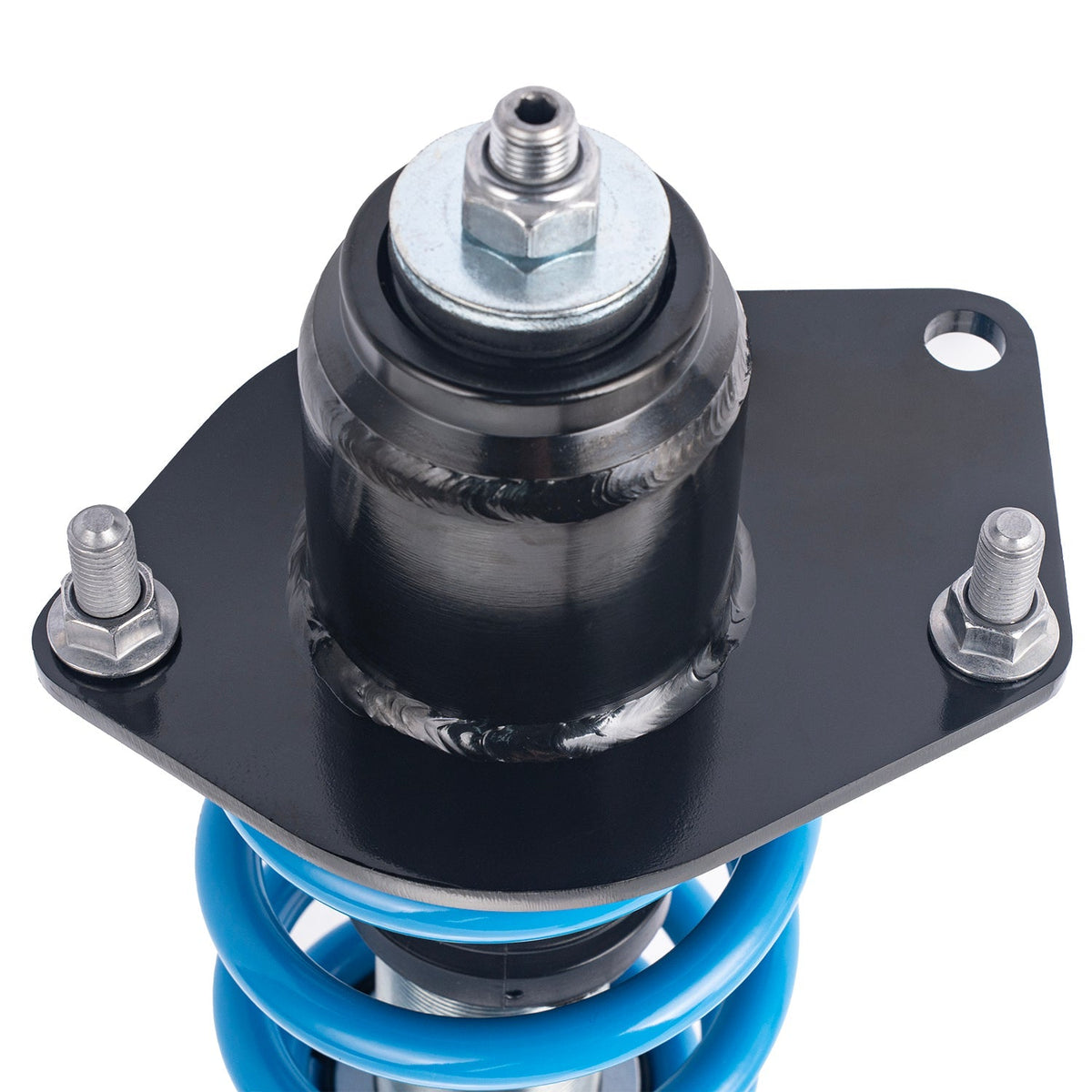

• Mounts: Front: With standard top mounts | Rear: With standard top mounts
• Front Spring: 200mm, 8 kg/mm (445 lb/in)
• Rear Spring: 160mm, 6 kg/mm (335 lb/in)
• Damping: 16 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
