FAPO PF Custom 32-Level Coilovers Chevrolet Cruze 1st Gen J300 2008-2016 [PF009630-CUSTOM]

FAPO PF Custom Coilovers — the FAPO PF kit for the Chevrolet Cruze 1st Gen J300 2008-2016, built to your spring rates by RedShift.

The FAPO PF Custom takes the FAPO PF 32-level damping-adjustable monotube coilover for the Chevrolet Cruze 1st Gen J300 2008-2016 and builds it to order at RedShift: choose any spring rate, front and rear. Full-length ride-height adjustment, separate spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Options (select above): your spring rates are included in the price. Choose Comfort (standard) valving, or Performance valving (+$300) for RedShift-revised street damping; add Swift springs (+$380; rates above 10 kg/mm require Swift). Want the kit exactly as FAPO builds it, at the lower price? See the FAPO PF for this car.

Application

• Chevrolet Cruze 1st Gen J300 2008-2016

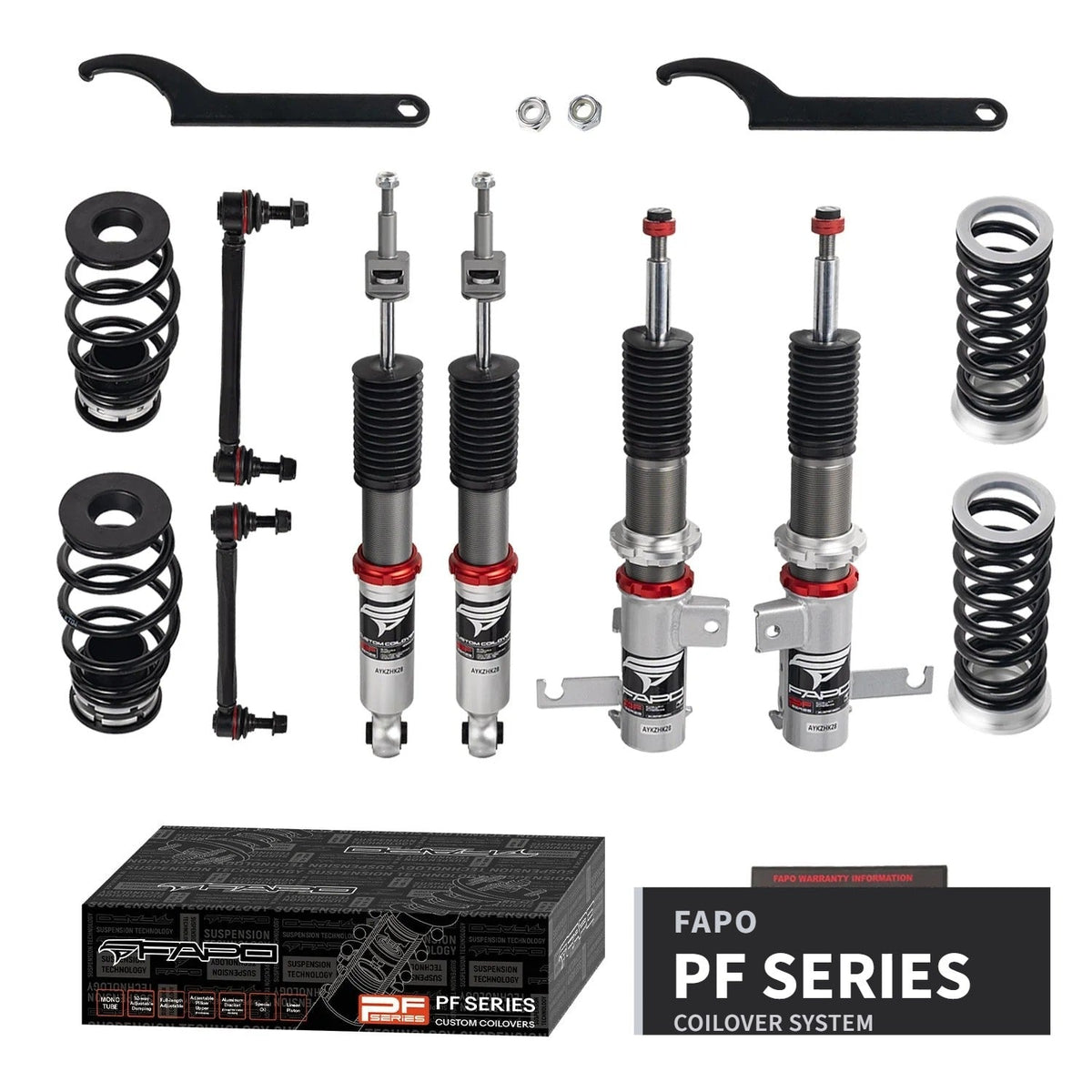

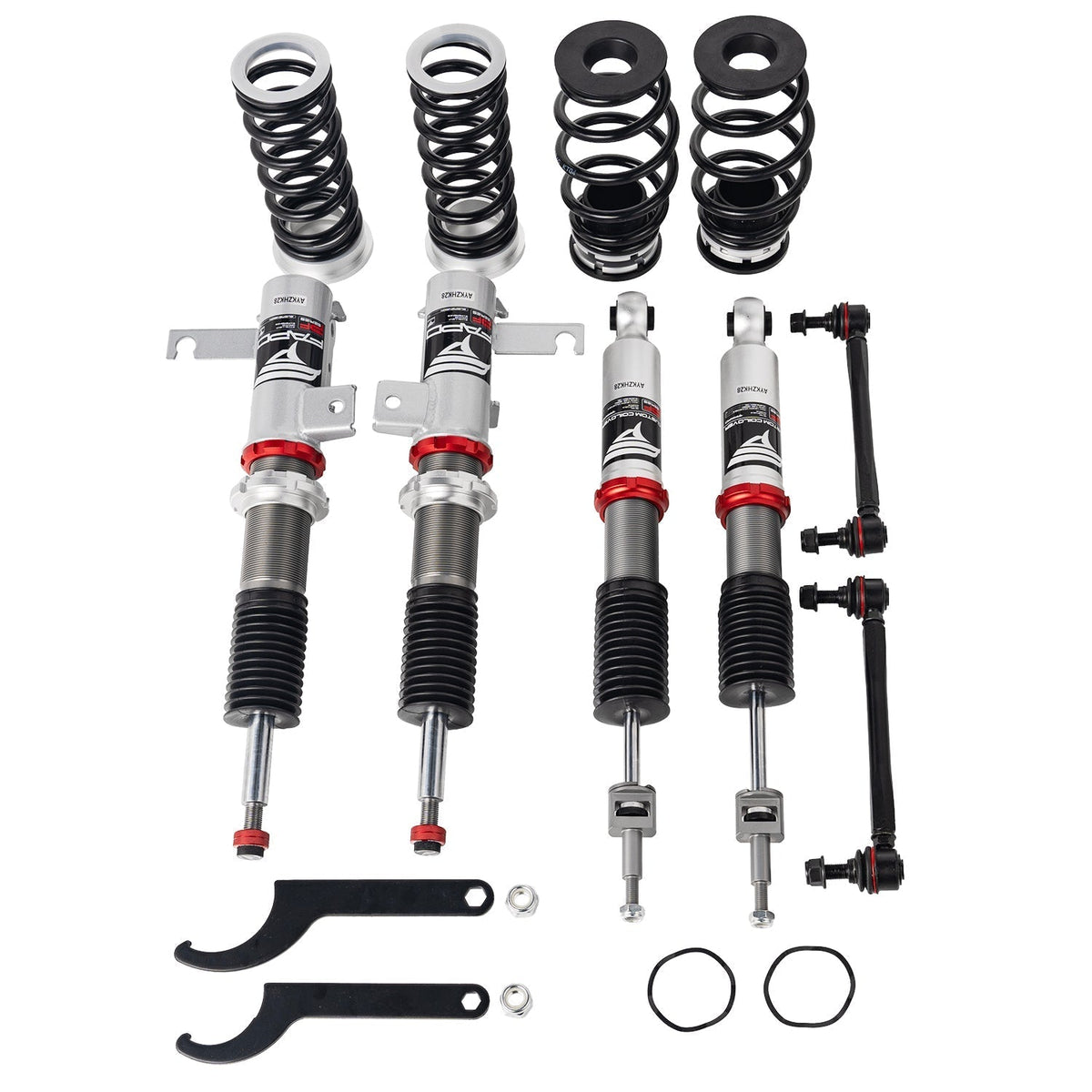

Package Includes:

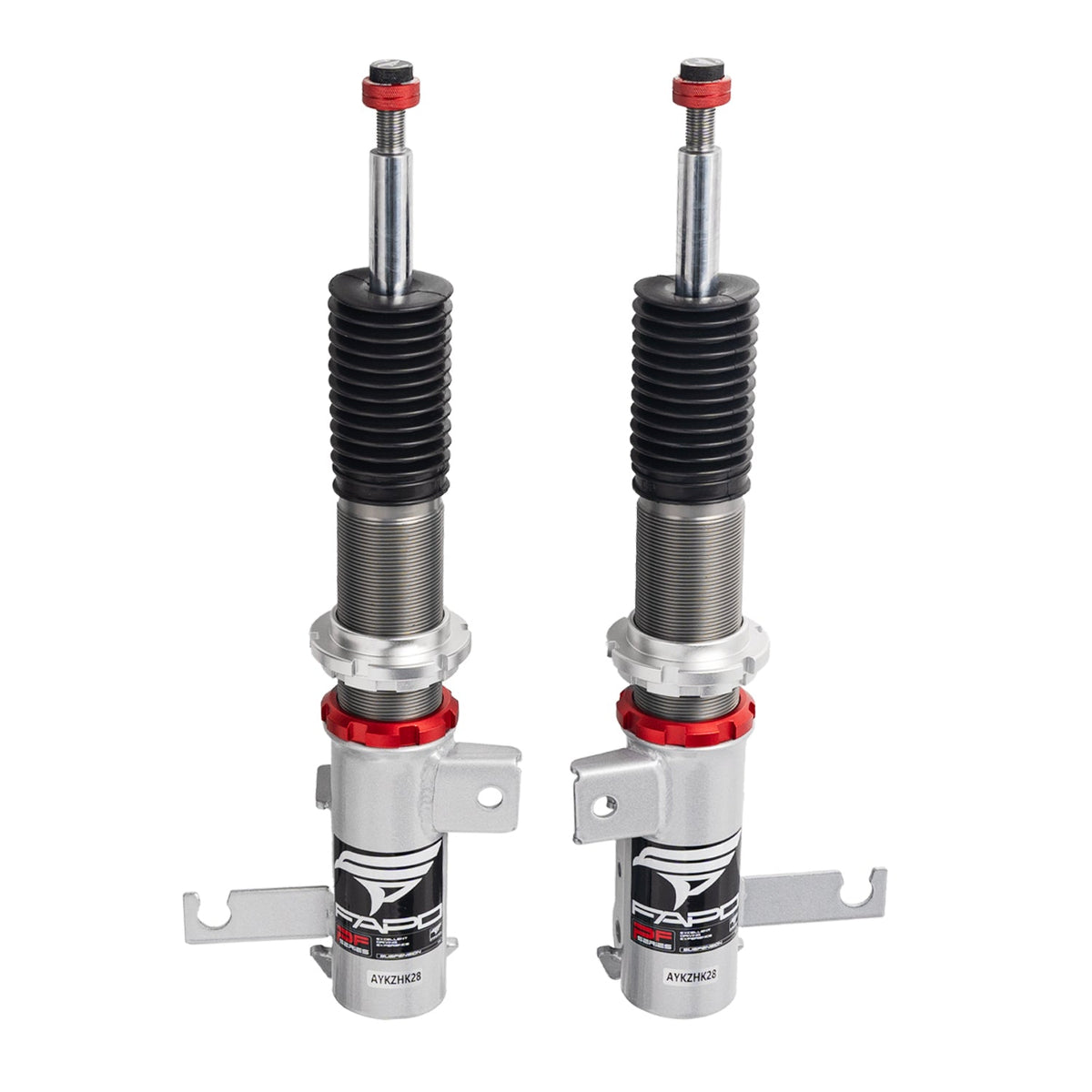

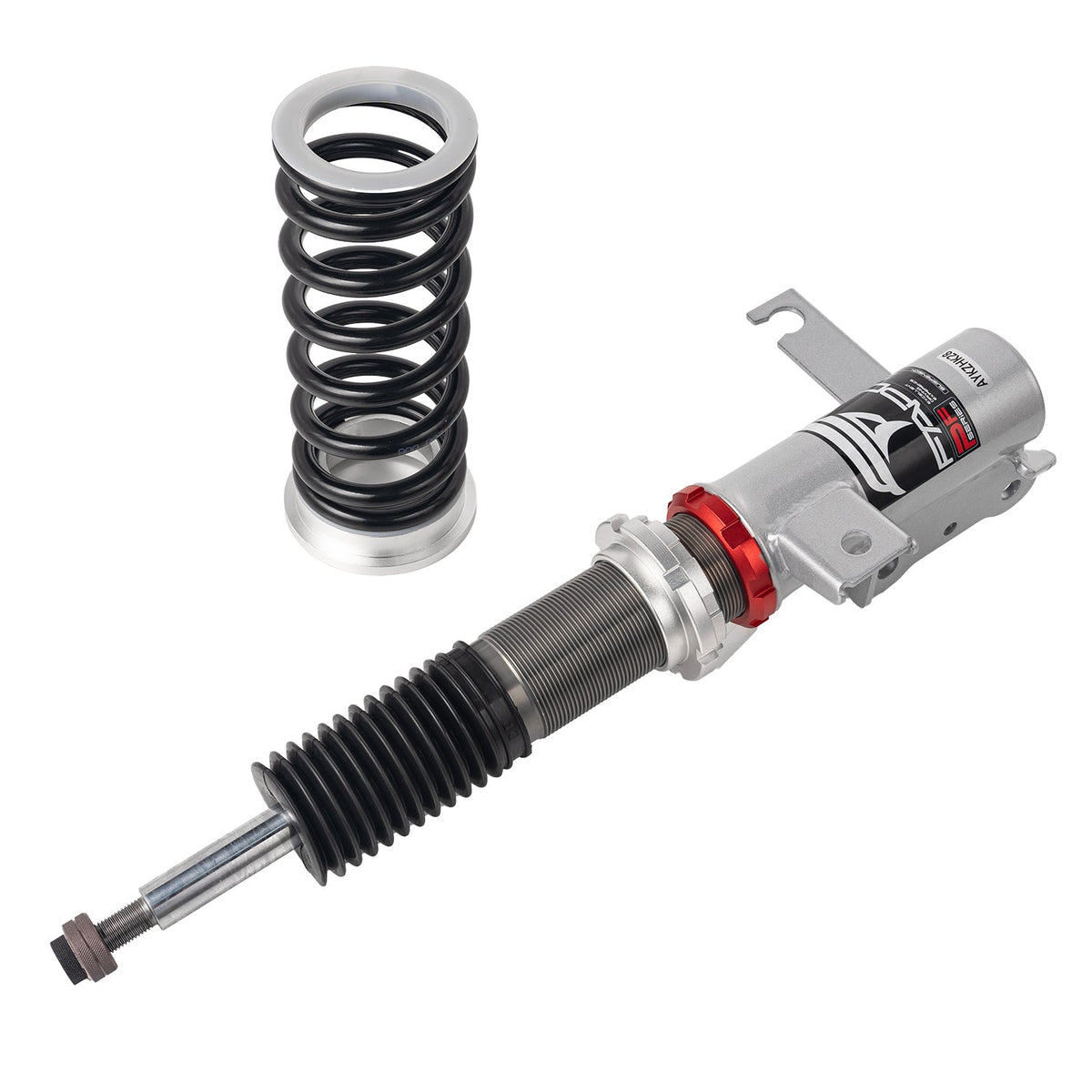

• Front coilovers × 2 pcs

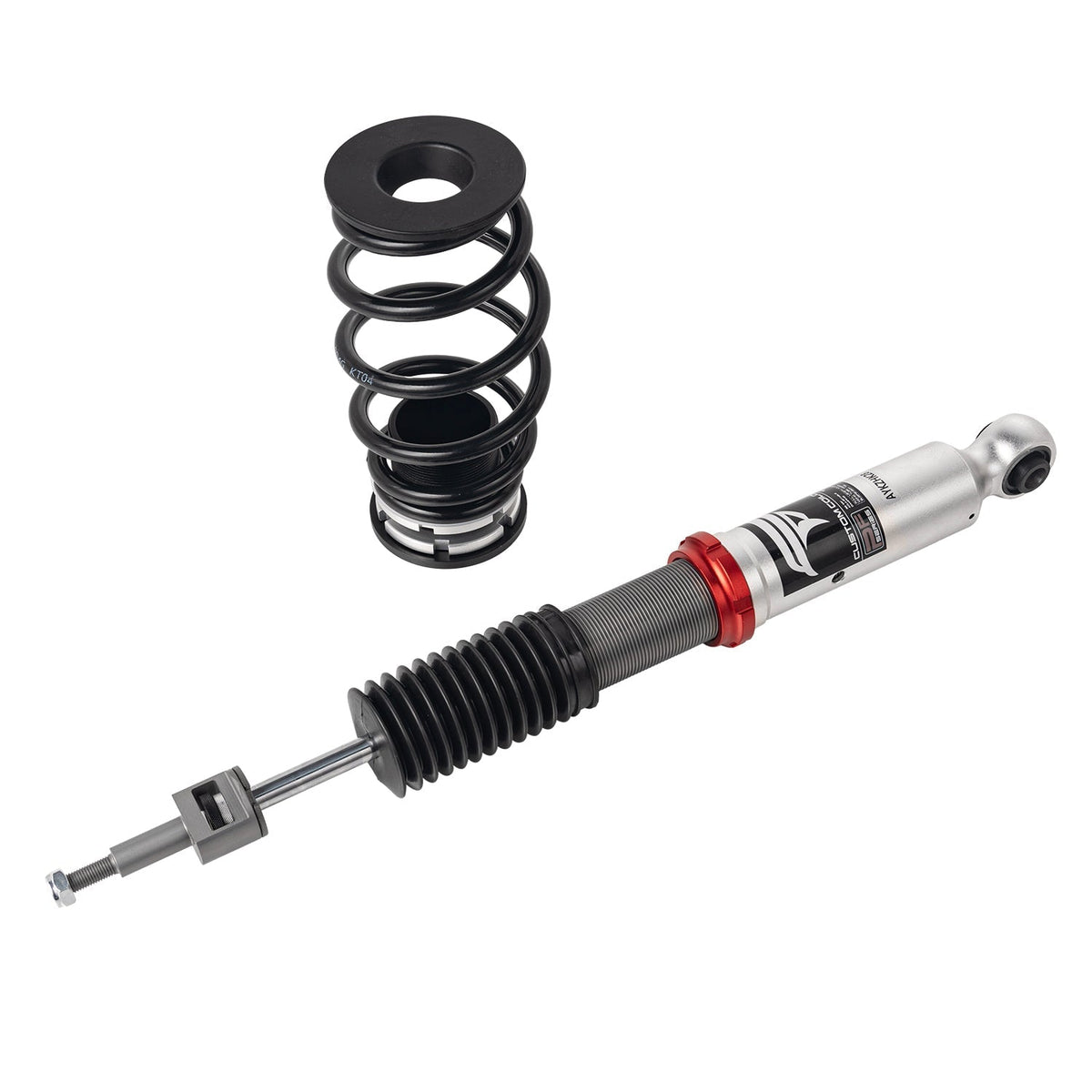

• Rear coilovers × 2 pcs
• Wrench × 2 pcs

• Sway bar link × 2 pcs

Note: This coilover kit is designed to lower your car by 1"-1.5" compared to the factory height, even at its maximum setting. Please confirm this suits your needs before purchasing.

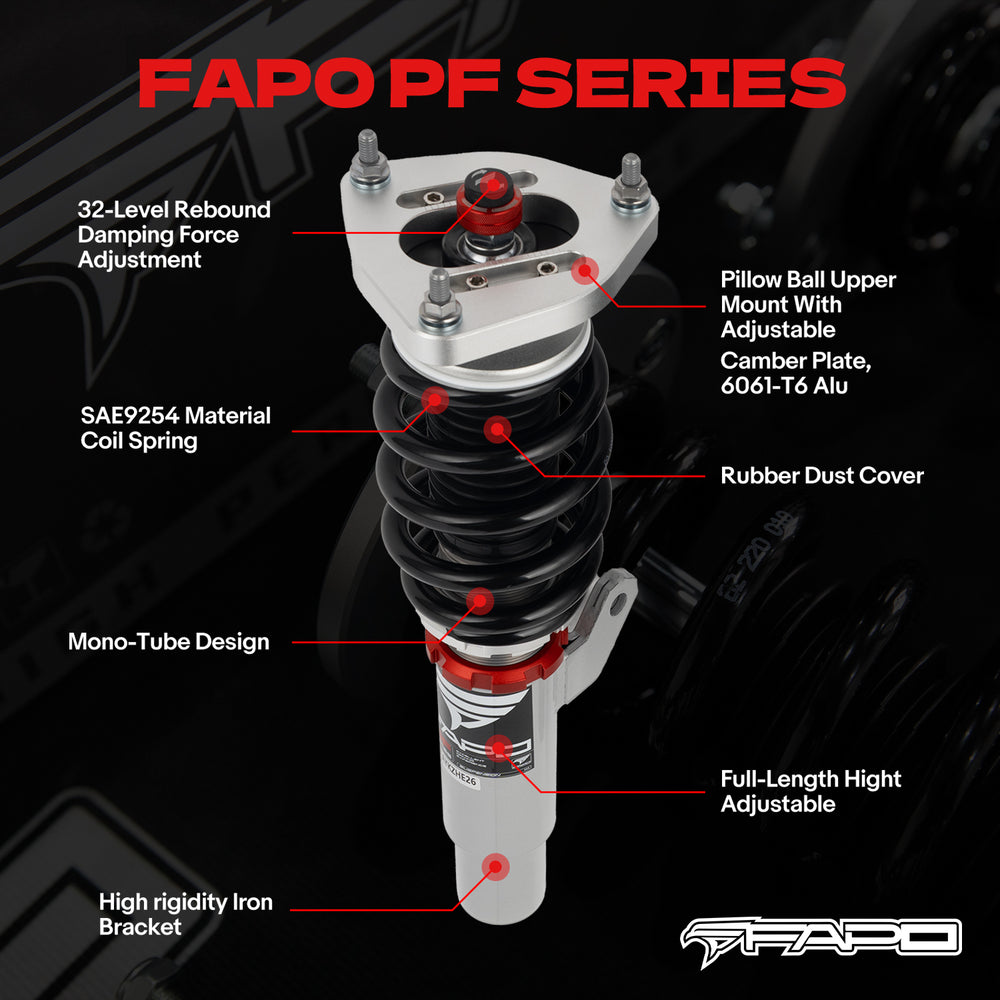

Features:

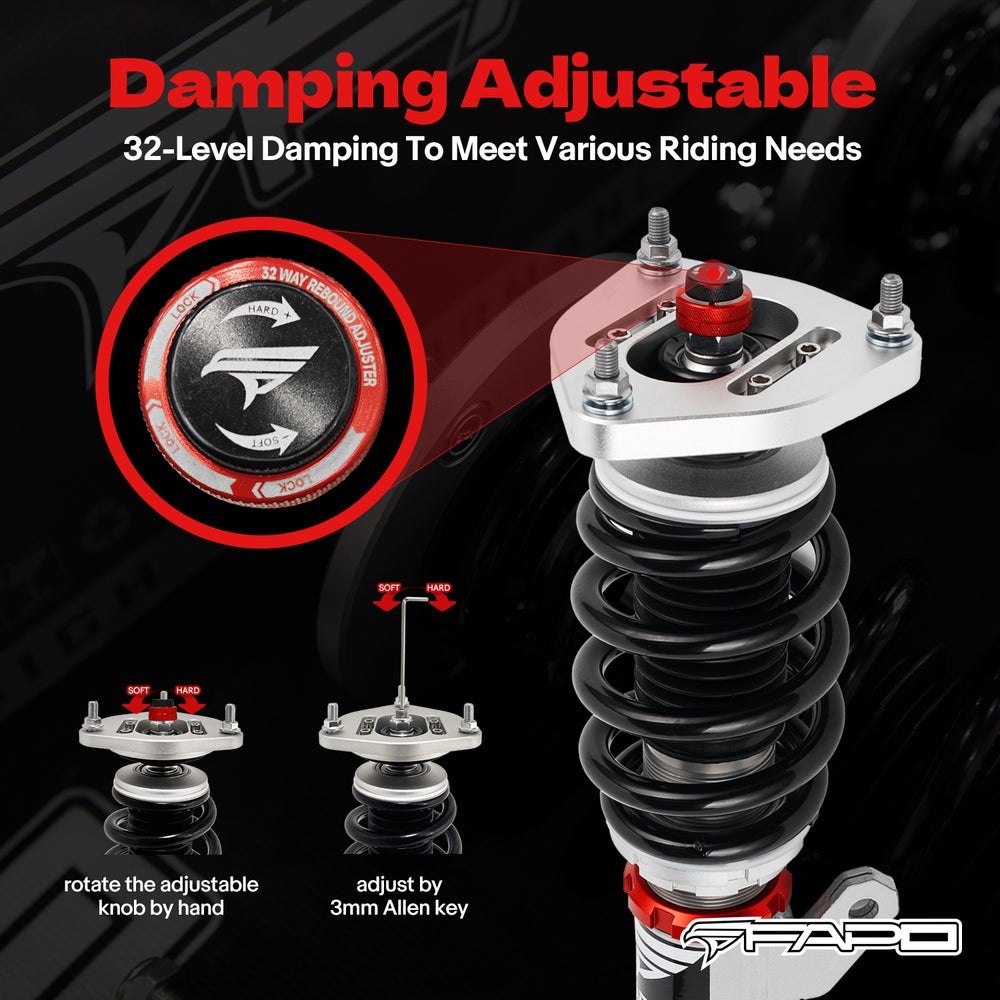

• 32-way adjustable damping allows precise tuning for comfort, track, or aggressive street driving
• Mono-tube shock design provides larger oil and gas capacity

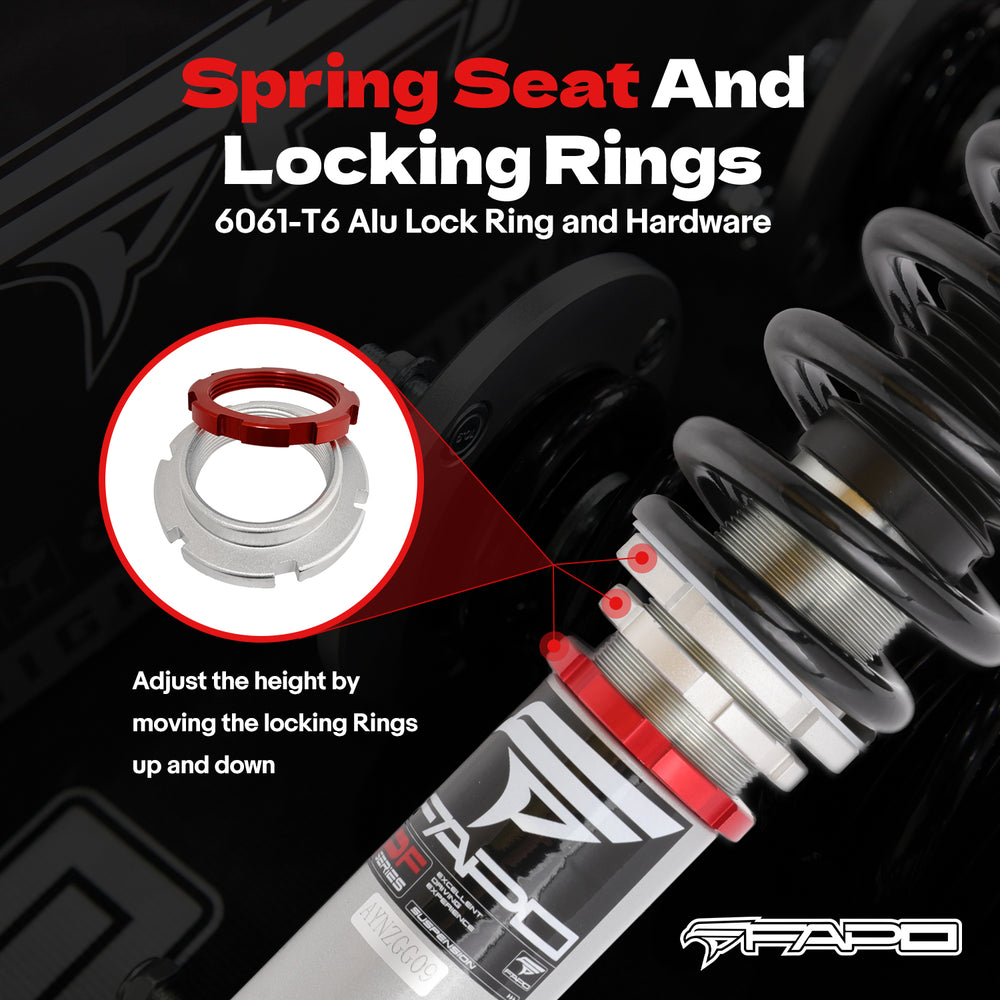

• Adjustable ride height for customized performance
• Adjustable pre-load spring tension for enhanced handling

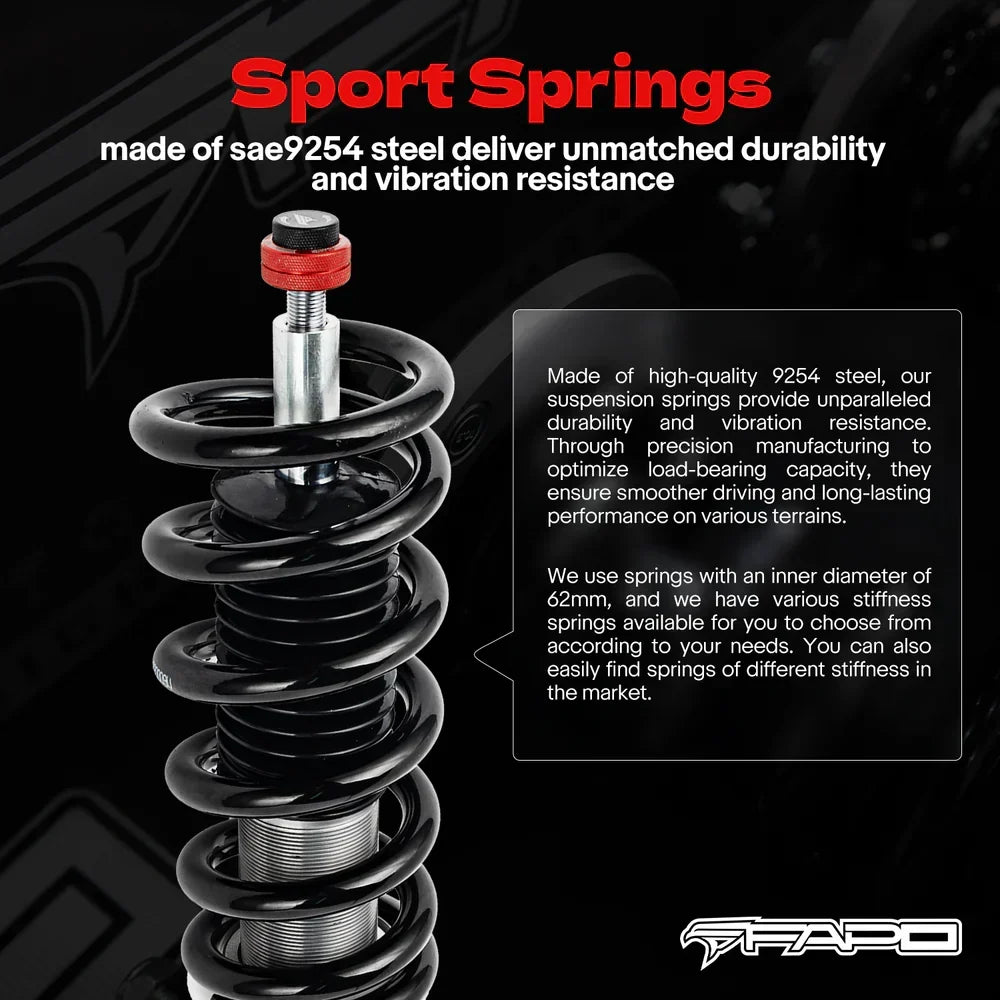

• High tensile performance spring: less than 0.04% distortion after 600,000 continuous tests, with special surface treatment for durability
• Rubber boots on all inserts to protect the damper and keep it clean
• Improves handling without sacrificing ride comfort
• Quick and affordable way to upgrade your car's appearance
• Easy installation with standard tools
• Ideal for track, drift, fast road, and daily driving
• Accessories shown in photos are included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Shock: 53-300-150-20-M14 [4-M2-3]

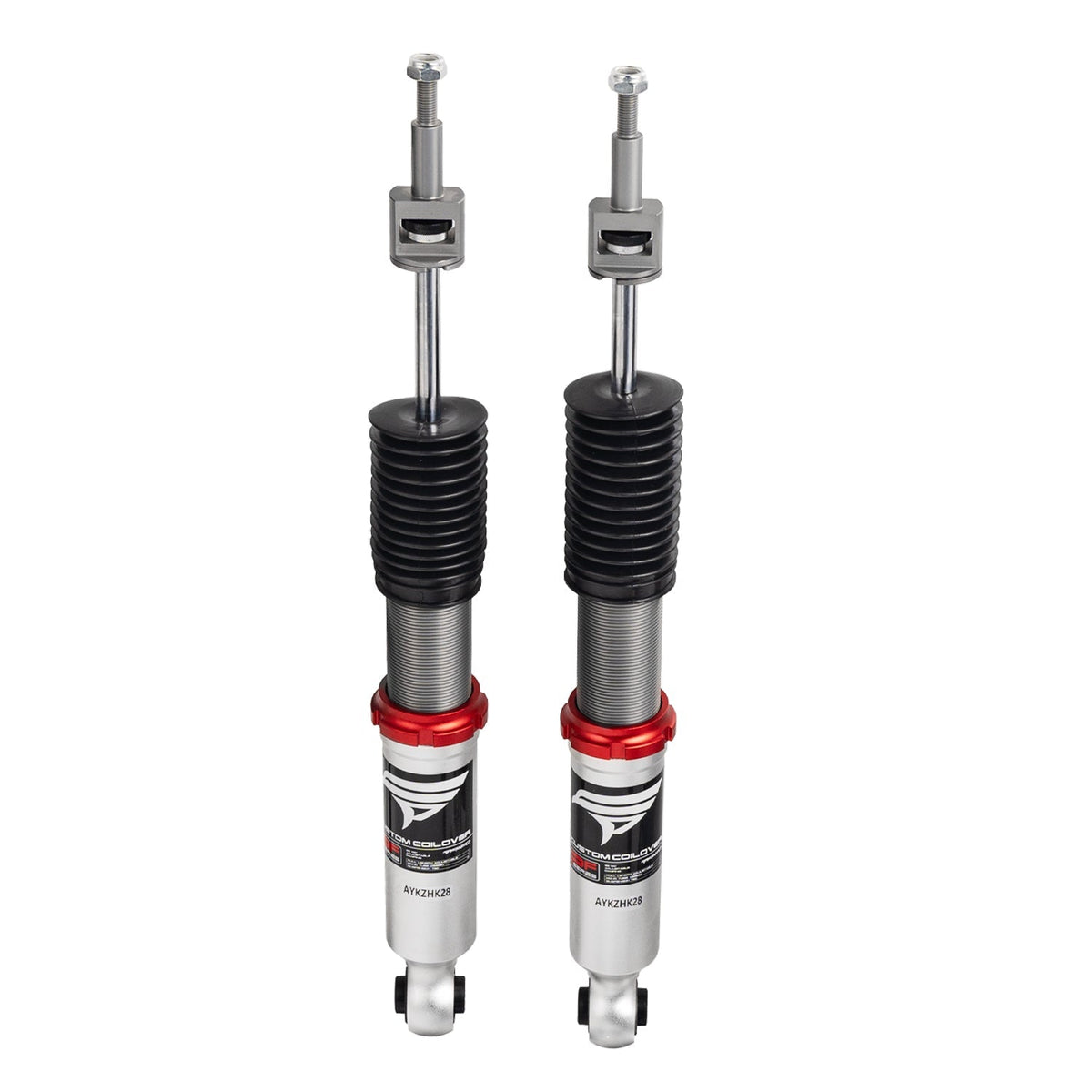

• Rear Shock: 45-255-150-12.5-M12 [2-44R03-7]
• Mounts: Front: OEM top mounts required | Rear: OEM top mounts required
• Front Spring: 200mm, 6 kg/mm (335 lb/in)
• Rear Spring: 190mm, 4 kg/mm (225 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
