FAPO PF Custom 32-Level Coilovers Benz E-Class W124 1986-1998 & Mercedes-Benz 190E 1984-1993 [PF066330-CUSTOM]

FAPO PF Custom Coilovers — the FAPO PF kit for the Benz E-Class W124 1986-1998 & Mercedes-Benz 190E 1984-1993, built to your spring rates by RedShift.

The FAPO PF Custom takes the FAPO PF 32-level damping-adjustable monotube coilover for the Benz E-Class W124 1986-1998 & Mercedes-Benz 190E 1984-1993 and builds it to order at RedShift: choose any spring rate, front and rear. Full-length ride-height adjustment, separate spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Options (select above): your spring rates are included in the price. Choose Comfort (standard) valving, or Performance valving (+$300) for RedShift-revised street damping; add Swift springs (+$380; rates above 10 kg/mm require Swift). Want the kit exactly as FAPO builds it, at the lower price? See the FAPO PF for this car.

Application:

• Mercedes-Benz 190D/190E (Excludes Self-Leveling Suspensions) W201 1984-1993
• Mercedes-Benz 260E W124 1987-1998
• Mercedes-Benz 300D / 300E Sedan RWD W124 1986-1993
• Mercedes-Benz E-Class 1st Gen RWD W124 1994-1995

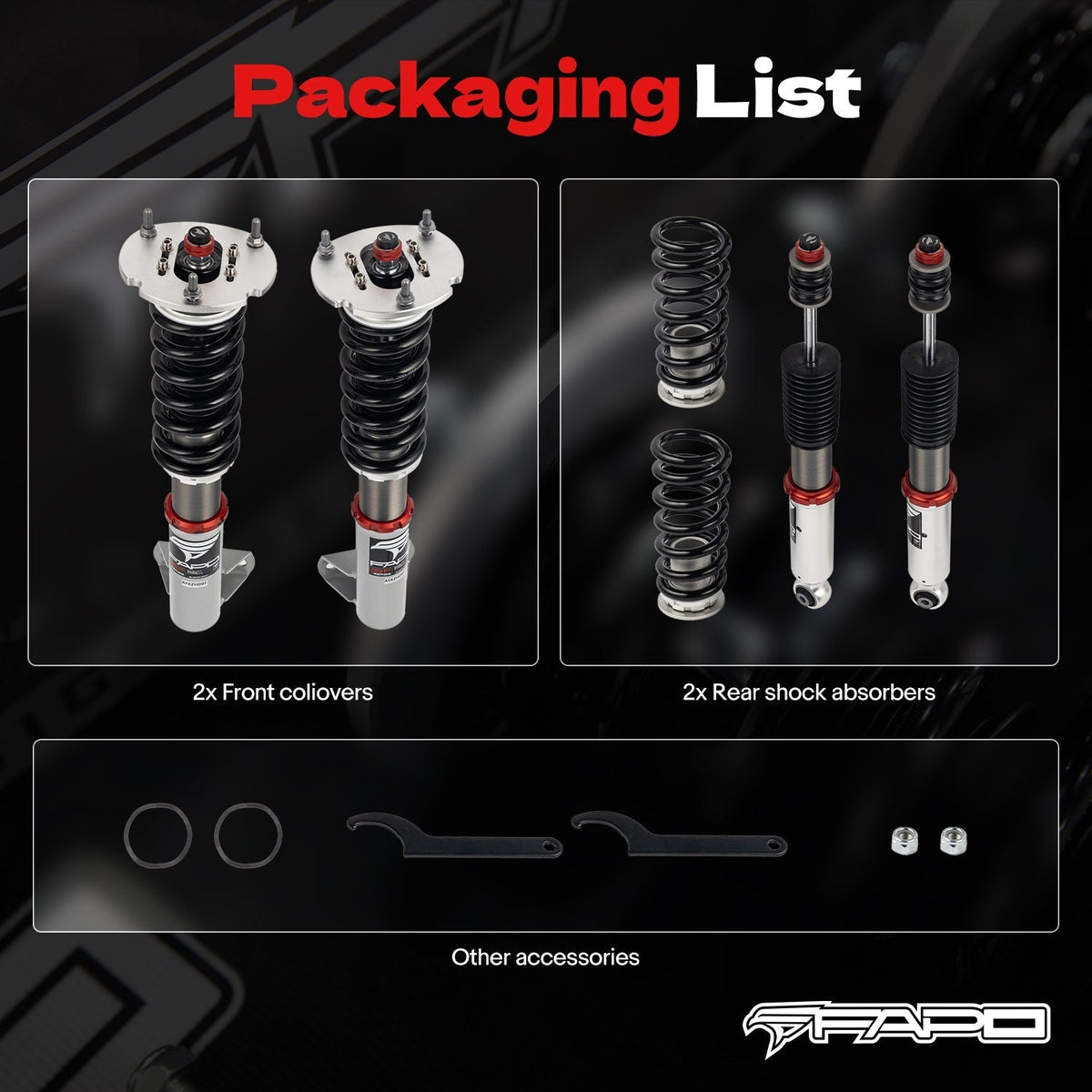

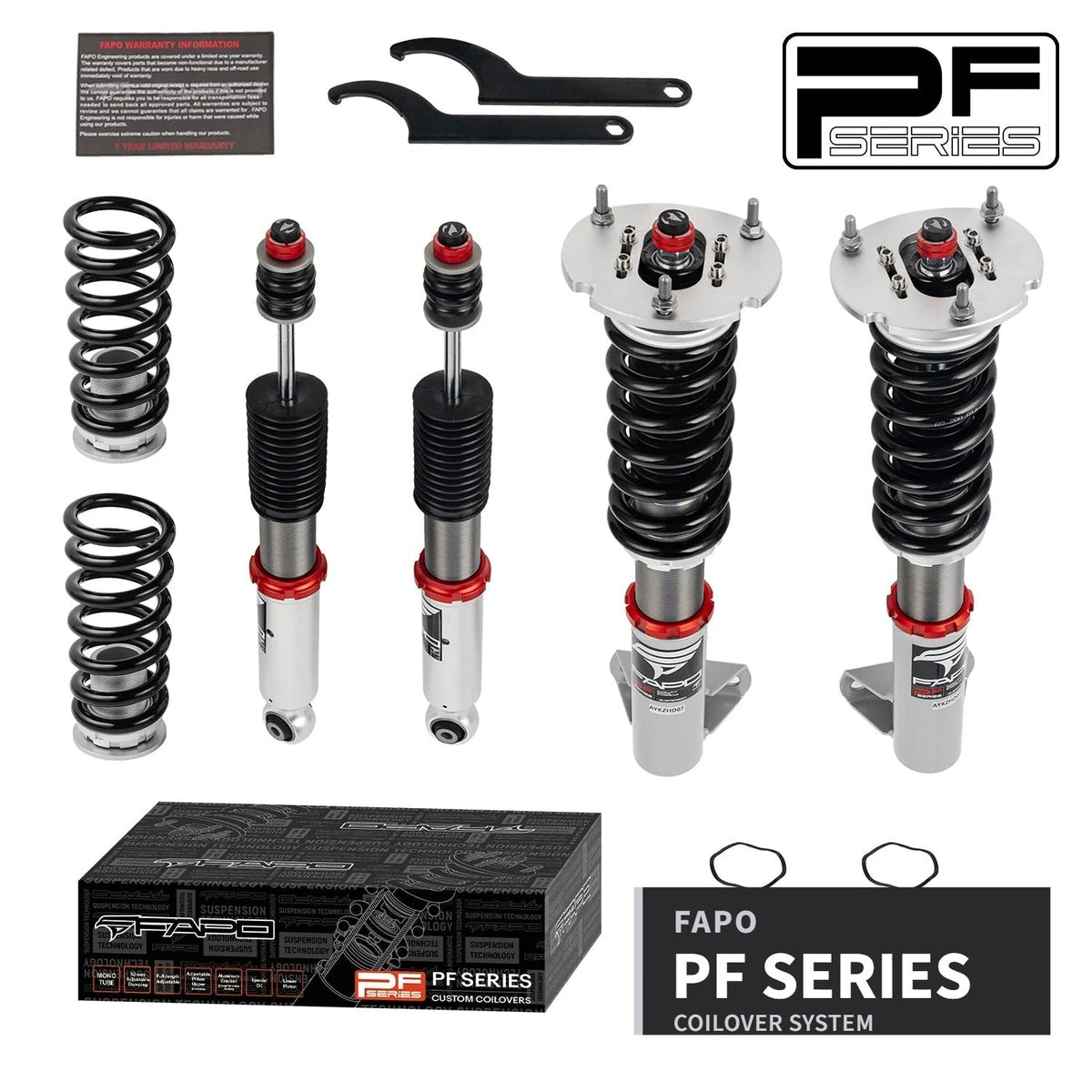

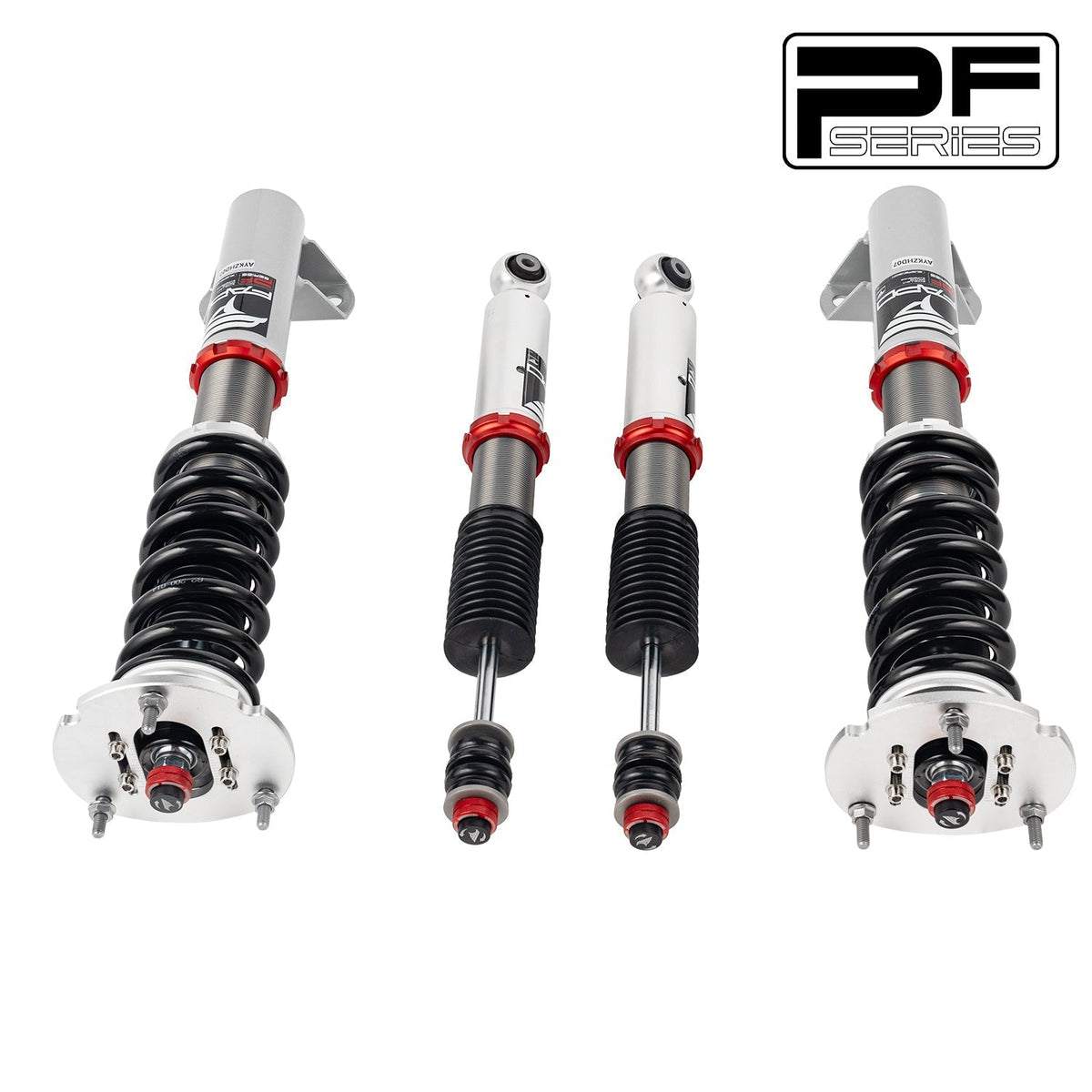

Package Includes:

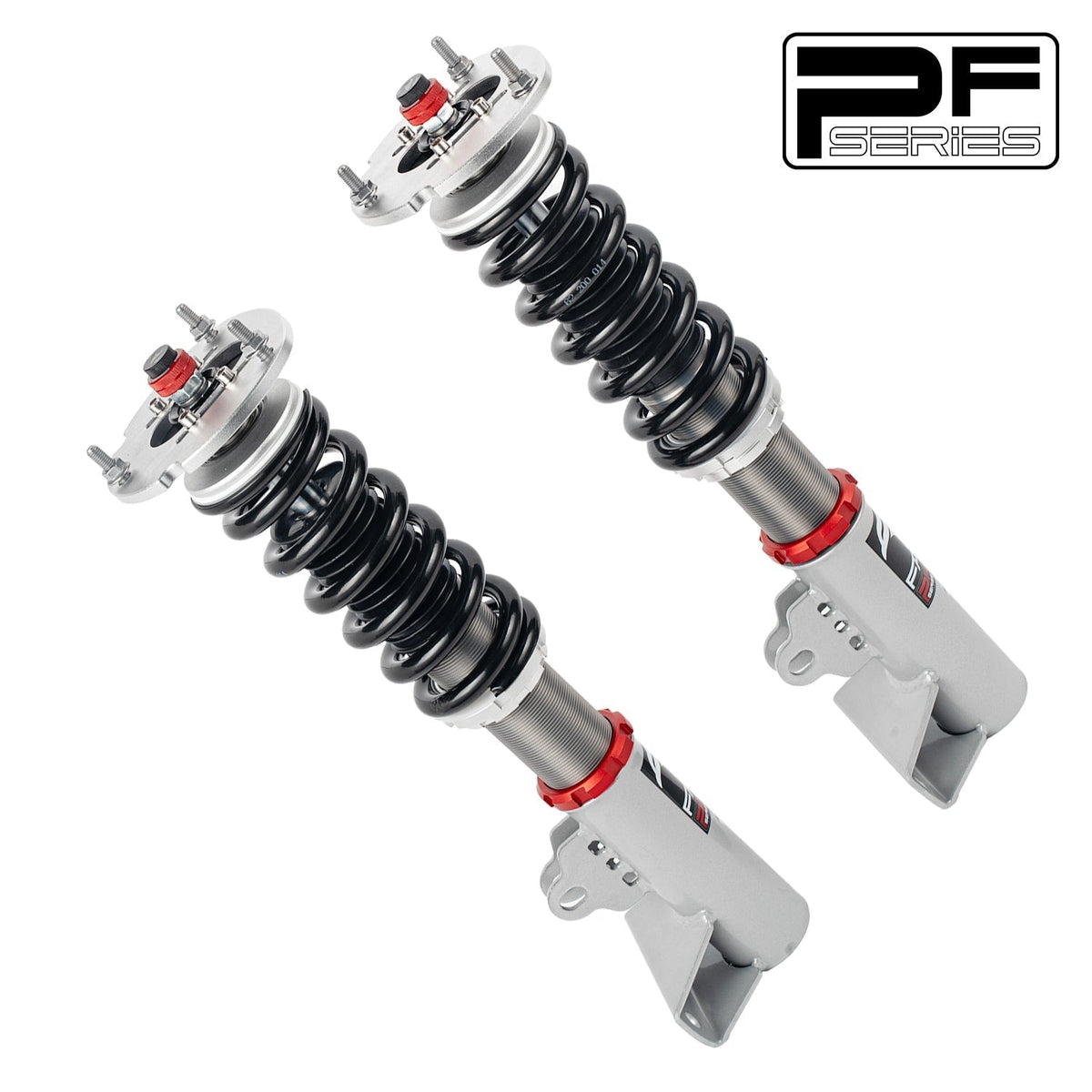

• Front coilovers × 2 pcs

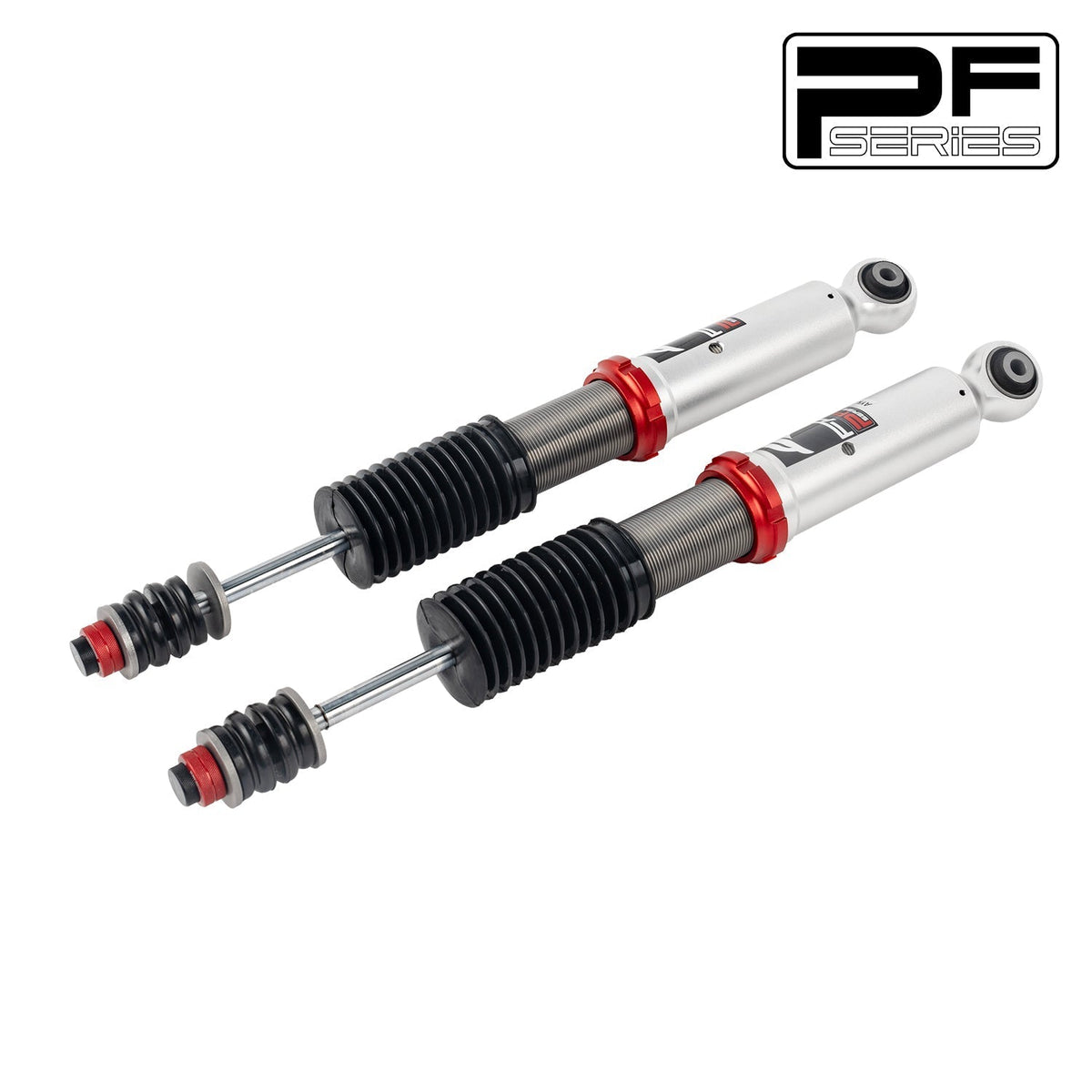

• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Our coilover is a lowering kit which lowers the car by 1-1.5" even at max height. Please confirm you want to lower your car before purchase.

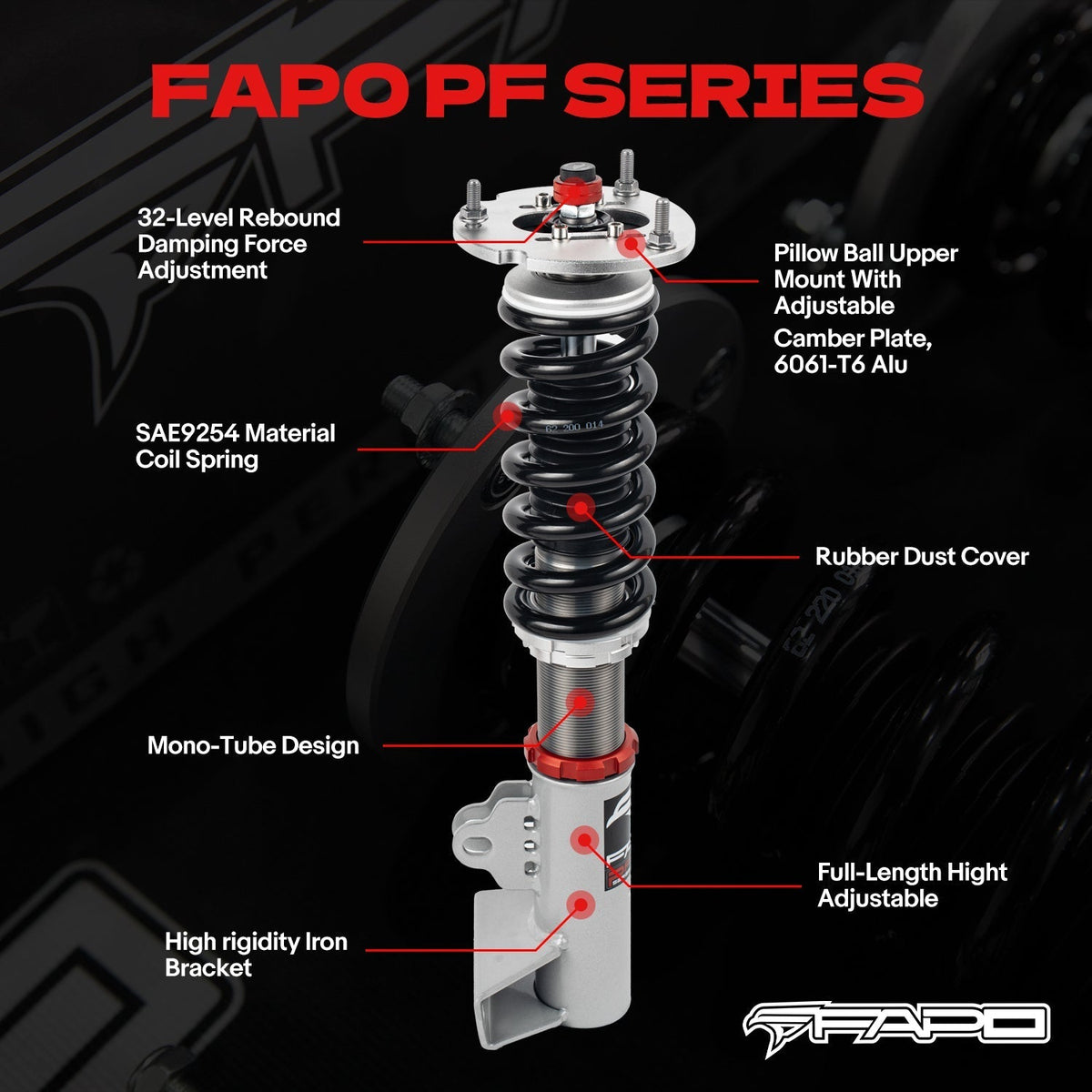

Features:

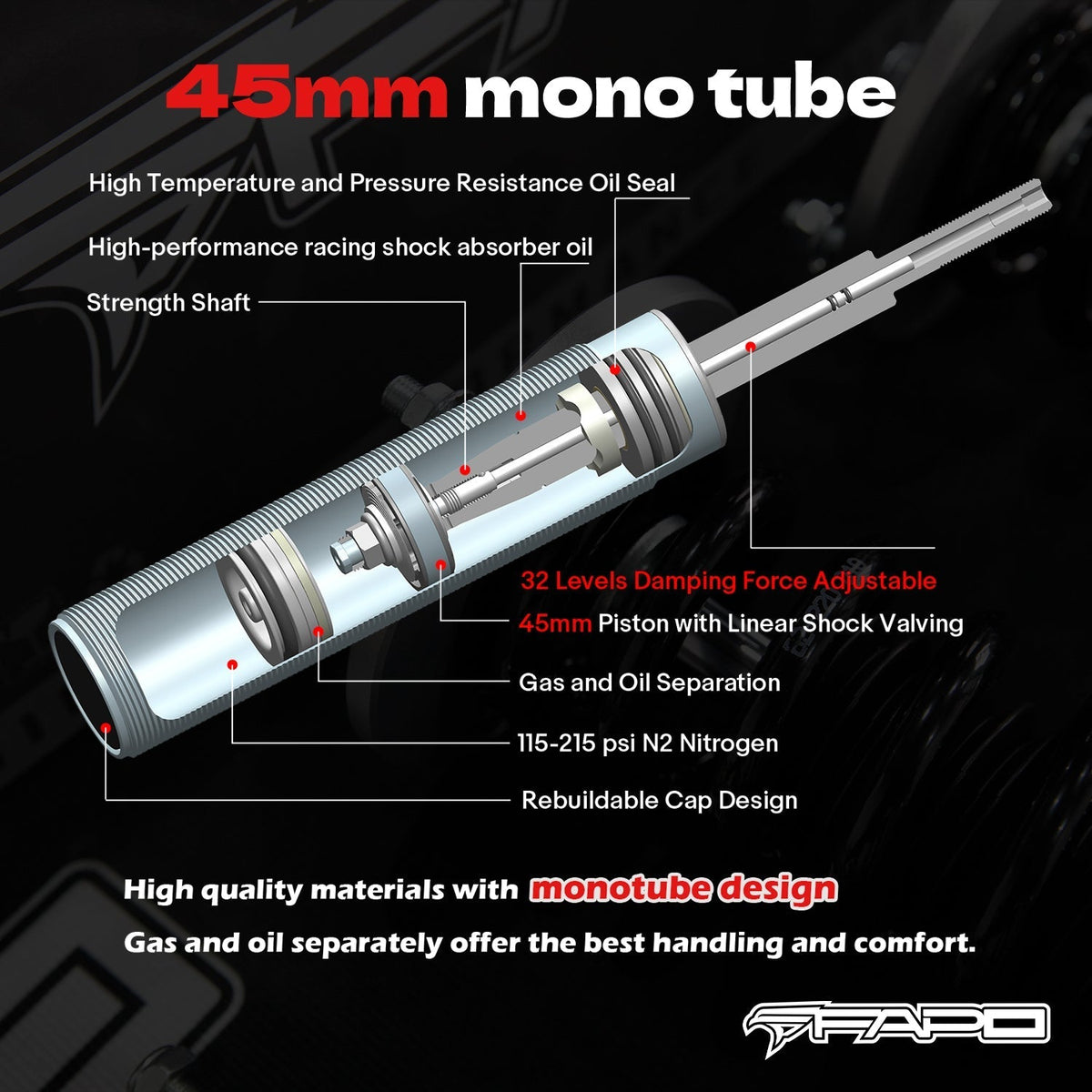

• Mono-tube shock design, provides larger capacity of oil and gas.

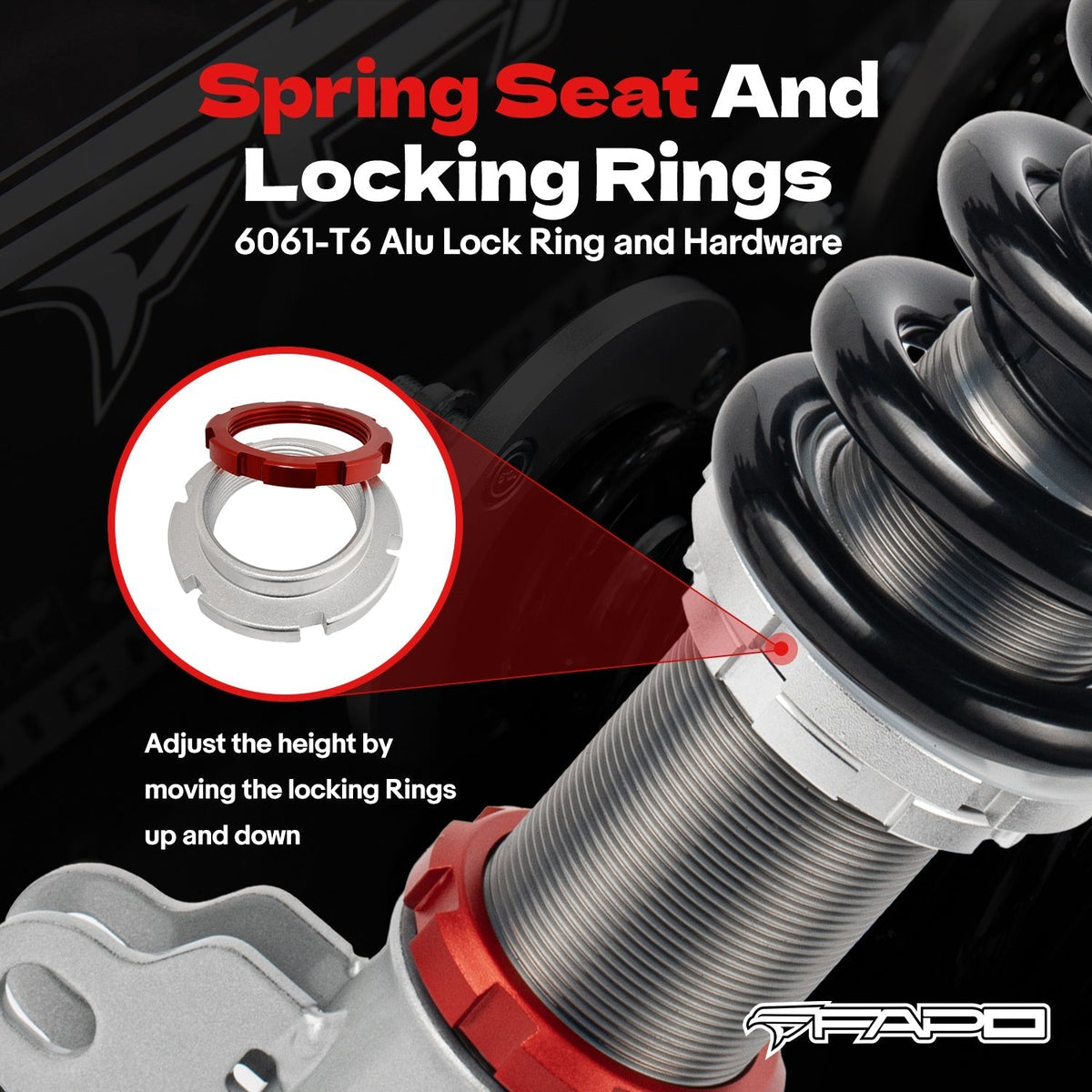

• Adjustable ride height.
• Adjustable pre-load spring tension.

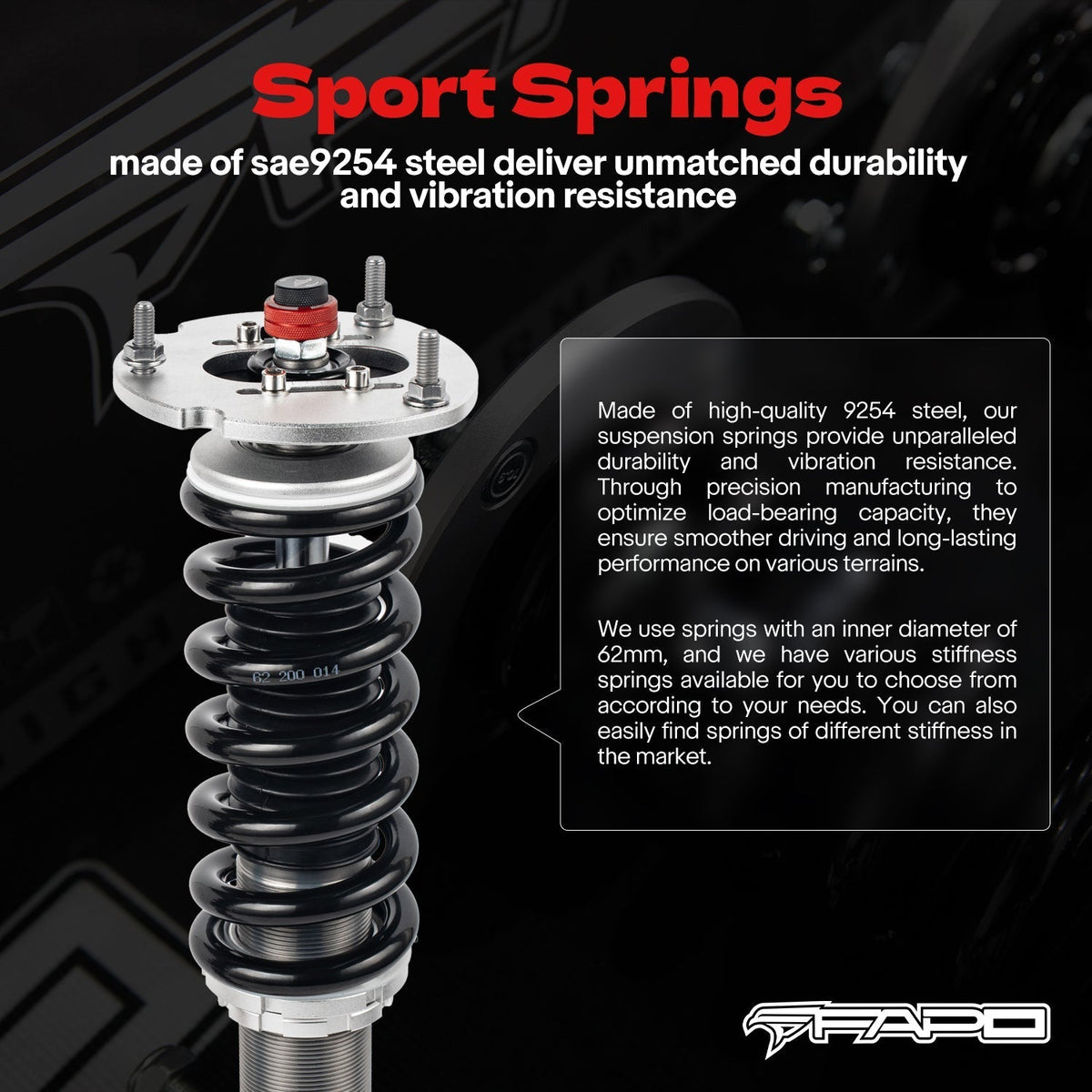

• Hi Tensile performance spring - tested continuously 600,000 times with less than 0.04% distortion. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep it clean.
• Improves handling performance without sacrificing comfortable ride.
• Fast and affordable way to easily upgrade your car's appearance.
• Easy installation with the right tools.
• Ideal for track, drift, fast road, and daily driving.
• Accessories shown in photos are included.
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 200mm, 14 kg/mm (785 lb/in)
• Rear Spring: 210mm, 11 kg/mm (615 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Only Front coilovers; Rear with standard top mounts

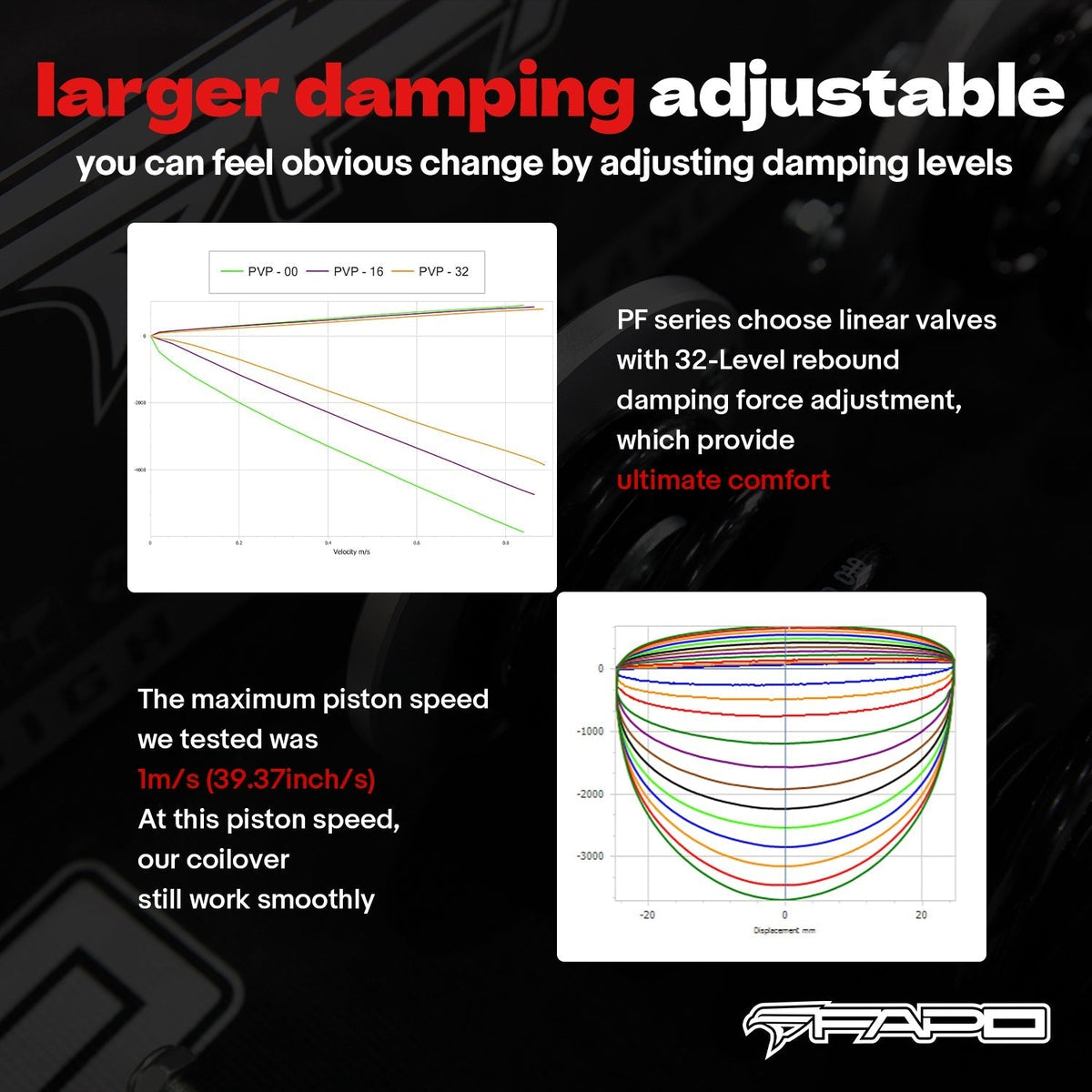

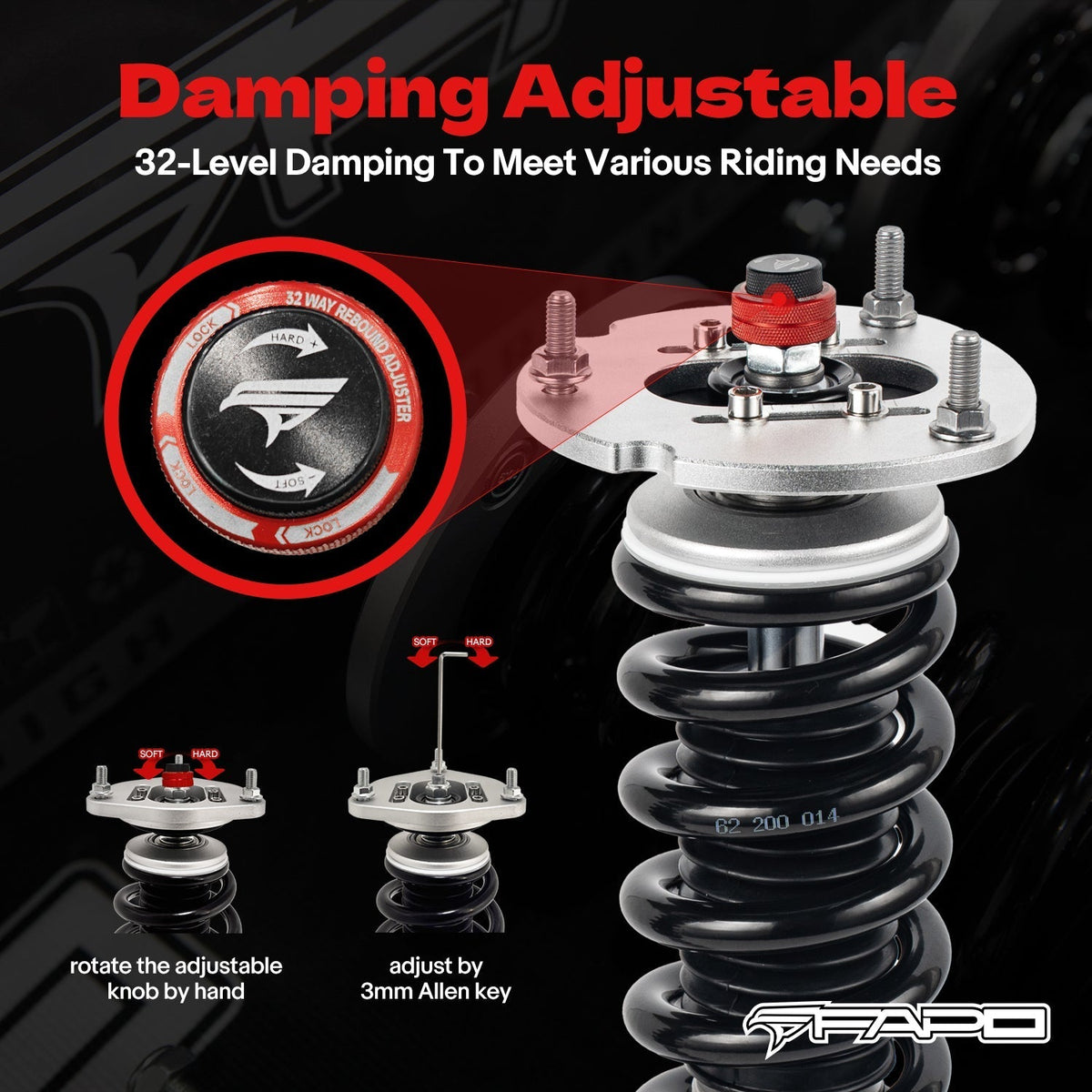

• Damping: 32 Levels
• Front Shock: 53-340-130-20-M12 [4-M2-4]

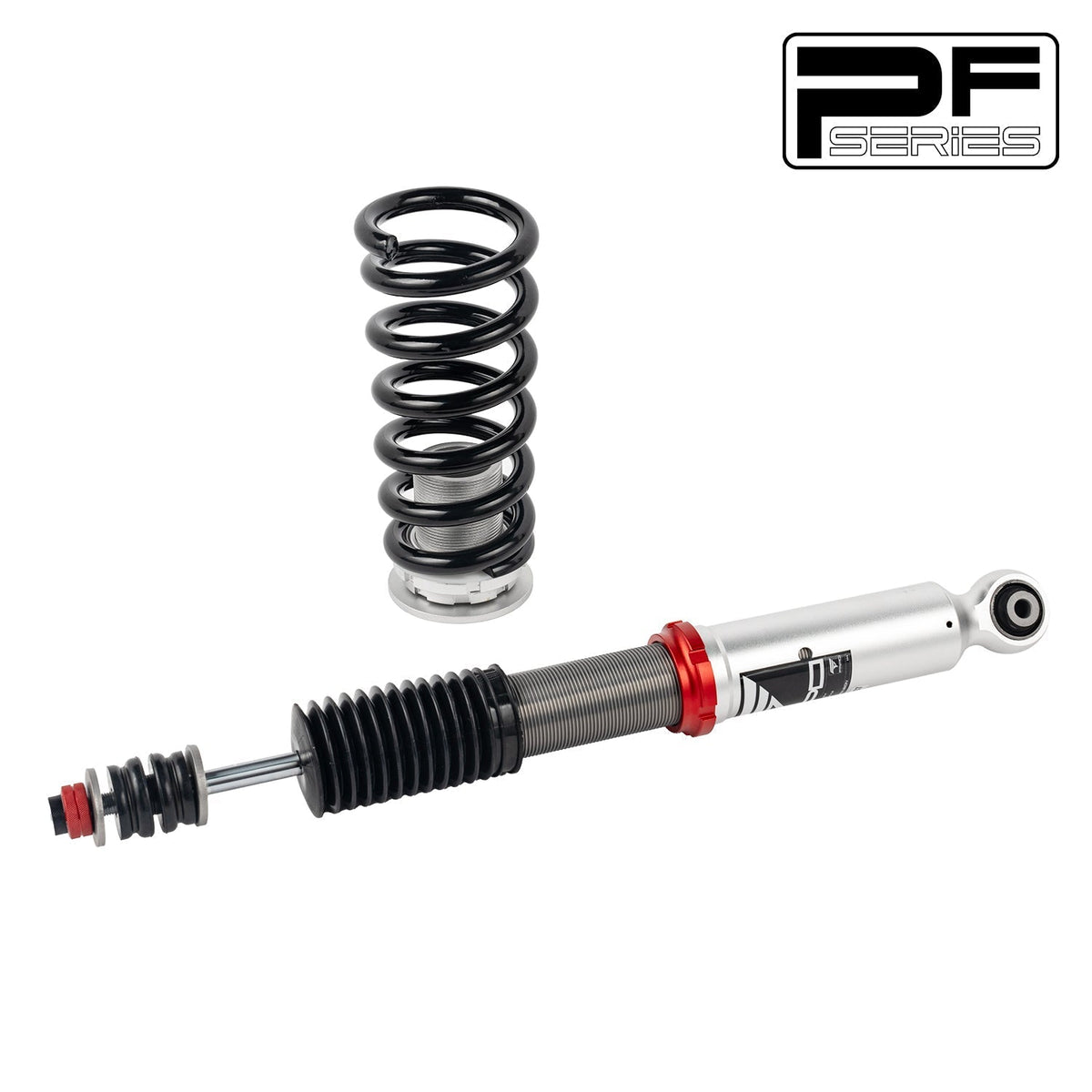

• Rear Shock: 45-255-150-12.5-M12 [2-44R03-6]

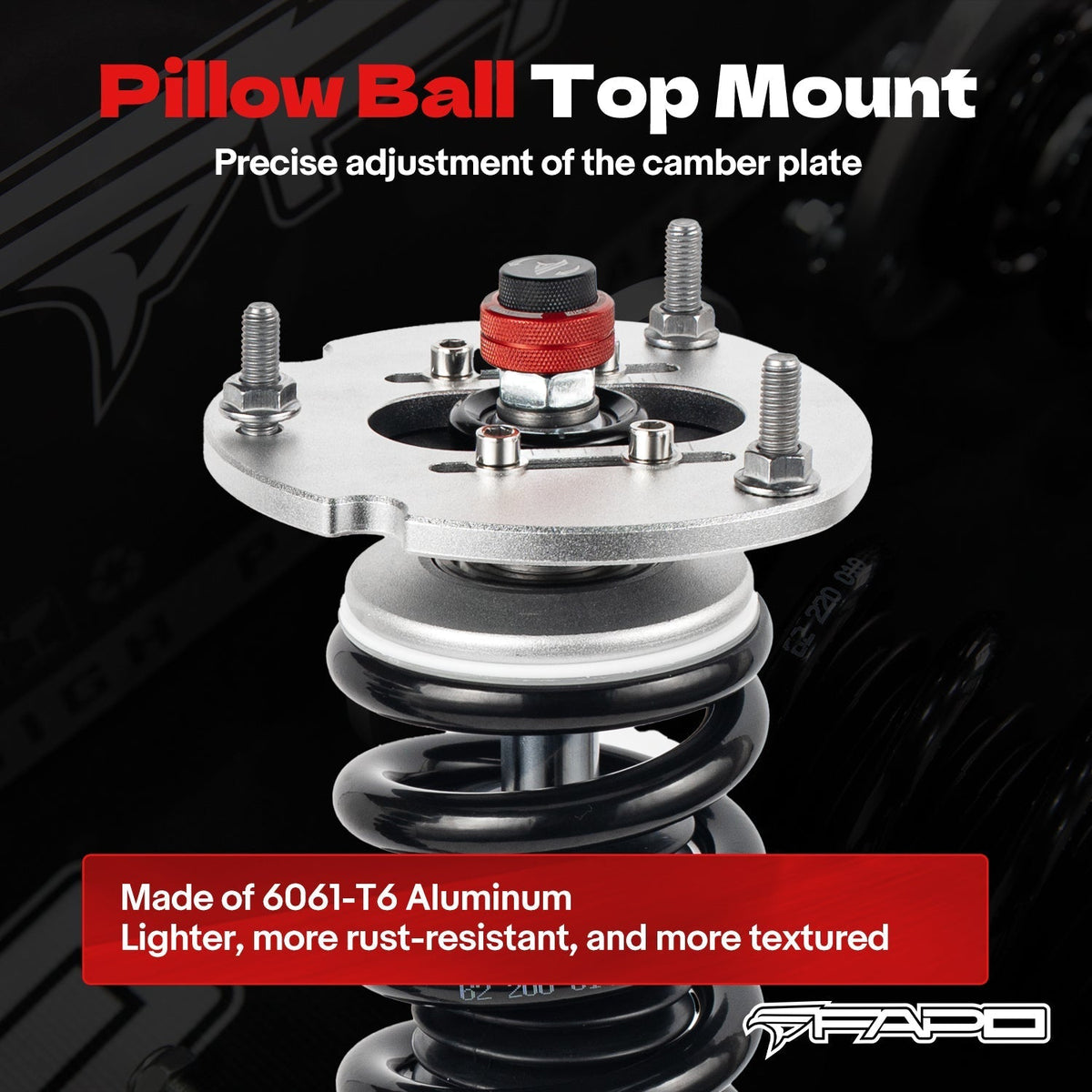

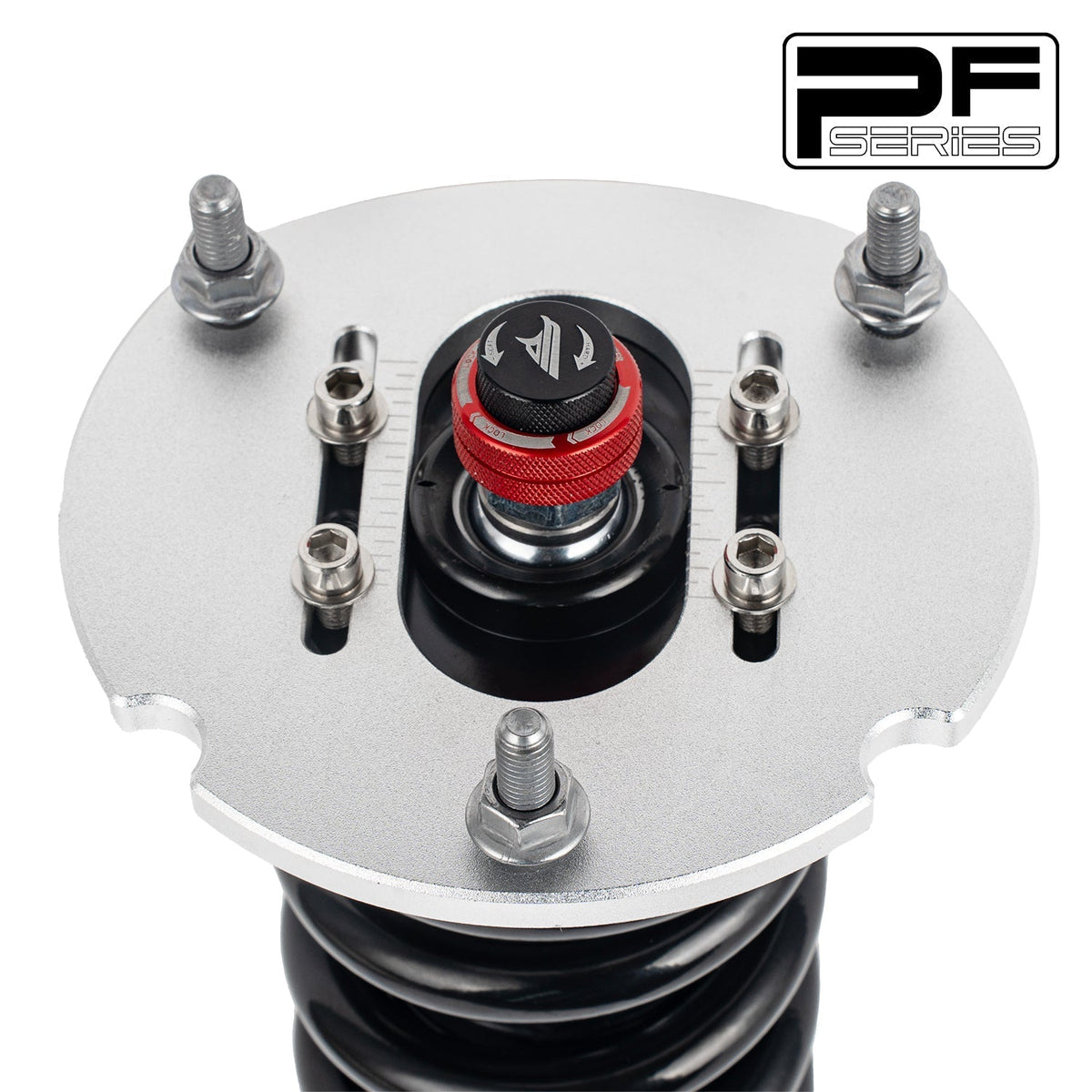

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
