FAPO PF 32-Level Coilovers Volvo V60 1st Gen DE 11-18 & Volvo V60 1st Gen DE 2011-2018 [PF027230]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

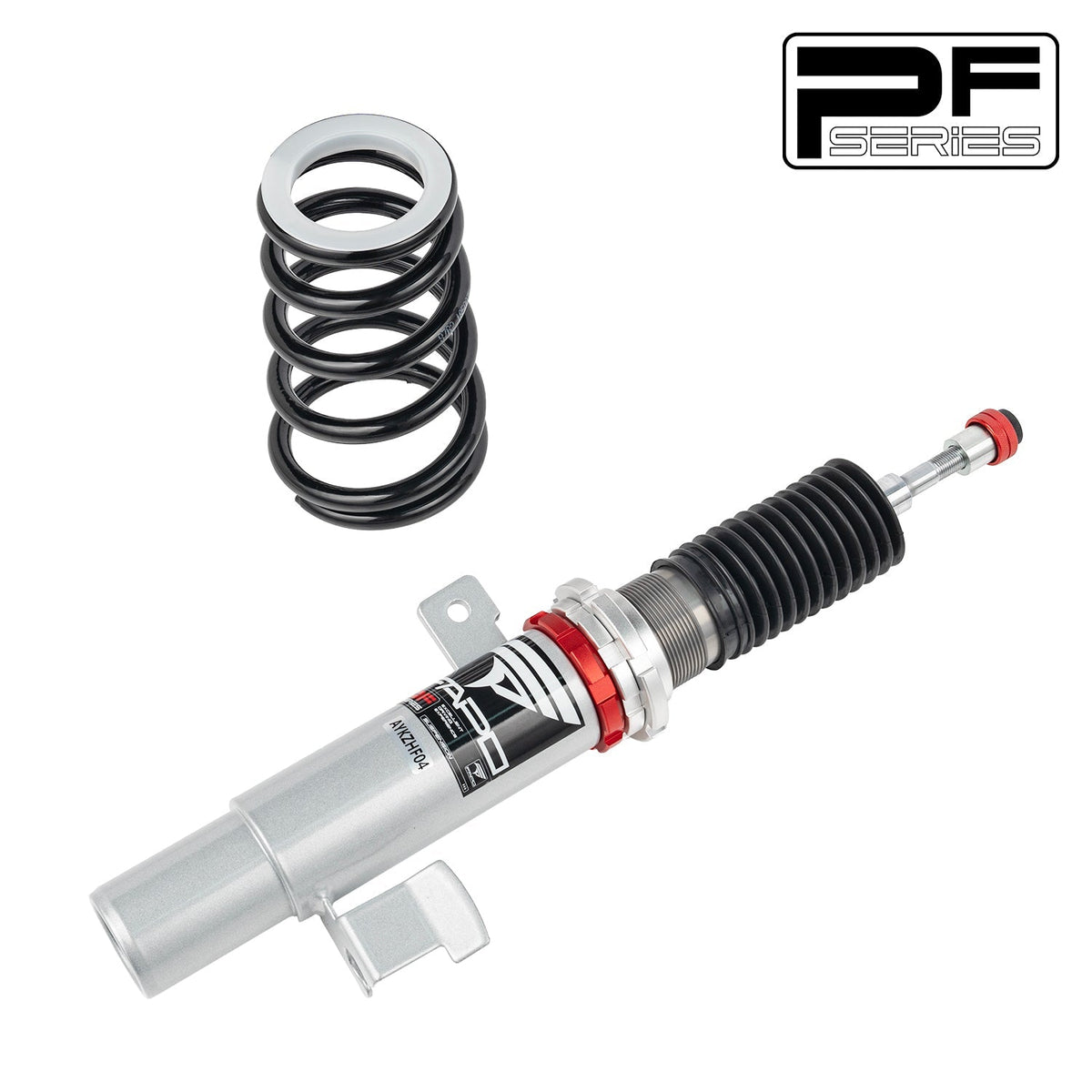

The FAPO PF kit for the Volvo V60 1st Gen DE 11-18 & Volvo V60 1st Gen DE 2011-2018 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Spring upgrades (select above): higher or lower spring rates, with standard springs or Swift springs, can be added when you order.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Ford Mondeo MK4 3rd Gen CD345 2007-2014
• Volvo V60 1st Gen DE 2011-2018
• Volvo V70 3rd Gen US 2007-2016
• Volvo S60 2nd Gen P3 2010-2018
• Volvo S80 2nd Gen P3 2006-2016
• Volvo XC60 1st Gen AU 2008-2017
• Volvo XC70 3rd Gen US 2007-2016

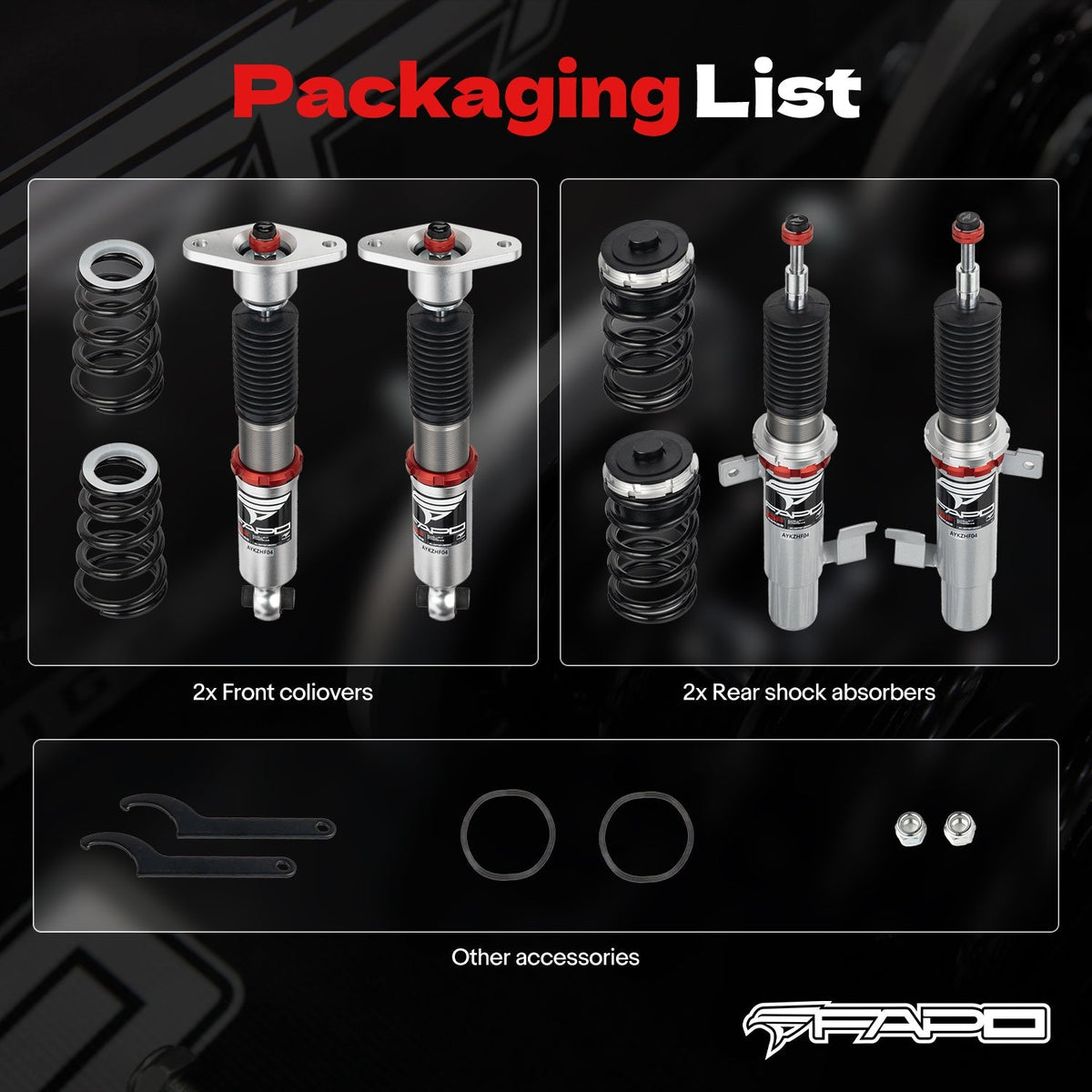

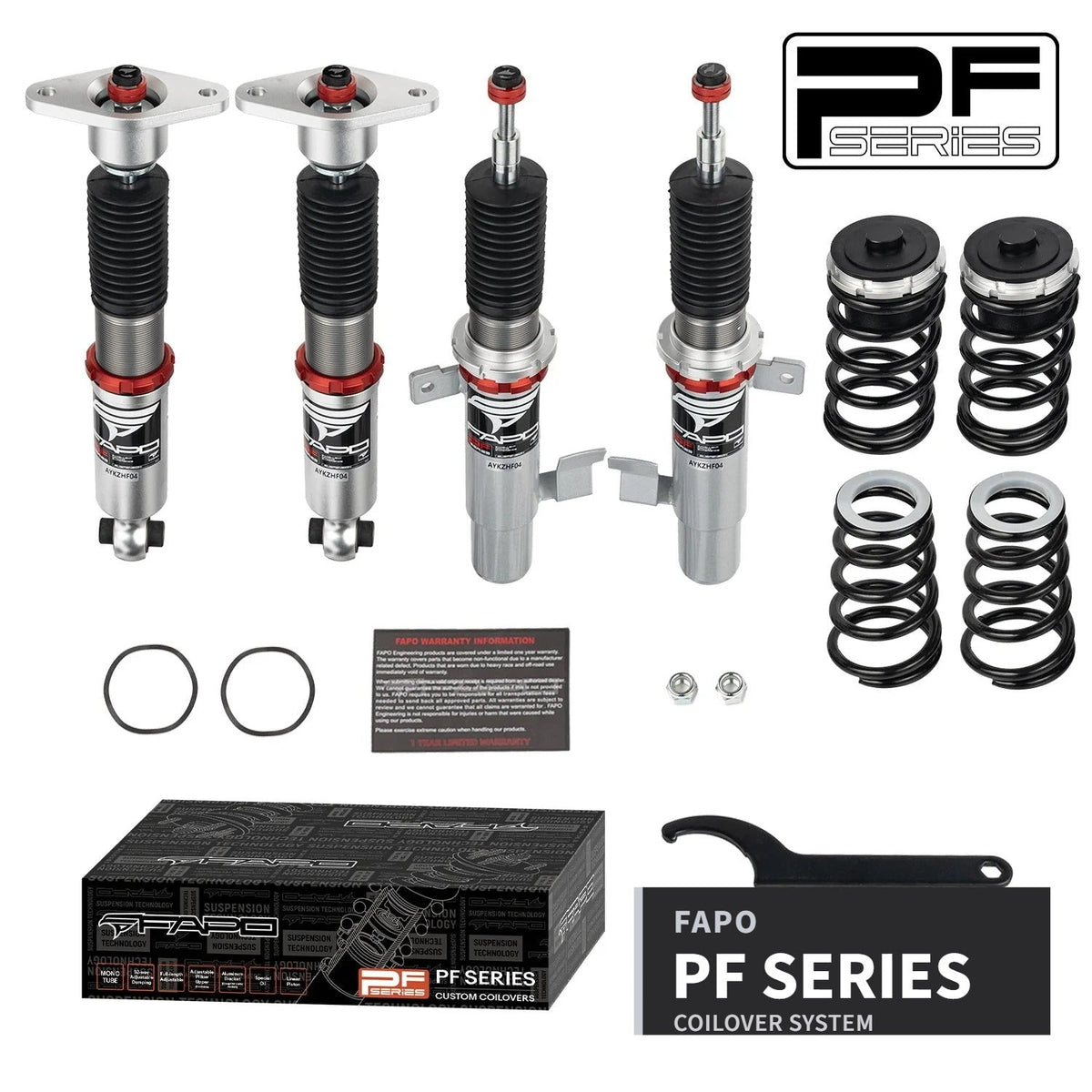

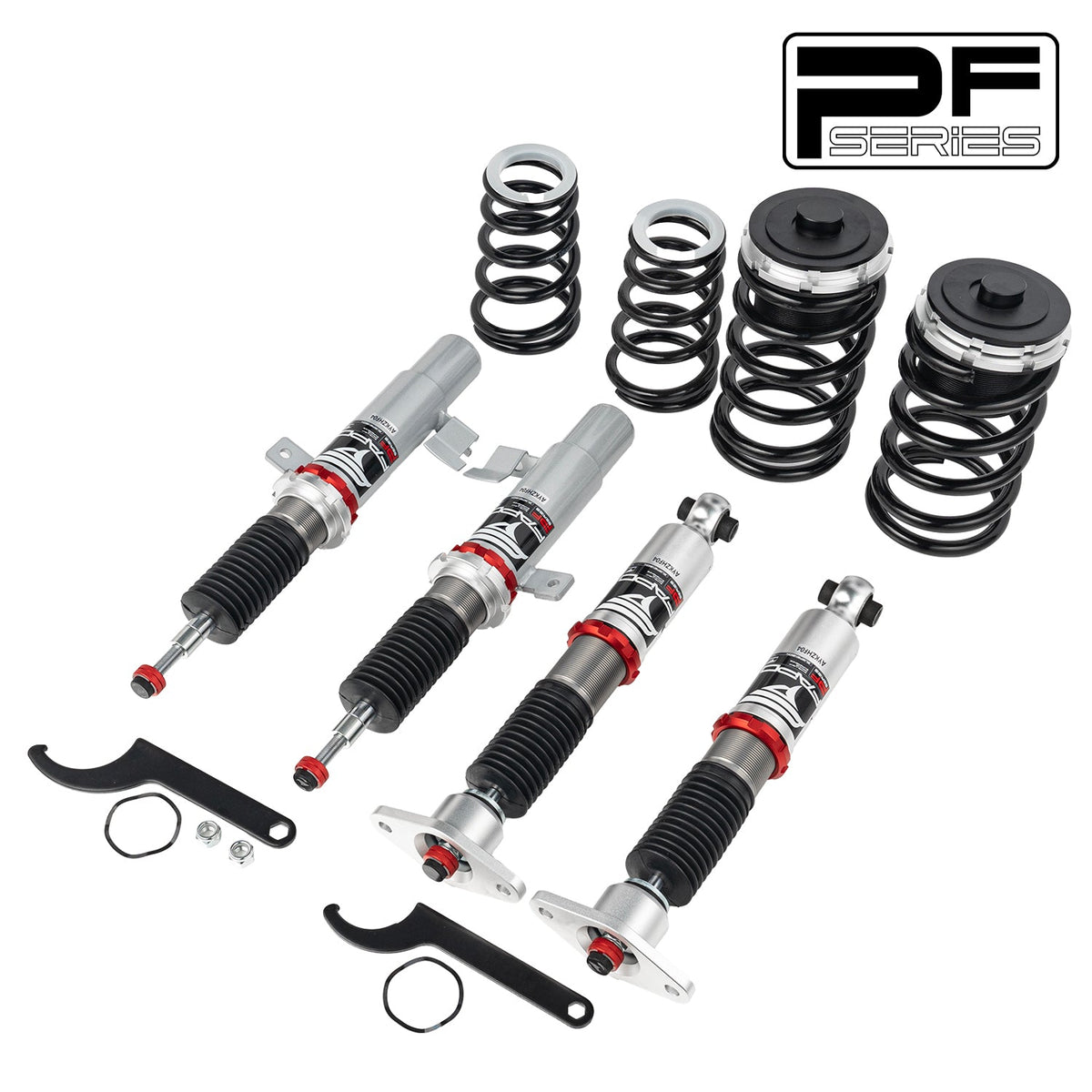

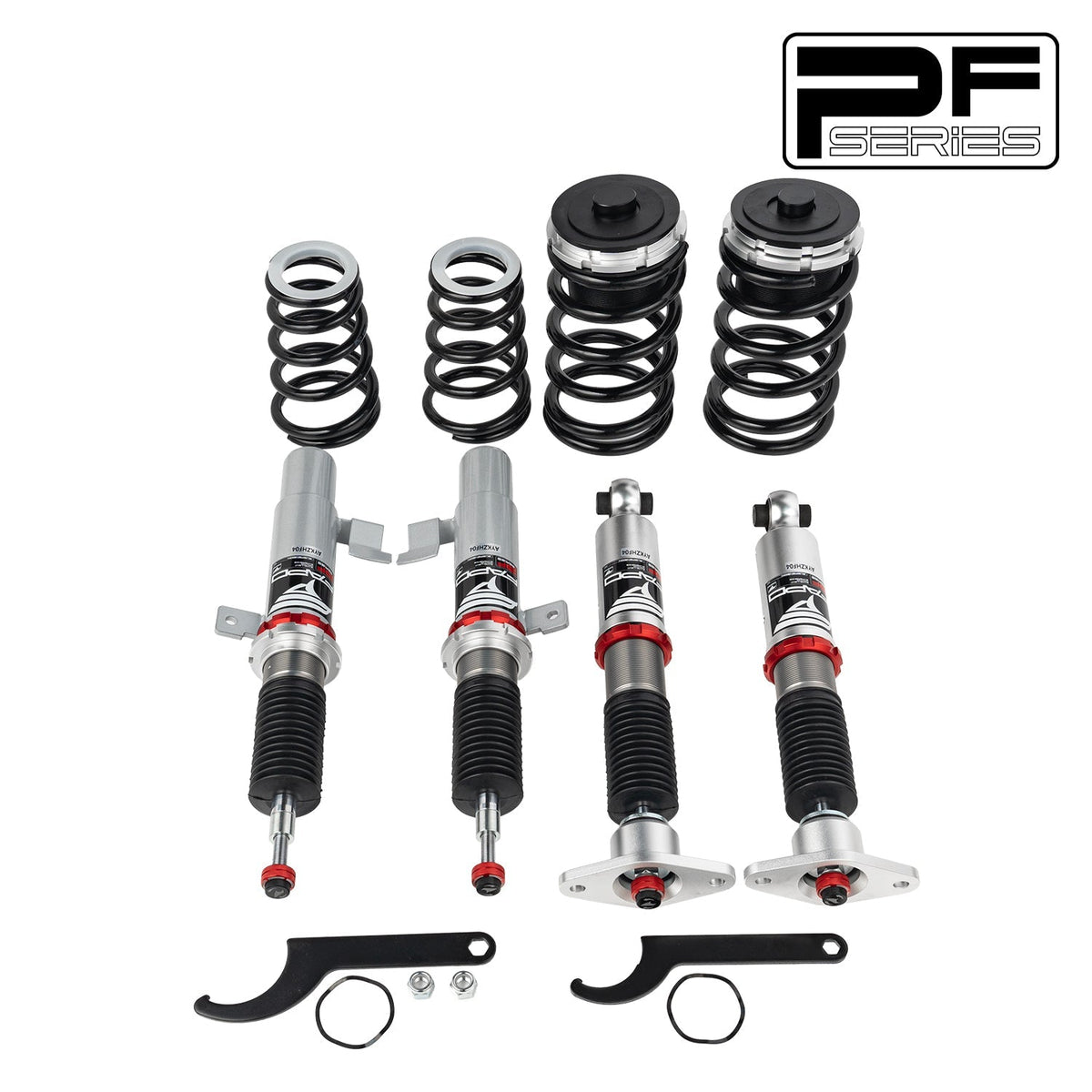

Package Includes

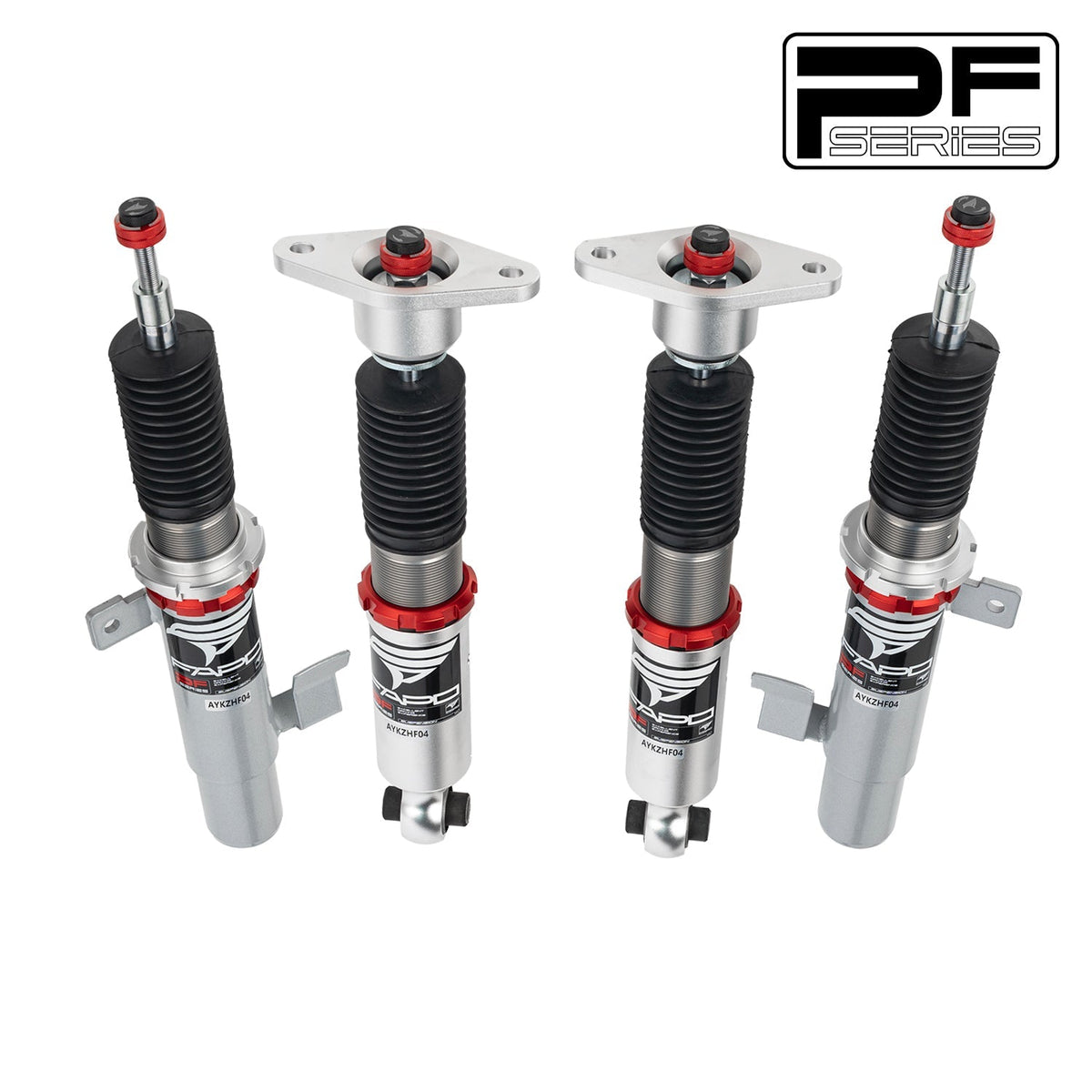

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

Note: Our coilover is a lowering kit which will be 1-1.5"" lower than the factory height even at the max height. Please confirm you want to lower your car before purchasing.

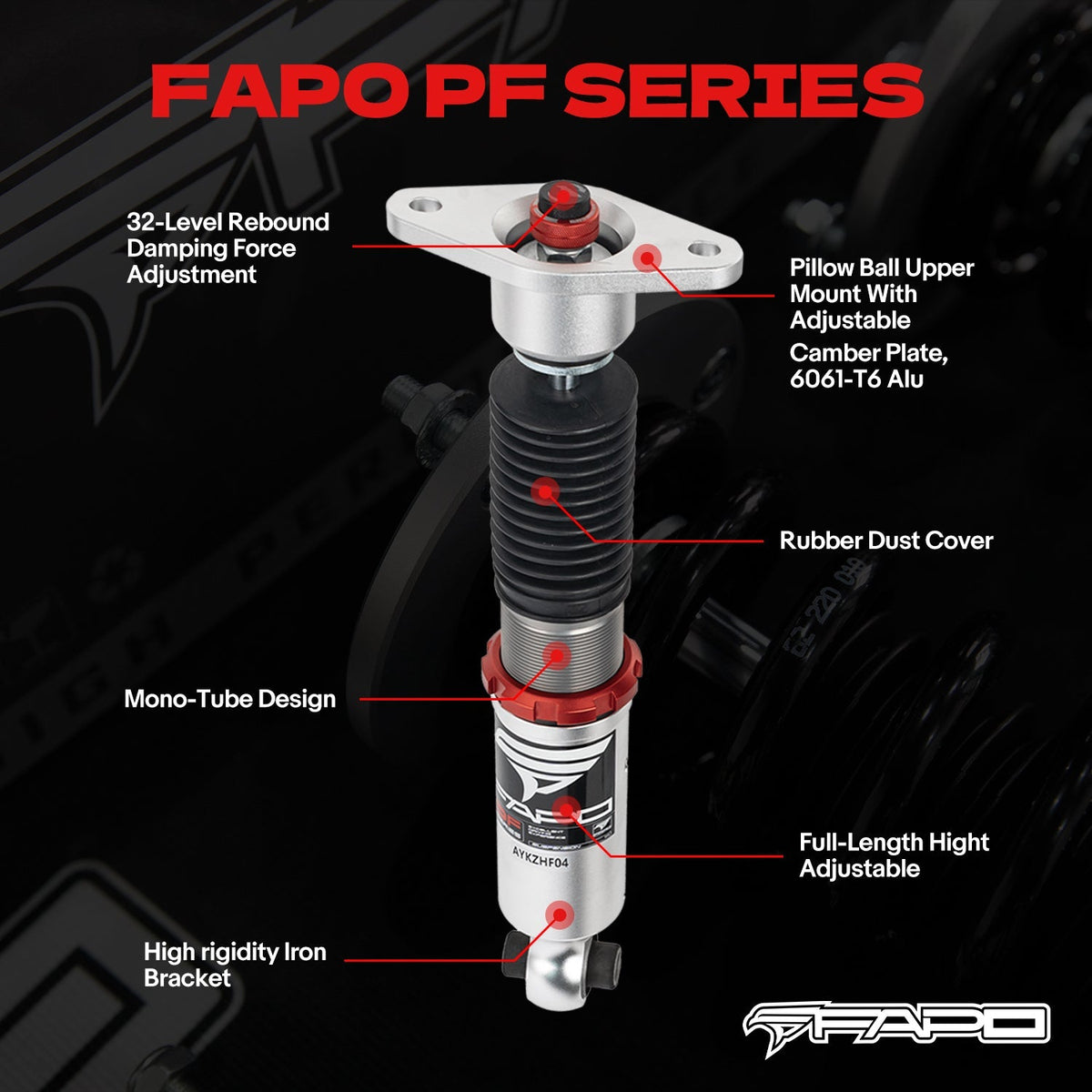

Features

• Mono-tube shock design provides larger capacity of oil and gas
• Adjustable ride height

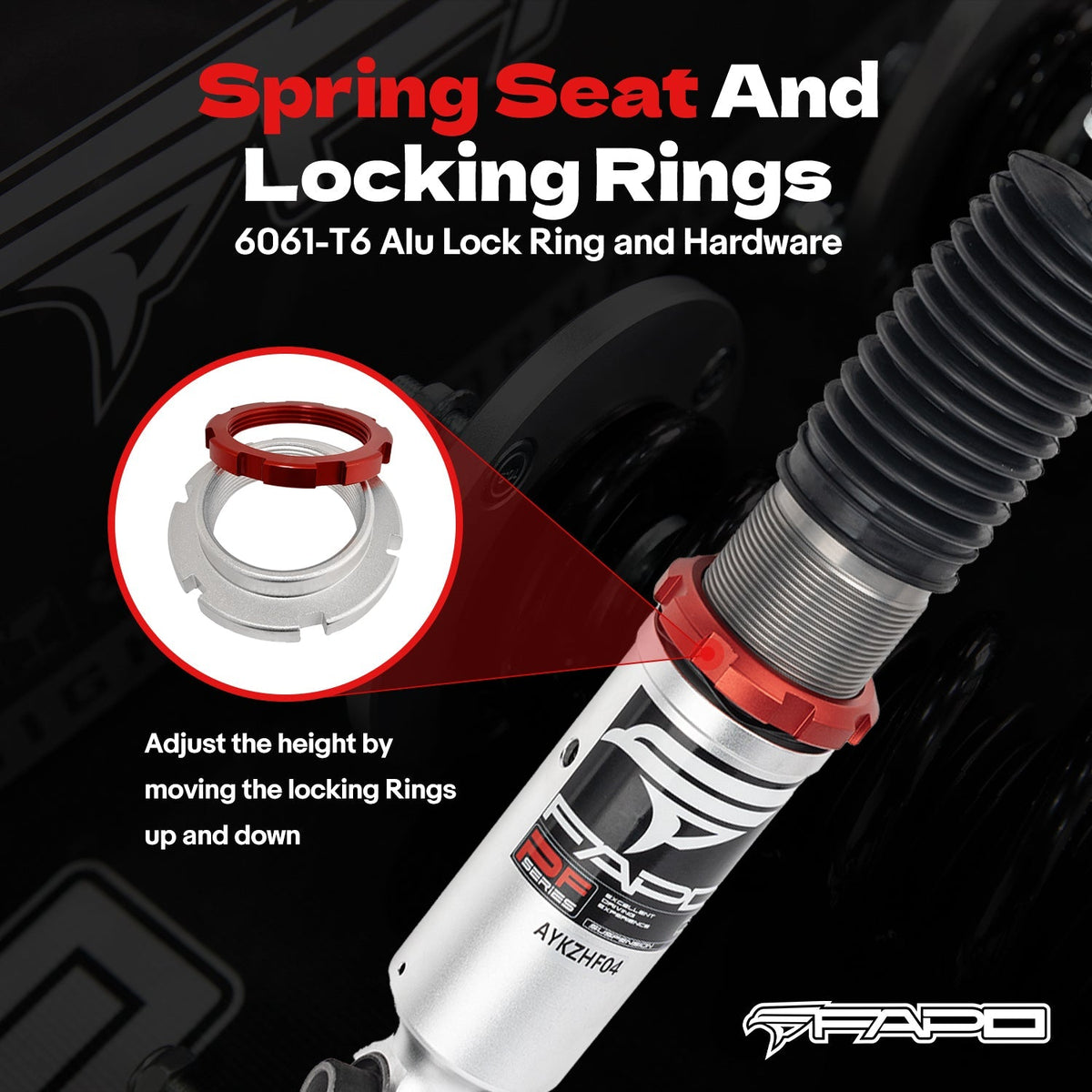

• Adjustable pre-load spring tension

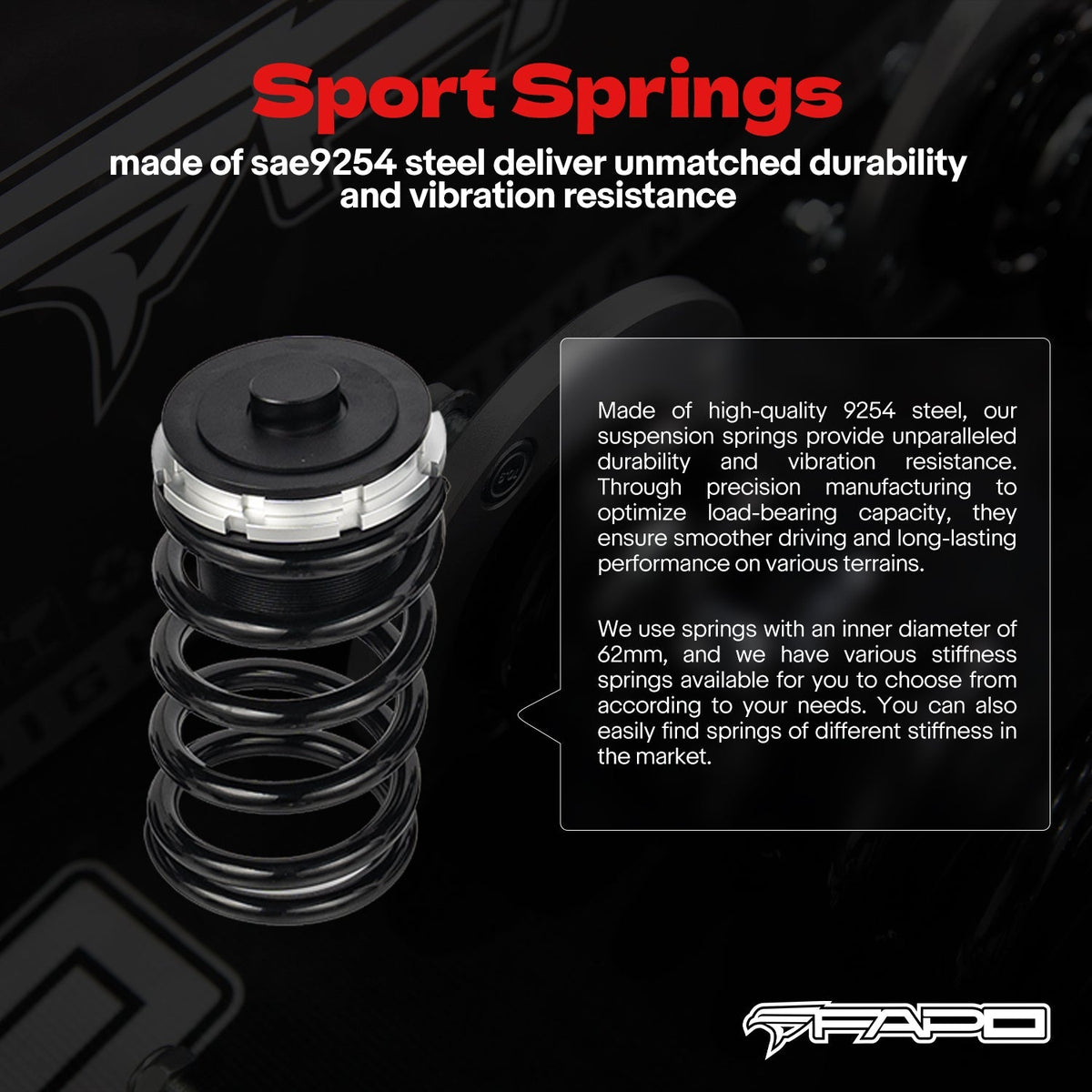

• High tensile performance spring - Under 600,000 continuous tests, spring distortion is less than 0.04%. Special surface treatment improves durability and performance

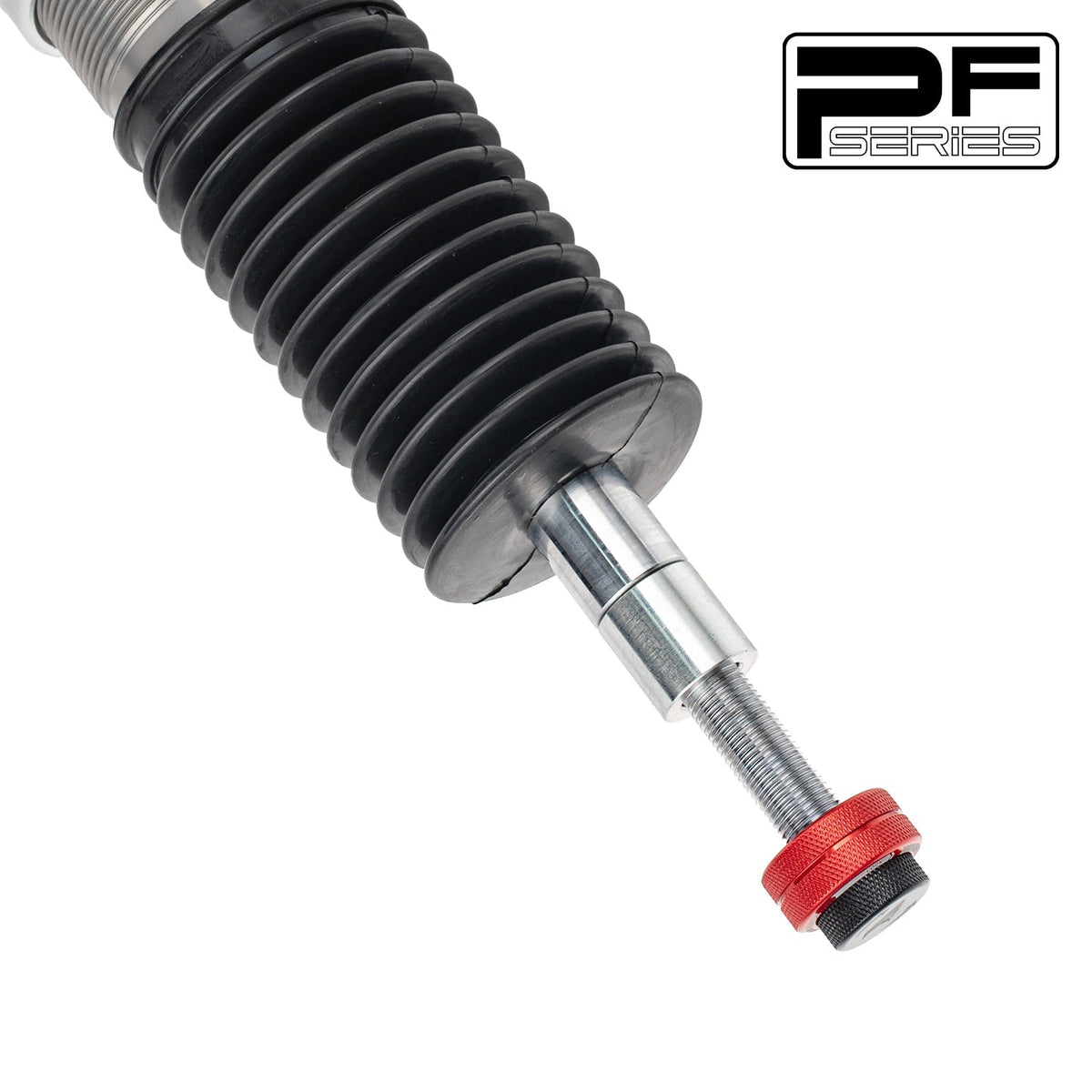

• All inserts come with fitted rubber boots to protect the damper and keep clean
• Improves handling performance without sacrificing ride comfort
• Fast and affordable way to upgrade your car's appearance
• Easy installation with right tools
• Ideal for track, drift, fast road and daily driving
• Accessories shown in photos are included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 185mm, 7 kg/mm (390 lb/in)
• Rear Spring: 225mm, 8 kg/mm (445 lb/in)
• Ride Height: lowers 1-1.5 in from factory

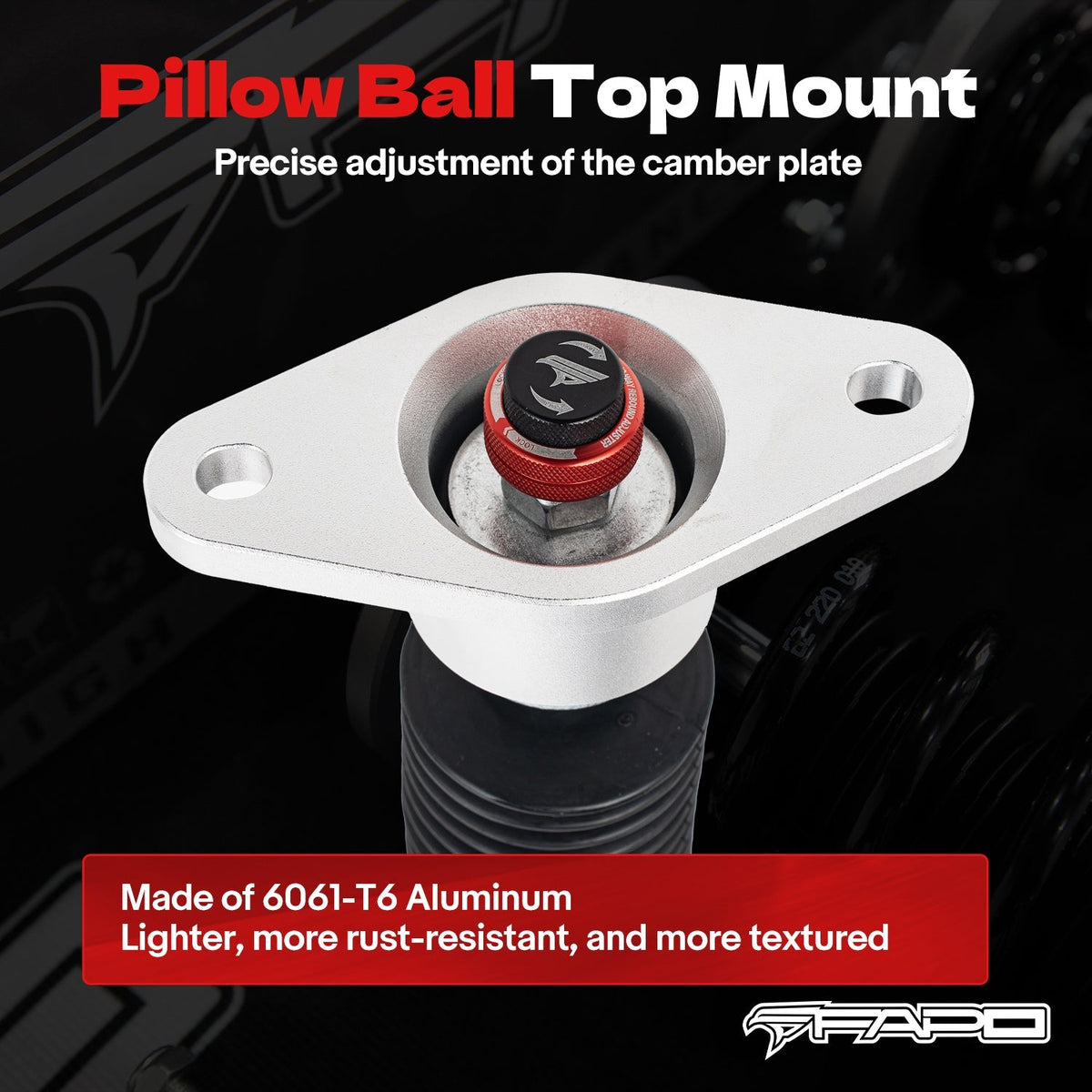

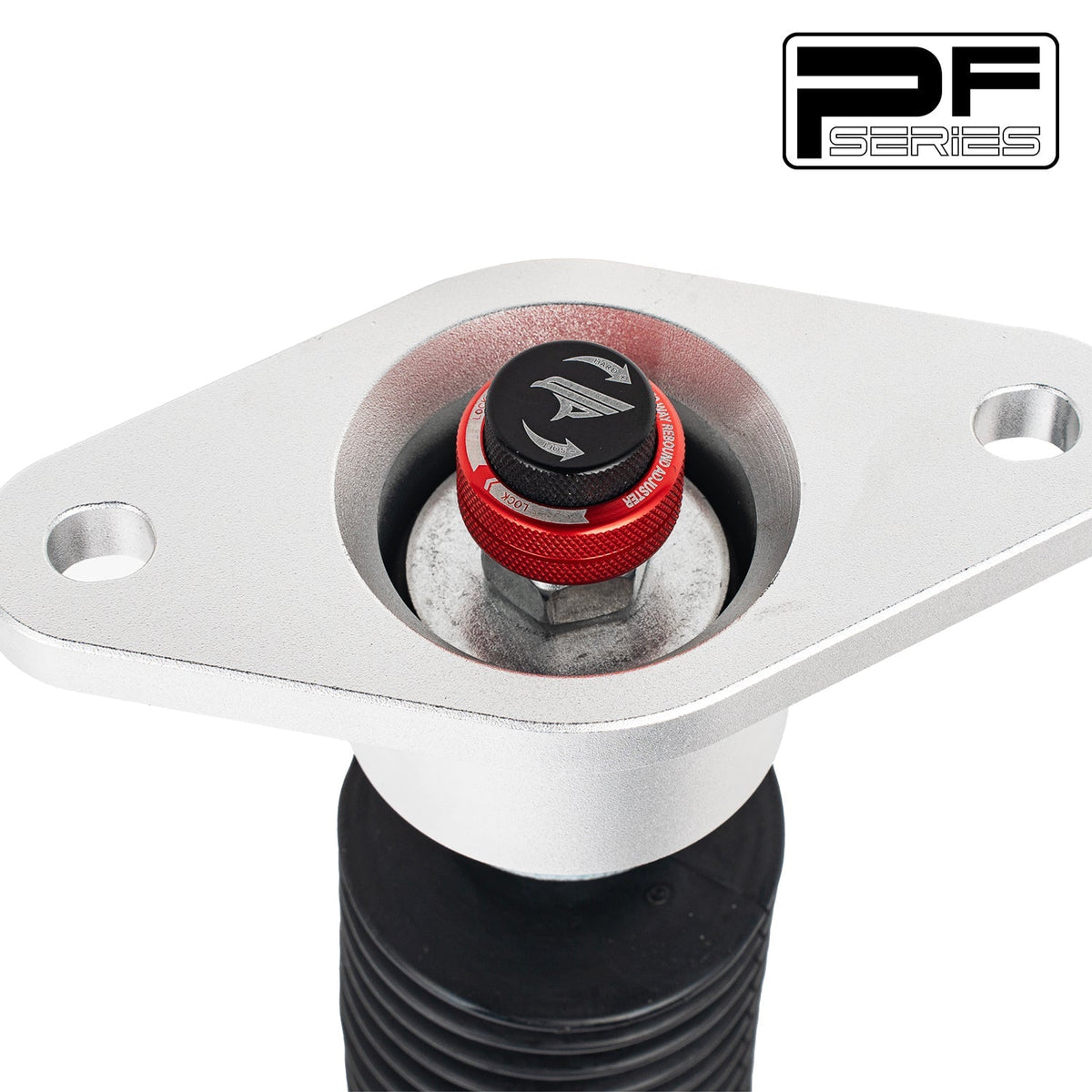

• Adjustable camber plate: Front only; Rear with standard top mounts

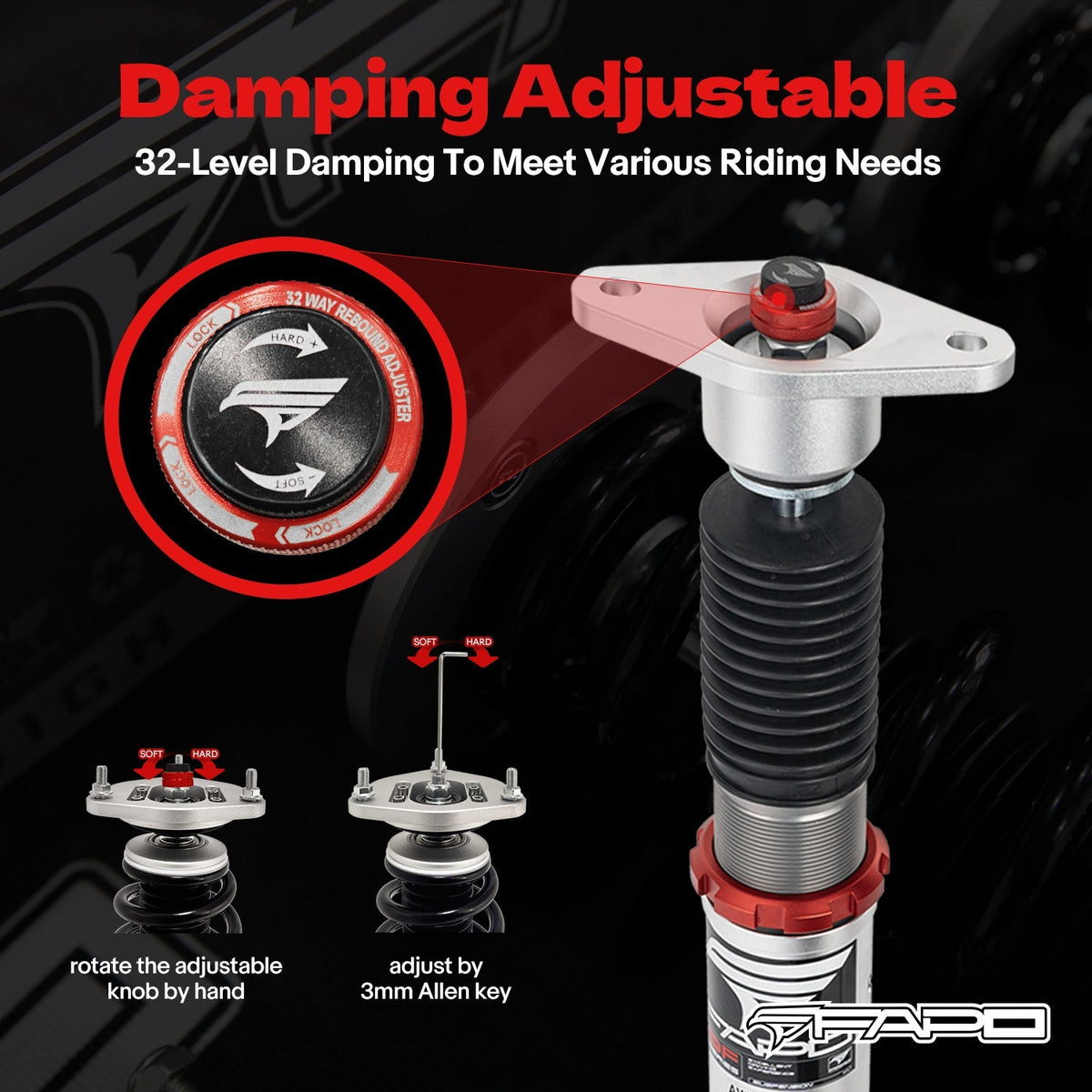

• Damping: 32 Levels

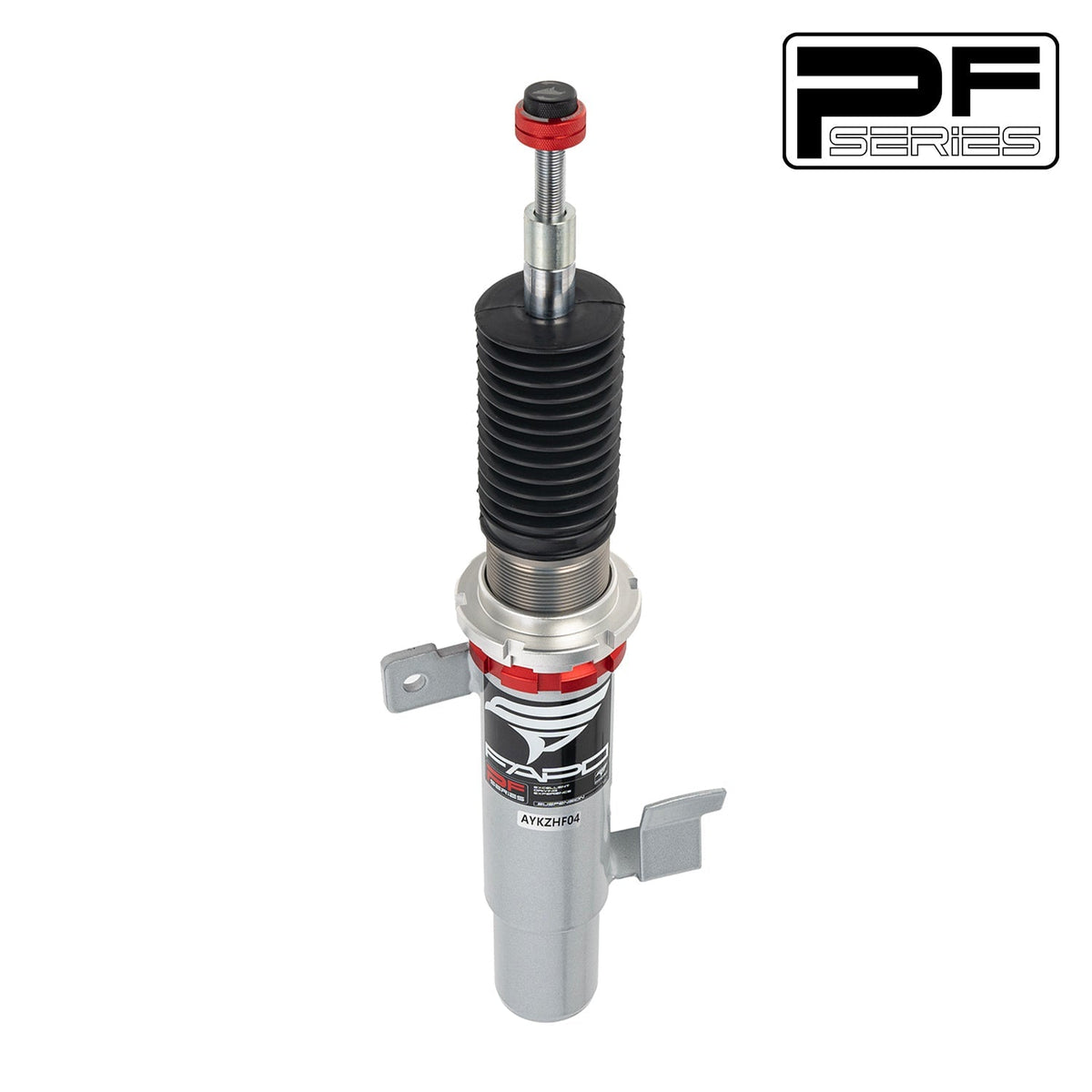

• Front Shock: 53-230-110-20-M12 [4-M2-4]

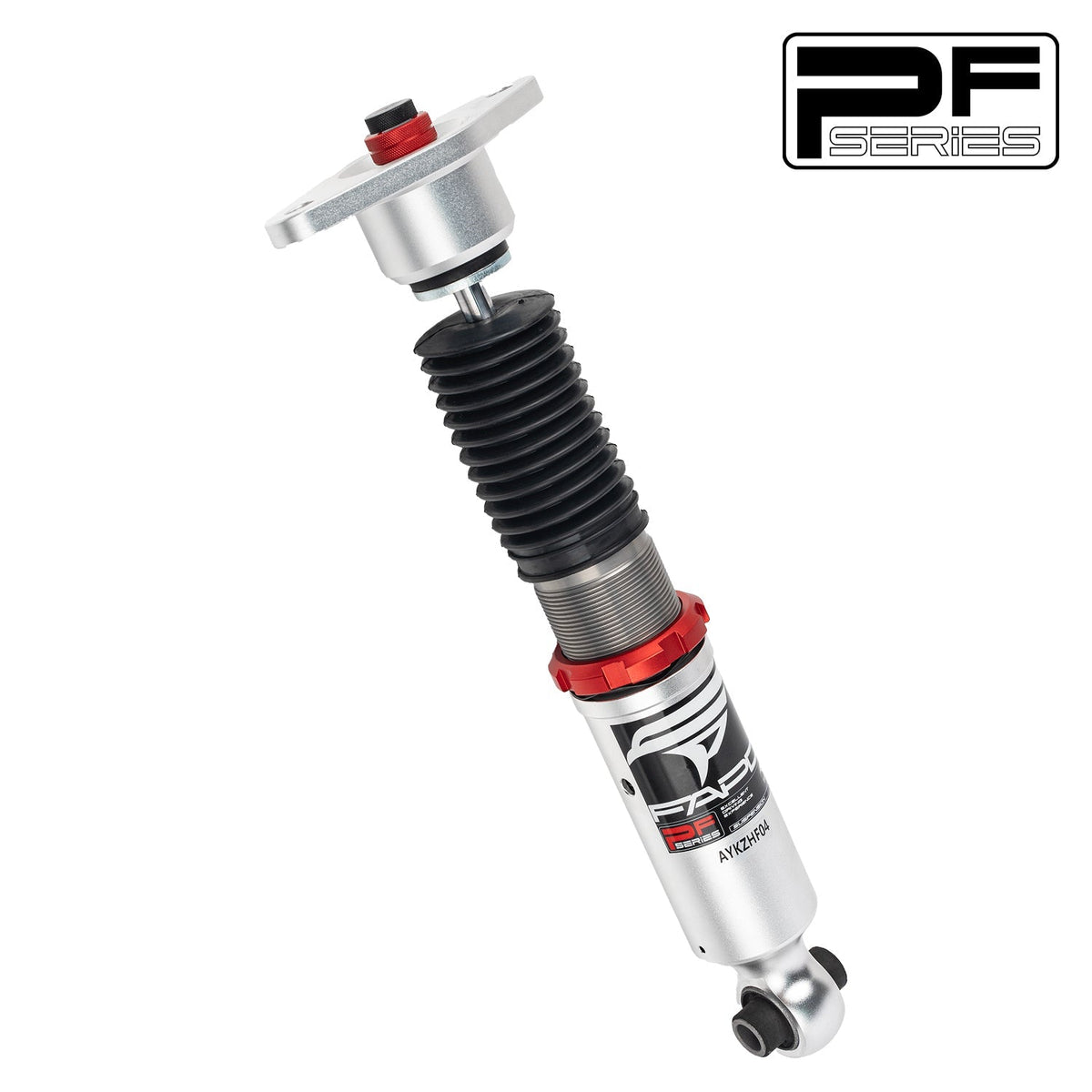

• Rear Shock: 53-190-105-12.5-M12 [4-A1-9]
• Mounts: Front: OEM top mounts required | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
