FAPO PF 32-Level Coilovers Toyota Corolla iM / Scion iM 2008-2018 & Prius V 2012-2017 [PF065620]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Toyota Corolla iM / Scion iM 2008-2018 & Prius V 2012-2017 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• 2016 Scion IM E186
• Scion iM 2008-2018
• Toyota Corolla iM 2008-2018
• Toyota Prius 2012-2017

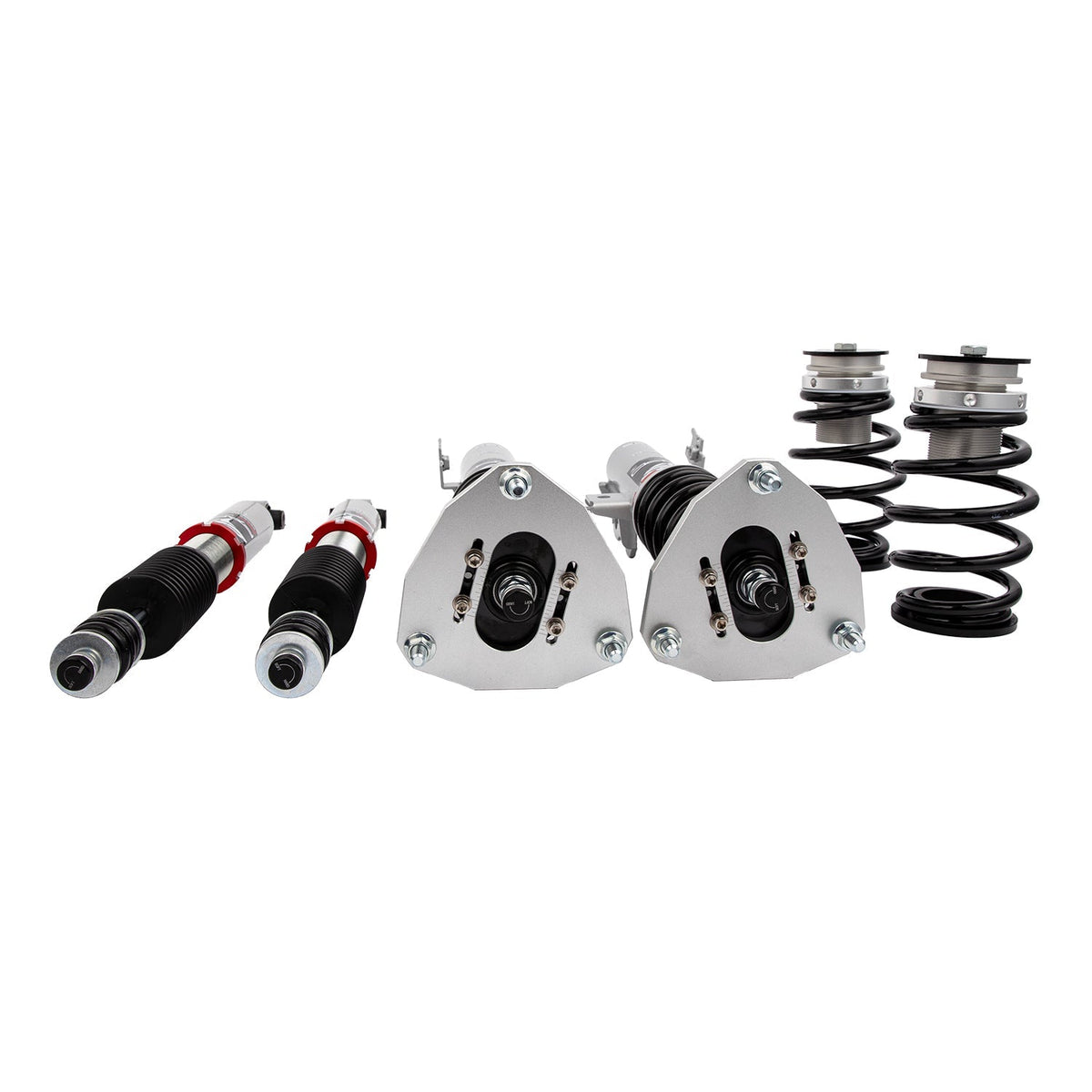

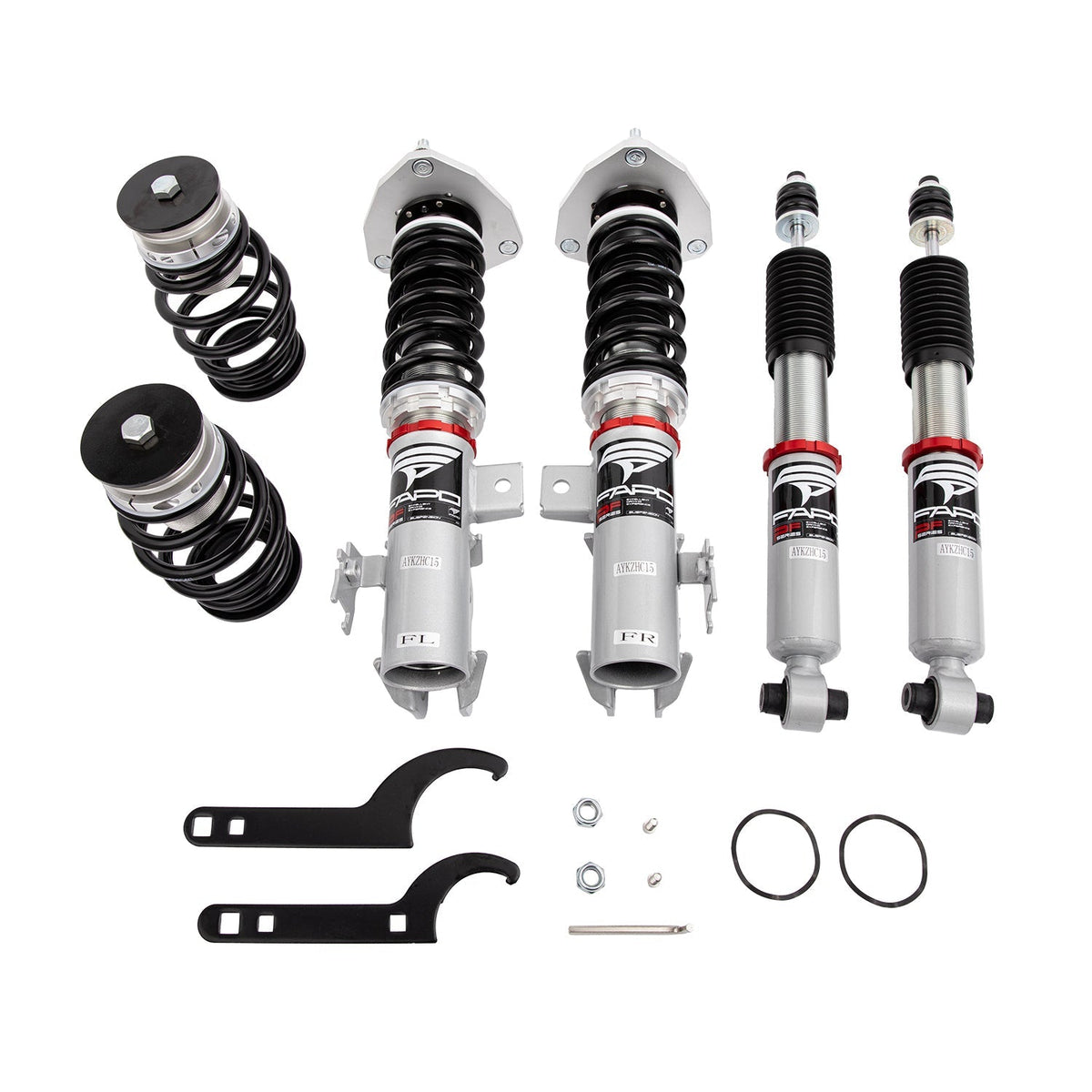

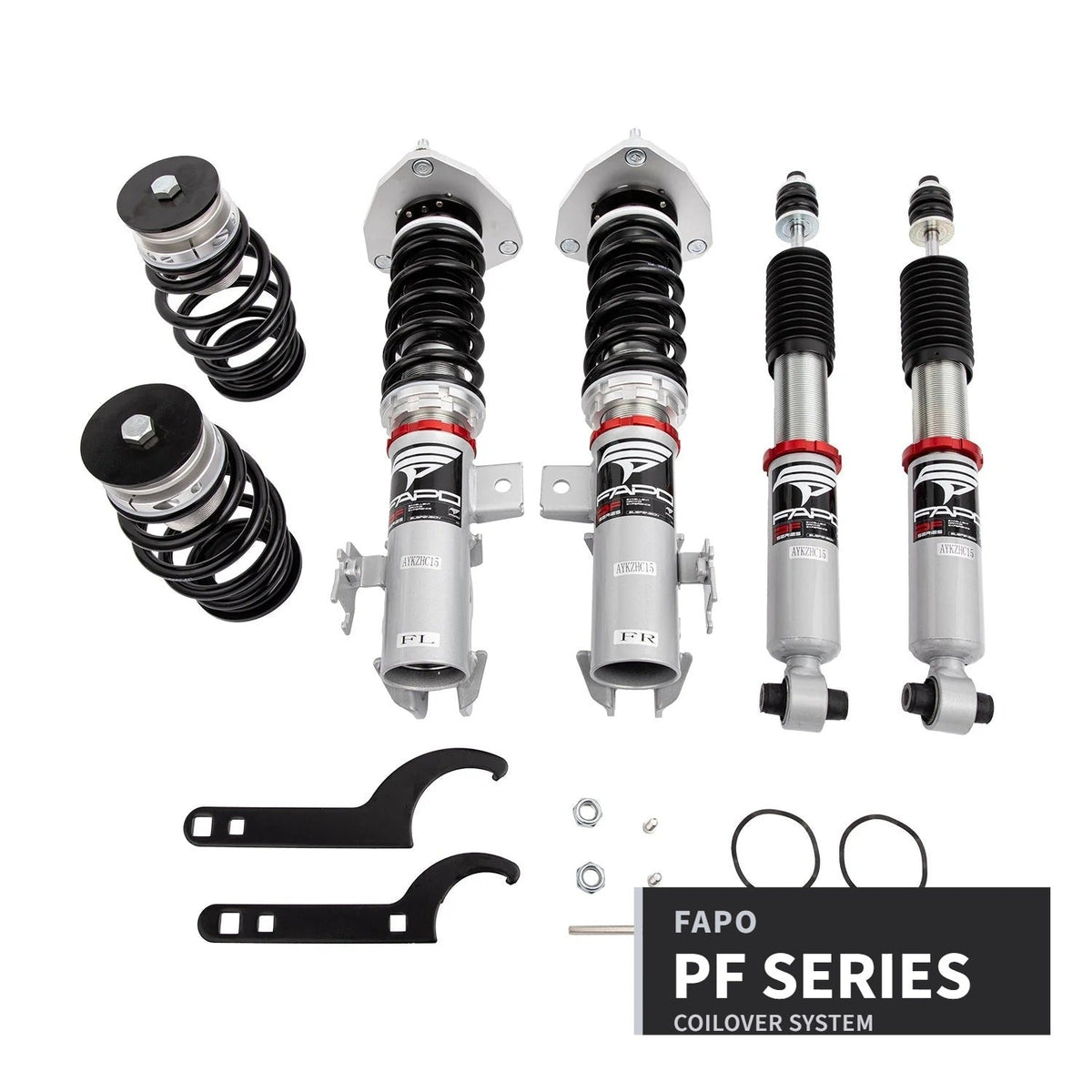

Package Includes:

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs


Note: This coilover kit is designed to lower your car by 1¨-1.5" compared to the factory height, even at its maximum setting. Please confirm this suits your needs before purchasing.

Features:

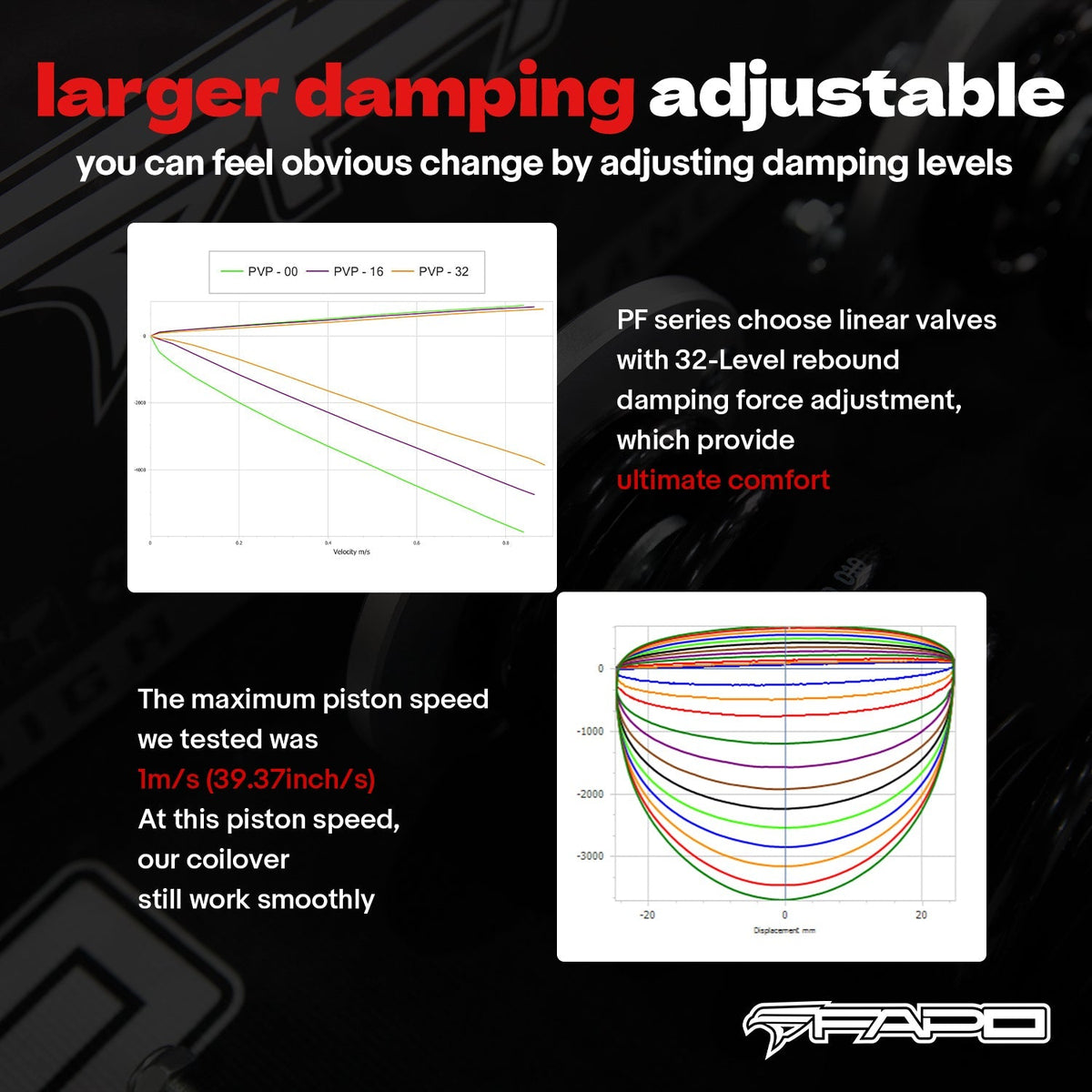

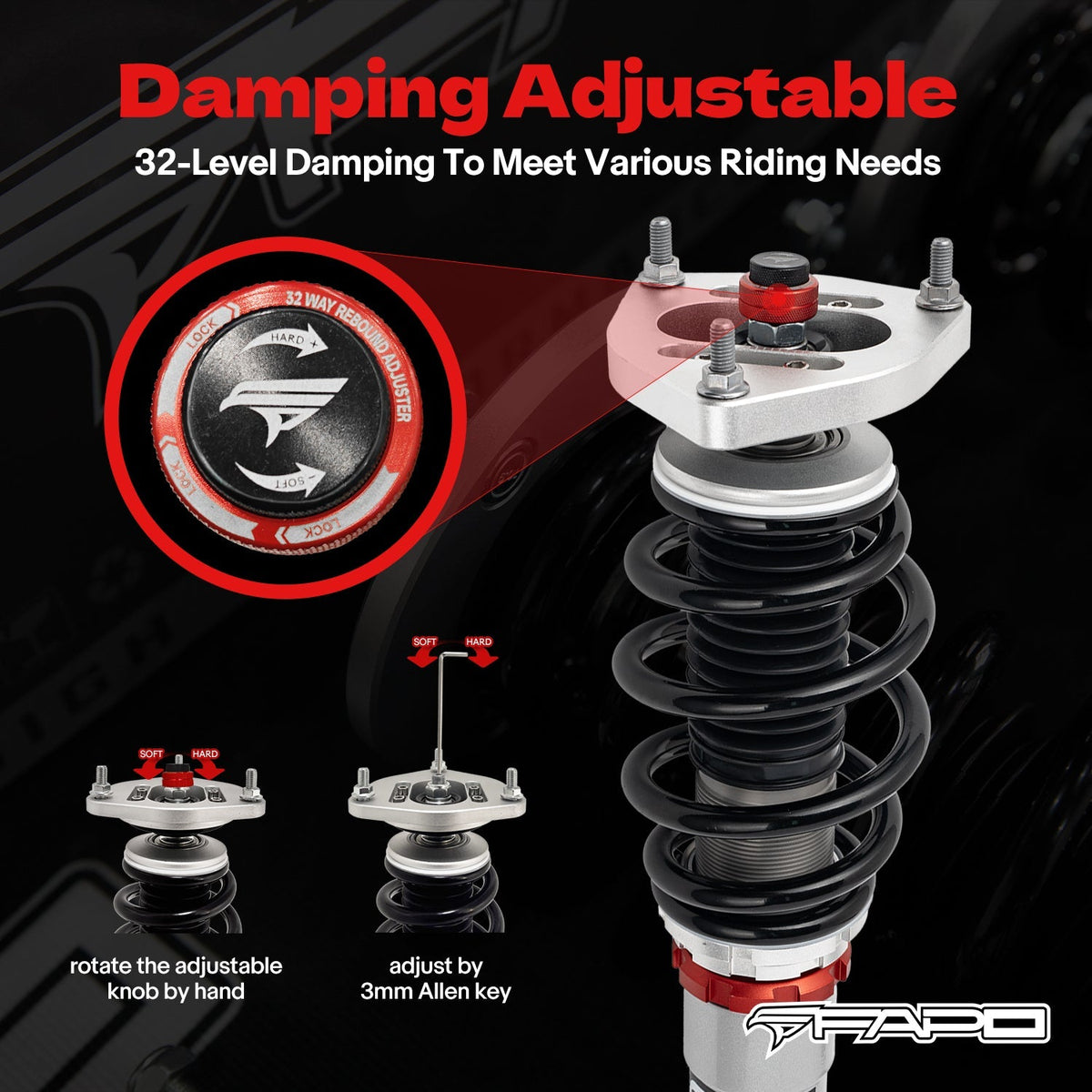

• 32-way adjustable damping allows precise tuning for comfort, track, or aggressive street driving

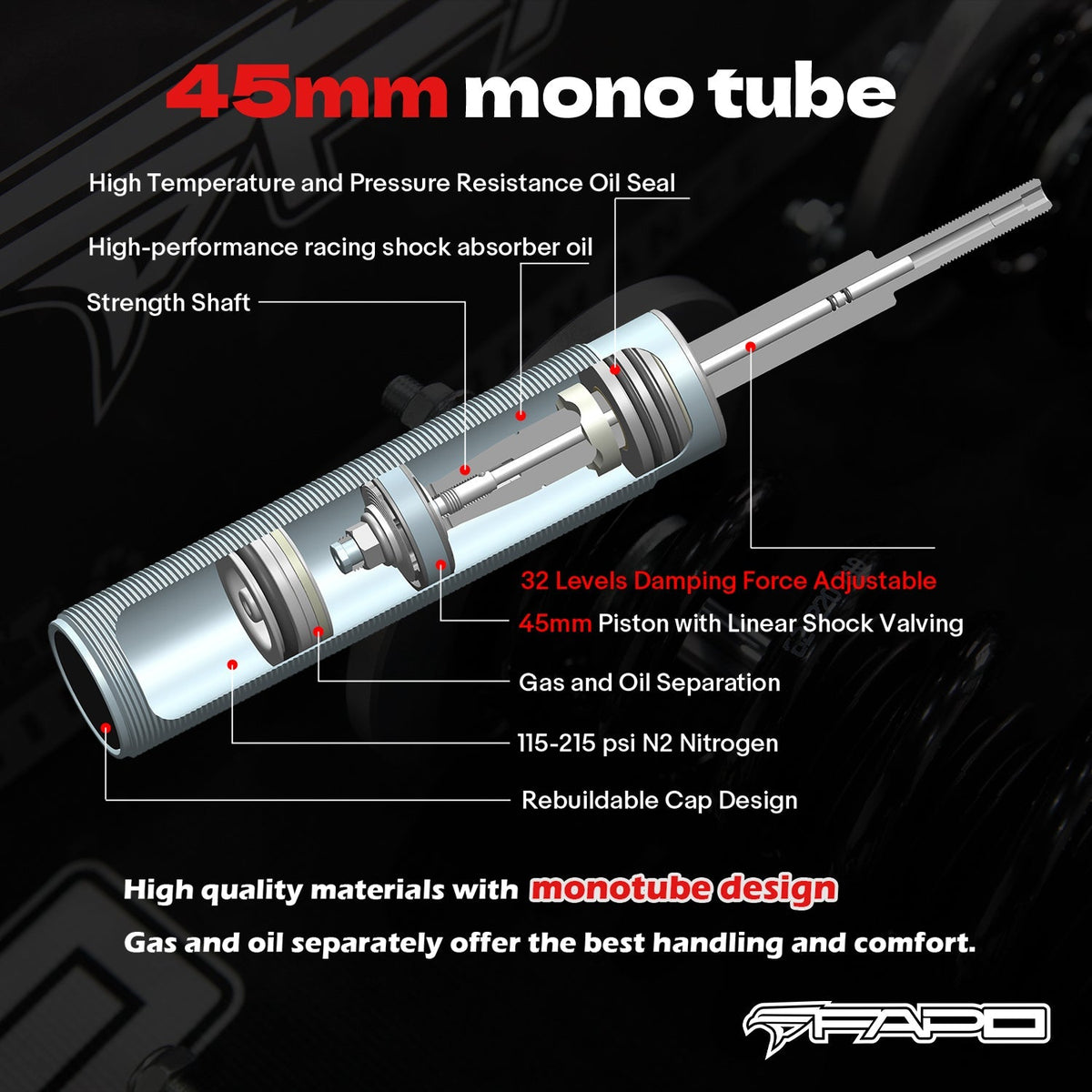

• Mono-tube shock design provides larger oil and gas capacity

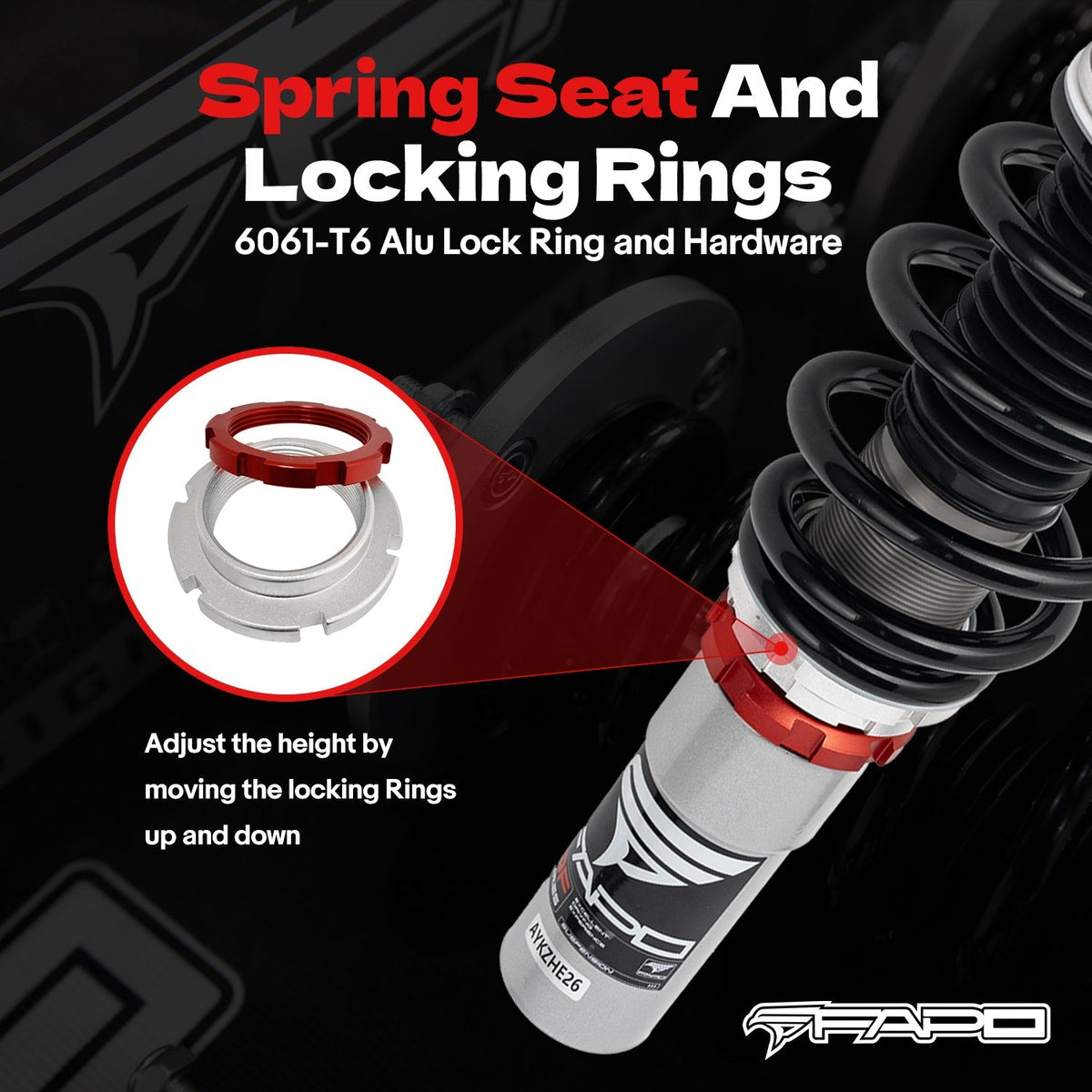

• Adjustable ride height for customized performance
• Adjustable pre-load spring tension for enhanced handling

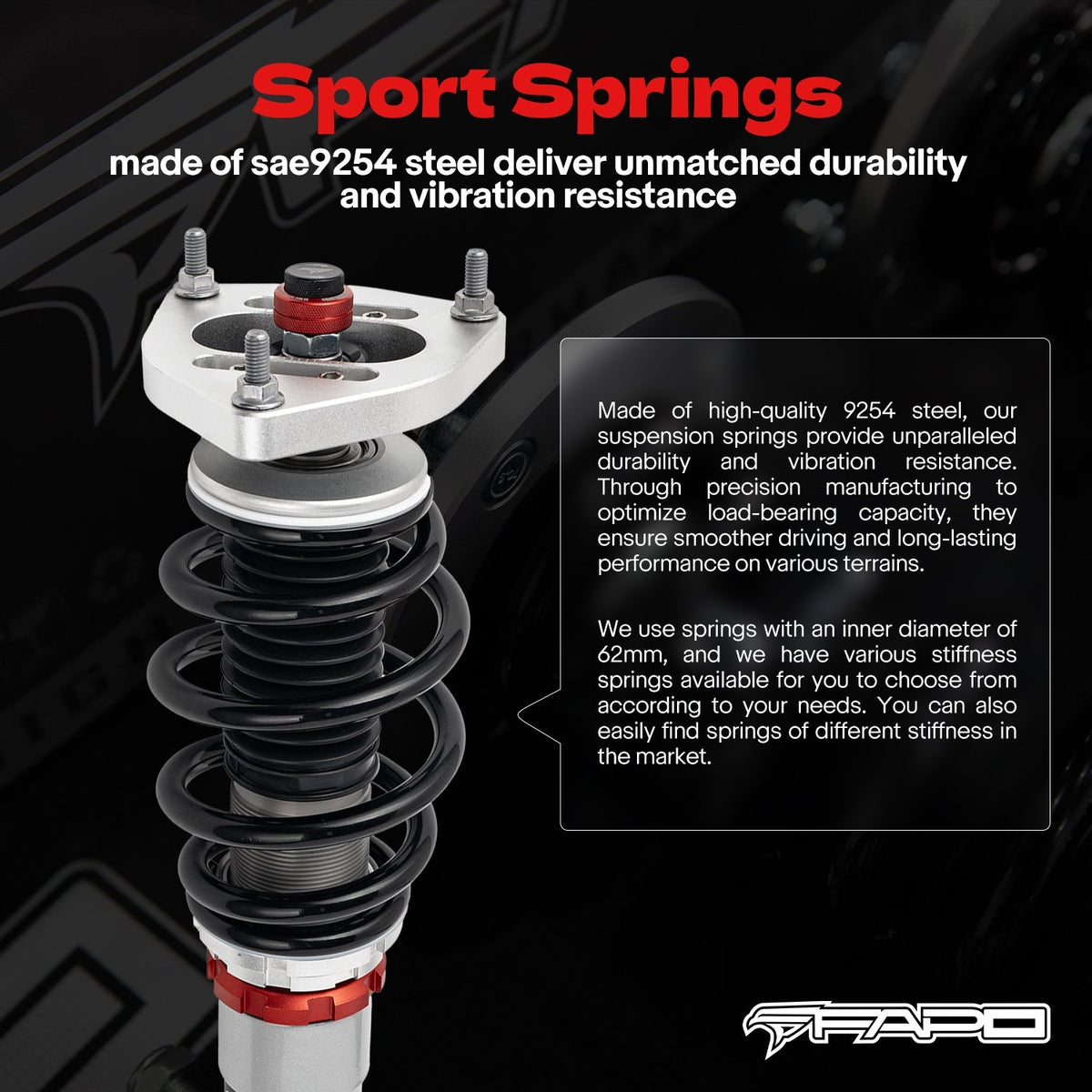

• High tensile performance spring: less than 0.04% distortion after 600,000 continuous tests, with special surface treatment for durability
• Rubber boots on all inserts to protect the damper and keep it clean
• Improves handling without sacrificing ride comfort
• Quick and affordable way to upgrade your car's appearance
• Easy installation with standard tools
• Ideal for track, drift, fast road, and daily driving
• Accessories shown in photos are included
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Shock: 53-260-120-20-M12 [4-M2-3]
• Rear Shock: 45-255-135-12.5-M12 [2-44R03-7]
• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required
• Front Spring: 180mm, 6 kg/mm (335 lb/in)
• Rear Spring: 160mm, 4 kg/mm (225 lb/in)
• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
