FAPO PF 32-Level Coilovers Toyota 86/GR86, Scion FR-S & Subaru BRZ (ZN6/ZC6/ZN8/ZD8) 2012+ [PF000430]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Toyota 86/GR86, Scion FR-S & Subaru BRZ (ZN6/ZC6/ZN8/ZD8) 2012+ is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Toyota 86/GT86/FT86 1st Gen ZN6/ZC6 2012-2020
• Toyota 86/GT86/FT86/GR86 2nd Gen ZN8/ZD8 2021+
• Scion FR-S ZN6 2012+
• Subaru BRZ 1st Gen ZC6 2012-2020
• Subaru BRZ 2nd Gen ZD8 2021+

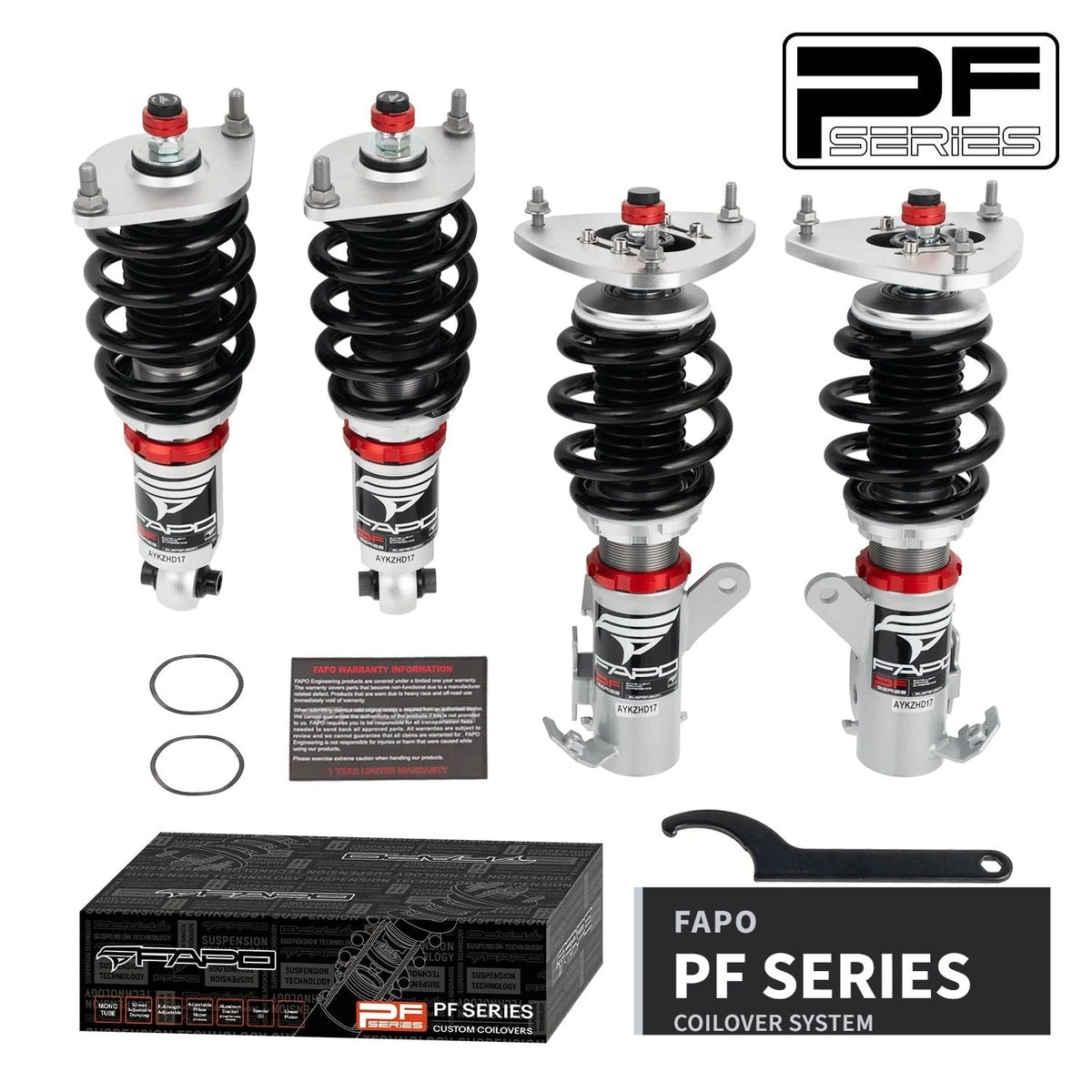

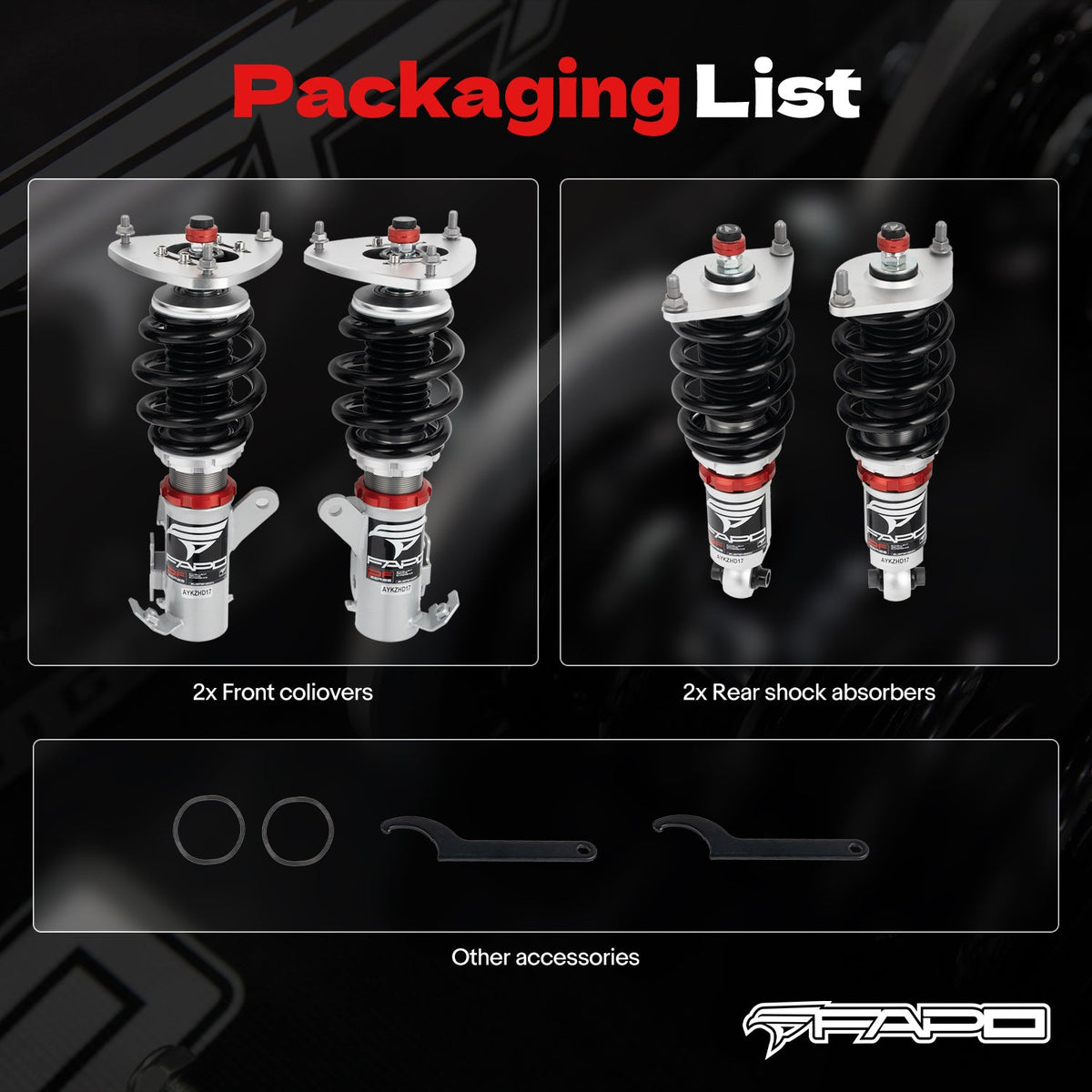

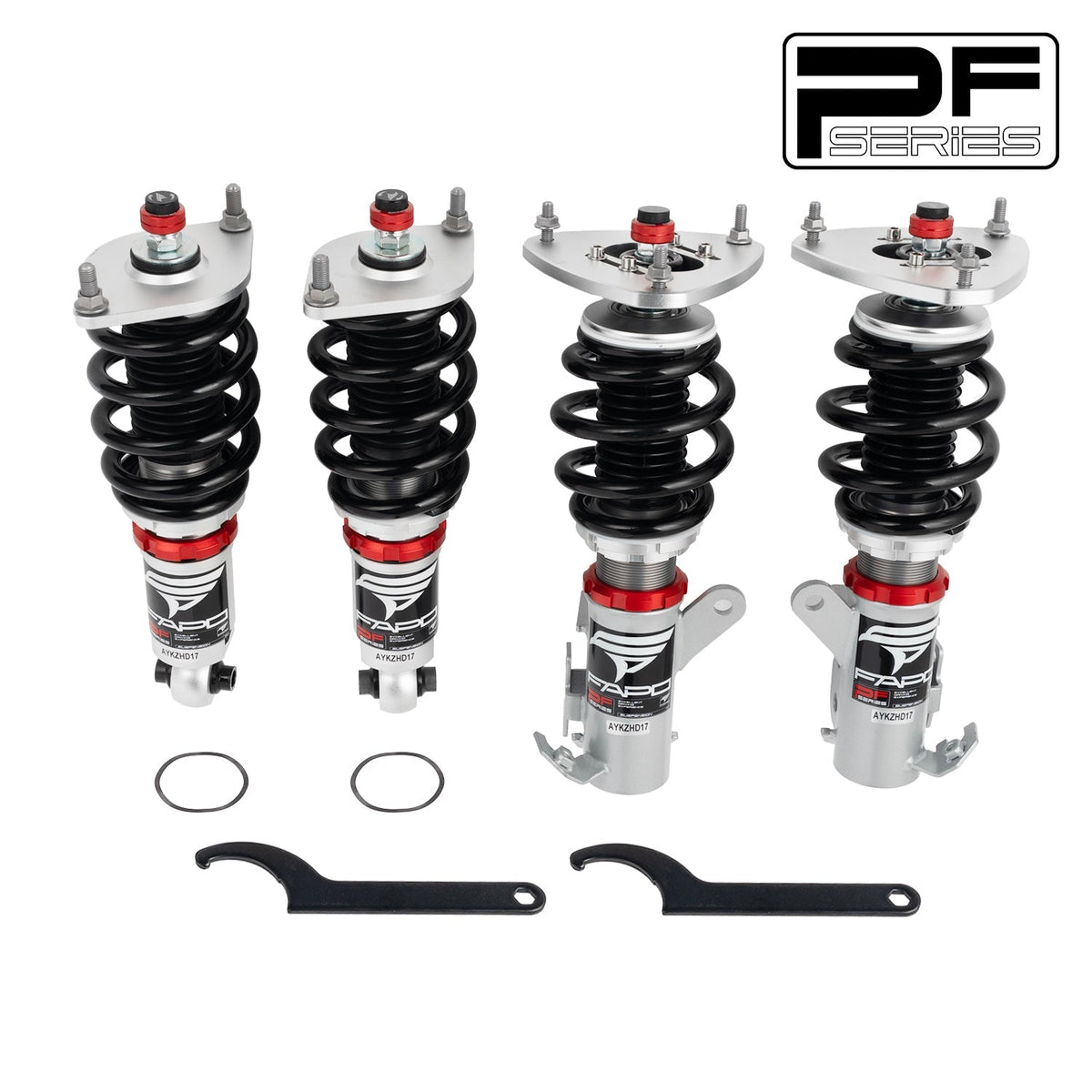

Package Includes

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Note: Our coilover is a lowering kit which will be 1-1.5" lower than factory height even at the maximum setting. Please confirm you want to lower the car before purchasing.

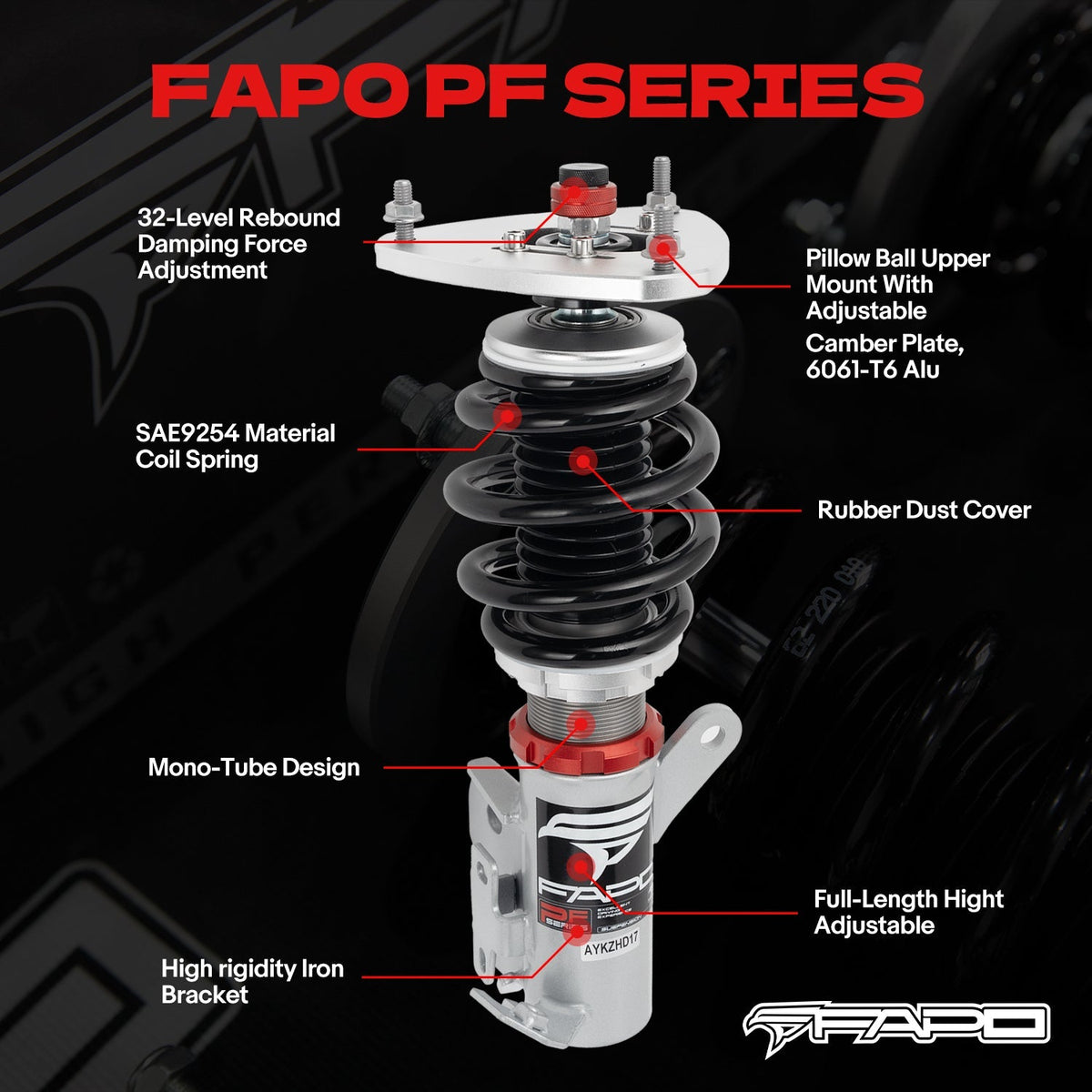

Features

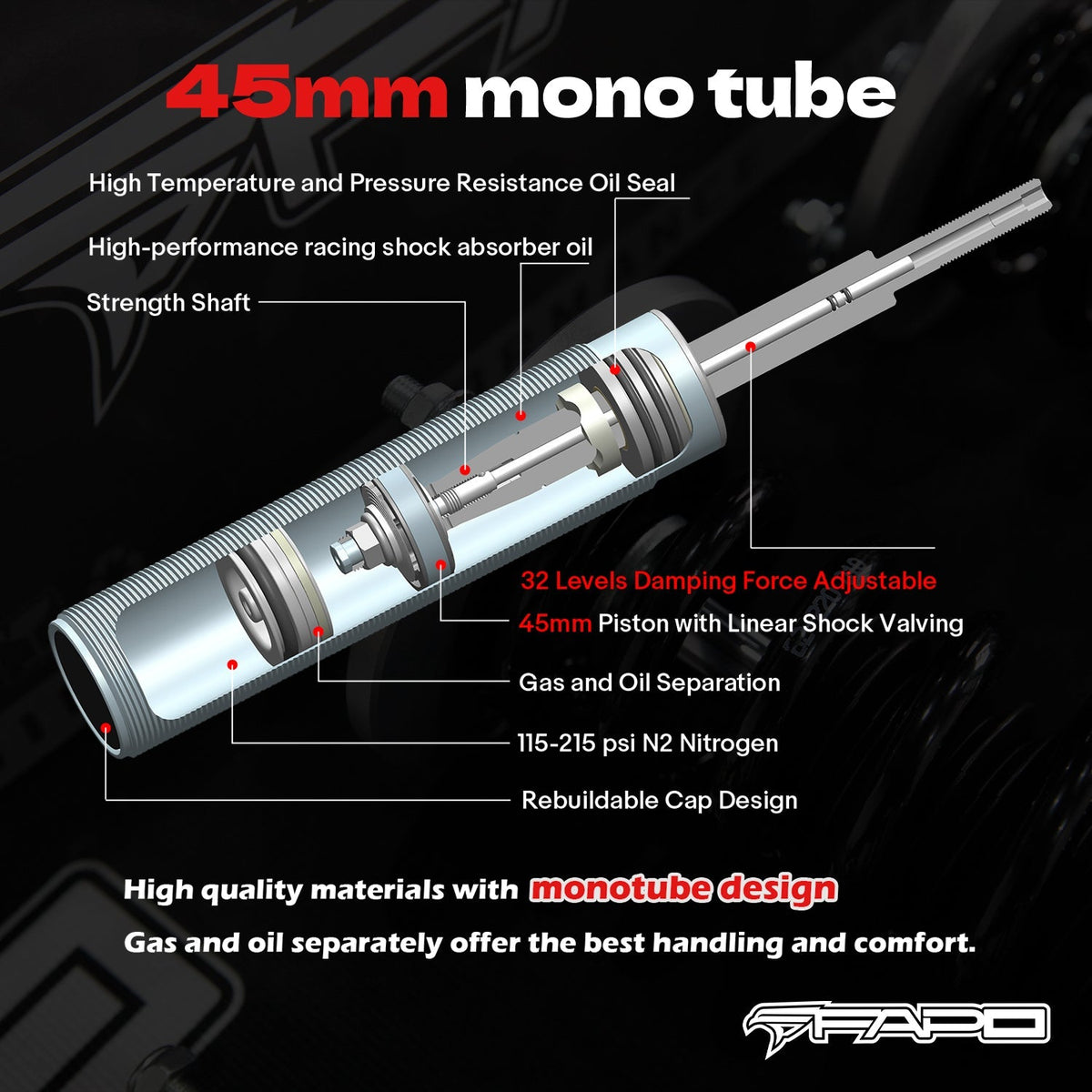

• Mono-tube shock design, larger oil & gas capacity

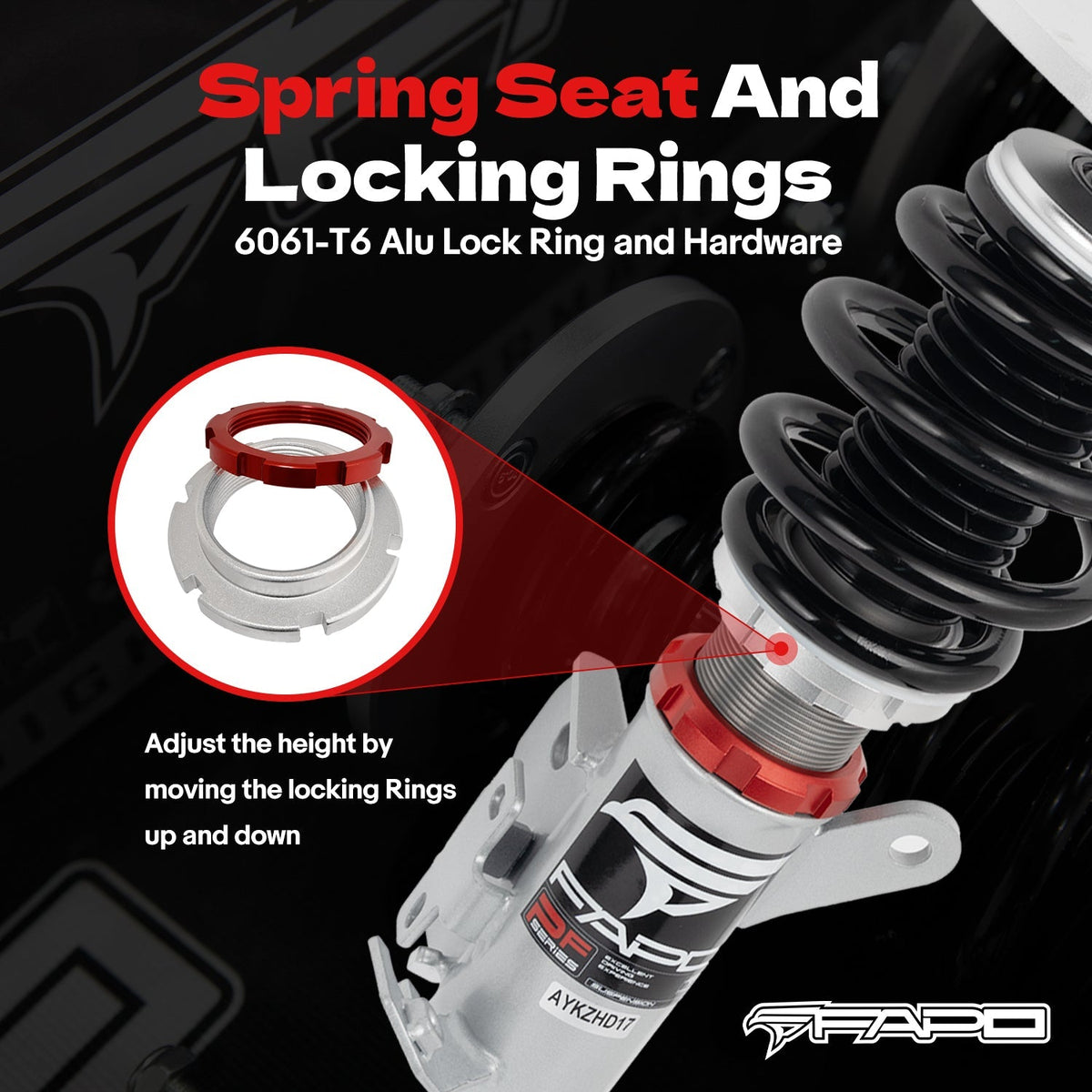

• Adjustable ride height
• Adjustable pre-load spring tension

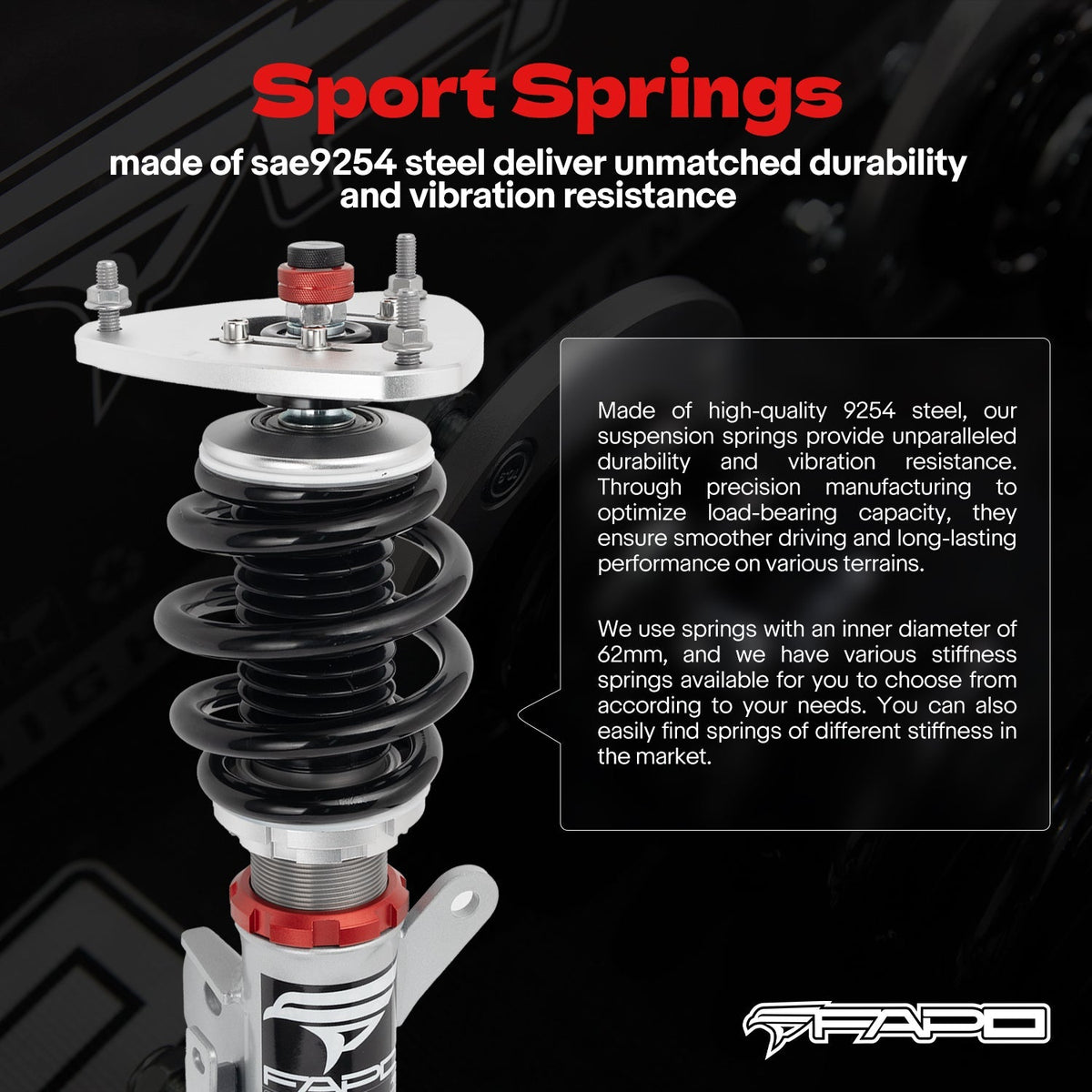

• High-tensile spring: <0.04% distortion after 600,000 cycles
• Special surface treatment for durability & performance
• Fitted rubber boots to protect the dampers
• Improves handling without sacrificing comfort
• Quick & affordable appearance upgrade
• Easy installation with proper tools
• Ideal for track, drift, fast-road, and daily driving
• All pictured accessories included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 135mm, 8 kg/mm (445 lb/in)
• Rear Spring: 160mm, 8 kg/mm (445 lb/in)
• Ride Height: lowers 1-1.5 in from factory

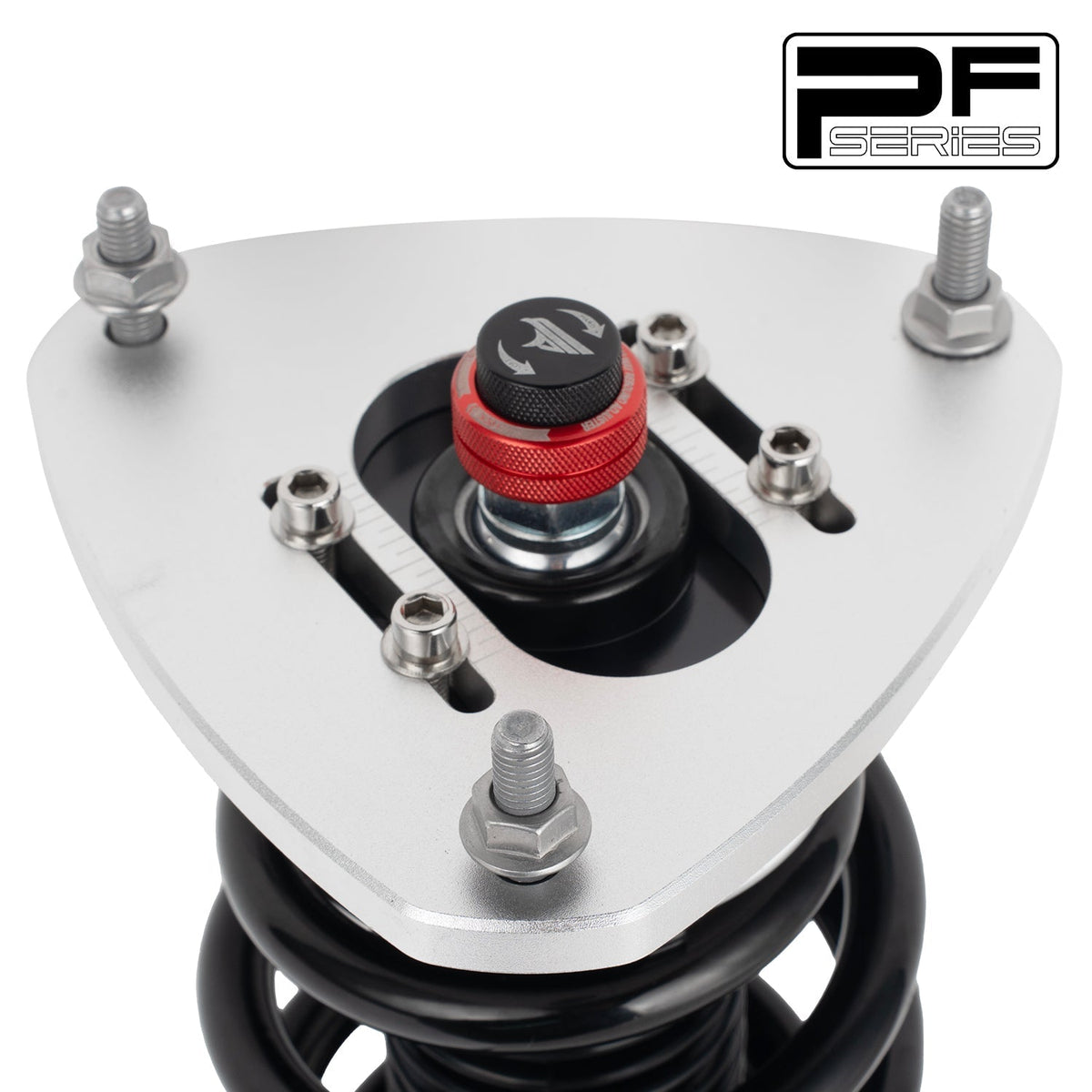

• Adjustable camber plate: Front only; rear uses standard mounts

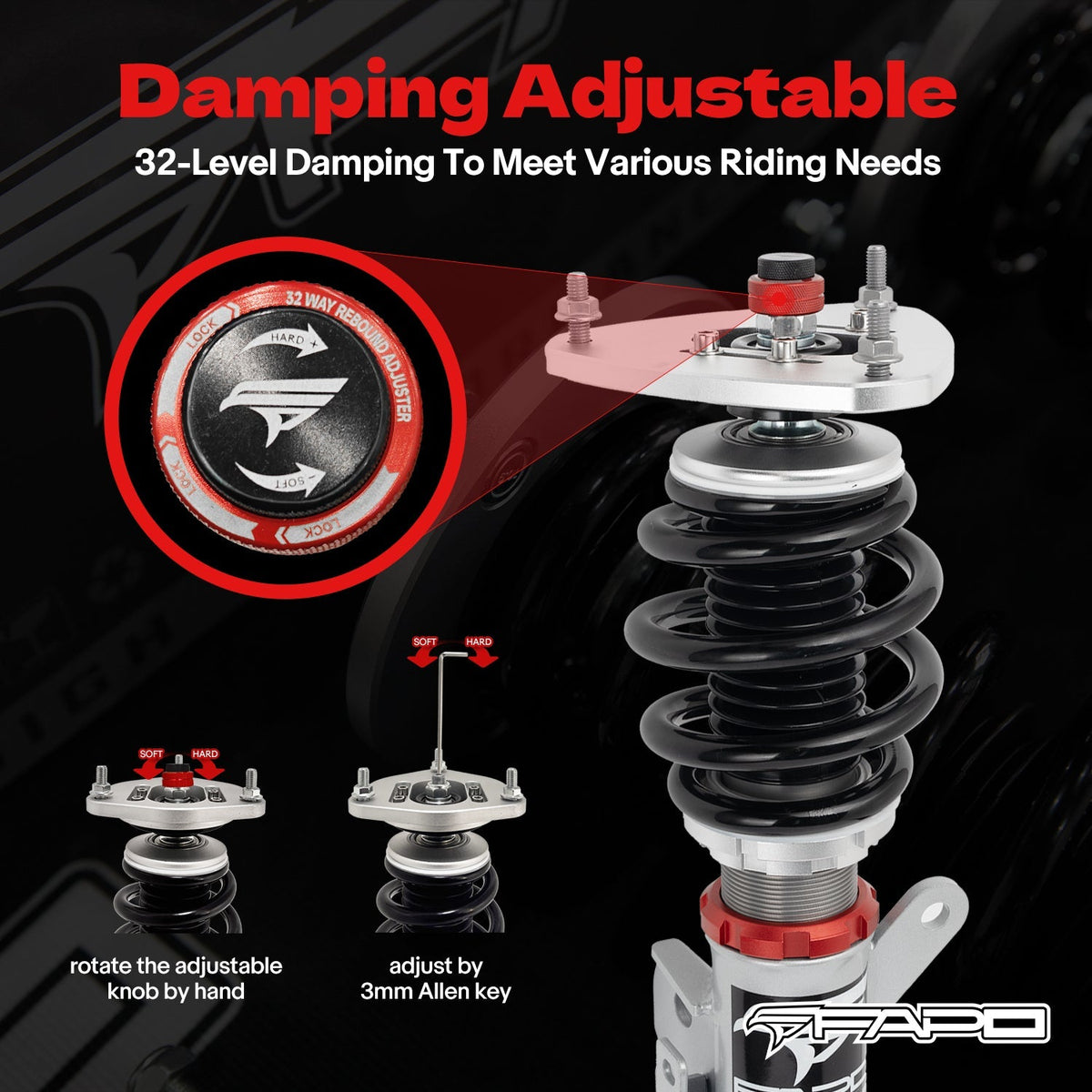

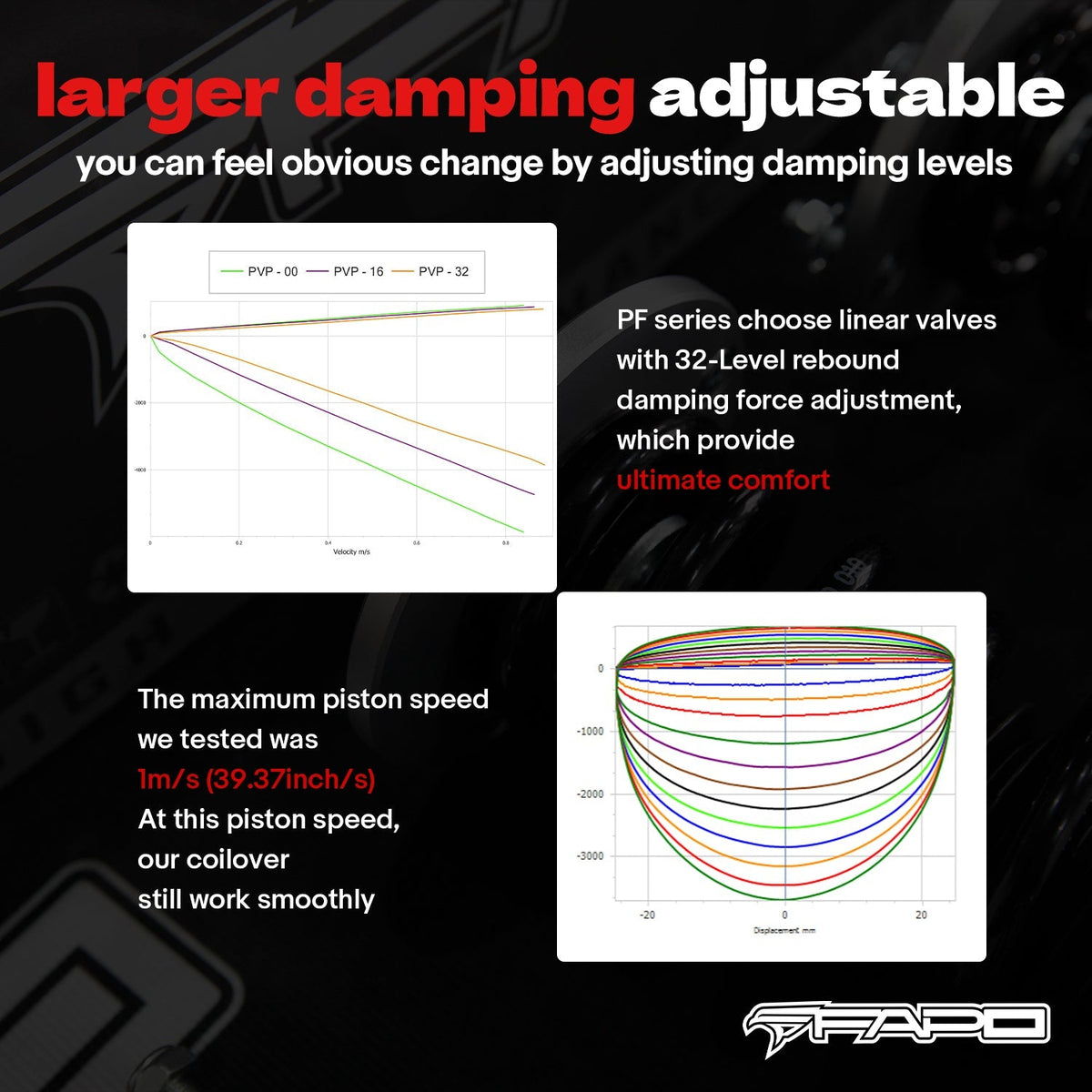

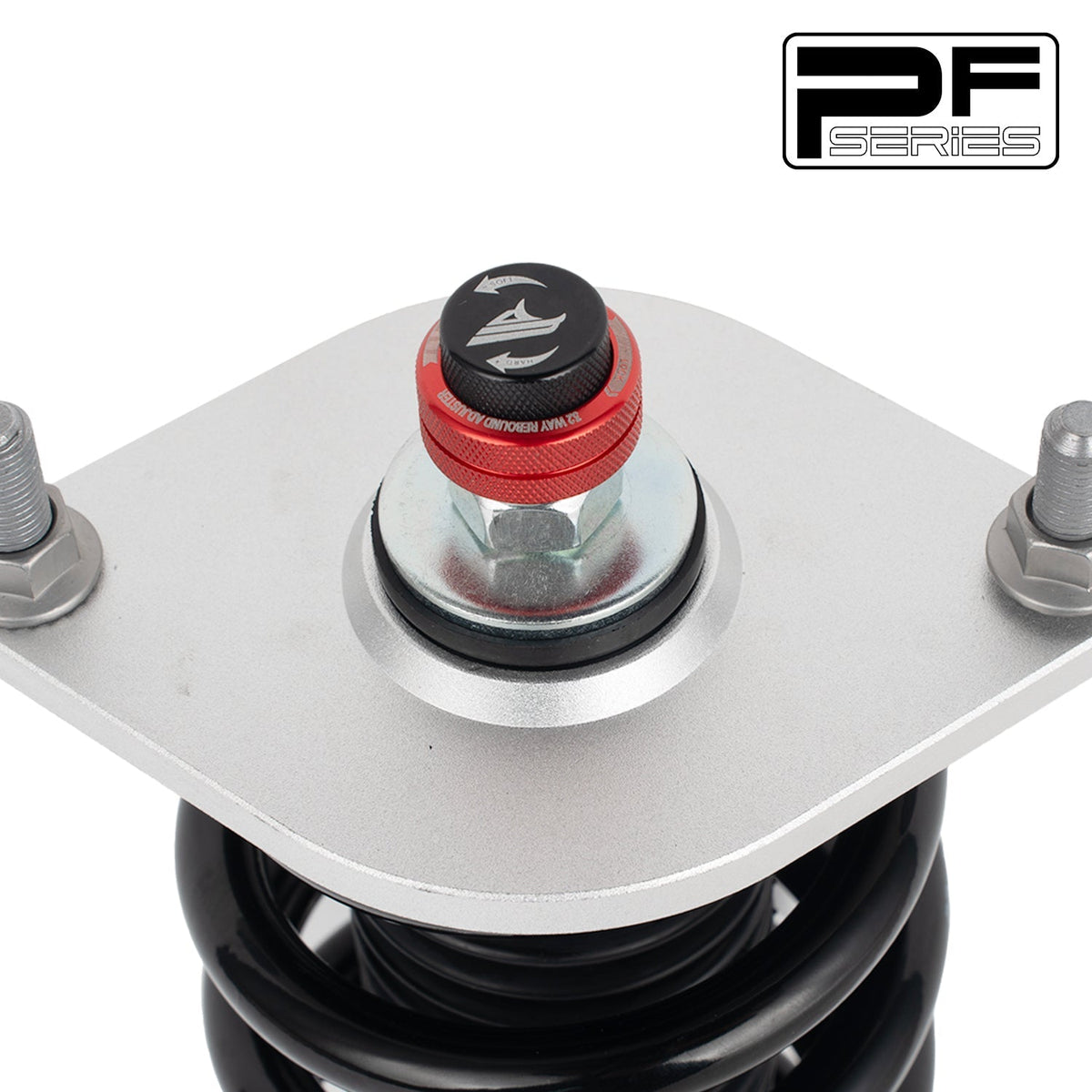

• Damping: 32 Levels

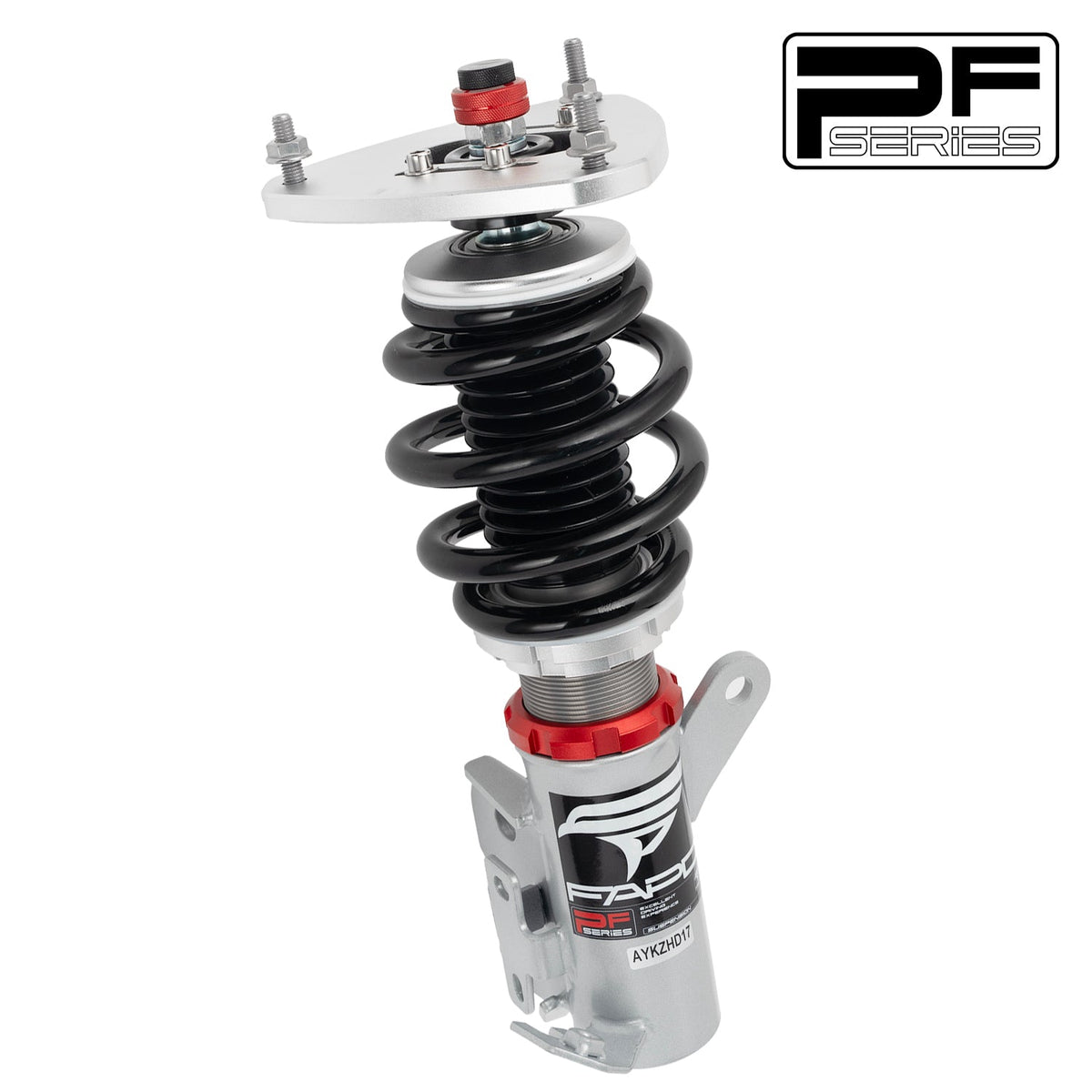

• Front Shock: 53-220-100-20-M12 [4-M2-3]

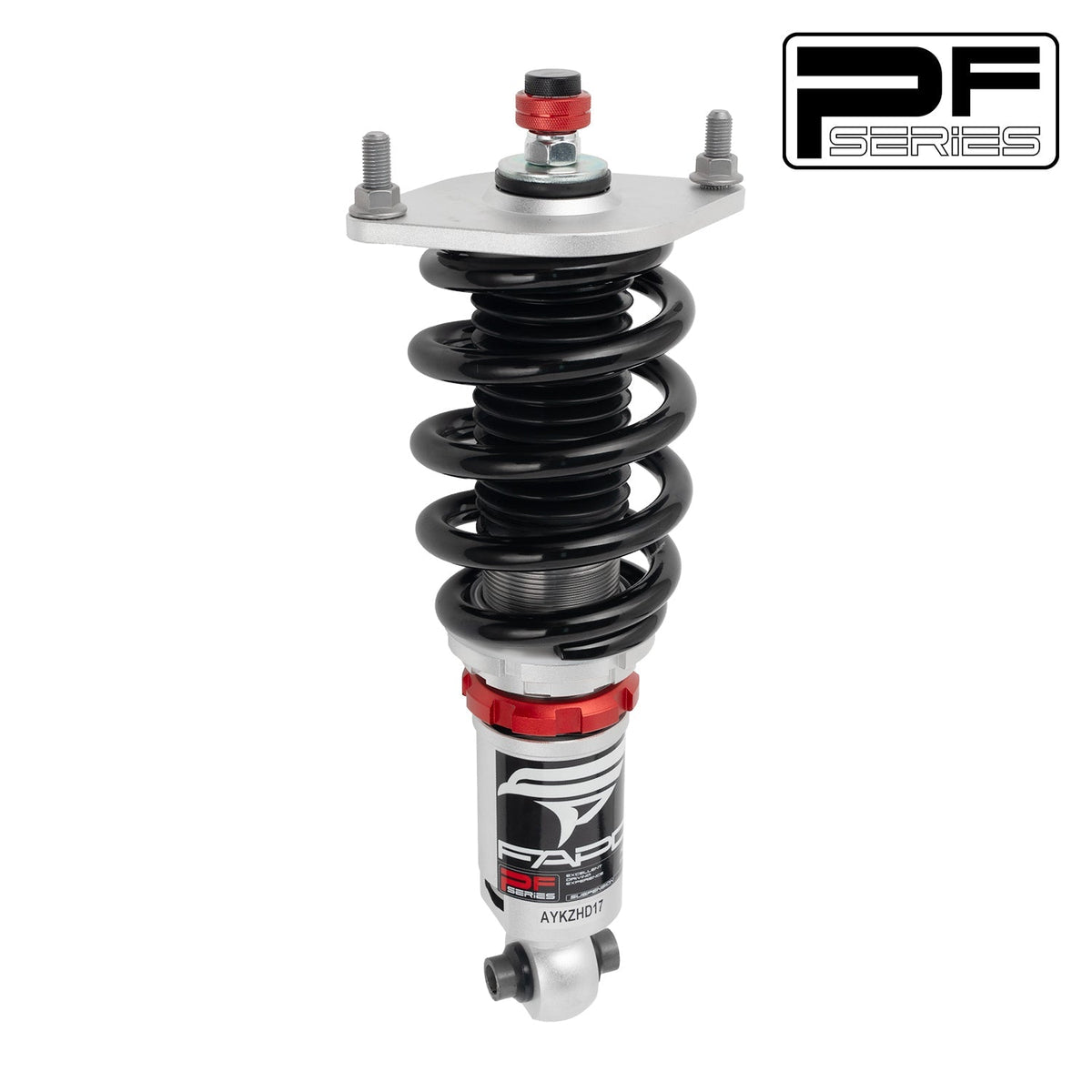

• Rear Shock: 53-170-85-12.5-M12 [4-A1-7]

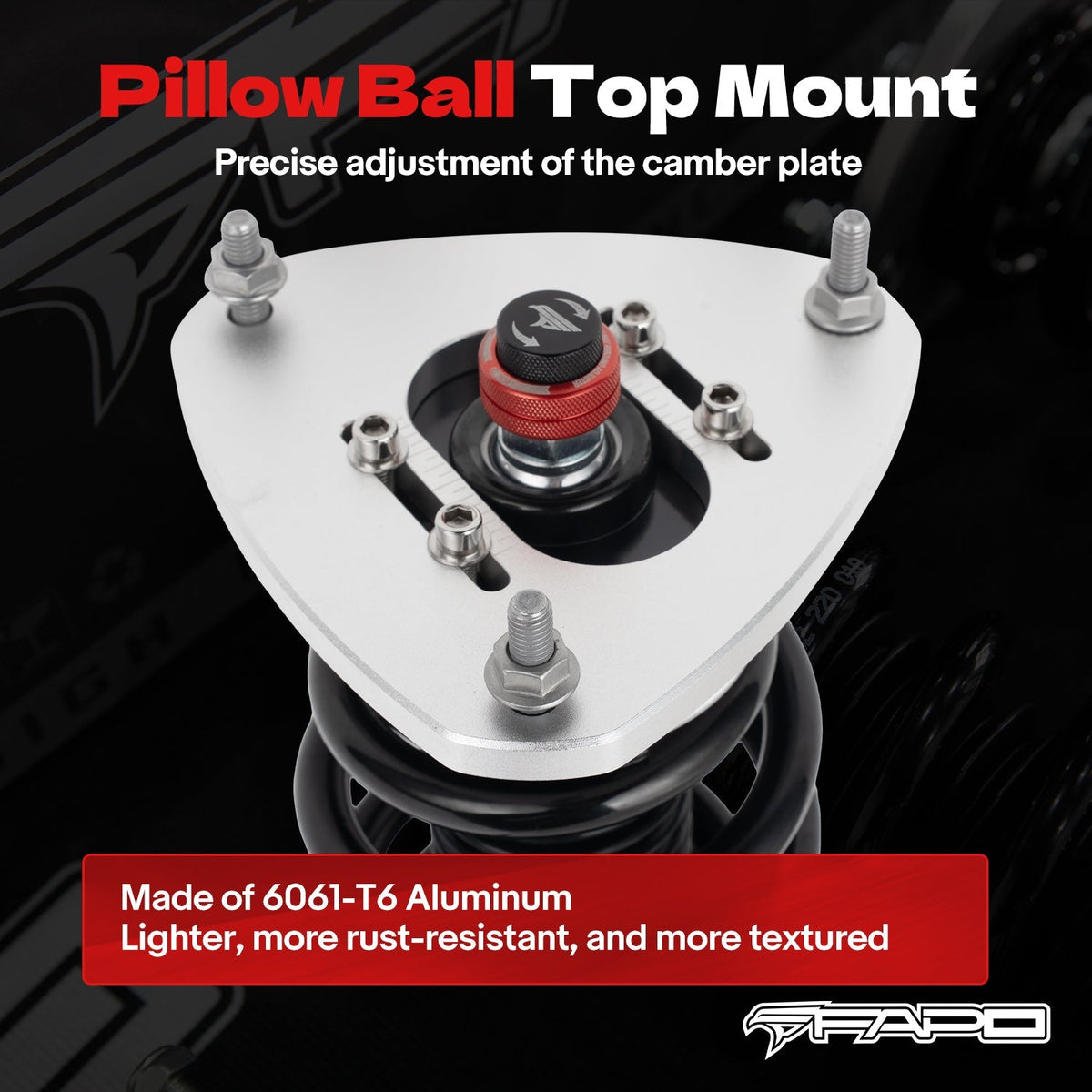

• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
