FAPO PF 32-Level Coilovers Subaru Impreza 1st Gen WRX/WRX STI GC/GC8 1993-2001 [PF000320]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Subaru Impreza 1st Gen WRX/WRX STI GC/GC8 1993-2001 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• Subaru Impreza 1st Gen WRX / WRX STI GC/GC8 1993-2001
• Subaru Legacy 1st Gen BC/BF/BJ 1992-1994

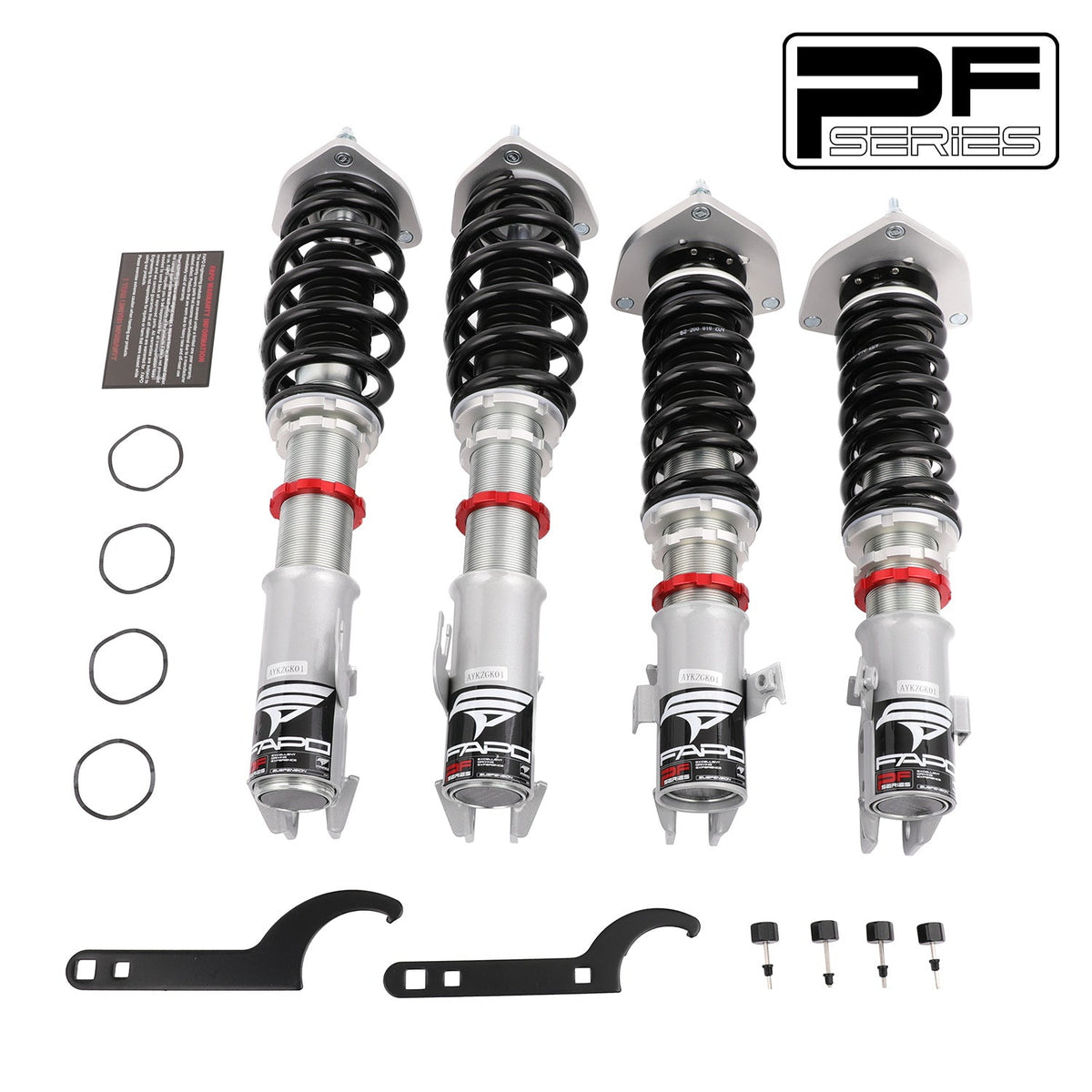

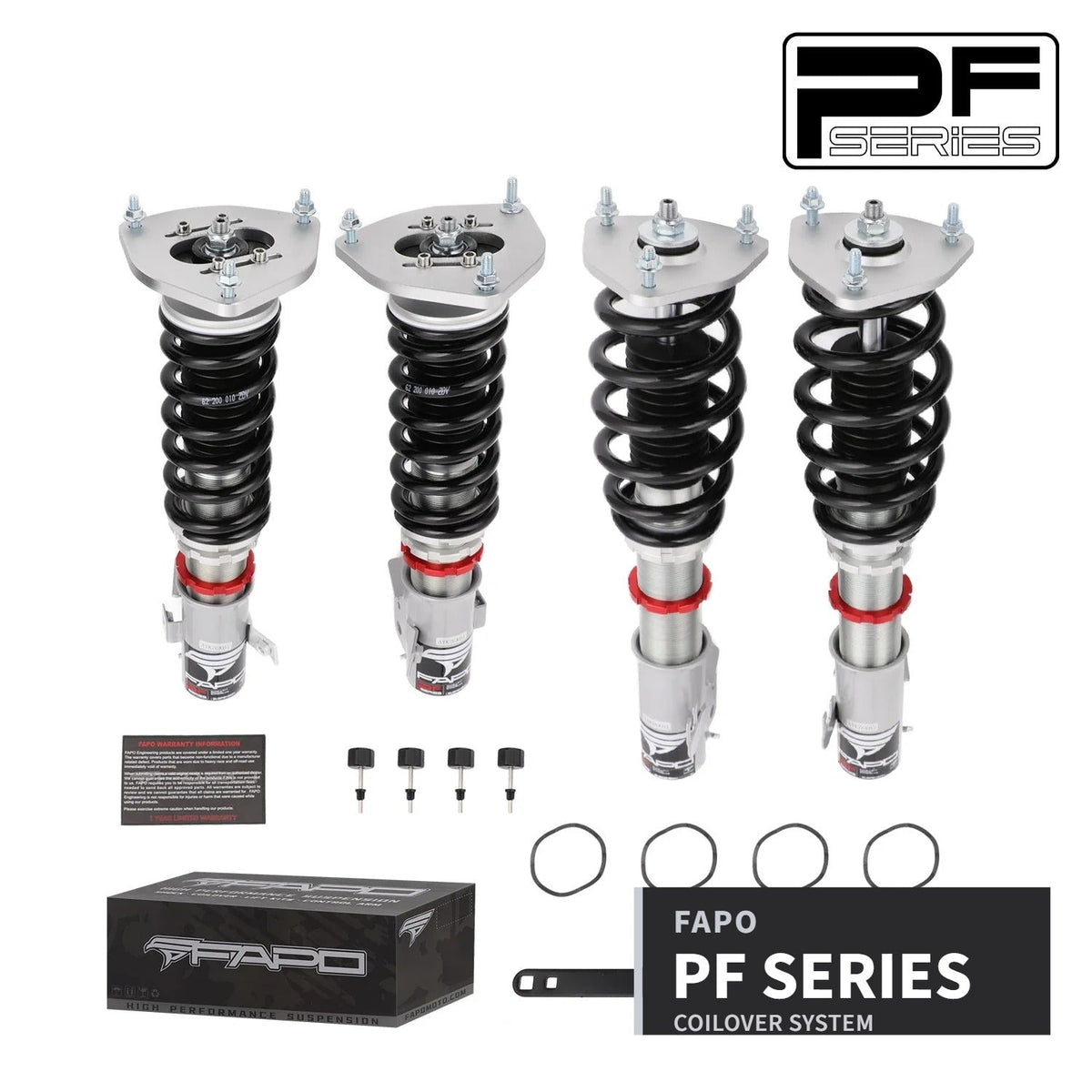

Package Includes:

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Our coilover is a lowering kit which will be 1-1.5" lower than the factory height even at the max height. Please confirm you want to lower your car before you buy it.

Features:

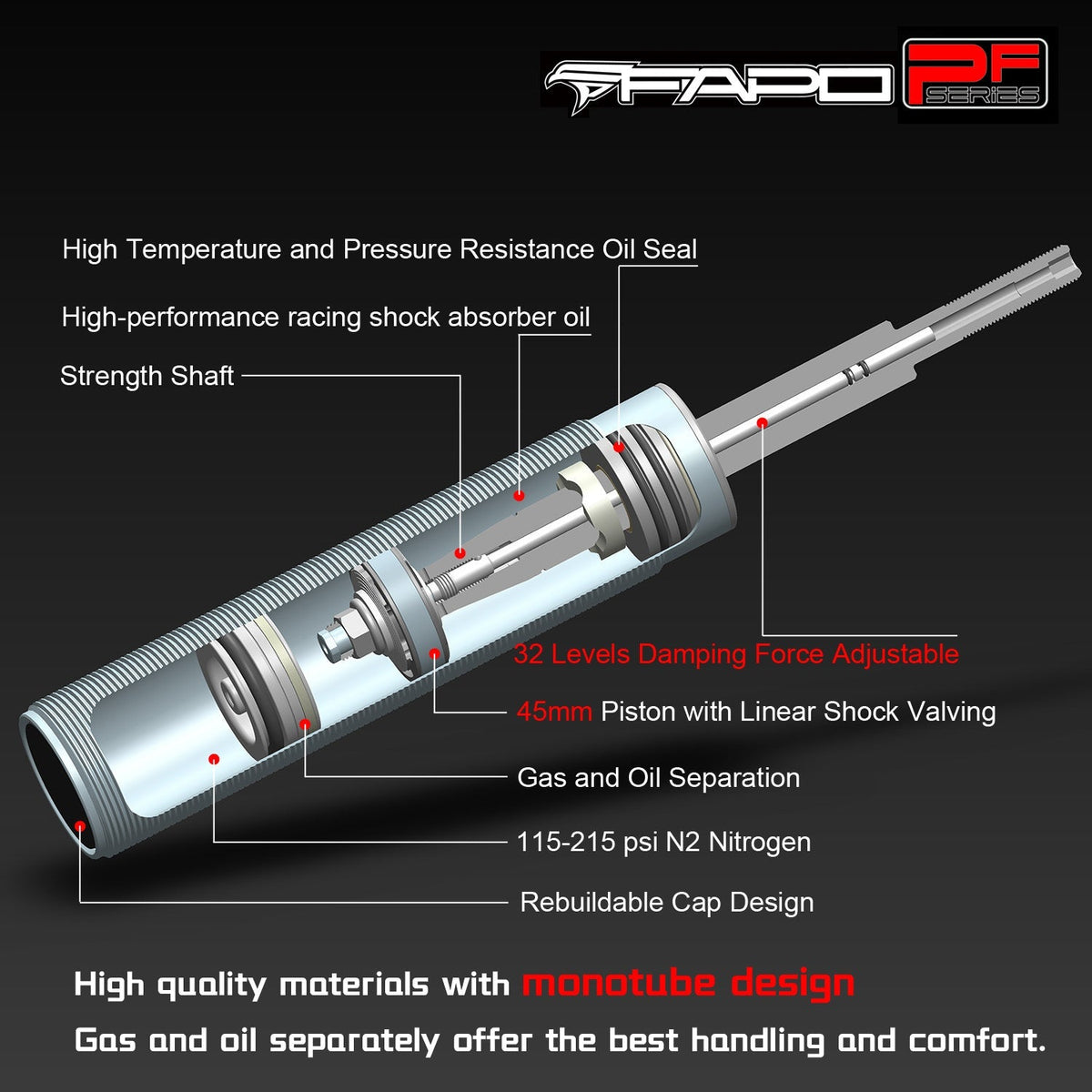

• Mono-tube shock design, provides larger capacity of oil and gas
• Adjustable ride height
• Adjustable pre-load spring tension
• Hi Tensile performance spring - under 600,000 cycles test, spring distortion is less than 0.04%. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with right tools.
• Ideal for any track, drift, fast road, and daily driving.
• The accessories in the photos are included.
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Spring: 200mm, 10 kg/mm (560 lb/in)
• Rear Spring: 220mm, 6 kg/mm (335 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Only Front coilovers; Rear with standard top mounts
• Damping: 32 Levels
• Front Shock: 53-280-120-20-M12 [4-M2-3]
• Rear Shock: 53-340-150-20-M12 [4-M2-3]
• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
