FAPO PF 32-Level Coilovers Mercedes-Benz C-Class 4th Gen 2WD W205/S205/C205/A205 2014-2021 [PF056330]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

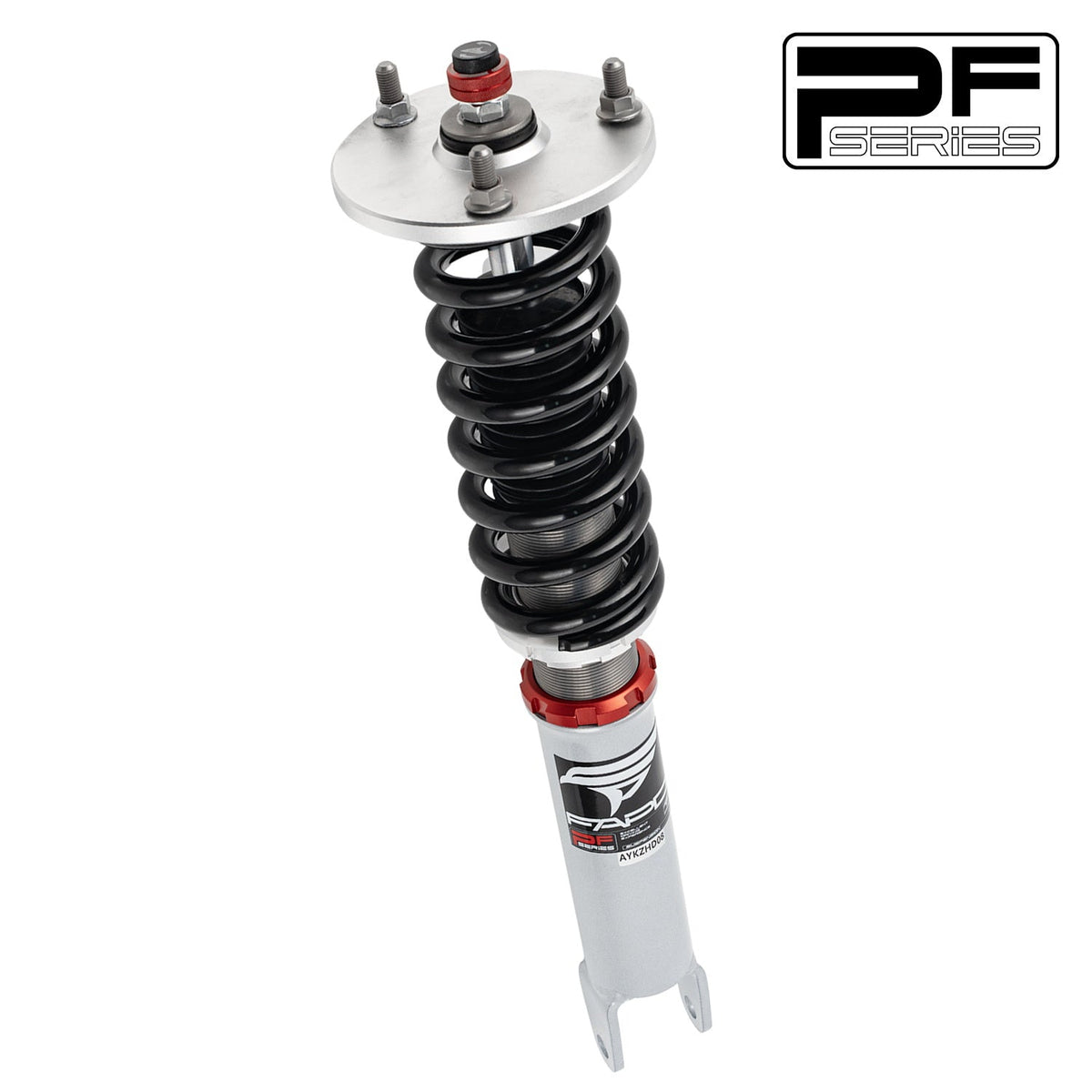

The FAPO PF kit for the Mercedes-Benz C-Class 4th Gen 2WD W205/S205/C205/A205 2014-2021 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Spring upgrades (select above): higher or lower spring rates, with standard springs or Swift springs, can be added when you order.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Mercedes-Benz C-Class 4th Gen 2WD W205/S205/C205/A205 2014-2021
• Mercedes-Benz E-Class 5th Gen 2WD W213/S213/C238 2016-2023

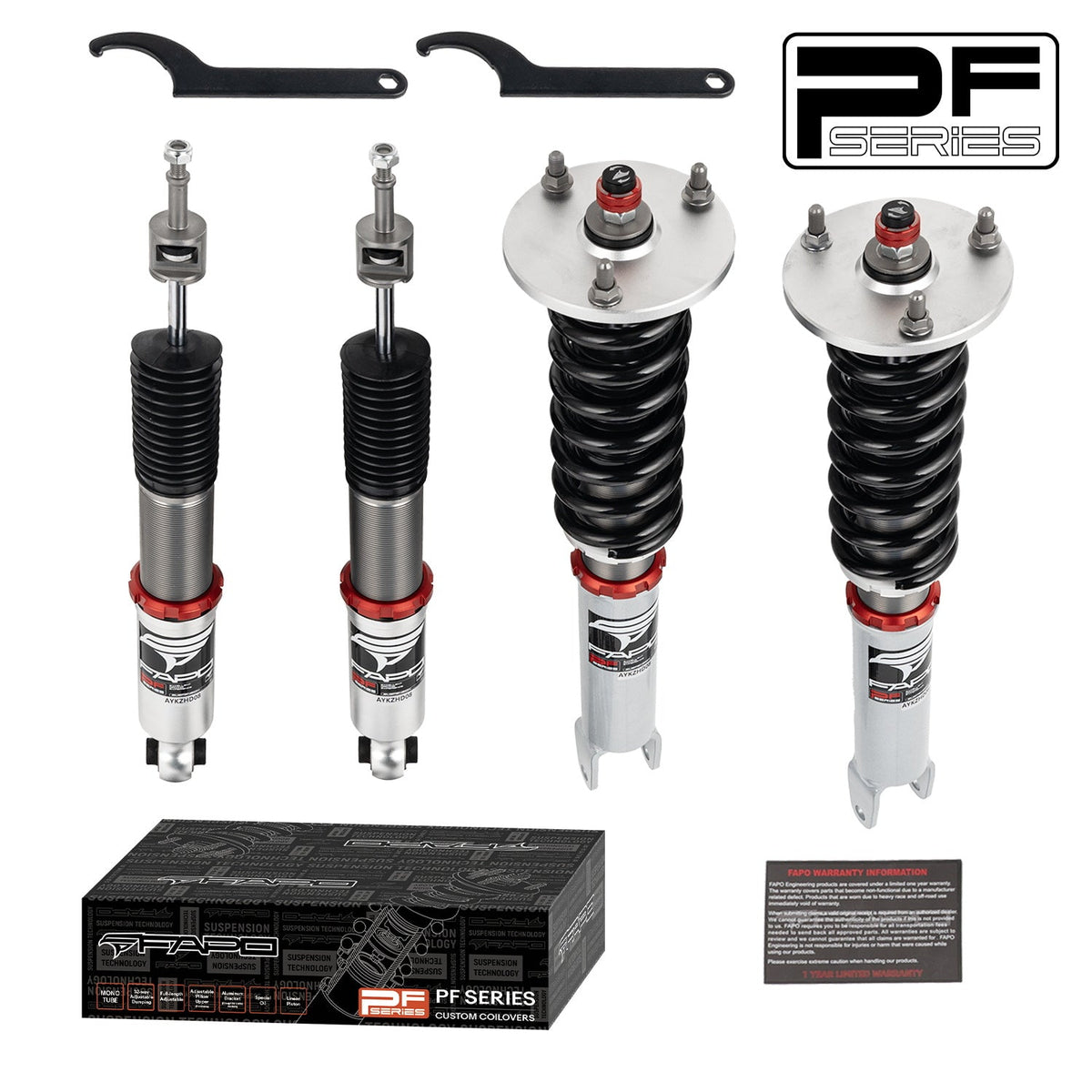

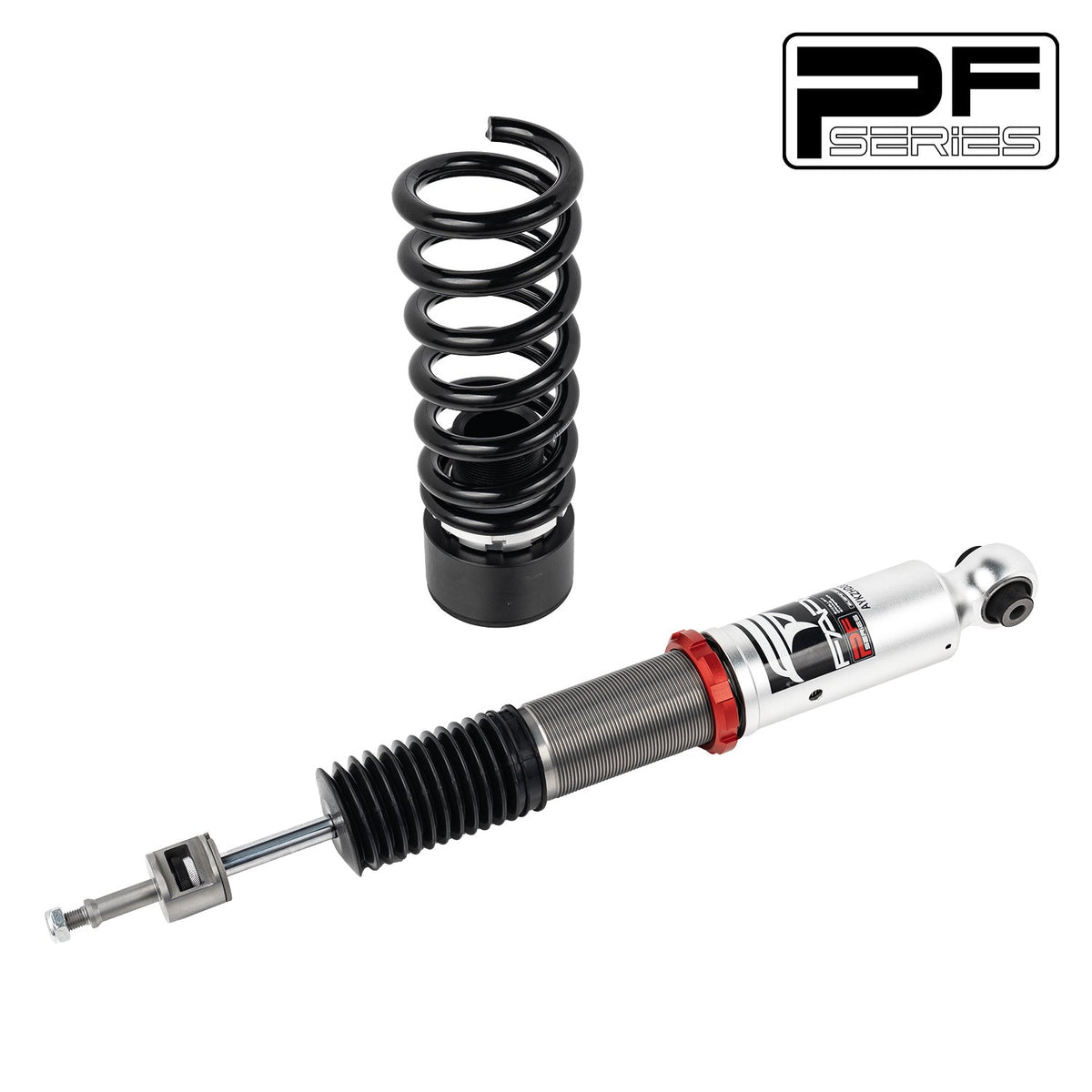

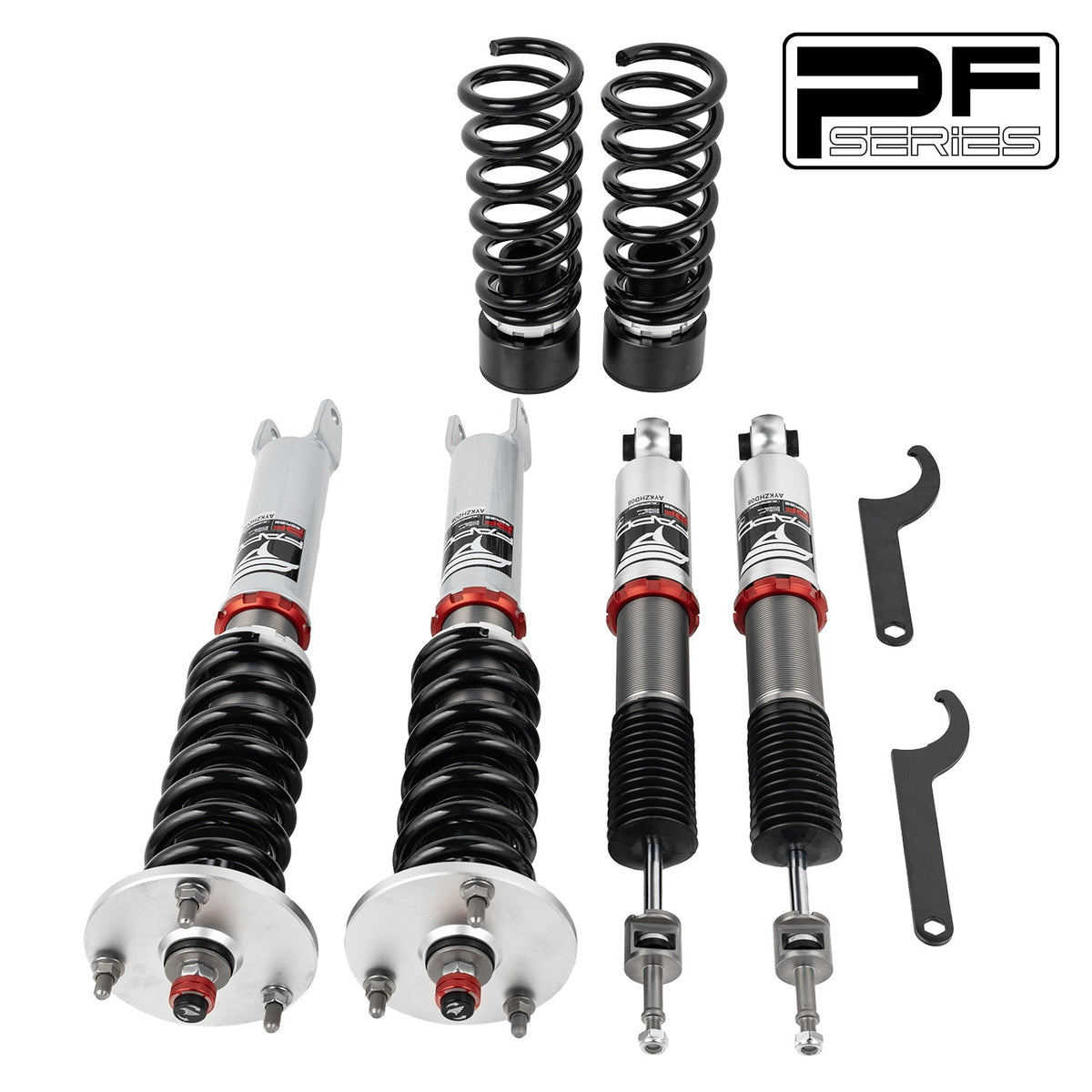

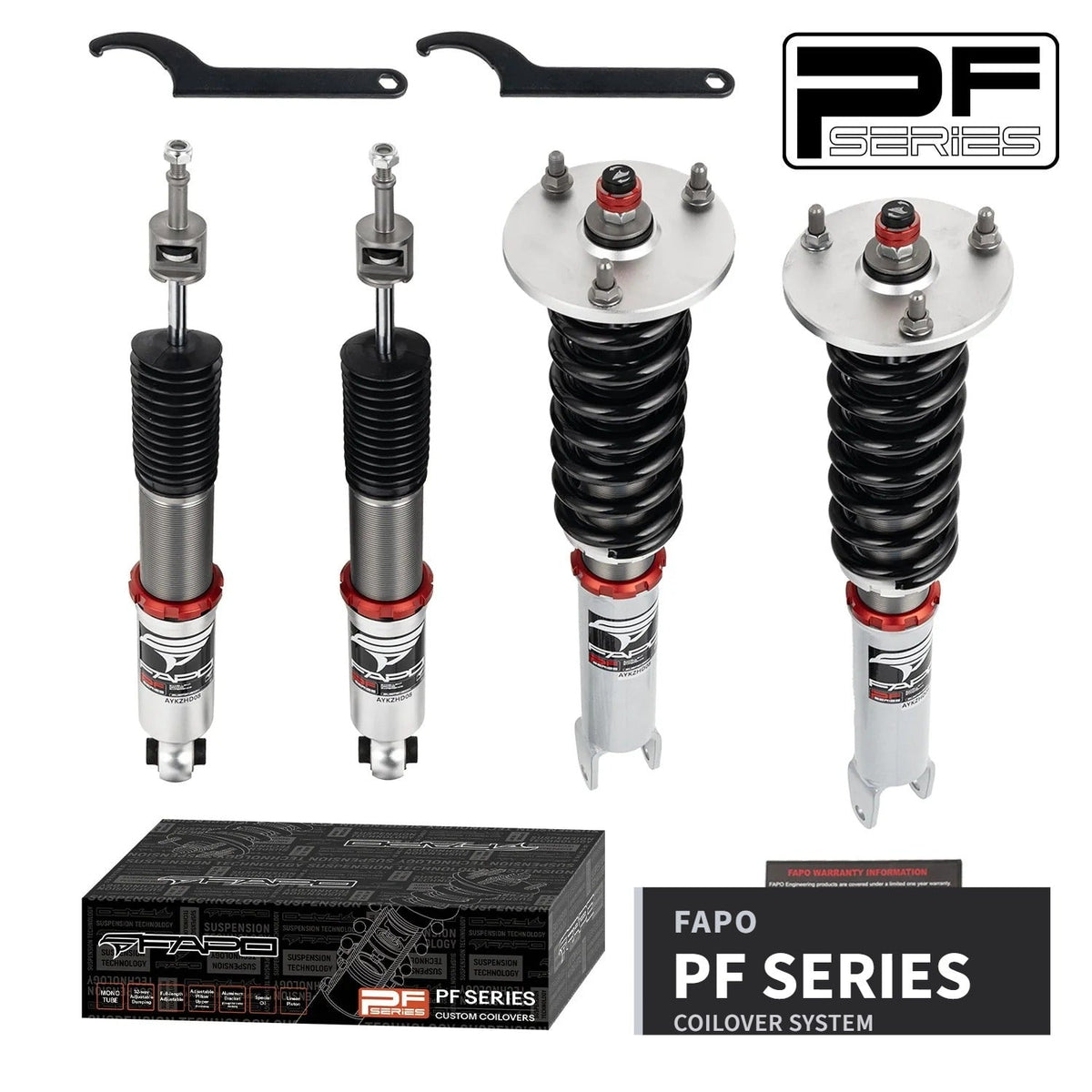

Package Includes

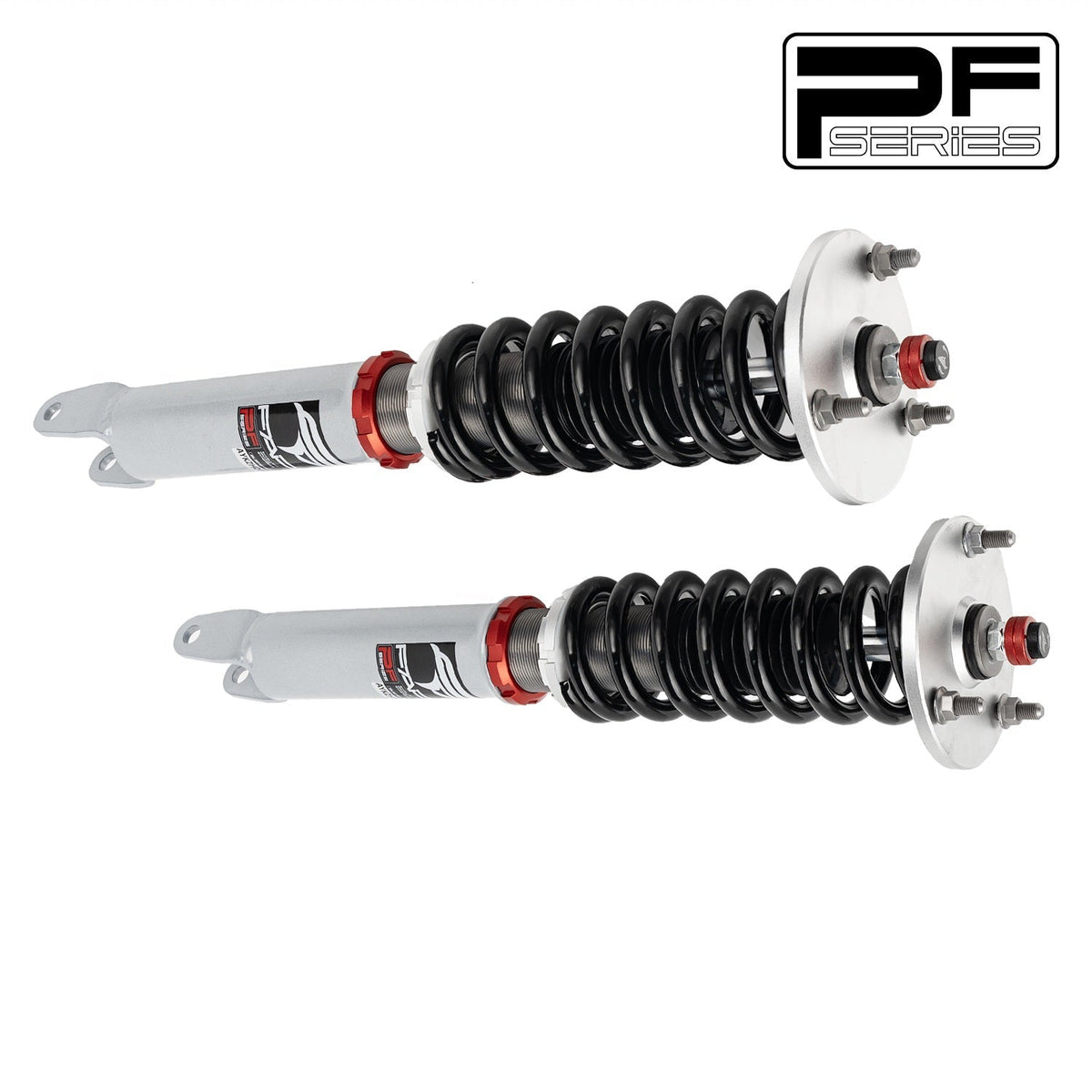

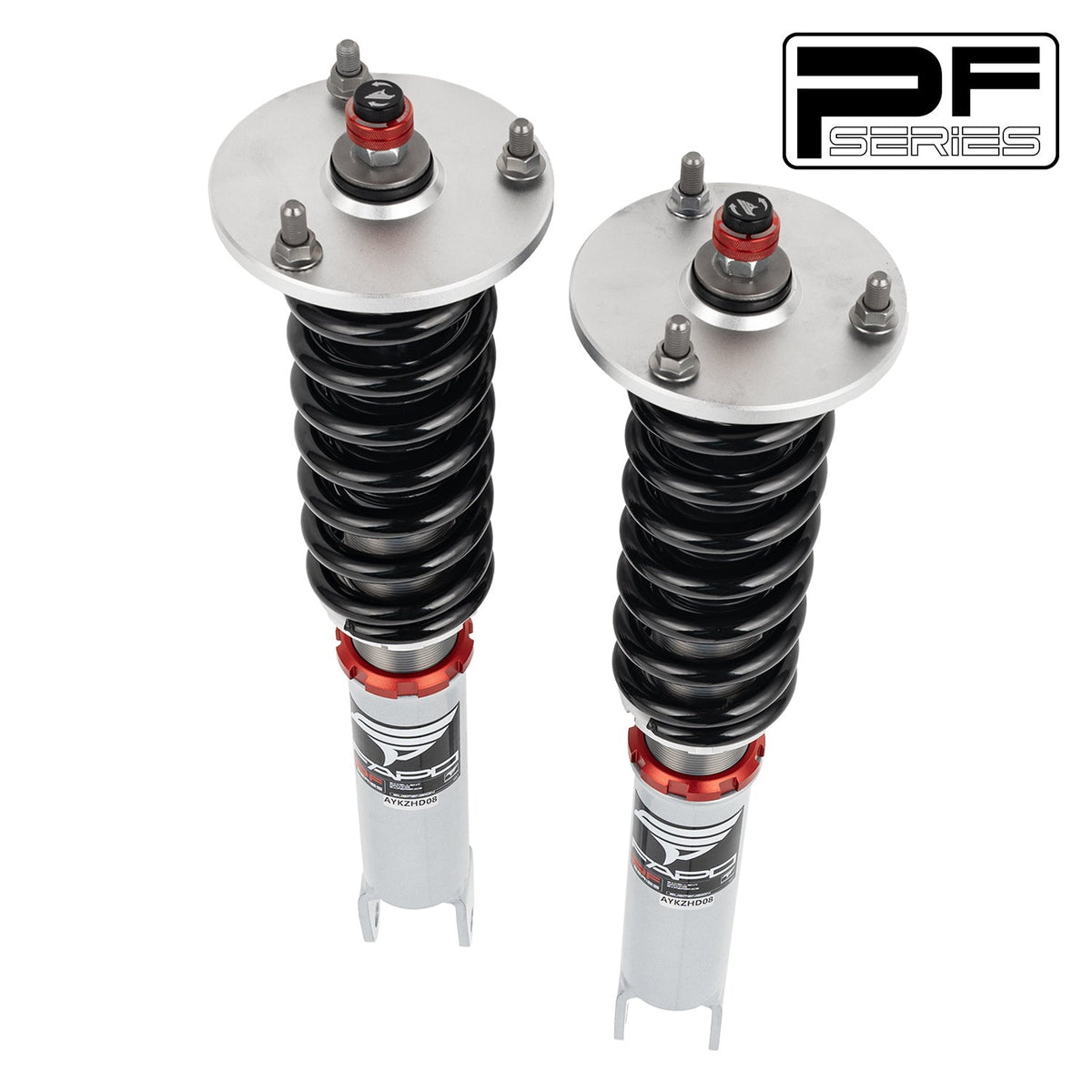

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Note: Our coilover is a lowering kit which will be 1-1.5" lower than factory height even at the maximum setting. Please confirm you want to lower the car before purchasing.

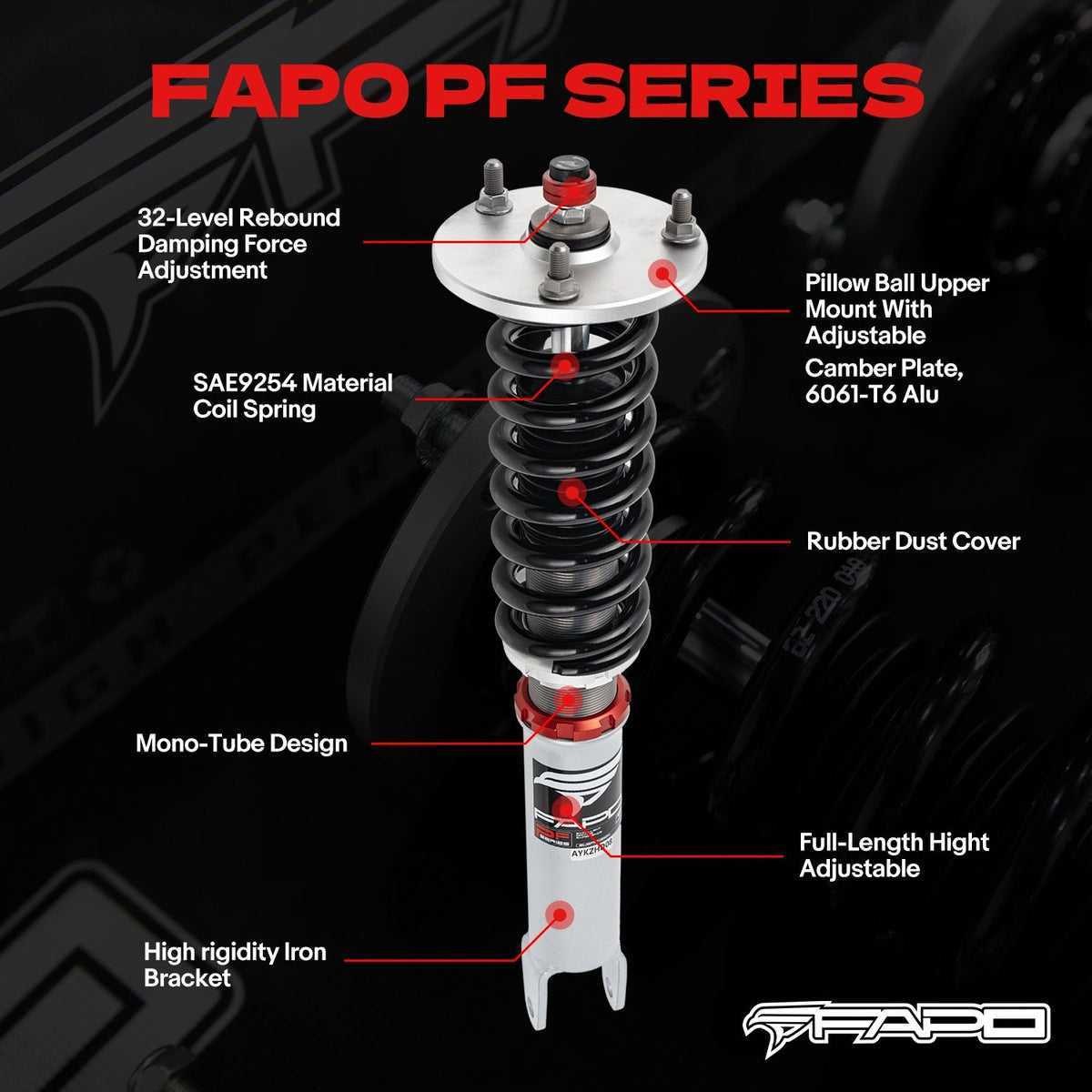

Features

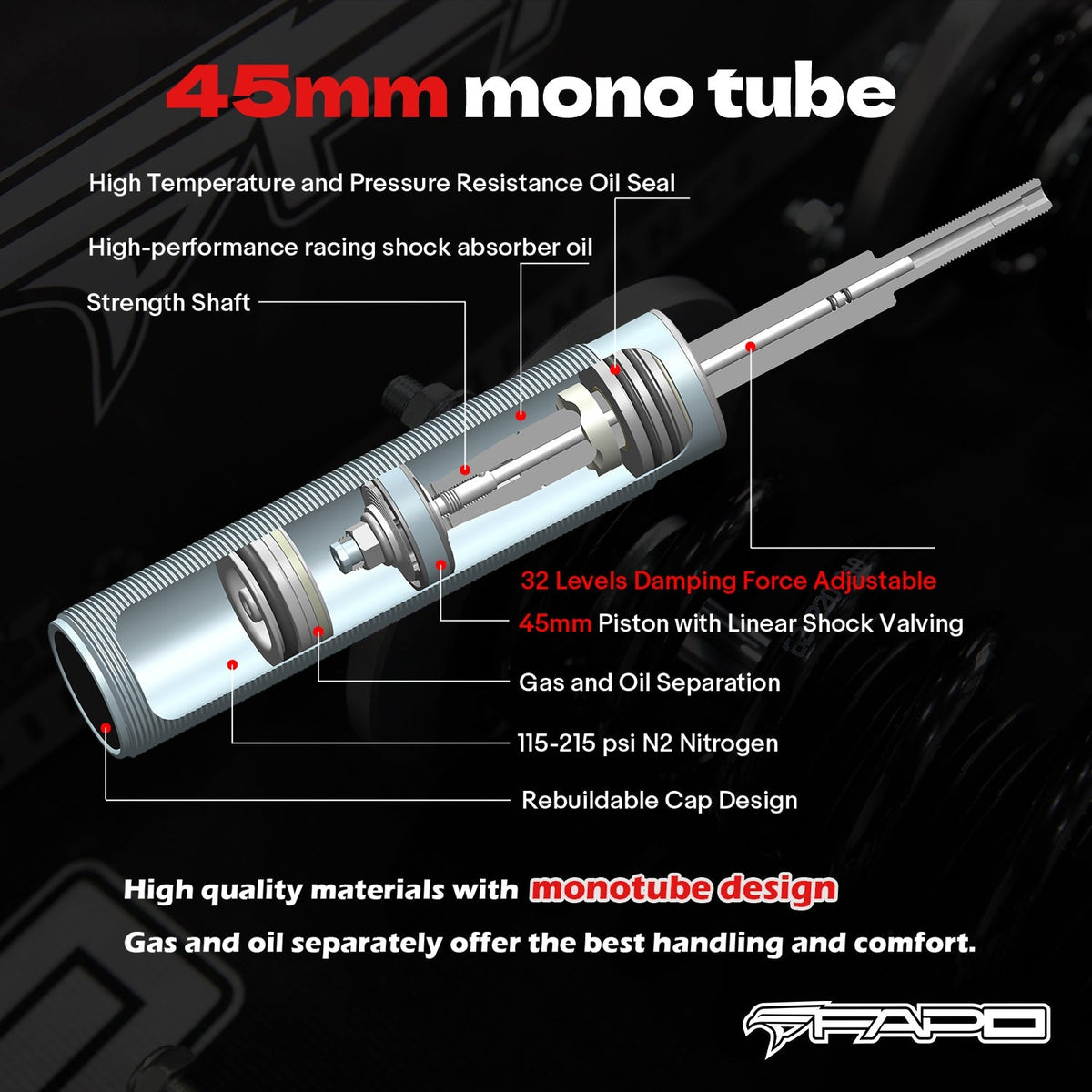

• Mono-tube shock design, larger oil & gas capacity

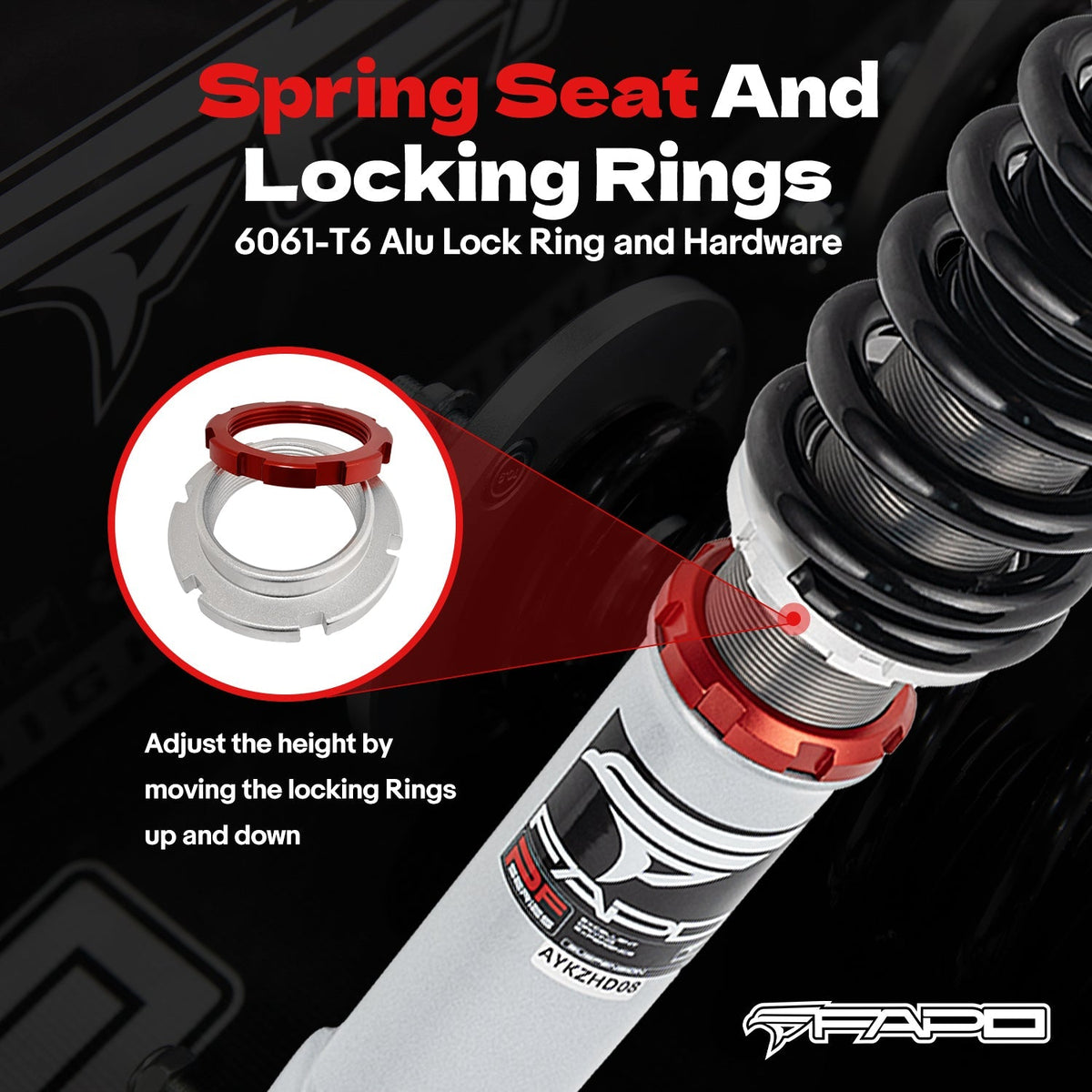

• Adjustable ride height
• Adjustable pre-load spring tension

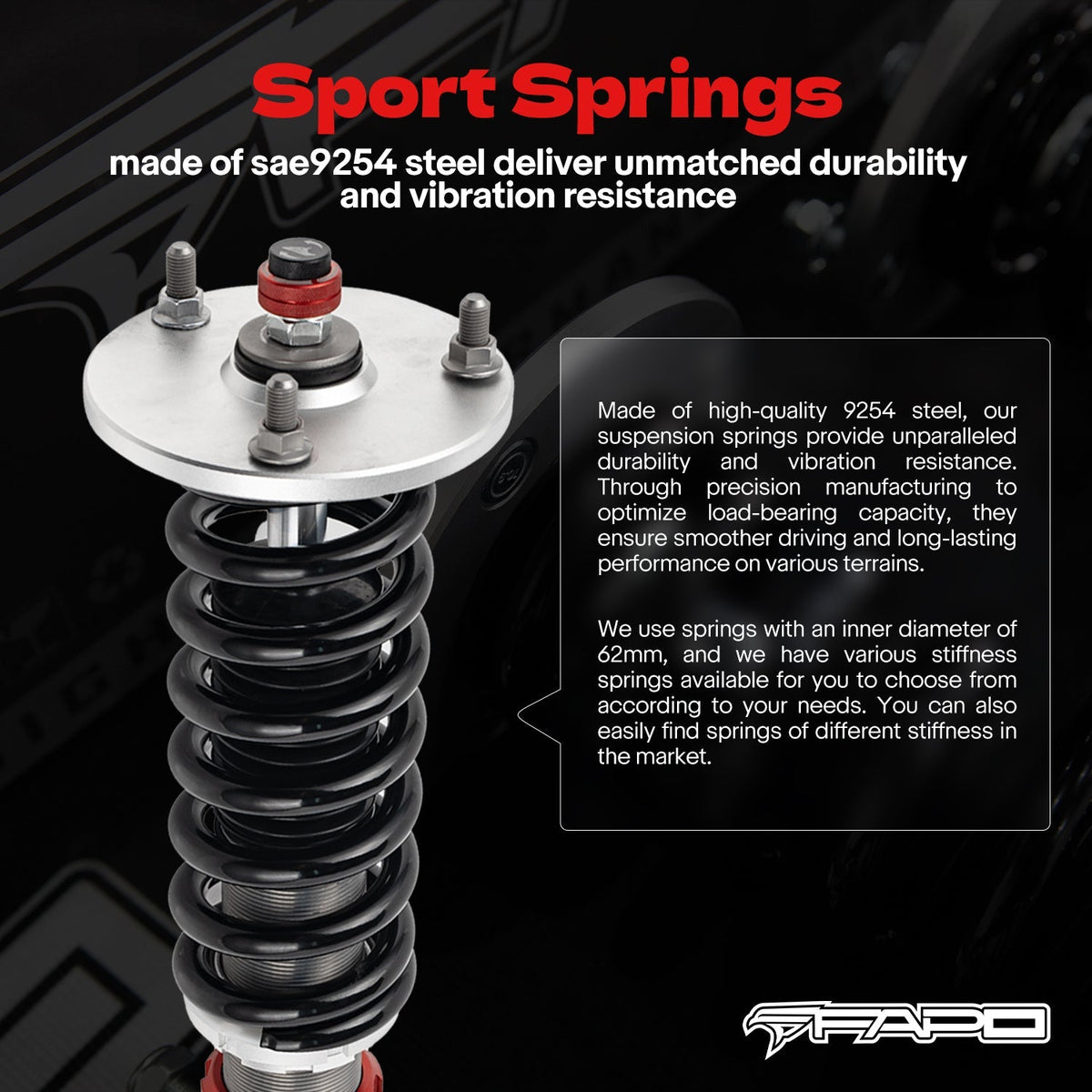

• High-tensile springs: <0.04 % distortion after 600,000 cycles
• Fitted rubber boots protect the dampers
• Improved handling without sacrificing comfort
• Fast, affordable appearance upgrade
• Easy installation with proper tools
• Suitable for track, drift, fast-road & daily driving
• All pictured accessories included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 240mm, 10 kg/mm (560 lb/in)
• Rear Spring: 210mm, 11 kg/mm (615 lb/in)
• Ride Height: lowers 1-1.5 in from factory

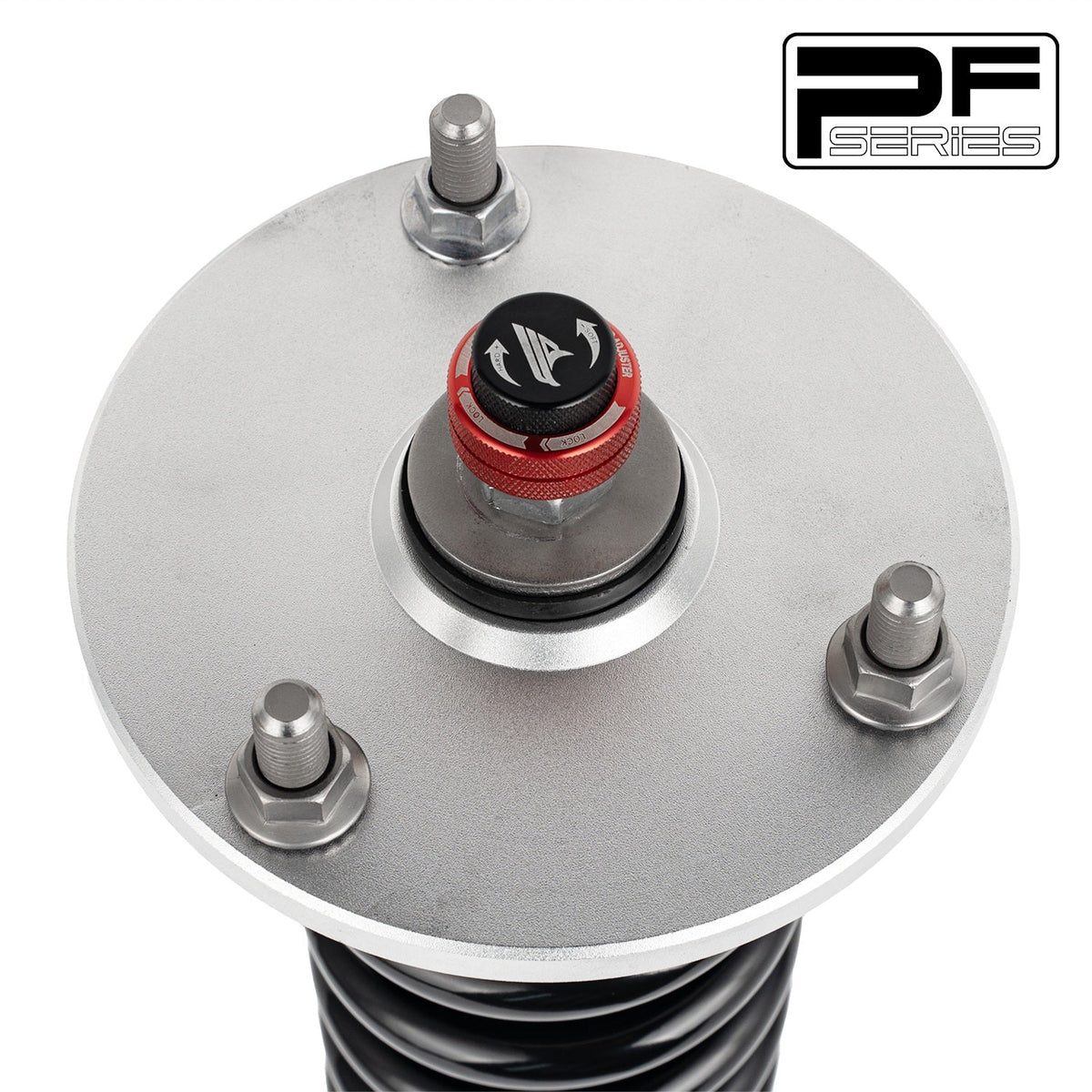

• Adjustable camber plate: Front only; rear standard mounts
• Damping: 32 Levels
• Front Shock: 53-340-130-20-M12 [4-M2-4]
• Rear Shock: 53-260-150-12.5-M12 [4-A1-9]
• Mounts: Front: With standard top mounts | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
