FAPO PF 32-Level Coilovers Lexus IS200/IS300 1st Gen GXE10/JCE10/SXE10 1999-2005 [PF015430]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Lexus IS200/IS300 1st Gen GXE10/JCE10/SXE10 1999-2005 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Spring upgrades (select above): higher or lower spring rates, with standard springs or Swift springs, can be added when you order.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Lexus IS200/IS300 1st Gen GXE10/JCE10/SXE10 1999-2005

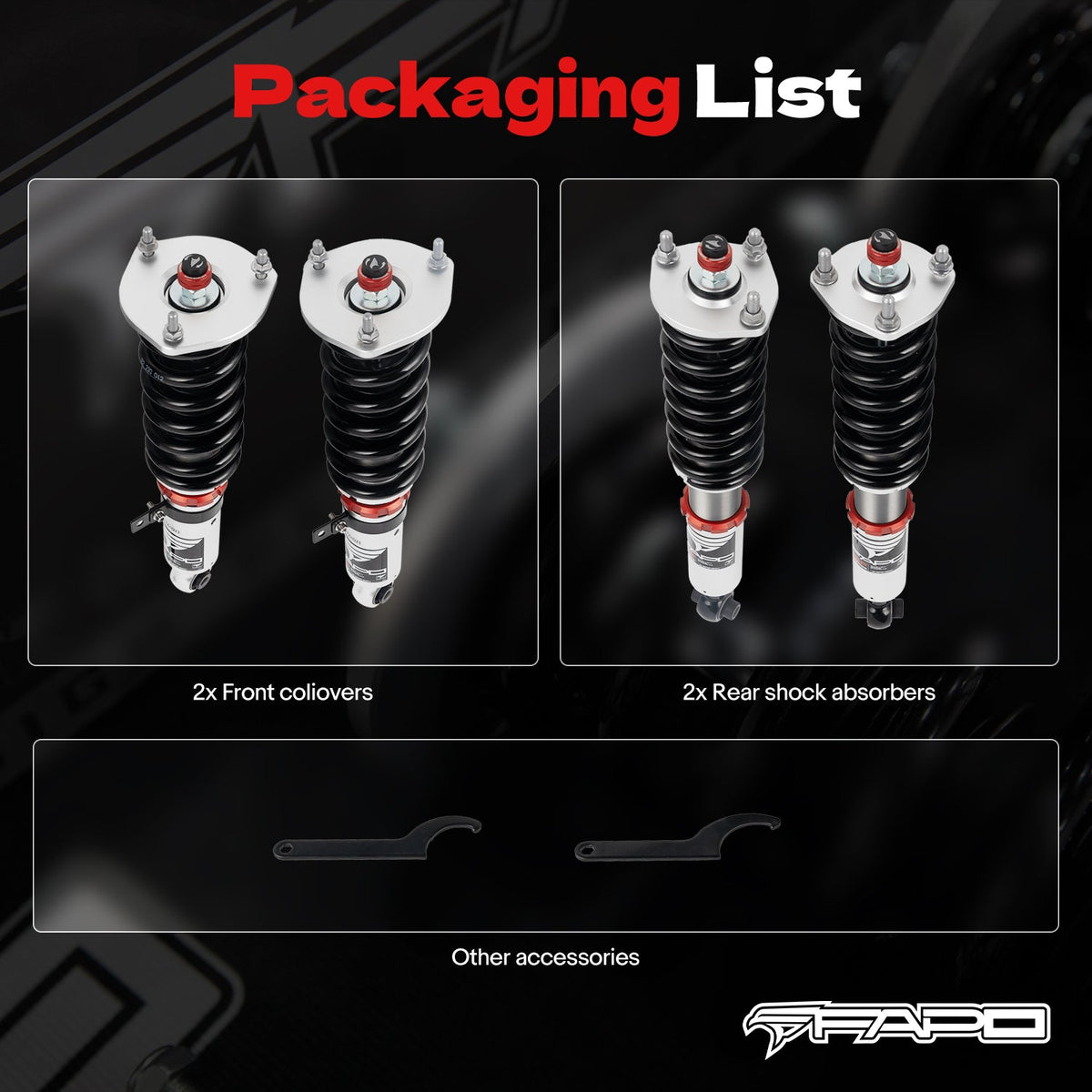

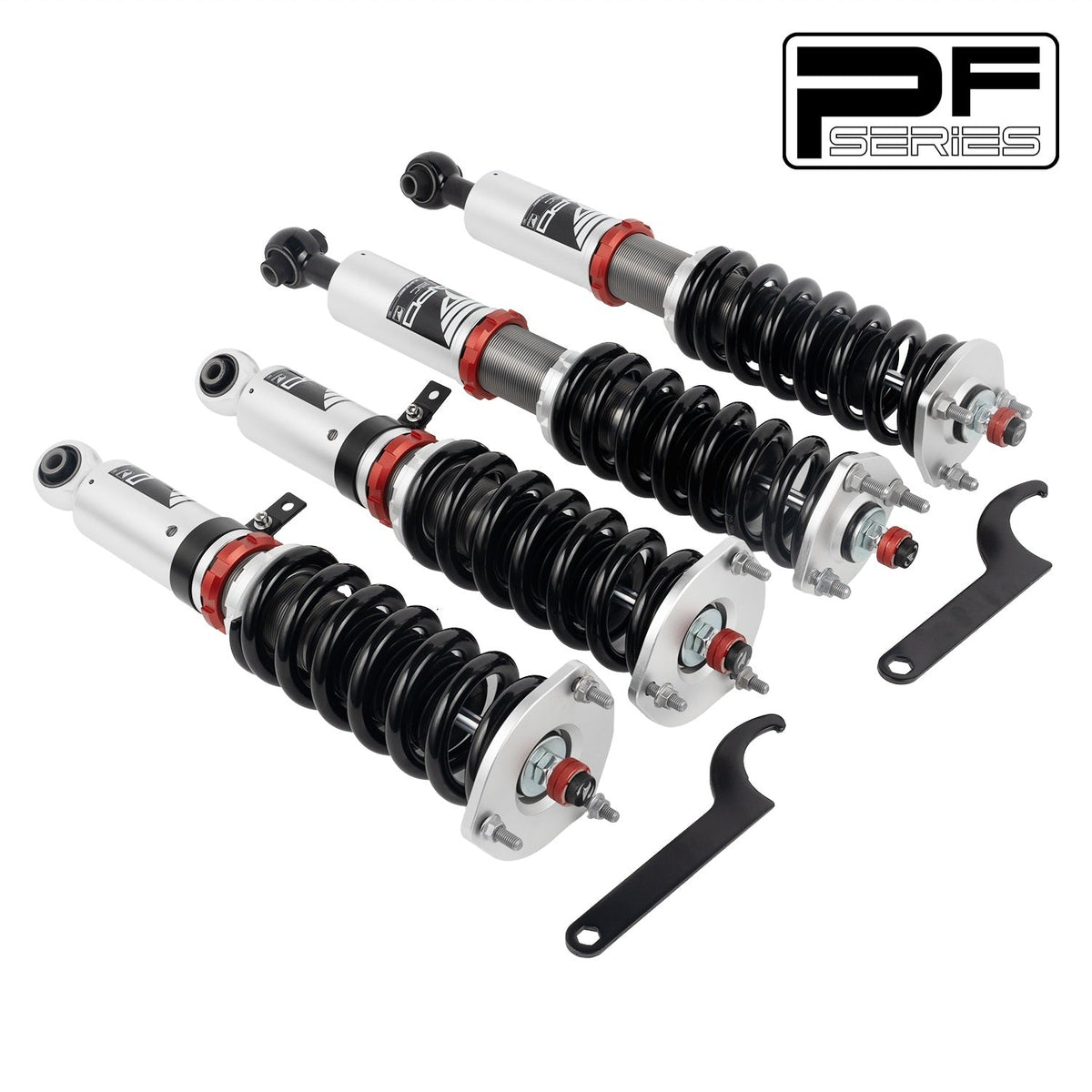

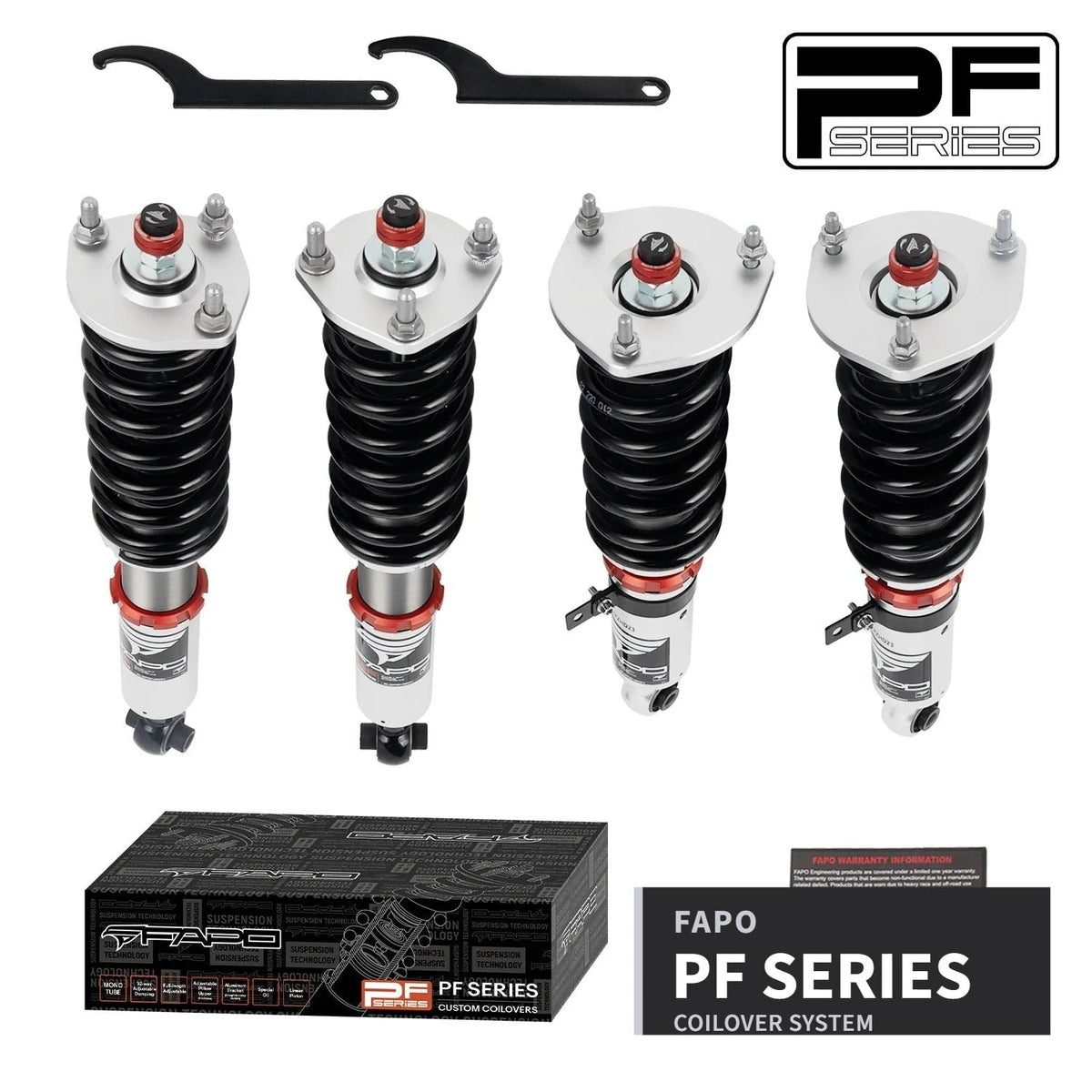

Package Includes

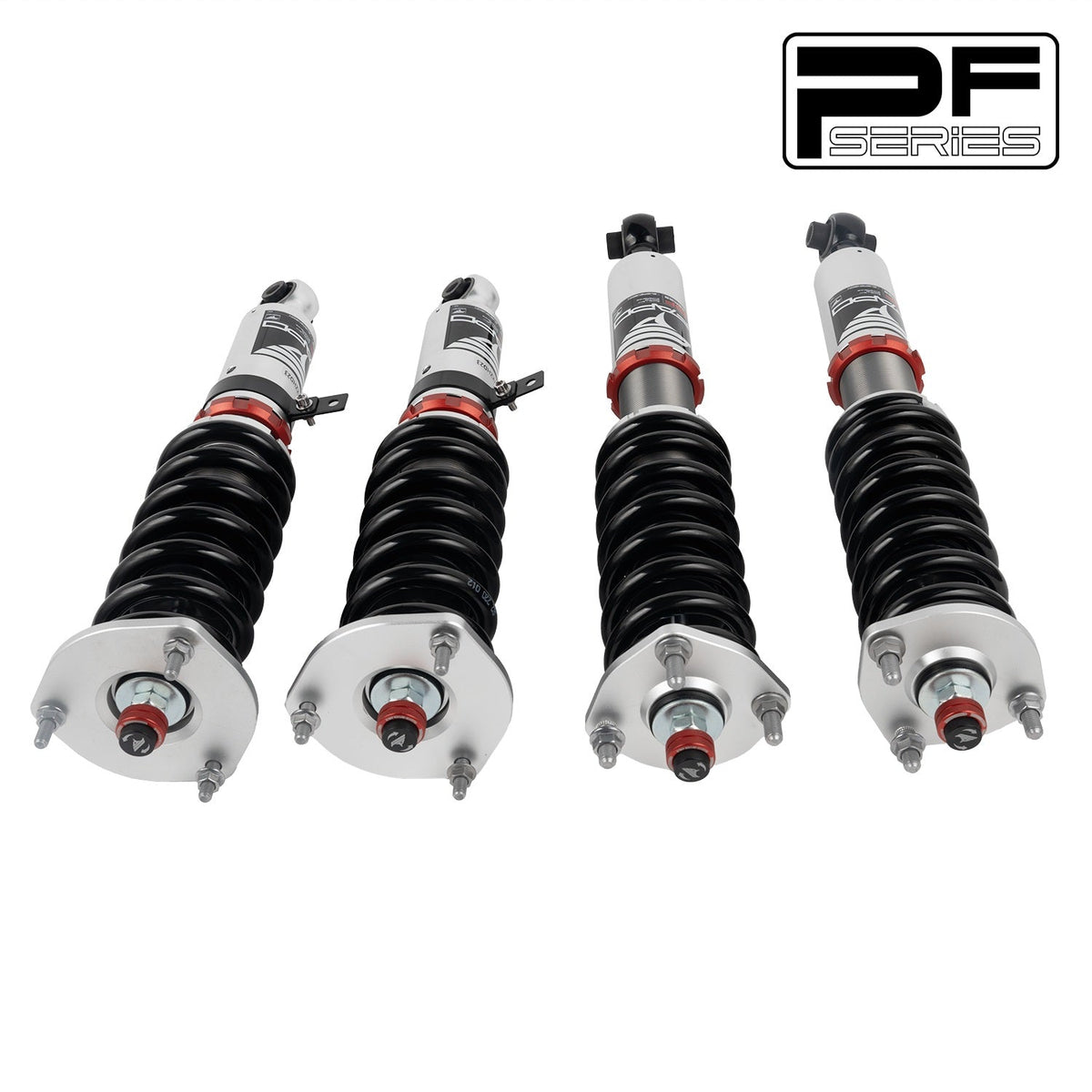

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

Note: Our coilover is a lowering kit which will be 1-1.5" lower than factory height even at maximum height. Please confirm you want to lower your vehicle before purchasing.

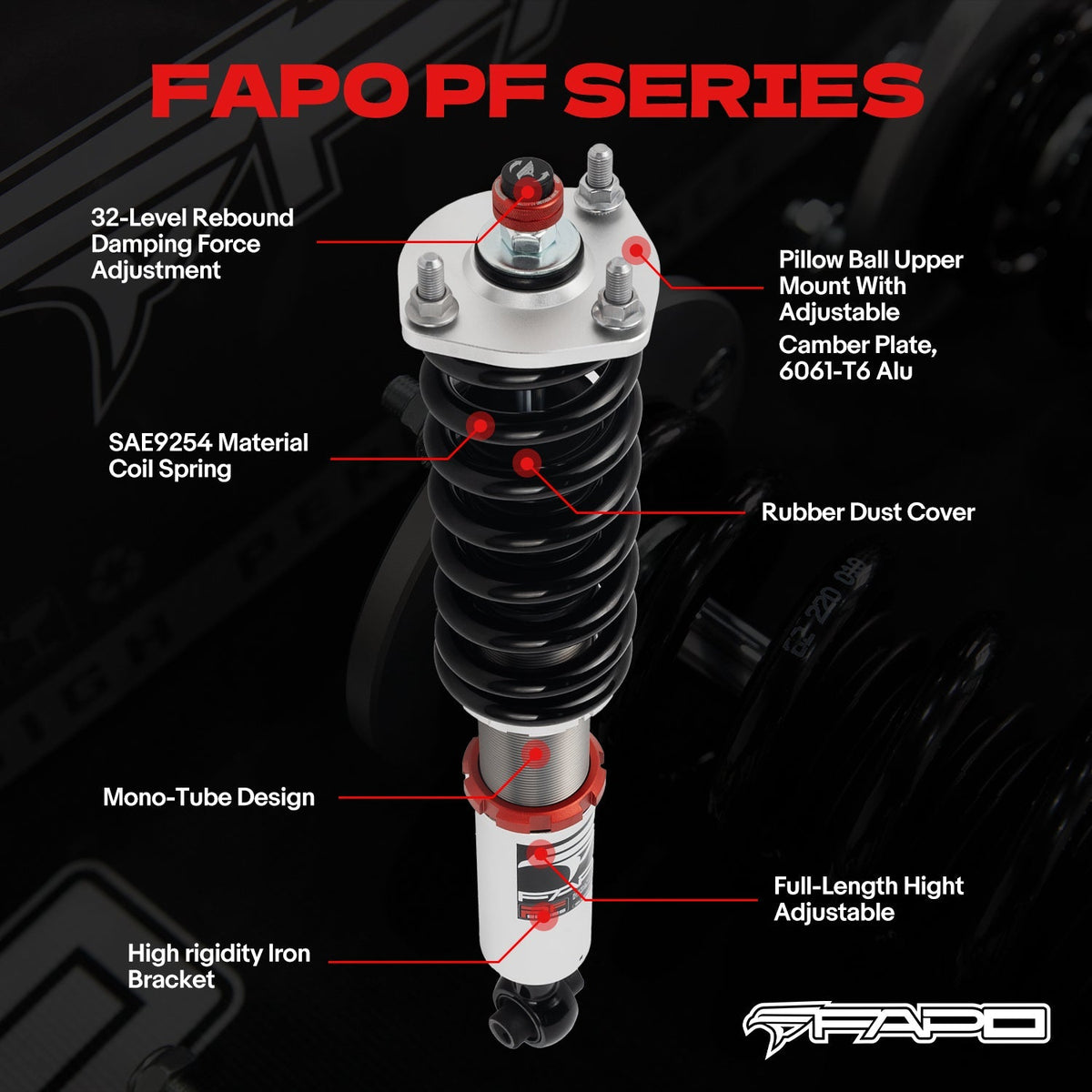

Features

• Mono-tube shock design provides larger oil and gas capacity

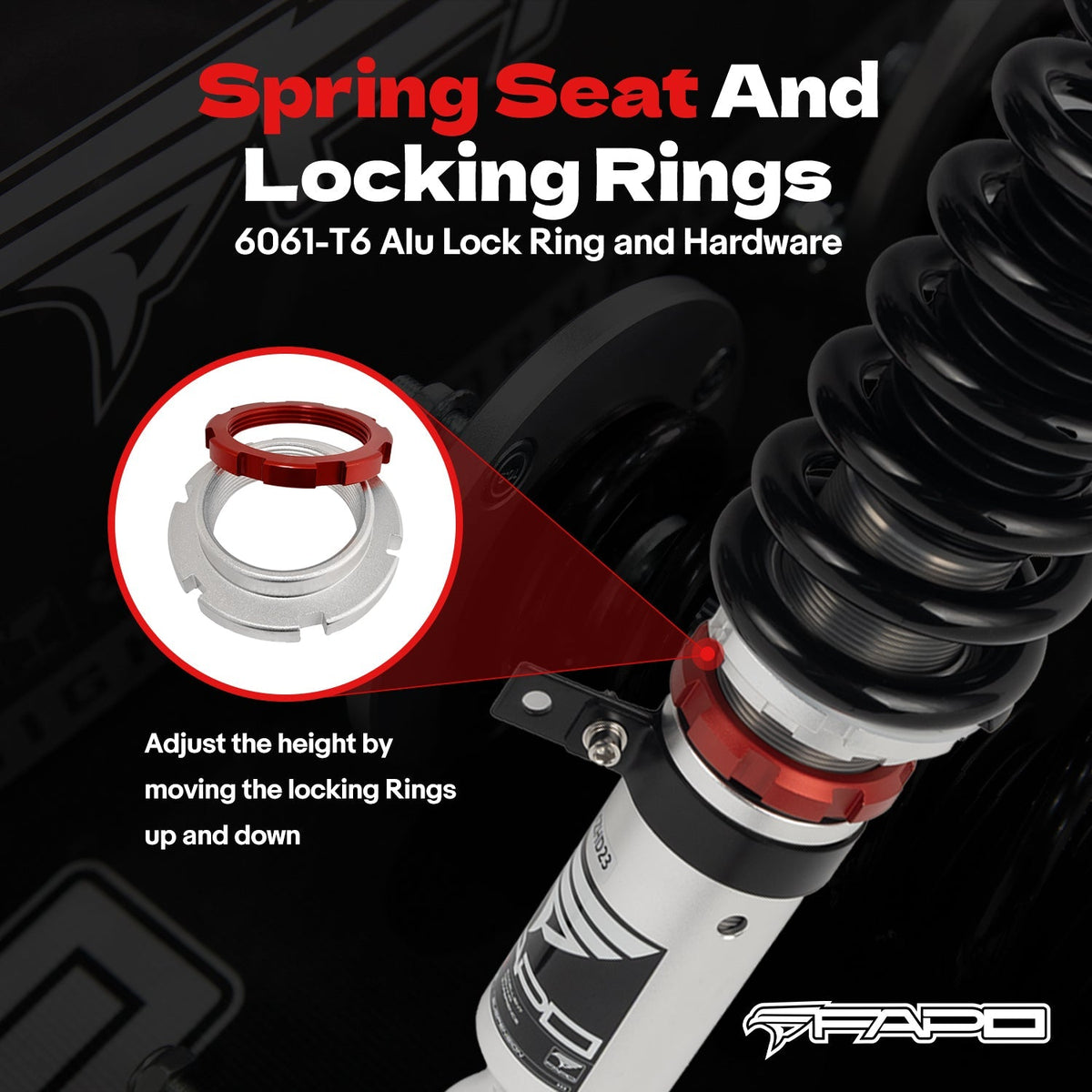

• Adjustable ride height
• Adjustable pre-load spring tension

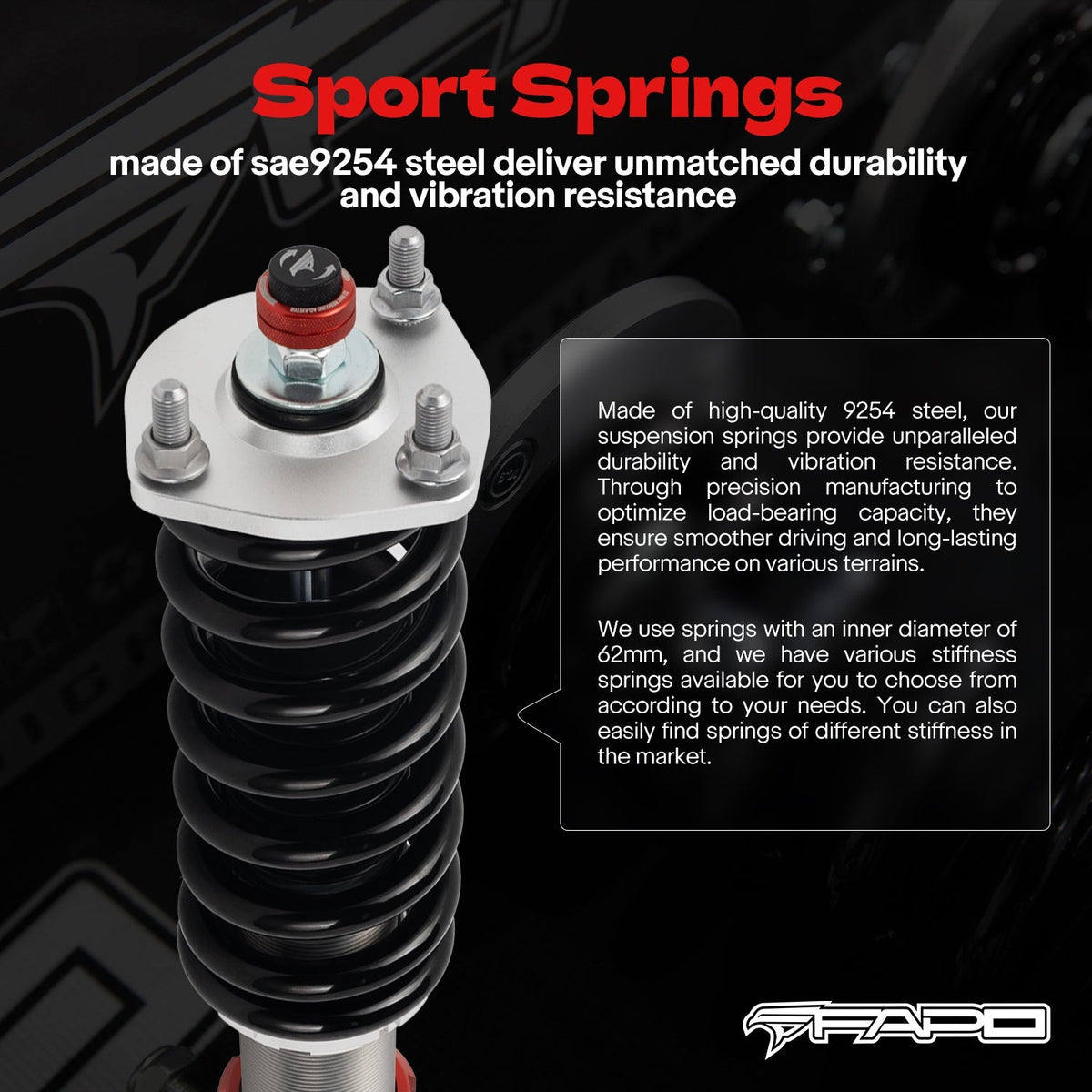

• High tensile performance spring - Under 600,000 continuous tests with less than 0.04% distortion. Special surface treatment enhances durability and performance
• All inserts include fitted rubber boots for damper protection and cleanliness
• Improves handling performance without compromising ride comfort
• Quick and affordable way to upgrade your vehicle's appearance
• Easy installation with proper tools
• Ideal for track, drift, performance road use, and daily driving
• All accessories shown in photos are included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 220mm, 12 kg/mm (670 lb/in)
• Rear Spring: 220mm, 10 kg/mm (560 lb/in)
• Ride Height: lowers 1-1.5 in from factory

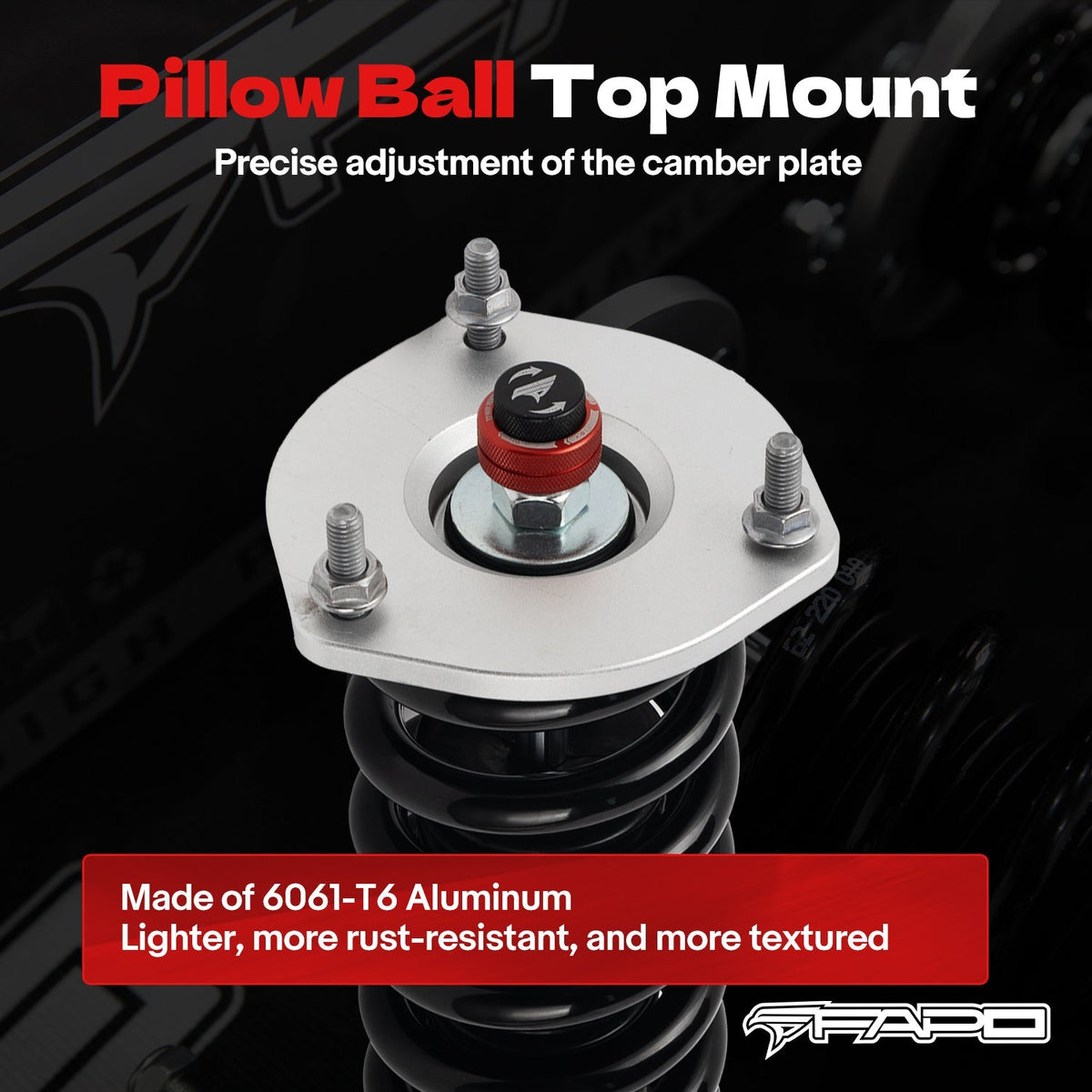

• Adjustable camber plate: Front only (rear uses standard top mounts)

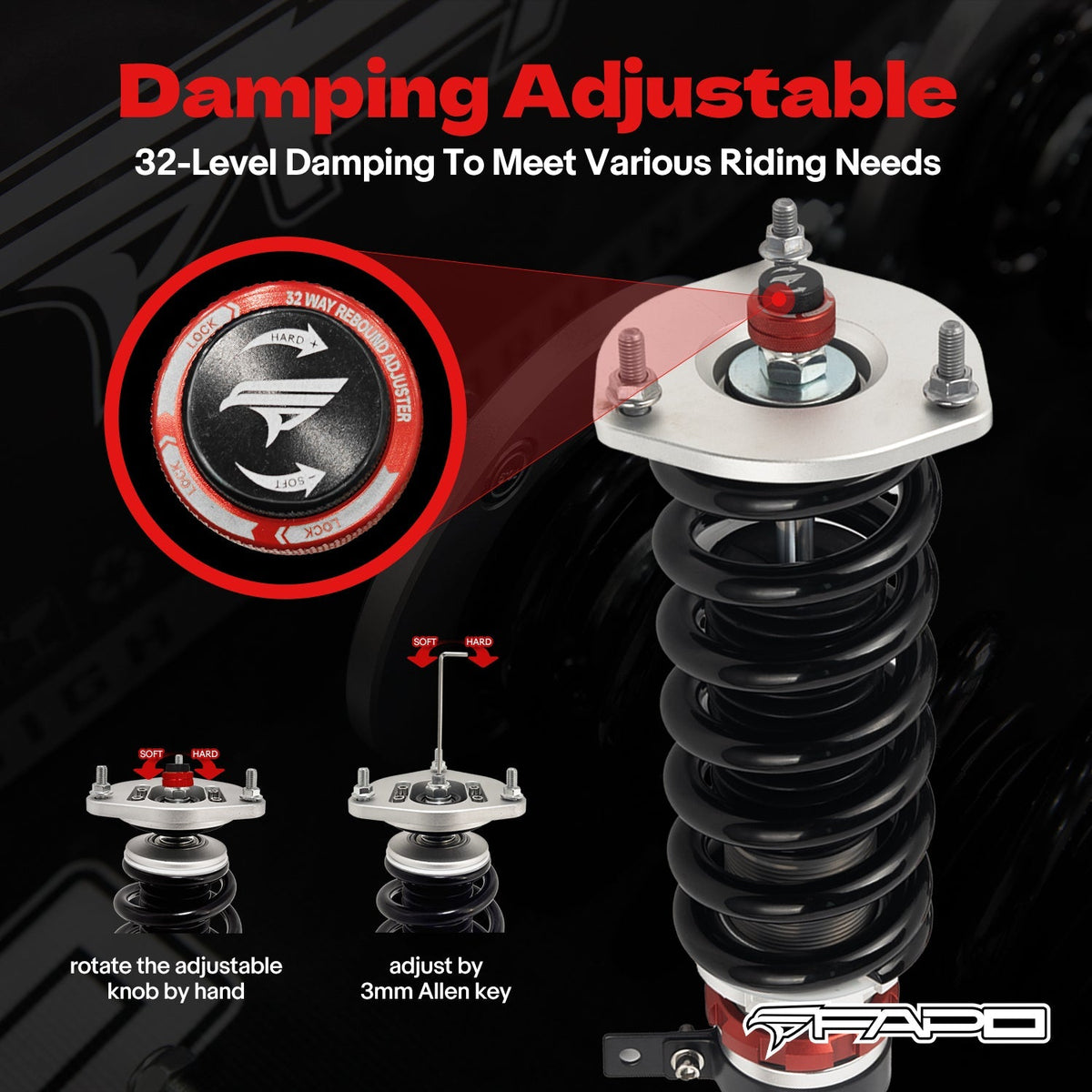

• Damping: 32 Levels
• Front Shock: 53-240-115-12.5-M12 [4-A1-9]
• Rear Shock: 53-280-135-12.5-M12 [4-A1-9]
• Mounts: Front: With standard top mounts | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
