FAPO PF 32-Level Coilovers BMW F20/F21/F22 / F23/F32/F33/F36 2011-2021 & BMW 1 Series/BMW 2 Series/BMW 4 Series 2011-2021 [PF086530]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the BMW F20/F21/F22 / F23/F32/F33/F36 2011-2021 & BMW 1 Series/BMW 2 Series/BMW 4 Series 2011-2021 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• BMW 1 Series 2nd Gen (5 bolts) F20/F21 11-19
• BMW 2 Series 1st Gen coupe and convertible 2WD/AWD (5 bolts) F22/F23 14-21
• BMW 4 Series 1st Gen 2WD/AWD (5 bolts) F32/F33/F36 13+

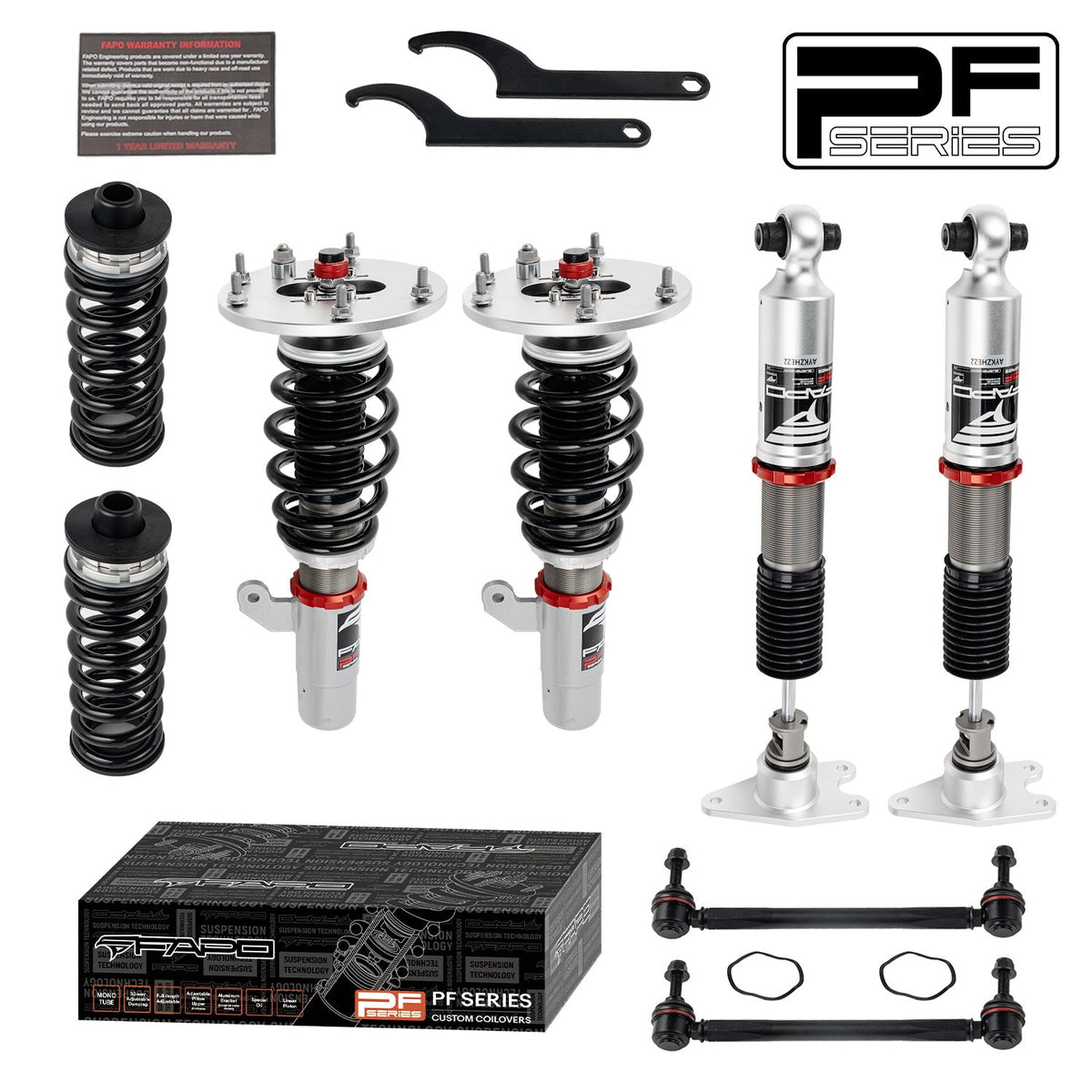

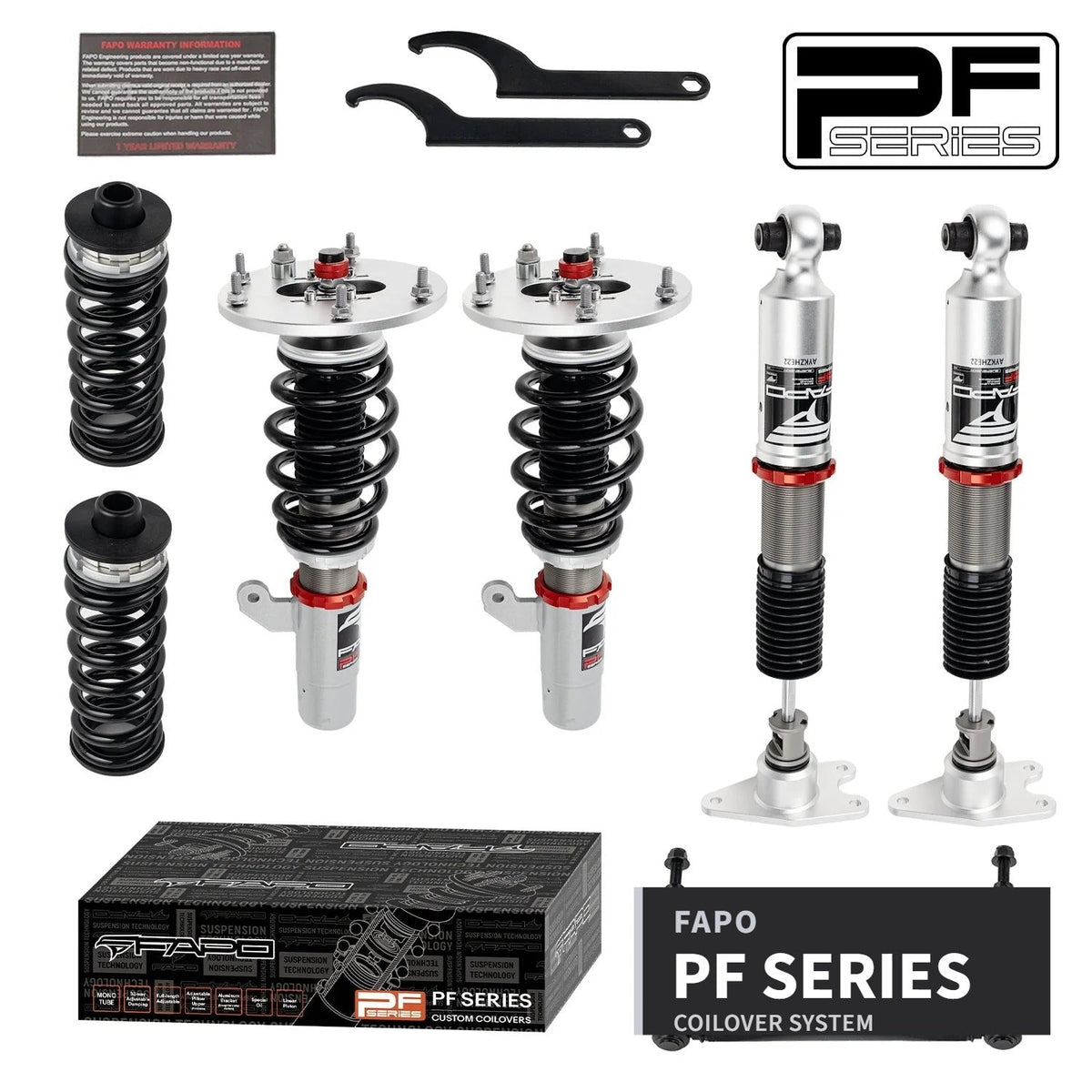

Package Includes:

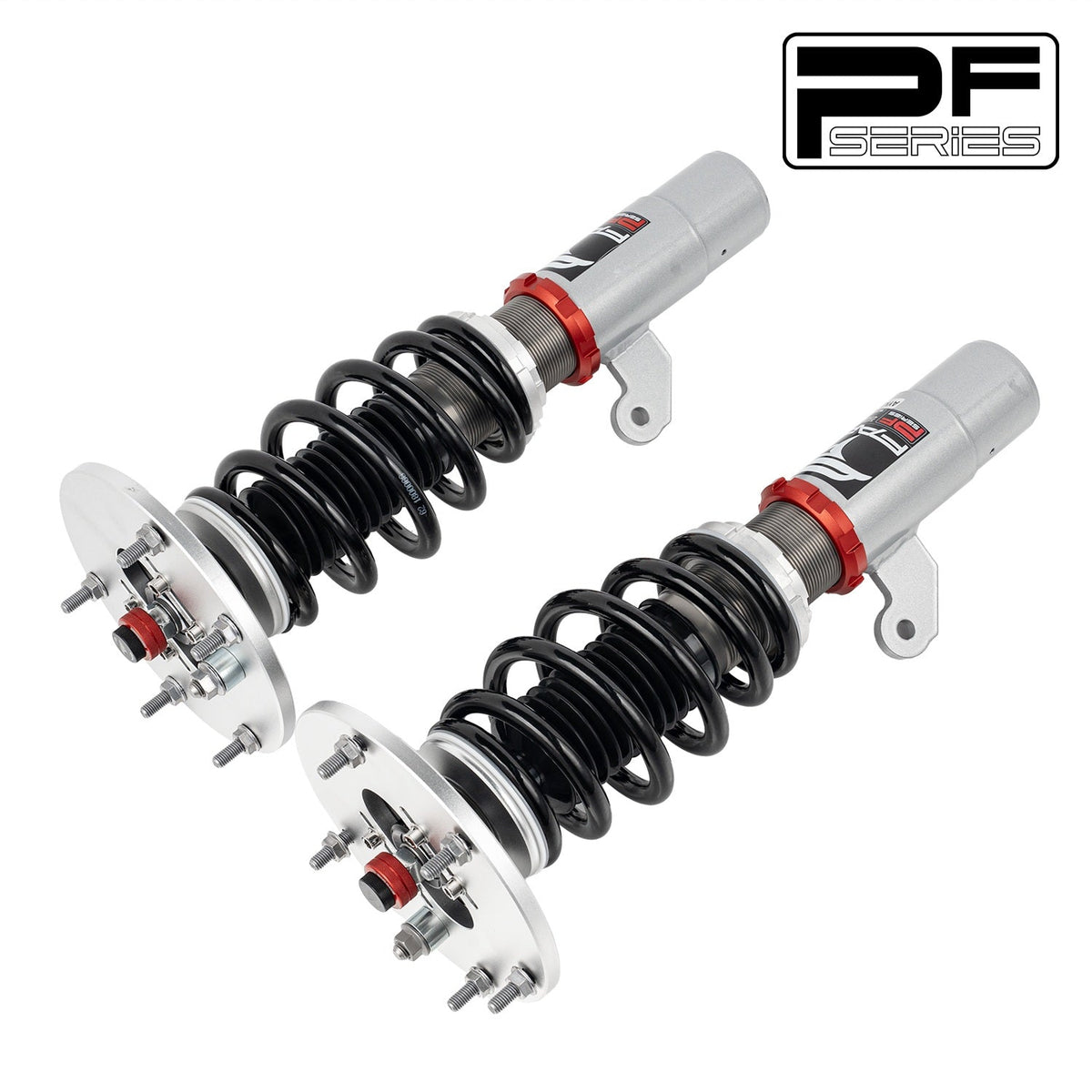

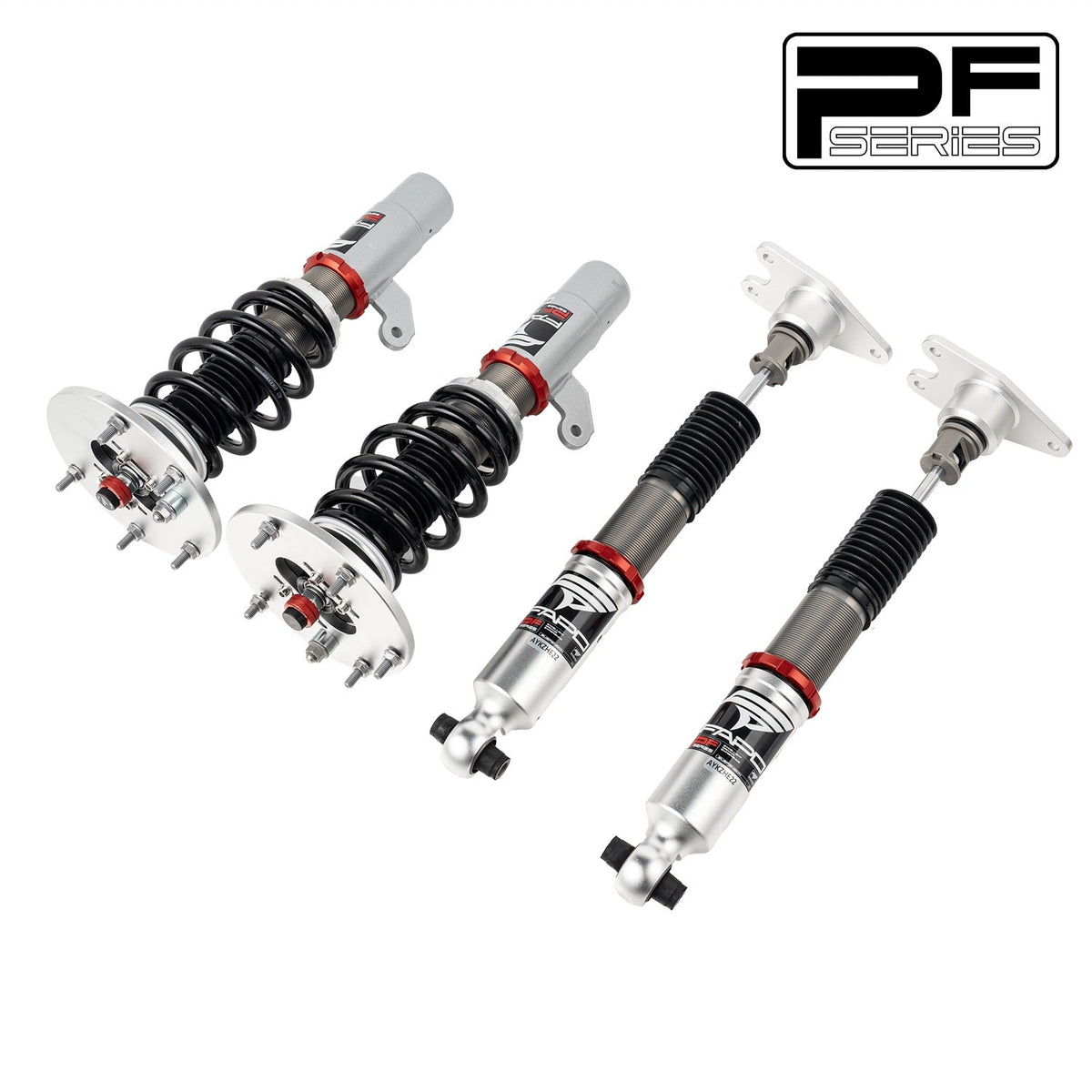

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Our coilover is a lowering kit which will be 1-1.5" lower than the factory height even at the max height. Please confirm you want to lower your car before you buy it.

Features:

• Mono-tube shock design, provides larger capacity of oil and gas
• Adjustable ride height
• Adjustable pre-load spring tension
• Hi Tensile performance spring - tested over 600,000 cycles with less than 0.04% distortion. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep it clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with the right tools.
• Ideal for any track, drift, fast road, and daily driving.
• The accessories shown in the photos are included.
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Shock: 53-260-120-20-M12 [4-M2-4]
• Rear Shock: 53-240-140-12.5-M12 [4-A1-9]
• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts
• Front Spring: 180mm, 6 kg/mm (335 lb/in)
• Rear Spring: 220mm, 12 kg/mm (670 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
