FAPO PF 32-Level Coilovers Audi A4 B8/8K FWD 2008-2016, S4 B8 2009-2016 & A5 B8 2007+ [PF014330]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

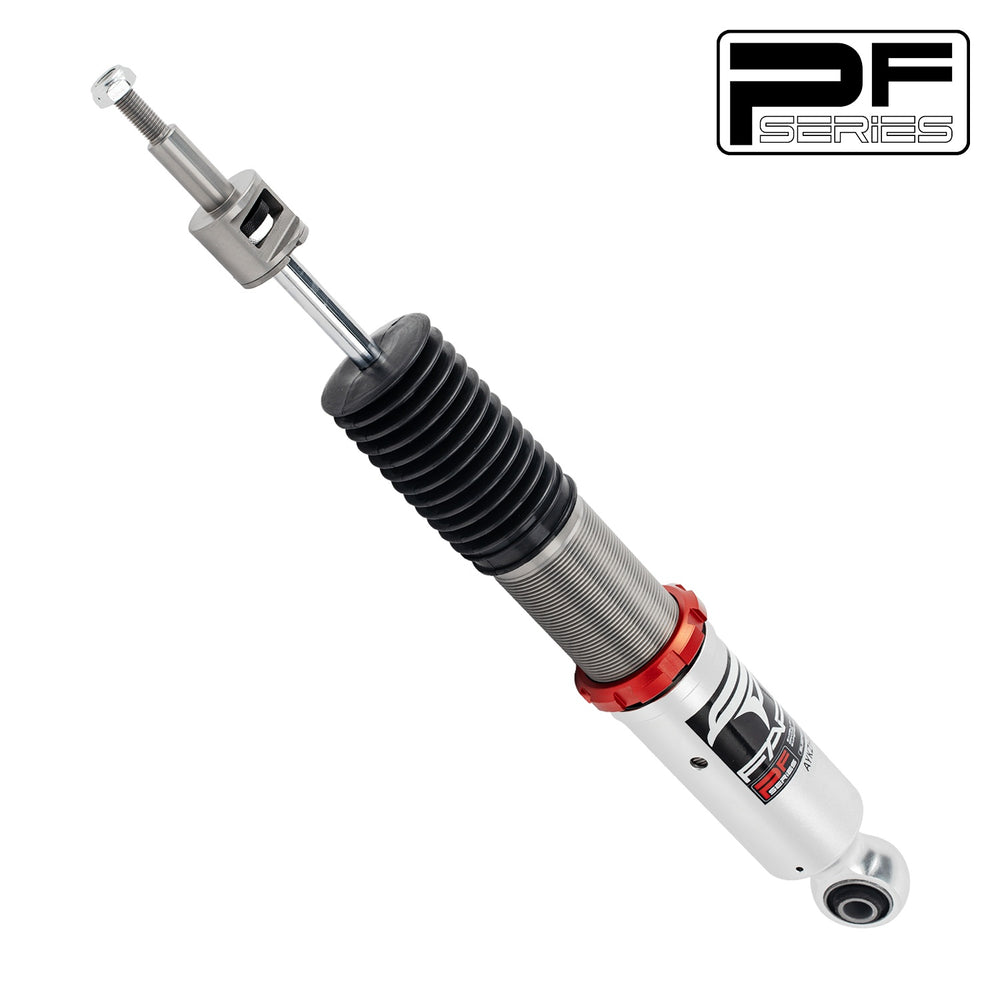

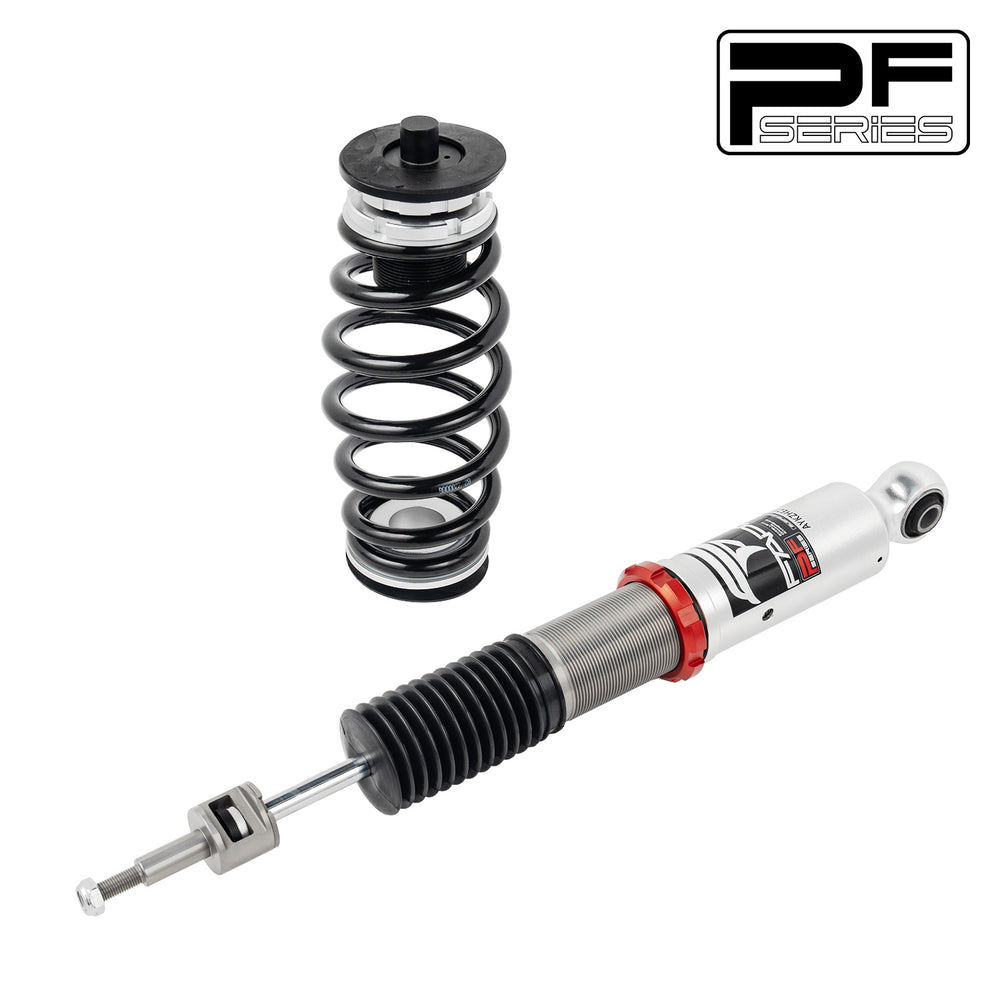

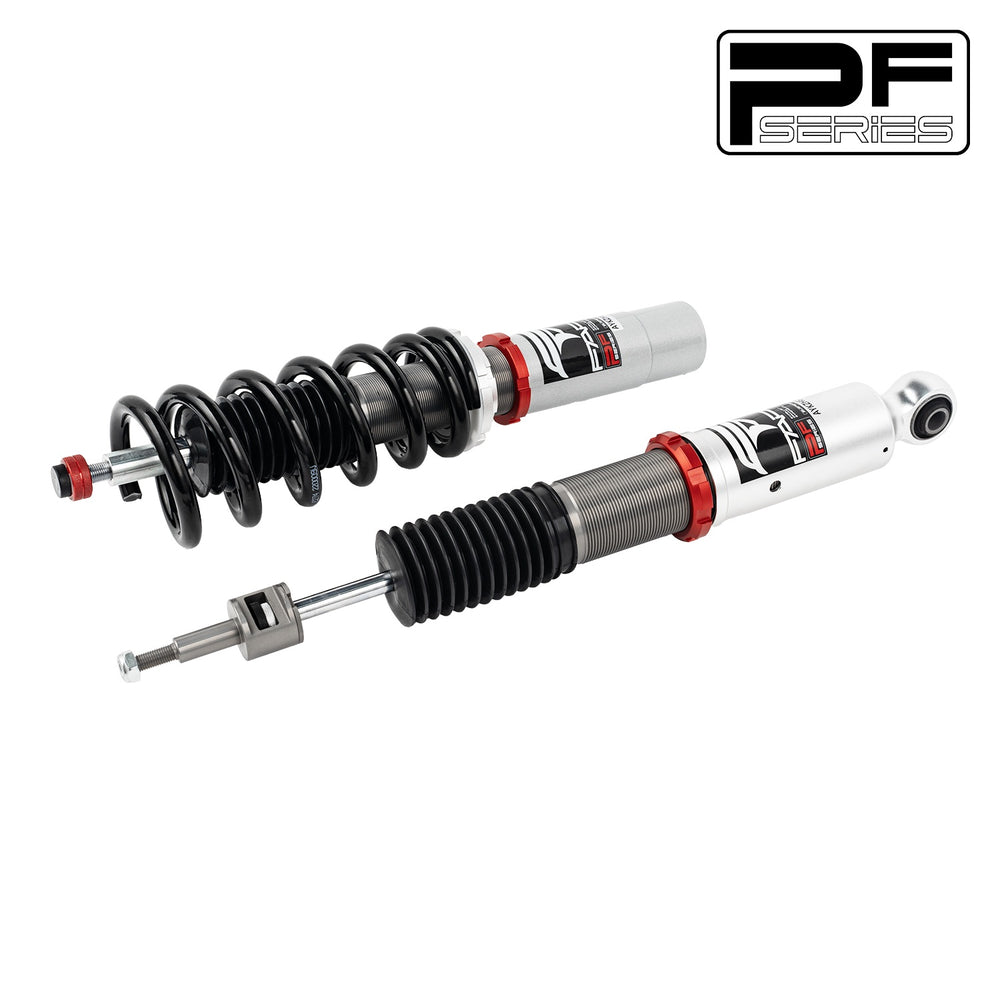

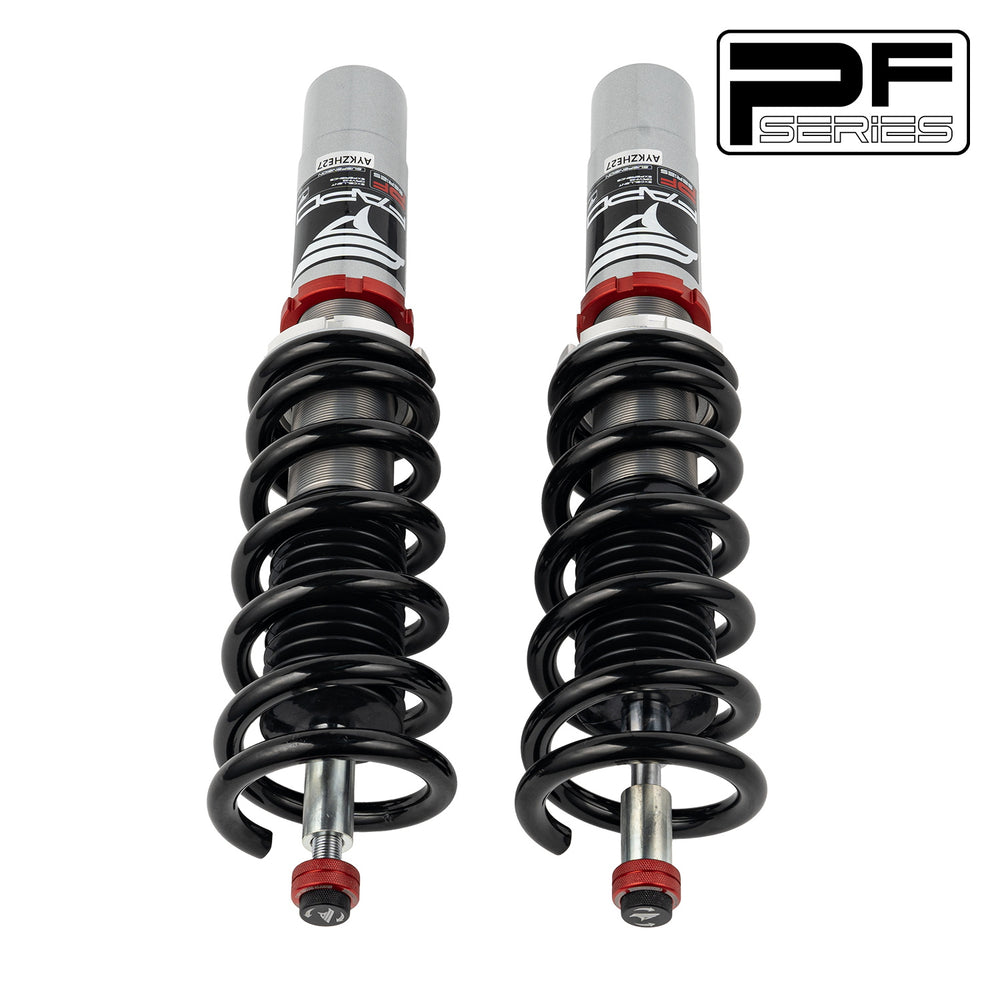

The FAPO PF kit for the Audi A4 B8/8K FWD 2008-2016, S4 B8 2009-2016 & A5 B8 2007+ is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy.

Spring upgrades (select above): higher or lower spring rates, with standard springs or Swift springs, can be added when you order.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

Application:

• Audi A4 4th Gen FWD B8/8K 2008-2016
• Audi A5/Sportback AWD B8 2007+
• Audi S4 B8/8K 2009-2016

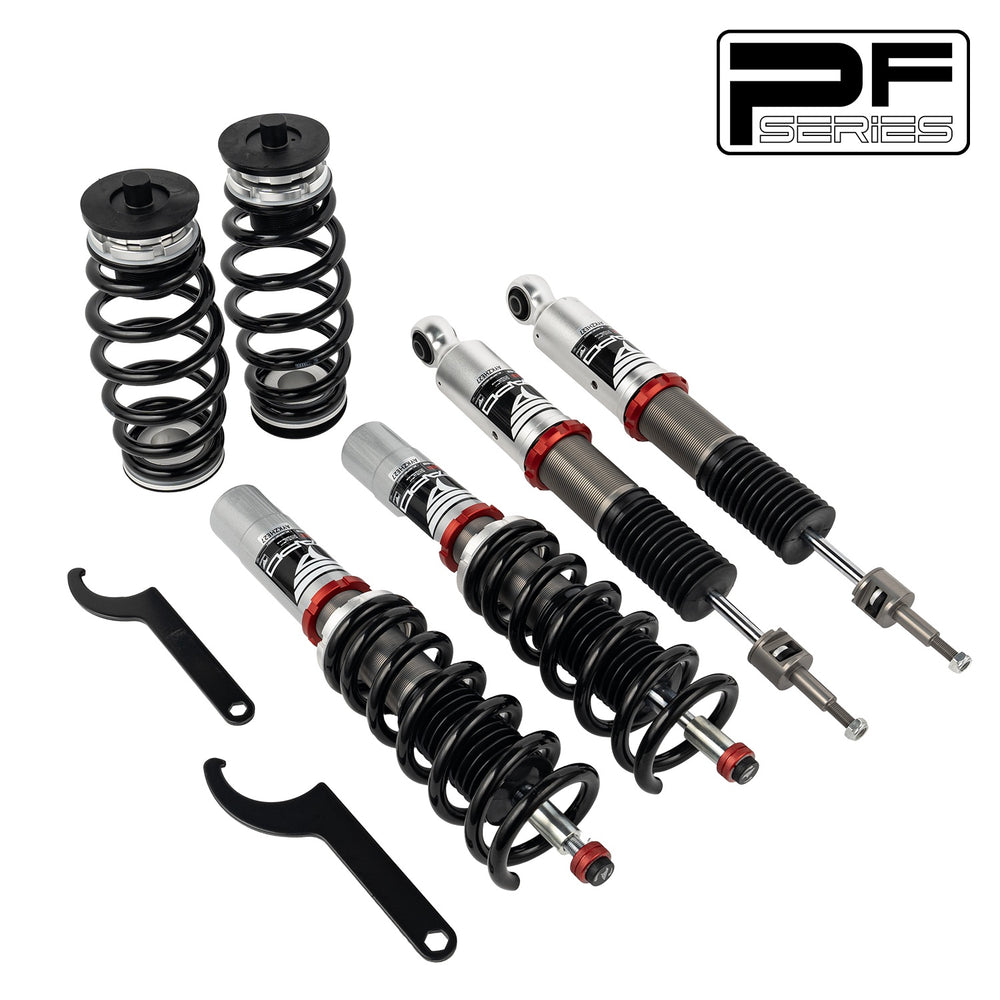

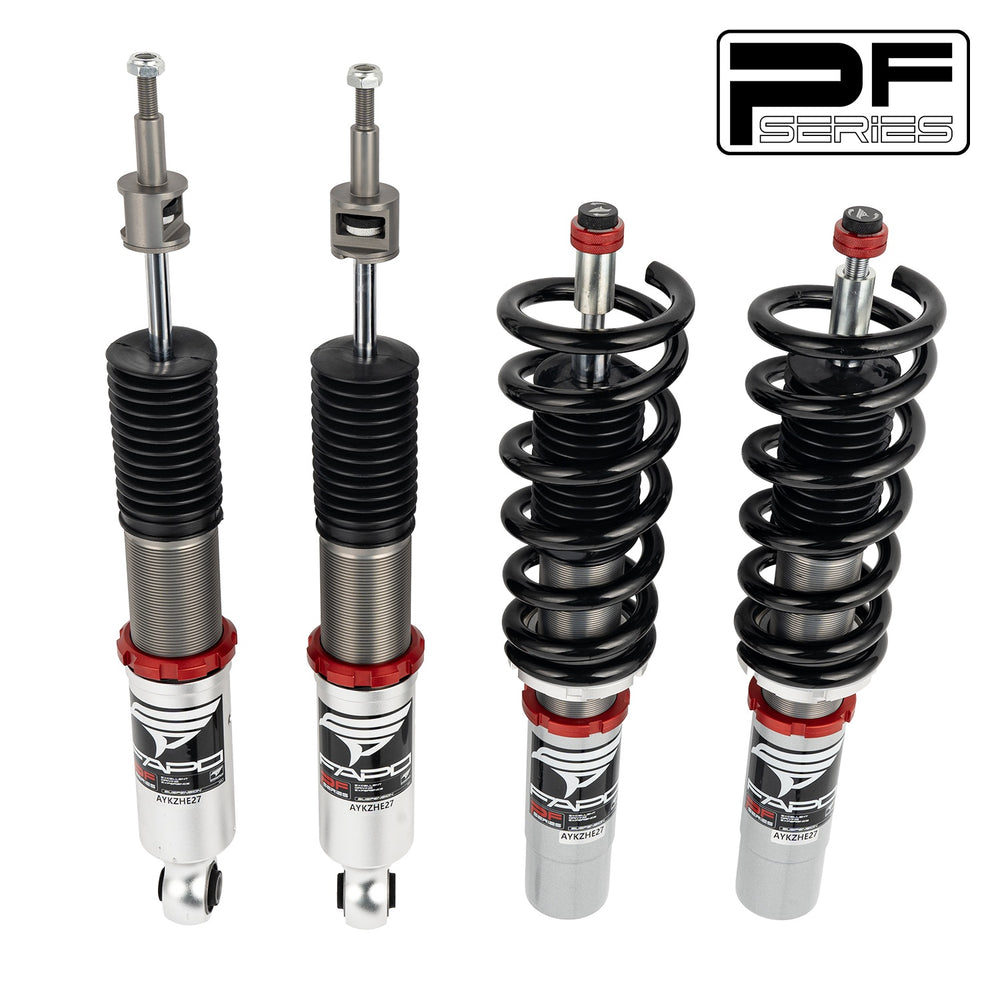

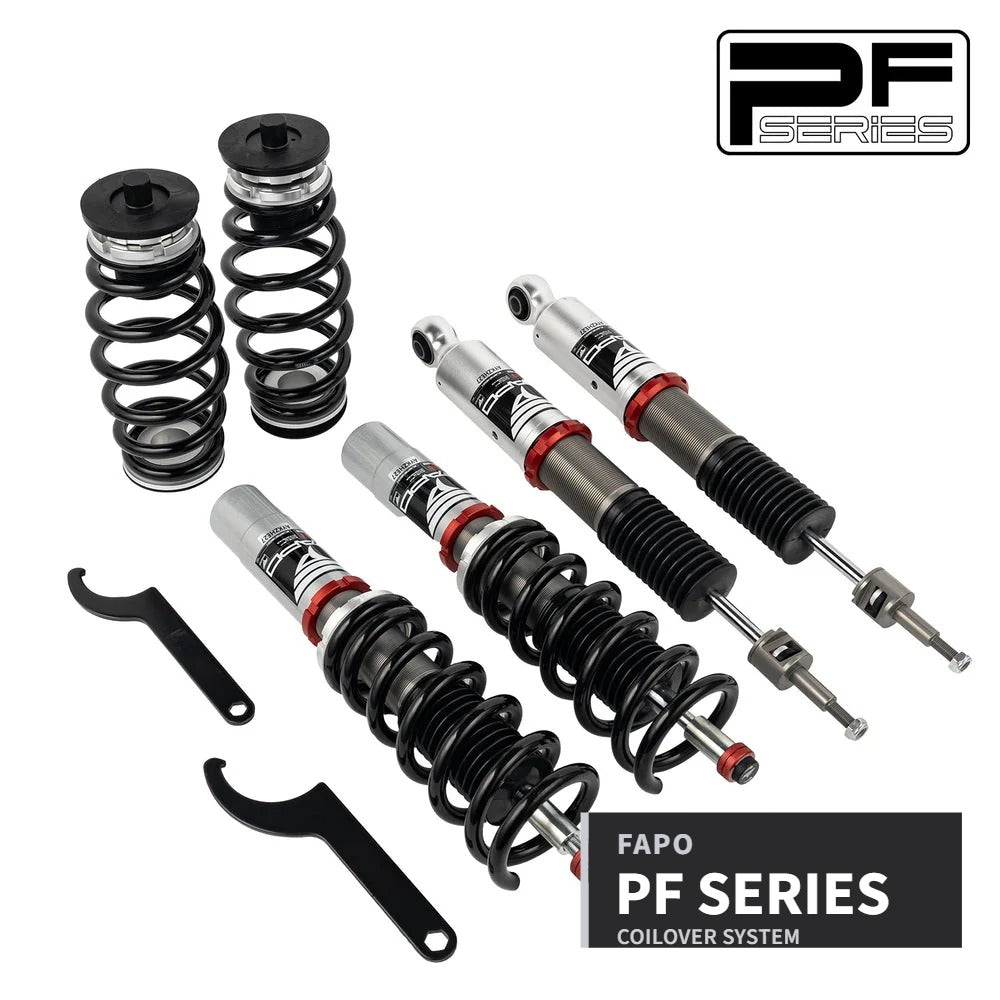

Package Includes:

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Note: Our coilover is a lowering kit that will reduce your car's height by 1-1.5" compared to factory height, even at the maximum setting. Please confirm you want to lower your vehicle before purchase.

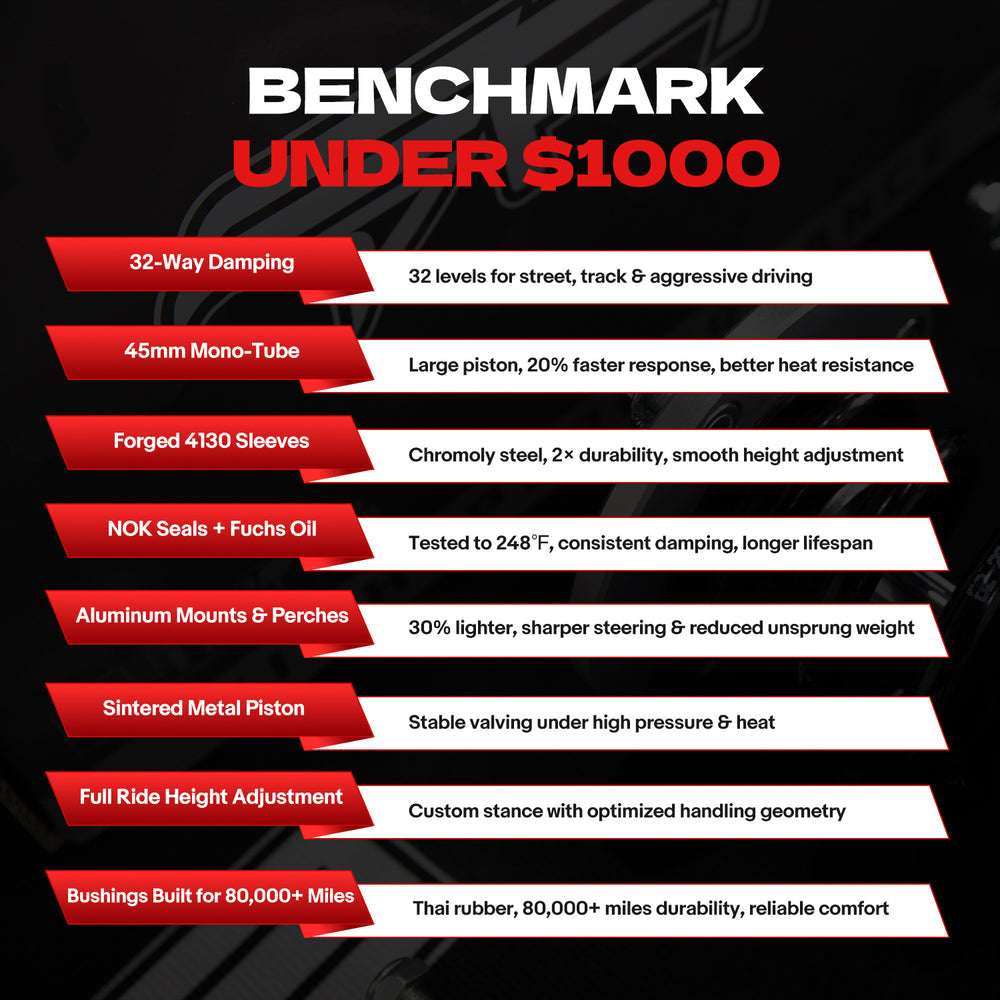

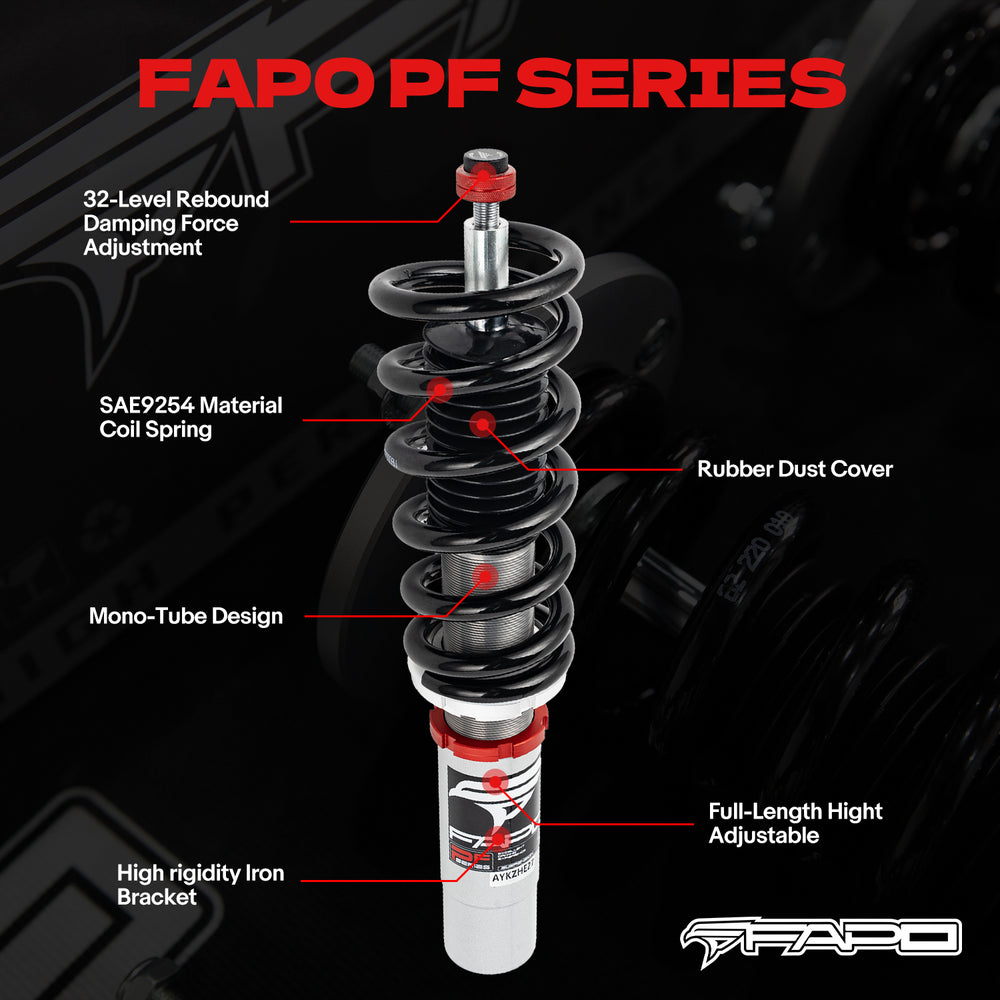

Features:

• Mono-tube shock design provides larger oil and gas capacity.

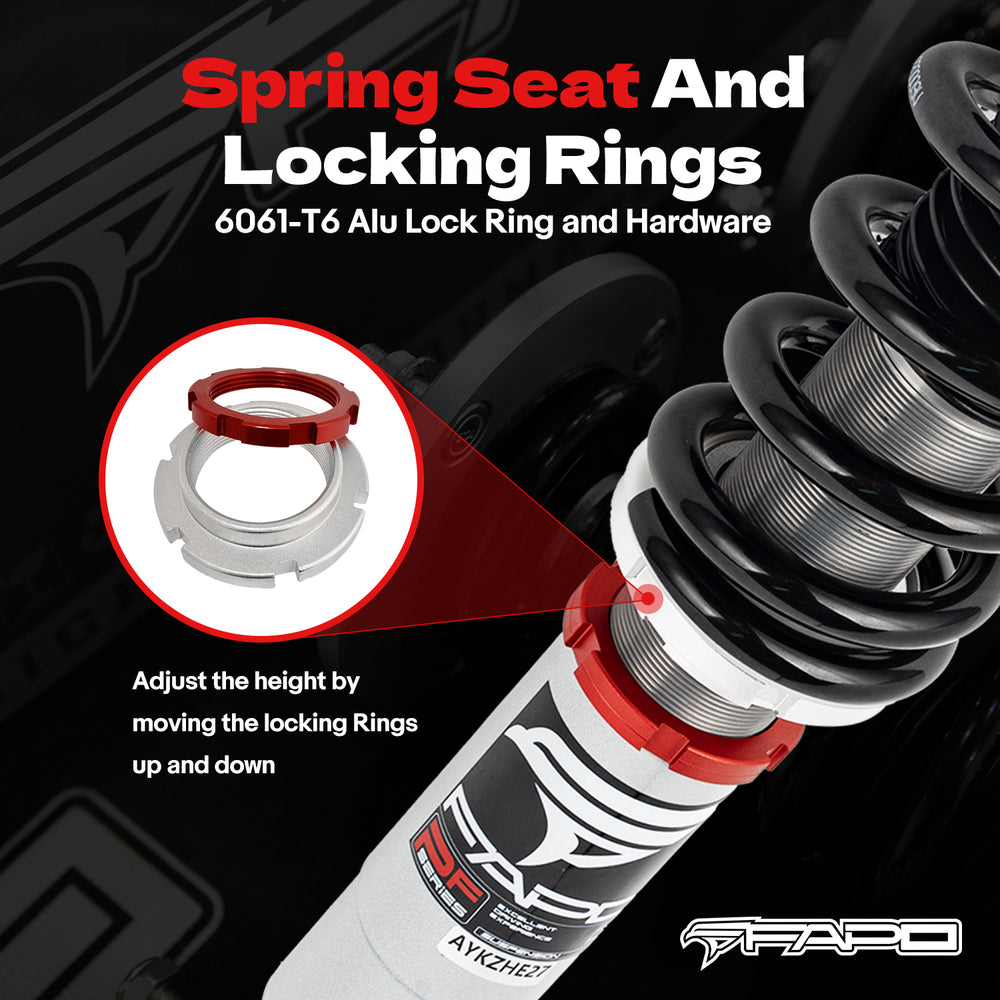

• Adjustable ride height for customized performance.
• Adjustable pre-load spring tension for enhanced handling.

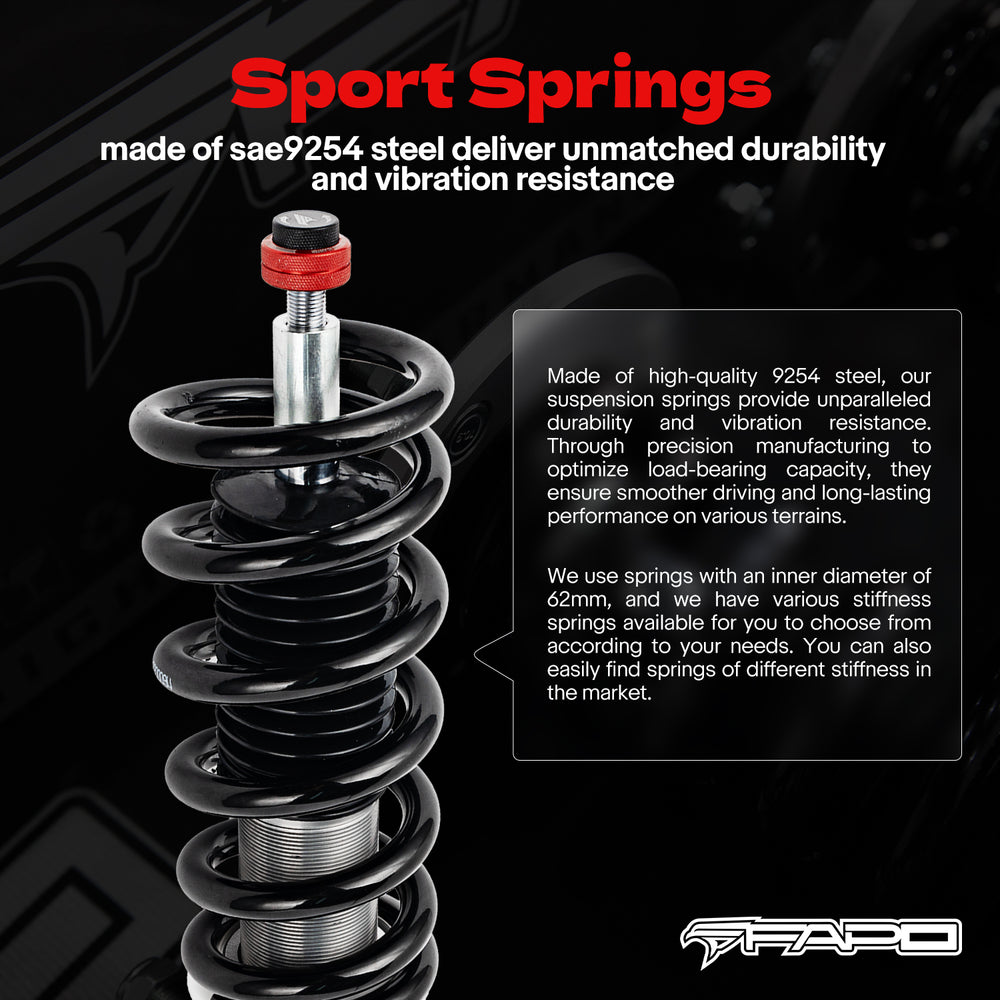

• High tensile performance spring - tested continuously 600,000 times with less than 0.04% distortion. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep it clean.
• Improves handling without sacrificing ride comfort.
• Fast and affordable way to upgrade your car's appearance.
• Easy installation with the right tools.
• Ideal for track, drift, fast road use, and daily driving.
• Accessories shown in photos are included.
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Specifications:

• Front Spring: 220mm, 9 kg/mm (505 lb/in)
• Rear Spring: 220mm, 6 kg/mm (335 lb/in)
• Adjustable Height: Yes
• Adjustable Camber Plate: Front coilovers only; Rear uses standard top mounts

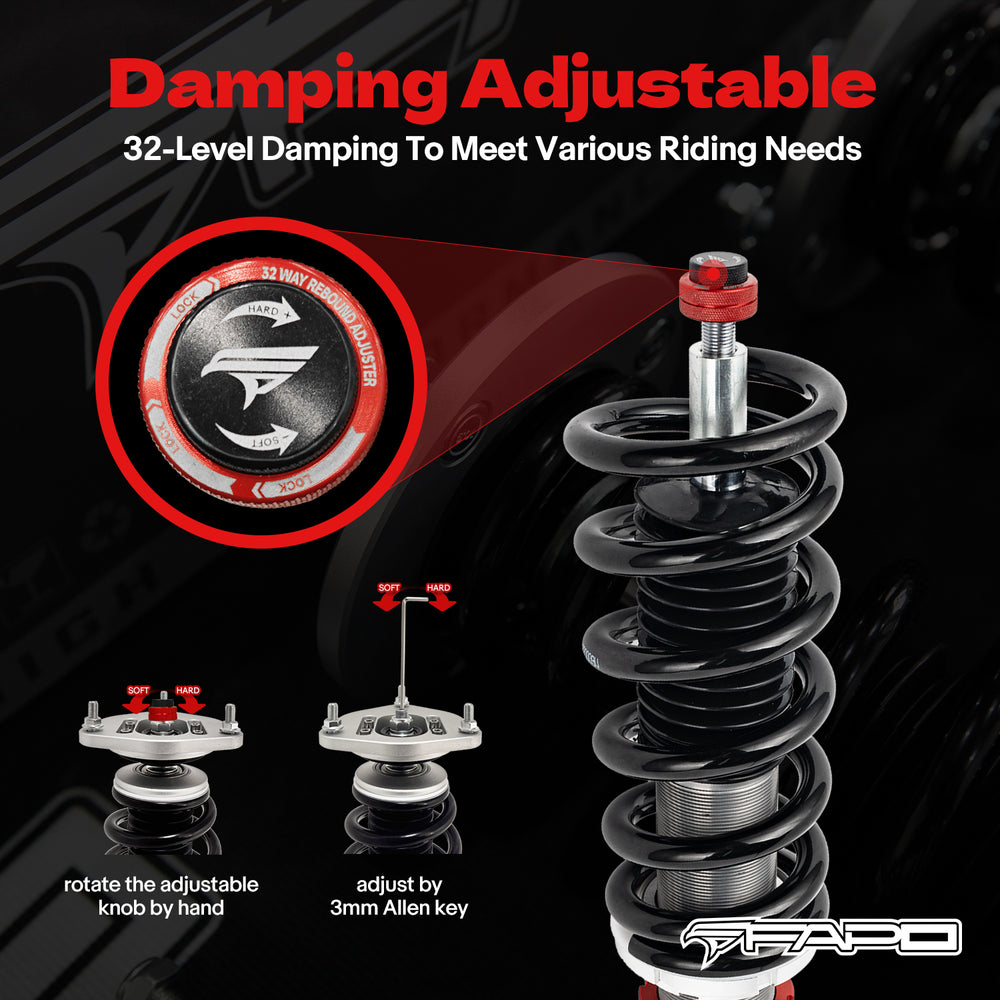

• Damping: 32 Levels
• Front Shock: 47-280-110-20-M12 [3-40F-4]
• Rear Shock: 53-240-150-12.5-M12 [4-A1-9]
• Mounts: Front: OEM top mounts required | Rear: OEM top mounts required

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
