FAPO PF 32-Level Coilovers Acura TLX 1st Gen UB1/UB2/UB3/UB4 2015-2020 [PF012630]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Acura TLX 1st Gen UB1/UB2/UB3/UB4 2015-2020 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Honda Accord 9th Gen CT1/CT2/CR2/CR3/CR6 2012-2019
• Honda Spirior 2nd Gen 2015-2018
• Acura TLX 1st Gen UB1/UB2/UB3/UB4 2015-2020

Package Includes

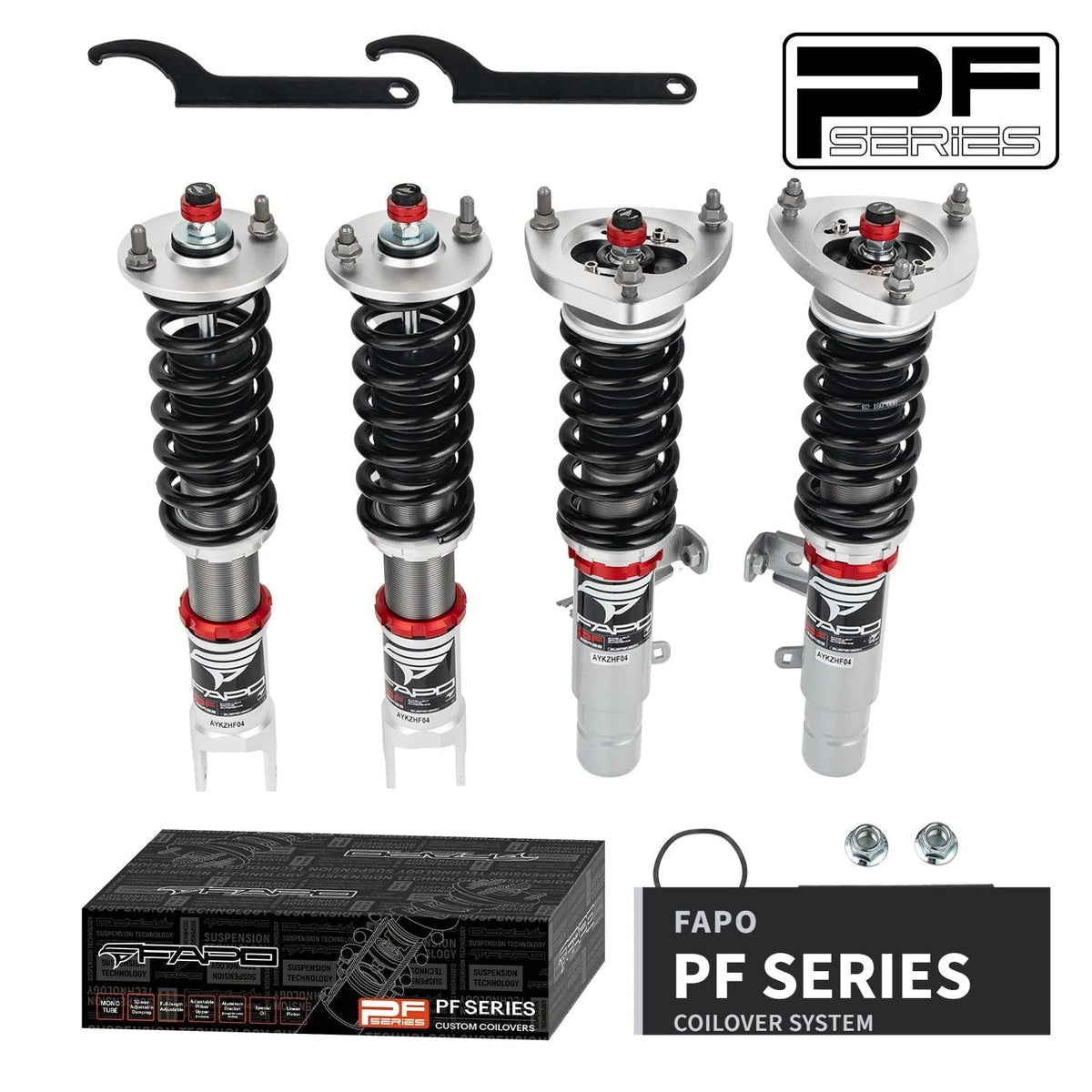

• Front coilovers × 2 pcs
• Rear coilovers × 2 pcs
• Wrench × 2 pcs

* Note: Our coilover is a lowering kit which will be 1-1.5" lower than factory height even at the maximum setting. Please confirm you want to lower the car before purchasing.

Features

• Mono-tube shock design, larger oil & gas capacity
• Adjustable ride height
• Adjustable pre-load spring tension
• High-tensile springs: <0.04% distortion after 600,000 cycles
• Fitted rubber boots protect the dampers
• Improved handling without sacrificing comfort
• Fast, affordable appearance upgrade
• Easy installation with proper tools
• Suitable for track, drift, fast-road & daily driving
• All pictured accessories included
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Front Spring: 180mm, 8 kg/mm (445 lb/in)
• Rear Spring: 220mm, 6 kg/mm (335 lb/in)
• Ride Height: lowers 1-1.5 in from factory
• Adjustable camber plate: Front only; rear standard mounts
• Damping: 32 Levels
• Front Shock: 53-220-100-20-M12 [4-M2-3]
• Rear Shock: 53-260-135-12.5-M12 [4-A1-7]
• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
