FAPO PF 32-Level Coilovers 2016-2025 Hyundai Elantra/ Kia Forte 2019-2024 [PF029830]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

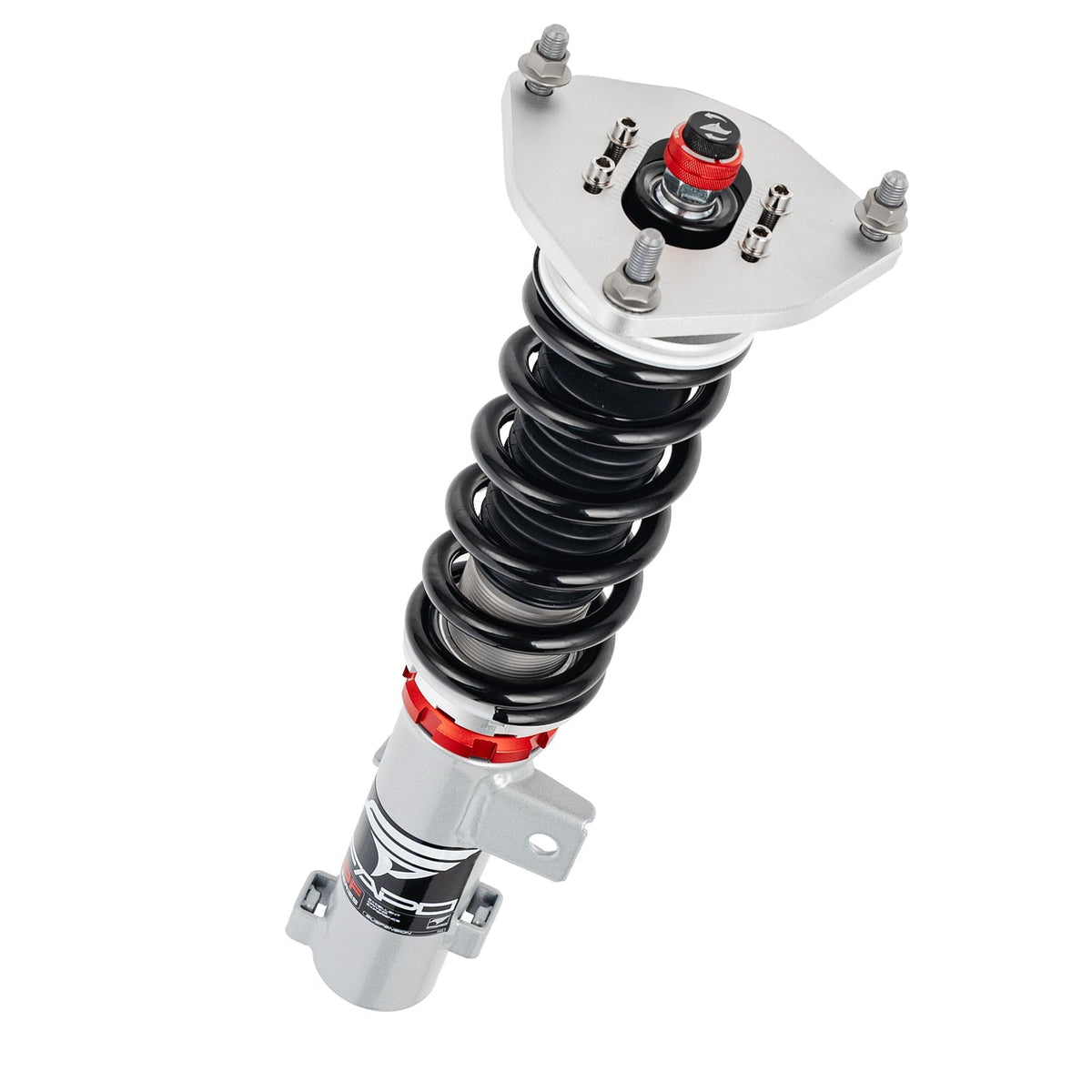

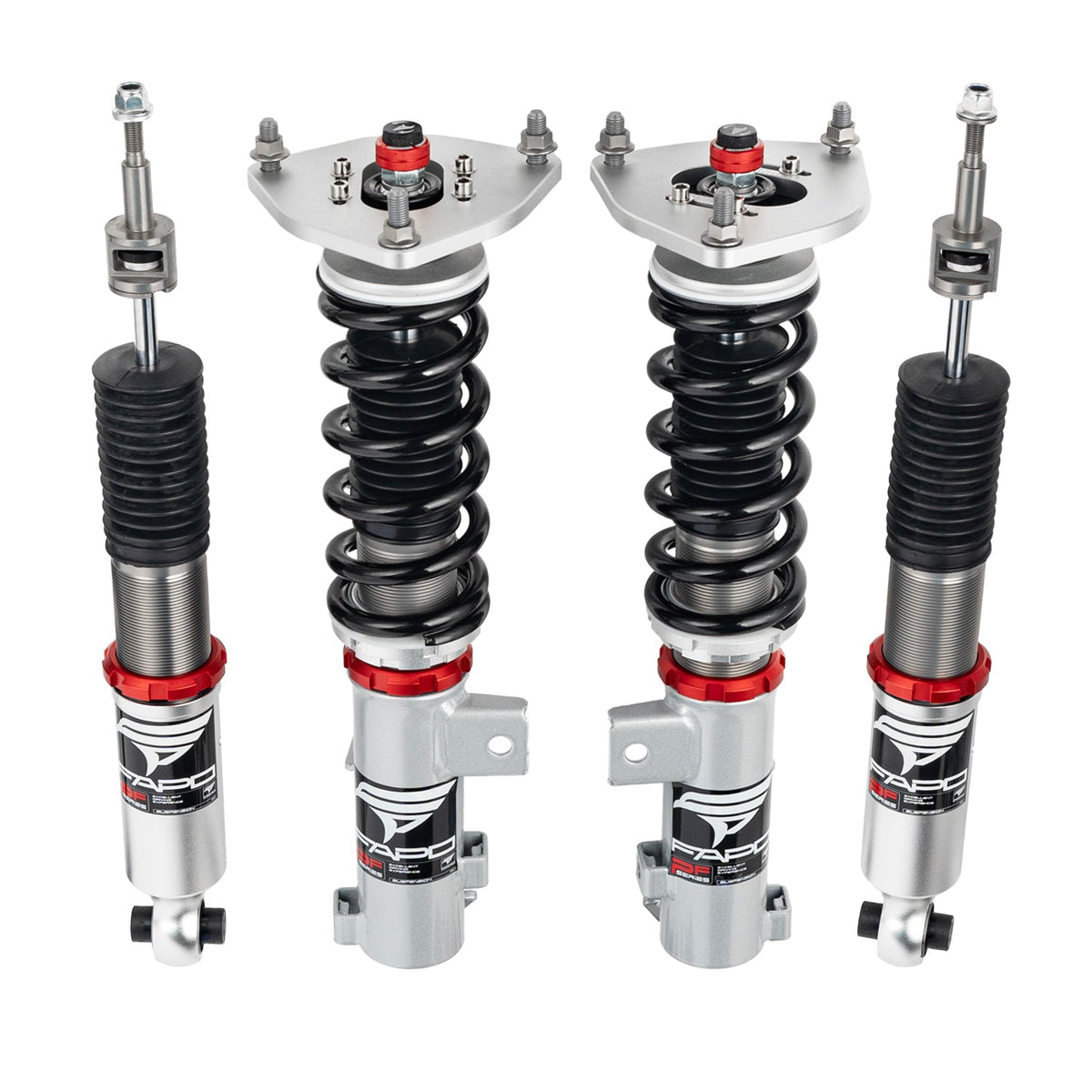

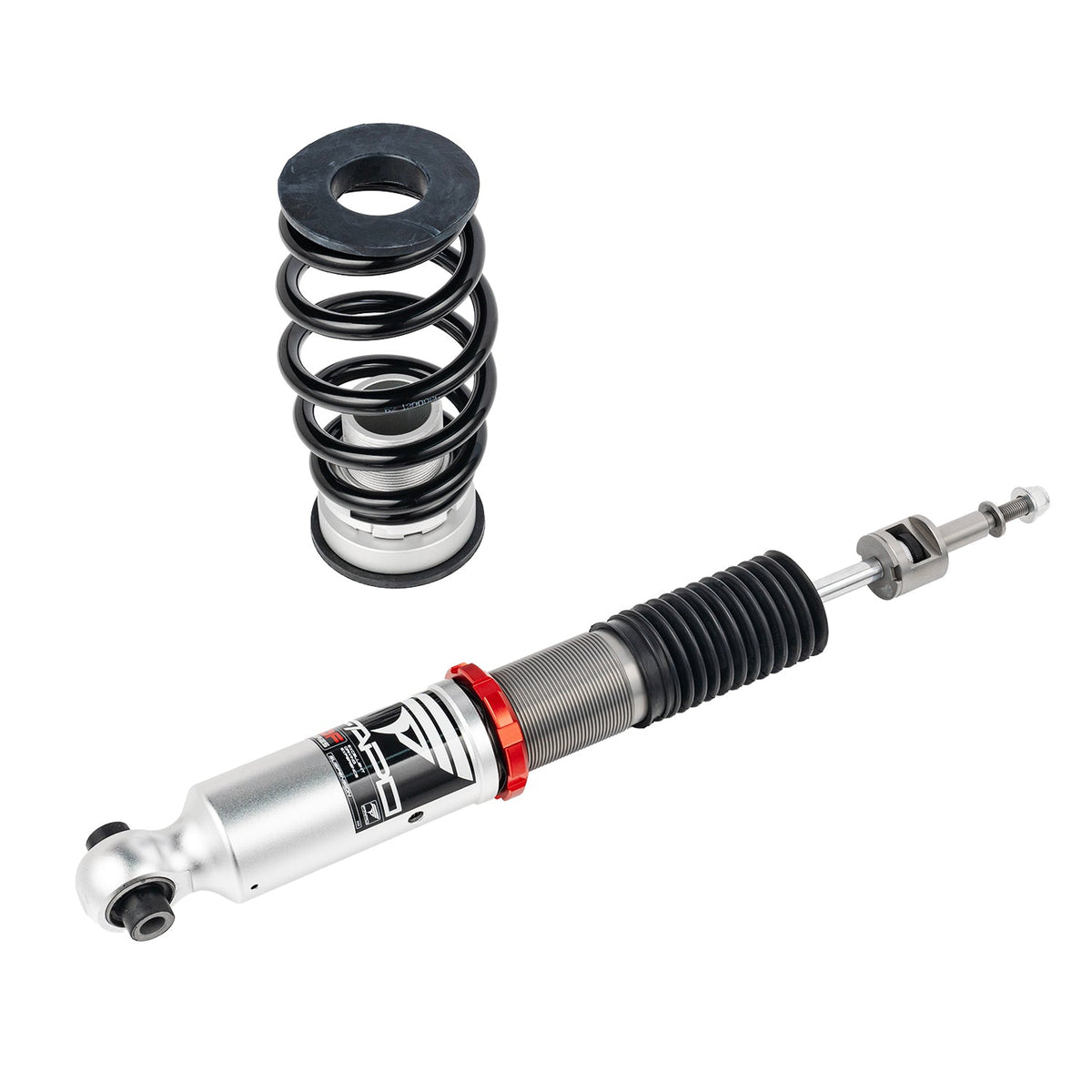

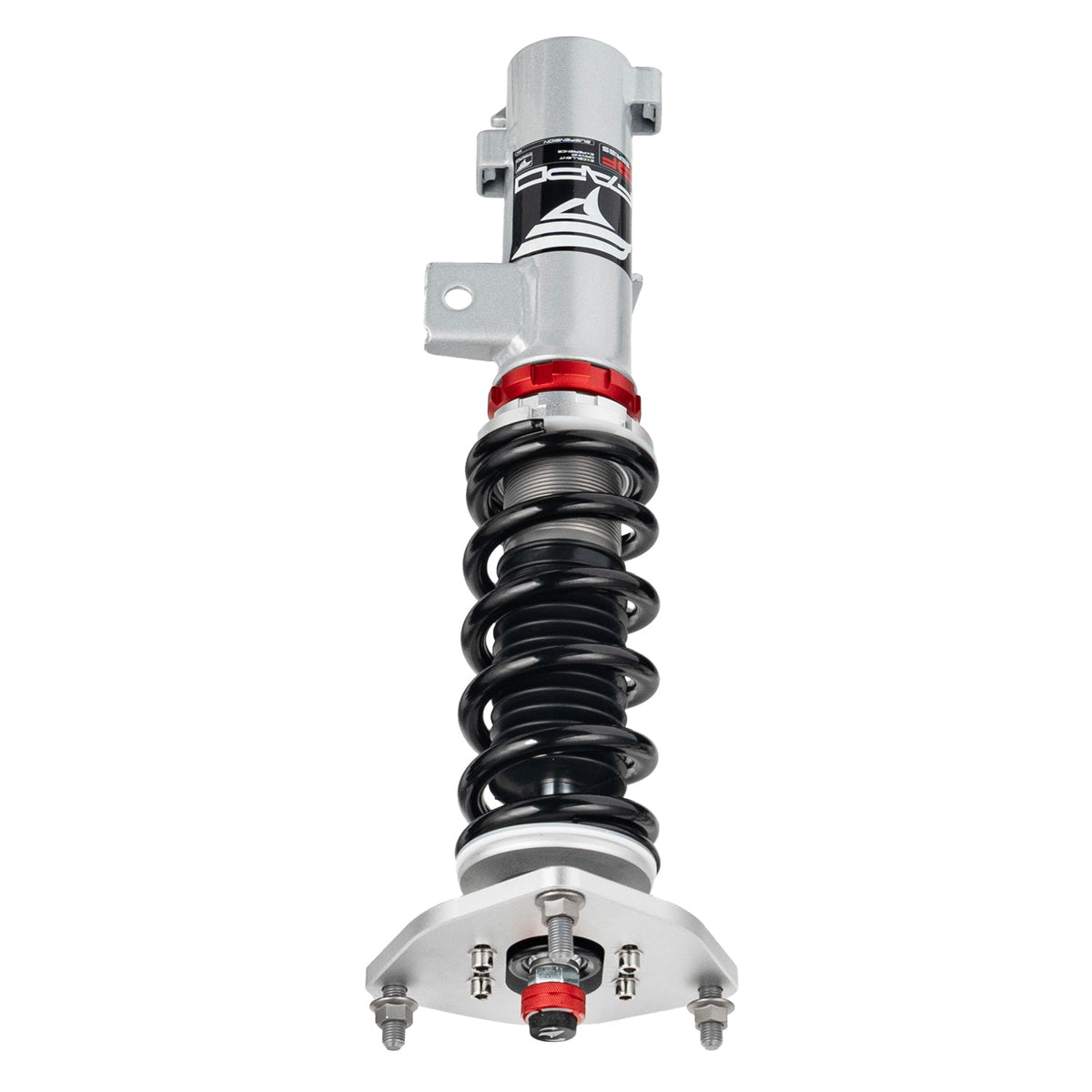

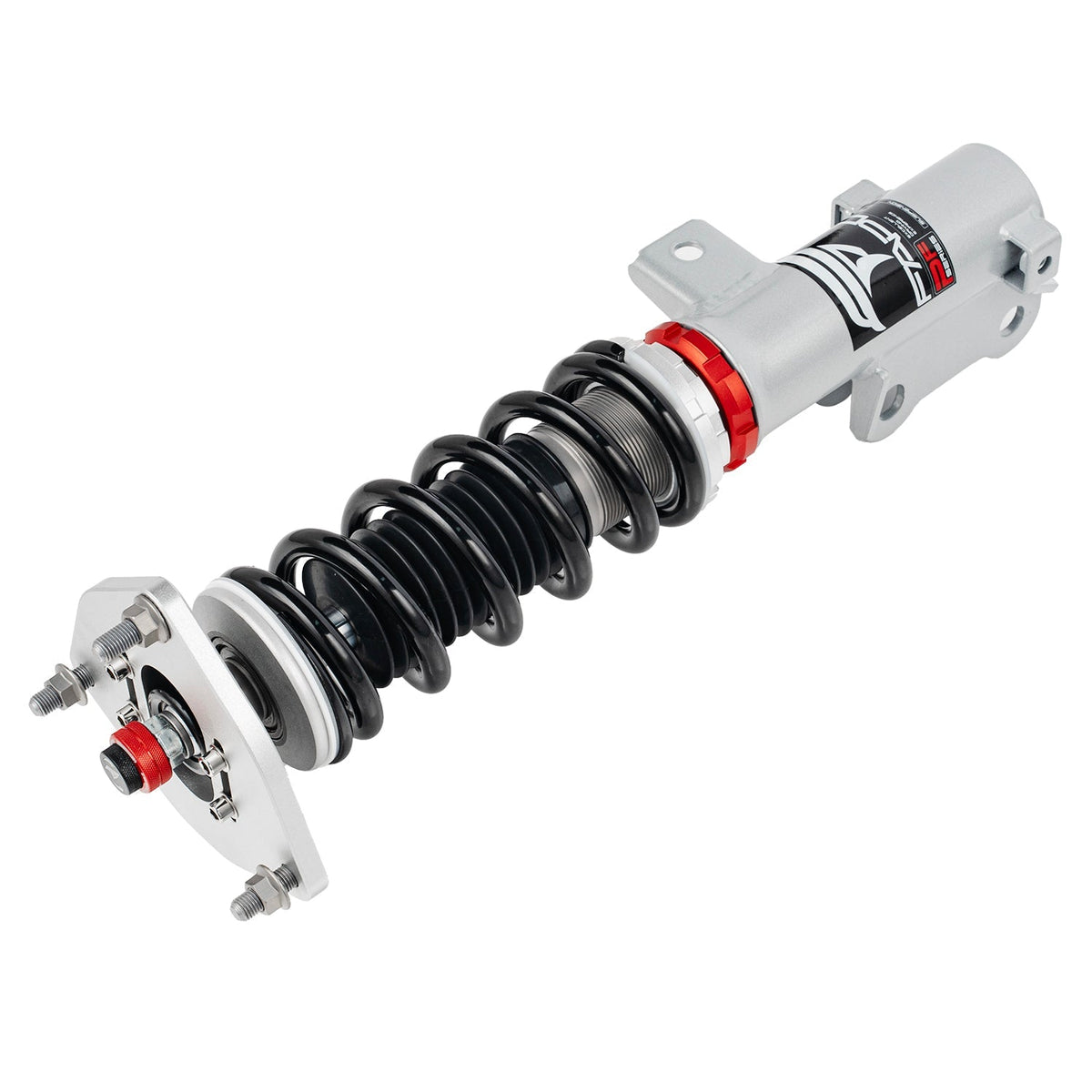

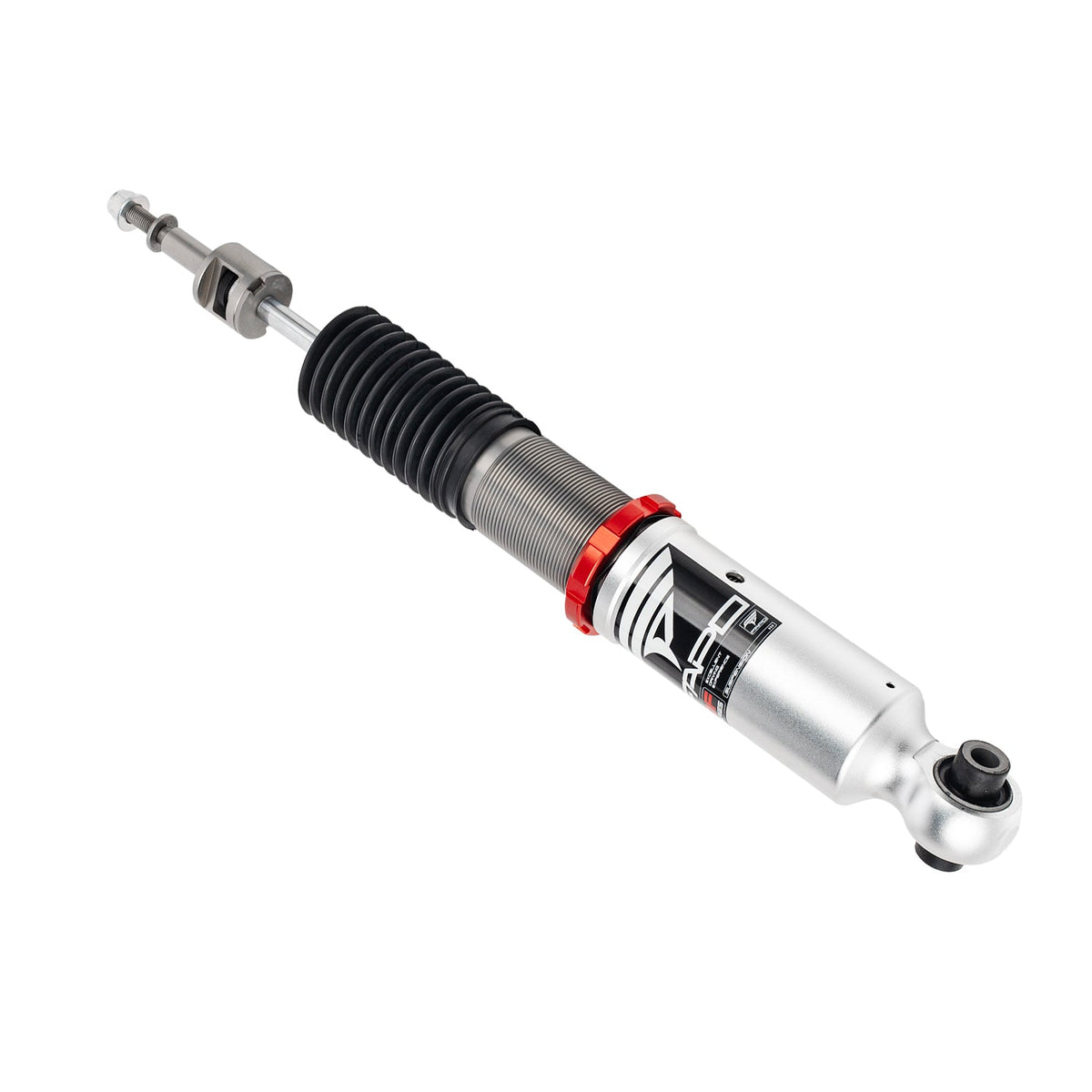

The FAPO PF kit for the 2016-2025 Hyundai Elantra/ Kia Forte 2019-2024 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover assembled and verified by RedShift for this car — or built to your own spring rates? See the RedShift Street S1 · Street Custom · Comp 1W.

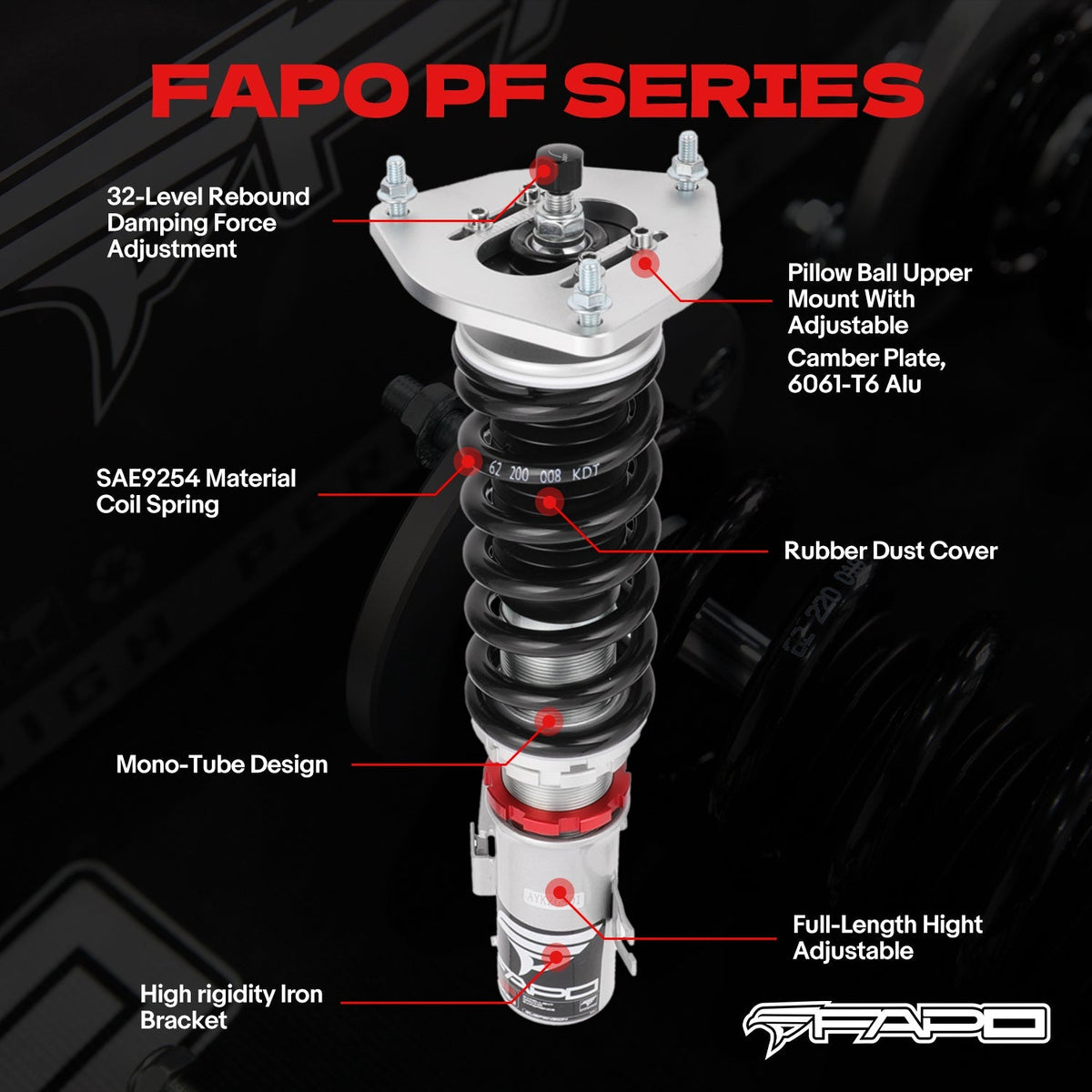

Features:

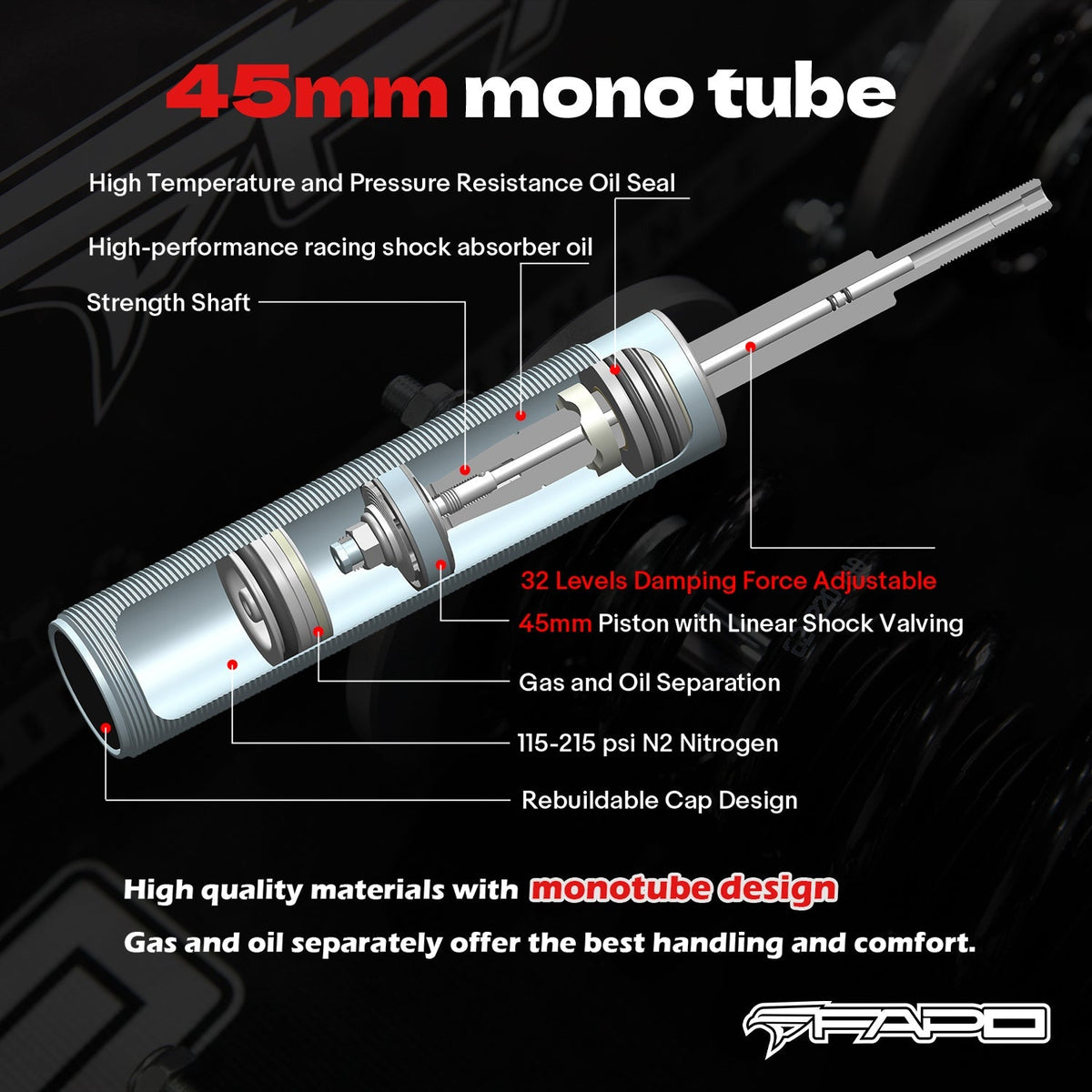

• Mono-tube design provides larger oil and gas capacity for a smoother and more comfortable street ride
• Ride height adjustable – lowers 1" to 1.5" from factory height (up to 2.5"–3" depending on vehicle chassis)

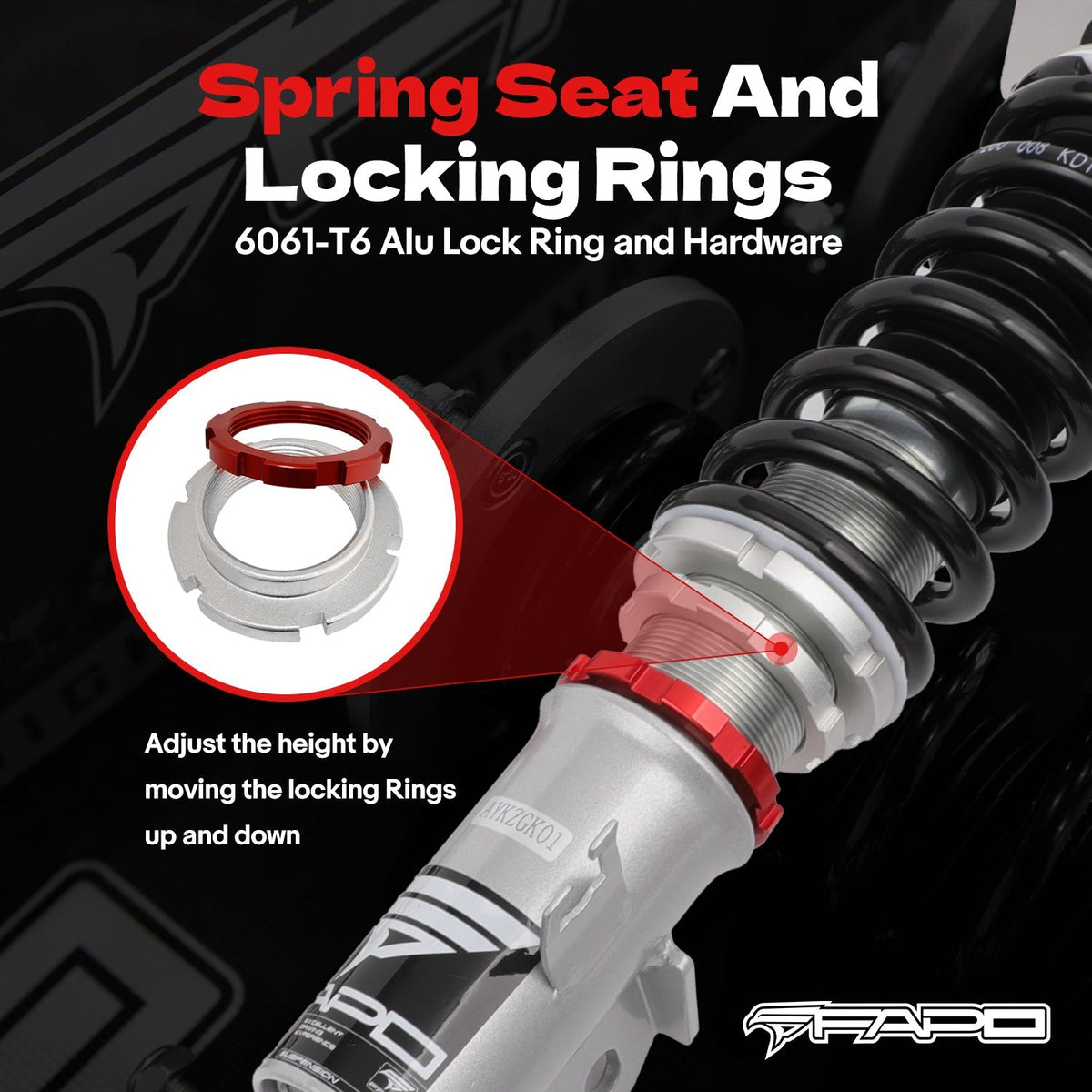

• Fully threaded absorber tube casing for independent height adjustment
• Adjustable pre-load spring tension – recommended 7–10mm pre-load before installation

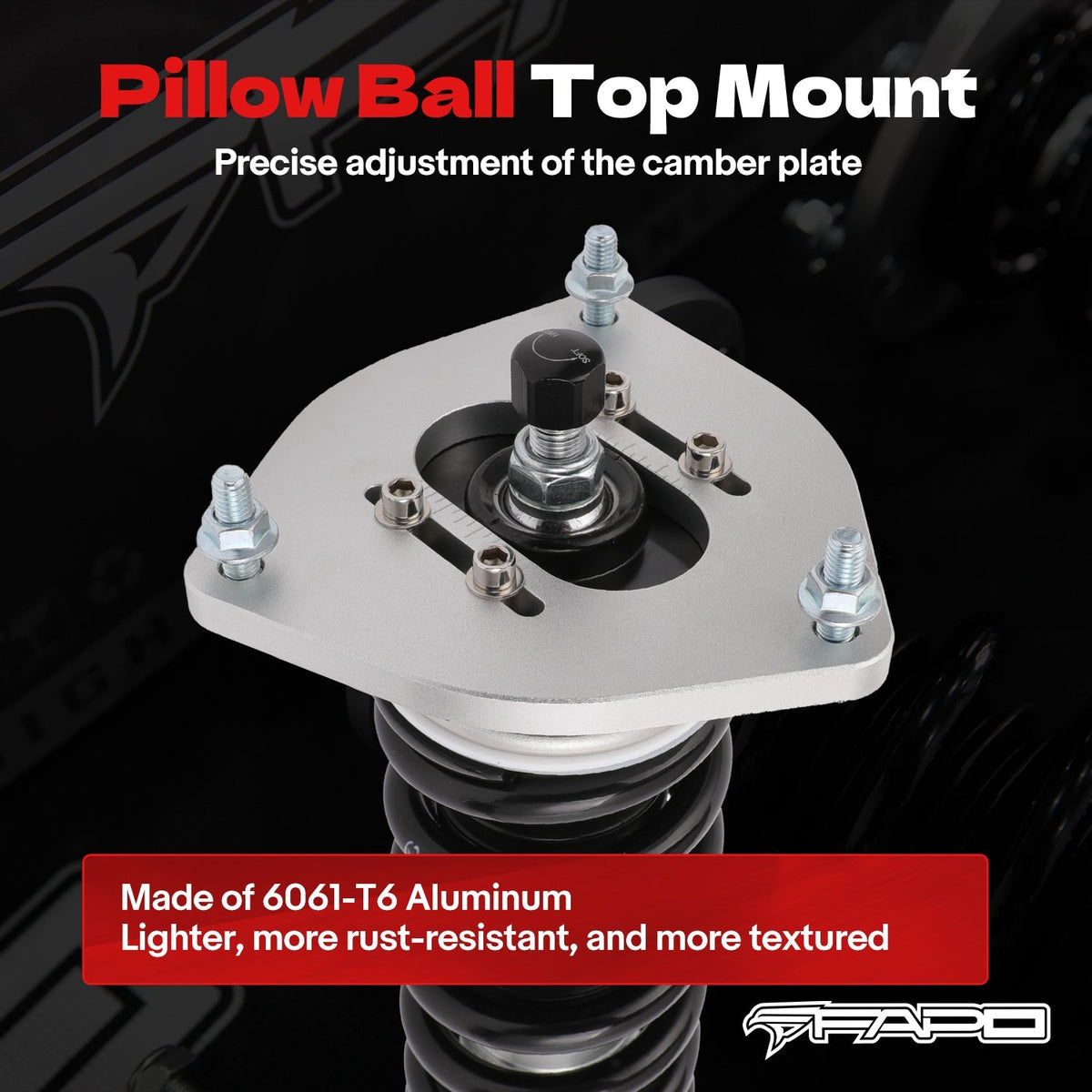

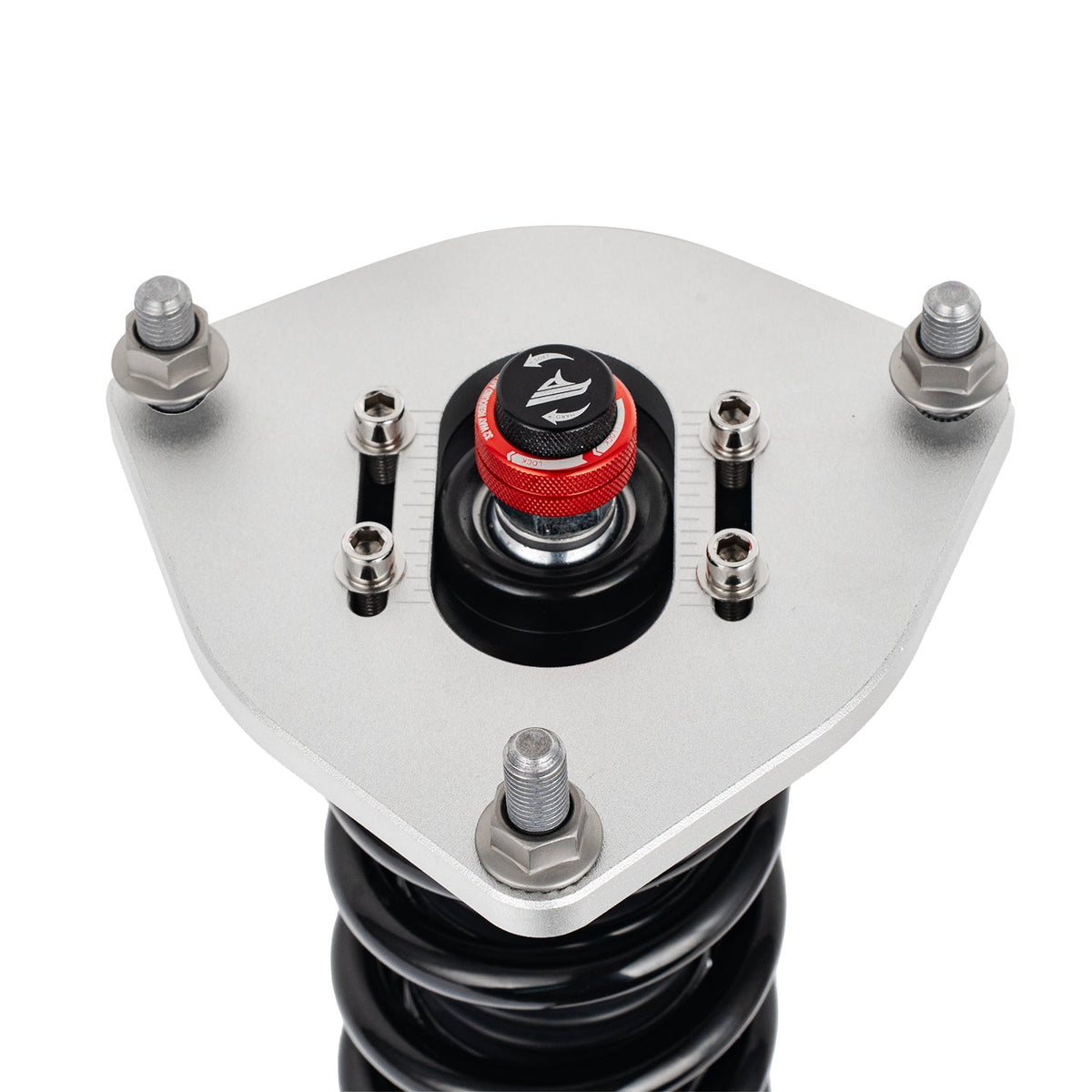

• Pillow ball top mount reduces noise during tuning and improves steering feel and response

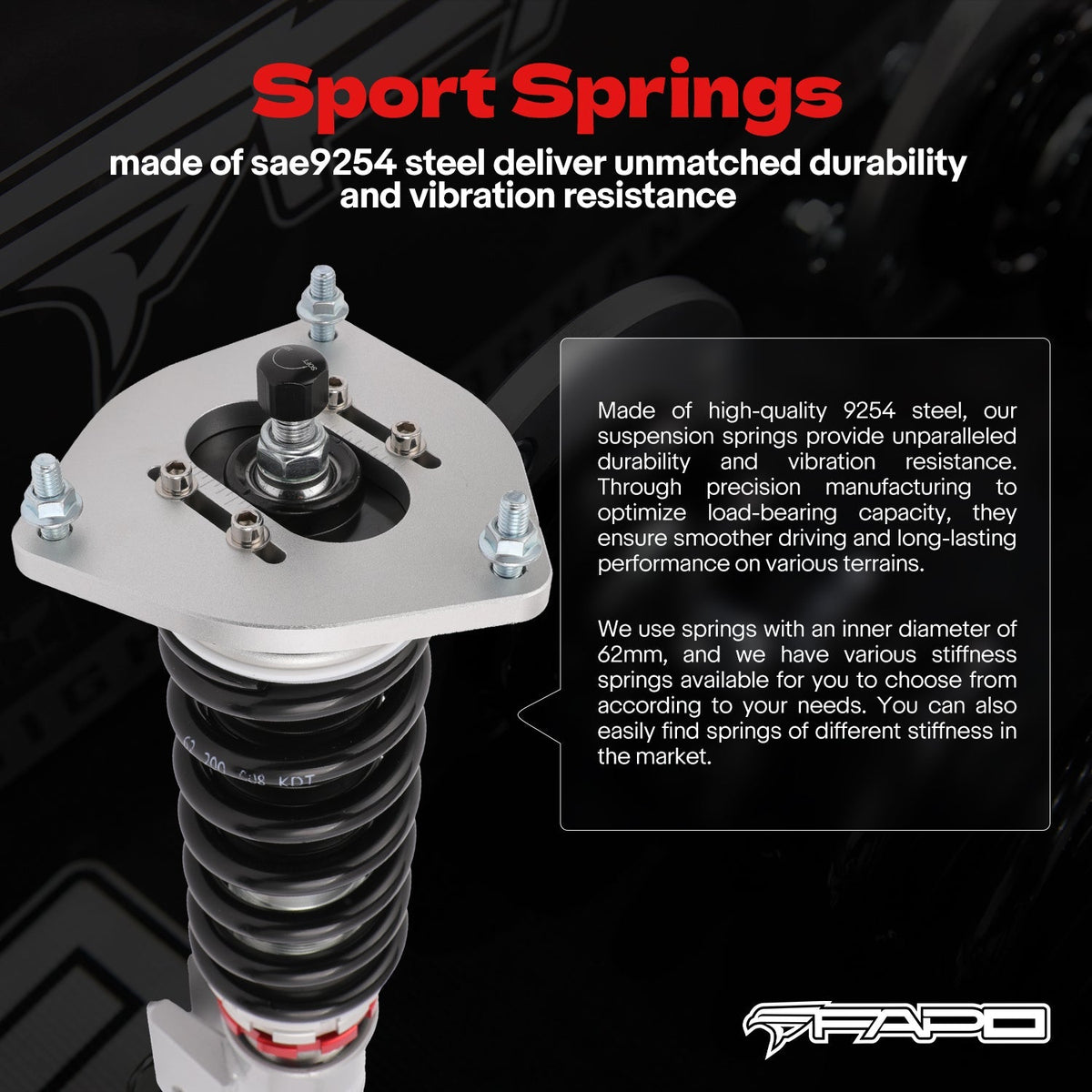

• High-tensile performance springs tested over 600,000 cycles with less than 0.04% distortion; special surface treatment enhances durability
• Constructed from T-6061 billet aluminum with anodized finish for superior strength and corrosion resistance
• All inserts include fitted rubber boots to protect the dampers and keep debris out
• Improves handling performance without sacrificing ride comfort
• An effective and affordable upgrade to enhance vehicle appearance
• Easy installation with proper tools
• Suitable for track, drift, fast road, and daily driving
• All accessories shown in photos are included
• 1-year FAPO warranty, extendable to 2 (see Warranty and support below)

Fitment:

• Kia Forte 3rd Gen BD (2019+)
• Hyundai Elantra 6th Gen AD (2016–2020)
• Hyundai Elantra 7th Gen CN7 (2020+)

Specifications:

• Front Spring Rate: 8 kg/mm (447 lbs/in)
• Rear Spring Rate: 6 kg/mm (335 lbs/in)

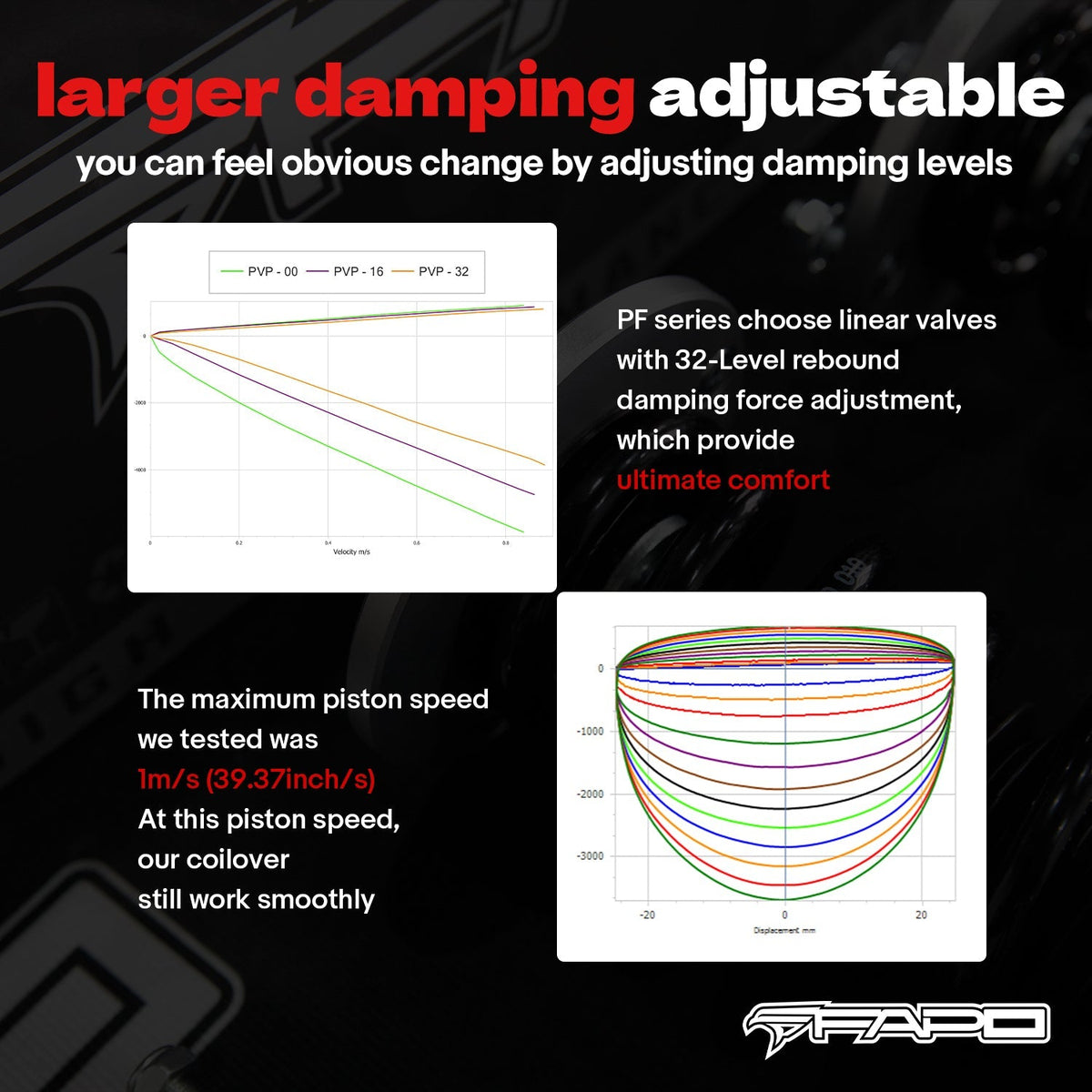

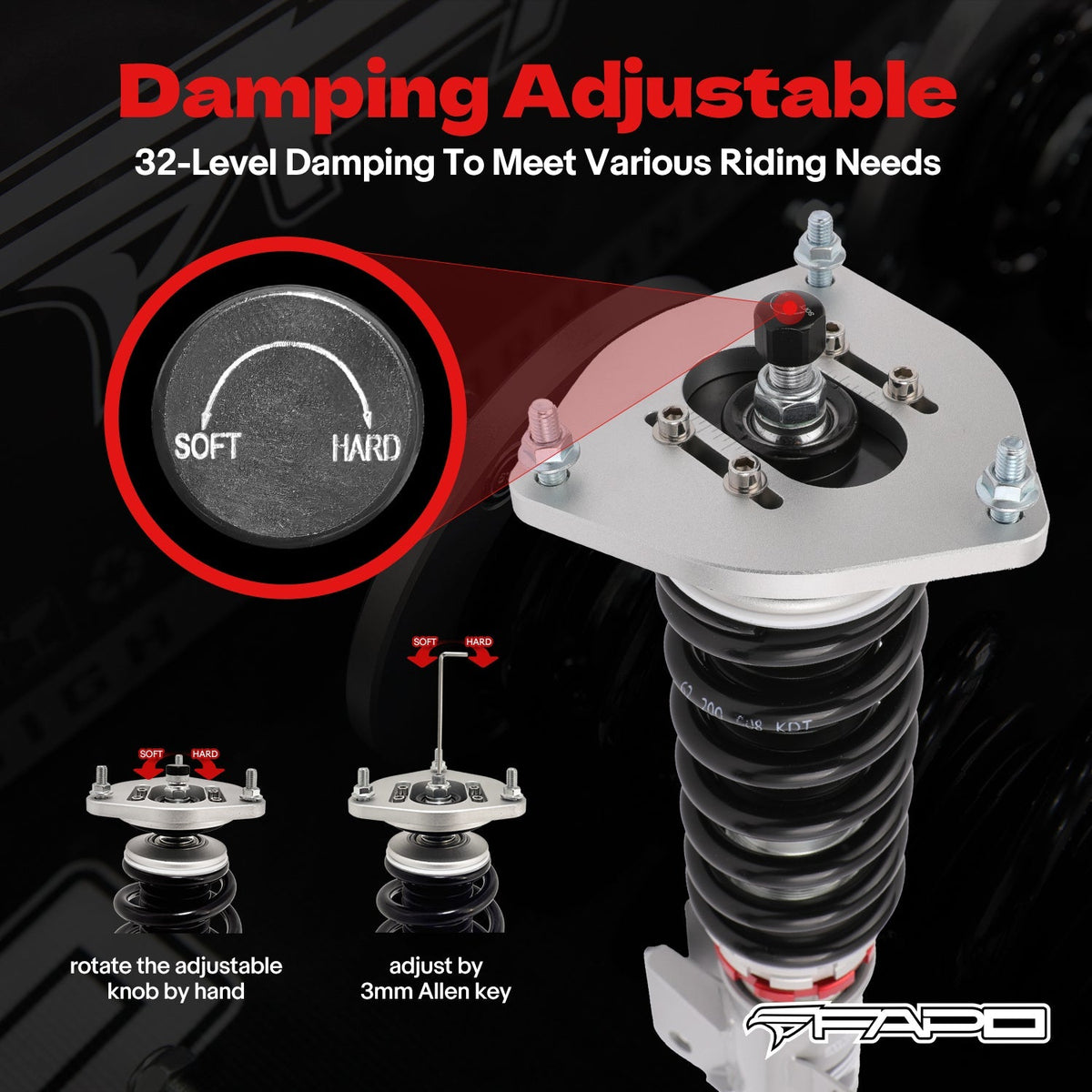

• Adjustable Damper: 32 levels
• Height Adjustable: Yes
• Adjustable Camber Plate: Front only (OEM top mounts required for rear)

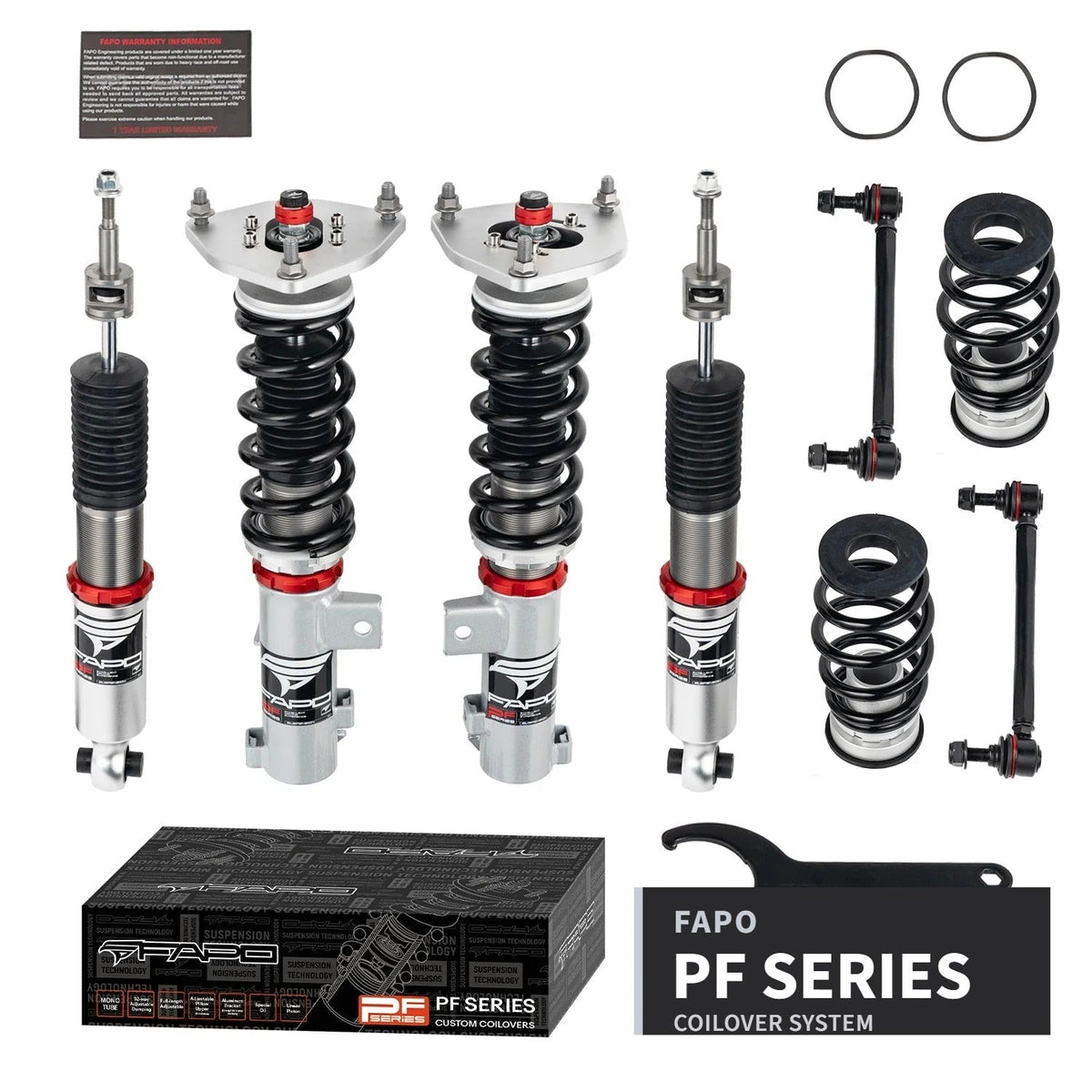

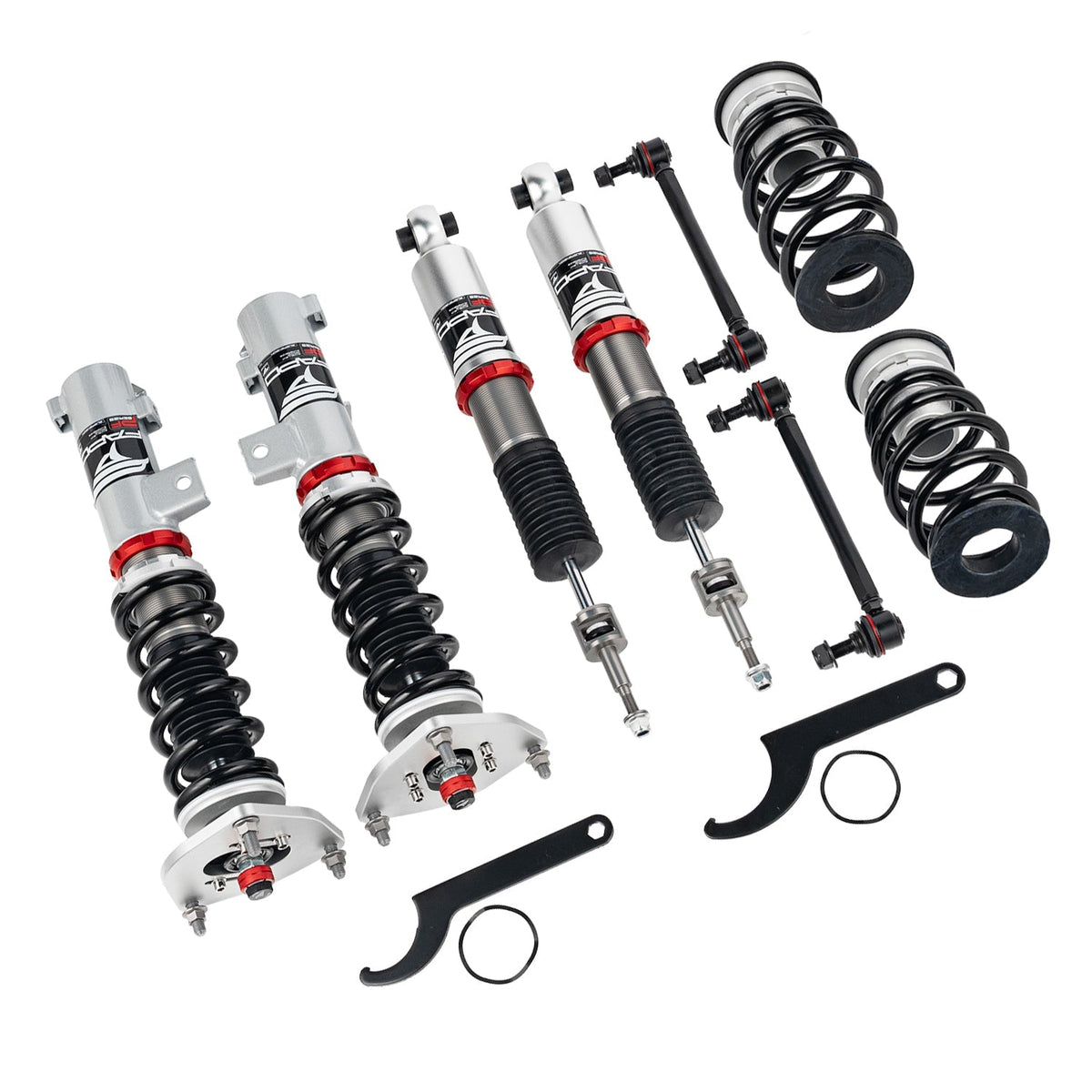

Package Included:

• 1 Set of Coilover Spring Kit (2 Front + 2 Rear)
• 1 Pair of wrenches for height adjustment
• 4 Waving rings
• 1 Pair of sway bar links

Warranty and support

FAPO coilovers carry a 1-year warranty, extendable to 2, against defects in materials and workmanship for the original purchaser, and RedShift handles the claim for you — clear photos and a short description are usually all it takes. Add a year at no cost: post photos or video of the installed kit publicly on social media with #RedShiftMotorsports, then send us the link and your proof of purchase (order number or dealer invoice) through the Contact page. Full terms on our Warranty page. Questions on fitment, spring rates or setup? Contact us before you order.

All FAPO and RedShift coilovers are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
