FAPO PF 32-Level Coilovers Mazda 2 DE 2007-2014 & Ford Fiesta 2008-2019 [PF007520]

FAPO PF Coilovers — 32-level damping-adjustable monotube coilovers, sold and supported by RedShift Motorsports.

The FAPO PF kit for the Mazda 2 DE 2007-2014 & Ford Fiesta 2008-2019 is a full-length threaded-body monotube coilover with 32 levels of damping adjustment, separate ride-height and spring-preload adjustment, and springs, mounts and tools included — nothing else to buy. It ships exactly as FAPO builds it.

Want a coilover built and set up by RedShift for this car? See the RedShift Street S1 · Street Custom · Comp 1W.

Application

• Mazda 2 DE 2007-2014
• Ford Fiesta B299 2008-2019

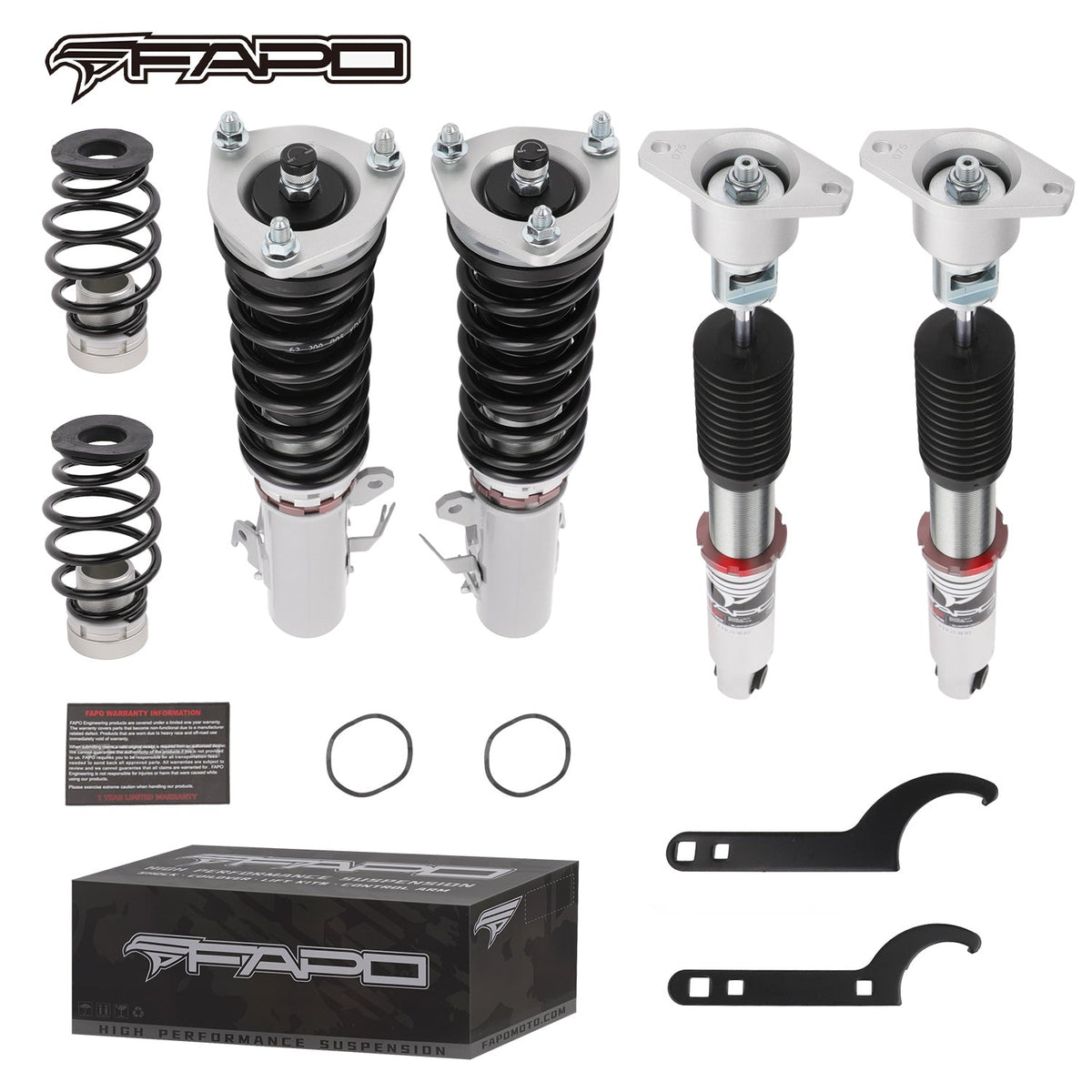

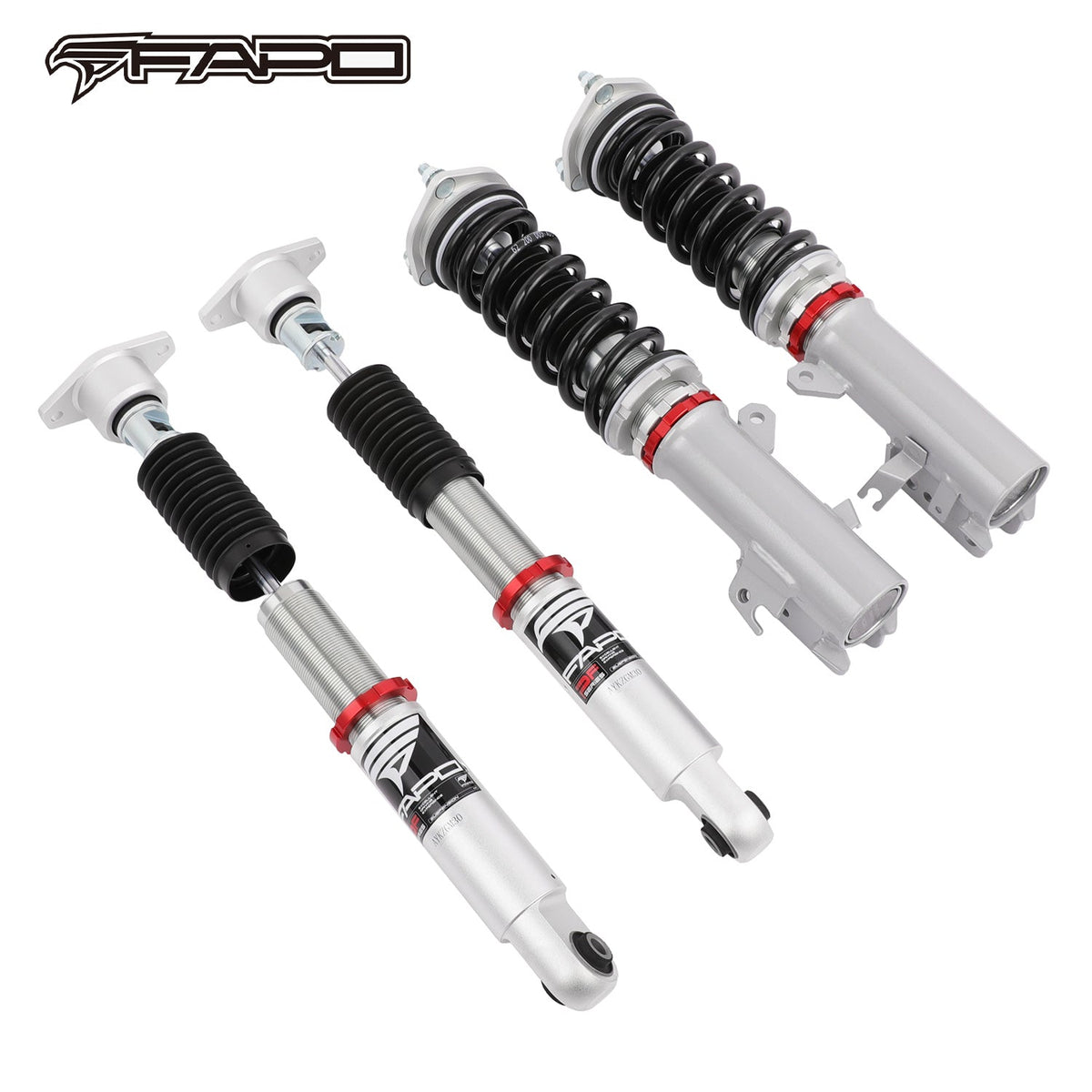

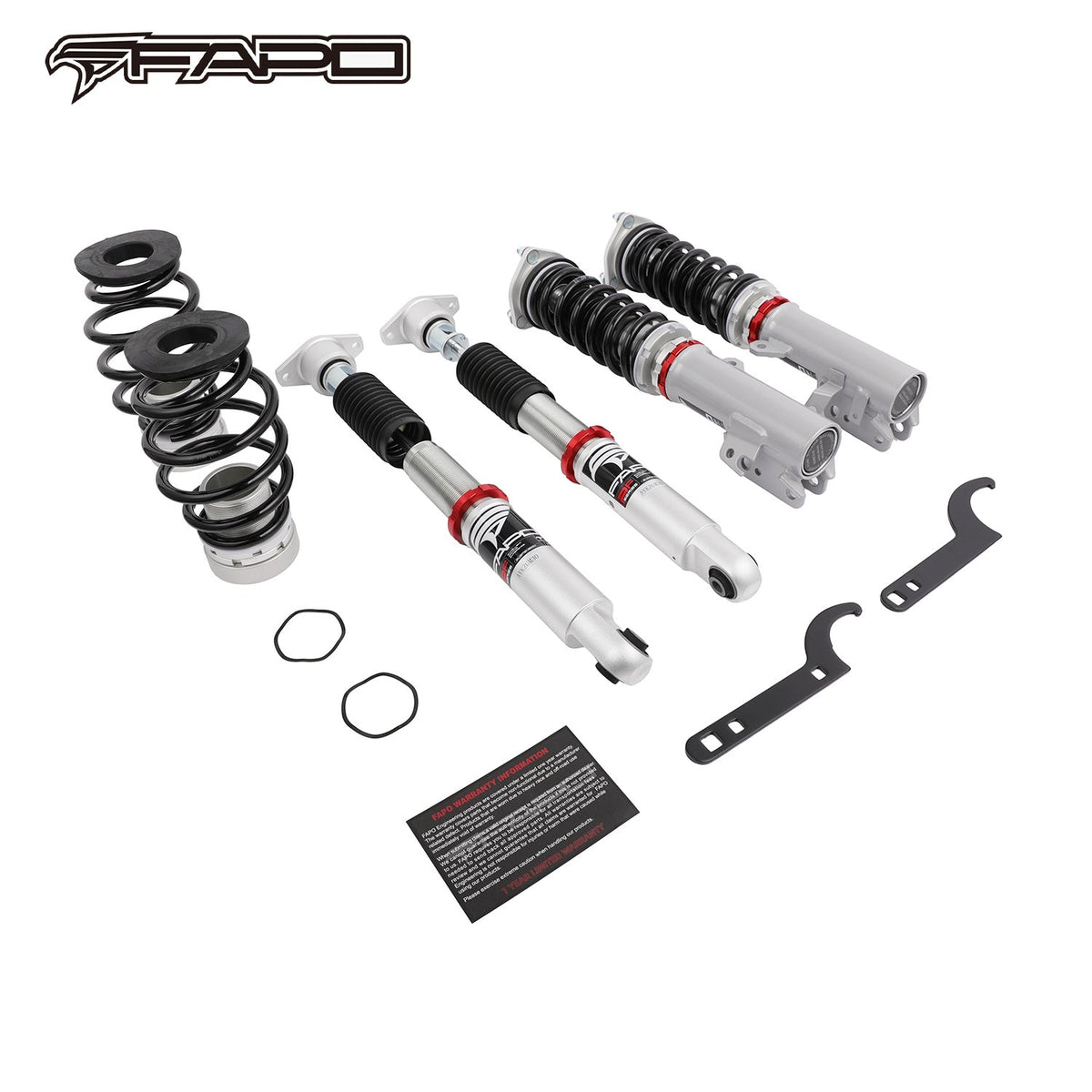

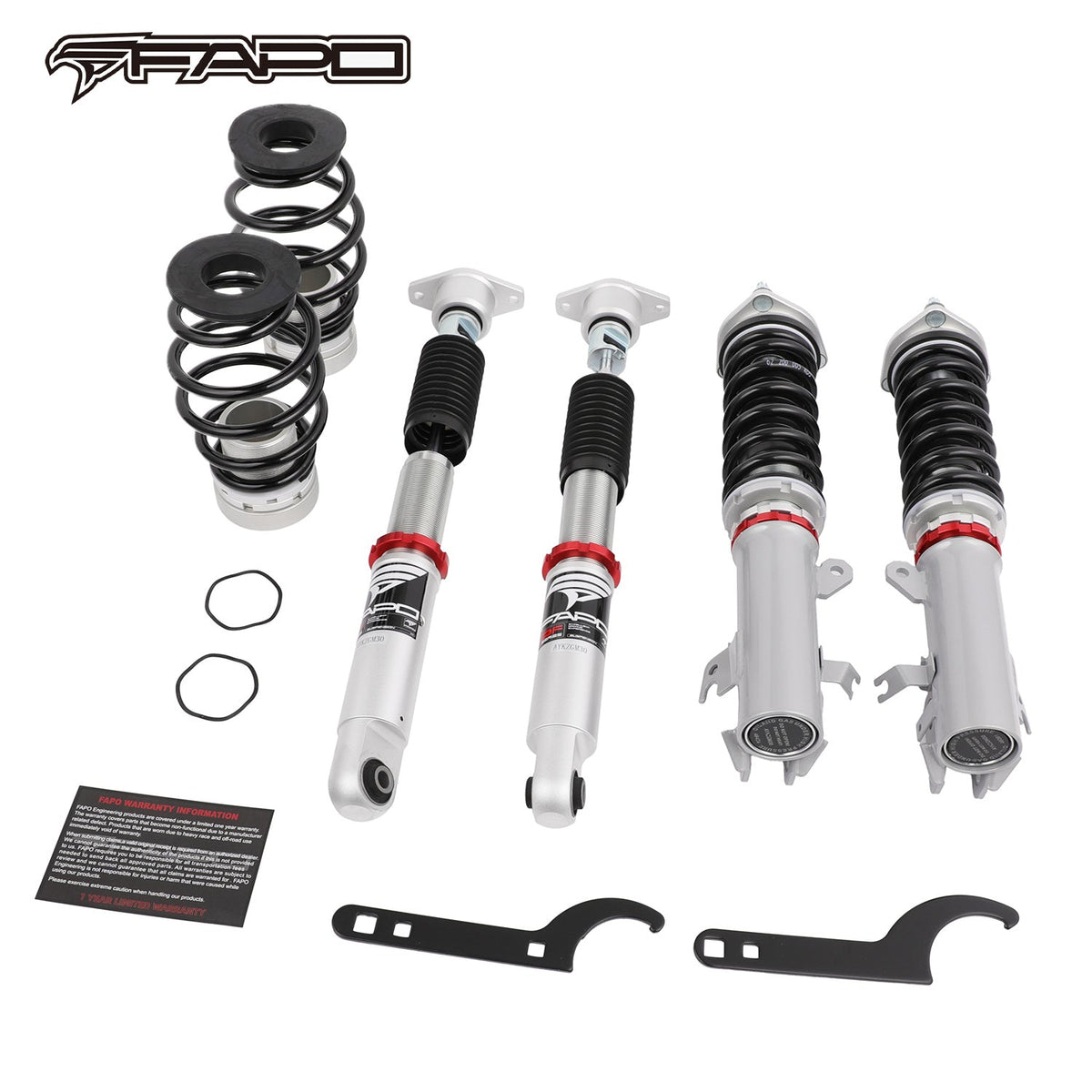

Package Includes

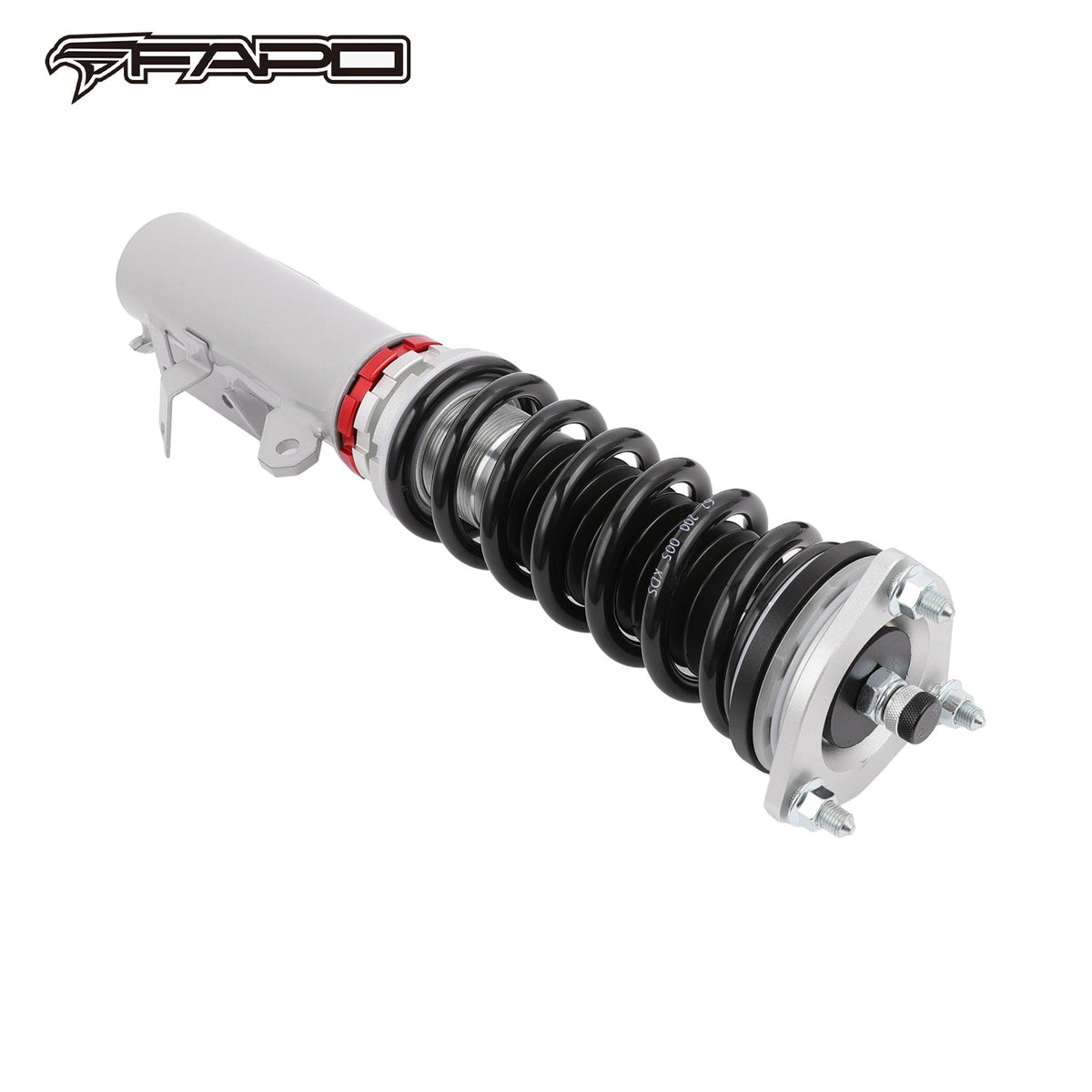

• Front coilovers × 2 pcs

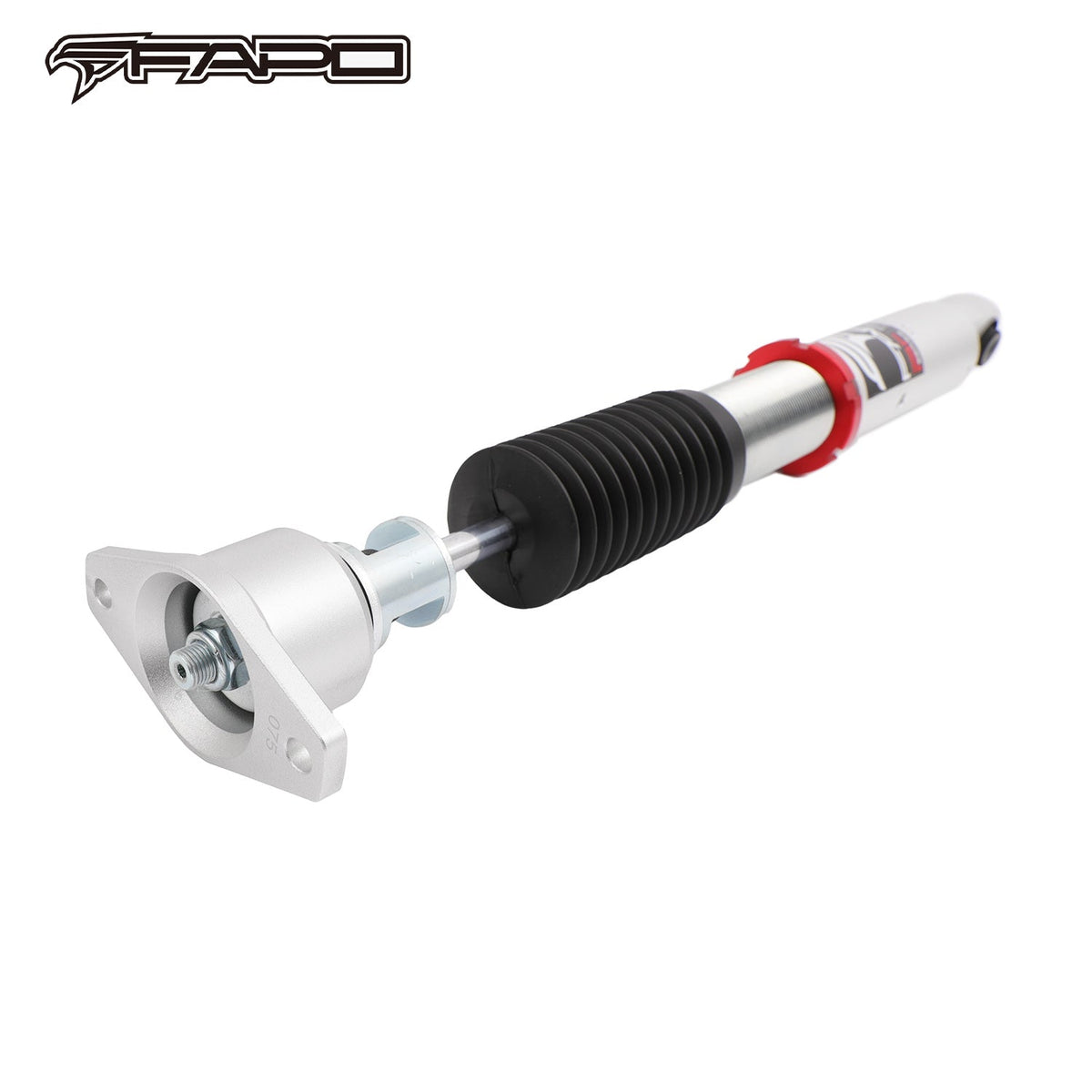

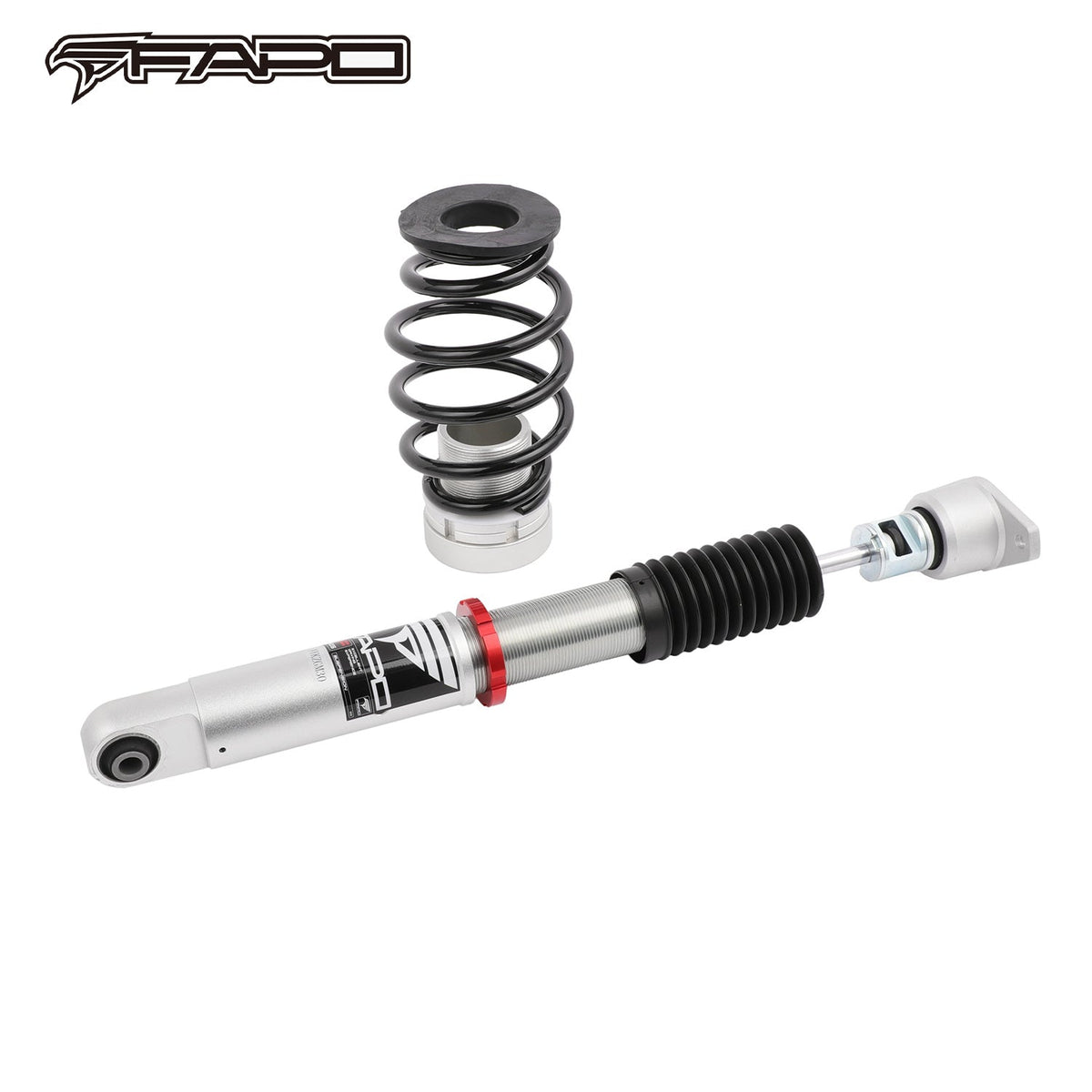

• Rear coilovers × 2 pcs
• Wrench × 2 pcs

Features

• 32-way adjustable damping allows precise tuning for comfort, track, or aggressive street driving
• Mono-tube shock design provides larger oil and gas capacity

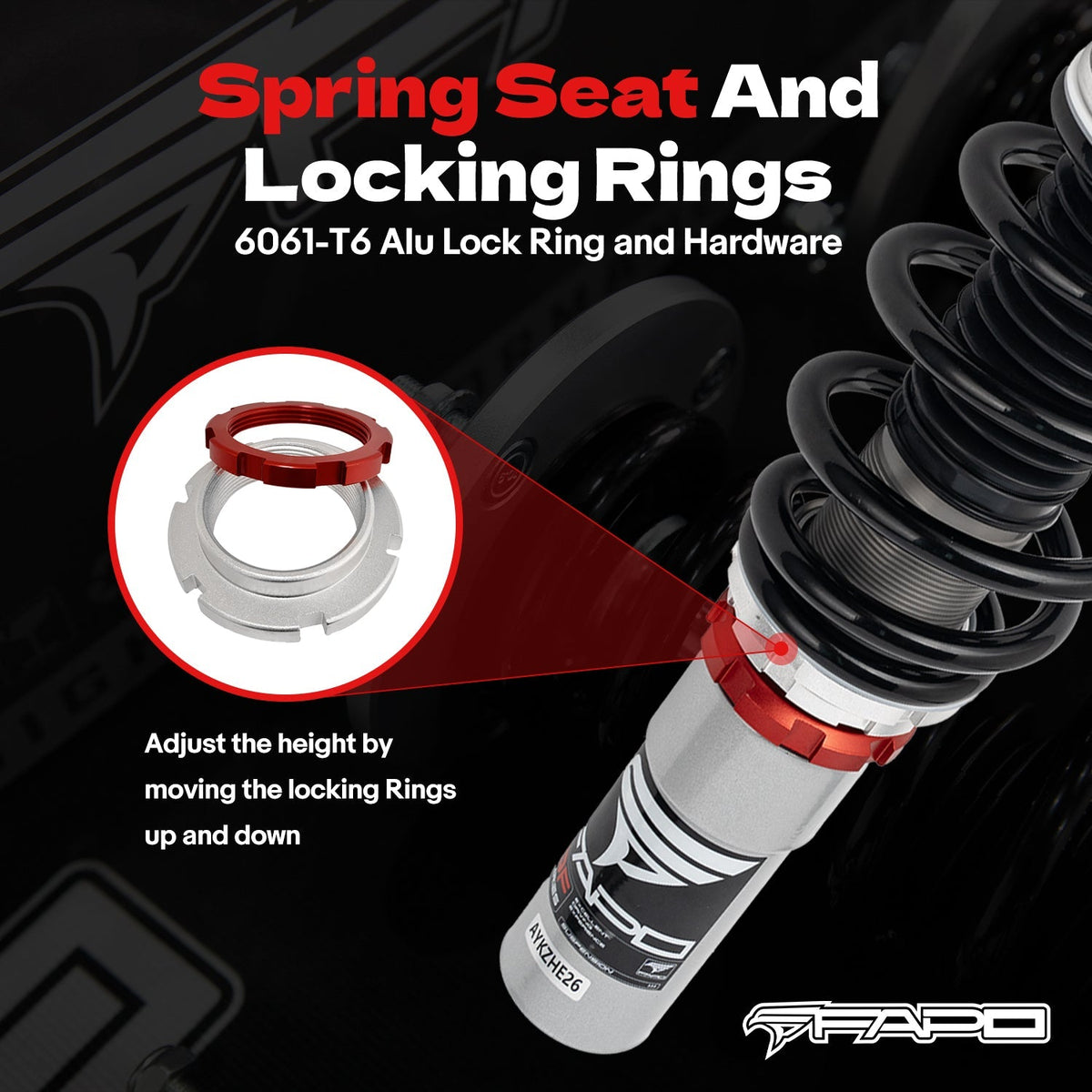

• Adjustable ride height for customized performance
• Adjustable pre-load spring tension for enhanced handling

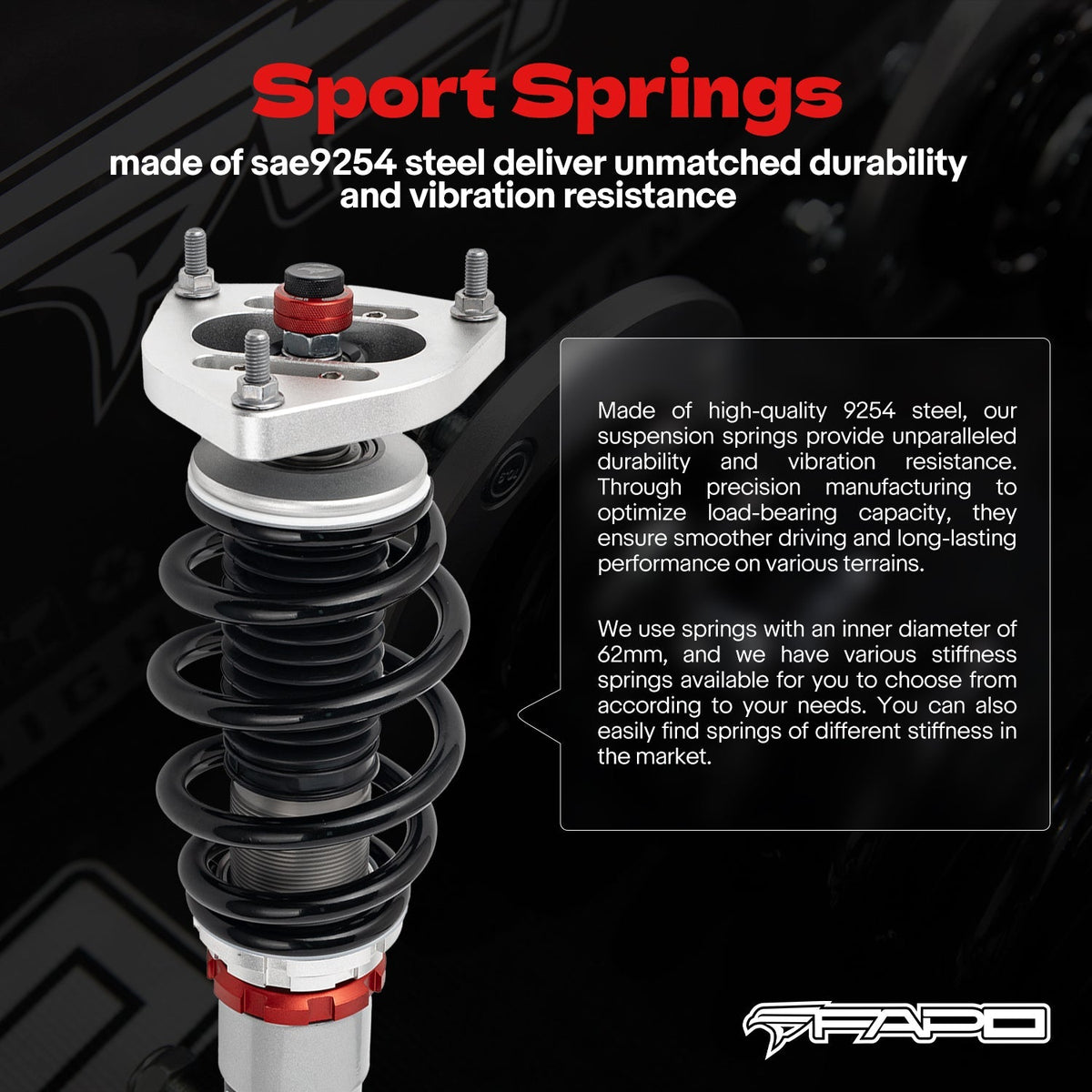

• High tensile performance spring: less than 0.04% distortion after 600,000 continuous tests, with special surface treatment for durability
• Rubber boots on all inserts to protect the damper and keep it clean
• Improves handling without sacrificing ride comfort
• Quick and affordable way to upgrade your car's appearance
• Easy installation with standard tools
• Ideal for track, drift, fast road, and daily driving
• Accessories shown in photos are included
• 1-year FAPO warranty against manufacturing defects

Specifications:

• Spring Rate: 279 lb/in (5 kg/mm) Front / 167 lb/in (3 kg/mm) Rear
• Damping: 32 Levels
• Cylinder Length: 11.03" (F) / 10.04" (R)
• Travel Length: 4.7" (F) / 5.9" (R)
• Spring Length: 7.87" (F) / 7.09" (R)
• Tube Diameter: 2.09" (F) / 1.77" (R)
• Shock Rod Diameter: 0.79" (F) / 0.49" (R)
• Valve: 4-M2-3 (F) / 2-44R03-7 (R)
• Rod End Thread: M12 (F) / M12 (R)
• Mounts: Standard top mounts (front and rear)
• Adjustable ride height: Yes

Warranty

All items carry standard 1 year warranty from purchase date. Proof of purchase required. For warranty claims, please provide order number and documentation (photos/videos) of the issue. In some cases, additional information may be requested to properly diagnose problems.

Warranty and support

FAPO coilovers carry FAPO’s 1-year warranty against manufacturing defects (original purchaser). RedShift handles the claim for you. Questions on fitment, spring rates or setup? Contact us before you order.

All coilovers sold by RedShift are for off-road use only and may never be installed on vehicles that will be driven on public roads or highways.
